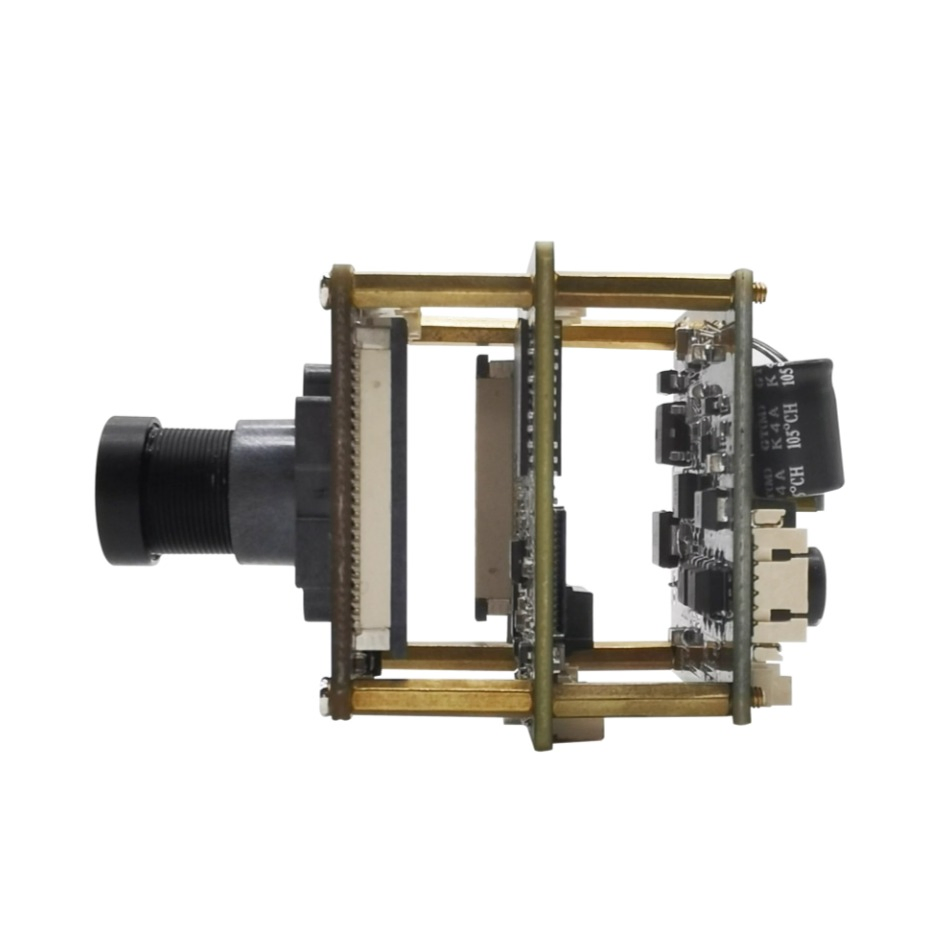

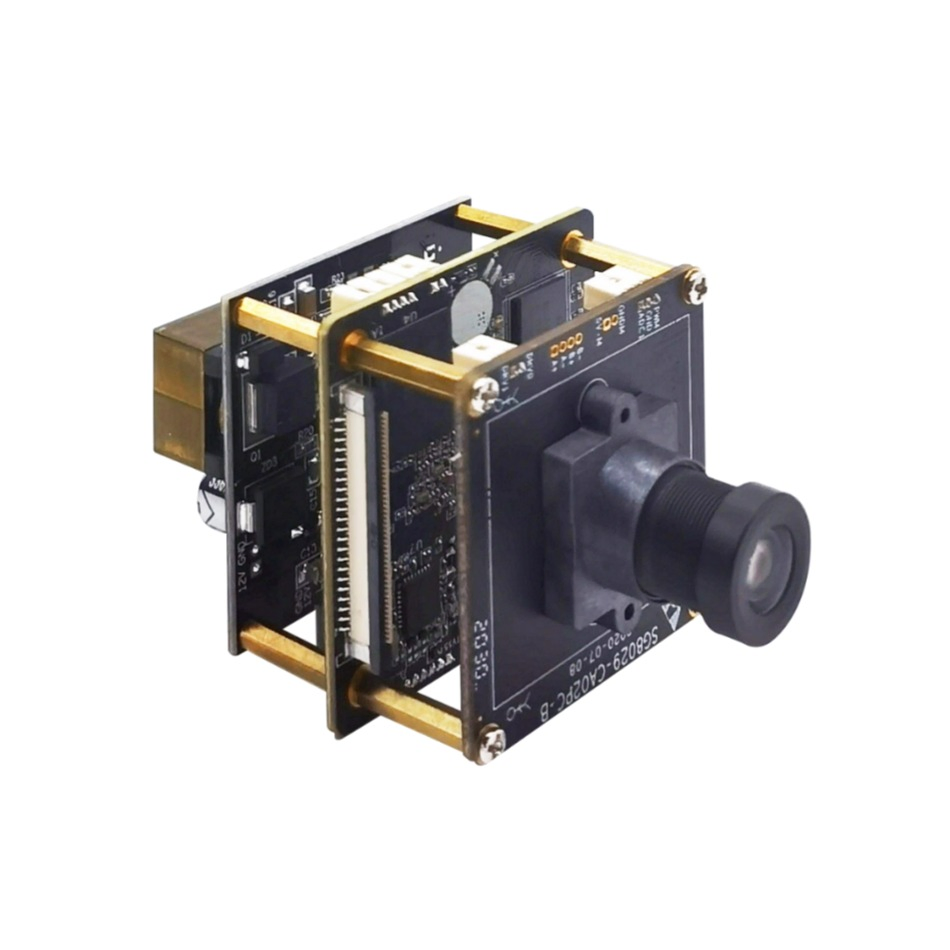

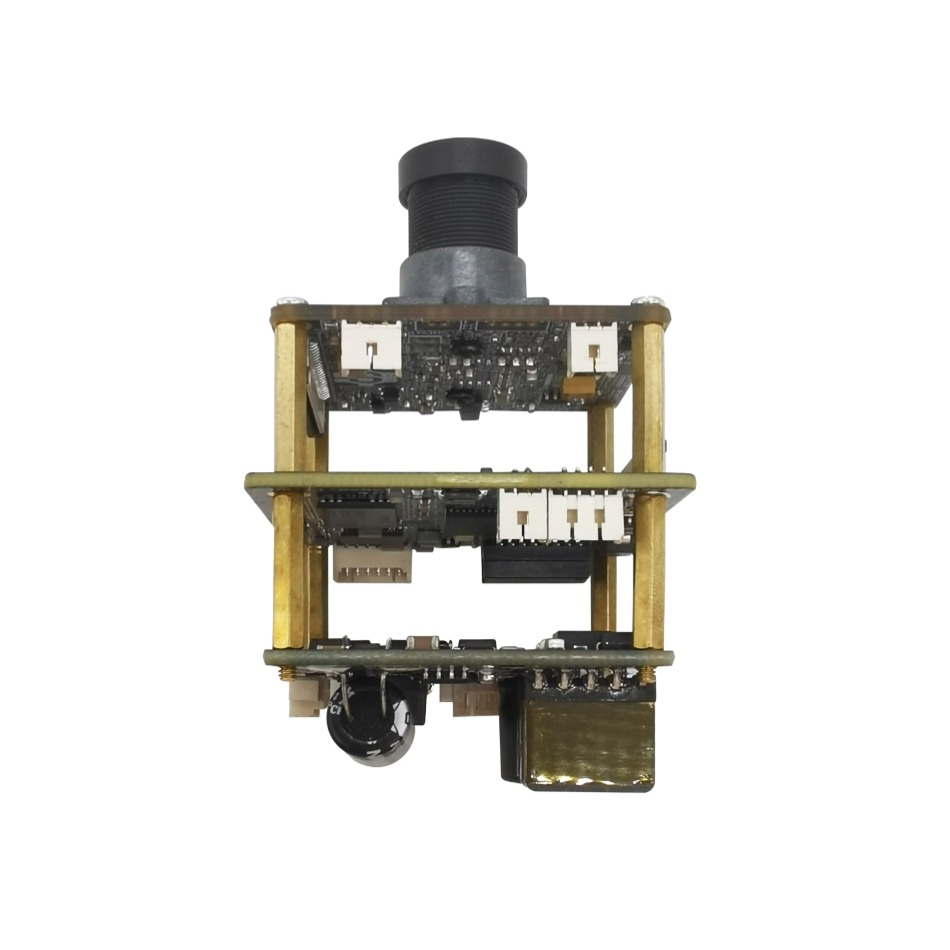

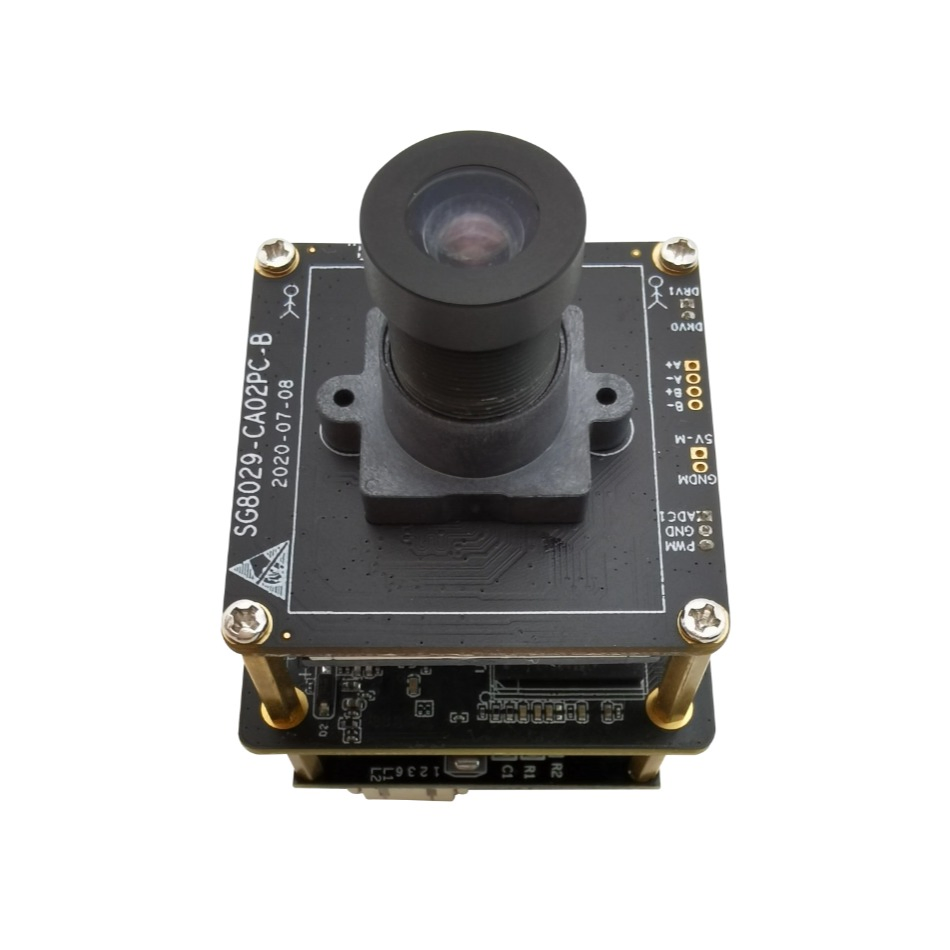

RV1126 Cameracctv Video Security System Module

1 / 5

RV1126 Cameracctv Video Security System Module

Customization:	Available
Technology:	WDR
Style:	Bullet Camera

Send Inquiry

Product Description

Basic Information

Model NO.

Horus AI camera module

Type

CCTV Camera

Sensor

CMOS

HDMI Format

Resolution

4096

Focus

Manual Focus Lens

Certification

CE, FCC, RoHS, ISO9001

Feature

Waterproof, High Definition

Sensor Size

1/2.8"

Power

5W / DC5V

CPU

Quad Core Arm Cortex A7 1.5GHz

RAM

1GB DDR3 SDRAM

Product Highlights

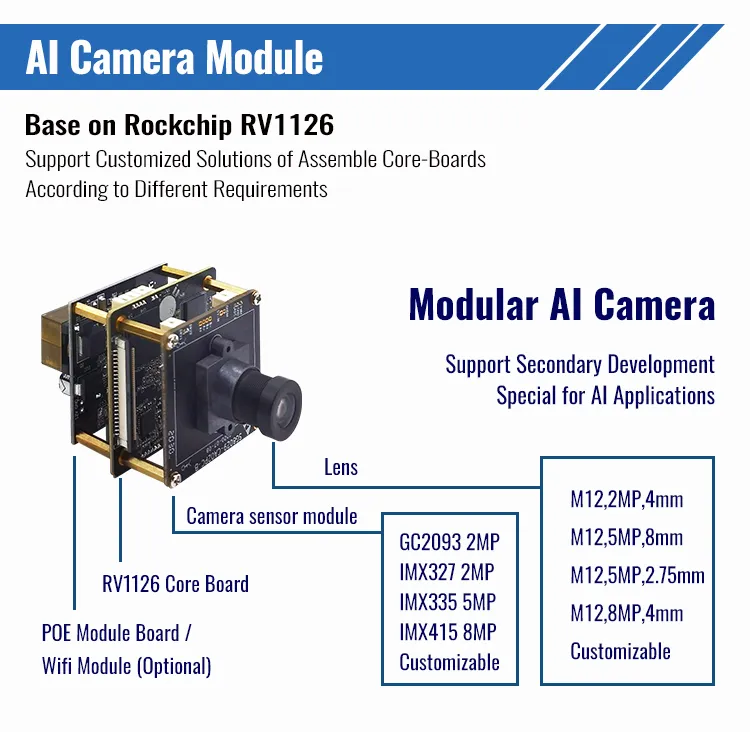

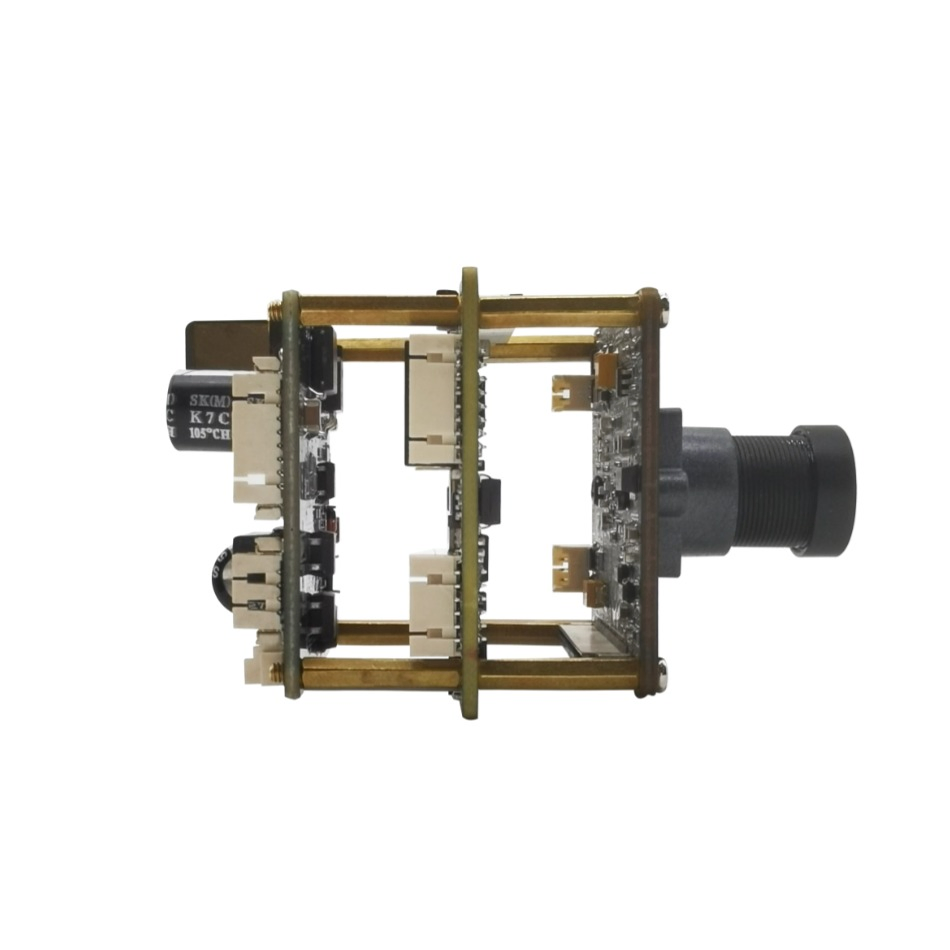

IMX415 Camera Module RV1126 AI Tracking Camera

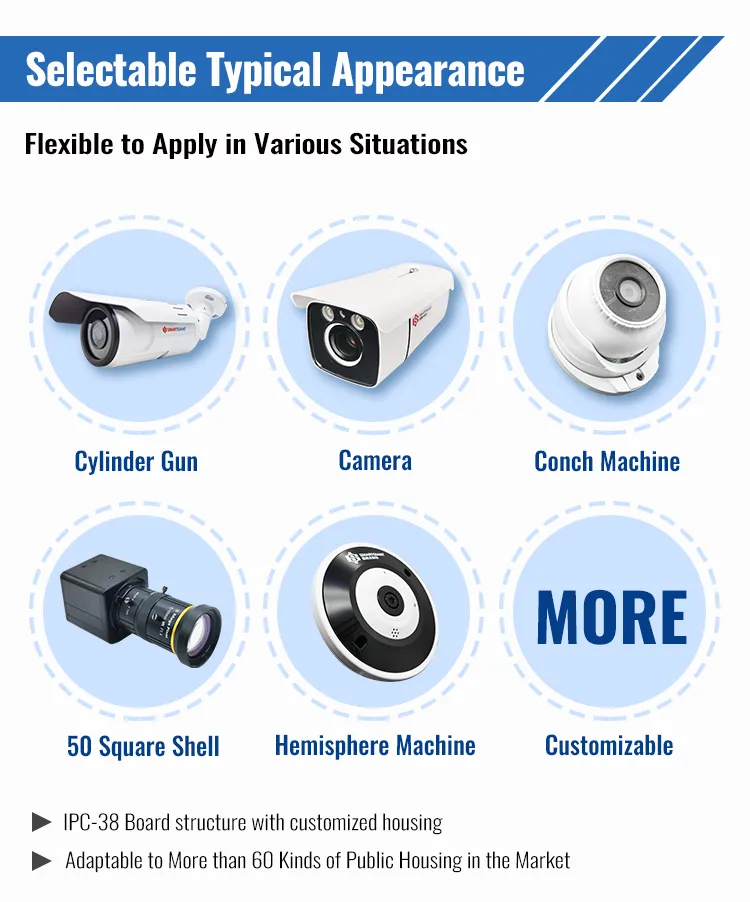

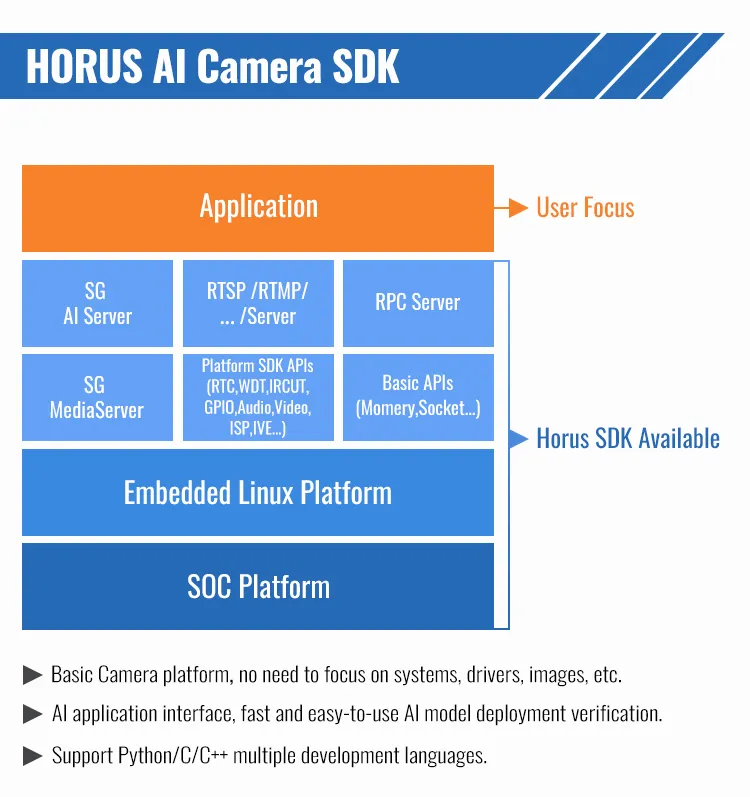

The developed prototype with customized design can provide structure and shell. The camera includes basic IPC software, systems, drivers, RTSP video streaming, camera configuration, and AI application API.

● Support Customized Solutions of Assemble Core-Boards.
● Support NNIE performance up to 2.0 Tops.
● Support up to 2T SD/SDXC card local storage.
● Compatible with 2 million or 5 million image sensors.
● Advanced H.265/H.264 compression technology.
● ICR infrared filter automatic switching for day/night monitoring.

Technical Specification

Product Name	Horus AI camera
Operating System	Linux
CPU	Quad Core ARM Cortex A7
RAM	1GB DDR3 SDRAM
Memory	EMMC Flash 8GB, Supports TF card extension
AI Analysis	Integrated acceleration engine, 2.0T Tops Neural Network
Dimensions	38*38 mm
Voltage Range	9-16V; Typical value: 12V
Lightning Protection	4KV on Ethernet port
Interface	USB 2.0, RJ45 POE/DC Option

Product Details Gallery

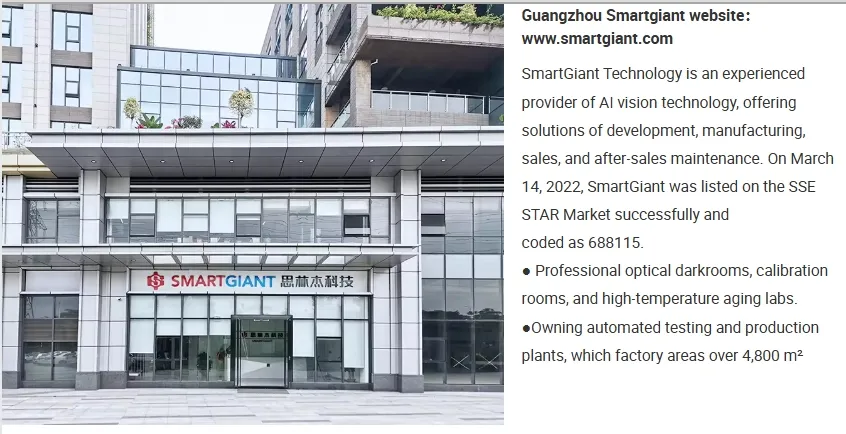

R&D and Assembly

● 15+ years in AI vision inspection & automated testing.
● Certifications: ISO-14001, ISO-27001, CE, CCC.
● 7X24 hours After-sales service and technical support.
● Plant Area: 4800 Square meters with automatic assembly lines.

Frequently Asked Questions

What is included in the shipping fee?

The shipping fee includes the costs for shipping and customs declaration fees. For one order, there may be a one-time customs declaration fee of $50.

Why is the sample order limited to 1pc?

The final charge involves freight and customs fee calculations. For orders of 2 pcs or more, please contact us for a detailed quote based on volume and weight.

What is the estimated delivery time?

Small quantities take about 7-15 days. Large quantities or bulk orders typically require approximately 30 days depending on the season.

What payment methods do you accept?

We accept T/T, L/C, Western Union, and PayPal. Specific payment terms are negotiable based on the order.

What are the available shipping methods?

Products can be shipped by sea, air, or express delivery services including EMS, UPS, DHL, TNT, and FedEx.

Are there additional customs fees?

Shipping fees may include customs declaration fees. We recommend confirming the total cost with us before placing your order.
