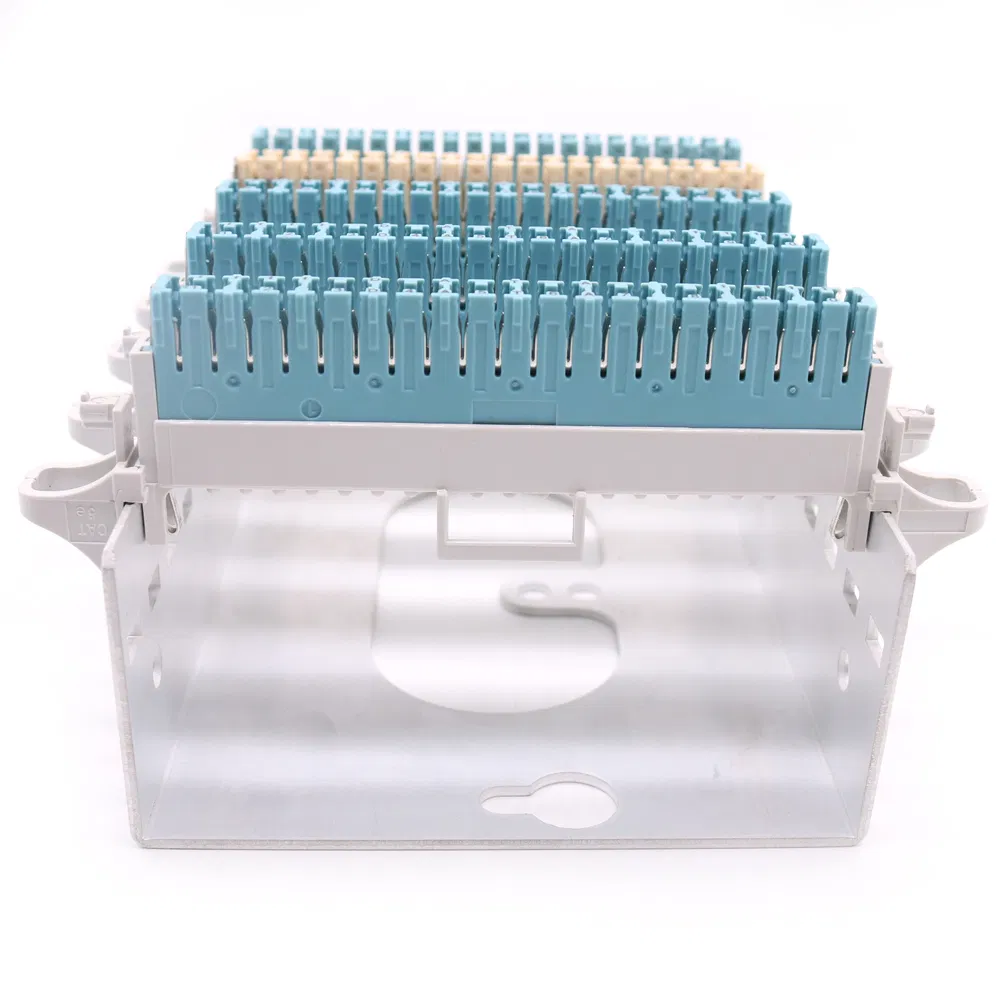

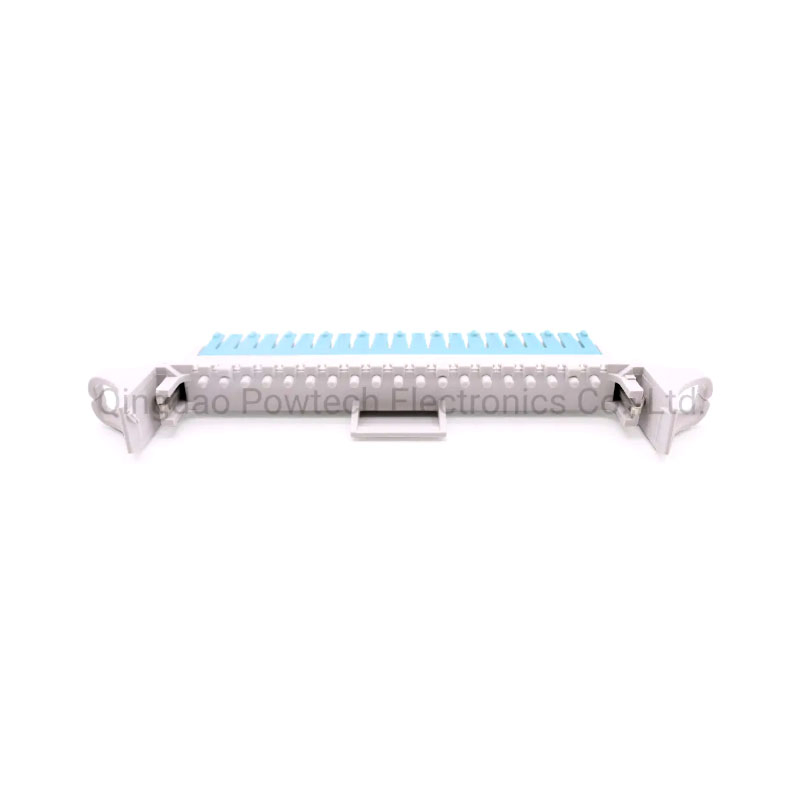

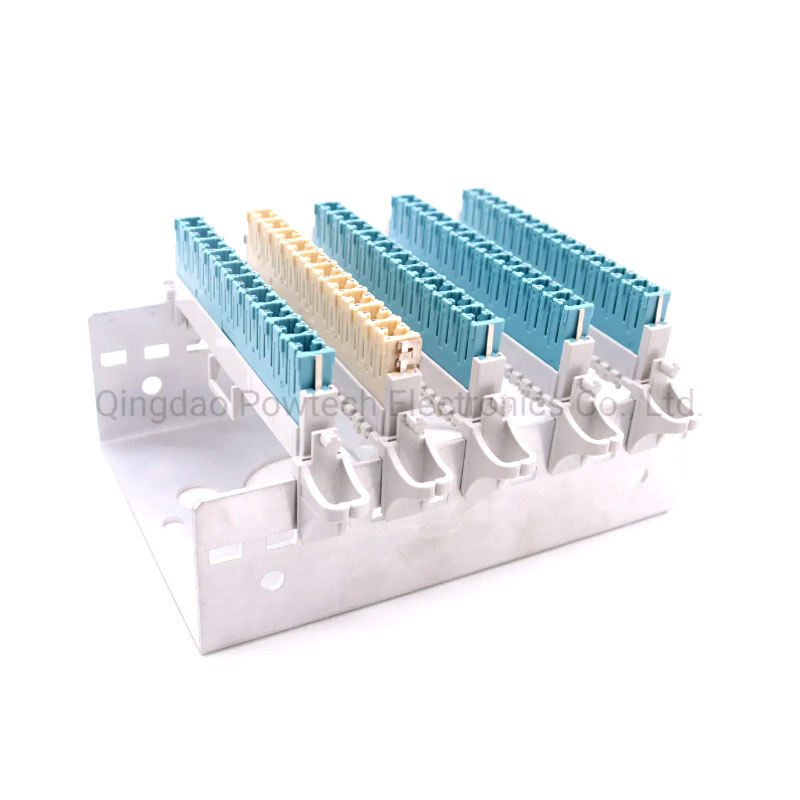

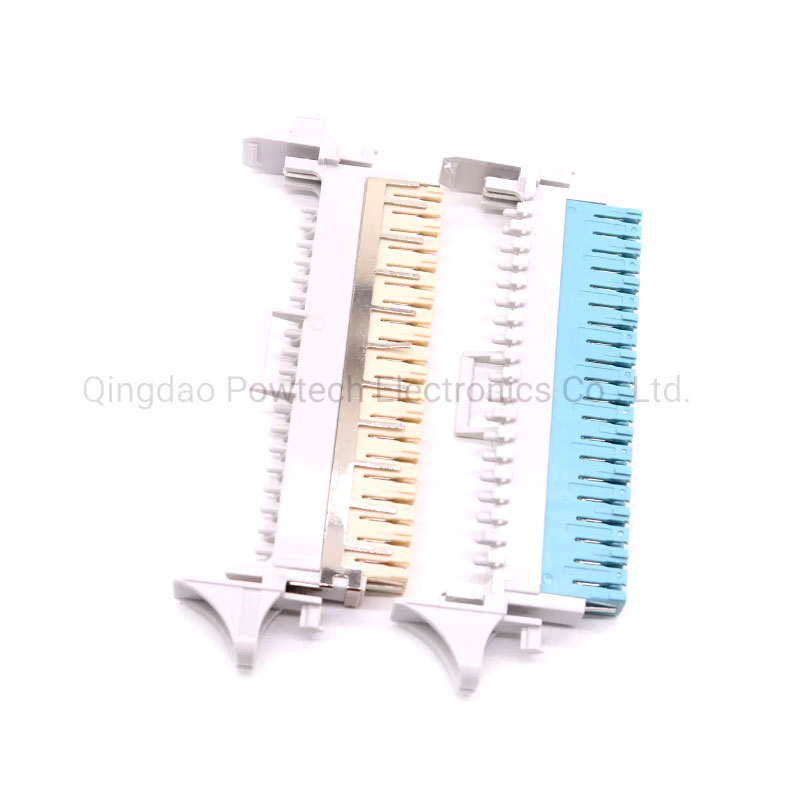

Premium 10-Pair Stg Interface Module - Reliable Electronic Board Component

Customization:	Available
Usage:	Telephone, Workstation, Server
Type:	Wired

Basic Info.

Model NO.

P430103

Support Network

Ethernet

Information content

Data

Certification

CE, ISO, RoHS

Condition

New

Surge Protection

3-Pole 250V DC Arrestor

Contact Pin

Silver-Plating Phosphor Bronze

Material

UL94V0

Production Name

Stg Interface Module

Transport Package

Carton

Specification

Rohs, SGS

Origin

China

HS Code

8517

Production Capacity

50000PCS/Month

Packaging & Delivery

Package Size

15.00cm * 15.00cm * 10.00cm

Package Gross Weight

3.000kg

Product Description

10 Pairs Lightning Protection / Surge Arrester/ Arrester Magazine
The lightning protection/surge arrester/arrester magazine is used to protect STG2000 module against over voltage.

The magazine color: Black
All plastic parts are made with flame retardant polycarbonate
All contacts are made with bronze material plated with bright tin lead
Compliant with 3-pole 250V DC arrestor

Configuration

One plastic body
One plastic insert
20 bronze line contacts to connect each line electrodes of the arrestors
10 bronze ground contacts, to connect each ground electrode of the arrestor
Two bronze ground contacts to connect the magazine to the frame

Specifications

Insulation resistance	1mΩ
Between tip and ring	>10GΩ
Between tip/rig and ground	>10GΩ
Leading through resistance (Ground to frame)	<40mΩ
Dimensions (L x W x H)	130mm x 13.9mm x 29.8mm

Product Parameters

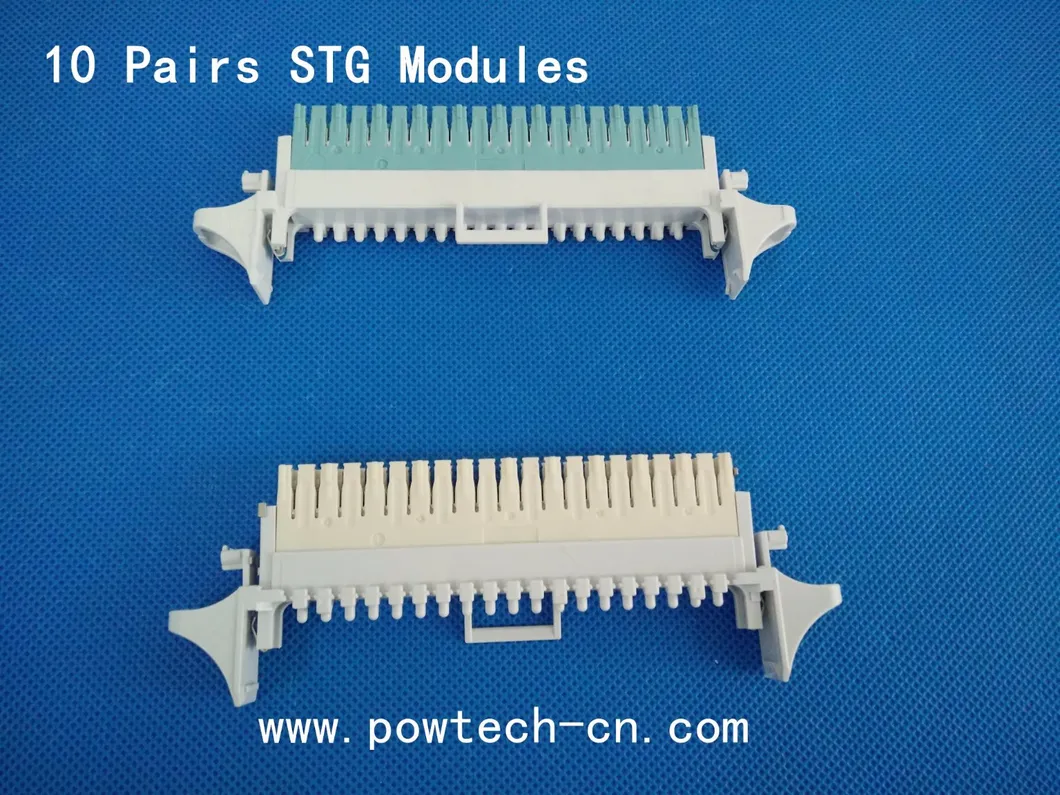

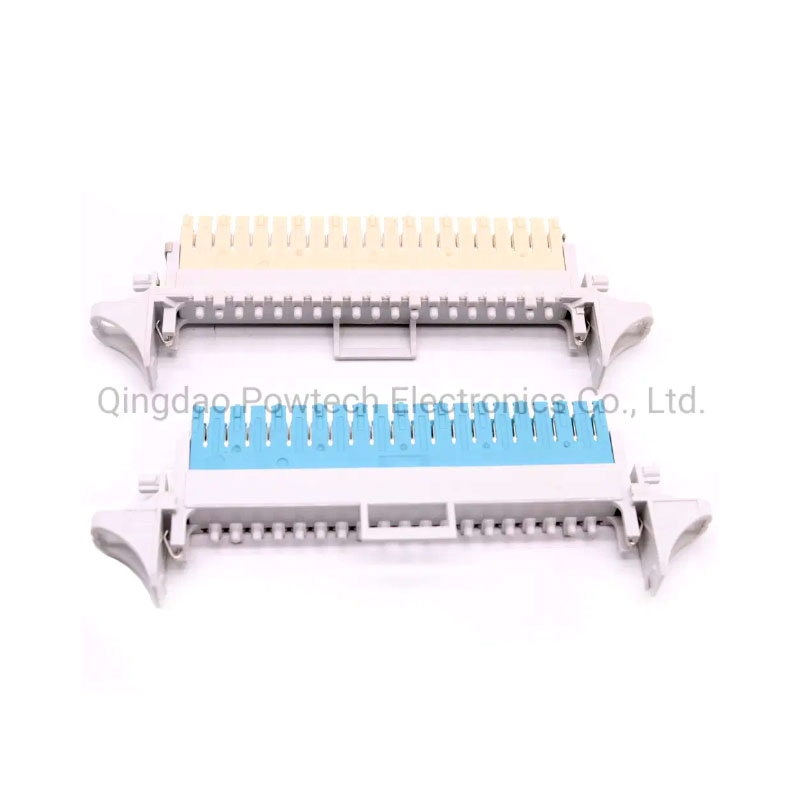

1. 10pair STG2000 module

2. Flexible structure, easy to be interchanged

3. High insulation, low moisture absorption, flame retardant, high impact strength

4. Connection: Permanent, dry and gas tight connection

5. Conductor diameter: 0.4-0.6 mm

6. Reliability: > 200 times

7. Contact resistance: <5 m ohm

8. Pulling-out force: Not less than 25N

9. Material: Tin bronze with silver plated (20-40 inch)

10. Modules compatible with: KRONE or STG2000

Packaging & Shipping

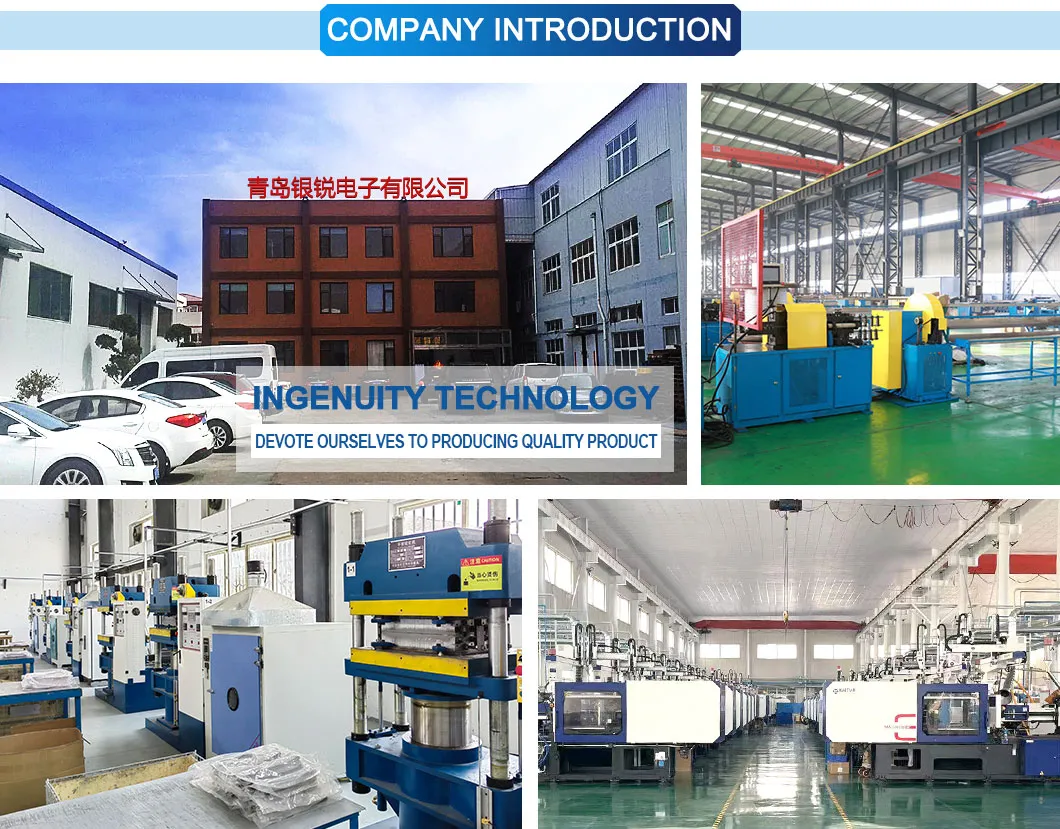

Company Profile
