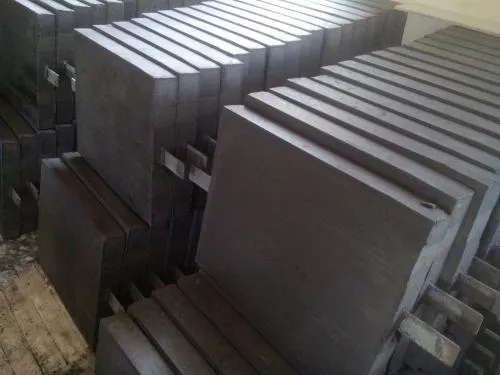

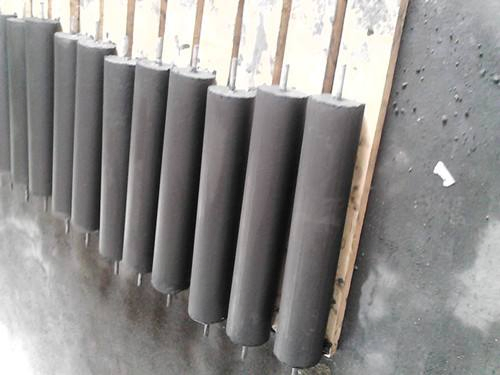

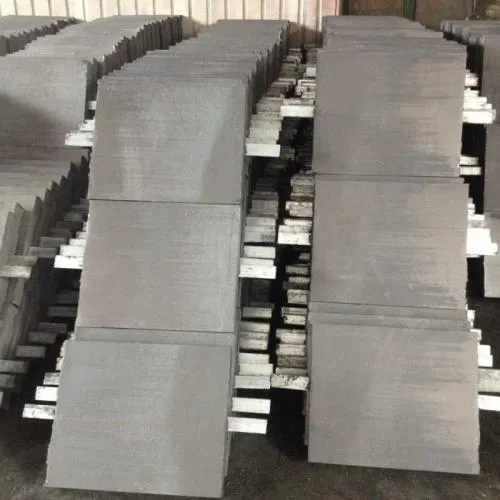

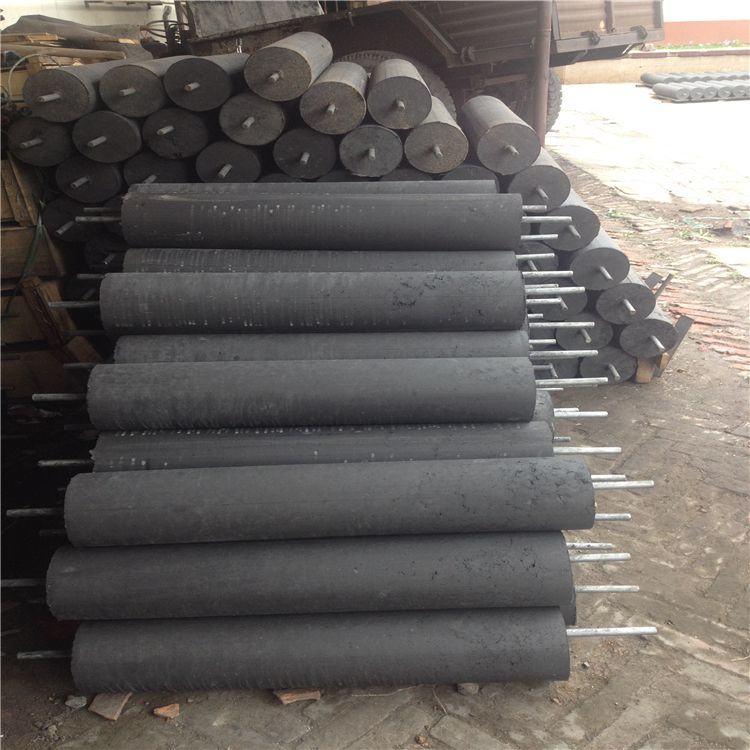

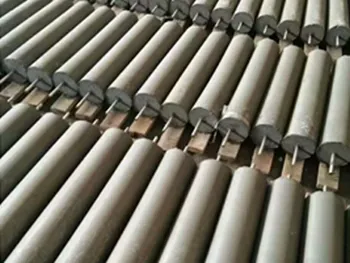

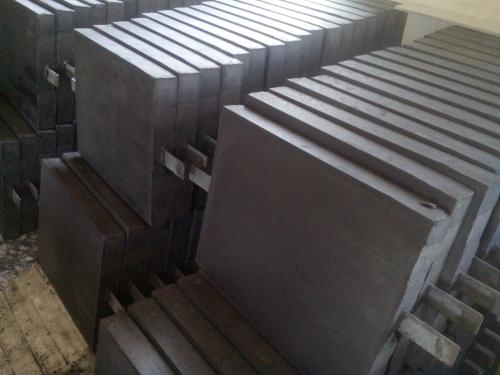

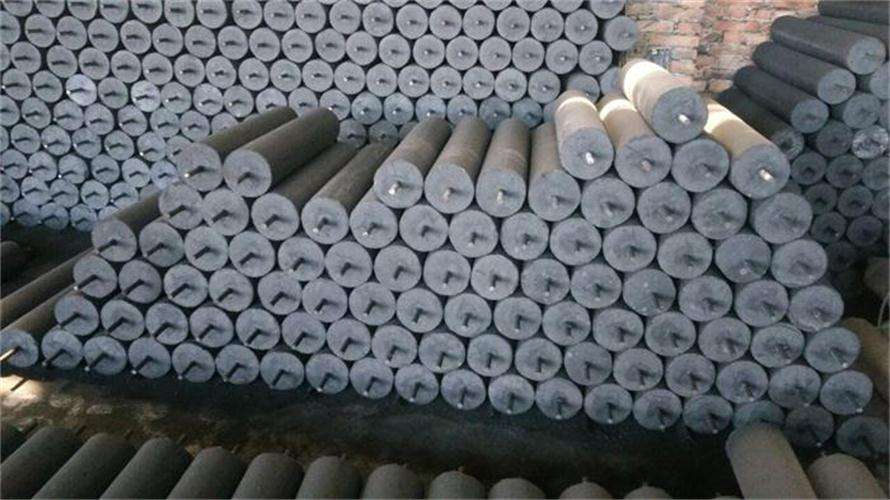

Low Resistance Grounding Module / Graphite Grounding Materials
Available Sizes (mm):
| 150*80 |
150*1000 |
150*1200 |
- |
| 200*800 |
200*1000 |
200*1200 |
260*1200 |
| 150*800 |
150*1000 |
150*1200 |
- |
| 500*400*60 |
600*210*60 |
900*180*45 |
- |
Graphite Ground module is a nonmetallic materials for the main body of the ground, with good electrical conductivity and stability characteristics, are widely used in electric power, telecommunications, railway, construction, Minning, defense and various types of factories, warehouses and other facilities, grounding lightning protection, anti-static grounding, and particularly for high soil resistivity areas and occasions.
✔
BST series earthing module adopts stable nonmetallic material as a module of conductive medium, its electrical conductivity is not affected by season.
✔
Moisture absorption moisture, grounding resistance is low, can maintain contact with the soil effectively, and can maintain long-term stability.
✔
After the big current shock resistance does not increase, also do not have to harden; no brittle fracture phenomenon.
✔
At high soil resistivity area grounding, grounding resistance can be reduced effectively.
✔
Grounding resistance affected by season is small, resistance to maintain long-term stability.
✔
Installation is simple, is not affected by climate and geological conditions.
✔
Corrosion resistance, non-toxic, no pollution, long service life to the environment.
Frequently Asked Questions
What are the main applications of these grounding modules?
They are widely used in electric power, telecommunications, railways, construction, mining, and defense facilities for lightning protection and anti-static grounding.
Does the performance change with the seasons?
No, the BST series earthing module uses stable nonmetallic conductive media, ensuring its electrical conductivity and resistance remain stable regardless of seasonal changes.
Is this material suitable for areas with high soil resistivity?
Yes, these modules are particularly effective in high soil resistivity areas, reducing grounding resistance more efficiently than traditional methods.
How durable are the graphite grounding materials?
The materials offer excellent corrosion resistance and do not suffer from brittle fracture or hardening even after high current shocks, ensuring a long service life.
Is the installation process complex?
The installation is simple and is not hindered by specific climate or geological conditions, making it adaptable to various site requirements.
Is it environmentally safe?
Yes, the modules are non-toxic, pollution-free, and environmentally friendly throughout their entire lifecycle.
