SDEV Charger
1 / 5
| Model NO. | PA-24G |
| Support Network | Ethernet |
| Certification | CE, ISO, RoHS, GS |
| Condition | New |
| Product Name | Poe Power Supply Module |
| Rated Voltage | 24VDC |
| Rated Current | 1A |
| Rated Power | 24W |
| Transmission Rate | 10m/100m/1000m |

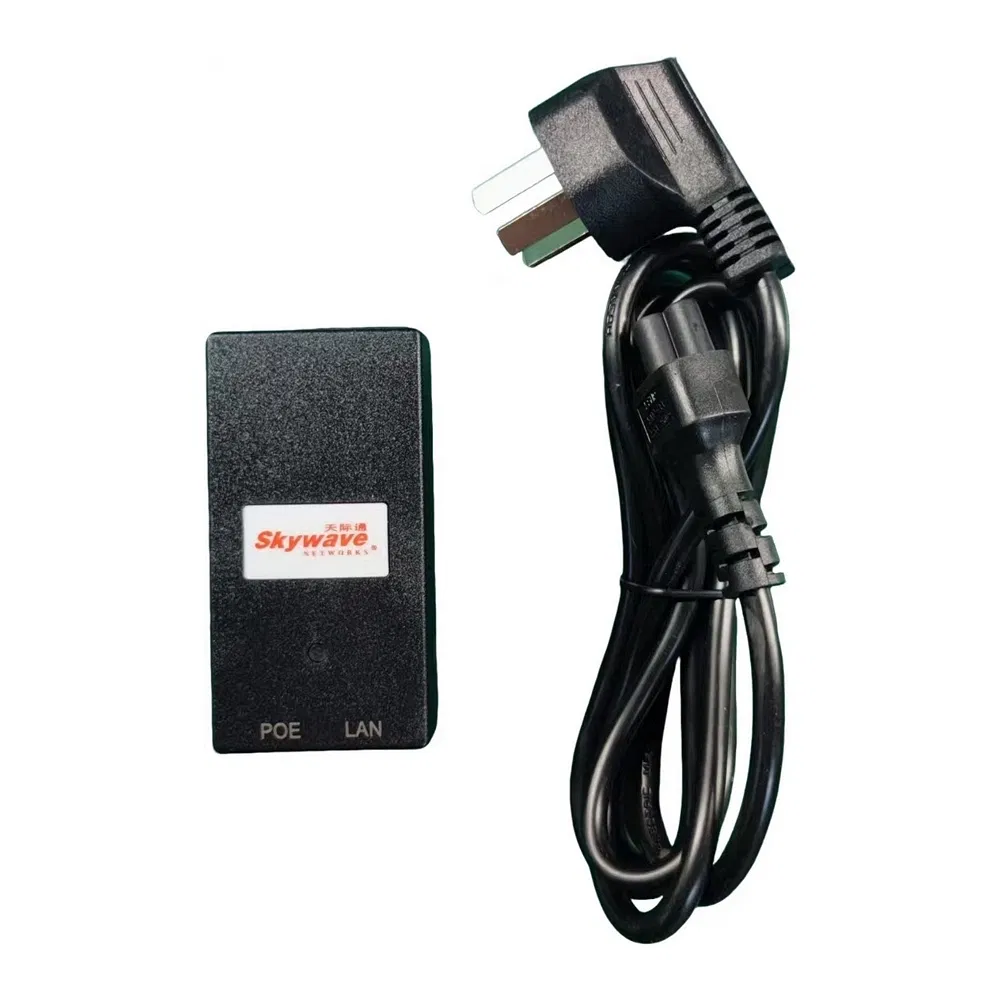

GIGABIT POE POWER SUPPLY MODULE
Experience seamless network performance with our PA-24G Gigabit POE Power Supply Module, the ultimate high-performance solution for powering various gigabit network devices. By integrating power and data, the PA-24G simplifies your infrastructure, reducing cable clutter and installation costs. Built for reliability and broad compatibility, this POE power supply ensures consistent, high-speed connectivity for your critical network components, enhancing overall system stability and performance.
Accommodates both AC and DC power sources, providing flexibility for various installation environments and ensuring continuous device performance.
Features a robust and compact enclosure built to withstand demanding network conditions, suitable for both commercial and industrial applications.
Equipped with clearly marked POE and LAN interfaces, ensuring seamless integration with a wide range of networked devices.
| Poe Interface | Data Bits: 1/2/3/6; Power Bits: 4, 5/7, 8 |
| Voltage Range | 110V~240VAC |
| Surge Current | < 20A at 230V |
| Lightning Resistance | Withstand 10kv Line to Line, 20kv Line to Ground |
| MTBF | 100,000 Hours |
| Operating Temp | -50°C ~ +80°C |
| Storage Temp | -55°C ~ +85°C |
| Package Size | 20.00cm * 12.00cm * 7.00cm |
| Gross Weight | 0.500kg |
Combines power and data in one cable, reducing the need for extra wiring and lowering installation expenses.
Designed with protective circuits and robust materials to ensure stable operation and safeguard connected devices.
Plug-and-play setup with a compact design allows quick and flexible deployment in various environments.
Built-in overvoltage protection effectively prevents damage from unexpected power surges.
A: It is a high-performance Gigabit POE Power Supply Module that combines data and power into a single Ethernet cable to power network devices efficiently.
A: The module supports full Gigabit speeds, including 10Mbps, 100Mbps, and 1000Mbps transmission rates.
A: Yes, it is designed with professional-grade lightning resistance, withstanding up to 10KV line-to-line and 20KV line-to-ground surges.
A: Absolutely. It has an extensive operating temperature range from -50°C to +80°C, making it suitable for both very cold and high-heat environments.
A: Yes, on-demand customization is supported, including logo integration, color adjustments, and specific appearance or size modifications.
A: Various payment methods like T/T, PayPal, and Western Union are supported. Shipping is typically arranged via sea, air, or land based on the order requirements.
