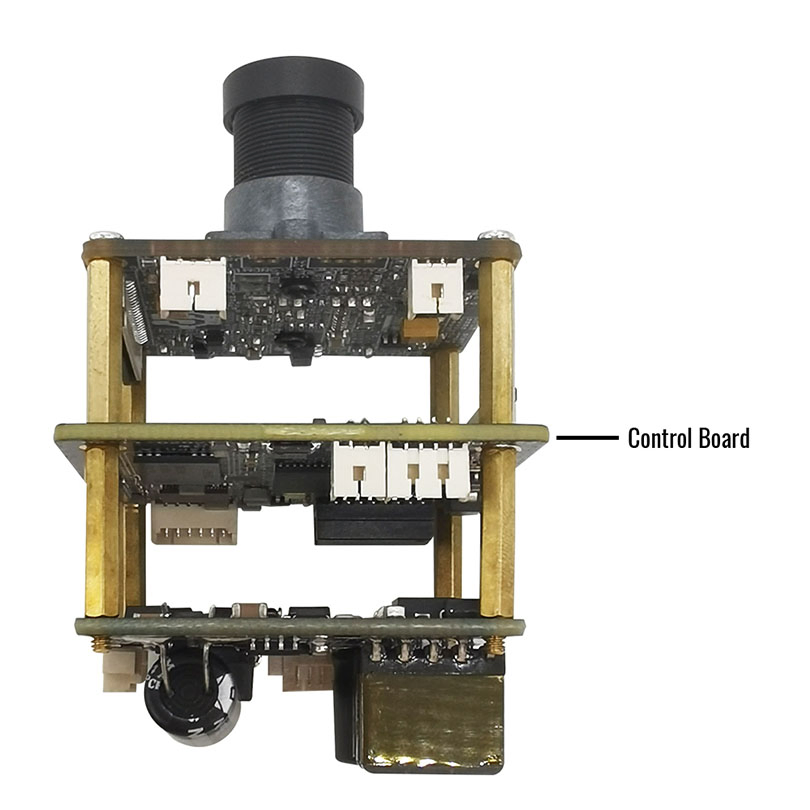

Full HD Camera Vehicle Counting Camera Module PCB RV1126 Hardware

Customization:	Available
Technology:	WDR
Style:	Bullet Camera

ℹ️

Overview & Basic Info

The developed prototype with customized design can provide structure and shell.

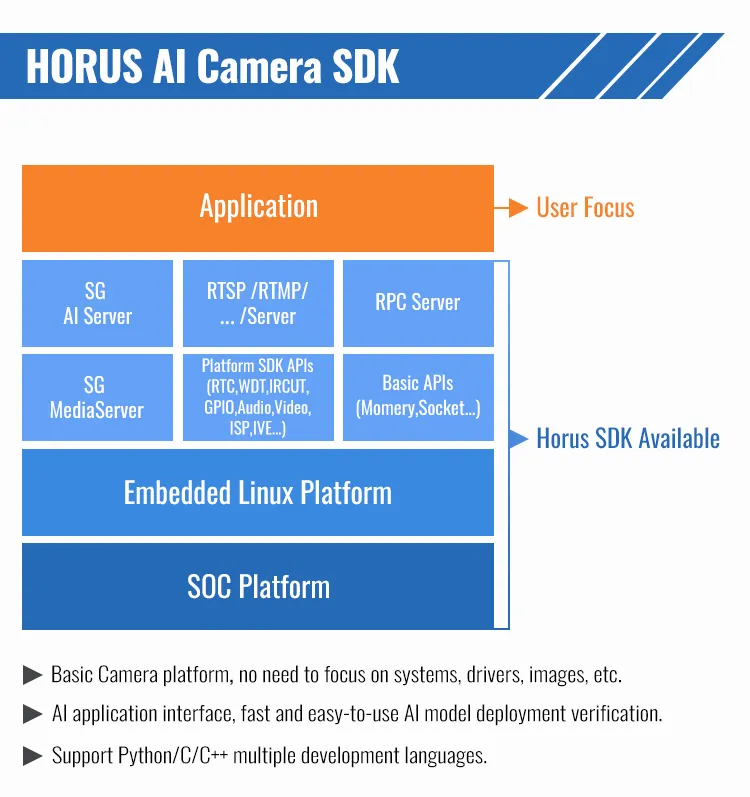

The camera has basic IPC software, systems, drivers, RTSP video streaming, camera configuration, and AI application API.

Model NO.

Horus AI camera module

Type

IP Camera

Sensor

CMOS

HDMI Format

4K

Resolution

4096

Certification

CE, FCC, RoHS

Feature

Waterproof, High Definition

Sensor Size

1/2.8"

Warranty

1 year

Video Format

H.265

AI Features

Face Recognition, Human Motion Tracking

Power Supply

DC5V

🚀

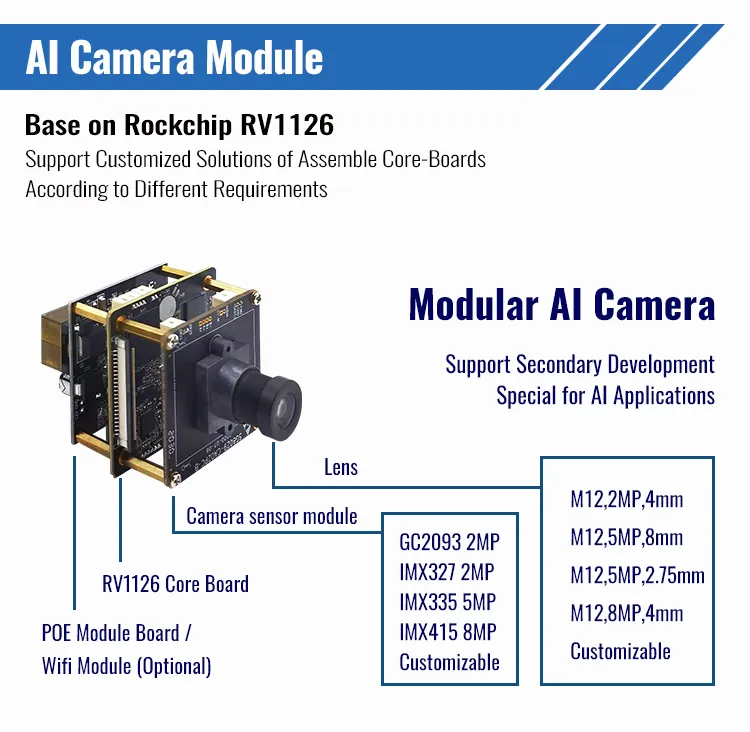

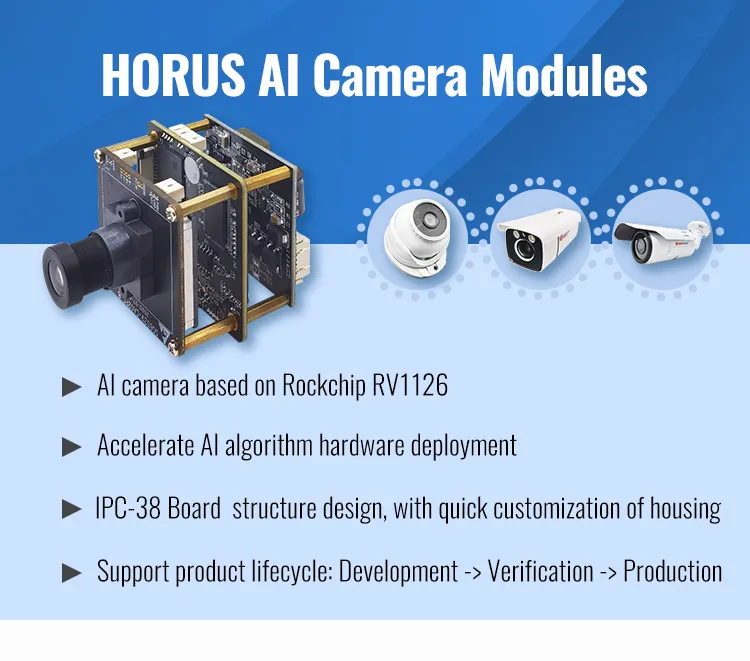

AI Camera Module Advantages

Support Customized Solutions of Assemble Core-Boards.
Support NNIE performance up to 2.0 Tops.
Support up to 2T SD/SDXC card local storage.
Compatible with 2 million or 5 million image sensors.
Advanced H.265/H.264 compression technology.
ICR infrared filter type automatic switching for day and night monitoring.

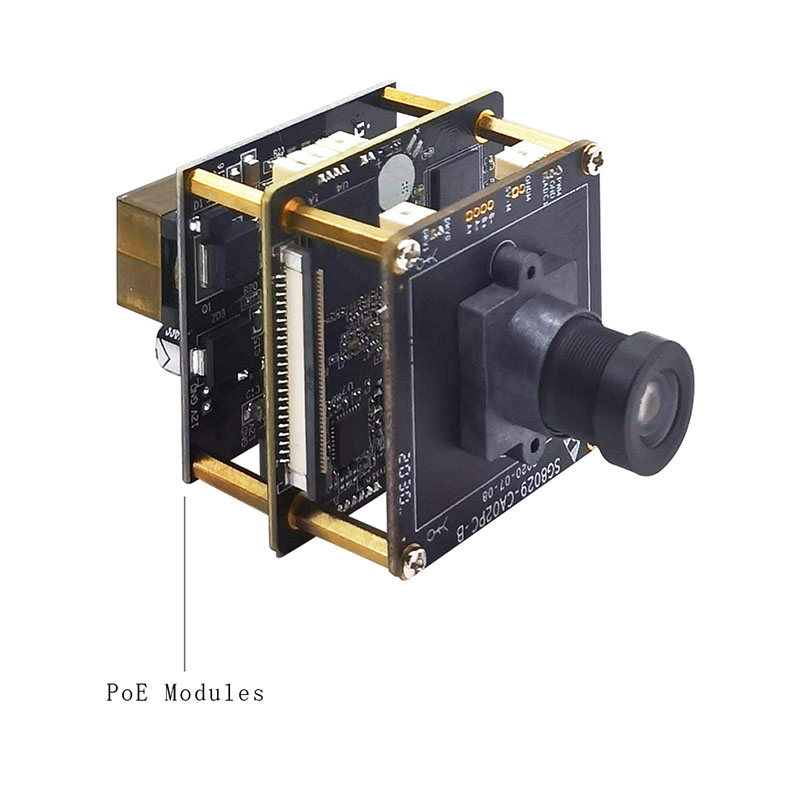

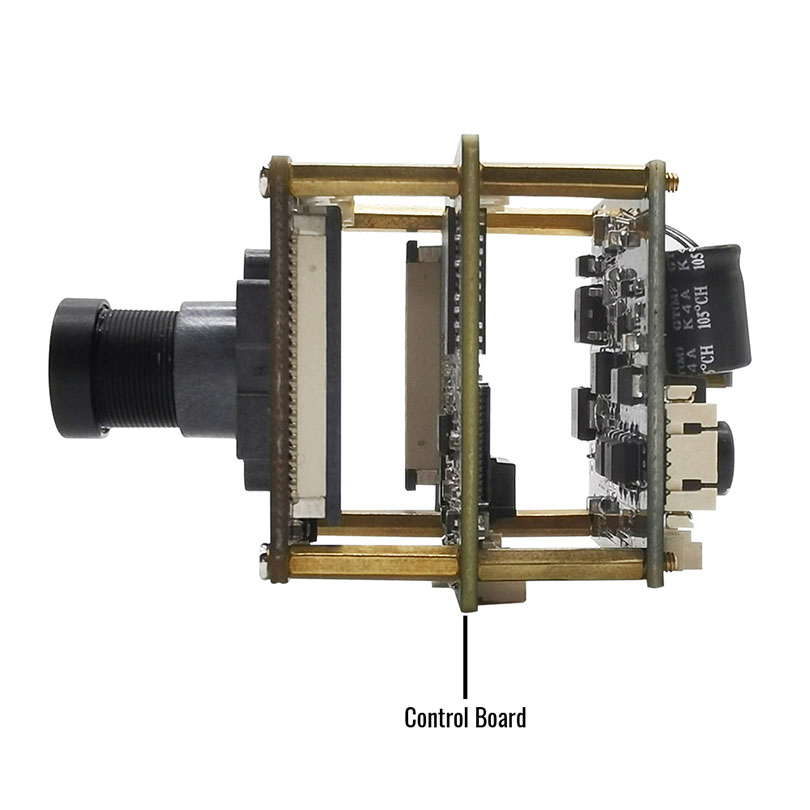

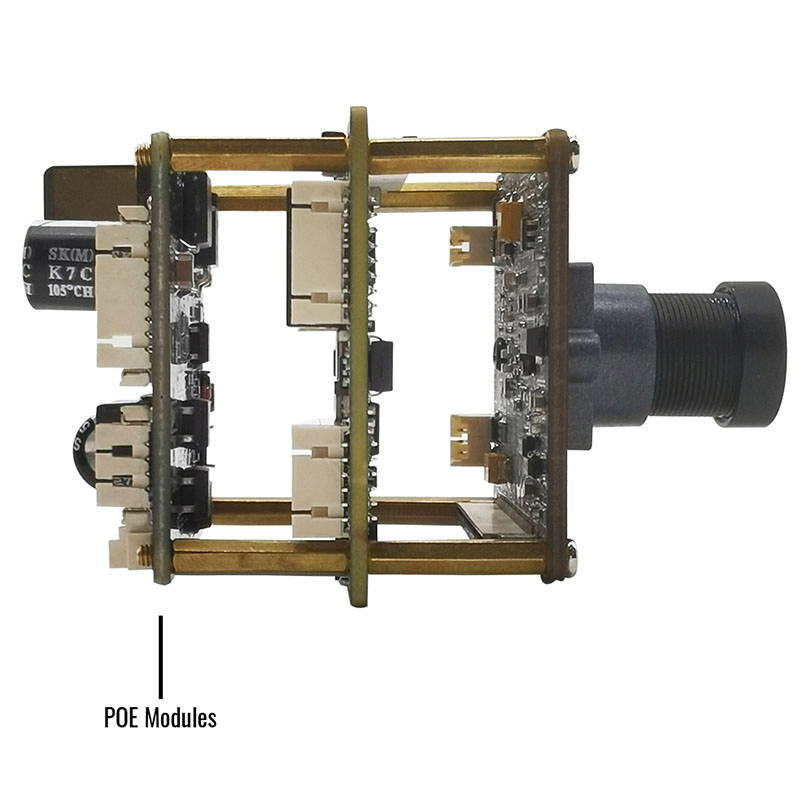

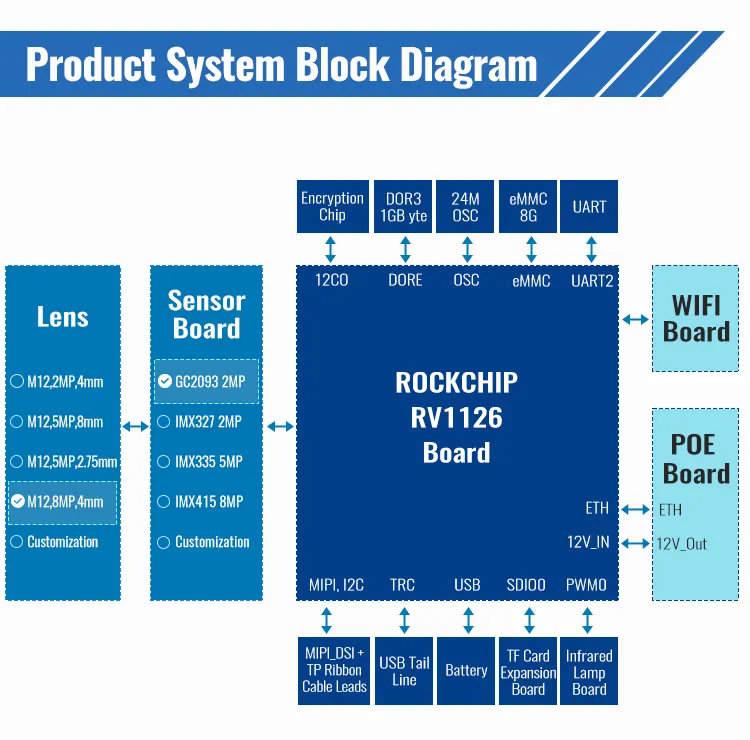

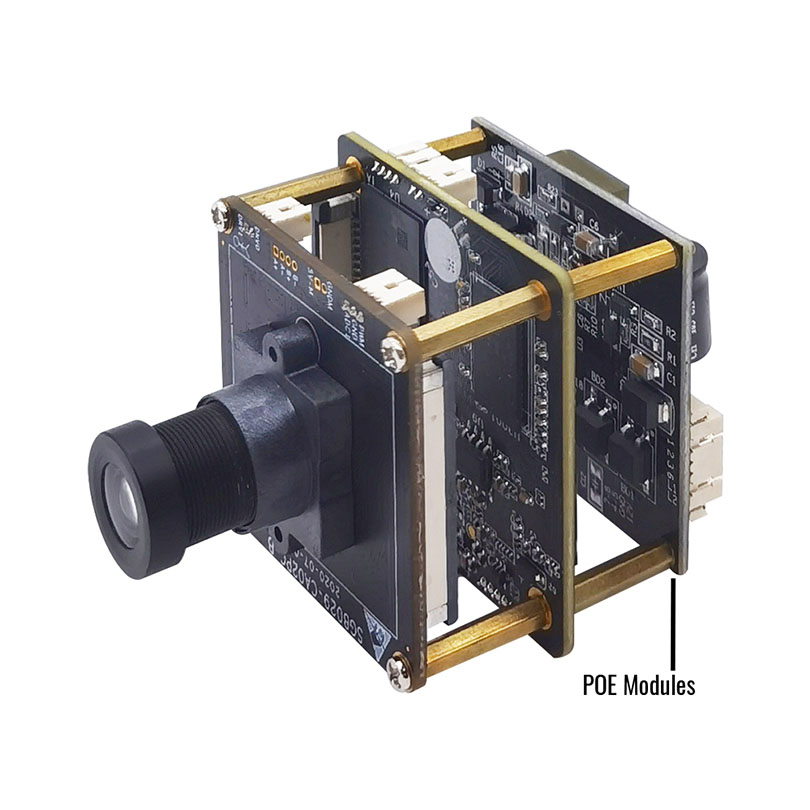

RV1126 Core Board, Camera Module Board, and POE Module Board are optional.

📋

Product Specification

Product Name	Horus AI camera
Operating System	Linux
CPU	Quad Core ARM Cortex
RAM	1GB DDR3 SDRAM
Memory	EMMC Flash, 8GB Capacity (Supports TF card extension)
AI Analysis	Integrated AI acceleration engine, 2.0T Tops Neural Network
Board Size	38*38 mm
Voltage	Range: 9-16V; Typical: 12V
USB Port	USB 2.0 (OTG mode for debugging)
Interface	RJ45 POE/DC (Option)

📸

Product Details Display

🏆

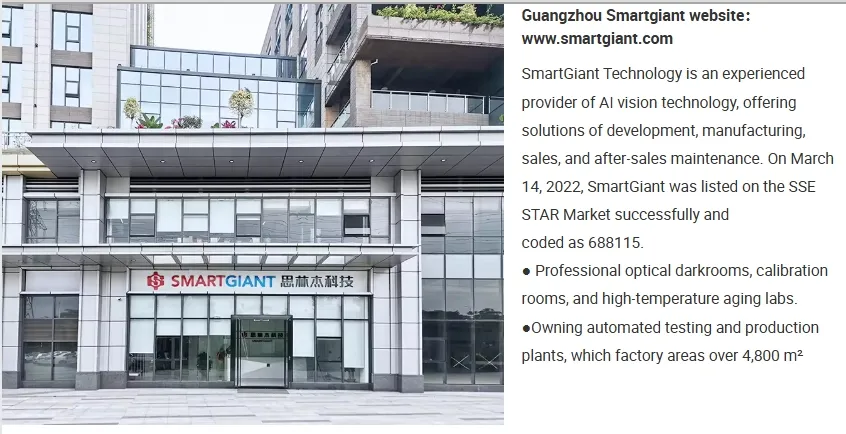

Why Choose Us

Global Leading Customers: Amazon, Lenovo, Facebook, HUAWEI, VIVO, etc.
Mature applications in 3C automatic production lines and equipment for mobile phones, computers, and tablets.
15+ years in AI vision inspection & automated testing.
Certificates: ISO-14001, ISO-27001, CE, CCC, 41 Copyrights, 32 Patents.
7x24 hours Aftersales service and technical support.

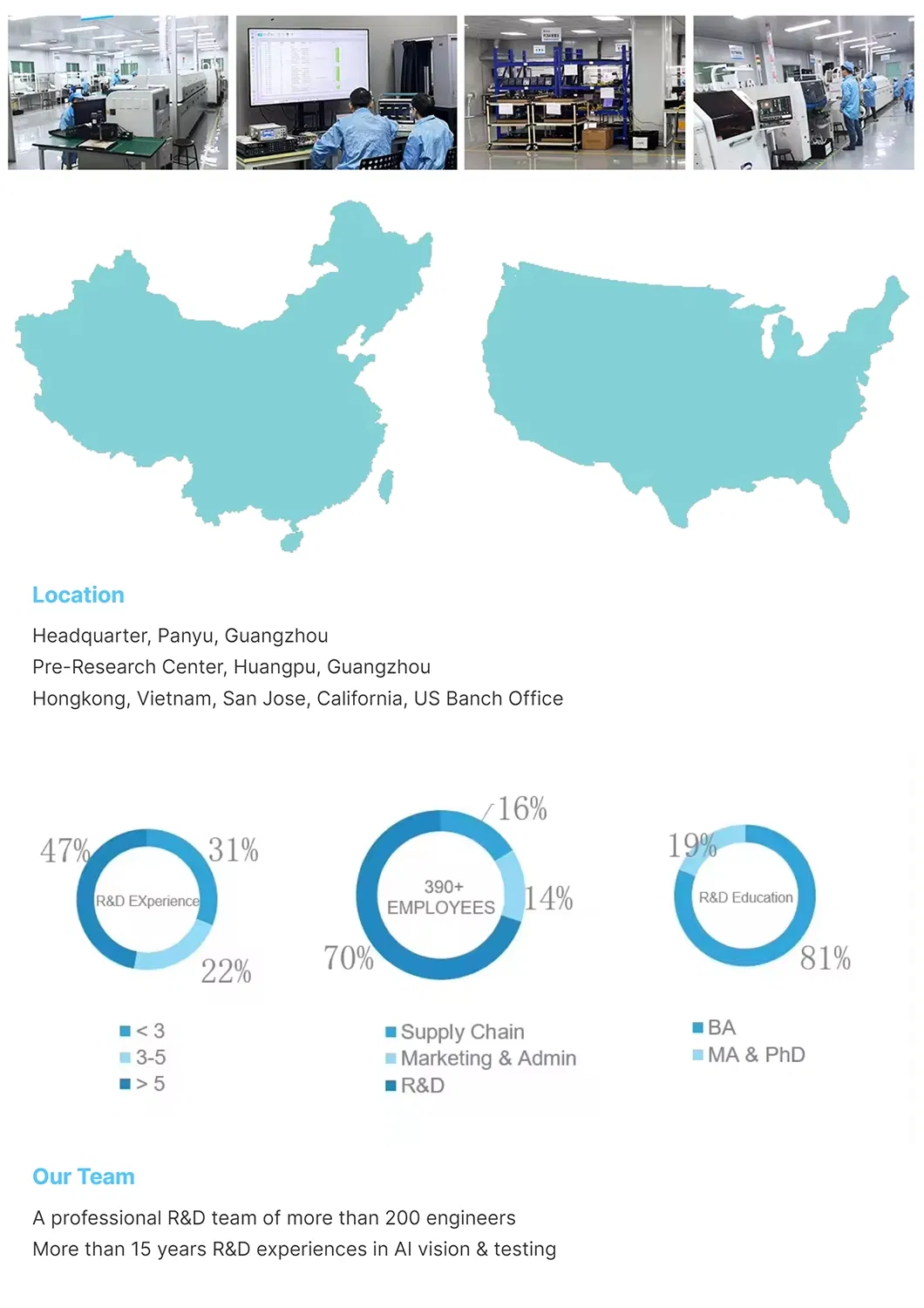

Plant Area: 4800 Square meters with R&D Lab & Automatic Assembly Lines.

❓

Frequently Asked Questions

What's included in the shipping fee?

The shipping fee includes the costs for shipping and customs declaration fees. A one-time customs declaration fee of $50 may apply per order.

Why is the ordering system limiting sample orders?

Charges involve freight and customs fee calculations. For orders of 2 pieces or more, the shipping cost is based on packaging volume or weight. Please contact us for bulk ordering details.

What is the typical delivery time?

It depends on quantity. For small quantities, shipment takes 7-15 days. For large quantities, it takes approximately 30 days.

What payment methods do you support?

We accept T/T, L/C, Western Union, and PayPal. Specific terms are negotiable.

What shipping methods are available?

By sea, air, or express delivery (EMS, UPS, DHL, TNT, FedEx, etc.).

Do you support customized core-board solutions?

Yes, we support customized solutions for assembled core-boards based on specific neural network performance or storage requirements.
