Model NO.
AC-FDD-PC-GWLN0726-F-B2-100mW
Lightning Protection
With Lightning Protection
Operating Temp
-10℃ ~ +50℃
Package Size
35.00cm * 25.00cm * 6.00cm
Lead Time
15 days (1-10 Pcs); Negotiable (>10 Pcs)
LCD display of operating figures
Real time isolation check and alarm
Support the uplink quiet noise function
Idle turn-off & auto turn-off to lower interference
Automatic linkage and Link balance function
Manual gain attenuation (1-31dB with 1dB step)
Compact size and low power consumption
Easy installation and high efficiency

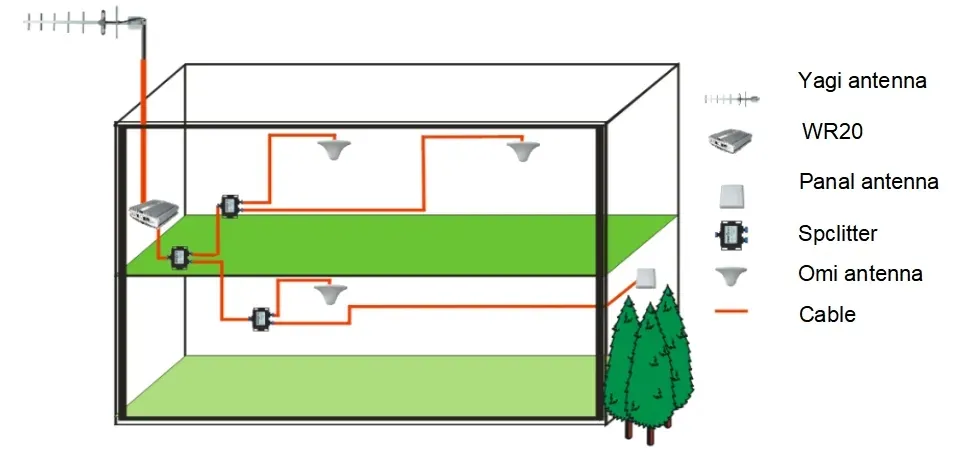

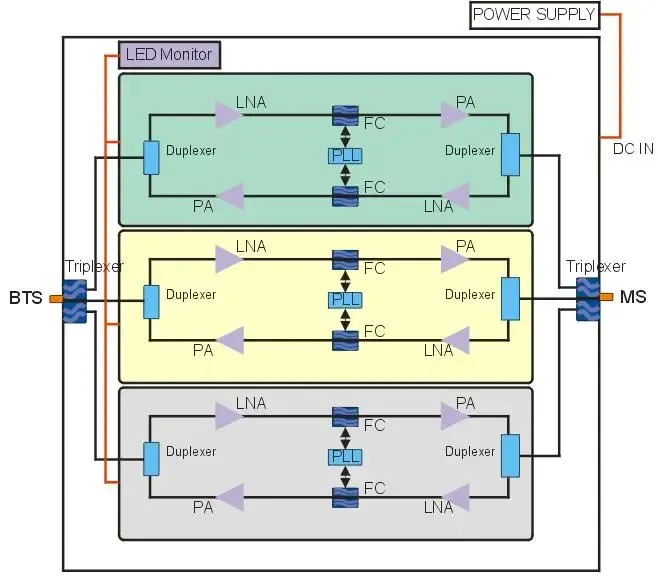

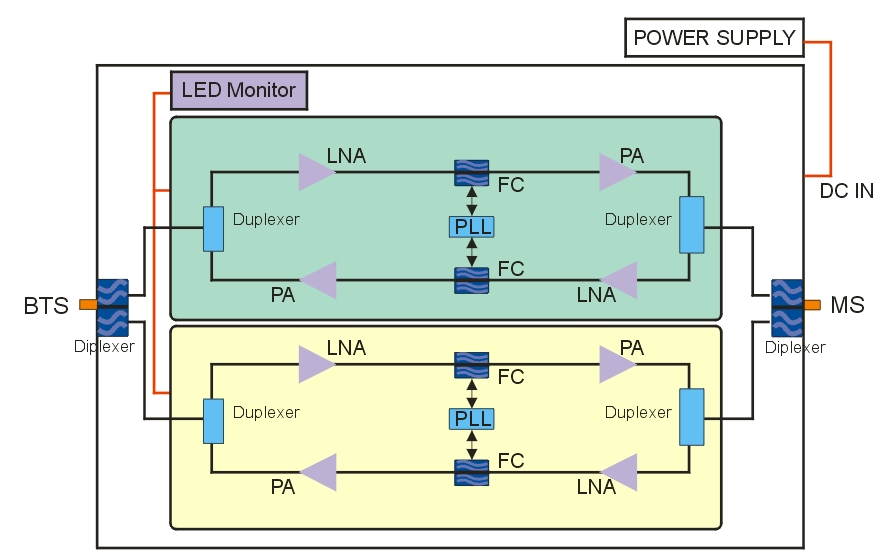

Application & Block Diagram
Technical Specifications
| Frequency Range |
700/800/900/1800/1900/2100/2600MHz |
700/800/900/1800/1900/2100/2600MHz |
| Output Power |
15±2dBm |
20±2dBm |
| Max. Gain |
70±3dB |
75±3dB |
| VSWR |
≤2.5 |
≤2.5 |
| ALC Control Range |
≥ 25 dB |
≥ 25 dB |
| Time Delay |
≤1.5μs |
≤1.5μs |
| Noise Figure |
≤8 dB |
≤8 dB |
| Gain Attenuate Range |
1~31 dB, step of 1 dB |

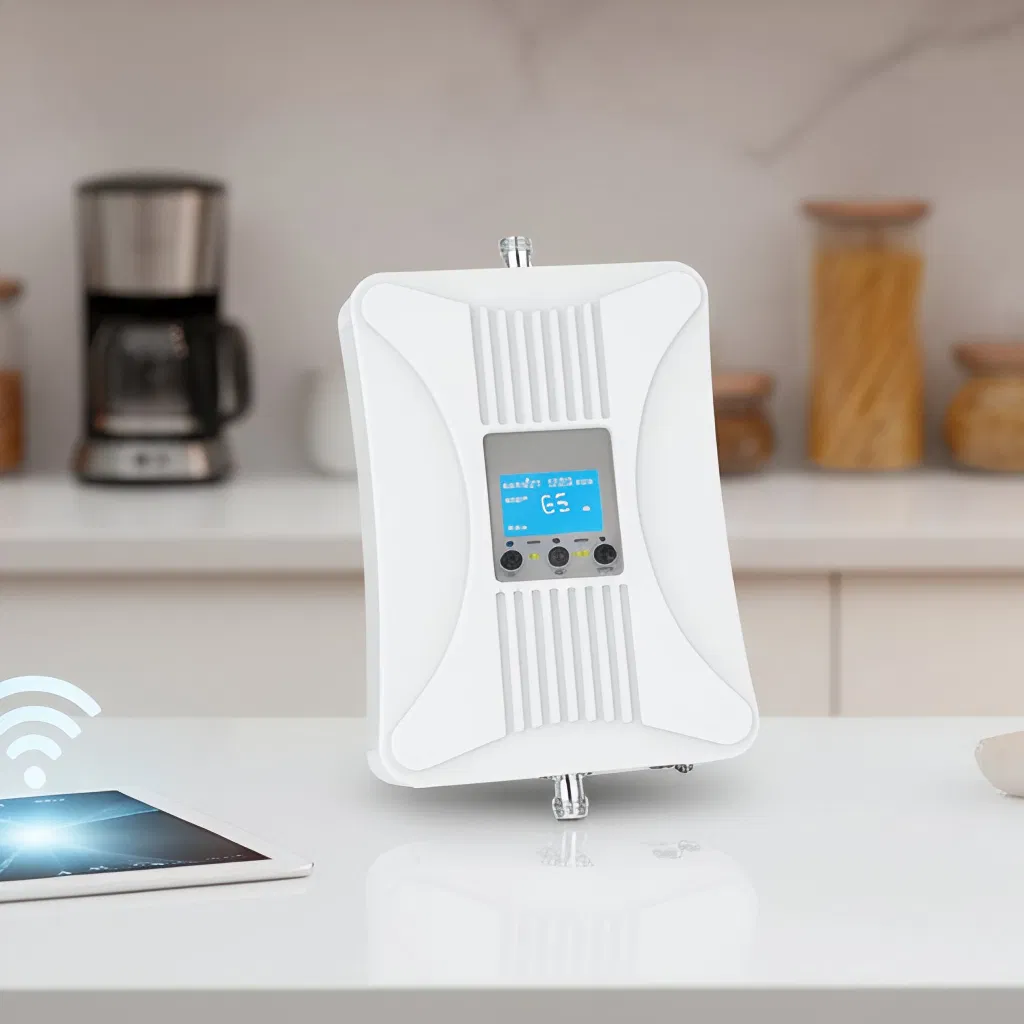

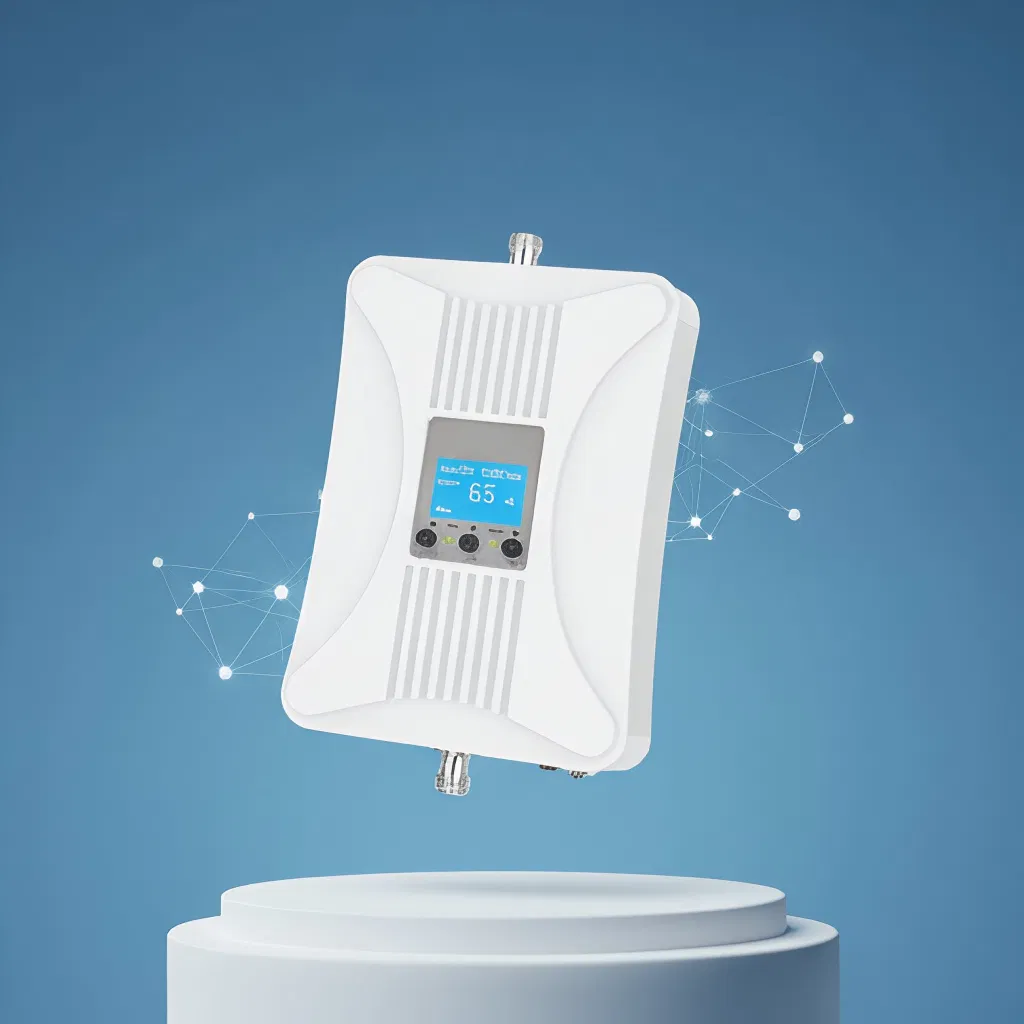

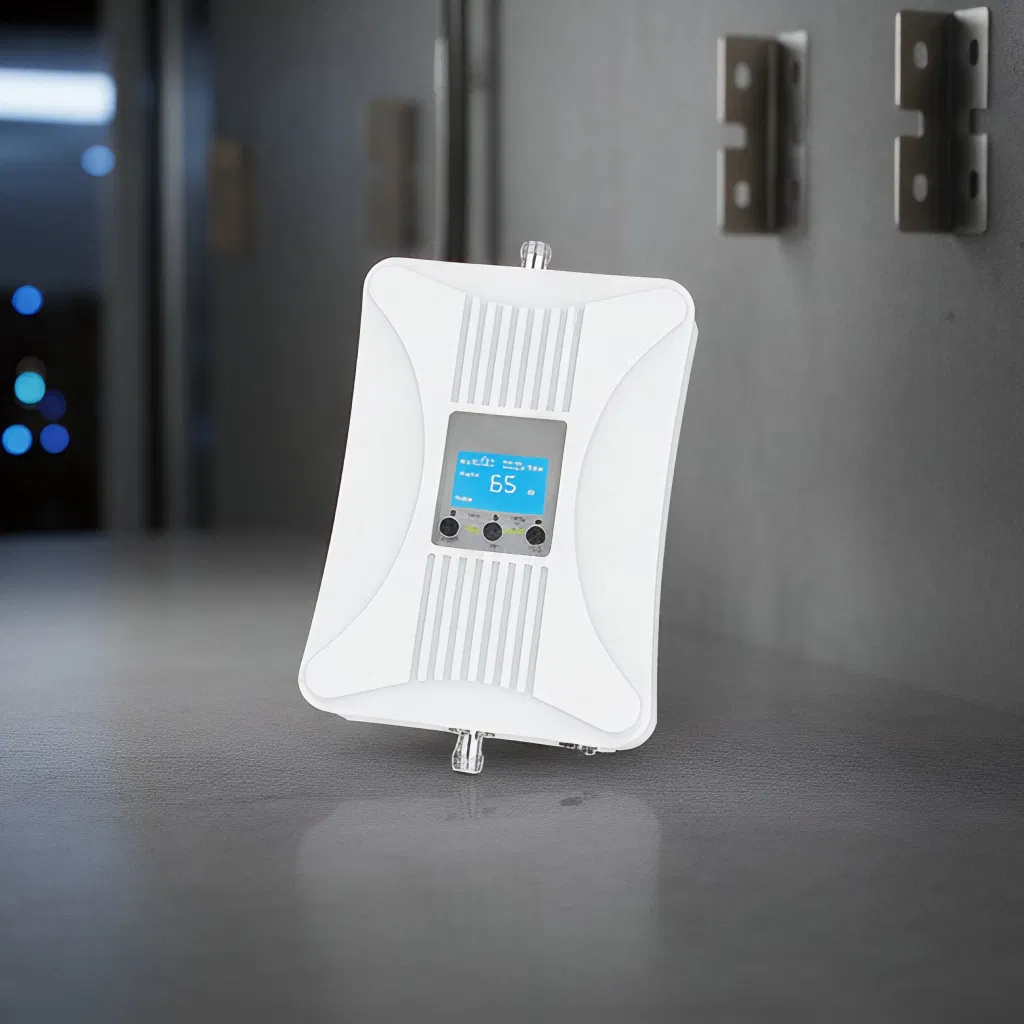

Product Showcase
Frequently Asked Questions
What is the power requirement for this repeater?
The device operates on a DC 12V/3A power supply and has a low power consumption of less than 30W.
Does this device support automatic gain control?
Yes, it features an ALC (Automatic Level Control) range of ≥ 25 dB and manual gain attenuation from 1-31dB.
What environment is this device suitable for?
The device has an IP40 rating and is designed to operate in temperatures ranging from -10℃ to +50℃.
How can I monitor the status of the repeater?
The built-in LCD display provides real-time operating figures, including isolation checks and alarm status.
What are the dimensions and weight of the unit?
The repeater measures 220*140*37mm and weighs less than 1.5kg, making it very compact and easy to install.
Is lightning protection included?
Yes, this model is designed with lightning protection to ensure equipment safety during adverse weather.
