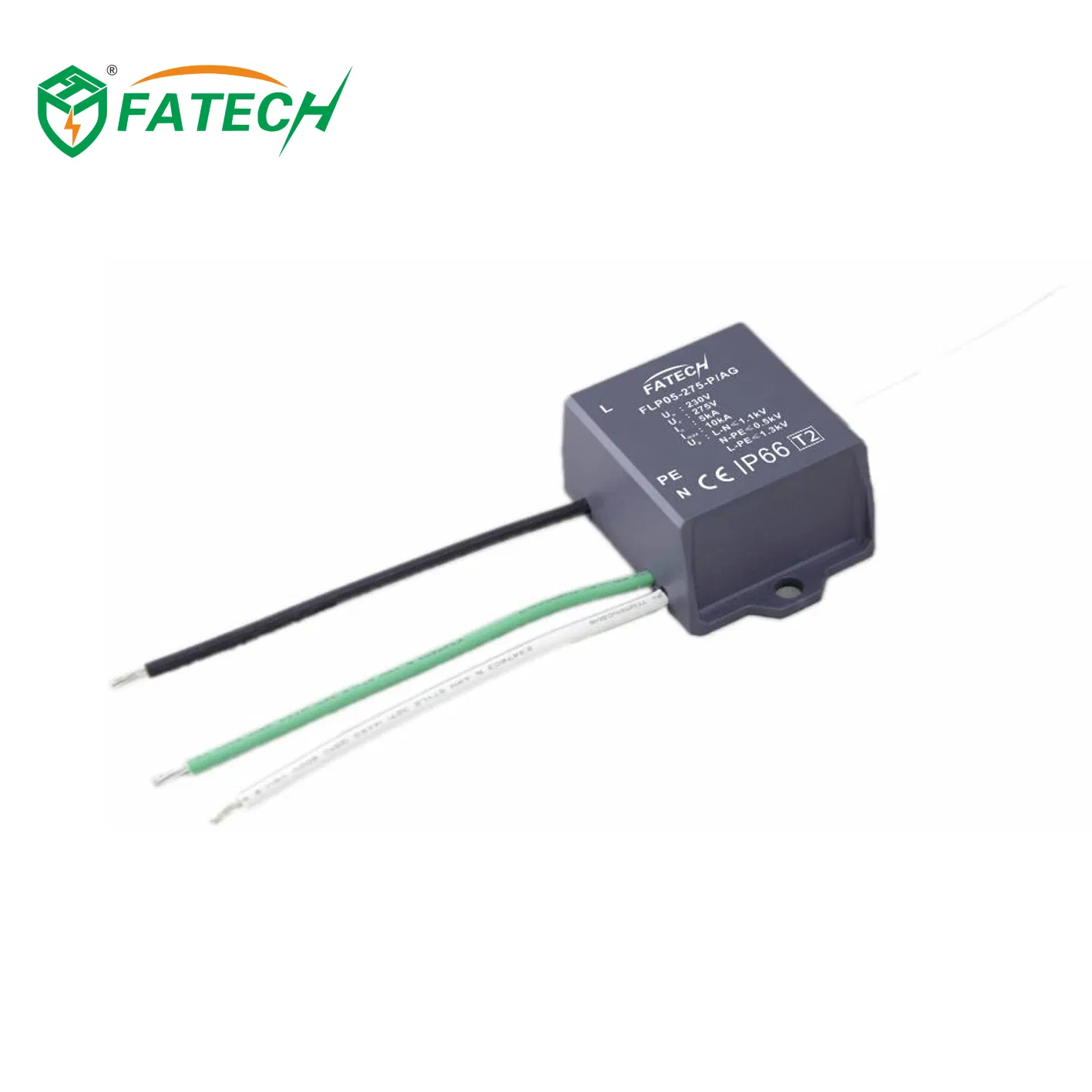

10kA LED lighting SPD surge arrester module

Customization:	Available
Type:	Power Source Arrester
Installation:	Parallel Arrester

📋 Basic Specification

Model NO.

FLP05-xxx-x

Application

AC/DC System

Operation Voltage

Low Voltage

Certification

ROHS, ISO9001, CE

Max. Discharge (8/20us)

10kA / 20kA

Degree of Protection

IP66 Waterproof

Housing Material

UL94V0 Anti-fire

Protection Mode

L-N, L-PE, N-PE

SPD Component

MOV thermal protection

Environment

Outdoor/Commercial

Origin

China

HS Code

85363000

💡 Product Overview

New designed LED lighting surge protection module specifically for outdoor and commercial applications.

Ideal for LED signage, traffic lights, roadway lighting, parking garages, and tunnel lighting.

10kA lightning surge protection capacity.

Metal oxide varistor (MOV) thermal protection for enhanced safety.

Supports both parallel and series connected SPD options.

Waterproof IP66 rated for harsh outdoor environments.

🛣️ Application Scenarios

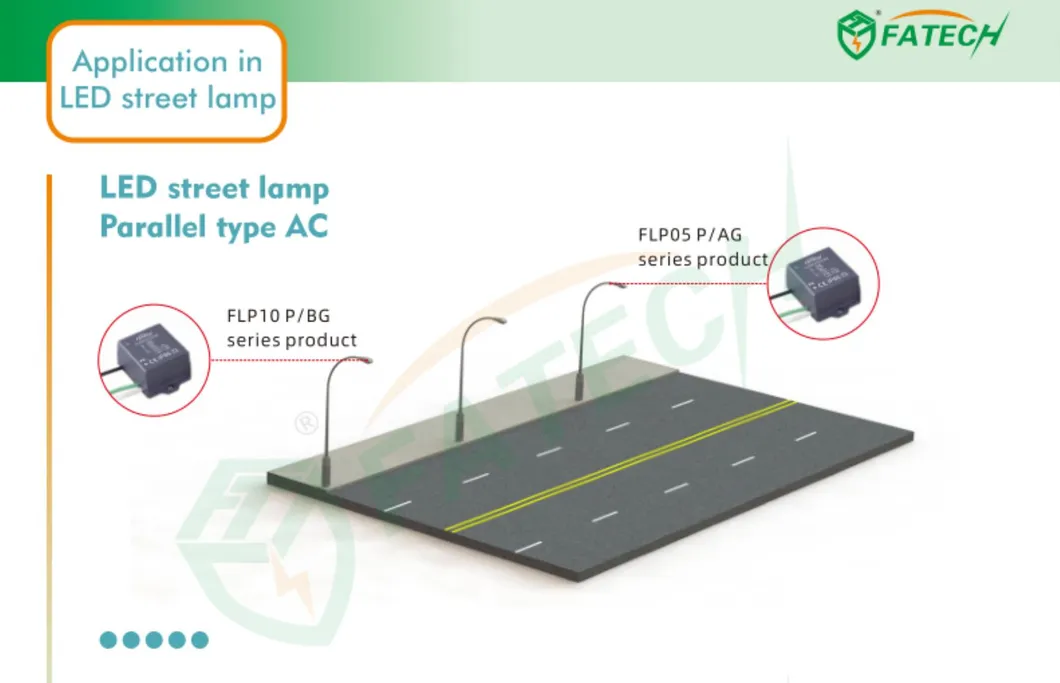

This surge arrester is designed for high-performance LED Street Light protection and outdoor lighting systems.

📊 Technical Parameters

Parameter Item	Symbol	Unit	Specifications
Max. Continuous AC Voltage	Uc	V	150, 275, 320, 385V
Rated Voltage	Un	V	110 / 230 / 380V
Nominal Discharge Current (8/20μs)	In	kA	10
Max. Discharge Current (8/20μs)	Imax	kA	20
Voltage Protection Level (at In)	Up	kV	<=1.0 ~ 1.7
Response Time	tA	ns	25
Recommended Back-up Fuse	-	A	63
Operation Temperature Range	-	°C	-40 ~ +85
Degree of Protection	-	-	IP66
Protection Mode	-	-	L-N, L-PE, N-PE

🏭 Production & Quality Control

The facility features an advanced independent test center including reliability testing, environmental aging testing, and release testing laboratories. Over 50% of the production team possesses more than 5 years of experience in surge protection manufacturing.

📜 Global Presence & Certifications

Products are exported worldwide, primarily to Europe, Asia, Latin-America, and the Middle East. Devices are certified with TUV and CE, with 90% of materials being UL approved.

❓ Frequently Asked Questions

1. What are the main advantages of this surge arrester? We provide products with TUV and Patent certifications, supported by an independent test center and over 15 years of export experience in global markets.

2. Are you a manufacturer or a trading company? We are a professional manufacturer with an ISO 9001-2008 quality system focusing on R&D, production, and sales of surge arresters.

3. What is the warranty period for these devices? We supply a five-year warranty on surge protective devices and provide professional after-sale maintenance services.

4. What is the standard delivery time? Usually, the lead time is about 15 days after payment and order confirmation, depending on the specific order quantity.

5. Is the surge protection module waterproof for outdoor use? Yes, this module is rated IP66, making it fully waterproof and suitable for outdoor LED street lights and signage.

6. What protection modes are covered? The module provides comprehensive protection modes including L-N, L-PE, and N-PE to ensure complete system safety.
