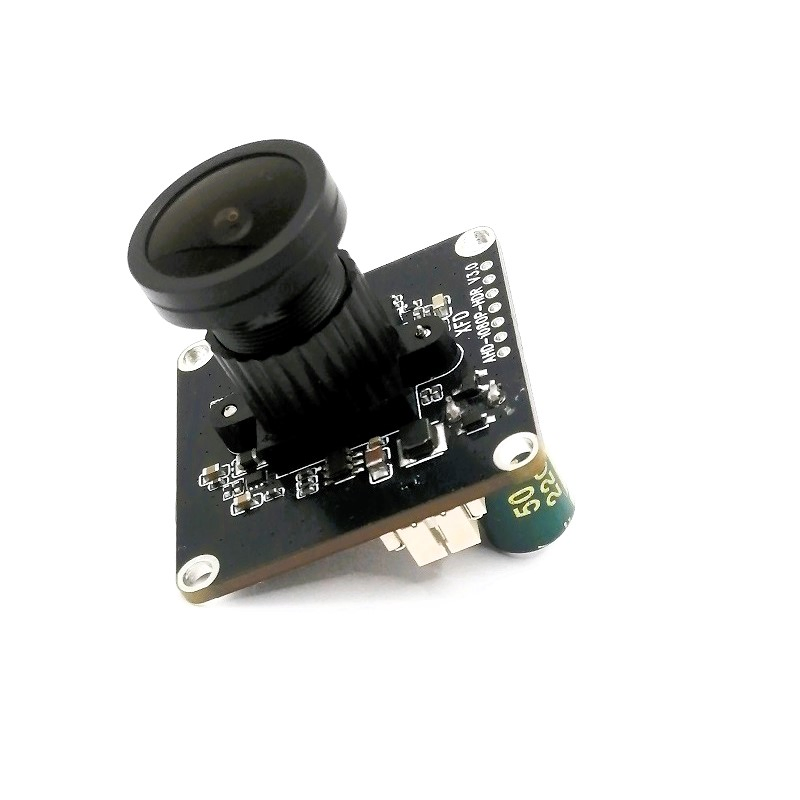

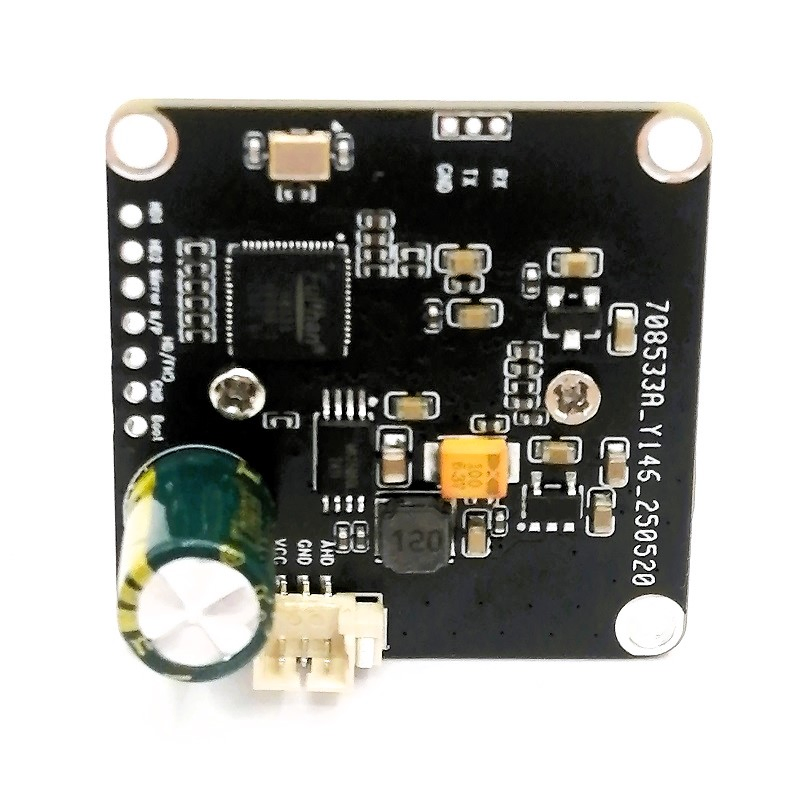

1080P IP Camera Module 2MP 140 Home Security Cam Board 1/2.7" CMOS

1 / 5

1080P IP Camera Module 2MP 140 Home Security Cam Board 1/2.7" CMOS

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

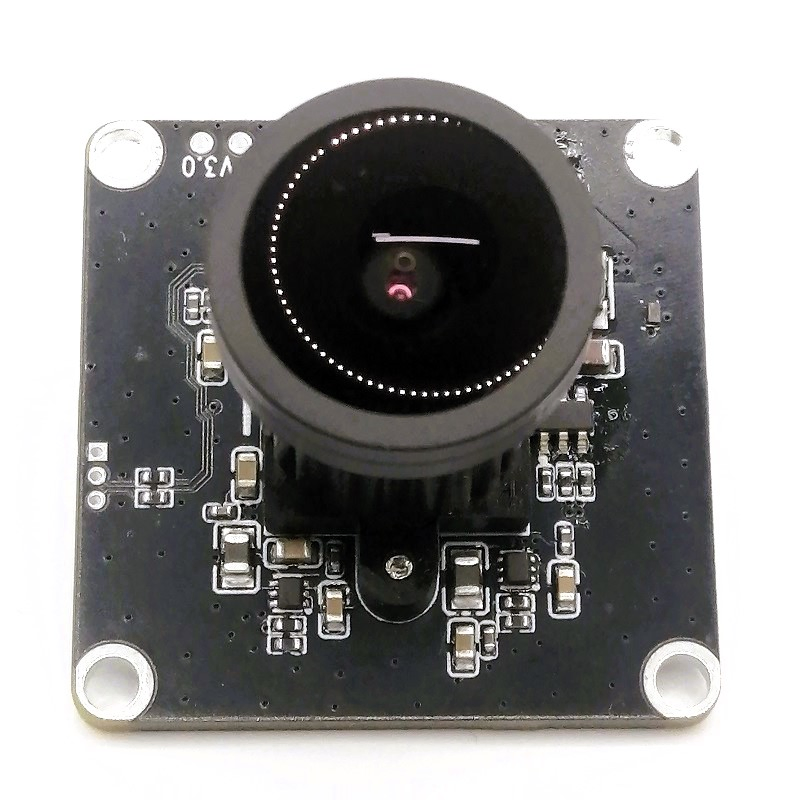

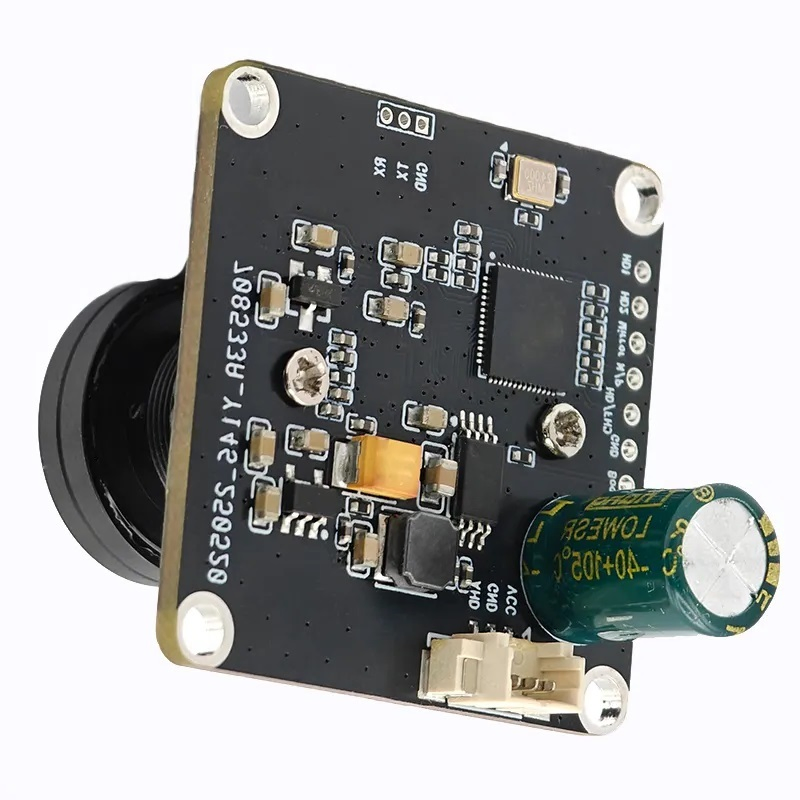

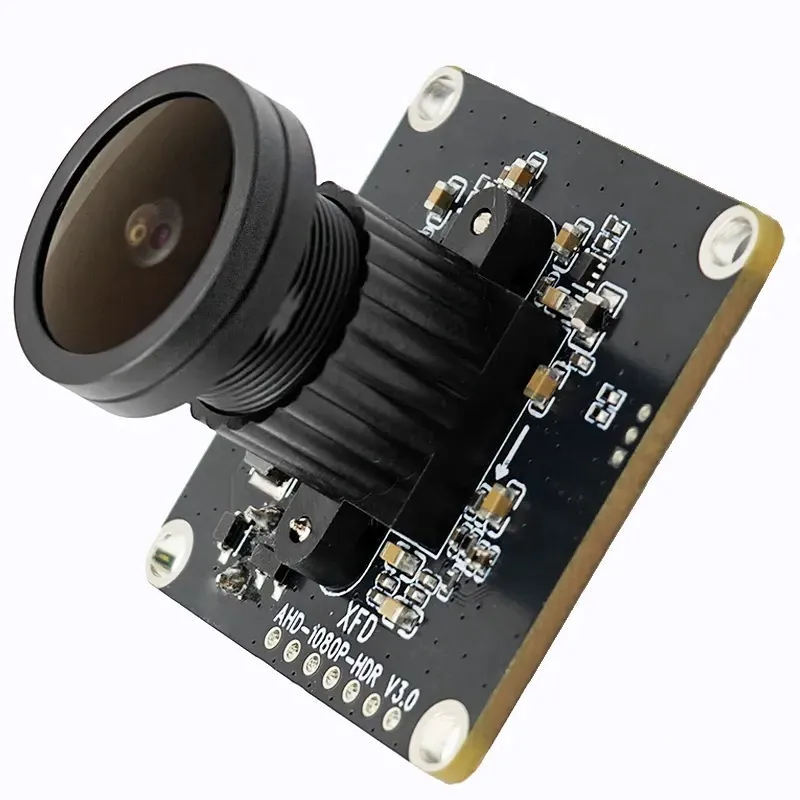

1080P IP Camera Module 2MP 140 Degree Home Security Cam Board 1/2.7 inch CMOS

Model NO.WN-AHD2395-1080HDR V3.0

SensorCMOS

Sensor Size1/2.7 Inch

Package Size15*15*10cm

Gross Weight0.200kg

OriginChina

🔹 Key Features

✓ Supports AHD coaxial high-definition output, with clear and delicate images
✓ Supports High Dynamic Range (HDR) for superior image contrast
✓ Adaptive digital denoising (3D-DNR, 2D-DNR) for cleaner low-light video
✓ Integrated 6KV lightning protection for enhanced video stability
✓ Support wide voltage power supply (DC 6-15V)

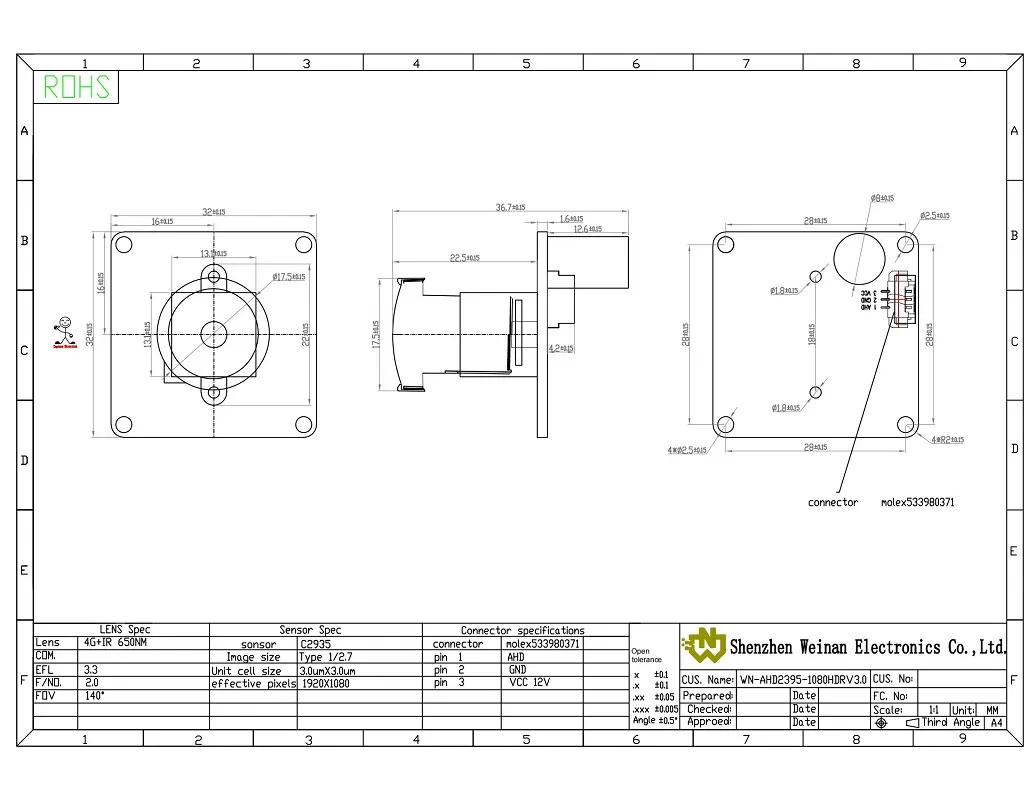

📋 Technical Specifications

Sensor	1/2.7 inch CMOS
Pixel	2MP
Resolution	1920*1080
Frame Rate	25fps
Field of View	140 degree
Video output	AHD
Shutter Type	Electronic Rolling Shutter
Size	32*32mm
Operating temp	-20℃ to +60℃

🚀 Applications

Highly versatile camera module suitable for industrial inspection, automation, education, traffic monitoring, smart home systems, security, healthcare, and automotive industries.

📦 Packing & Delivery

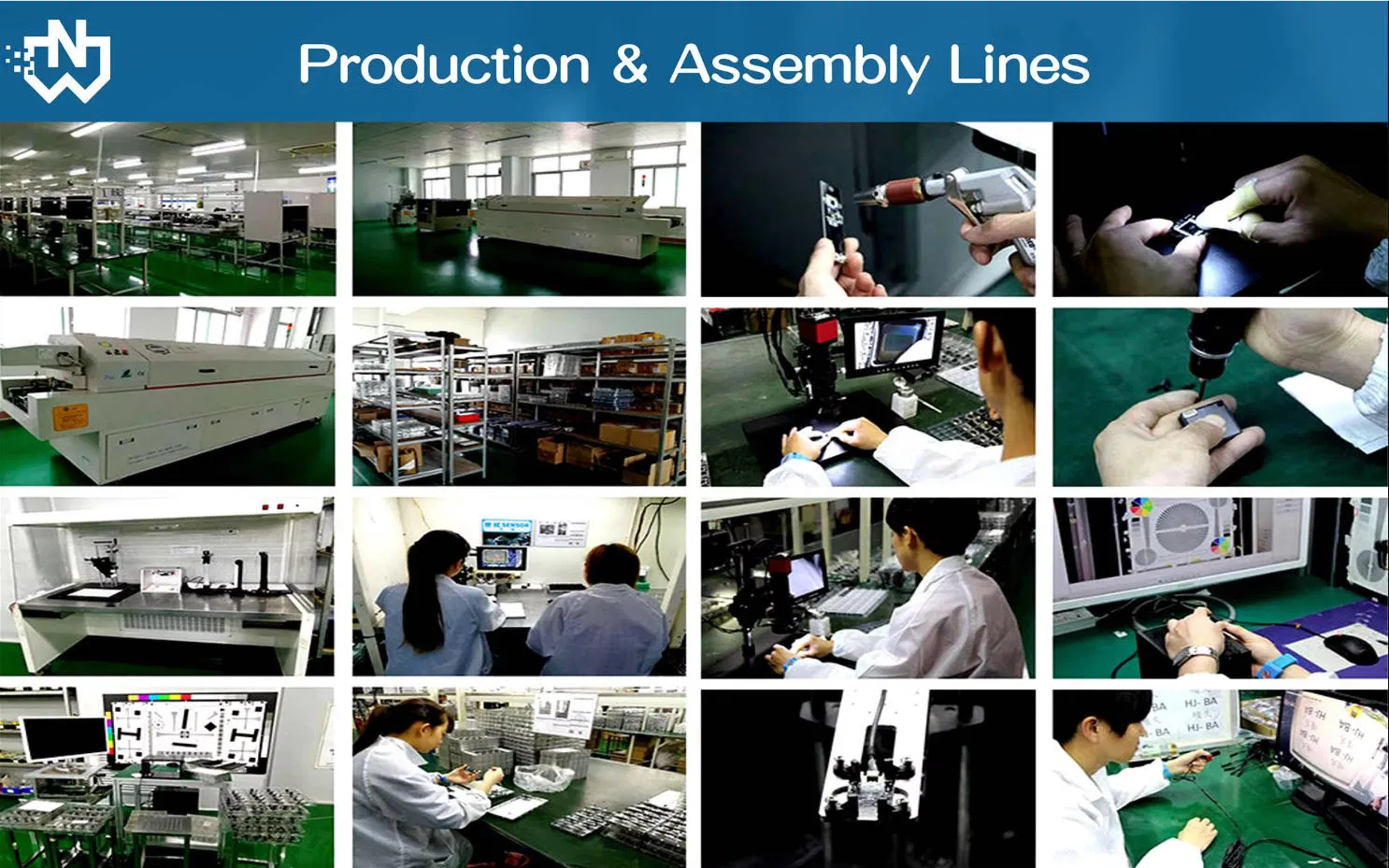

Specializing in CMOS camera module customization and manufacturing. We provide professional and high-quality solutions across various industries since 2014, focusing on product value and professionalism.

📜 Certifications

❓ Frequently Asked Questions

Q: What is your monthly production capacity? A: Typically, we produce around 400,000 units per month. Our experienced engineering team assists with hardware design, prototyping, and large-scale manufacturing.

Q: How long does it take to develop a new customized camera module? A: Development typically takes about 2-3 weeks. The development fee ranges from $200 to $500 depending on the complexity of the project and specific requirements.

Q: What customization services do you offer? A: We offer full customization, including module dimensions, lens types, and specific functional integrations to meet your needs.

Q: Which operating systems are supported by these modules? A: Our camera modules are compatible with Windows, Mac, Android, and Linux systems.

Q: What is the lead time for small orders? A: For orders between 1 to 10 pieces, the lead time is approximately 2 days. Larger quantities are subject to negotiation.

Q: Is the camera module suitable for outdoor use? A: Yes, it supports an operating temperature range of -20℃ to +60℃ and includes 6KV lightning protection, making it robust for various environments.
