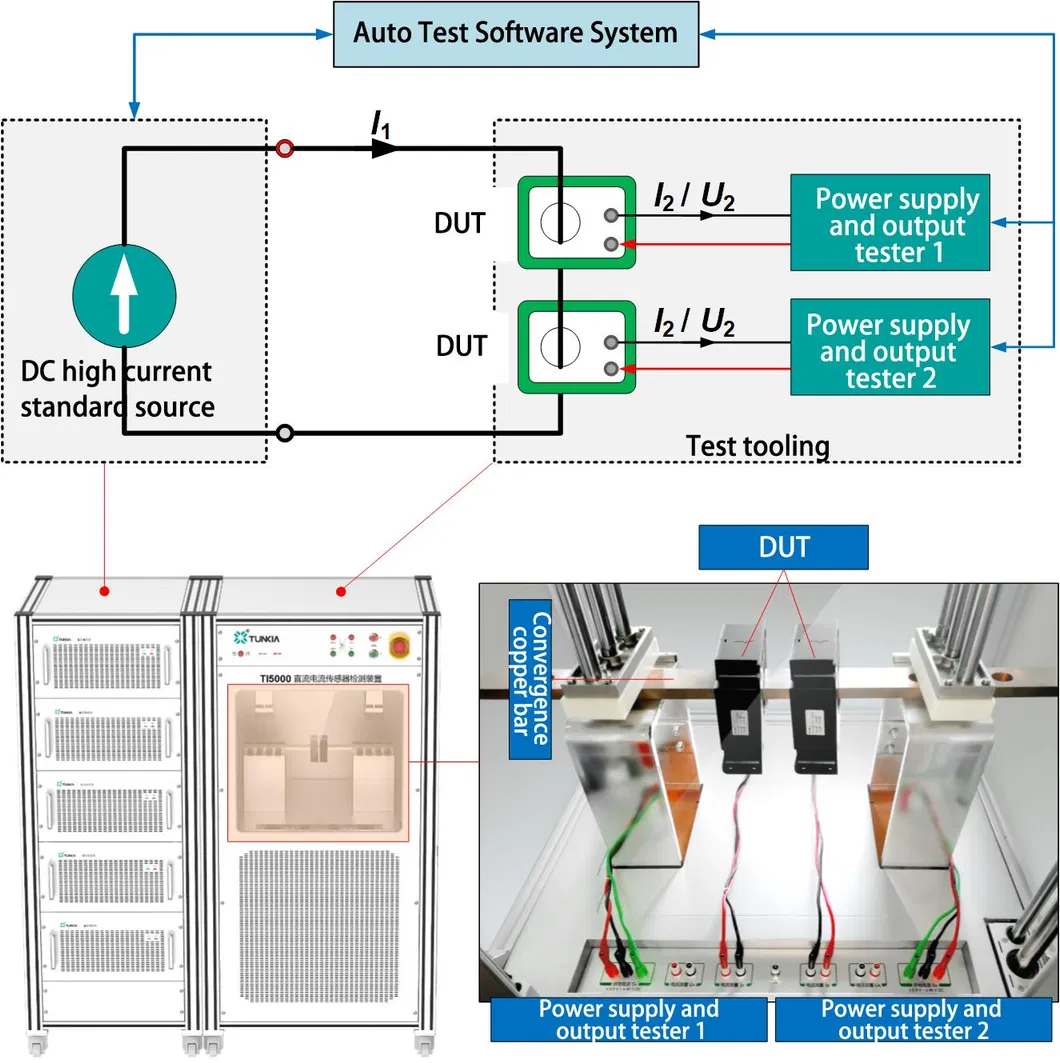

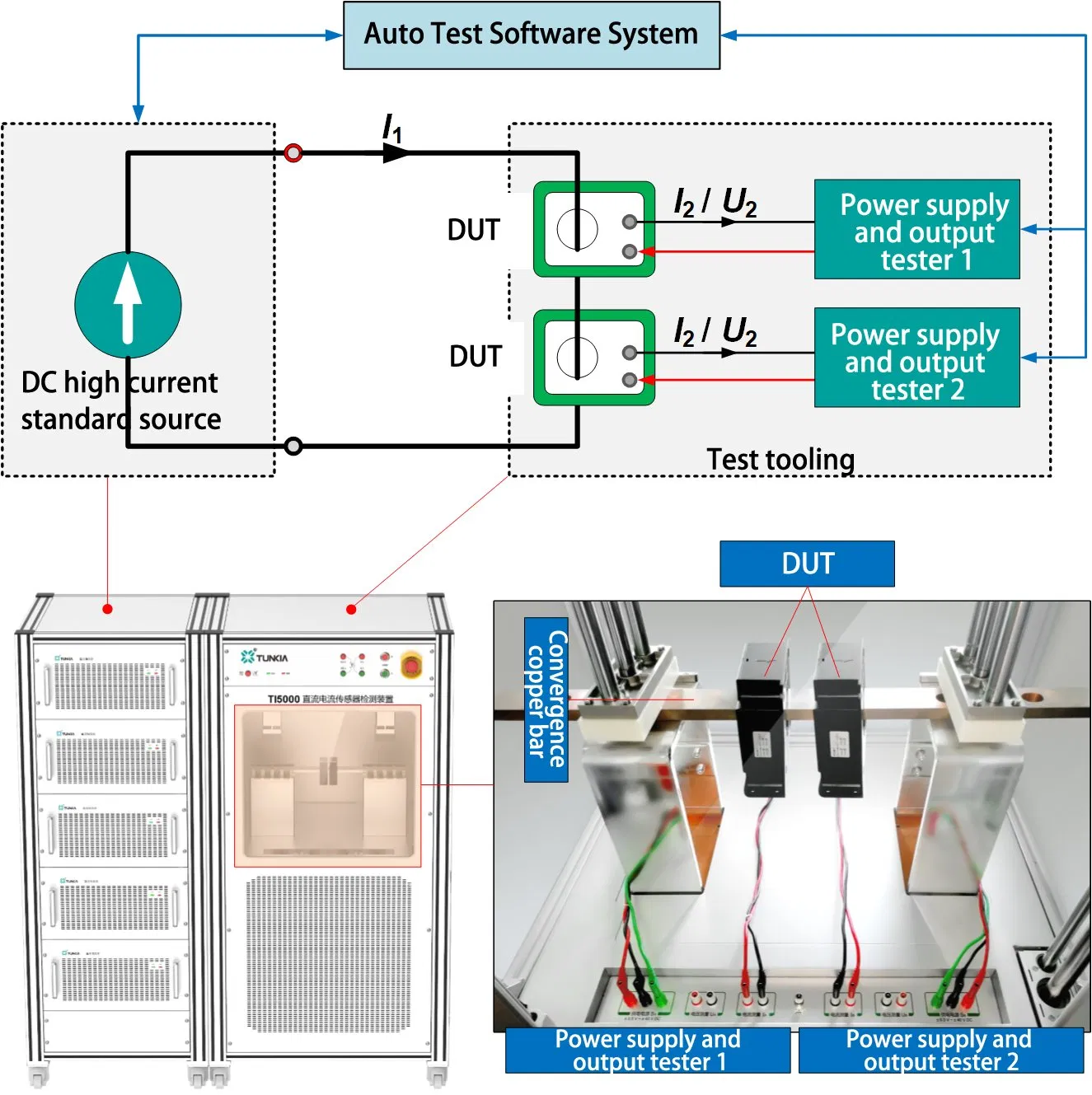

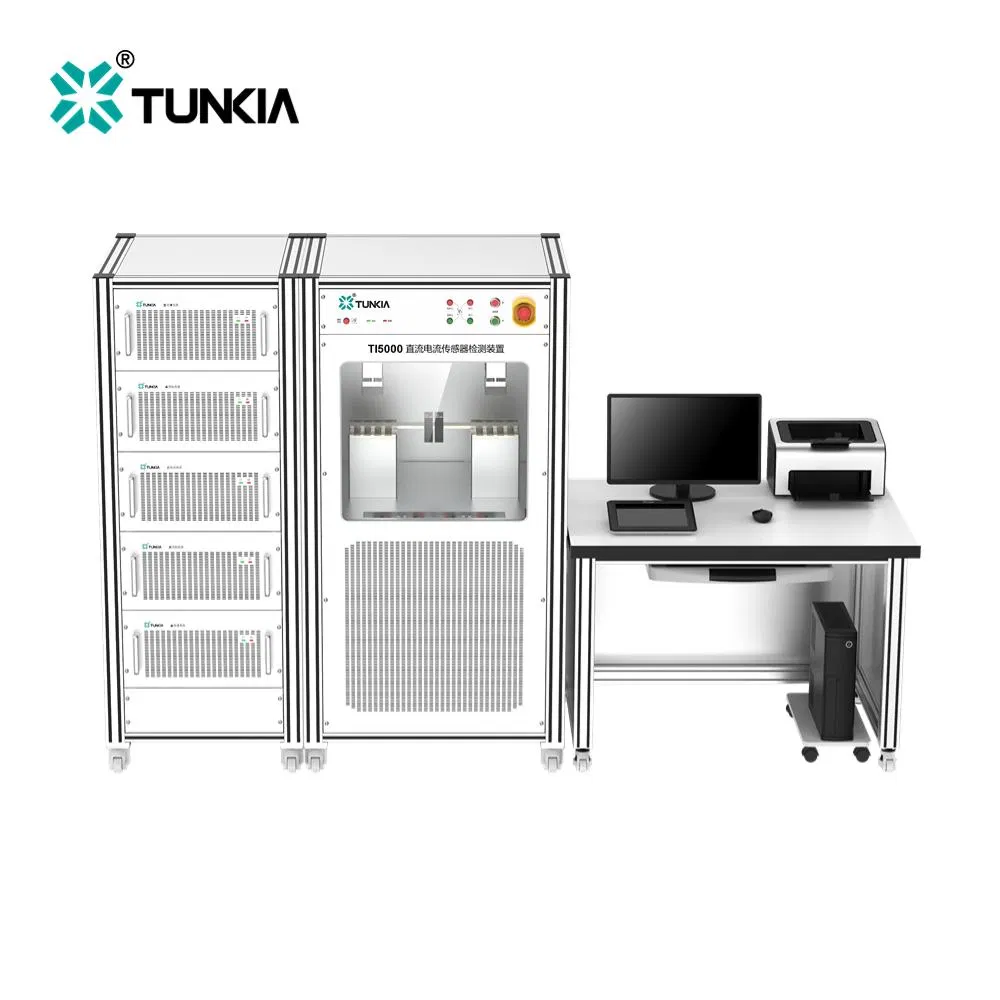

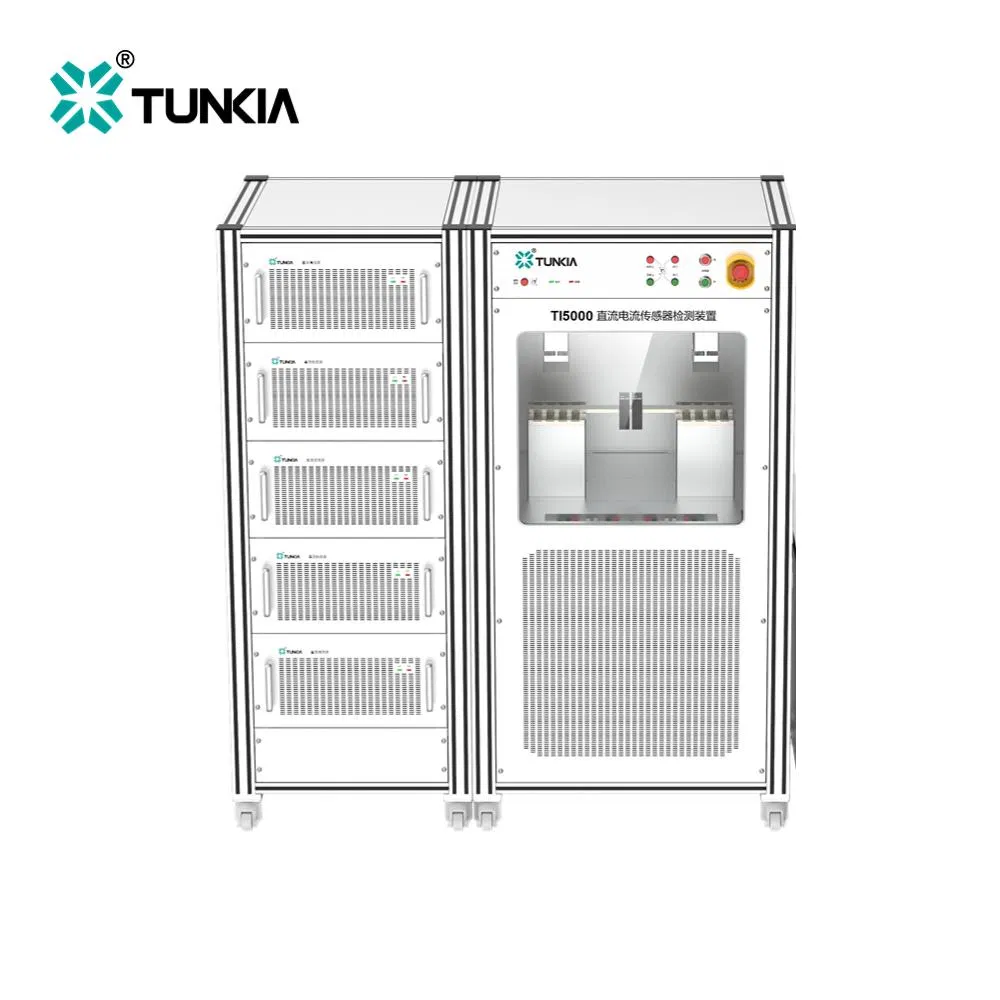

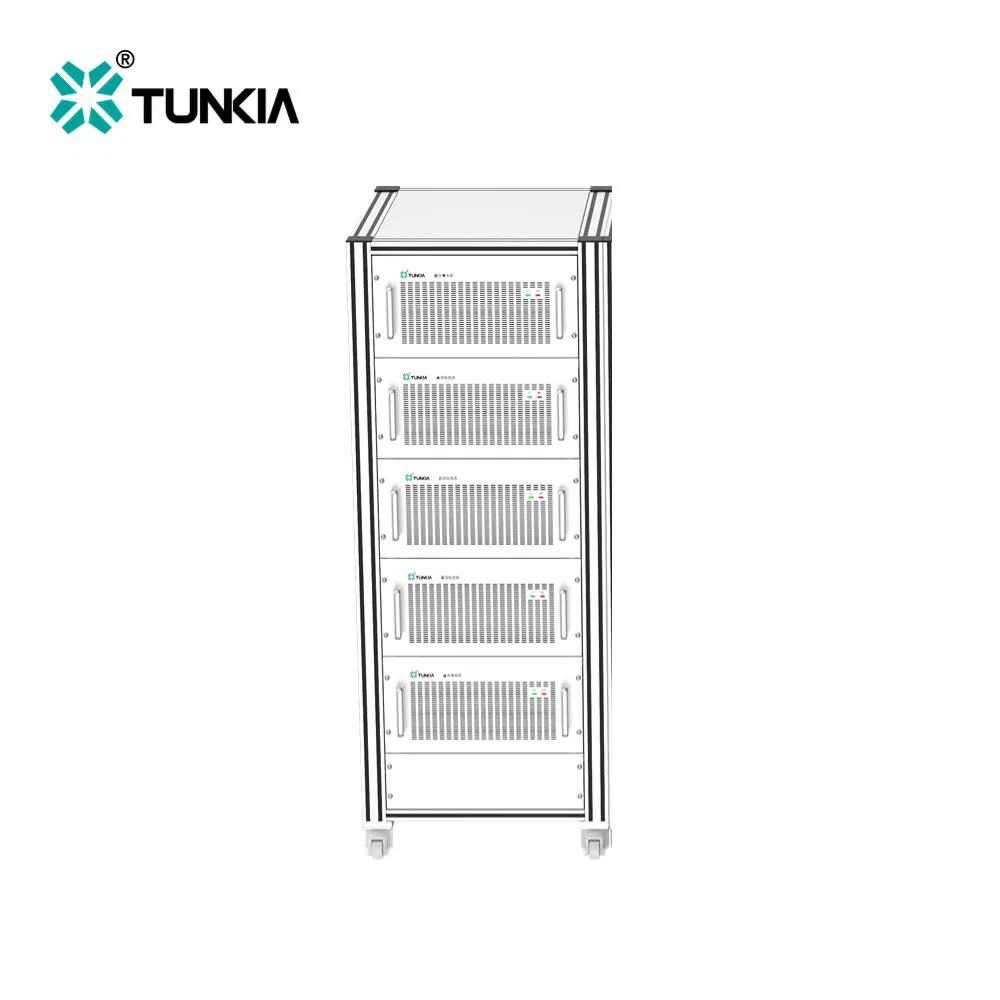

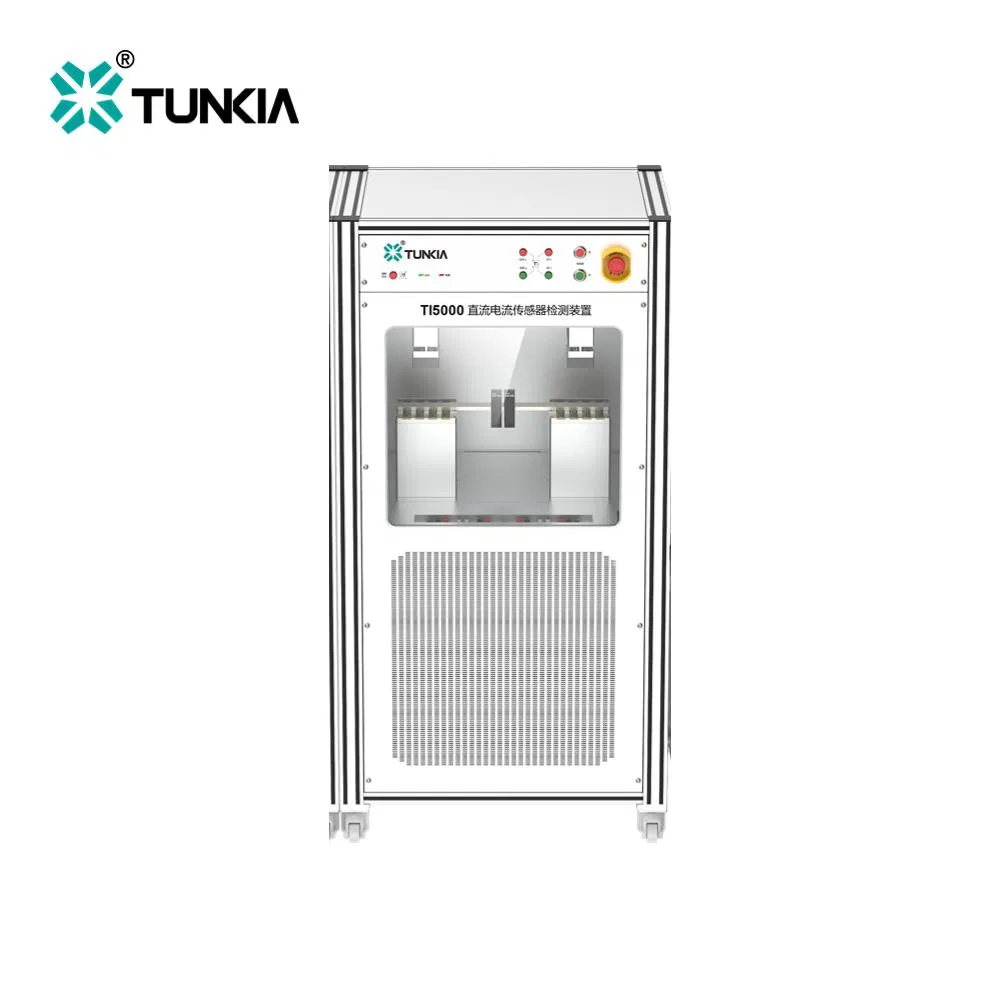

The TI5000 is a multifunctional device designed for testing the measurement performance of DC current sensors. It integrates a DC high current standard source, a sensor output power measurement module, an auxiliary power supply, sensor test tooling, and specialized test software. This system offers flexible configuration for output current, accuracy, and the number of sensor units to be detected, making it a comprehensive solution for calibration and metrology.
| Parameter | Class 0.01 | Class 0.02 | Class 0.05 |
|---|---|---|---|

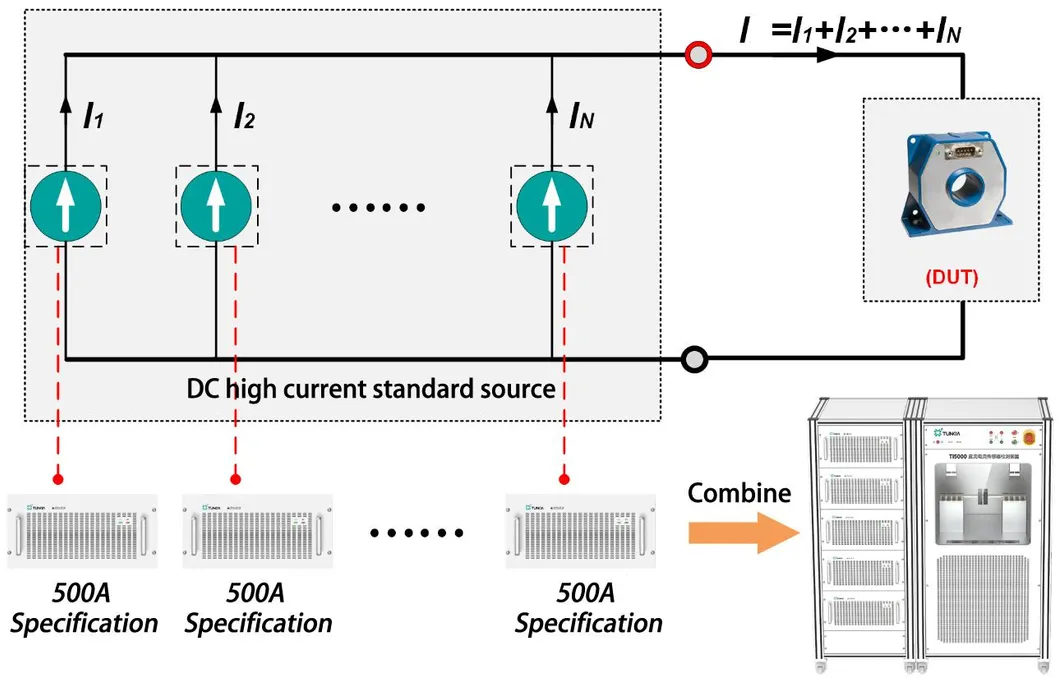

| Current Range | 1 A, 2 A, 5 A ... N kA (Optional) | ||
| Stability (%*RG/min) | 0.003 | 0.005 | 0.01 |
| Uncertainty (k=2) | 0.006 + 0.004 | 0.012 + 0.008 | 0.03 + 0.02 |
| Setup Time | ≤ 3 s | ||
| Test Category | Measurement Details |
|---|---|

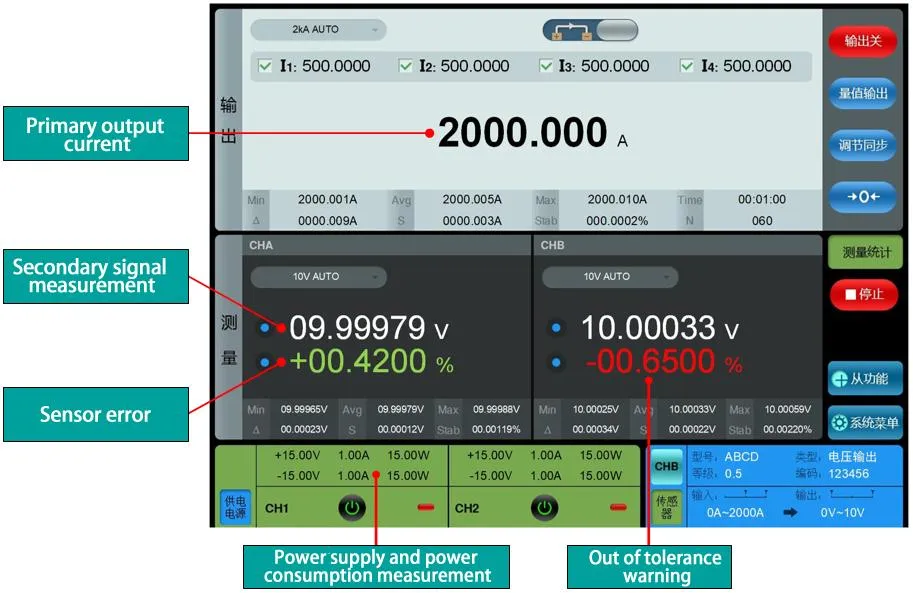

| Metrology | Basic accuracy, Zero point error, Full range output error, Linearity, Repeatability |

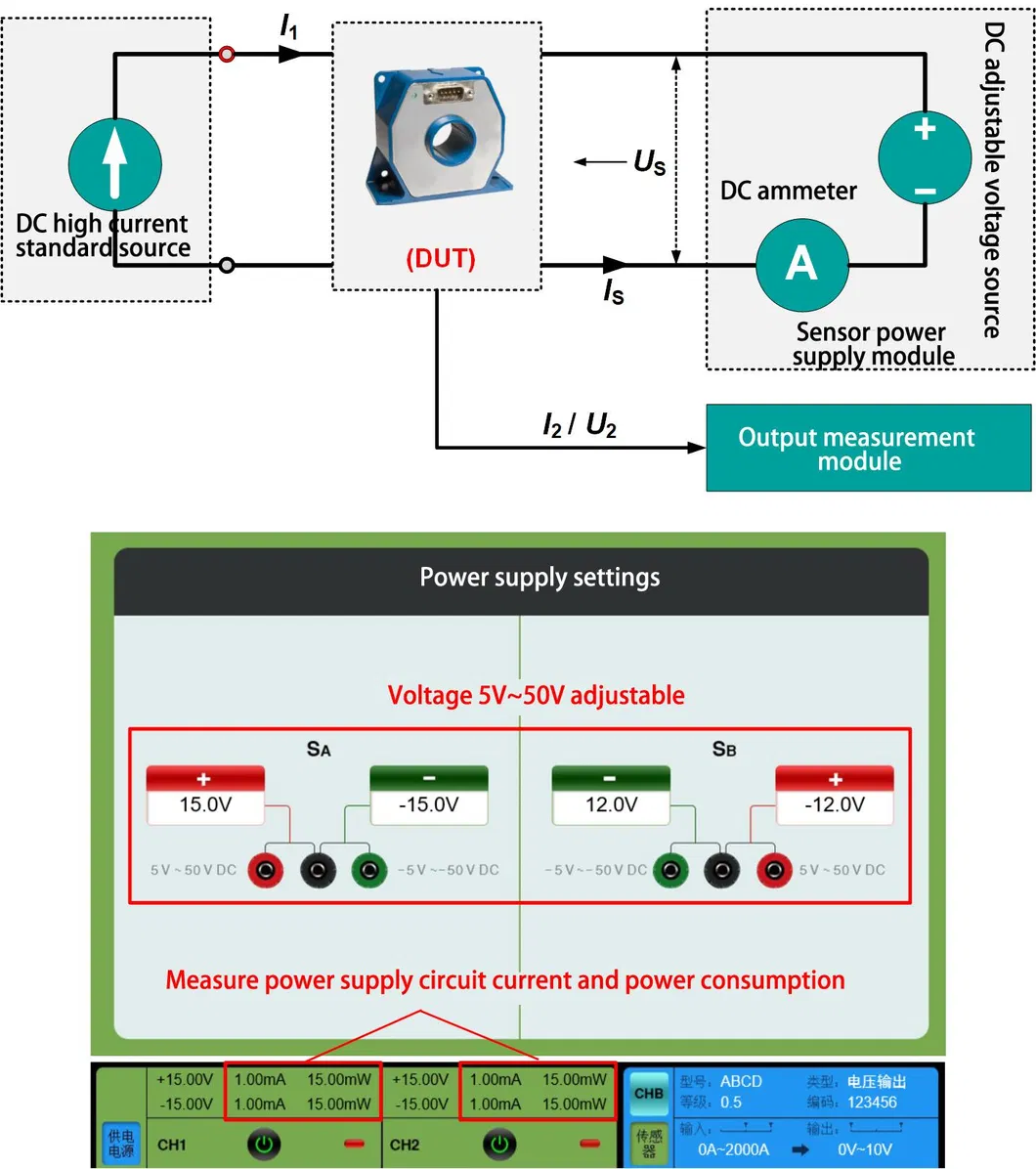

| Influence Quantity | Power consumption, Zero drift, Overload capacity, Power supply impact |

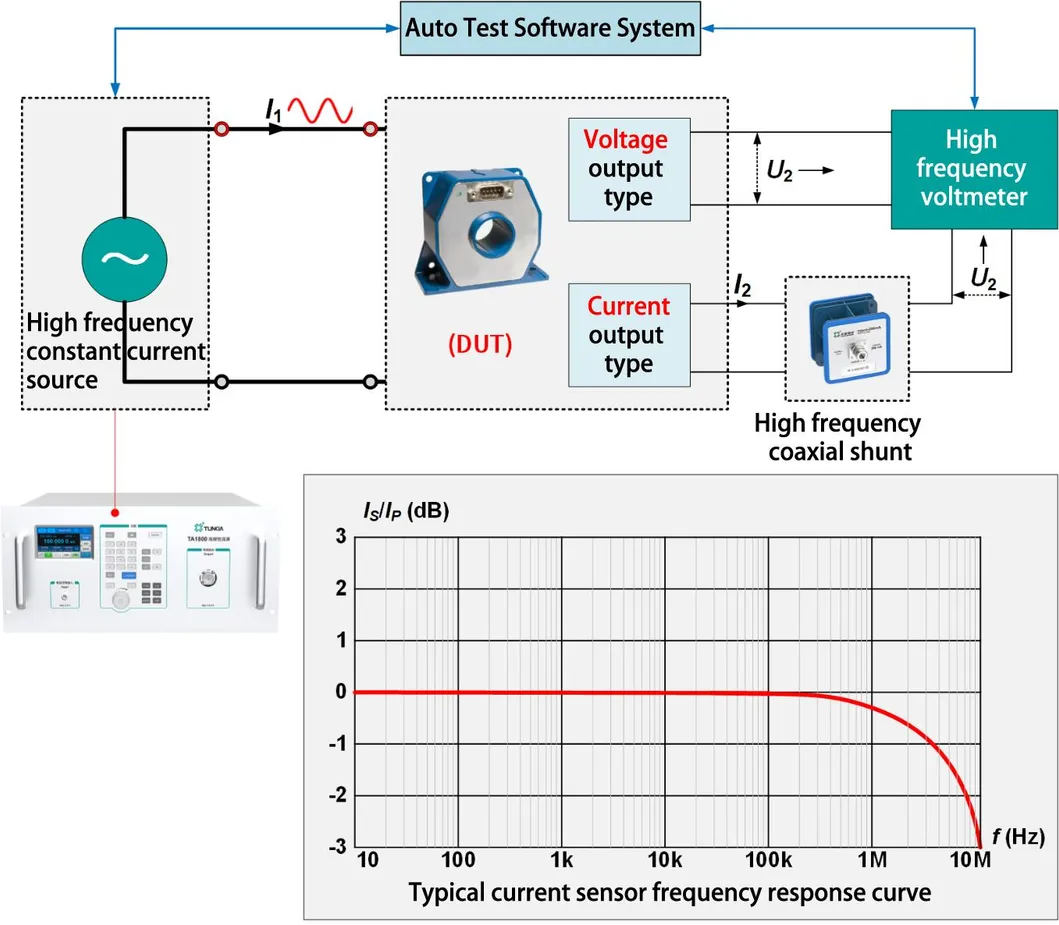

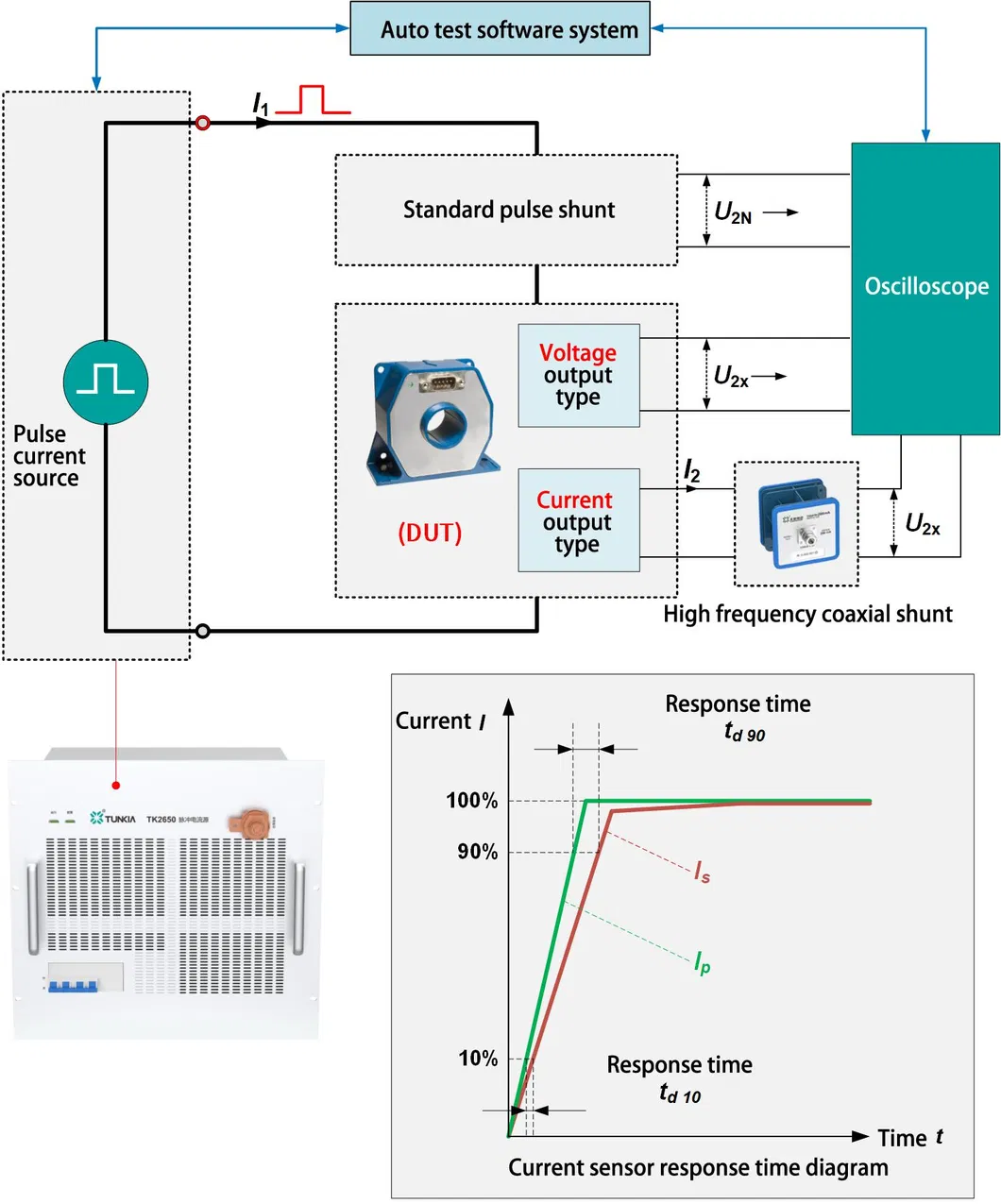

| Optional Performance | Measurement bandwidth (up to 1 MHz), Response time (50 A/μs rate) |
