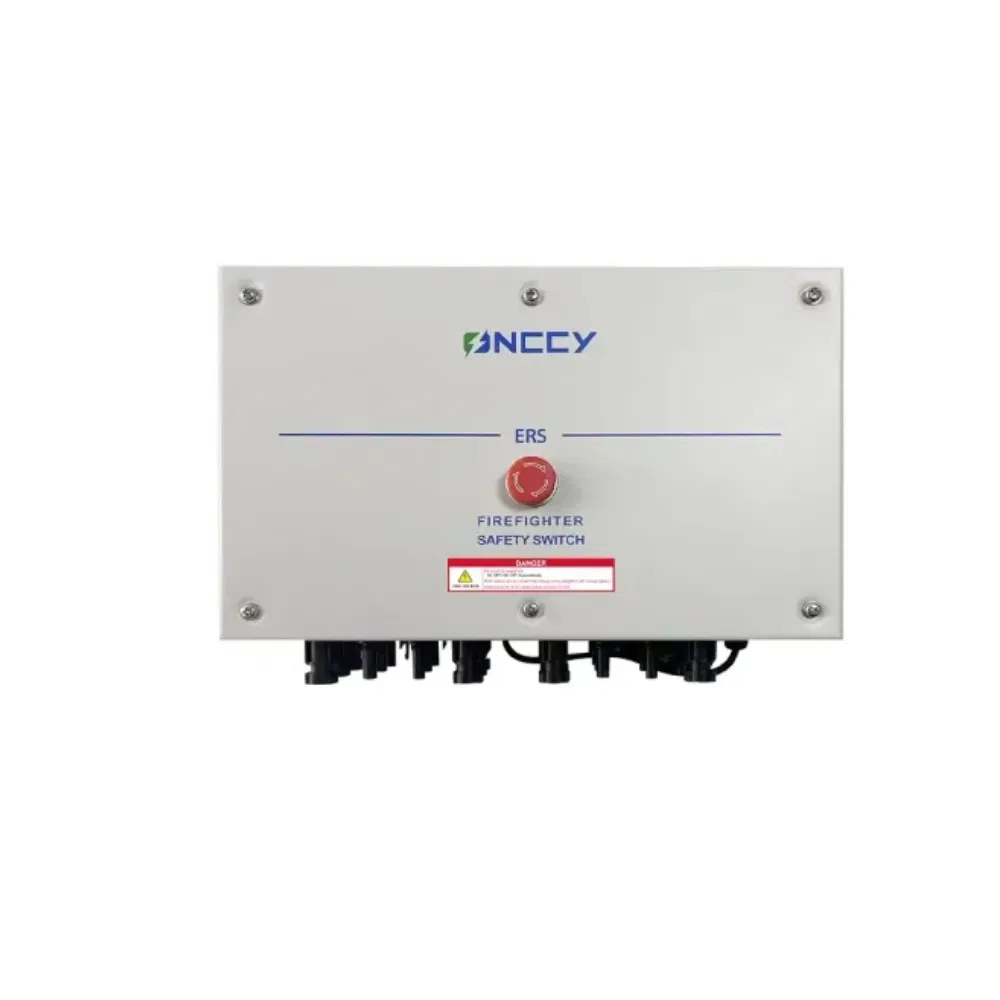

Solar Roof Safety Rsd 1500V 40A PV Rapid Shutdown Device Fireman Switch with Emergency Stop Button

1 / 5

Solar Roof Safety Rsd 1500V 40A PV Rapid Shutdown Device Fireman Switch with Emergency Stop Button

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

ERS

Warranty

5 years

OEM

Acceptance

Voltage Ui

1500V

Rated Current

40A

Connector

Glands/MC4/Knock Outs

String

4-String

IP Code

IP66

Authentication

String Current

9-55

String Voltage

300-1500

Working Voltage

100VAC-270VAC

Packaging & Delivery

Package Size

22.00cm * 22.50cm * 13.00cm

Gross Weight

1.760kg

Specification

4 units/Carton

Product Description

★ Discover the ultimate in solar system safety with our 1500V TUV CE CB SAA PV Rapid Shutdown Fireman Switch.

✔

Designed for maximum compatibility, suitable for 3-string, 4-string, and 5-string modules.

✔

Engineered for a maximum circuit current of 55A for demanding conditions.

✔

High-voltage rating of 1500VDC ensures optimal operation and security.

✔

Versatile multi-clock interface options: knockout hole, gland, or MC4 terminal.

✔

TUV, CE, CB, and SAA certified isolation switches.

✔

Equipped with a waterproof vent valve to prevent condensation.

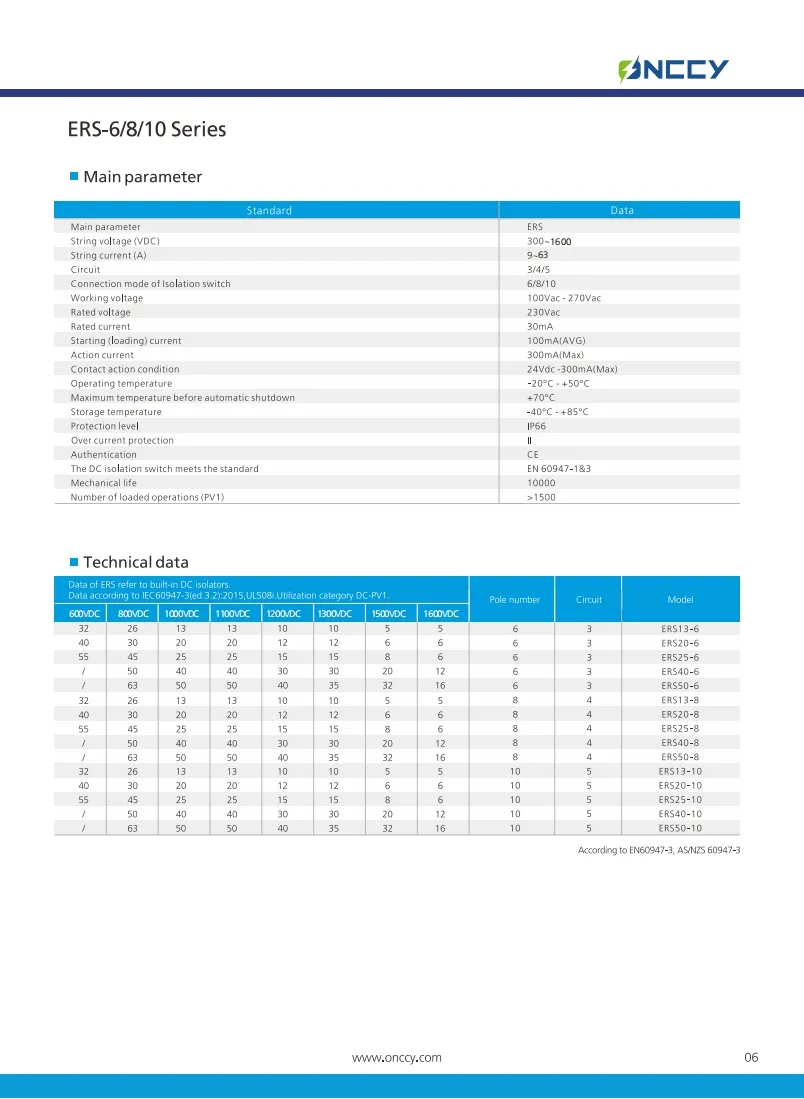

Product Parameters

Main Parameter	Specification Details
String Voltage (VDC)	300~1500
String Current (A)	9~55
Circuit	3/4/5
Working Voltage	100Vac - 270Vac
Rated Current	30mA
Action Current	300mA(Max)
Operating Temperature	-20°C - +50°C
Protection Level	IP66
Mechanical Life	10000 Cycles
Compliance Standard	EN 60947-1&3

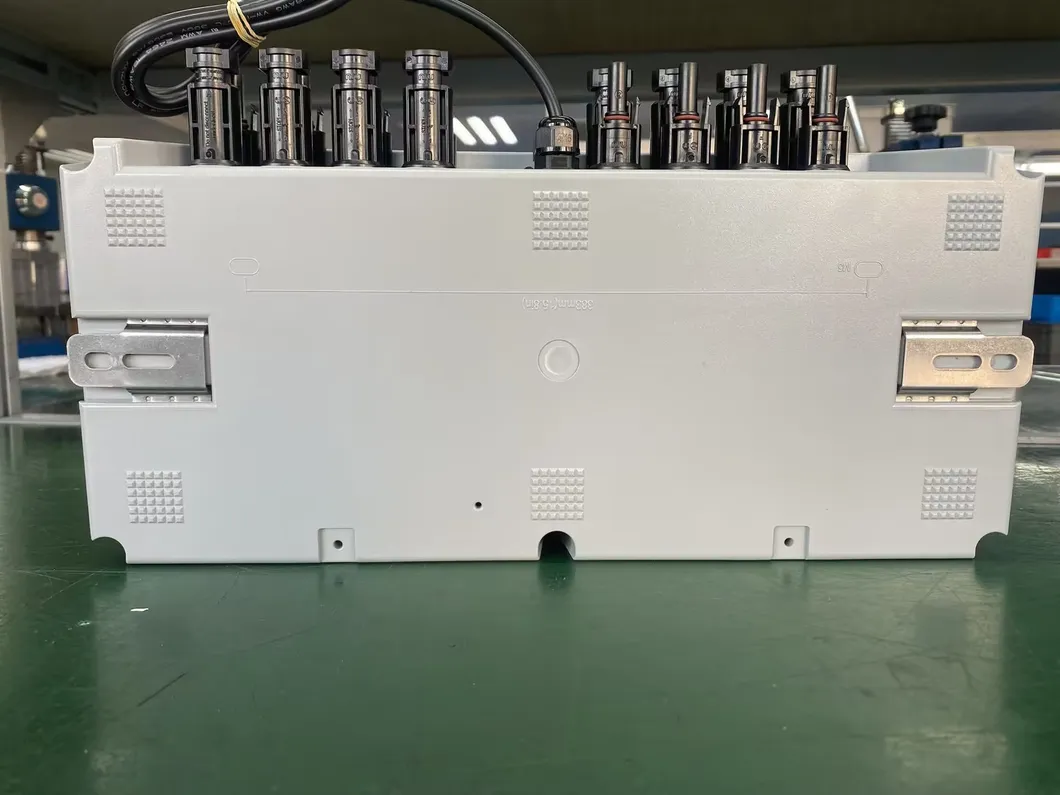

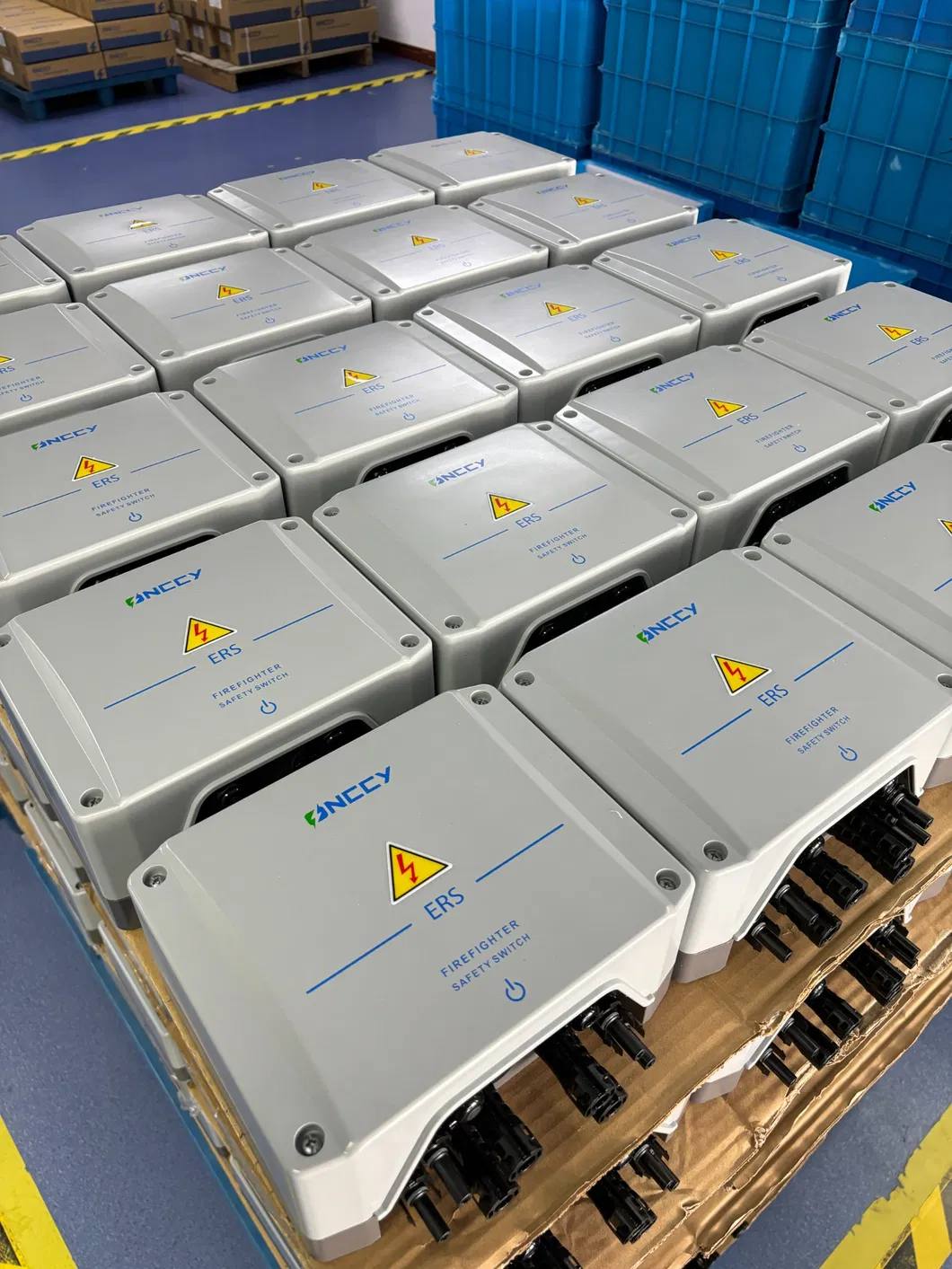

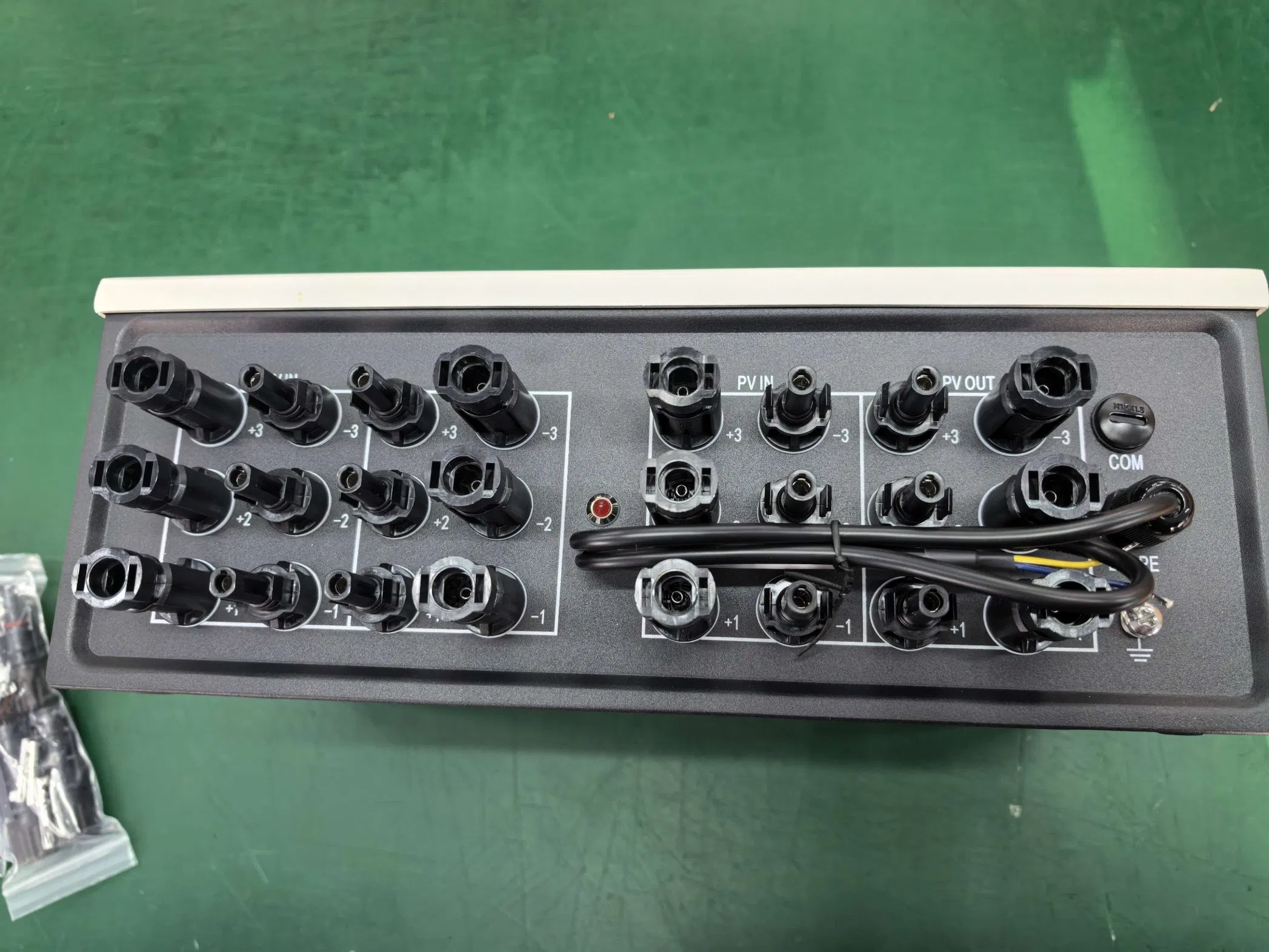

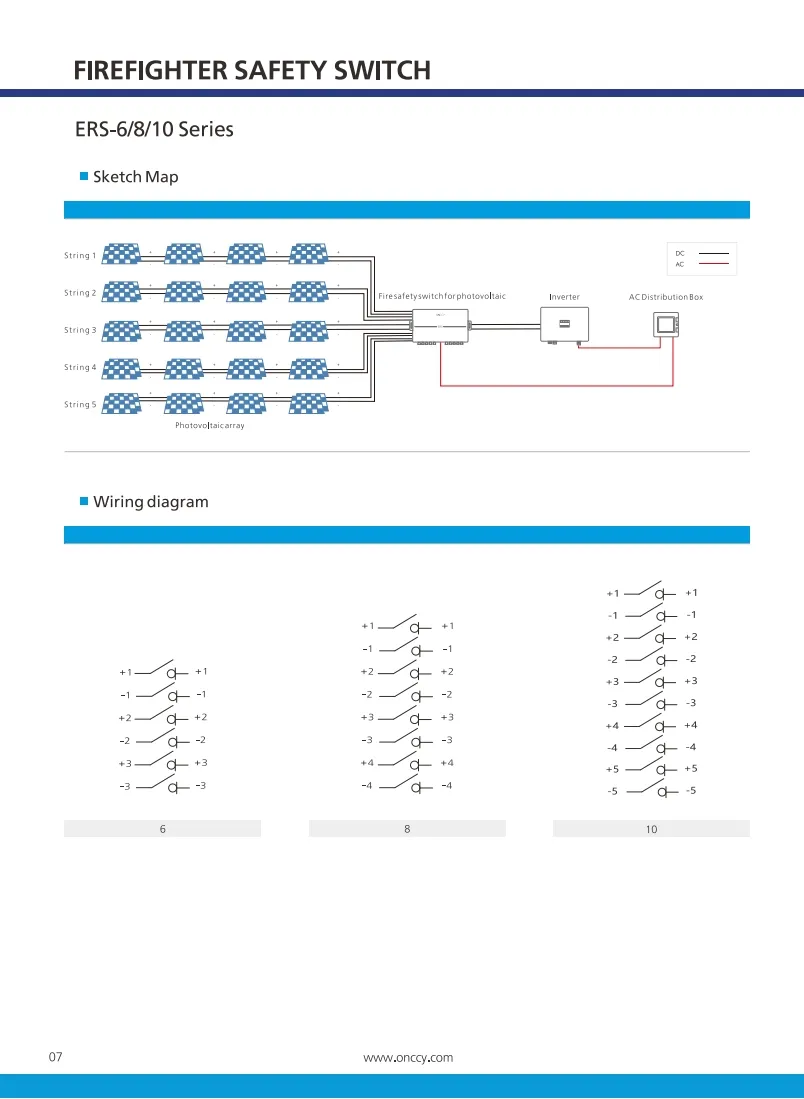

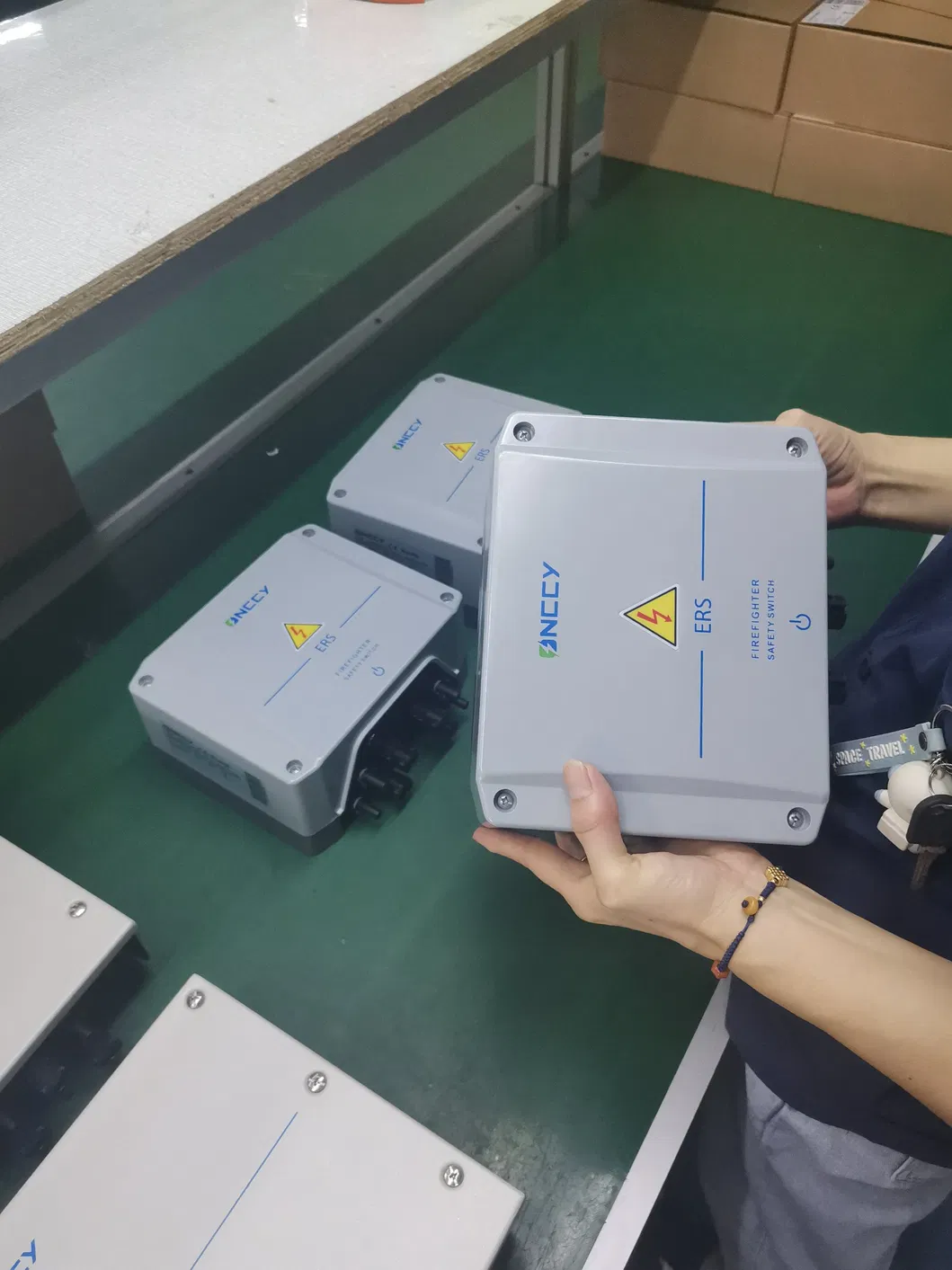

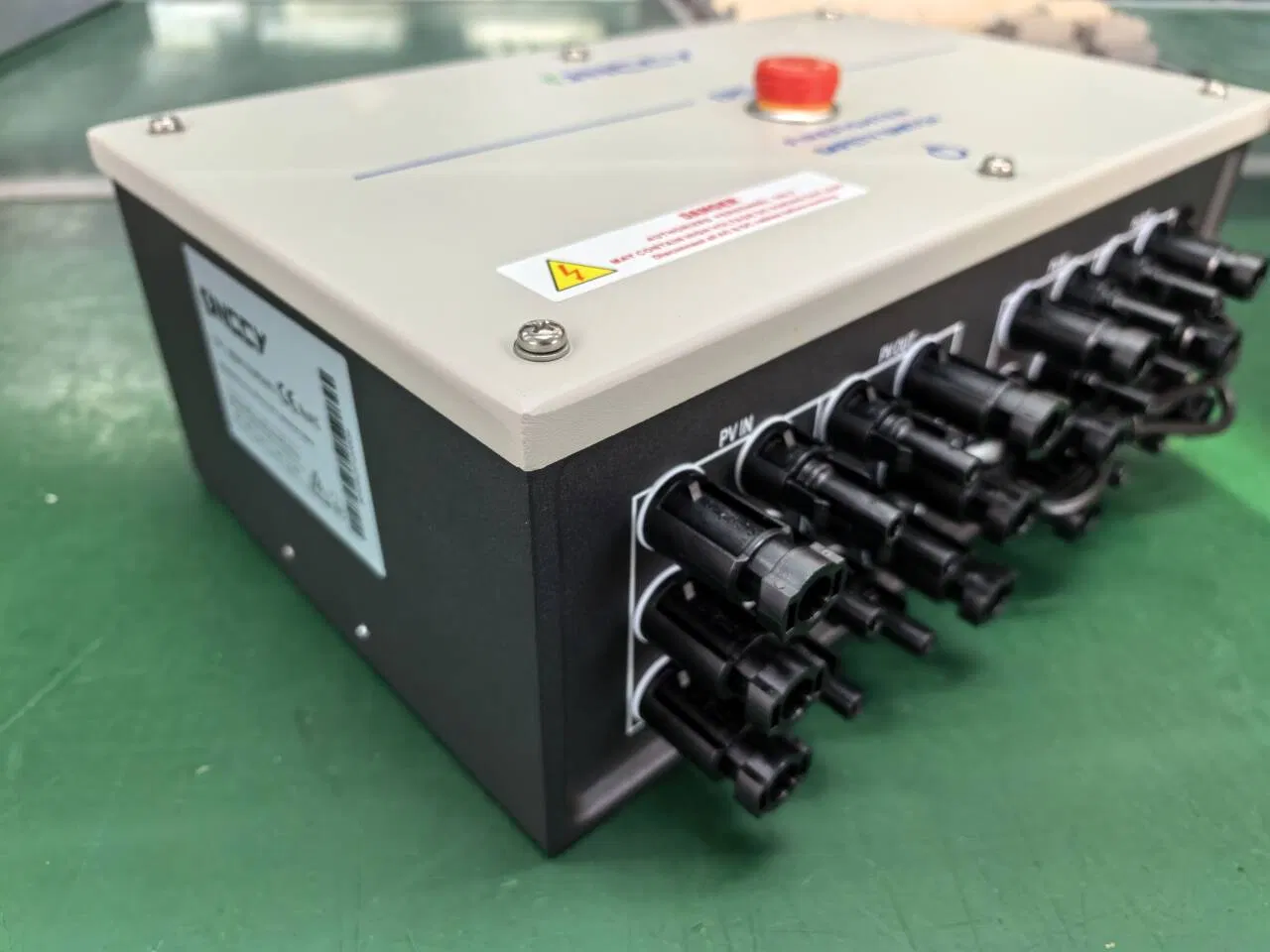

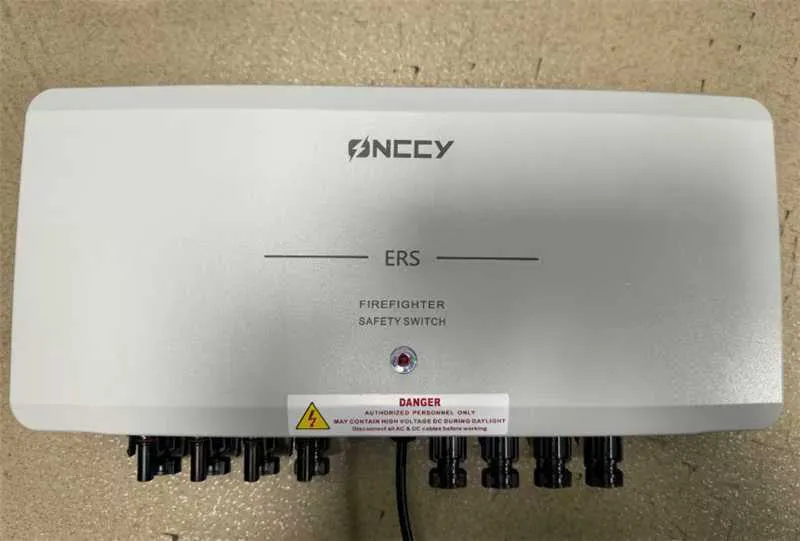

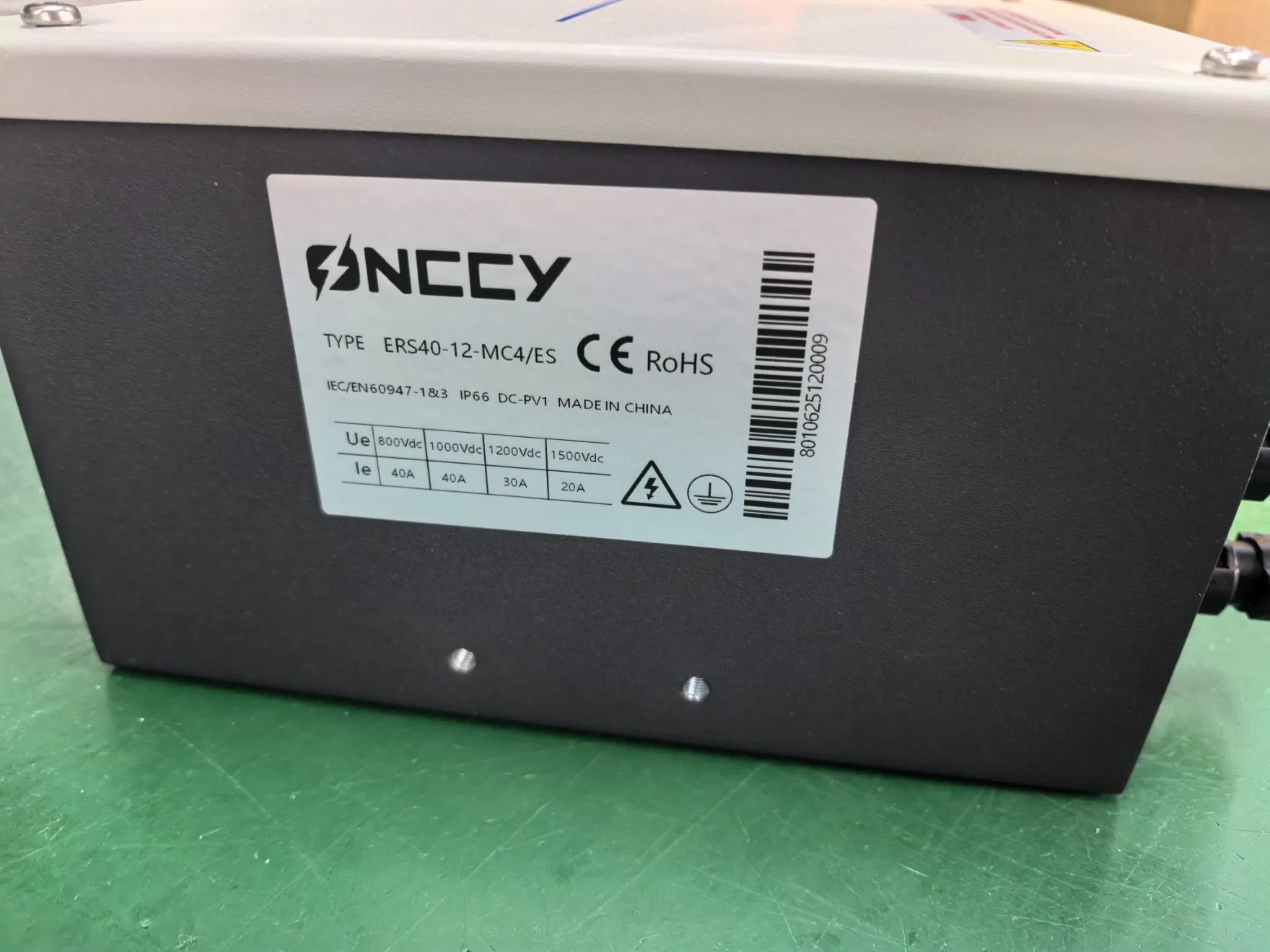

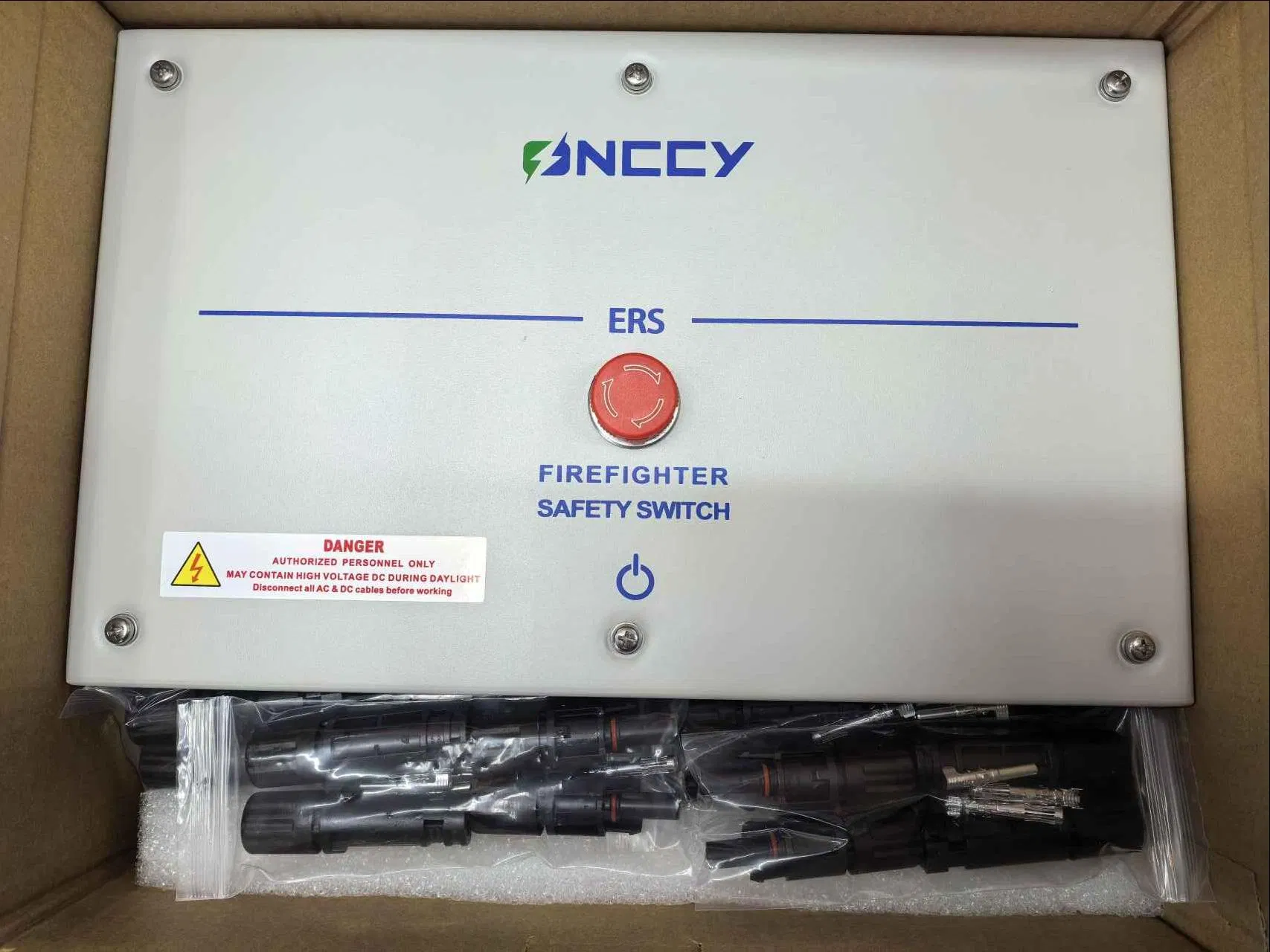

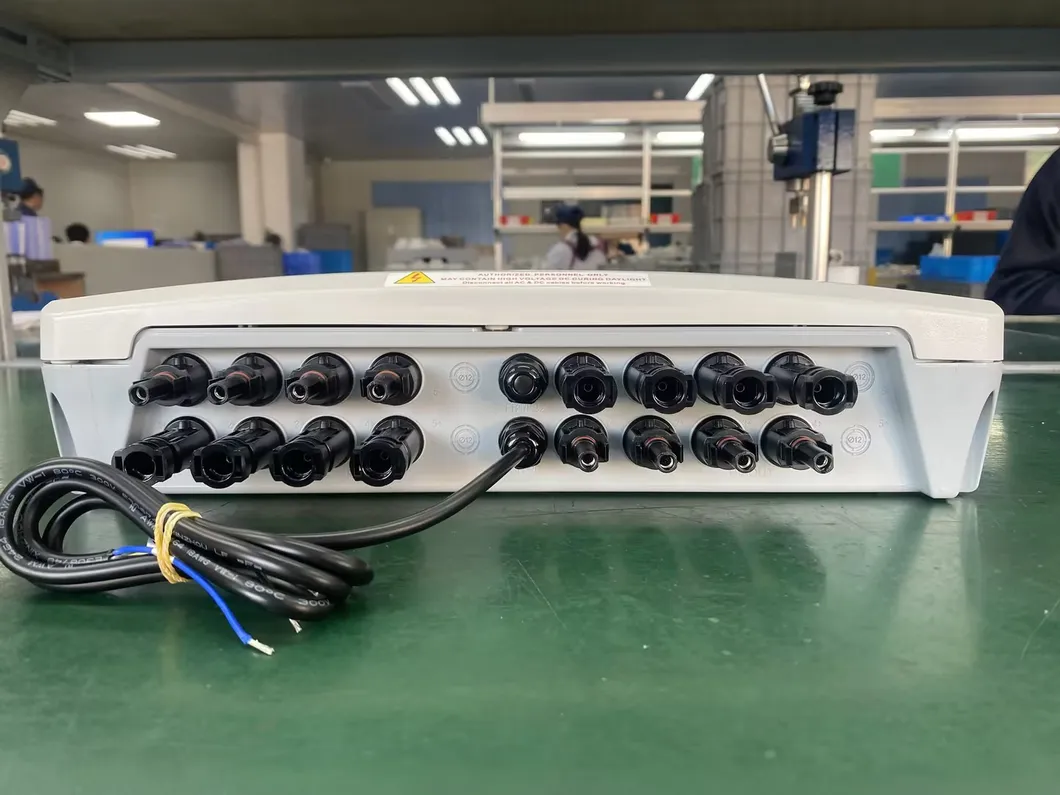

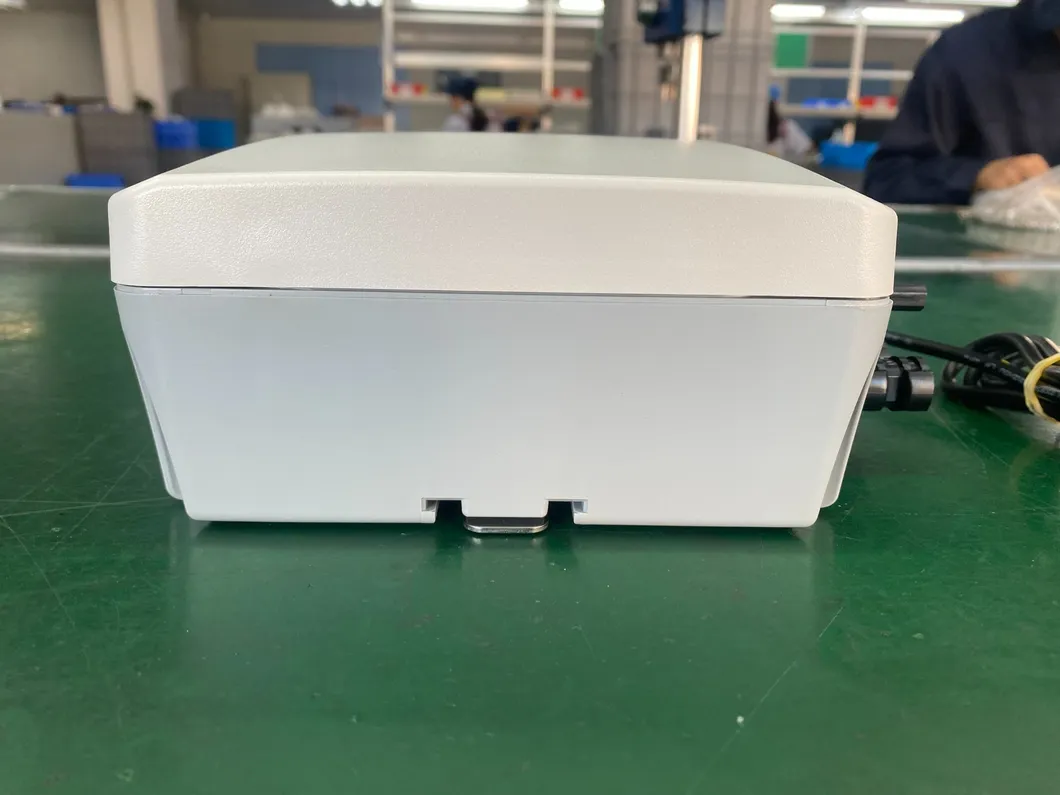

Detailed Photos

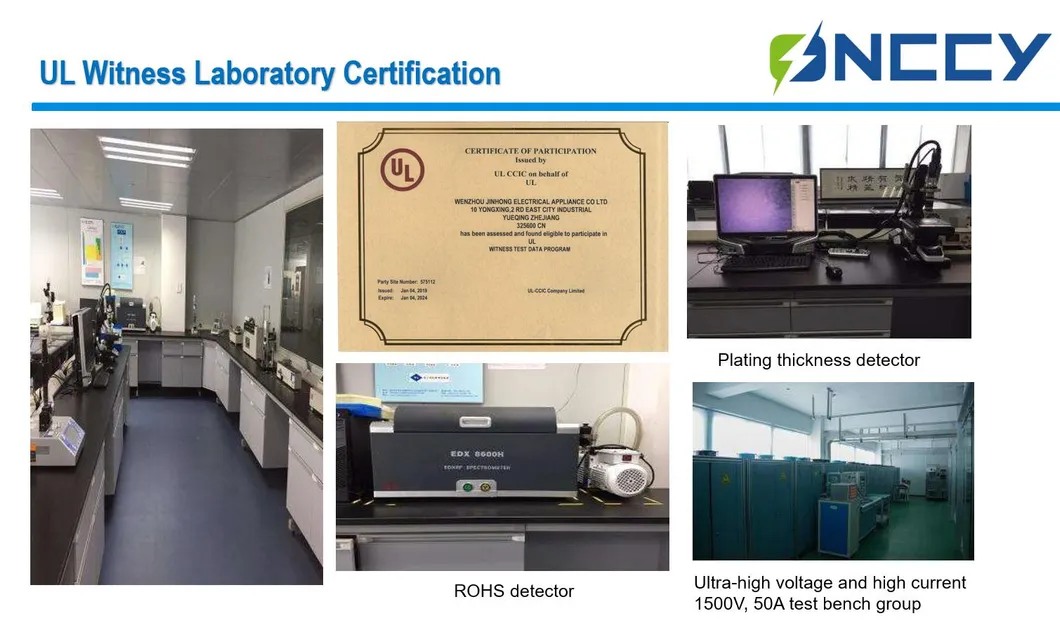

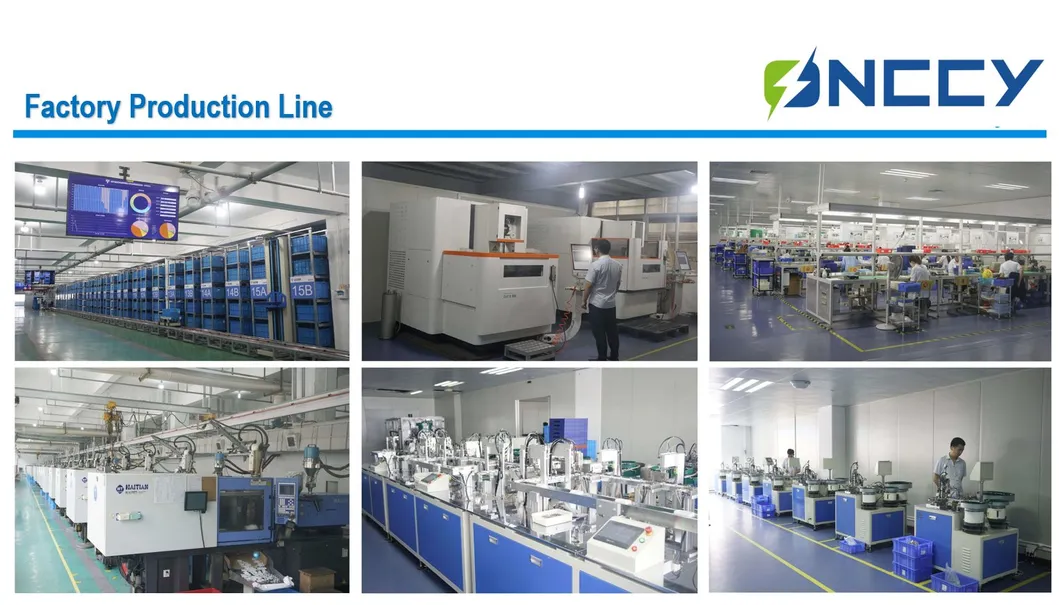

Production Environment

Frequently Asked Questions

Q: Are you a trading company or manufacturer?

A: We are a dedicated manufacturer with a state-of-the-art facility spanning 30,000 square meters, ensuring top-quality production.

Q: What certifications do your products hold?

A: We hold a wide array of certifications, including UL, TUV, CB, SAA, CCC, and CE, underscoring our commitment to international excellence.

Q: Can you provide samples for quality inspection?

A: Yes, we can provide samples upon request. Please contact us to discuss your specific technical needs.

Q: What is your typical delivery time?

A: Typically, delivery is within 3 days for small quantities. For general bulk orders, expect delivery within 15-20 days.

Q: How do you ensure product quality?

A: We perform comprehensive inspections from raw materials to finished products, including transient, delay, and mechanical life tests.

Q: What standard of packaging do you use?

A: Our goods come in export standard packaging, and we offer customized packaging options to meet specific customer requirements.
