Overview & Basic Info
Installation:
Outdoor High-voltage
Grounding Mode:
Not Grounding
Movement Mode:
Plug-in Type
Specification:
16A, 25A, 32A
Product Description
Waterproof IP66 DC Isolating Switch
- Modular design with DC insulation voltage of 1500V and compact structure (2-8 Pole optional).
- IP66 box design with switch rotation operator including three lockable positions to prevent misoperation.
- Suitable for various specifications of waterproof cable connectors or MC4 connectors.
- Angle-designed zero line bridge for easier electrical connections.
- Sufficient internal space for heat dissipation, operational under full load from -40ºC to 70ºC.
- High-speed "on-off" switching mechanism utilizing energy storage springs (switching time < 5ms).
- Self-cleaning contact design to reduce resistance and extend service life.
- Effective arc suppression via magnetic and gate arc extinguishing technologies.
- Certified by TUV, CE, and compliant with IEC/EN60947-3 standards.
1. Non-polar design
2. Modular design, 2-8 grades available
3. Positive/Negative contact optional
4. Multiple installation methods (Panel, Power distribution, External)
5. IP66 rating with imported seals
Product Parameters
| Parameters (IEC/EN60947-3) |
GD32R-4S Model Details |
| Rated insulation voltage (Ui) | 1500V |
| Rated thermal current (lth) | 16A | 25A | 32A |
| Rated impulse withstand voltage (Uimp) | 8000V |
| Rated short-time withstand current (1s) | 800A | 900A | 1000A |
| Rated limited short-circuit current (lcc) | 5000A |
| Mechanical life | 10,000 Cycles |
| Operating temperature | -40 to +85ºC |
| IP rating | IP66 |
Packaging & Shipping
Packaging Options: Header card, Blister with card, Double blister, Canister, or customized per request.
Shipping Methods: Air Freight, Sea Freight, or Airport/Port receiving via specified forwarders.
Delivery Time: Standard shipping within 7 days after payment confirmation.

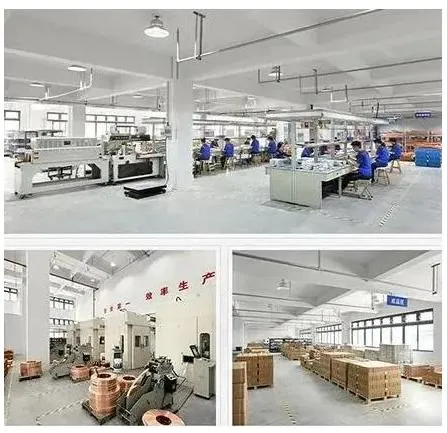

Professional Manufacturing & Advantages

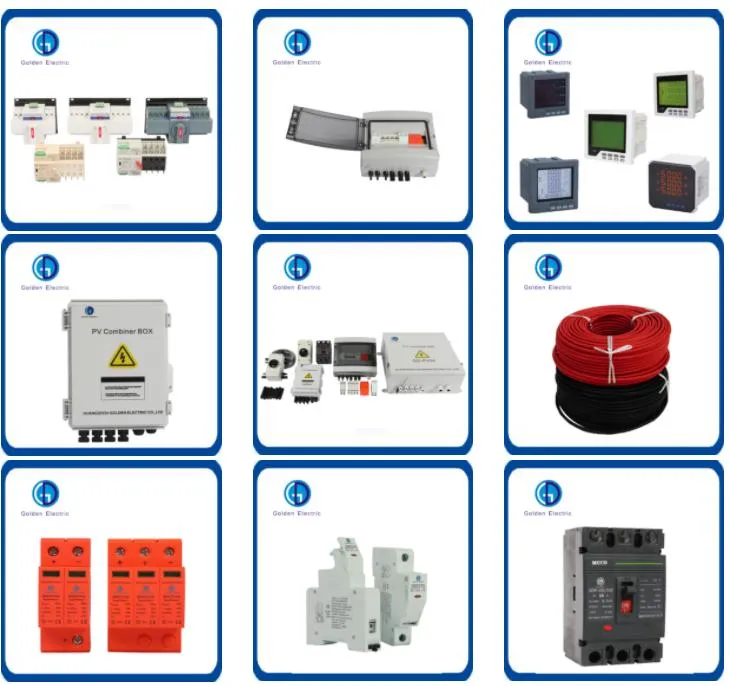

We specialize in professional AC and DC electric components including isolator switches, fuses, breakers, distribution boxes, PV combiner boxes, and surge protectors. With ISO9001 certification and a product line exceeding 1000 models approved by TUV, CE, and ROHS, our solutions serve over 60 countries globally.
Quality Guarantee: One year warranty on all products.
Global Standards: Qualified materials and international certifications.
No MOQ: Flexible trial orders with no minimum quantity limits.
Efficient Support: Inquiries replied within 12 hours.
Frequently Asked Questions
How soon can I get a quotation?
All technical inquiries and quotation requests are typically processed and replied to within 8 hours.
Are samples available before ordering?
Yes, we provide free samples to help customers verify product quality. Please contact us to arrange sample delivery.
Do you support OEM/Logo printing?
Yes, we provide full OEM services, including custom logo printing and tailored packaging for your brand.
What is the quality warranty period?
We offer a quality guarantee ranging from 2 to 5 years depending on the specific product model. 100% inspection is performed before shipping.
What is the typical delivery timeframe?
Sample orders usually take 3-5 working days, while official bulk orders take approximately 10-20 days.
Is the switch suitable for outdoor use?
Yes, the switch features an IP66 rated waterproof housing and is designed specifically for outdoor PV and industrial environments.
