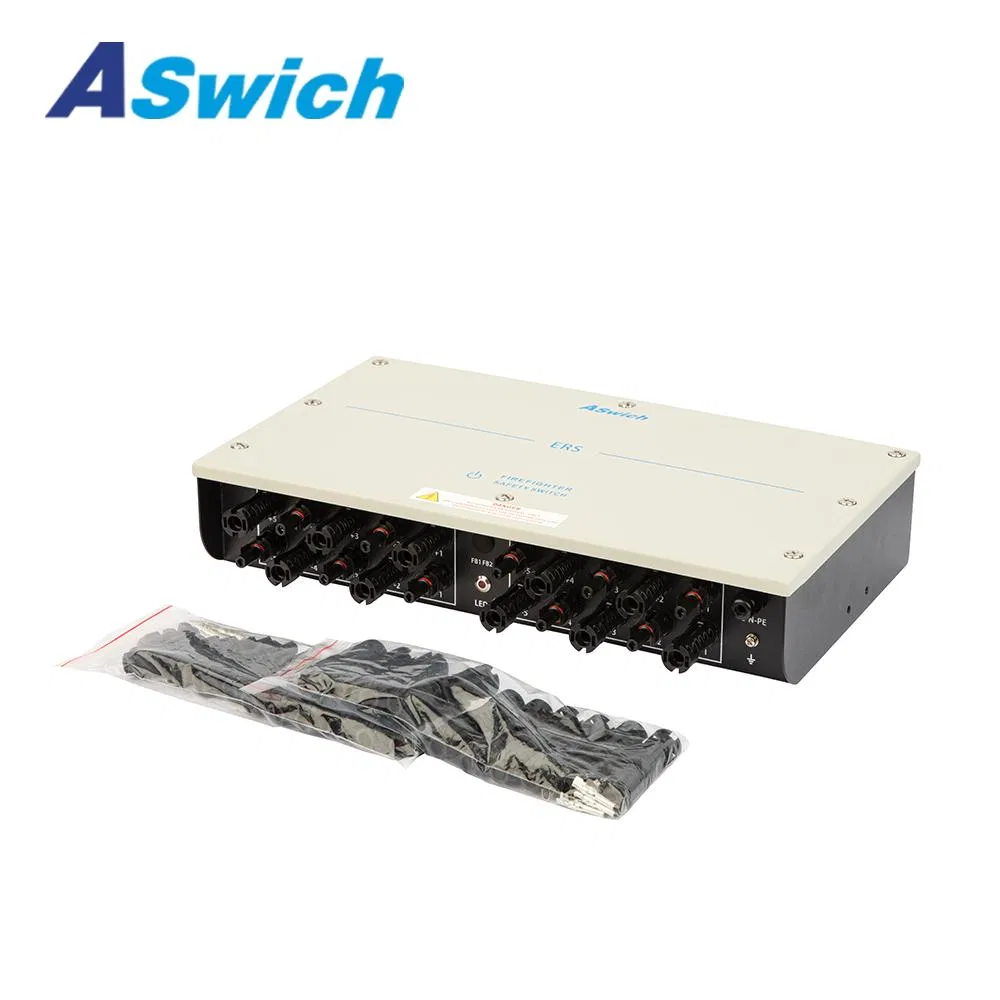

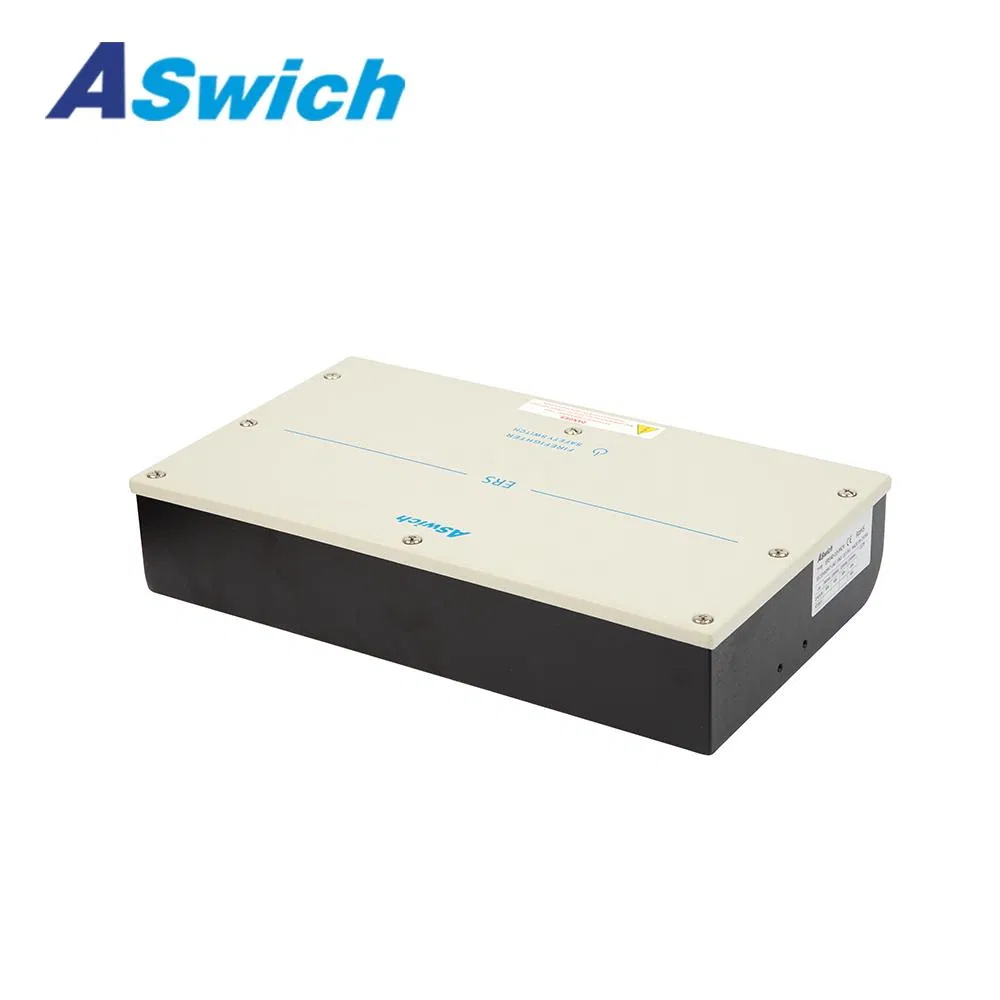

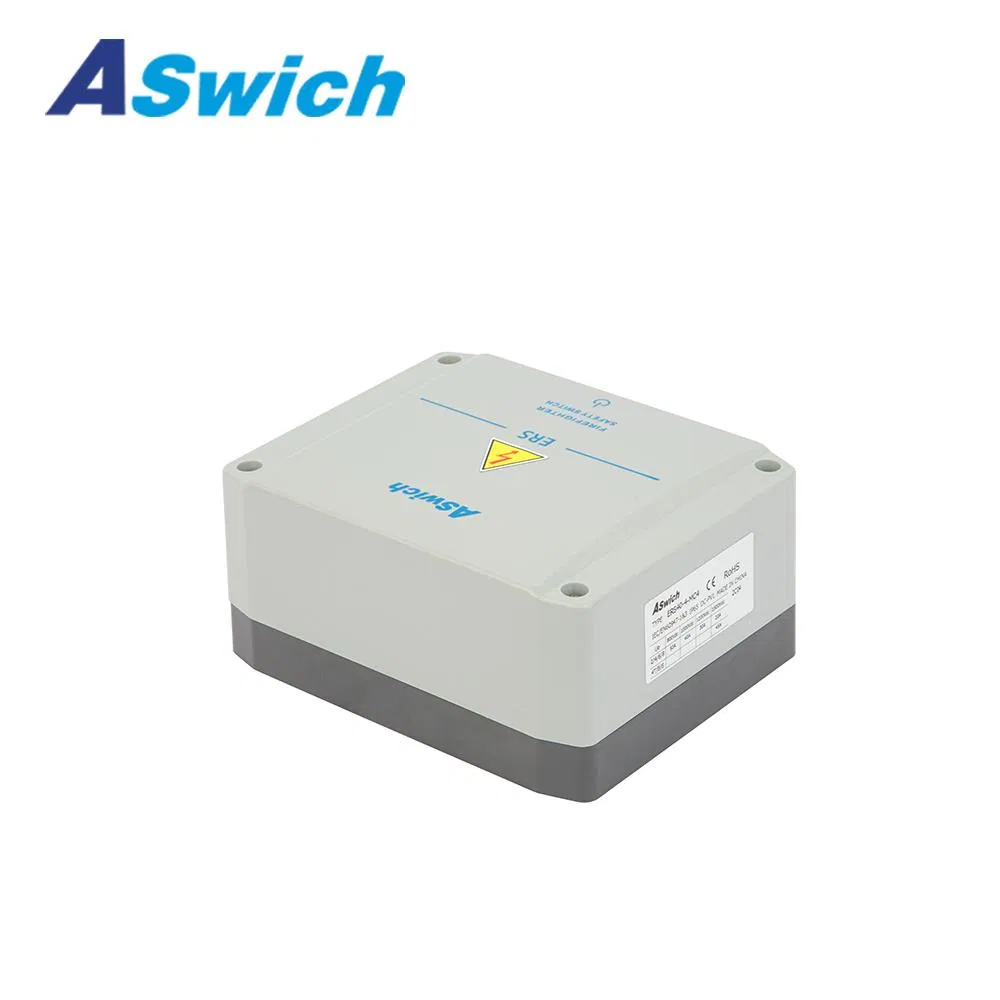

Solar PV Array Level Rapid Shutdown Switch Firefighter Safety Switch 2 String DC 1500V 55A

Solar PV Array Level Rapid Shutdown Switch Firefighter Safety Switch 2 String DC 1500V 55A

Solar PV Array Level Rapid Shutdown Switch Firefighter Safety Switch 2 String DC 1500V 55A

Solar PV Array Level Rapid Shutdown Switch Firefighter Safety Switch 2 String DC 1500V 55A

Solar PV Array Level Rapid Shutdown Switch Firefighter Safety Switch 2 String DC 1500V 55A

1 / 5

Solar PV Array Level Rapid Shutdown Switch Firefighter Safety Switch 2 String DC 1500V 55A

Solar PV Array Level Rapid Shutdown Switch Firefighter Safety Switch 2 String DC 1500V 55A

Solar PV Array Level Rapid Shutdown Switch Firefighter Safety Switch 2 String DC 1500V 55A

Solar PV Array Level Rapid Shutdown Switch Firefighter Safety Switch 2 String DC 1500V 55A

Solar PV Array Level Rapid Shutdown Switch Firefighter Safety Switch 2 String DC 1500V 55A

Solar PV Array Level Rapid Shutdown Switch Firefighter Safety Switch 2 String DC 1500V 55A

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

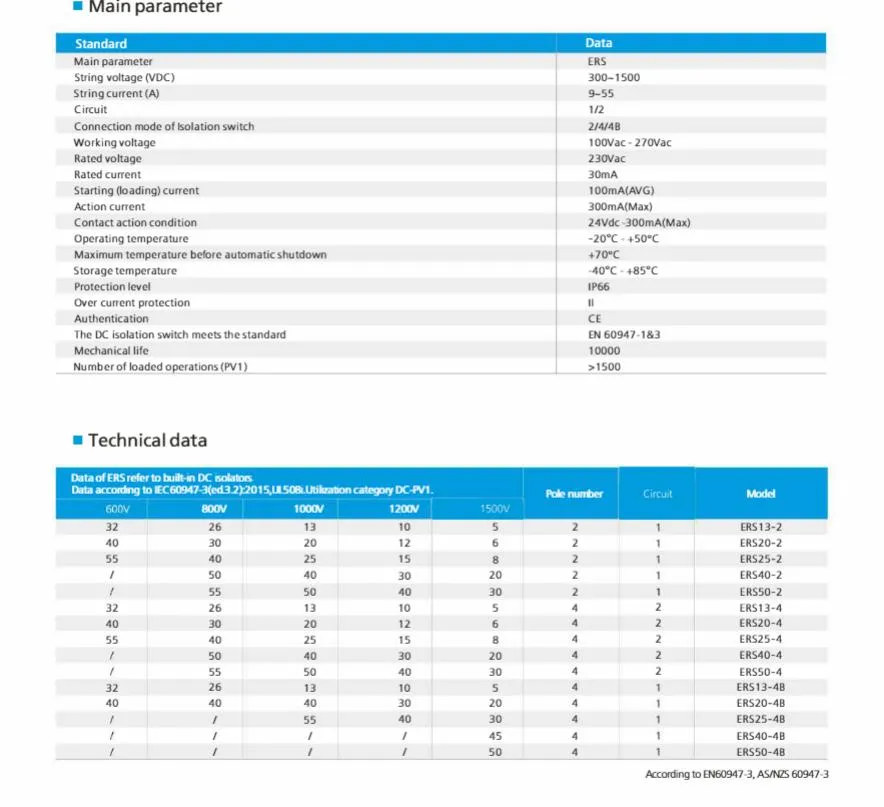

Product Specifications

Model NO.

ERS

Wiring

Null Line and Live Line

Principle

Capacitive

Application

Home Appliance, Industrial, Commercial

Voltage Ui

1500V

Rated Current

40A

Ithe

55A

Connector

Glands/Mc4/Knock Outs

String

2-String

Pole

4p

Protection

IP66

Warranty

5 Years

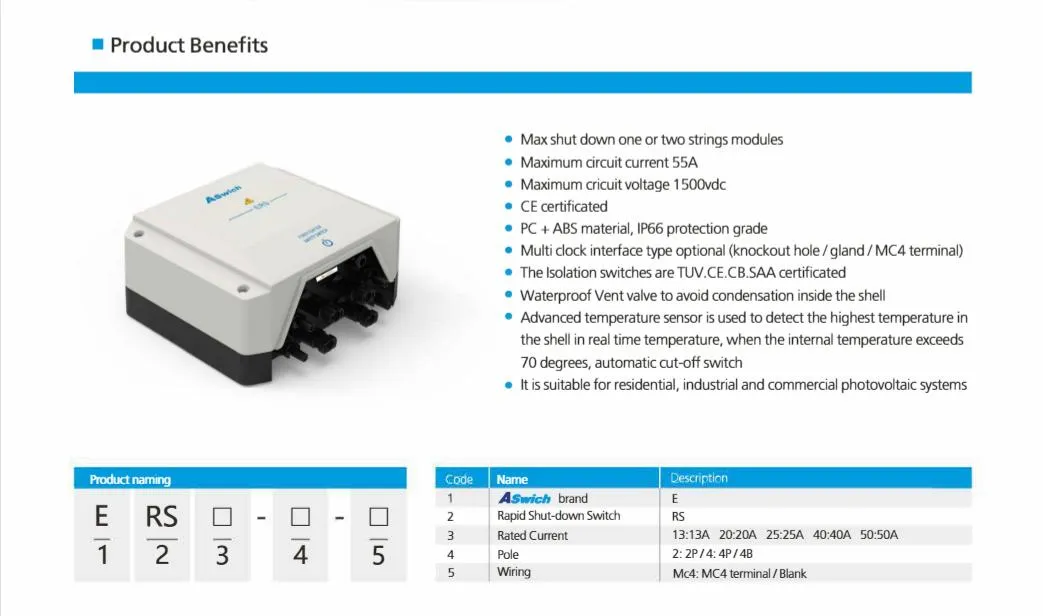

Product Overview

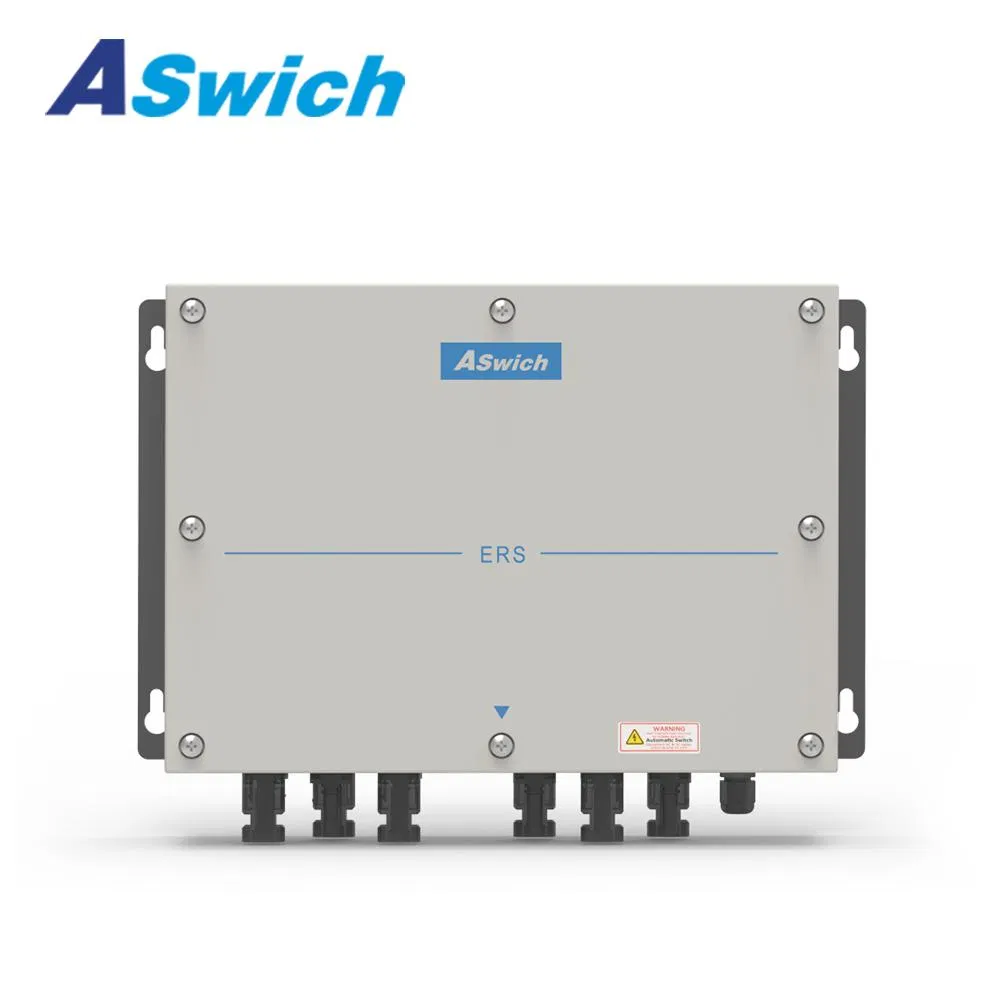

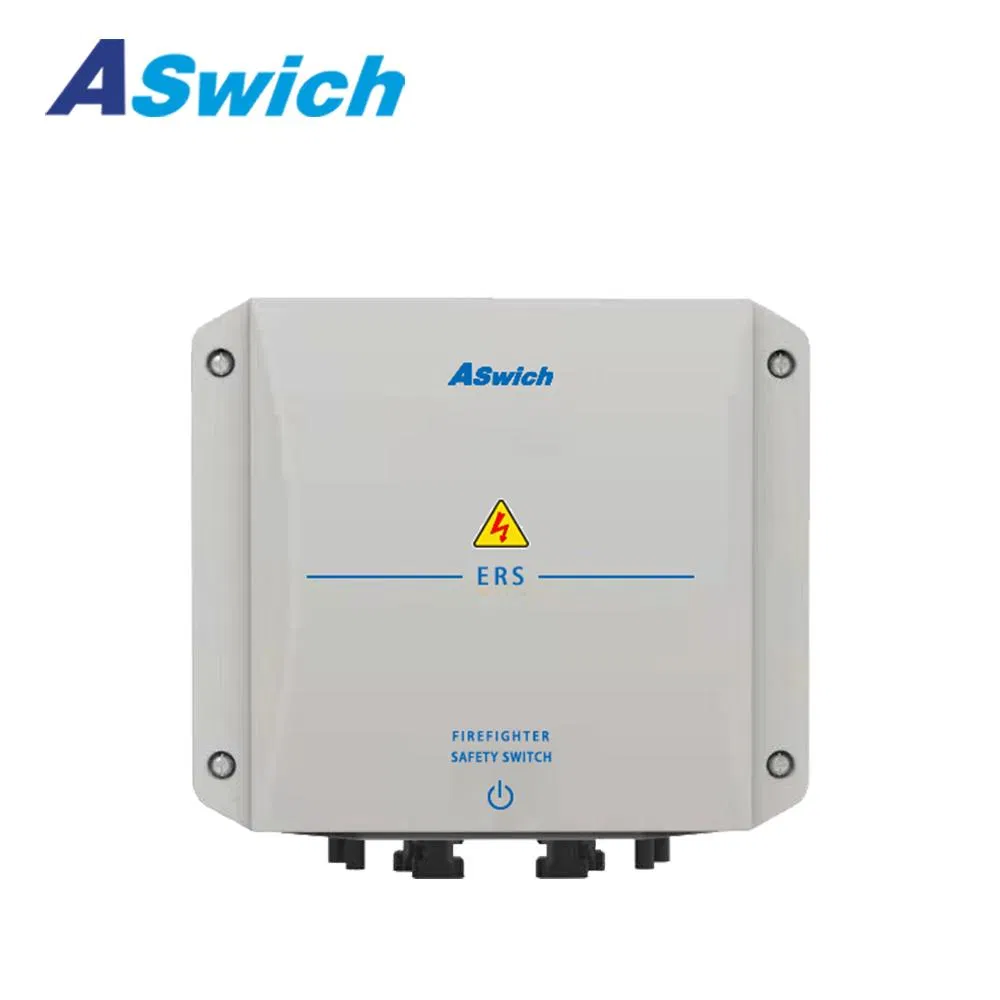

Rapid Shutdown Switch

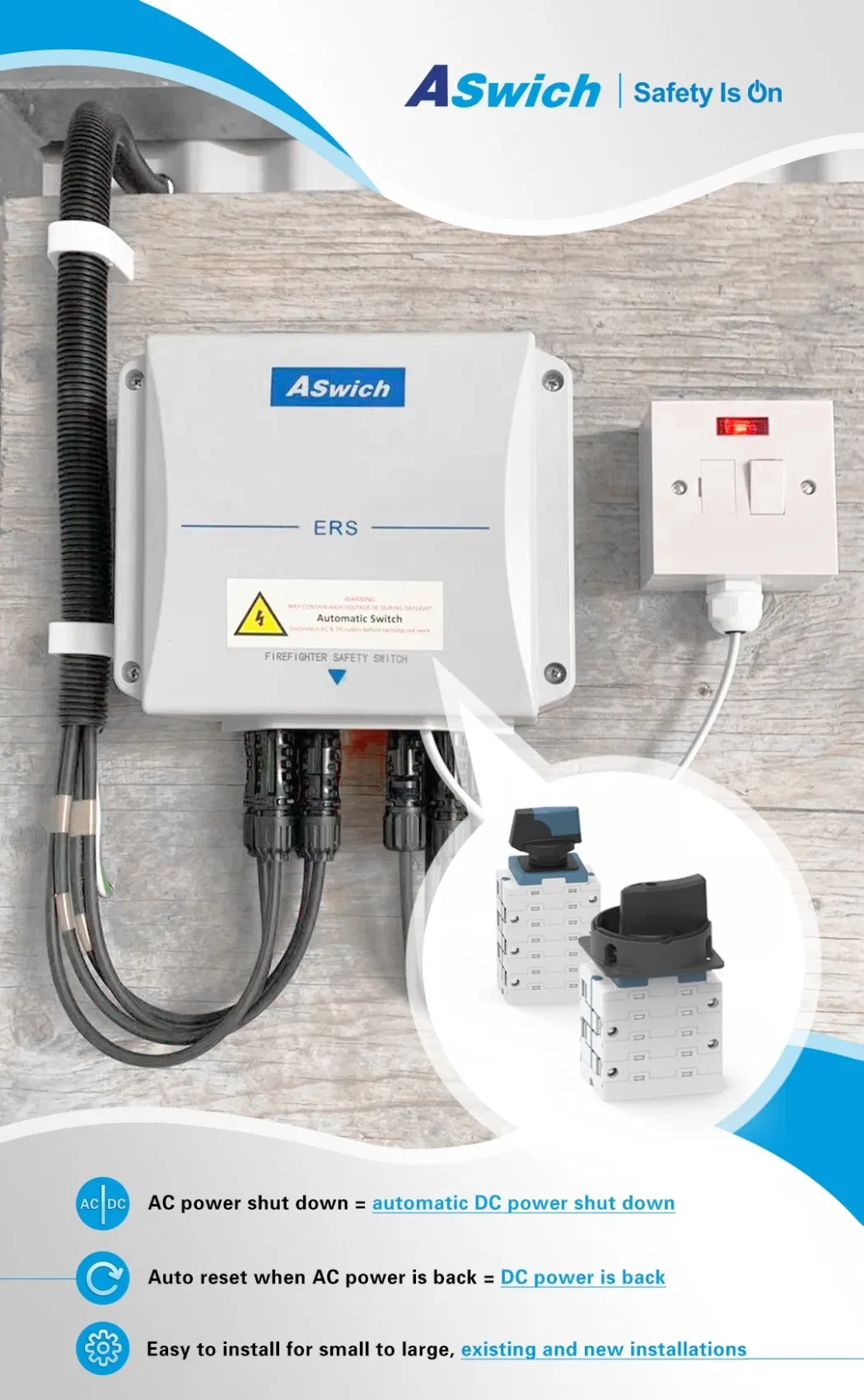

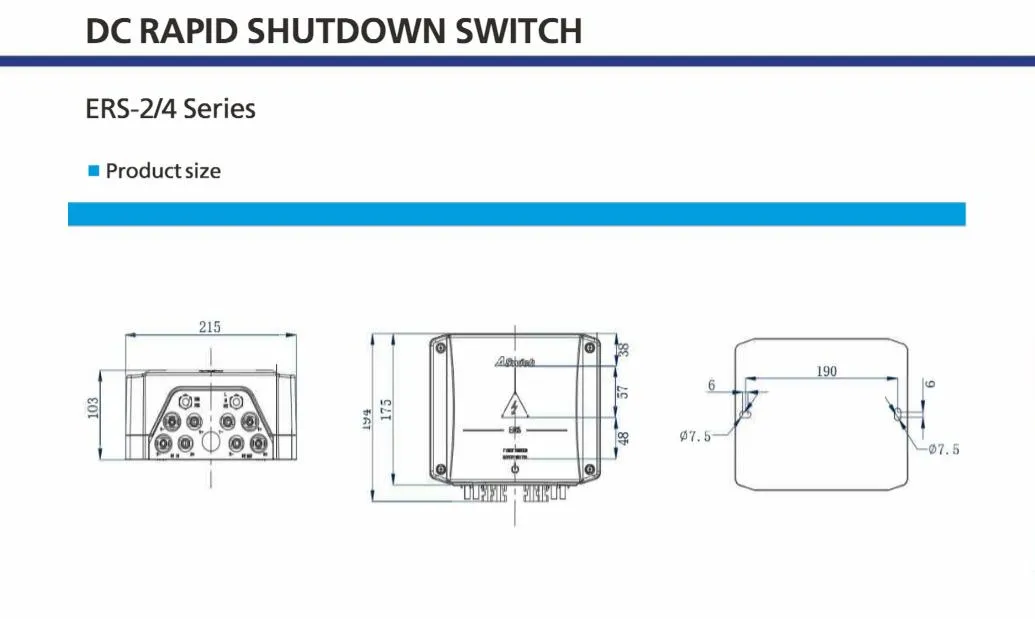

Safety Switch Dimensions

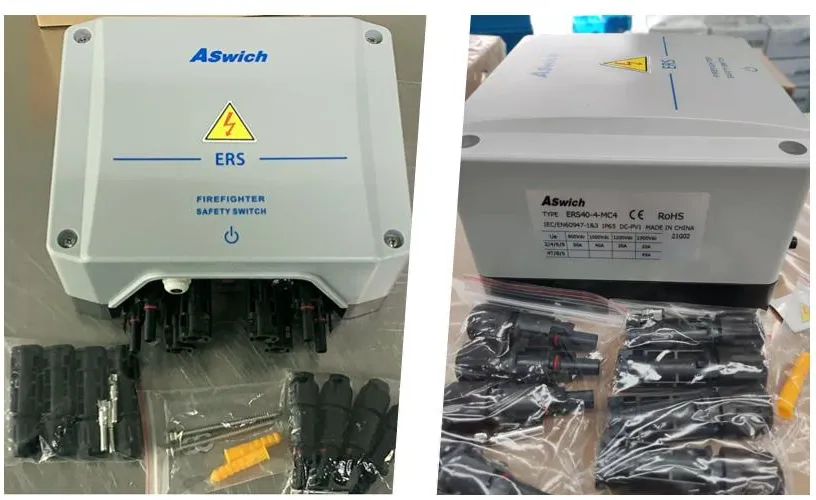

Detailed Views

10 Reasons to Choose ERS Series Rapid Shutdown Switch

1

Applicable to wide voltage (600V-1500V) and current (9A-55A); handles up to 10 strings simultaneously.

2

Wider range of AC voltage support: 100~270Vac.

3

Internal motor drive for disconnection; supports AC switch or remote shutdown.

4

LED indicator for easy identification of ON/OFF status.

5

IP66 level protection, fully suitable for outdoor installation.

6

Equipped with a breathing valve to avoid internal condensation.

7

Low noise operation, ensuring no impact on daily life.

8

Built-in temperature sensor; shuts down automatically if exceeding 70°C.

9

Flexible connection options: Knock outs, Cable glands, or MC4 connectors.

10

Modular component design for fast and convenient after-sale service.

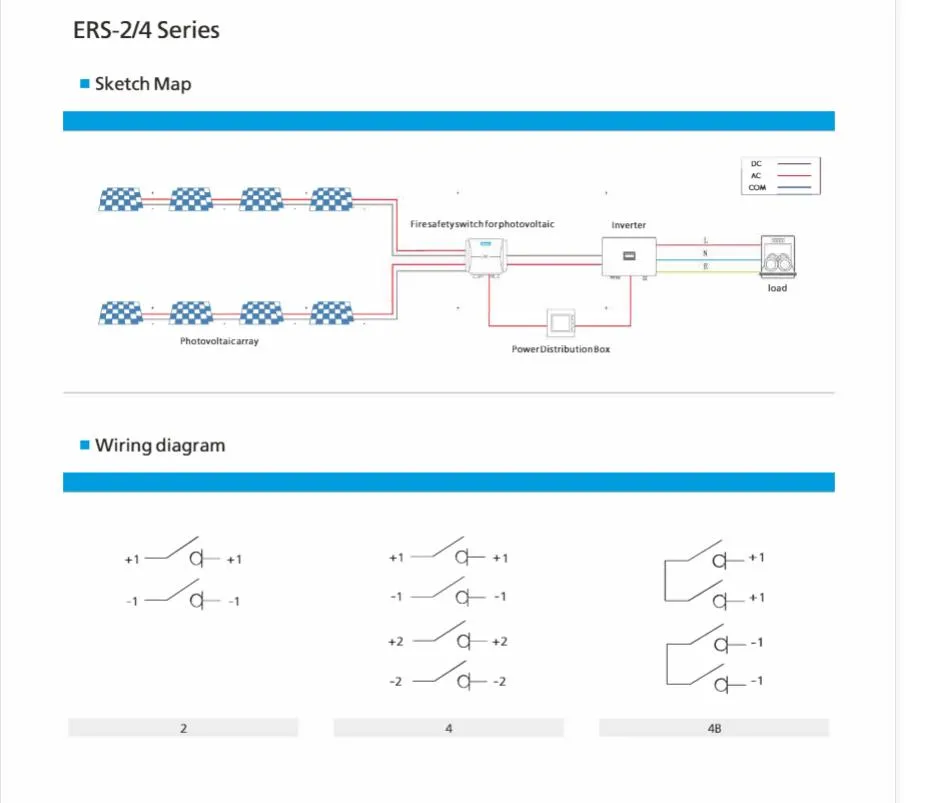

Technical Diagrams

Frequently Asked Questions

How soon can I receive a quotation after an inquiry?

All inquiries will be replied to within 24 hours with detailed information.

What is the main difference between your DC Isolator and cheaper alternatives?

Our DC Isolators are IP66 rated and high-quality customized products. For solar systems, quality should be compared before price to ensure long-term safety.

Can I request a sample before placing a bulk order?

Yes, we believe sample orders are the best way to build trust and verify the quality of our DC Isolators.

What is the standard delivery time for orders?

Sample orders typically take 3-7 days. For regular bulk orders, we promise delivery within 15 days.

What is the warranty period for the DC Isolator?

We offer a 2 to 5-year warranty depending on the specific product model and requirements.

Is OEM service available for this product?

Yes, we accept OEM customization to meet specific project or market needs.
