Basic Information
Connector
Glands/Mc4/Knock Outs
Package Size
50.00cm * 50.00cm * 50.00cm
Product Overview
Rooftop type resident photovoltaic systems have been widely used globally. However, due to factors like loose module joints, poor contact, damp wiring, or insulation rupture, DC arc drawing can occur, potentially leading to fire hazards. In such events, as long as there is light, photovoltaic components continue to generate high-voltage electricity, making direct firefighting extremely dangerous.

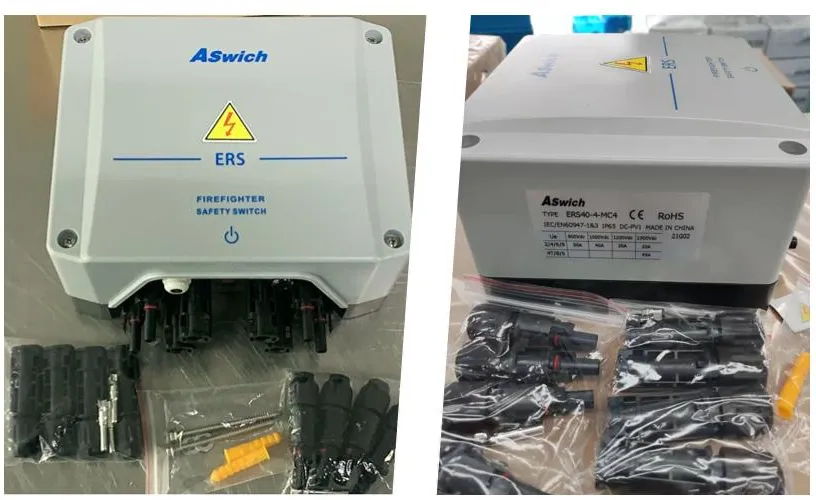

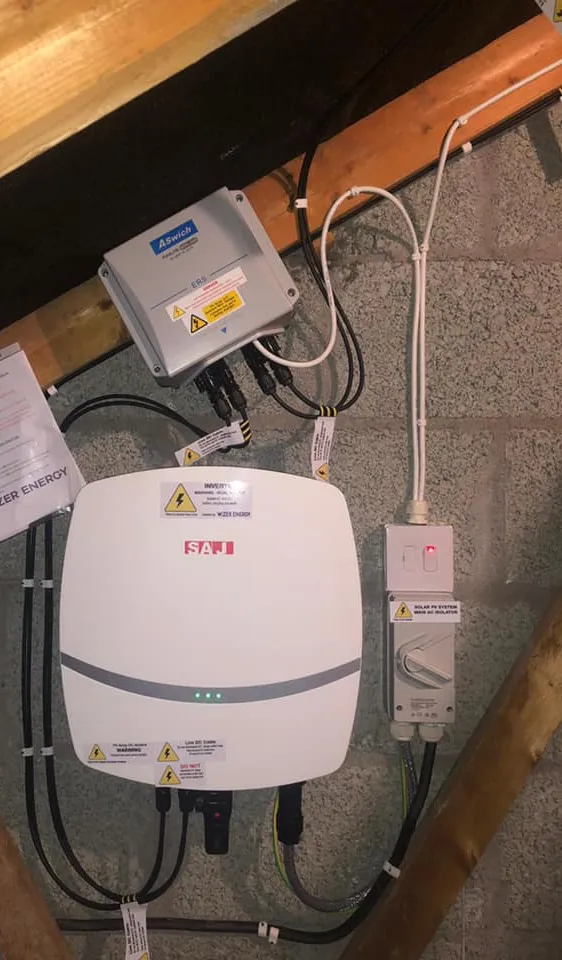

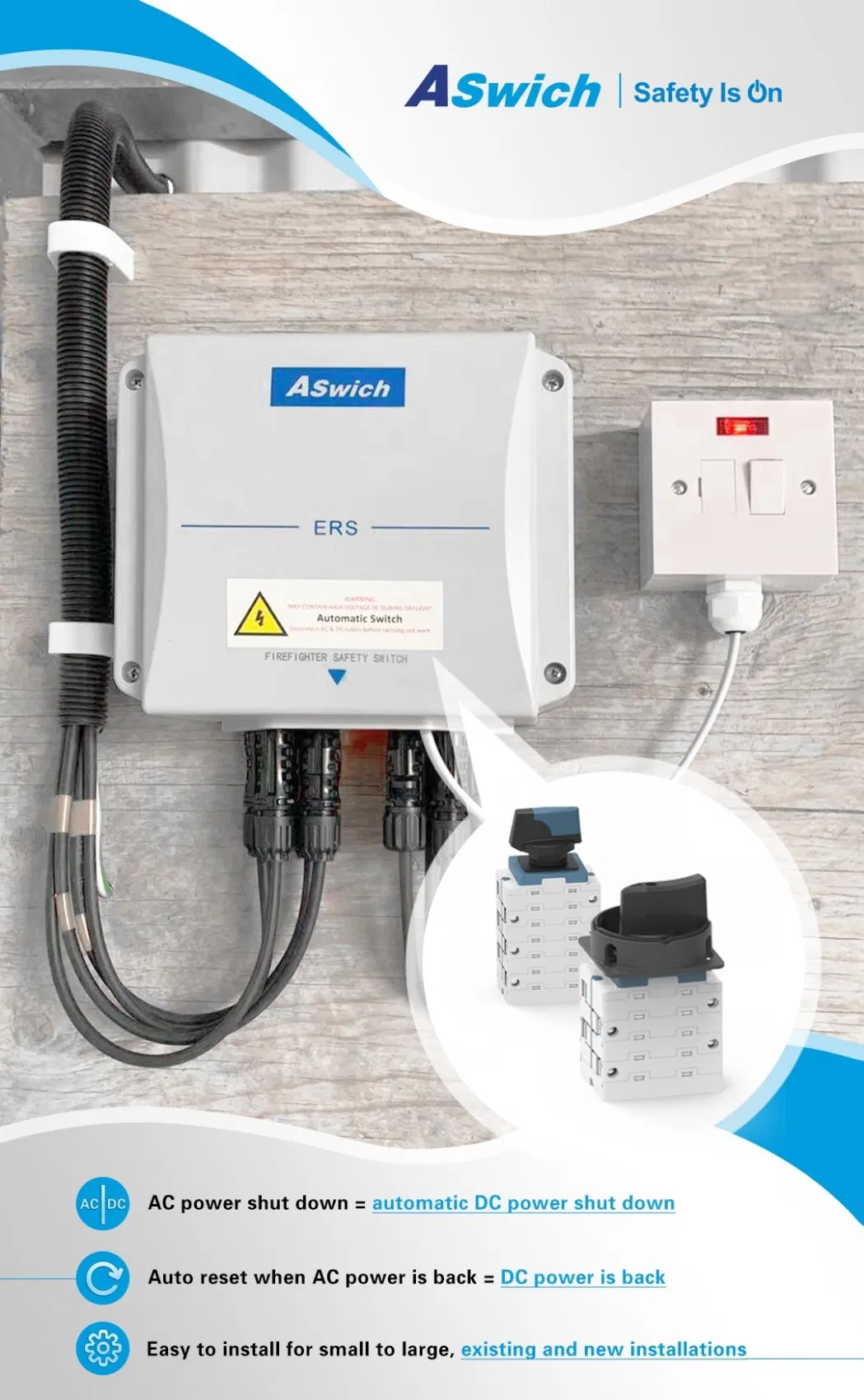

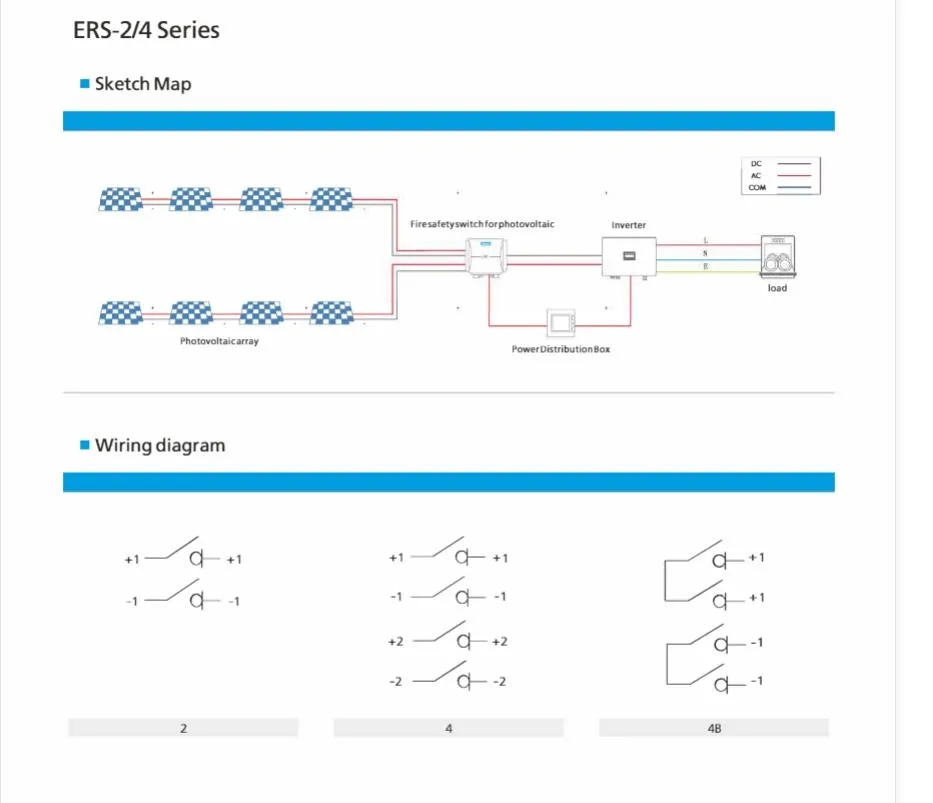

To ensure personal safety and prevent fire risks, the ERS Rapid Shut-down Switch was developed. String inverters are common in residential and commercial solar systems. While integrated DC isolators cut power for maintenance, they do not de-energize the high-voltage DC lines (600~1500V) between the roof and the inverter. In a fire emergency, when firefighters shut down the AC power, the ERS firefighter safety switch detects the grid failure and automatically turns off the isolation switch within 5 seconds.

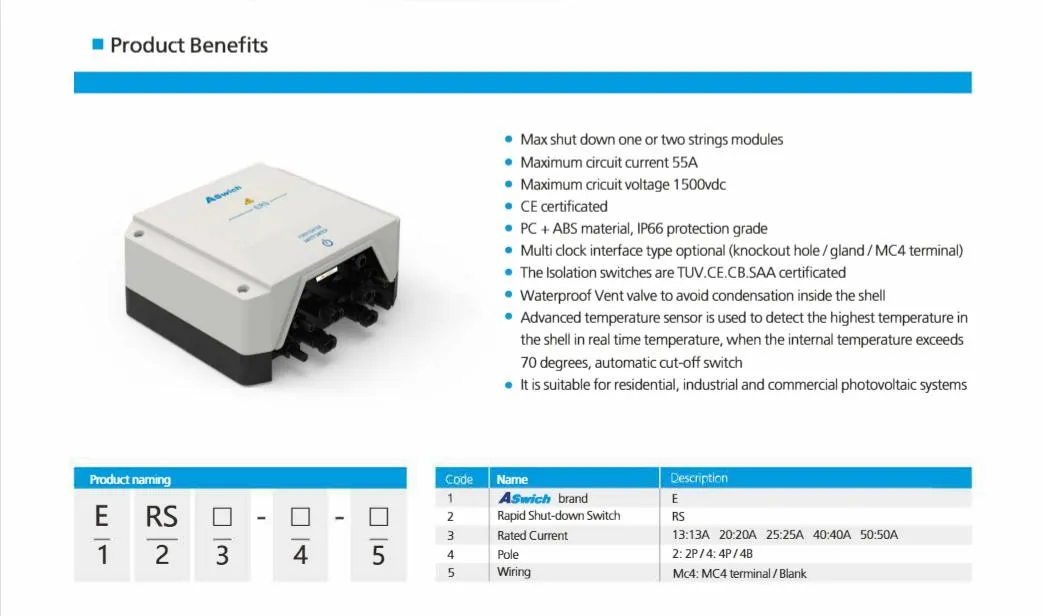

Key Features & Benefits
01

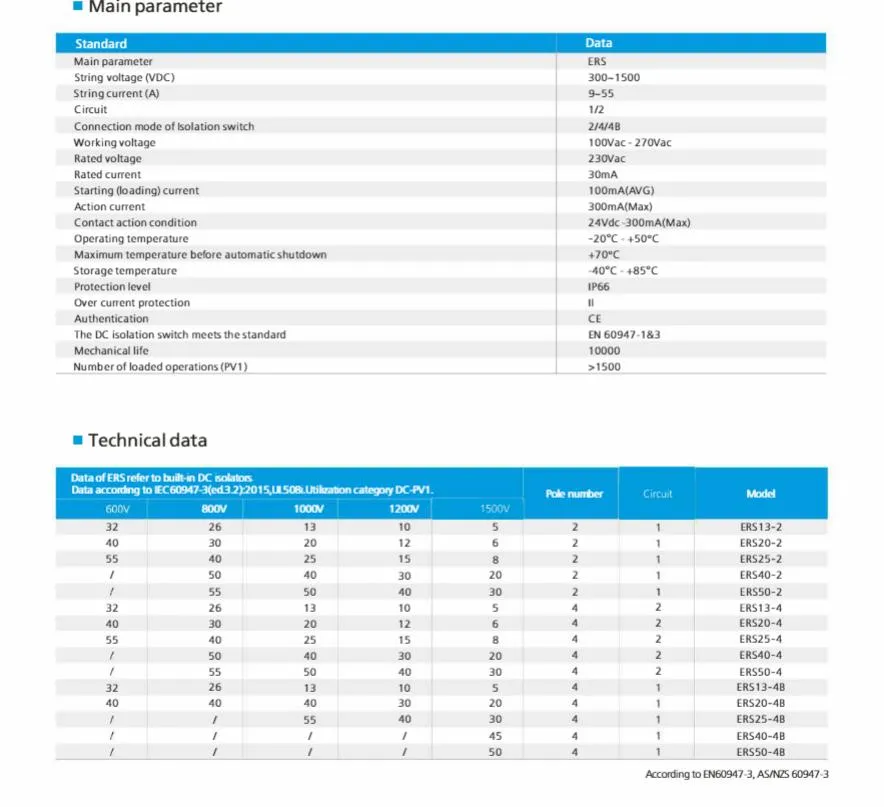

Applicable to a wide range of voltage and current (600V~1500V, 9A~55A); can handle up to 10 strings simultaneously.
02
Wider range of AC voltage support: 100~270Vac.
03
Internal motor drive for disconnection; can be triggered by AC switch or remote control.
04
LED indicator for clear identification of ON or OFF status.
05
IP66 protection level, fully suitable for outdoor installation environments.
06
Equipped with a breathing valve to prevent condensation inside the enclosure.
07
Low noise operation ensures no impact on residential living quality.
08
Built-in temperature sensor; automatic shutdown if temperature exceeds 70°C.
09

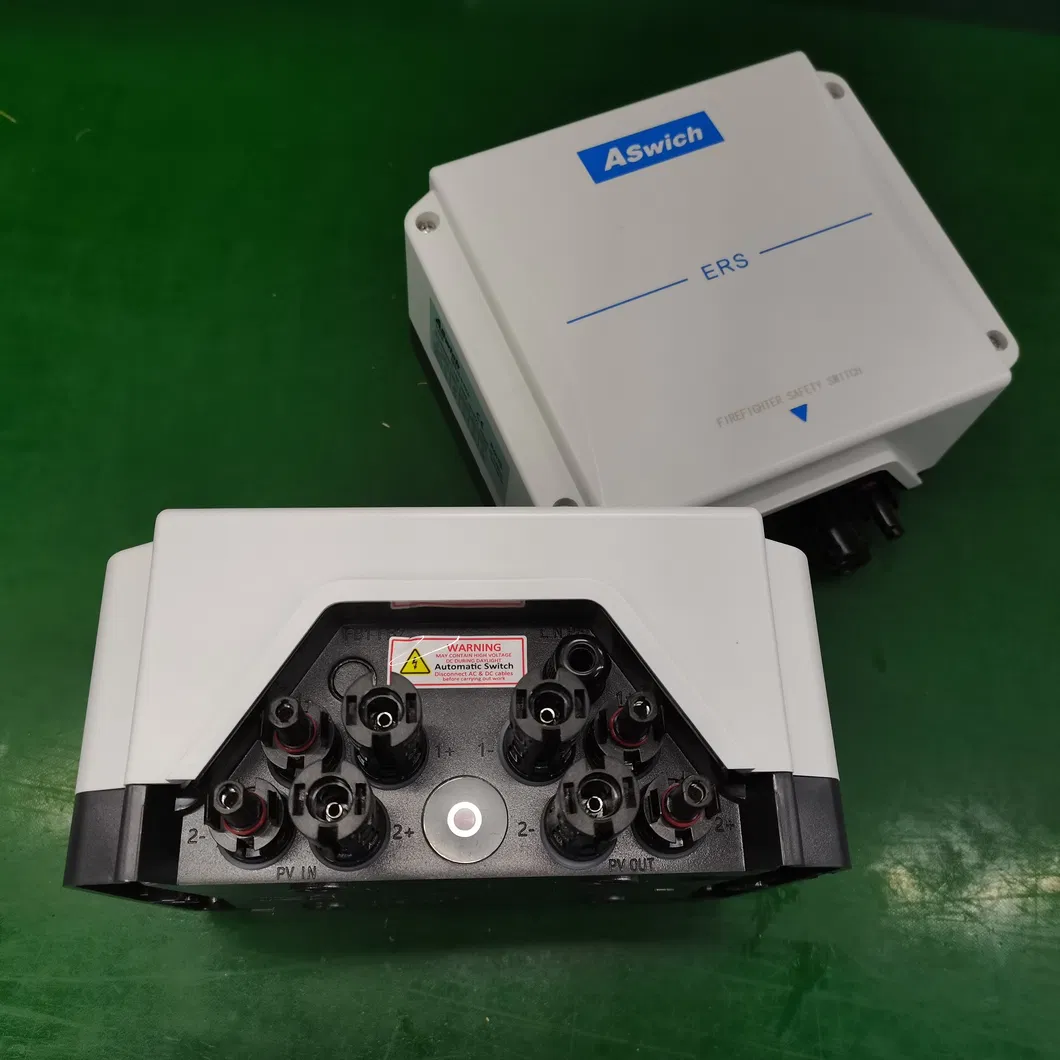

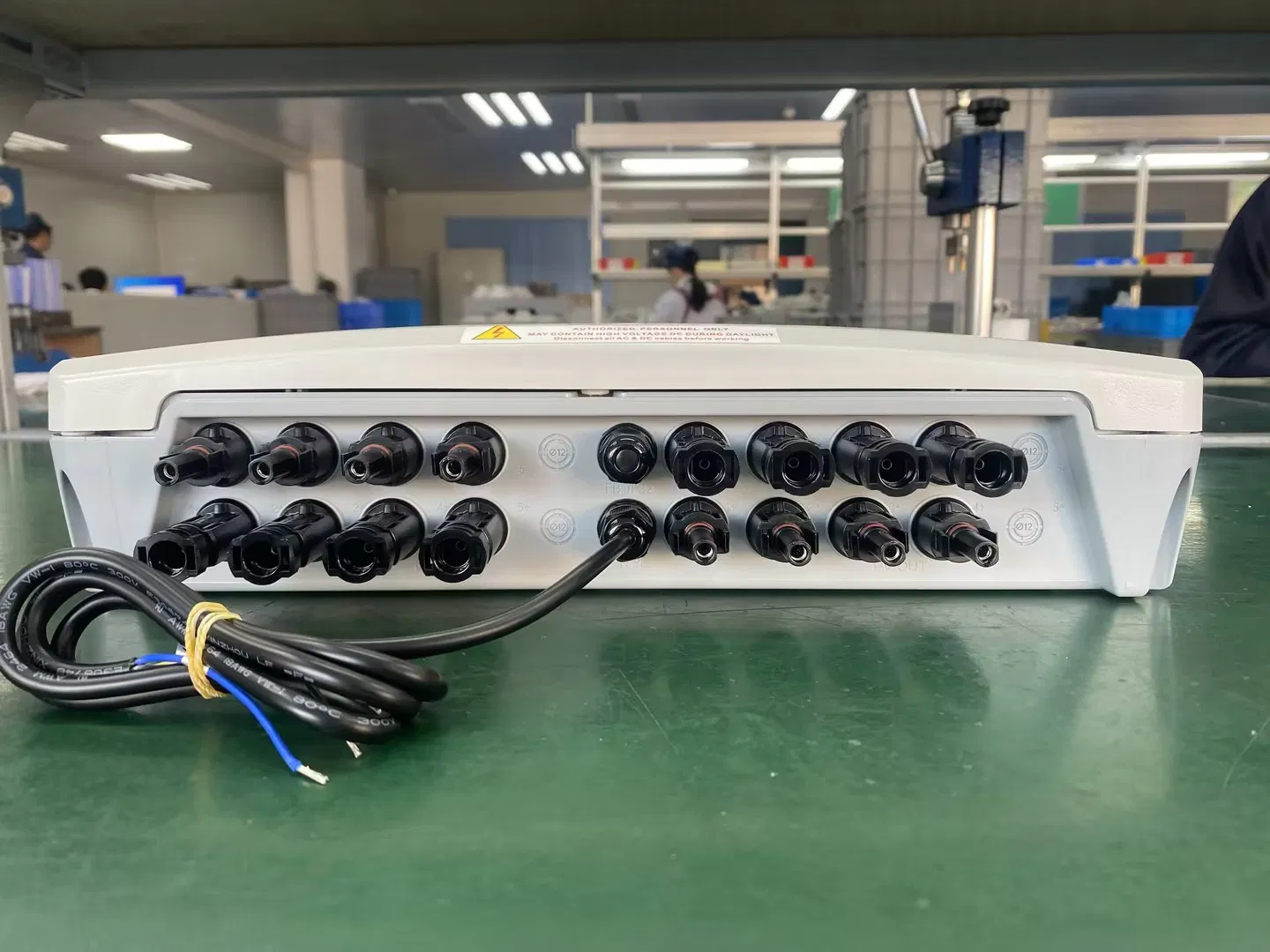

Versatile connectivity: Knock outs, Cable glands, or MC4 connectors are optional.
10
Modular design allows for fast and convenient after-sale service.
Frequently Asked Questions
Q: How quickly will I receive a quotation and technical details?
A: All enquiries are typically processed and replied to within 24 hours.
Q: What distinguishes your DC Isolator from cheaper alternatives?
A: Our DC Isolators feature an IP66 rating and are high-quality, customized components. For solar safety, quality should be prioritized over price to ensure long-term system protection.
Q: Is it possible to request a sample to verify the quality?
A: Yes, sample orders are welcomed as they are the best way to build trust and verify product performance before a full order.
Q: What are the typical lead times for delivery?
A: Sample orders are usually fulfilled within 3-7 days, while regular production orders are promised within 15 days.
Q: How do I choose the correct Rapid Shutdown Switch model?
A: Calculation is based on the open-circuit voltage of your panels. For example, if panels are 39V and the switch is 1000V, one route can handle 1000/(39*1.15) ≈ 22 panels. The rated current must also exceed the panel string current.
Q: What is the warranty period for these switches?
A: We offer a warranty period ranging from 2 to 5 years depending on the specific product model.
