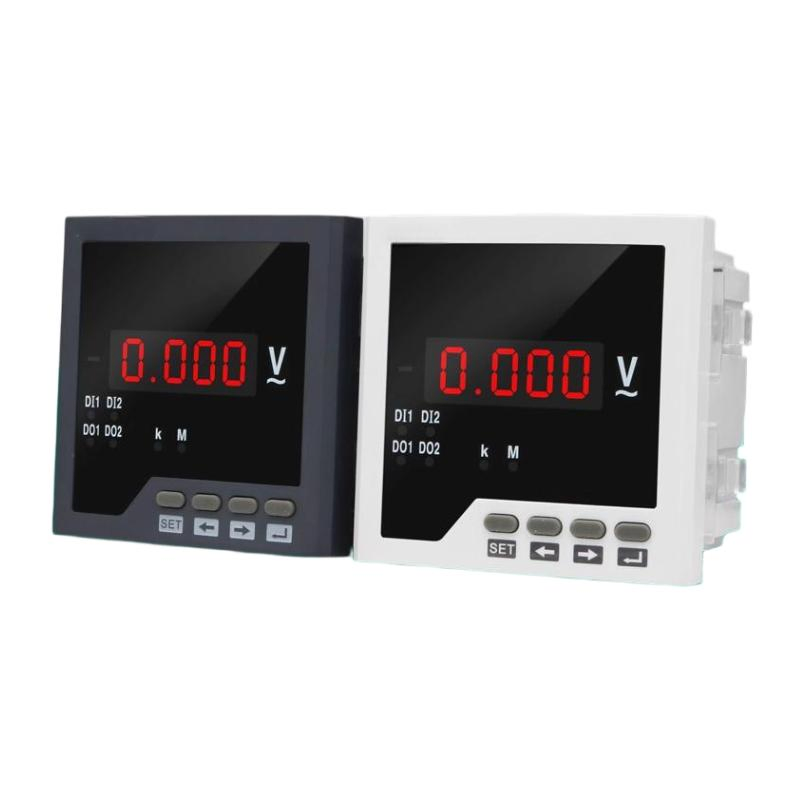

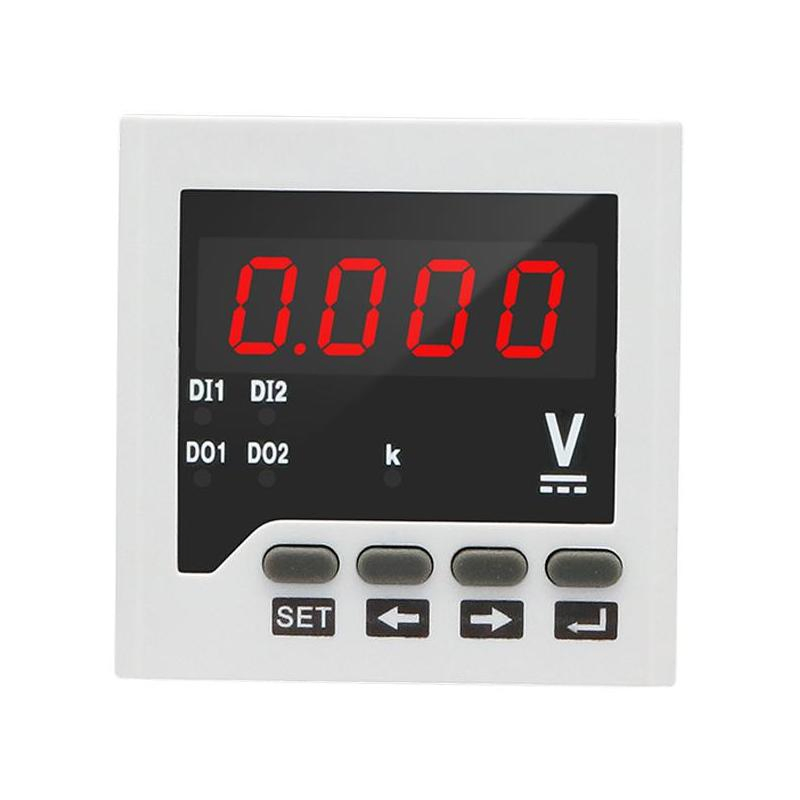

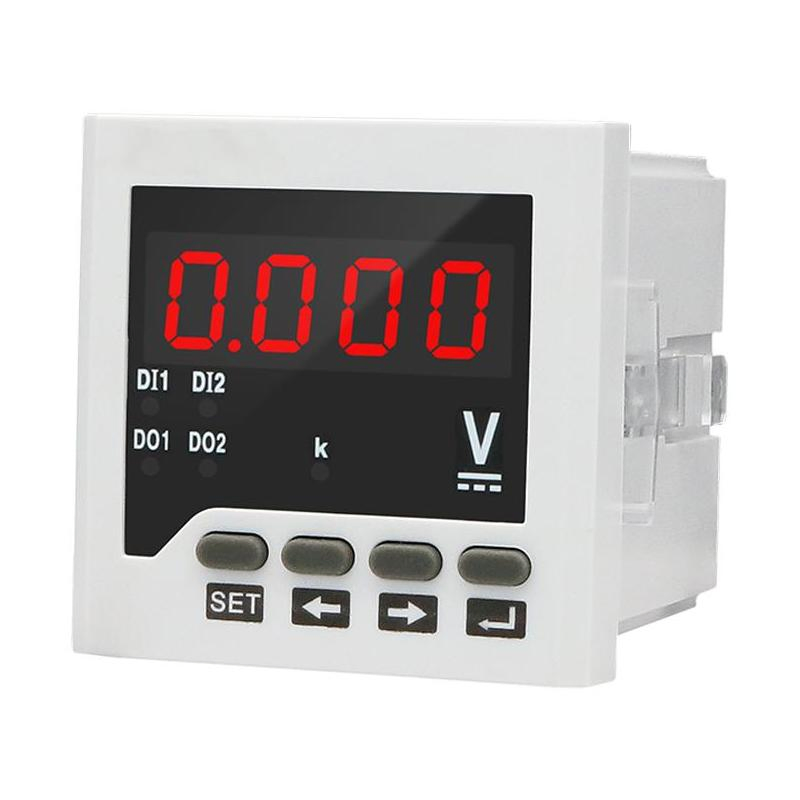

Single Phase LED Voltage Monitor and Current Ammeter DC Current Measuring Device
Single Phase LED Voltage Monitor and Current Ammeter DC Current Measuring Device
Single Phase LED Voltage Monitor and Current Ammeter DC Current Measuring Device
Single Phase LED Voltage Monitor and Current Ammeter DC Current Measuring Device
Single Phase LED Voltage Monitor and Current Ammeter DC Current Measuring Device
1 / 5
Single Phase LED Voltage Monitor and Current Ammeter DC Current Measuring Device
Single Phase LED Voltage Monitor and Current Ammeter DC Current Measuring Device
Single Phase LED Voltage Monitor and Current Ammeter DC Current Measuring Device
Single Phase LED Voltage Monitor and Current Ammeter DC Current Measuring Device
Single Phase LED Voltage Monitor and Current Ammeter DC Current Measuring Device

Single Phase LED Voltage Monitor and Current Ammeter DC Current Measuring Device

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

★

Basic Information

Model NO.
RH-DA31
Installation
Direct Connected
Display
Analog and Digital
Usage
Meter for Industry and Home Use, Multi-Functional Energy Meter
Theory
Electronic Meter
Power Source
AC and DC
Frame Size
96*96mm
Phase
Single Phase
Accuracy Class
0.5 Class
Color
Black/ White
Working Temperature
-10 to 55℃
Frequency
45~65Hz
Material
ABS
Communication
RS485, Modbus
📦

Packaging & Delivery

Package Size
16.00cm * 18.00cm * 15.00cm
Gross Weight
1.050kg
Transport Package
Carton
ℹ

Product Description

The voltage Meters are designed for the demands of intelligent power monitoring and electric voltage metering. They can measure voltage data in single-phase electric network with high accuracy. They can directly replace conventional power transducers, measurement indicators, electric energy metering instruments and relevant auxiliary units. They can be programmed and input parameters directly and complete the networking of communication software for different PLC and industrial control computers.

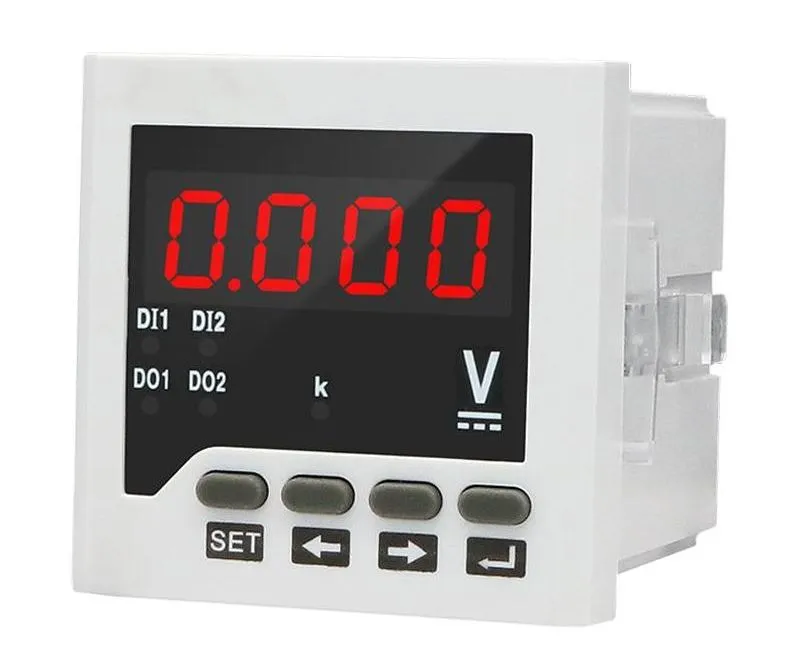

LED Voltage Monitor
📋

Product Parameters

Model DC Current DC Voltage Switching Input Switching Output Analog Output Communication LED LCD Hole Size (mm)
RH-DV31-√2211√-91*91
RH-DV41-√2211√-114*56
RH-DV51-√2211√-92*45
RH-DV61-√2211√-67*67
RH-DV71-√2211√-76*76
RH-DV81-√2211√-45*45
RH-DA31√-2211√-91*91
RH-DA41√-2211√-114*56
RH-DA51√-2211√-92*45
RH-DA61√-2211√-67*67
RH-DA71√-2211√-76*76
RH-DA81√-2211√-45*45
🖼

Packaging & Showroom

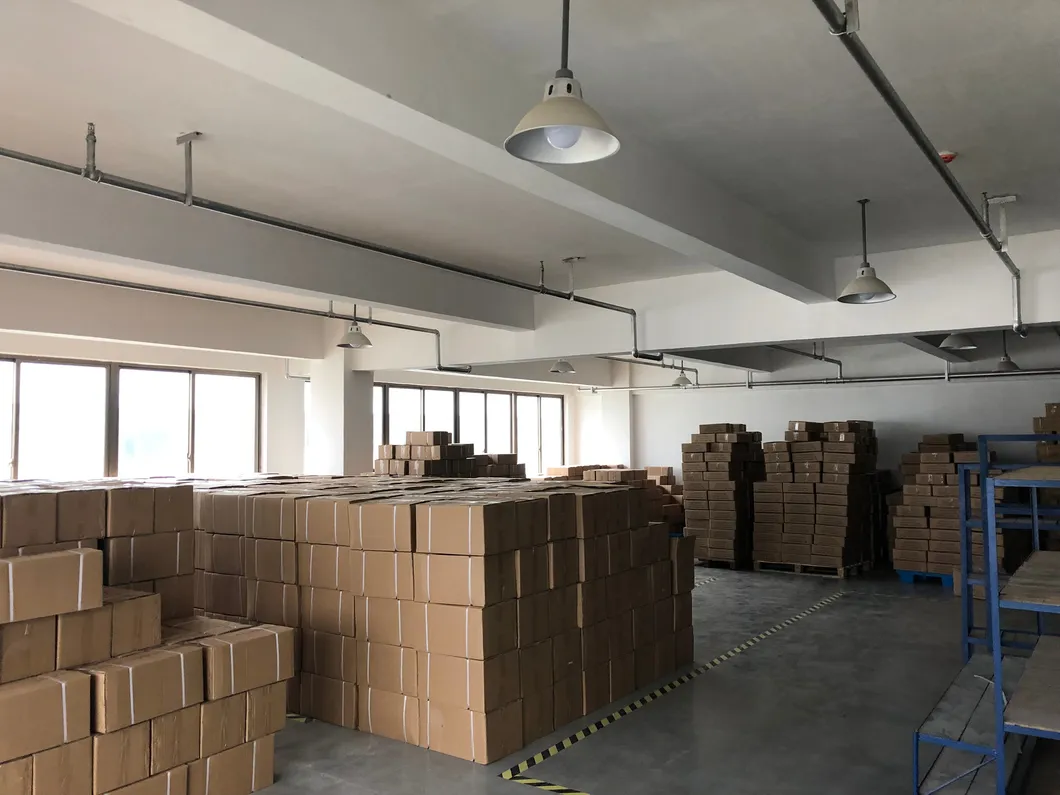

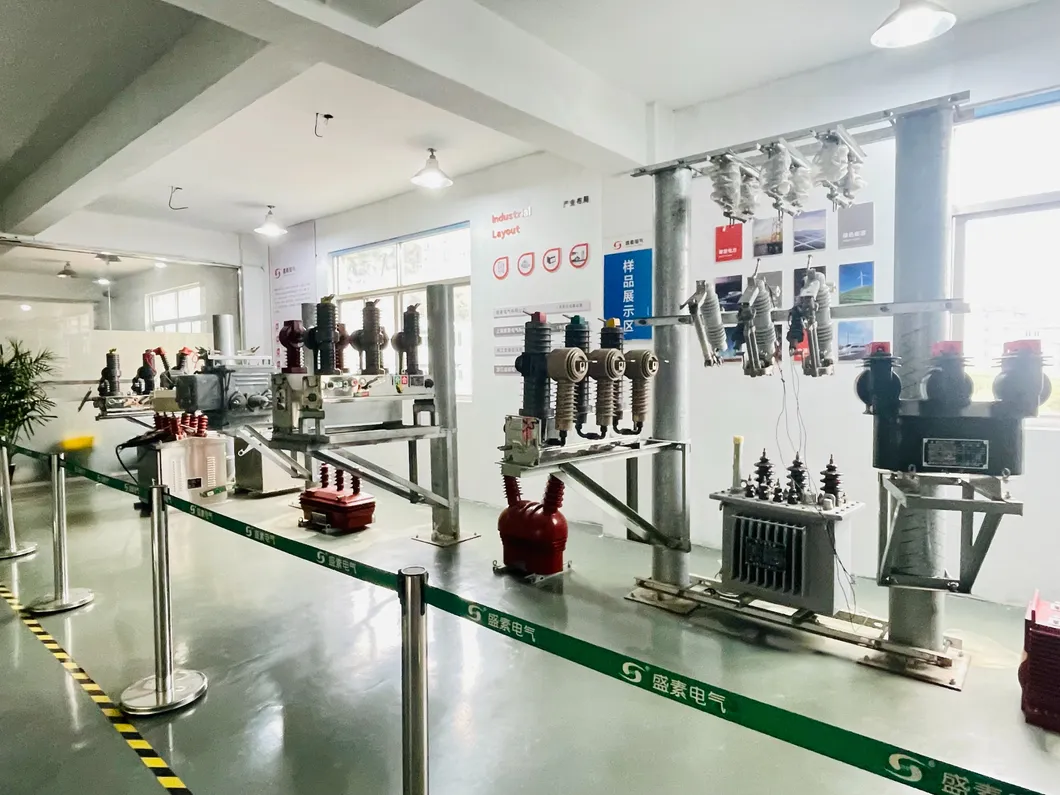

Packaging Showroom
🛠

Workshop Display

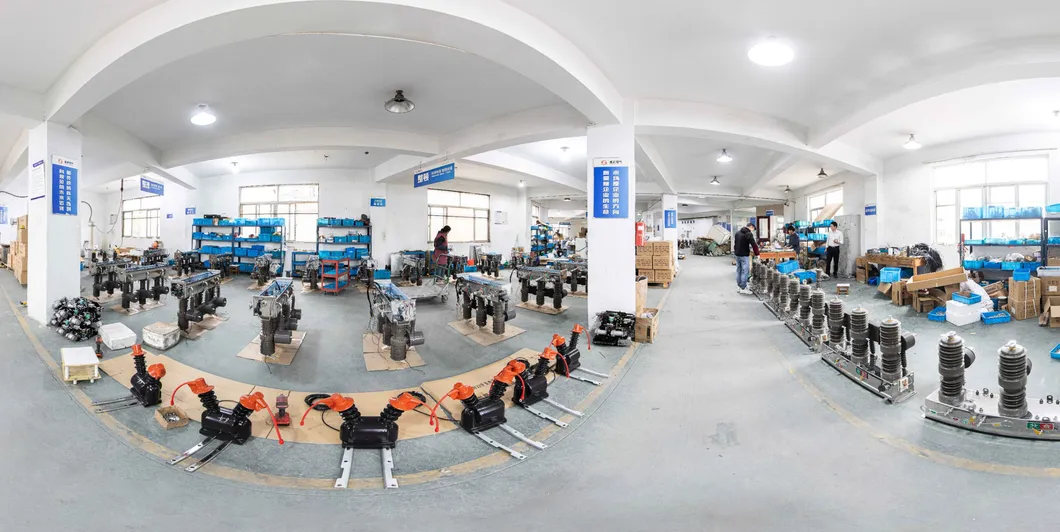

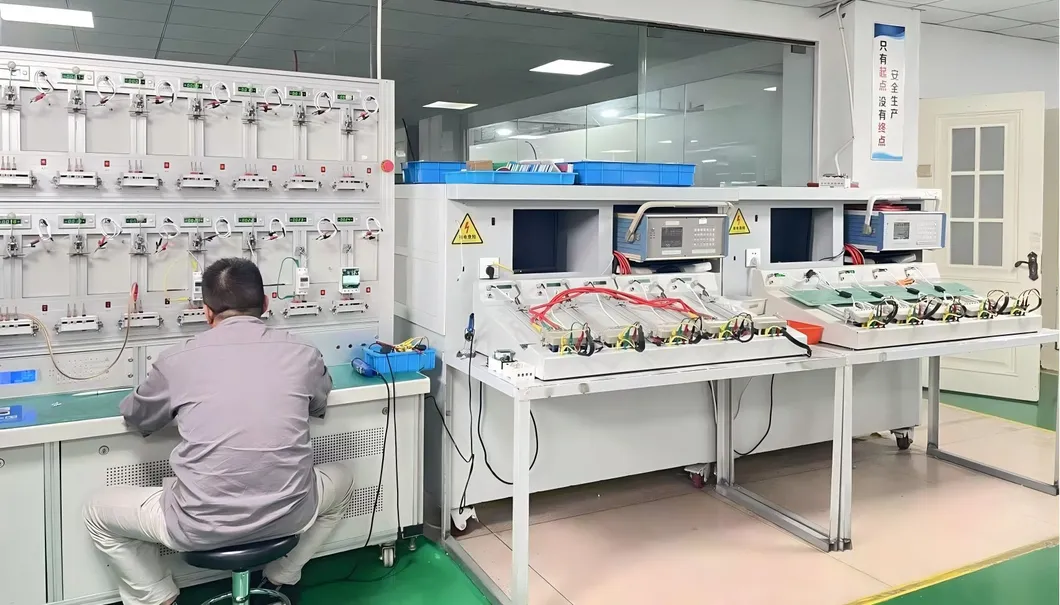

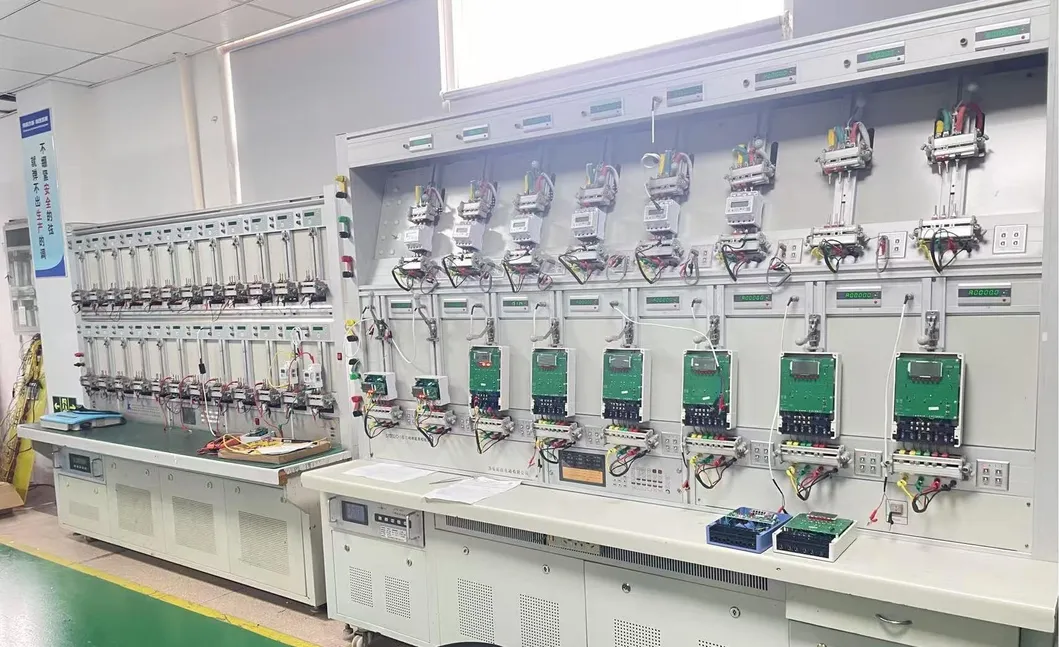

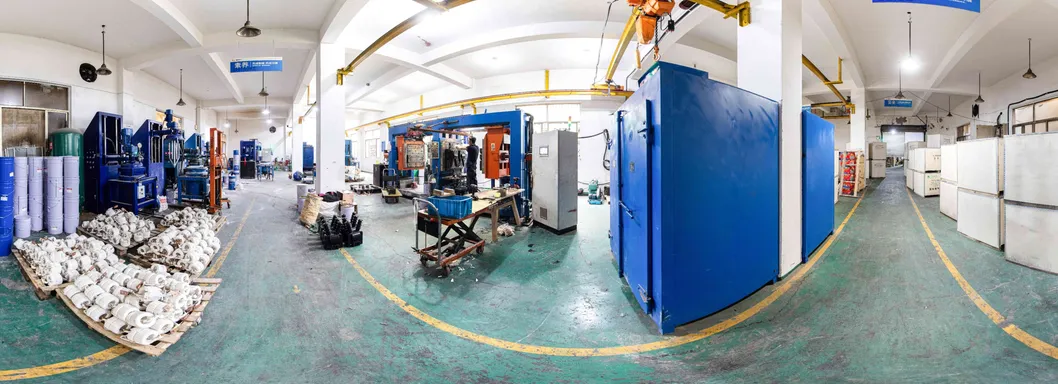

Workshop 1 Workshop 2 Workshop 3 Workshop 4
?

Frequently Asked Questions

What is the measurement accuracy of these meters?
The meters feature a high accuracy class of 0.5, ensuring precise monitoring for industrial and home use.
Can the device communicate with other industrial systems?
Yes, the device supports RS485 and Modbus communication protocols, allowing for seamless integration with PLCs and industrial control computers.
What kind of display do these meters use?
The RH series utilizes both analog and digital displays (LED) for clear and intuitive data visualization.
Is the meter housing durable for industrial environments?
Yes, the meter is made from high-quality ABS material, which is robust and suitable for professional environments.
What is the operating temperature range?
The devices are designed to operate reliably within a temperature range of -10°C to 55°C.
Can I program the parameters directly on the device?
Yes, parameters can be programmed and input directly into the meter to suit specific networking requirements.
