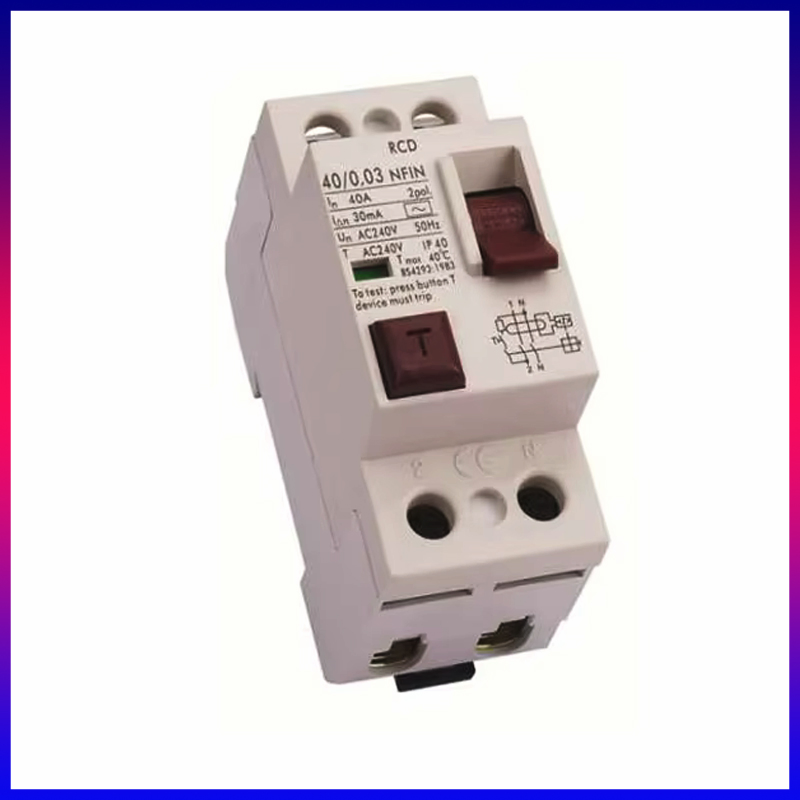

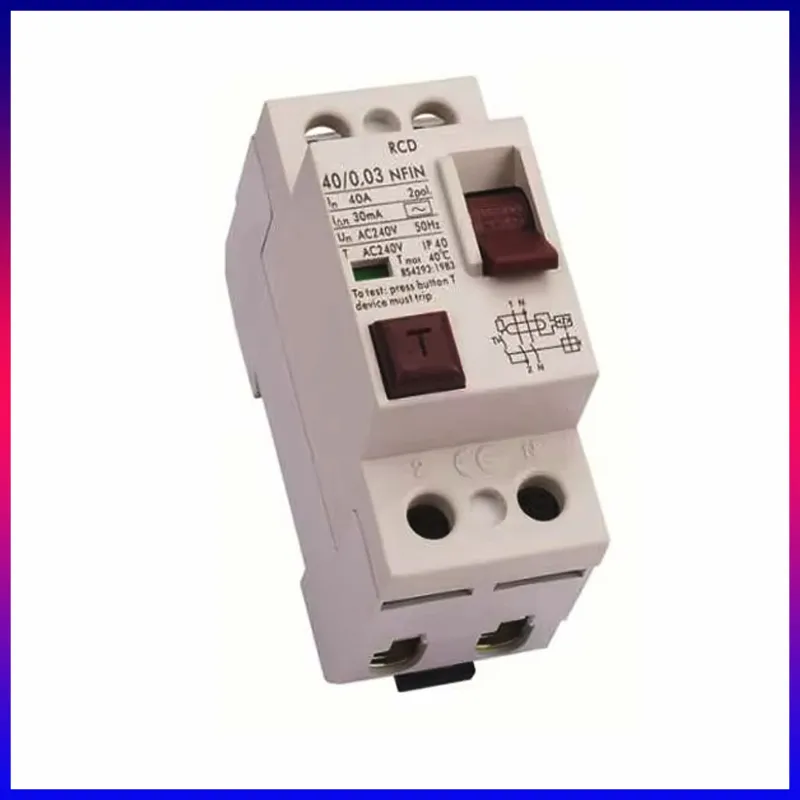

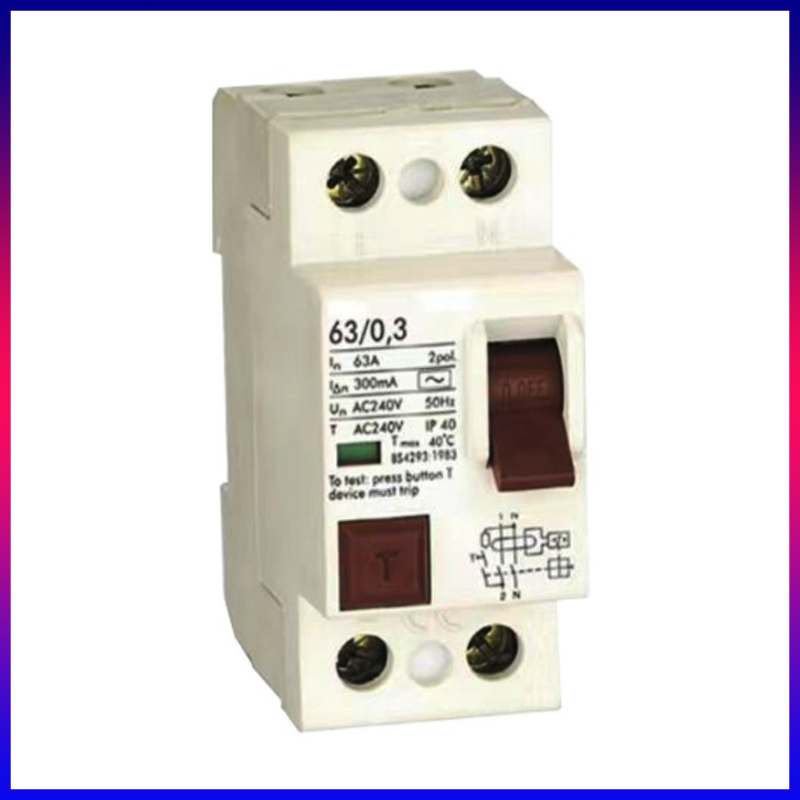

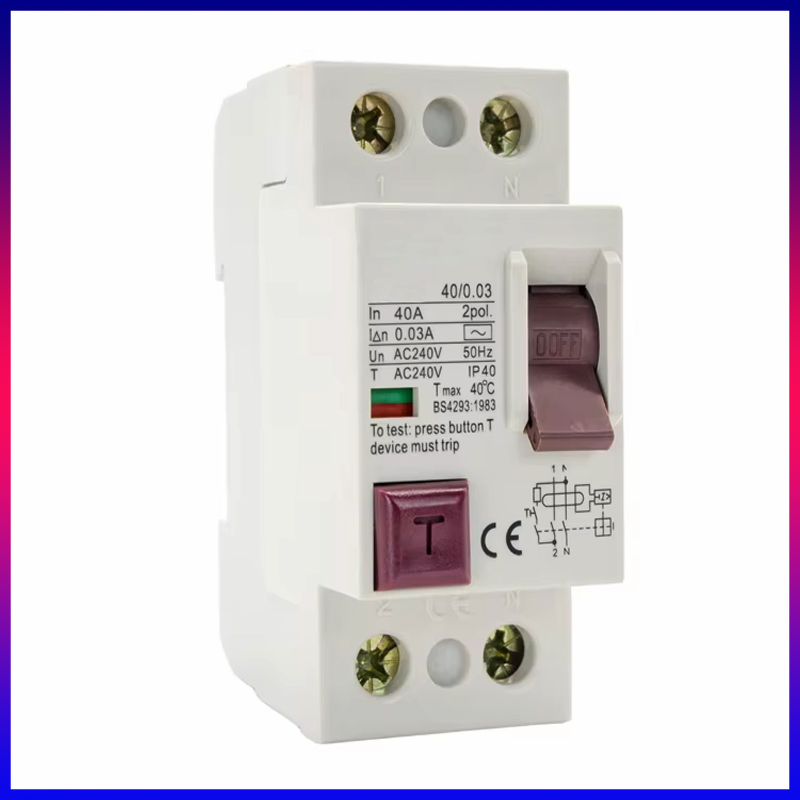

Residual Current Circuit Breaker provide the function of isolation switching and earth leakage protection of electrical circuits. It also provides indirect protection of the operator's body against the dangerous effects of electric current and provides protection against fires caused by electrical circuit faults.
| Standard | EN/IEC61008-1 |
| Model Type | Electro-magnetic; Electronic |
| Residual Characteristics | AC |
| Rated Current (In) | 16A, 25A, 32A, 40A, 63A, 80A, 100A |
| Rated Voltage (Un) | 230/400V AC (50/60Hz) |
| Rated Residual Current (IΔn) | 30mA, 100mA, 300mA, 500mA |
| Short-circuit Capacity | Inc/IΔc: 3000A |
| Tripping Duration | Instantaneous ≤0.1Sec |
| Mechanical Endurance | 4000 Cycles |
| Installation | 35mm Din Rail / Panel Mounting |
The NFIN RCD provides isolation switching and critical earth leakage protection, preventing electric shocks and potential fire hazards caused by circuit faults.
It is manufactured in accordance with the EN/IEC61008-1 standard and holds ISO9001-2000, CB, and CCC certifications.
No, the device is independent of the power supply and line voltage, making it resistant to external interference and voltage fluctuations.
It supports standard 35mm Din rail mounting as well as panel mounting for flexible installation in various electrical cabinets.

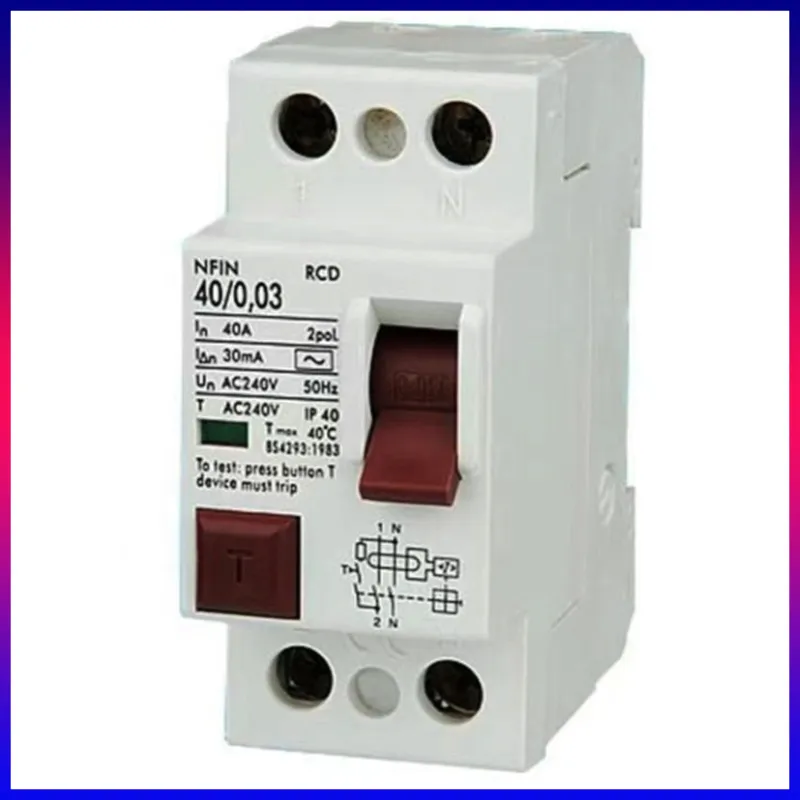

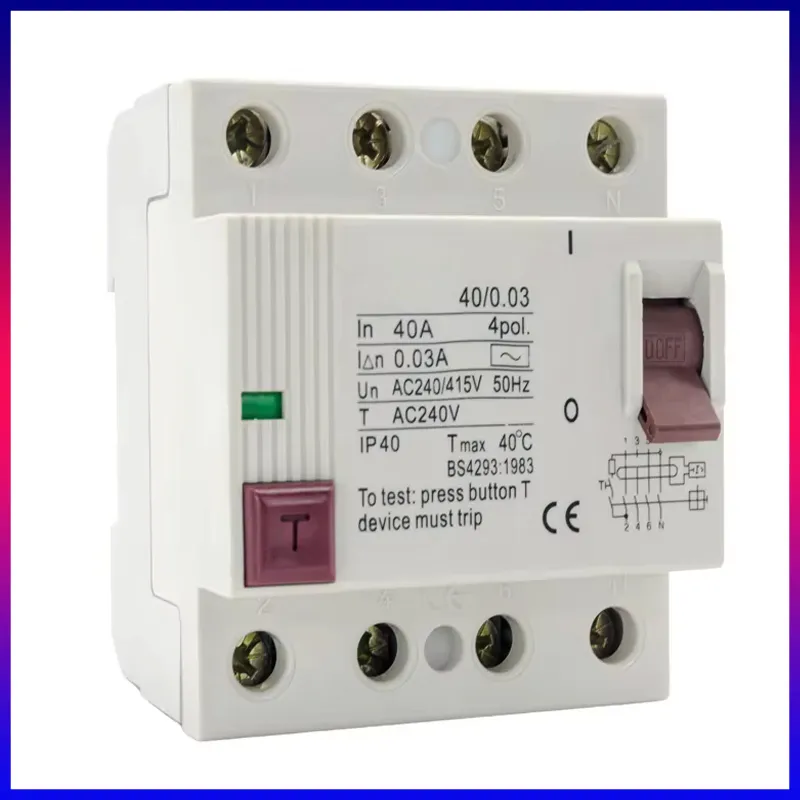

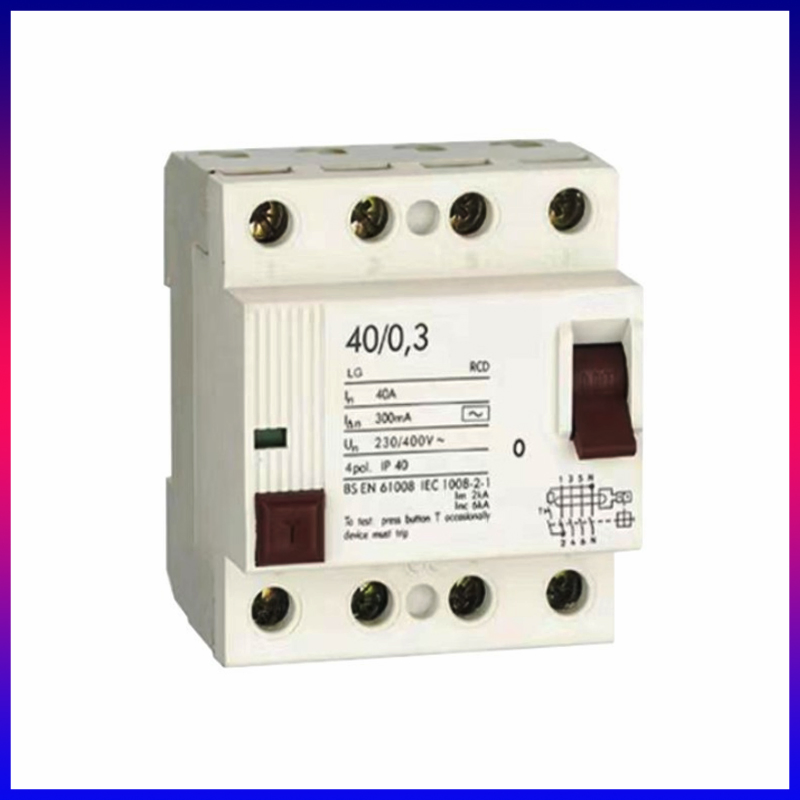

The NFIN series is available in 2P and 4P configurations, with rated currents ranging from 16A up to 100A.
The unit features fire-resistant plastic parts for high impact resistance and is rated for an electro-mechanical endurance of 4000 cycles.
