SDEV Charger
1 / 2

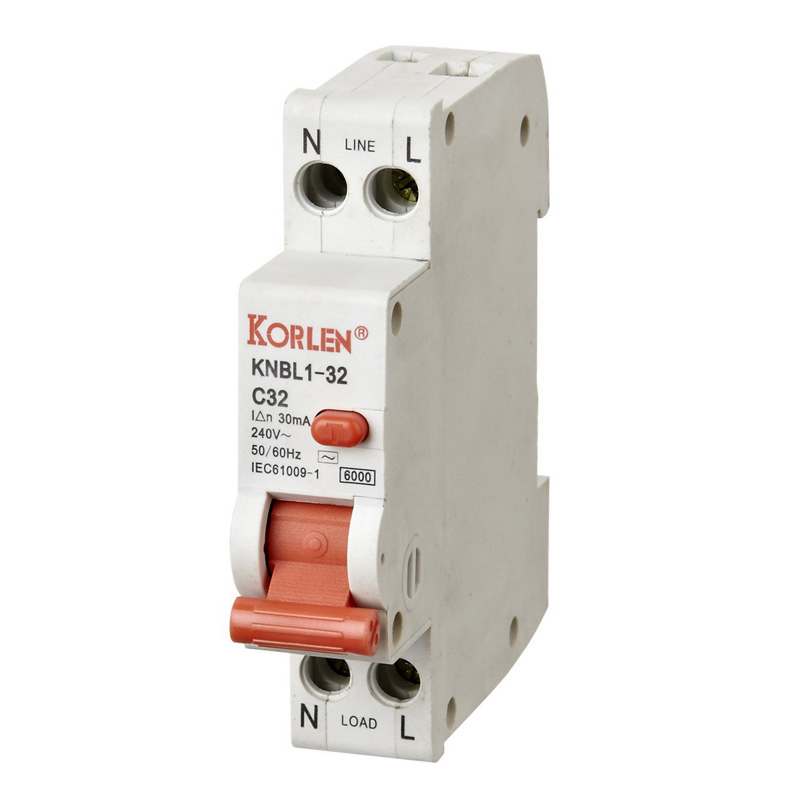

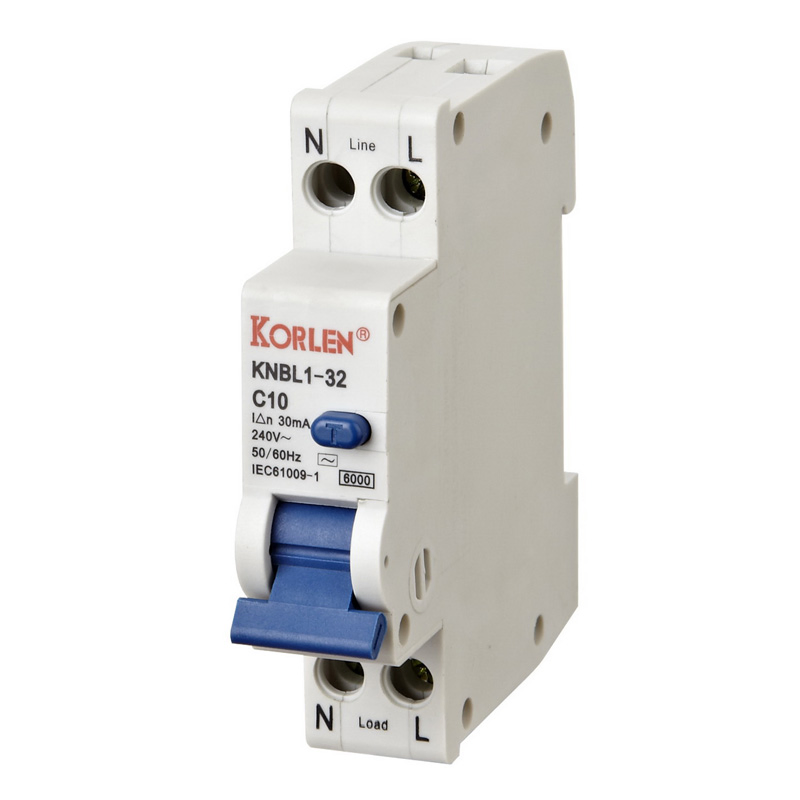

| Standard & Features | |
| Standard | IEC61009-1 GB16917.1 |
| Electrical Features | |
| Type (wave form) | AC, A |
| Thermo-magnetic release | C |
| Rated current In | 6, 10, 16, 20, 25, 32A |
| Poles | 1P+N |
| Rated voltage Ue | 230/240V |
| Rated sensitivity IΔn | 0.03, 0.01A |
| Rated short-circuit capacity | 6000A |
| Break time under IΔn | ≤0.1s |
| Insulation voltage Ui | 500V |
| Mechanical Features | |
| Electrical life | 2000 cycles |
| Mechanical life | 2000 cycles |
| Protection degree | IP20 |
| Ambient temperature | -5 º C...+40 º C |
| Installation | |
| Terminal connection type | Cable/U-type busbar/Pin-type busbar |
| Terminal size (cable) | 16mm² 18-5AWG |
| Mounting | On DIN rail EN 60715 (35mm) |

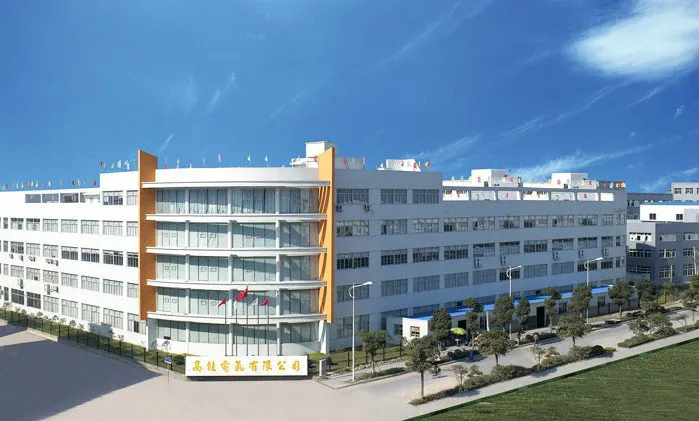

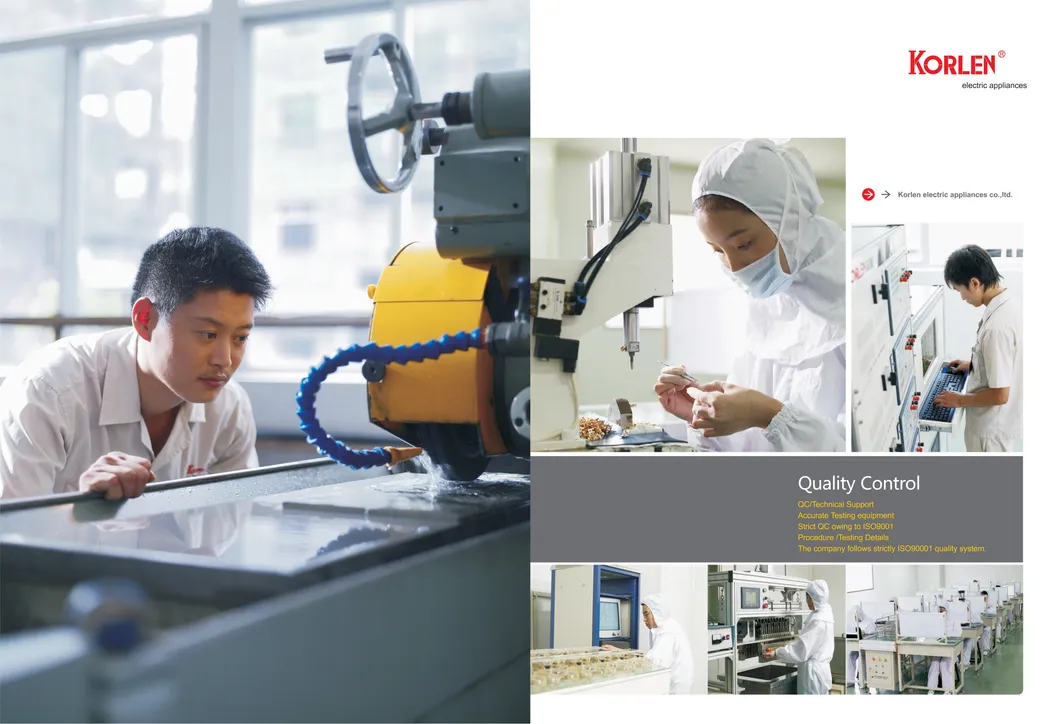

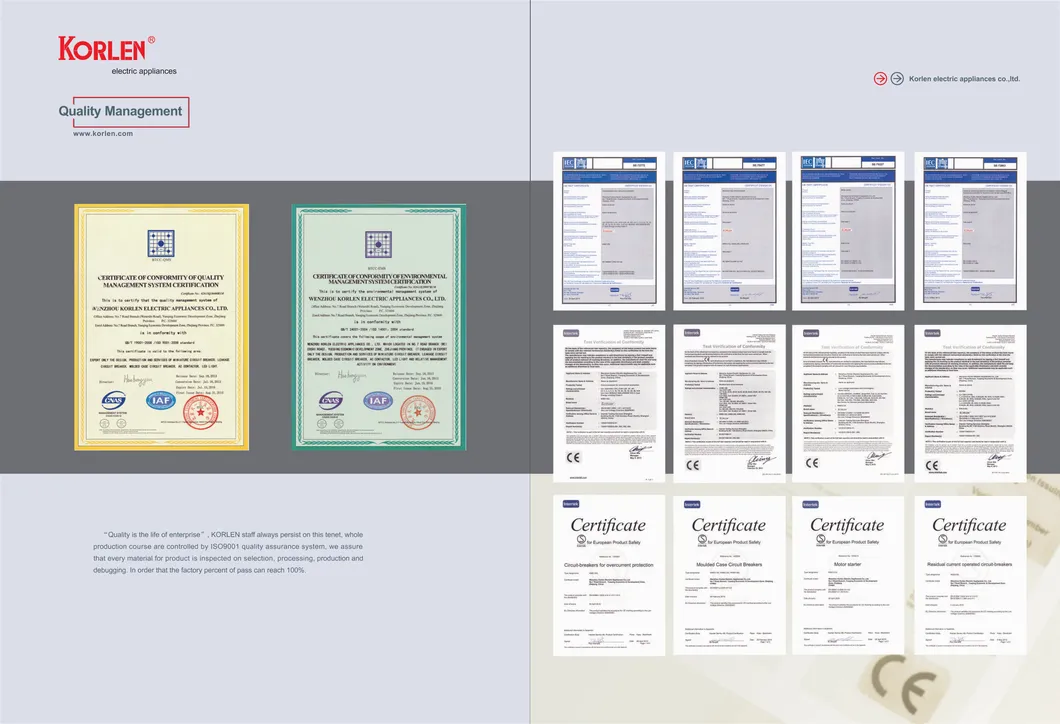

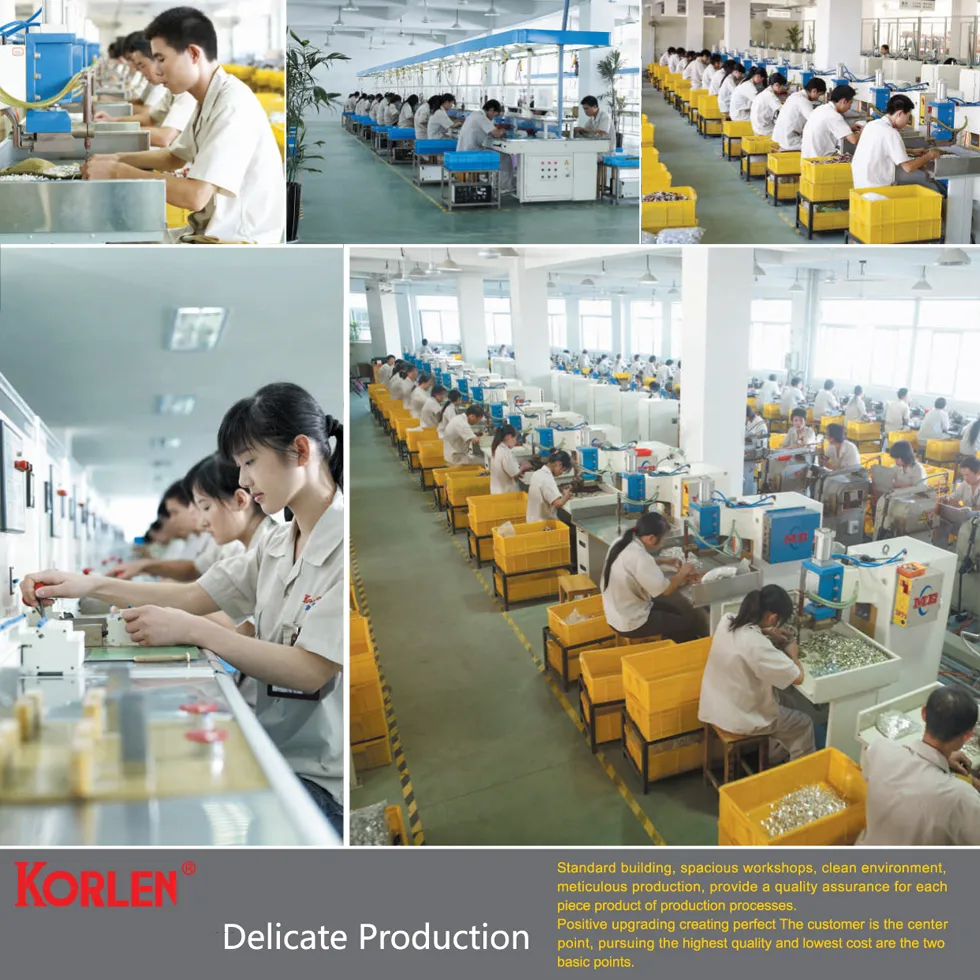

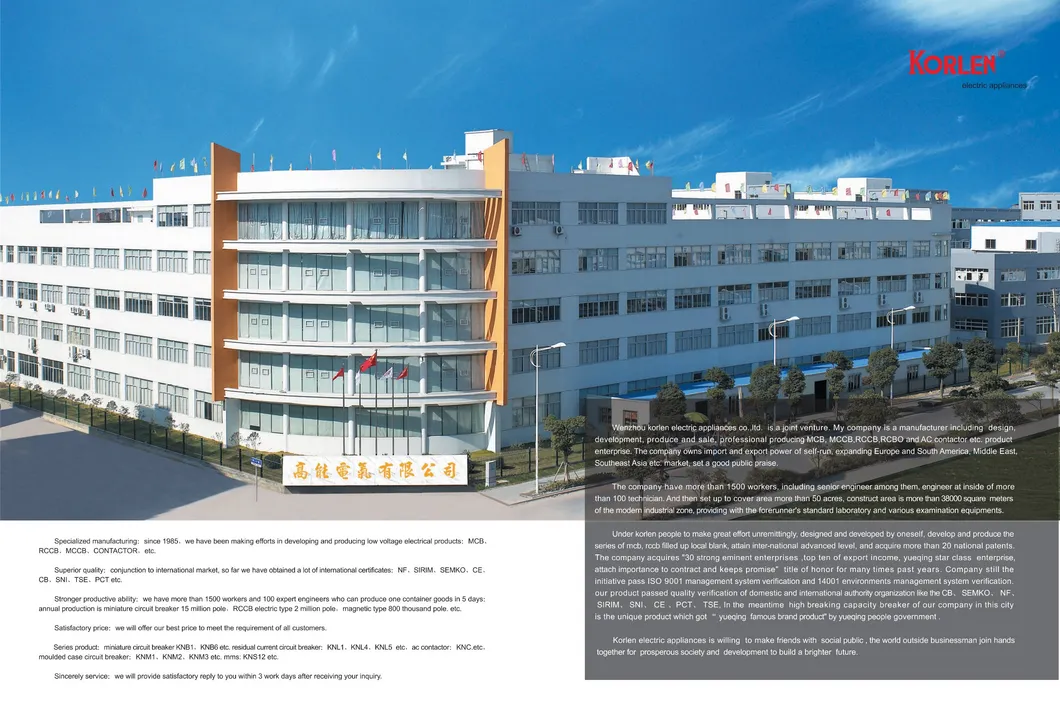

The manufacturing facility covers over 50 acres with a modern industrial zone of more than 38,000 square meters. It includes standard laboratories and advanced examination equipment. The production process adheres to ISO 9001 and 14001 management systems.
