Basic Information
Connector
Glands/Mc4/Knock Outs
Specification
10pcs/carton
Capacity
1,000,000 PC/Year

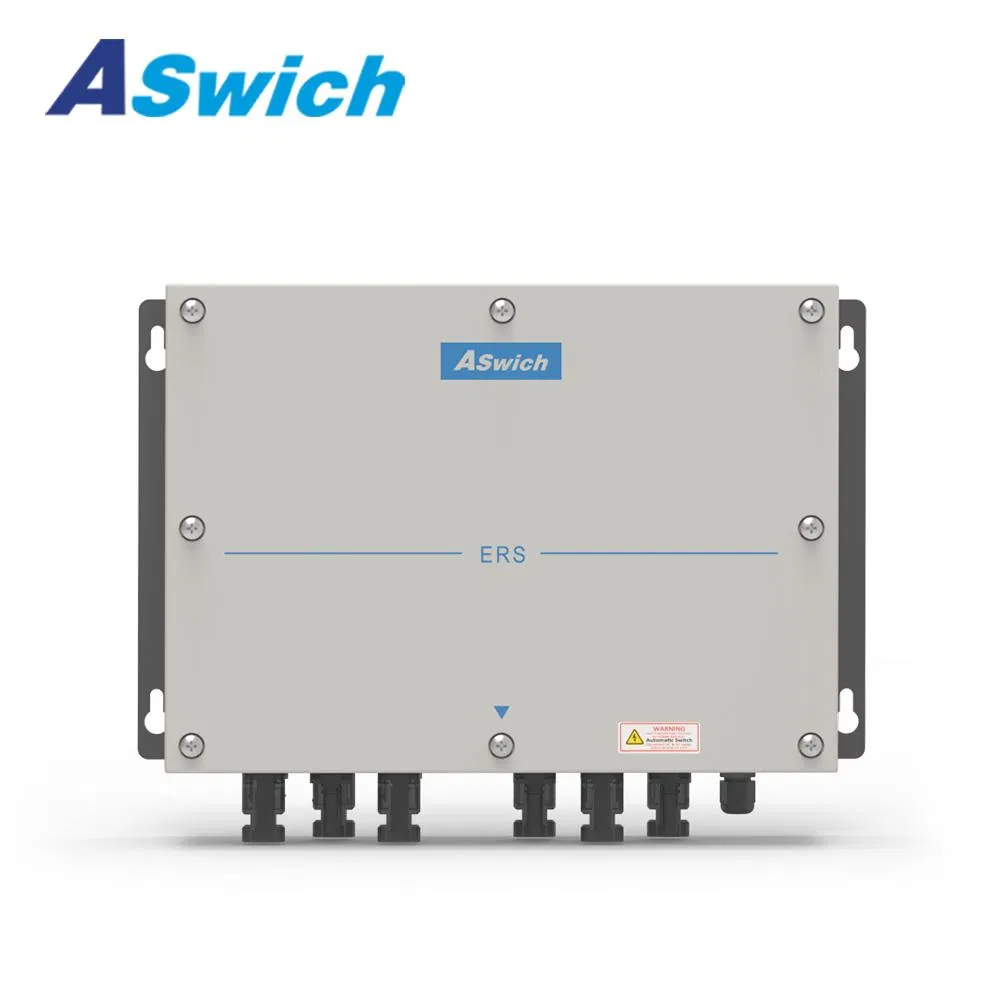

Product Overview

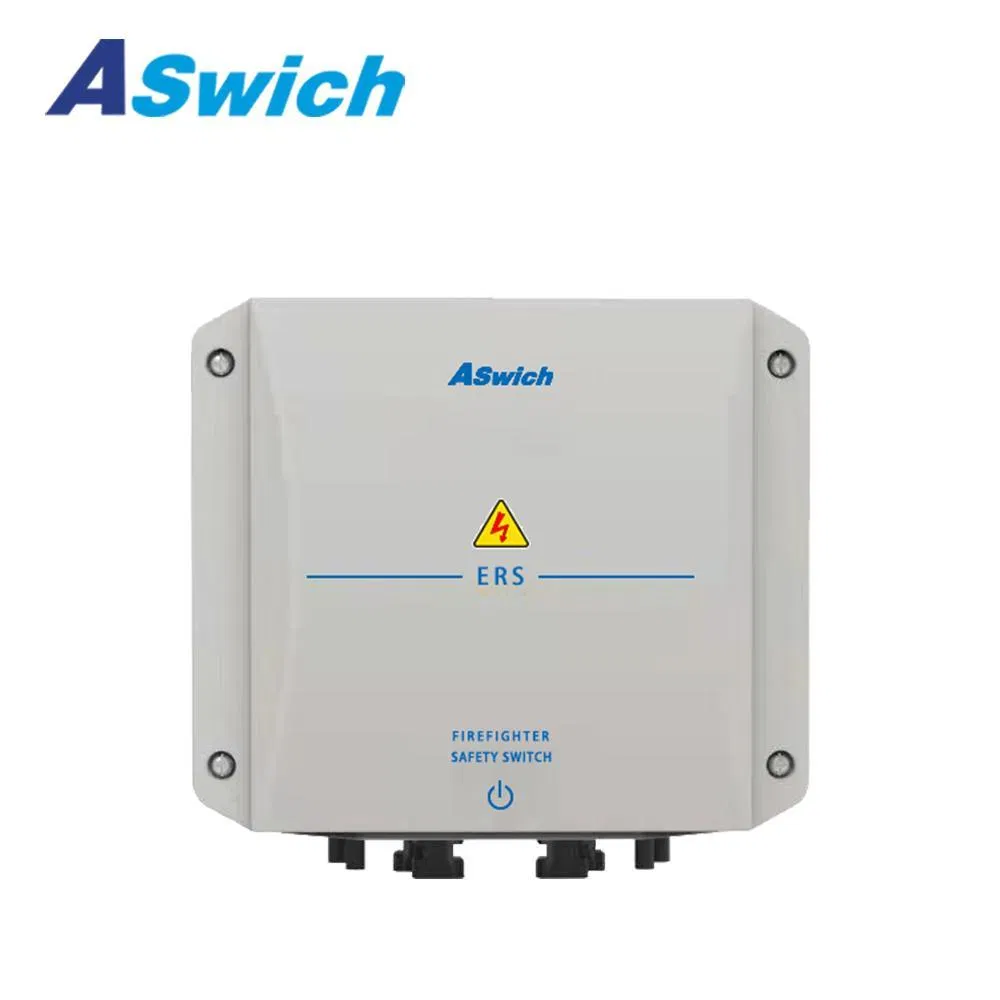

Rooftop resident photovoltaic systems are widely used globally. However, risks such as loose contacts, damp wires, or insulation rupture can cause DC arc drawing, potentially leading to fires. In such events, the DC side continues to generate high-voltage electricity as long as there is light, creating significant danger for firefighters.

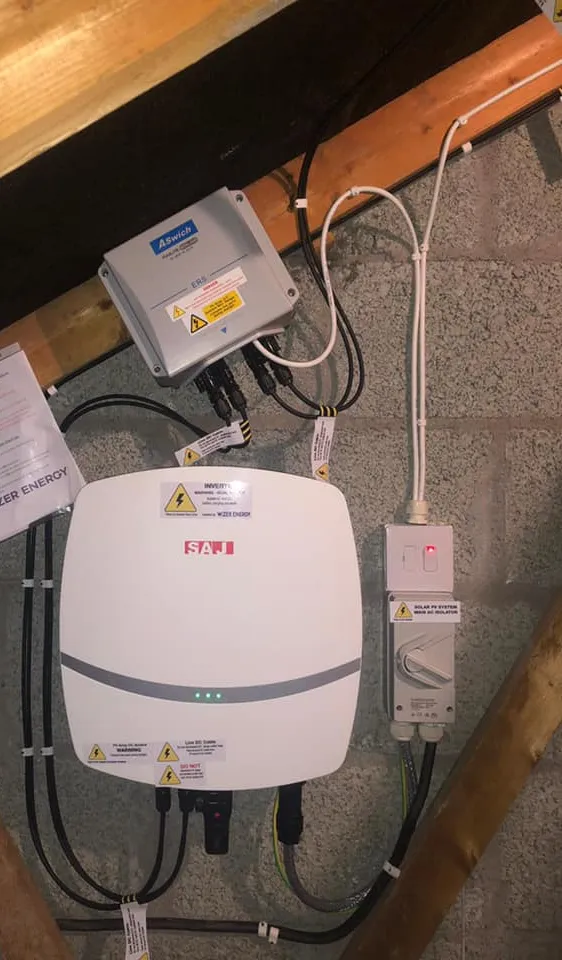

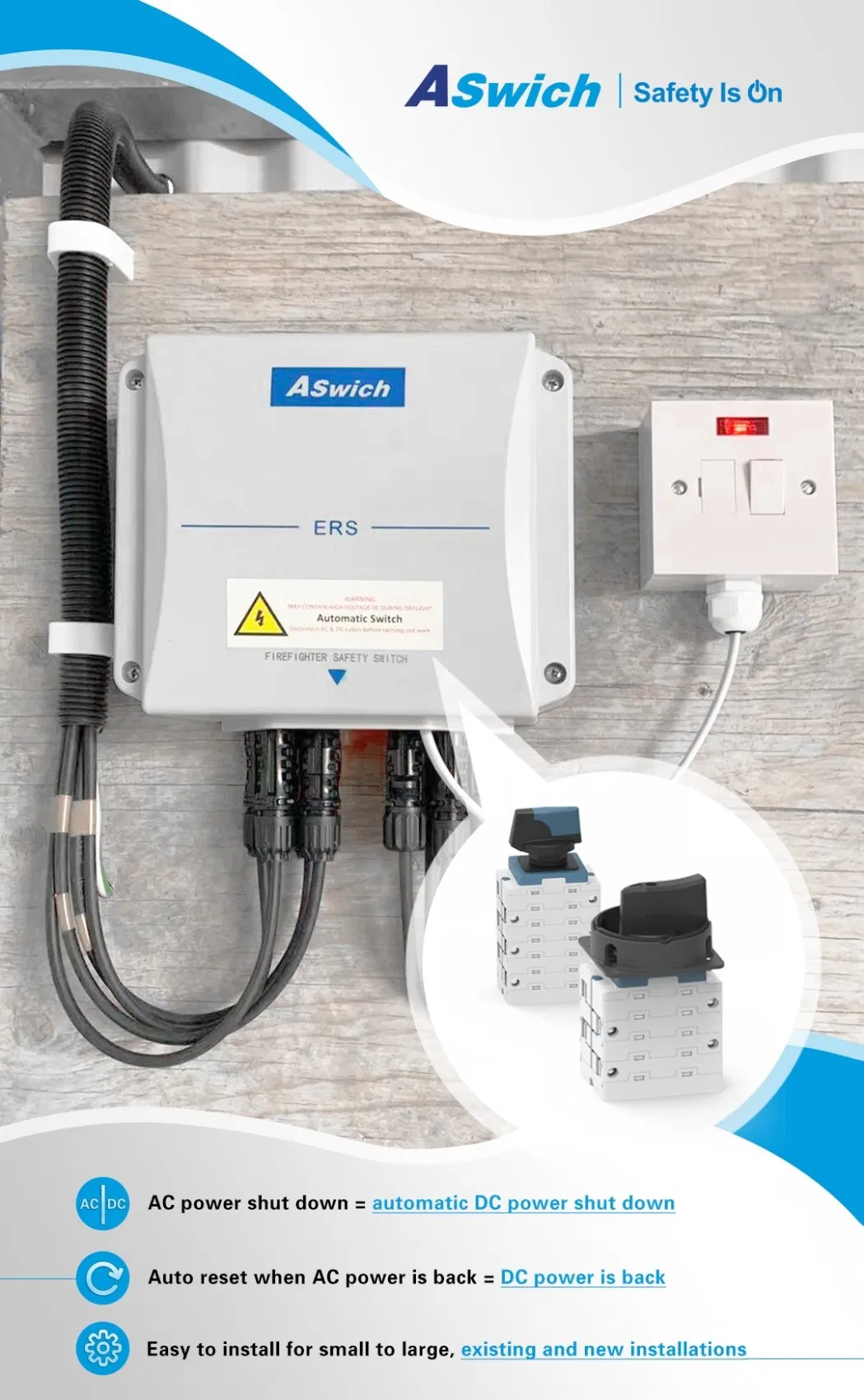

To ensure personal safety and prevent fire risks, our Rapid Shut-down Switch provides a critical safety layer. While integrated DC isolators handle maintenance, they don't de-energize the roof-to-inverter DC cables (600V-1500V). Our firefighter safety switch detects grid failure—such as when AC power is cut—and automatically disconnects the DC isolation within 5 seconds.

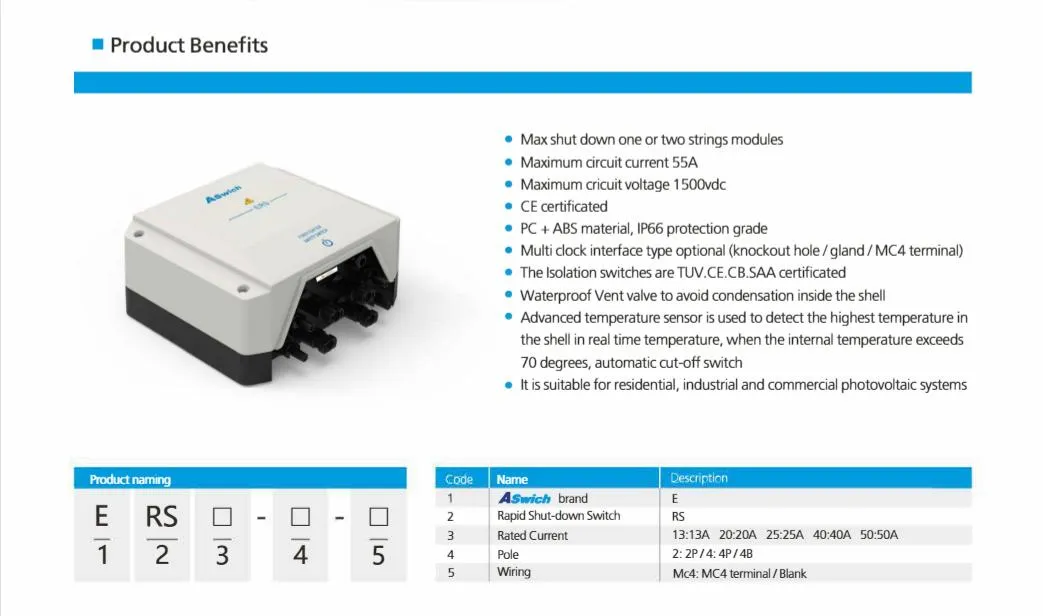

Key Features & Advantages
1

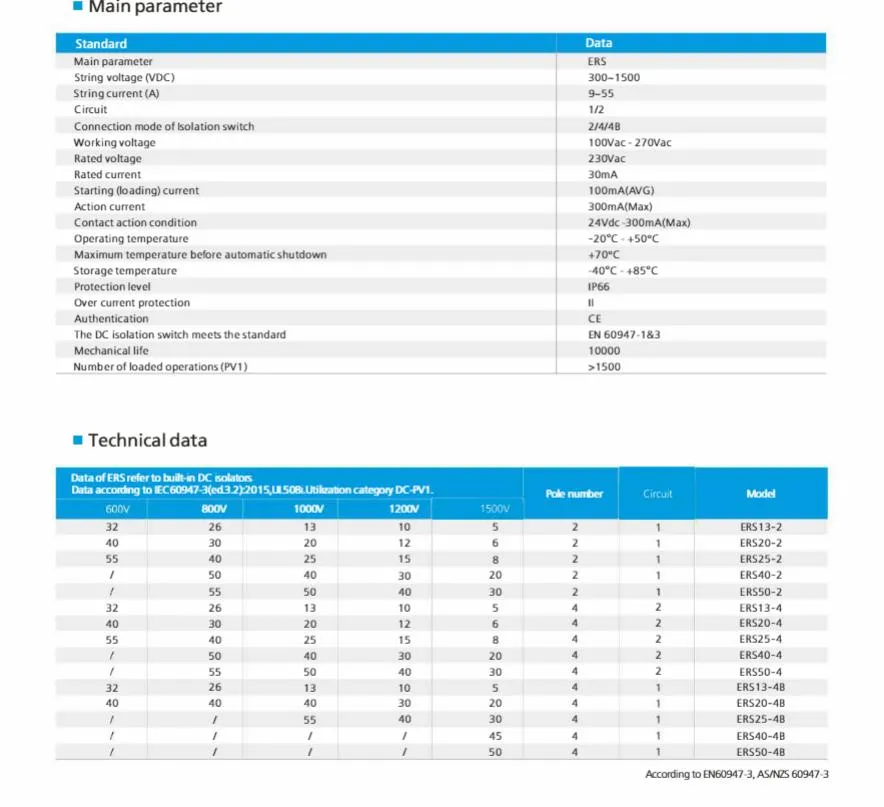

Applicable to 600V-1500V, 9A-55A systems; handles up to 10 strings simultaneously.
2
Wide AC voltage range: 100~270Vac.
3
Internal motor drive for disconnection; can be triggered via AC switch or remotely.
4
Clear LED indicator for easy ON/OFF status identification.
5

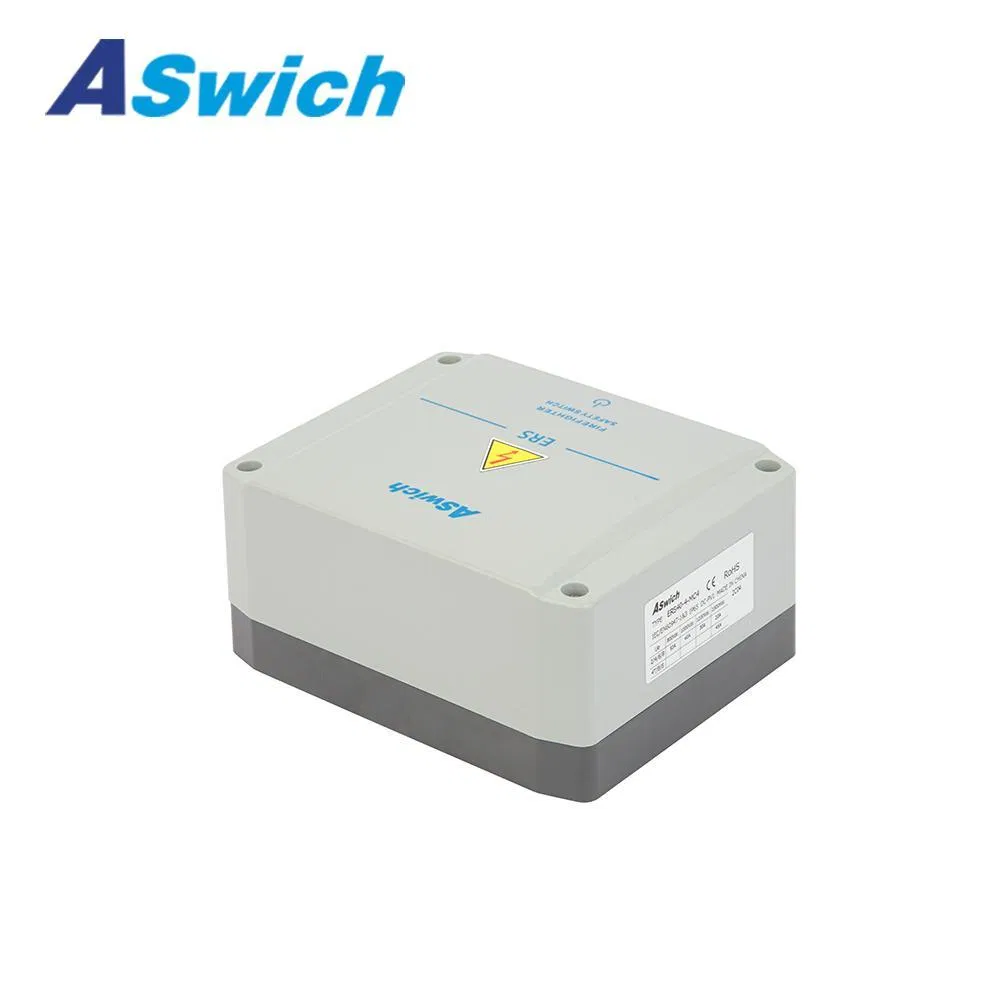

IP66 waterproof level, fully suitable for outdoor installation.
6
Integrated breathing valve to prevent internal condensation.
7
Low noise operation, ensuring no disruption to daily life.
8
Built-in temperature sensor: Automatic shutdown if internal temp exceeds 70°C.
9

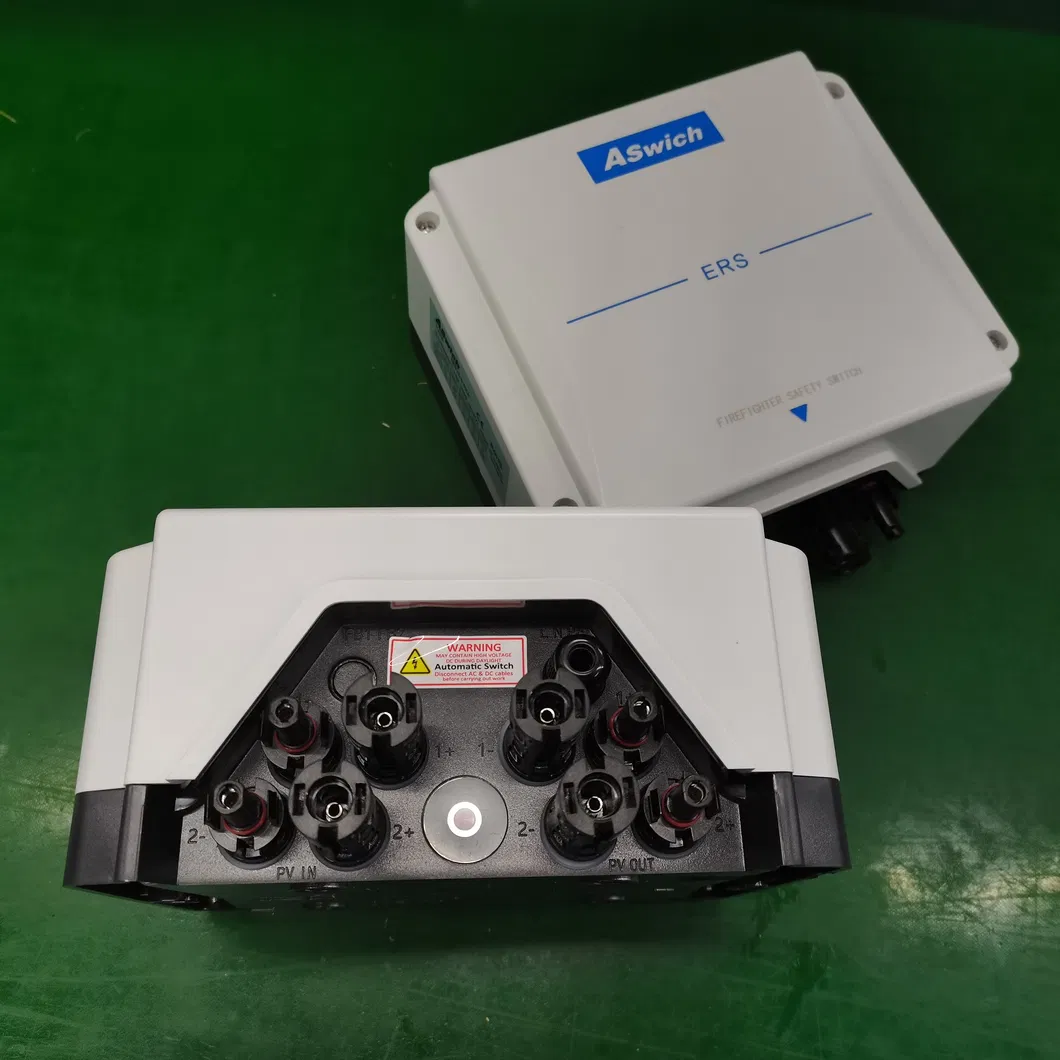

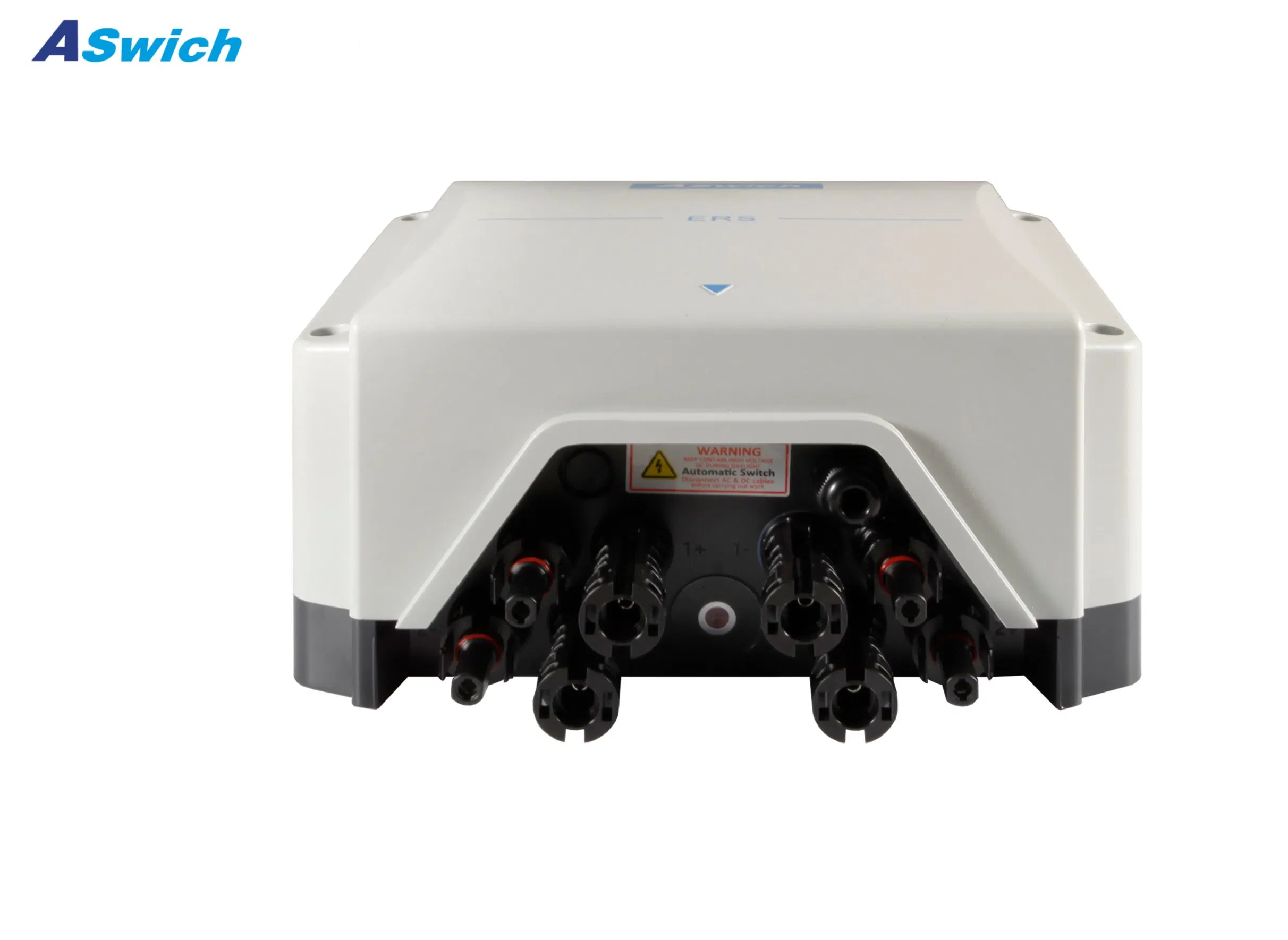

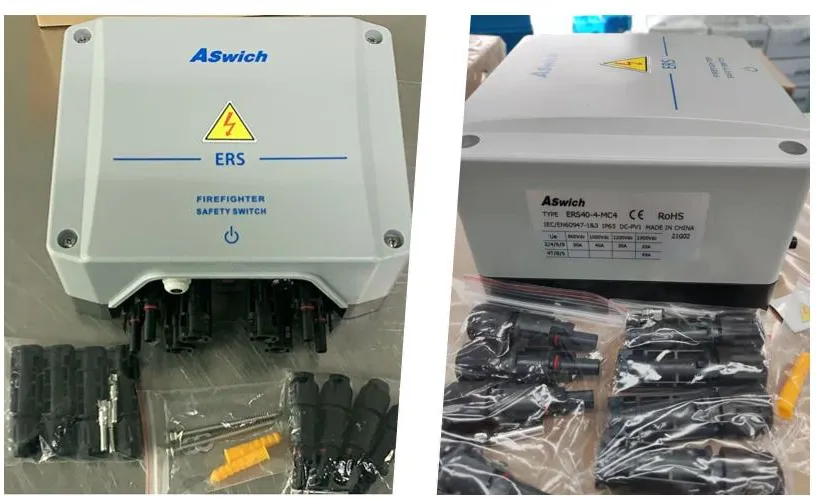

Multiple connection options: Knock outs, Cable glands, or MC4 connectors.
10
Modular design for fast and convenient maintenance and service.
Frequently Asked Questions
How quickly can I receive a quotation?
All enquiries are processed and replied to within 24 hours.
What distinguishes your switch from cheaper alternatives?
Our switches feature a true IP66 rating and are built with high-quality customized components. For solar safety, quality reliability should be prioritized over price.
Can I request a sample for testing?
Yes, we encourage sample orders as a way to verify product quality and build trust.
What are the typical delivery timelines?
Sample orders are typically shipped within 3-7 days, while regular bulk orders are fulfilled within 15 days.
What is the warranty period?
We offer a 2 to 5-year warranty depending on the specific product model and requirements.
How do I choose the correct model for my solar system?
Calculation example: If your PV panels have an open-circuit voltage of 39V and the switch is rated for 1000V, each string can support: 1000 / (39 * 1.15) ≈ 22 panels.

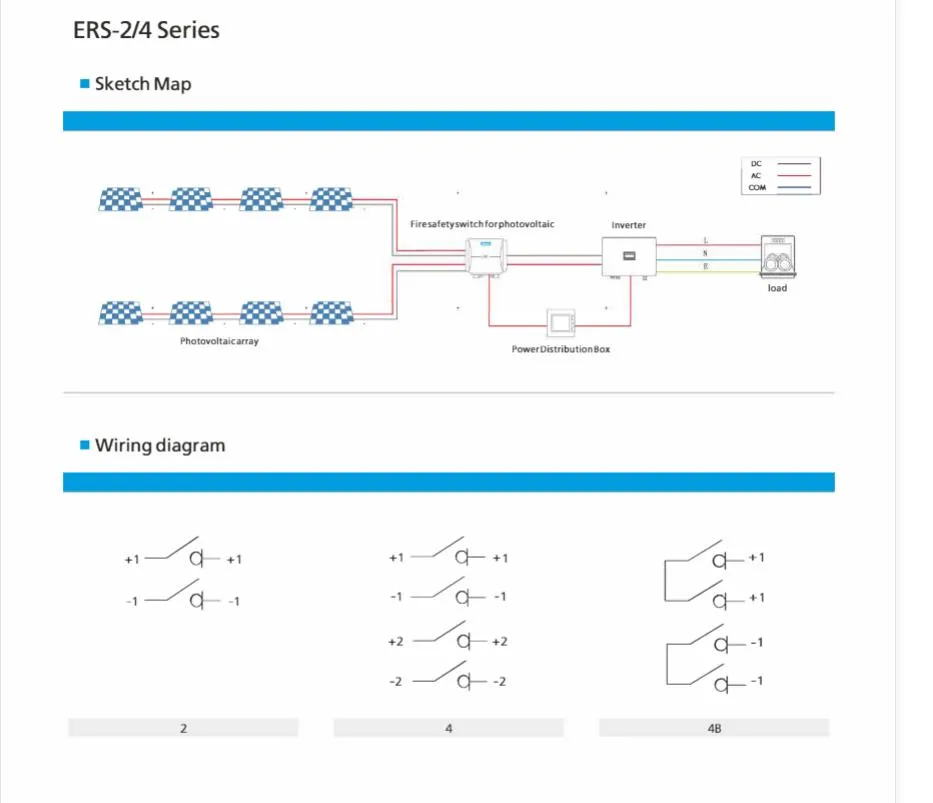

For 162 panels, you could use 8 sets of 2-pole switches, 4 sets of 4-pole switches, or 2 sets of 8-pole switches. Ensure the switch current rating exceeds your string current.
