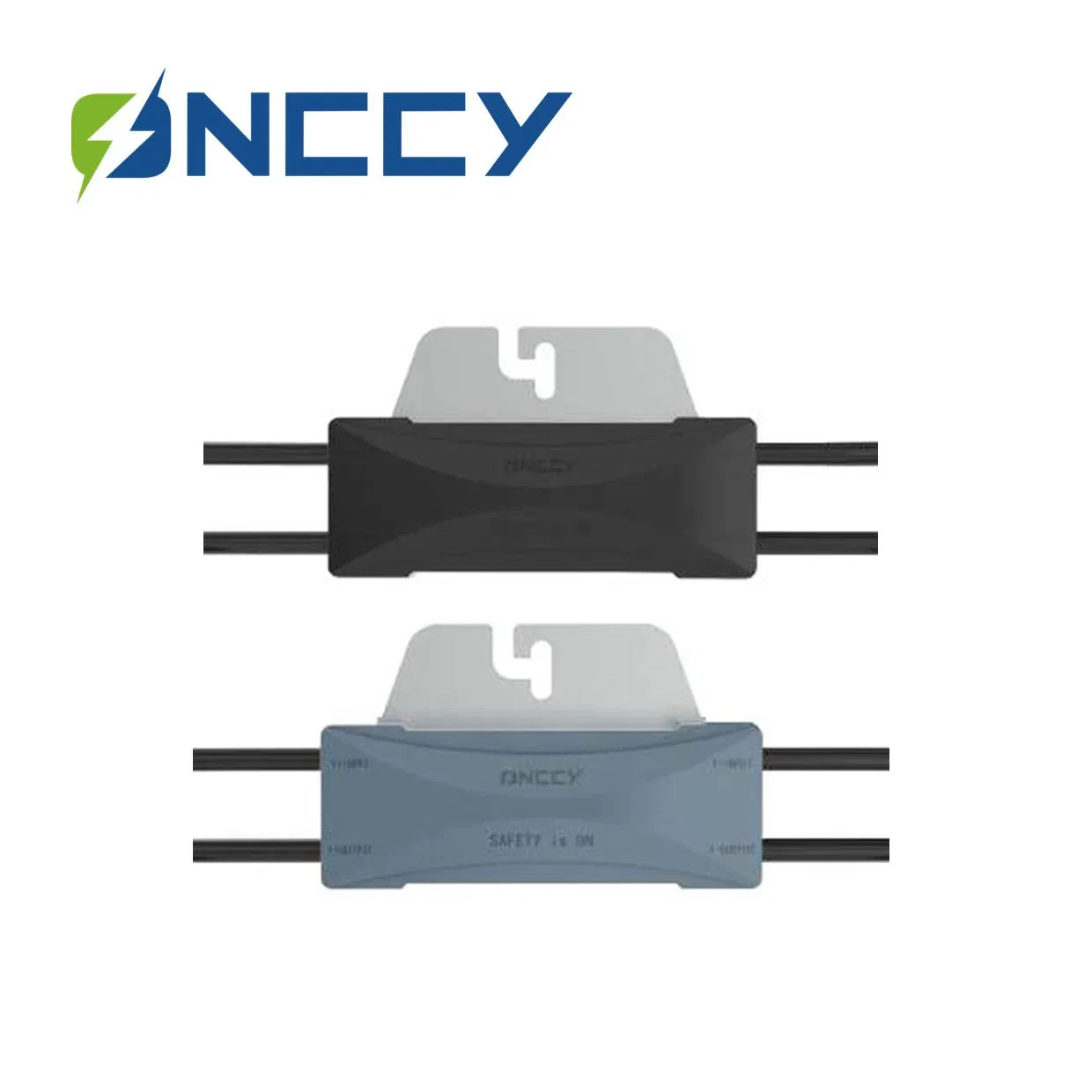

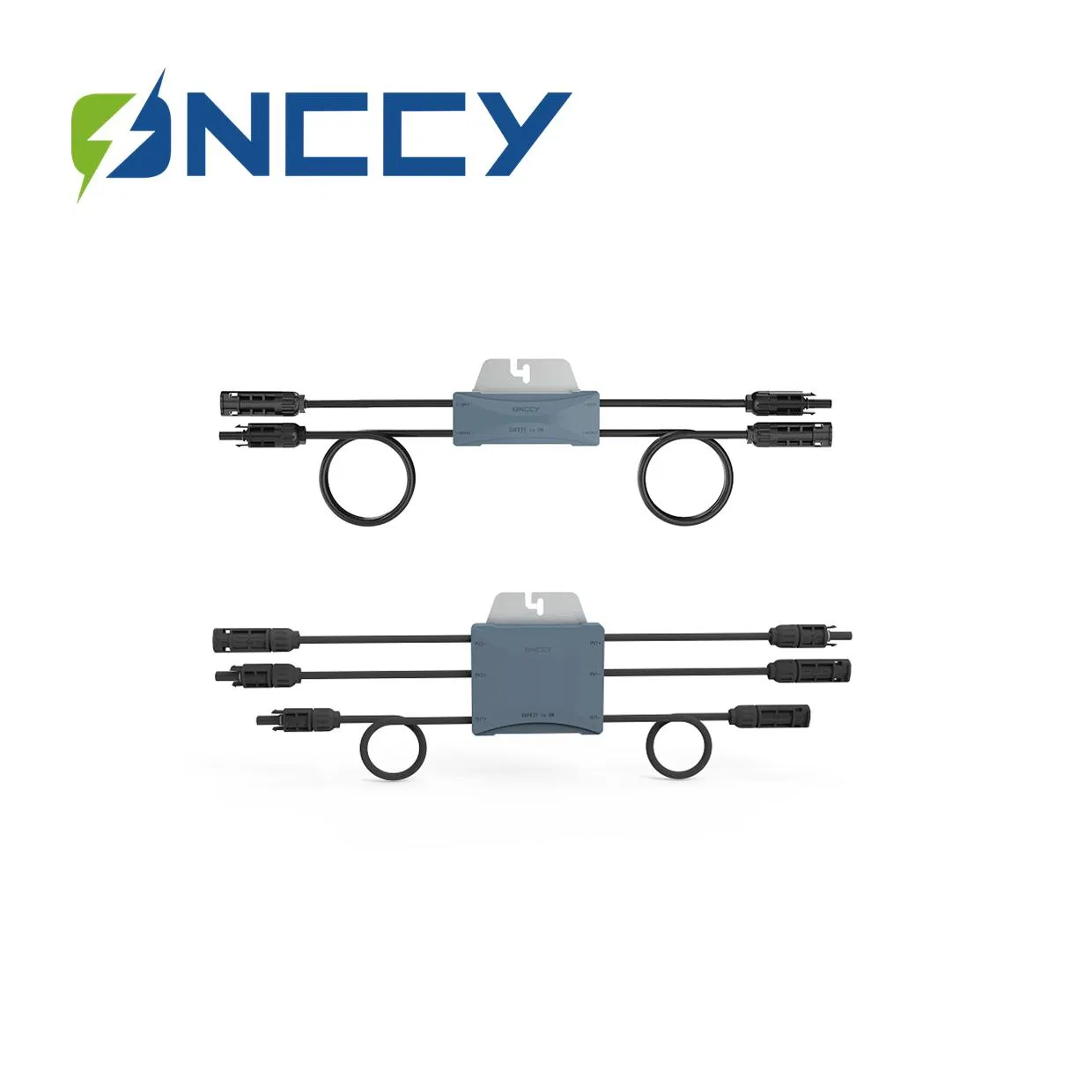

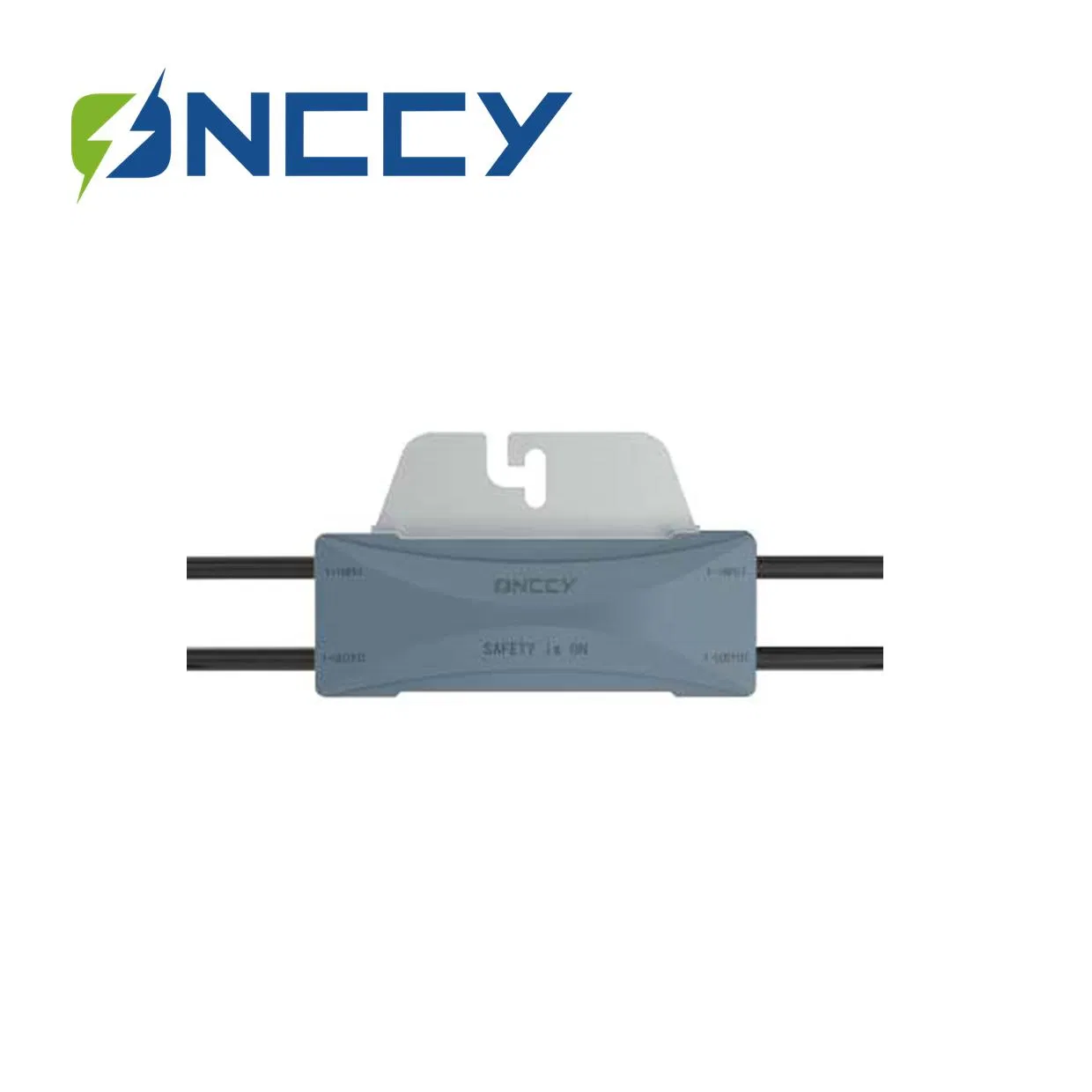

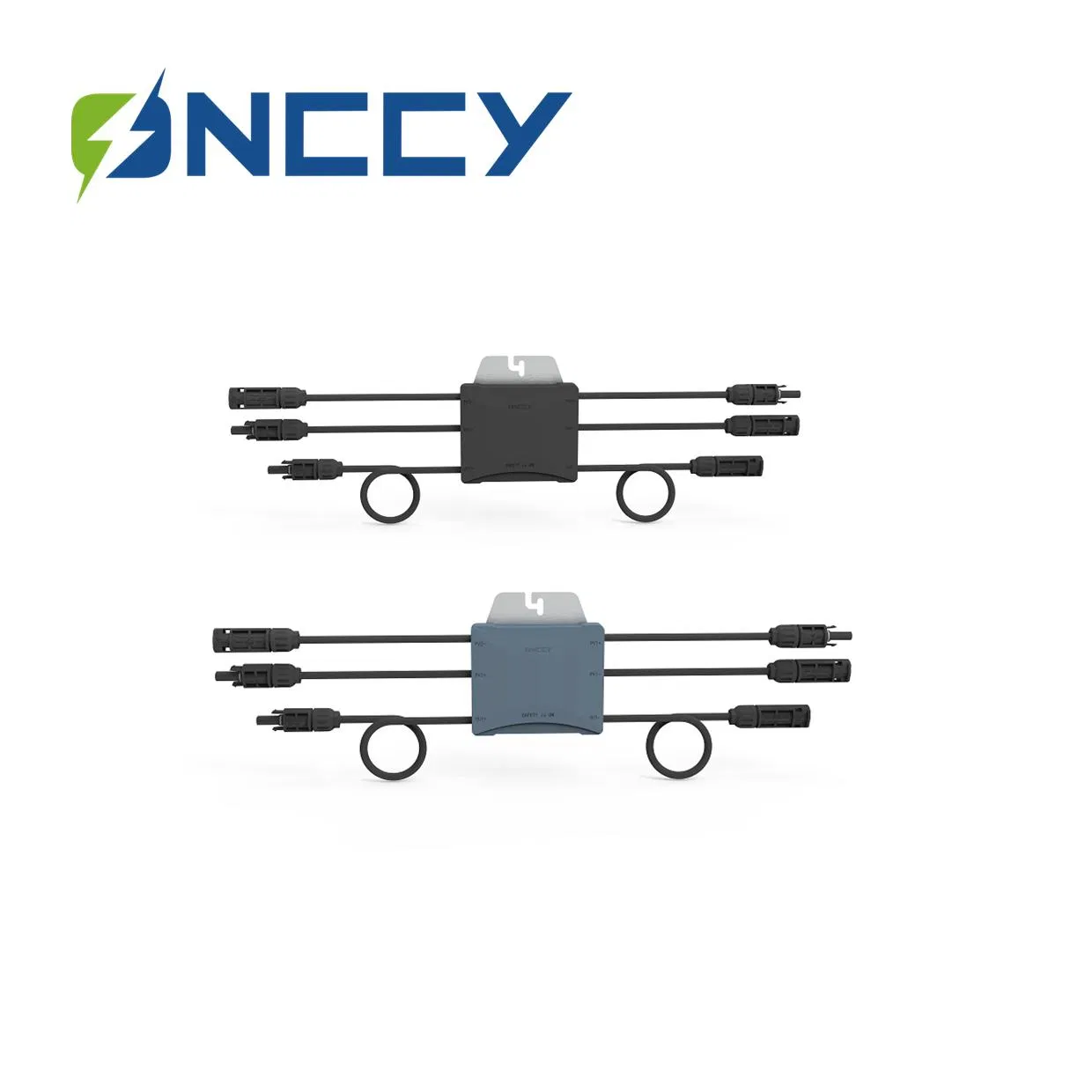

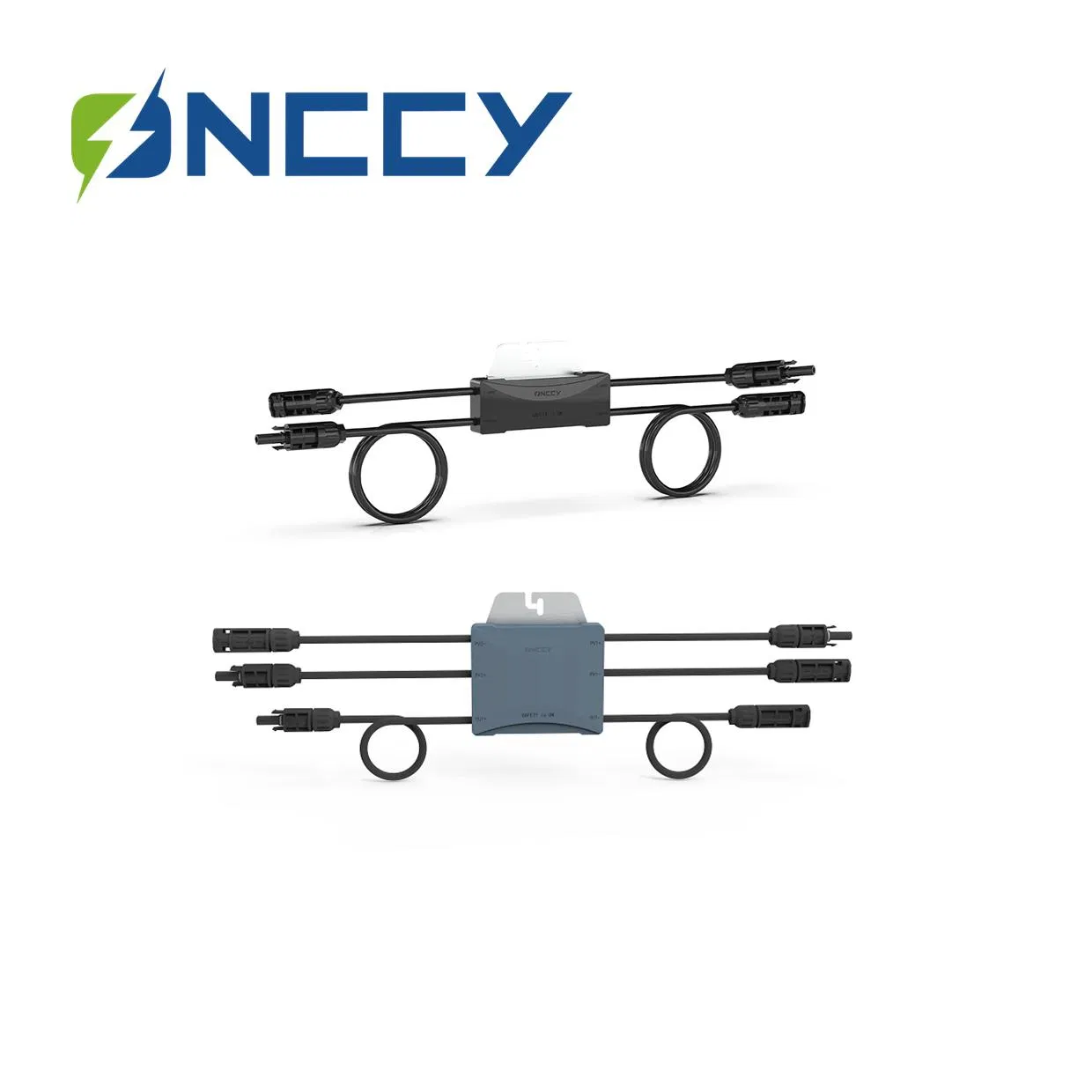

In most photovoltaic systems, the DC isolator is integrated into the DC/AC power inverter. After switching off the DC isolator, the cables between the DC solar modules and DC/AC power inverter running through the building are still subject to up to 1000V DC. In the event of a fire, firefighters are exposed to a very serious source of potential danger. The firefighter safety switch provides the solution. It directly disconnects the DC current in close proximity to the solar modules and creates a safer situation for firefighters.
| Maximum Allowed Input Voltage | 80V |
| Maximum Output Voltage | 80V |
| Number of connectable panels | 1/2 |
| Maximum input current | 15A / 21A |
| Maximum short circuit current | 15A / 21A |
| Maximum system voltage | 1000V (1500V optional) |
| Operating temperature | -30°C to 80°C (Auto shutdown at 85°C) |
| Protection level | IP68 |
| Warranty | 10 Years |
