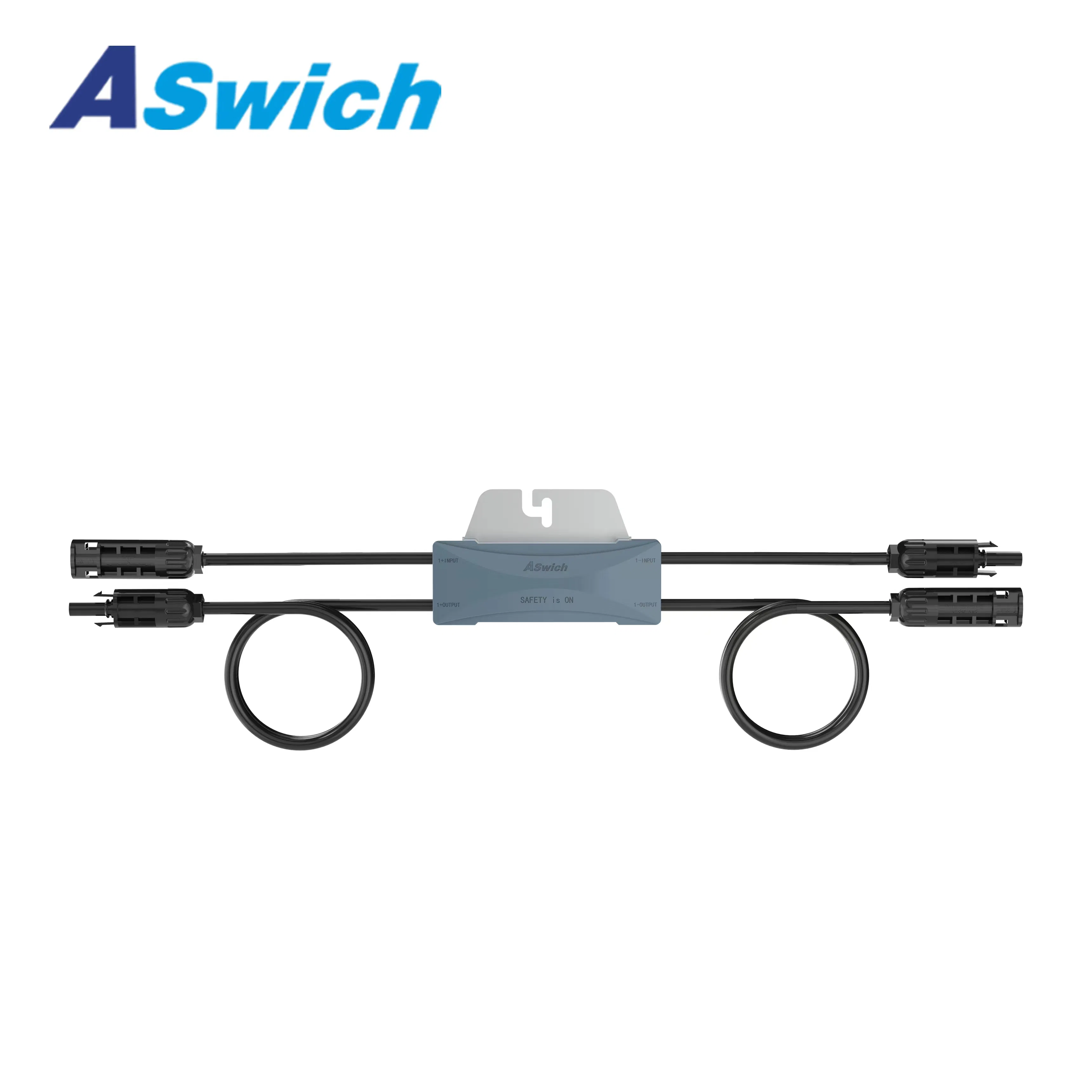

PV Module Level Load Break Disconnect Solution for Solar Rooftop Fire Protection Firefighter Safety Switch
PV Module Level Load Break Disconnect Solution for Solar Rooftop Fire Protection Firefighter Safety Switch
PV Module Level Load Break Disconnect Solution for Solar Rooftop Fire Protection Firefighter Safety Switch
PV Module Level Load Break Disconnect Solution for Solar Rooftop Fire Protection Firefighter Safety Switch
PV Module Level Load Break Disconnect Solution for Solar Rooftop Fire Protection Firefighter Safety Switch
1 / 5
PV Module Level Load Break Disconnect Solution for Solar Rooftop Fire Protection Firefighter Safety Switch
PV Module Level Load Break Disconnect Solution for Solar Rooftop Fire Protection Firefighter Safety Switch
PV Module Level Load Break Disconnect Solution for Solar Rooftop Fire Protection Firefighter Safety Switch
PV Module Level Load Break Disconnect Solution for Solar Rooftop Fire Protection Firefighter Safety Switch
PV Module Level Load Break Disconnect Solution for Solar Rooftop Fire Protection Firefighter Safety Switch

PV Module Level Load Break Disconnect Solution for Solar Rooftop Fire Protection Firefighter Safety Switch

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
ERP
Wires
PNP (Three-Wires)
Application
PV Solar System
Certification
ISO, GS, RoHS, CE, TUV, CB, SAA
Voltage
80V / 600V / 1000V / 1500V
Rated Current
15A / 25A
Protection Temp
85° C
IP Grade
IP68
Warranty
10 Years
Product Description

Rooftop type resident photovoltaic system has been widely used globally. However, due to loose contact of PV module joints, wire dampness, or insulation rupture, DC arc drawing can occur, potentially resulting in fire hazards. When fire accidents occur, the DC side continues to generate high voltage as long as light hits the components. This makes manual fire fighting dangerous, often requiring firefighters to control the fire from a distance.

ERP Series Panel Level Firefighter Safety Switches / Rapid Shutdown

The ERP Series is a reliable rapid shutdown solution compliant with NEC 2017/2020 690.12 regulations for rooftop PV systems fire safety.

✓ Meet to NEC 2017/2020 690.12 regulations
✓ Comply with SUNSPEC protocol
✓ PLC communication control
✓ Fire retardant V-0 / UV resistant materials
✓ Clasp design for simple installation
Detailed Photos

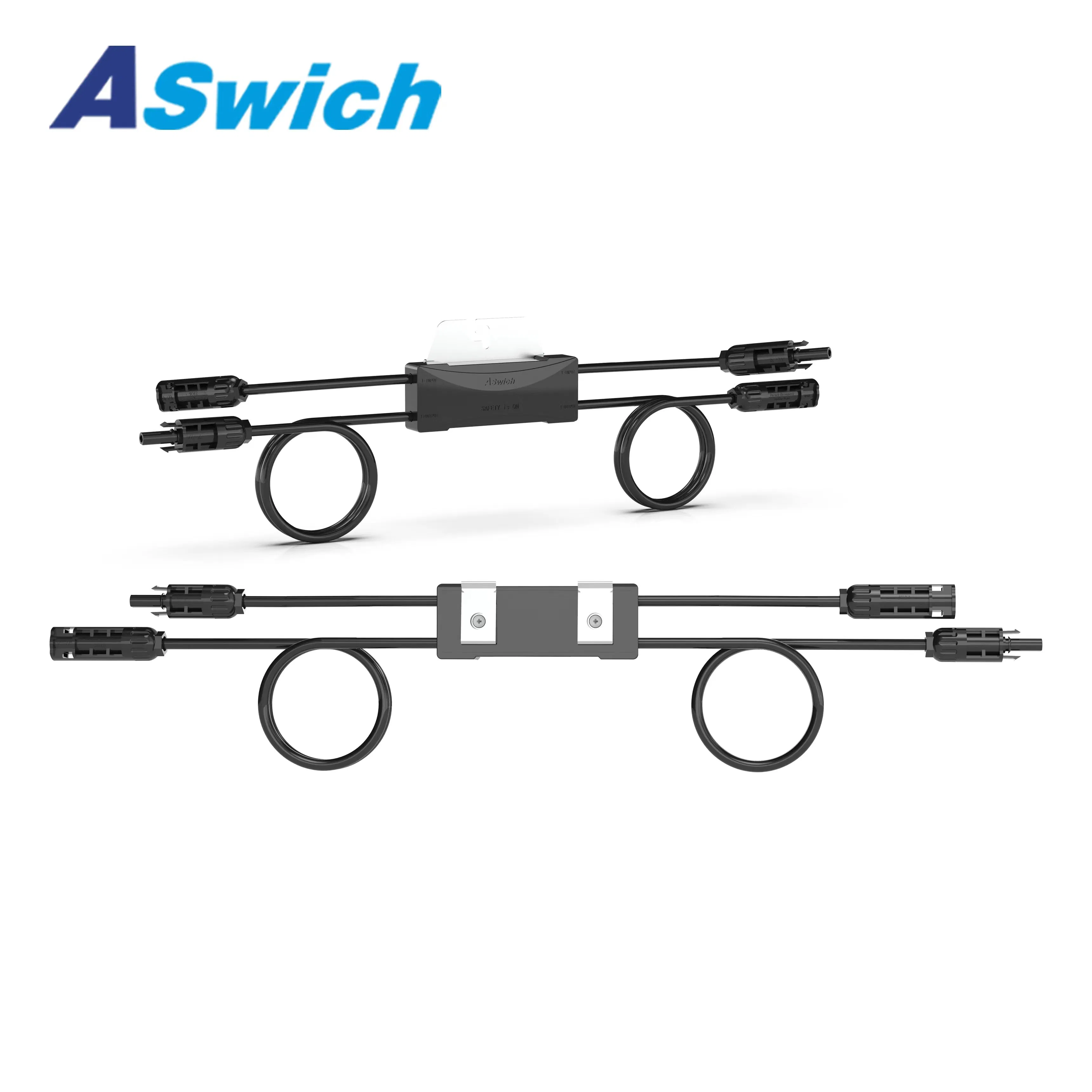

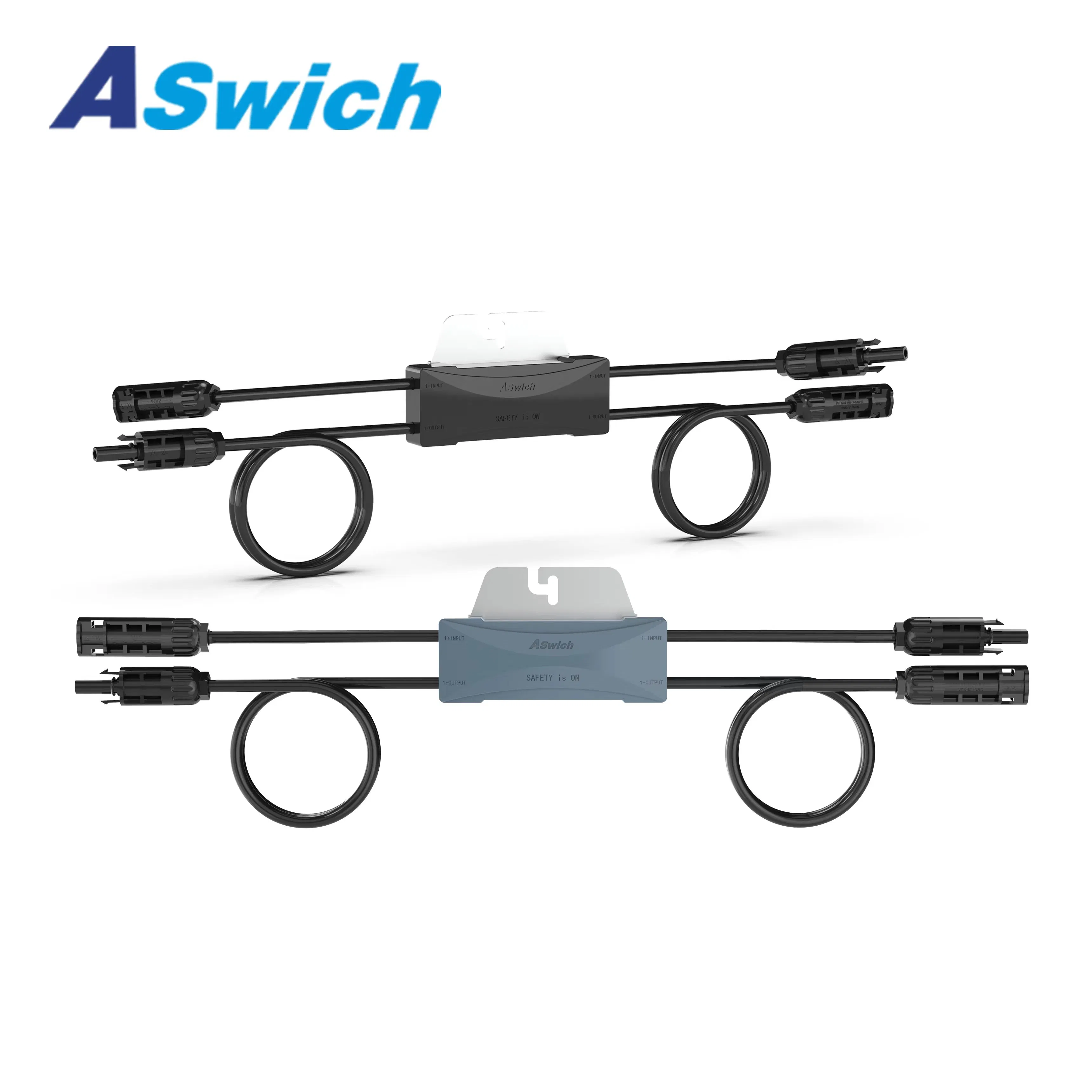

PV Module Level Disconnect Solution

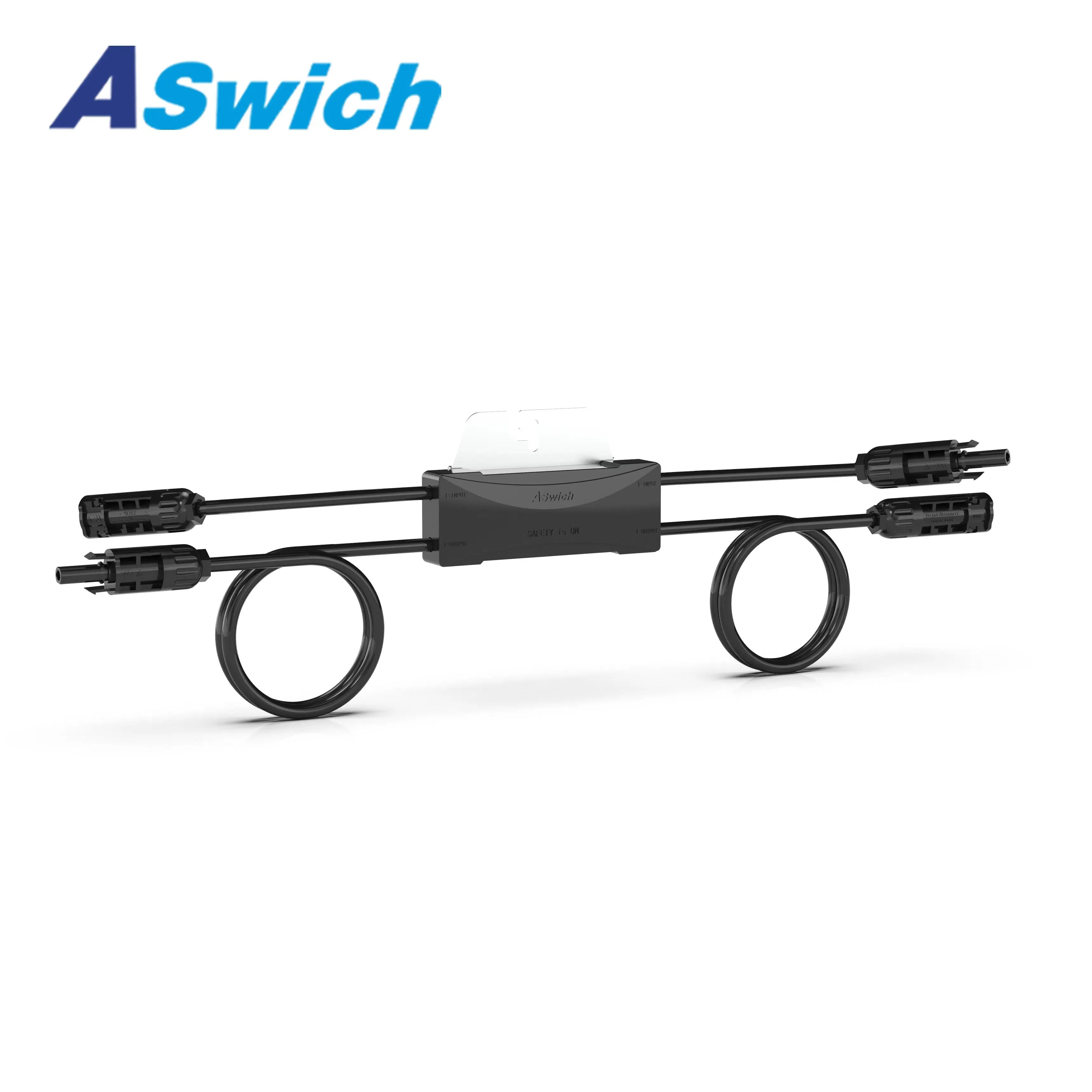

Rooftop Fire Protection Switch

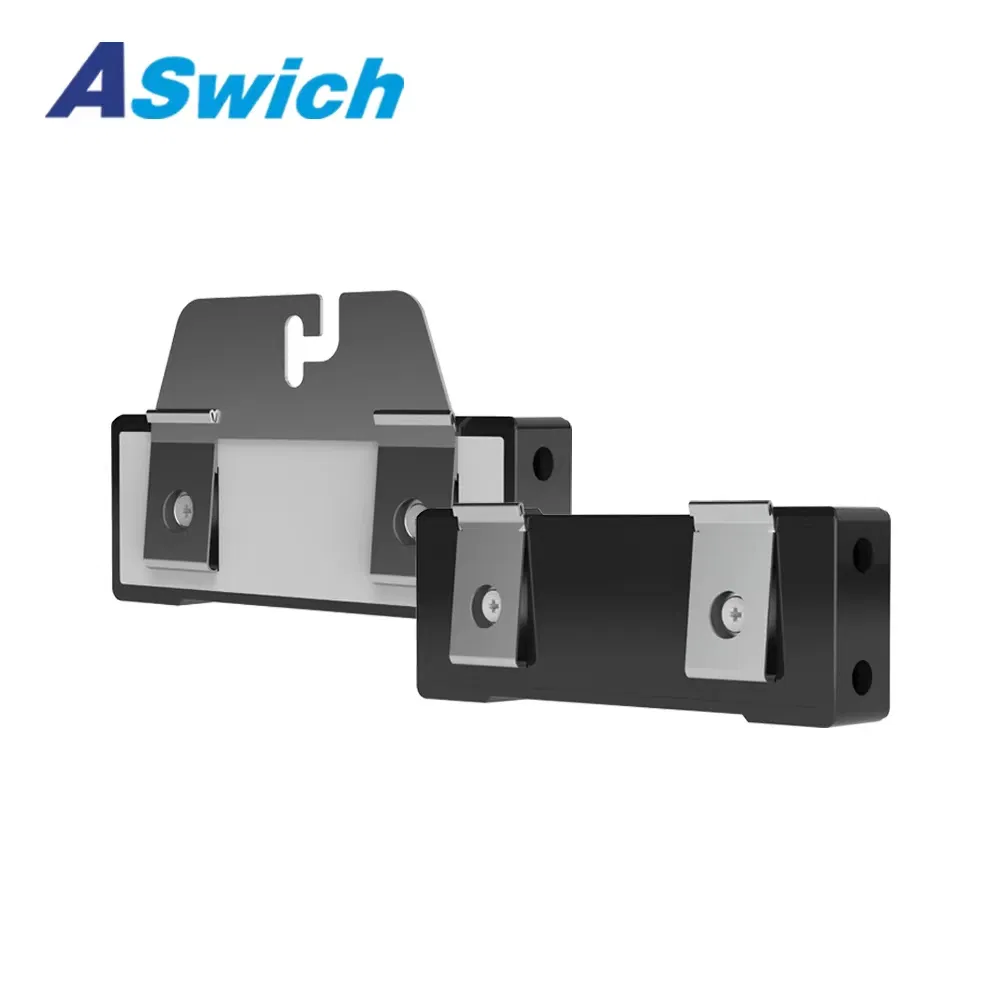

Firefighter Safety Switch Detail
Technical Parameters
Category Specifications
TypeStandard Solar Panel Level Switch
MaterialPolycrystalline Silicon / Fire retardant V-0
Warranty Period60 Months (Standard) / 10 Years (Extended)
ComplianceSUNSPEC protocol, NEC 2017/2020 690.12
InstallationScrew / Clip (Clasp Design)

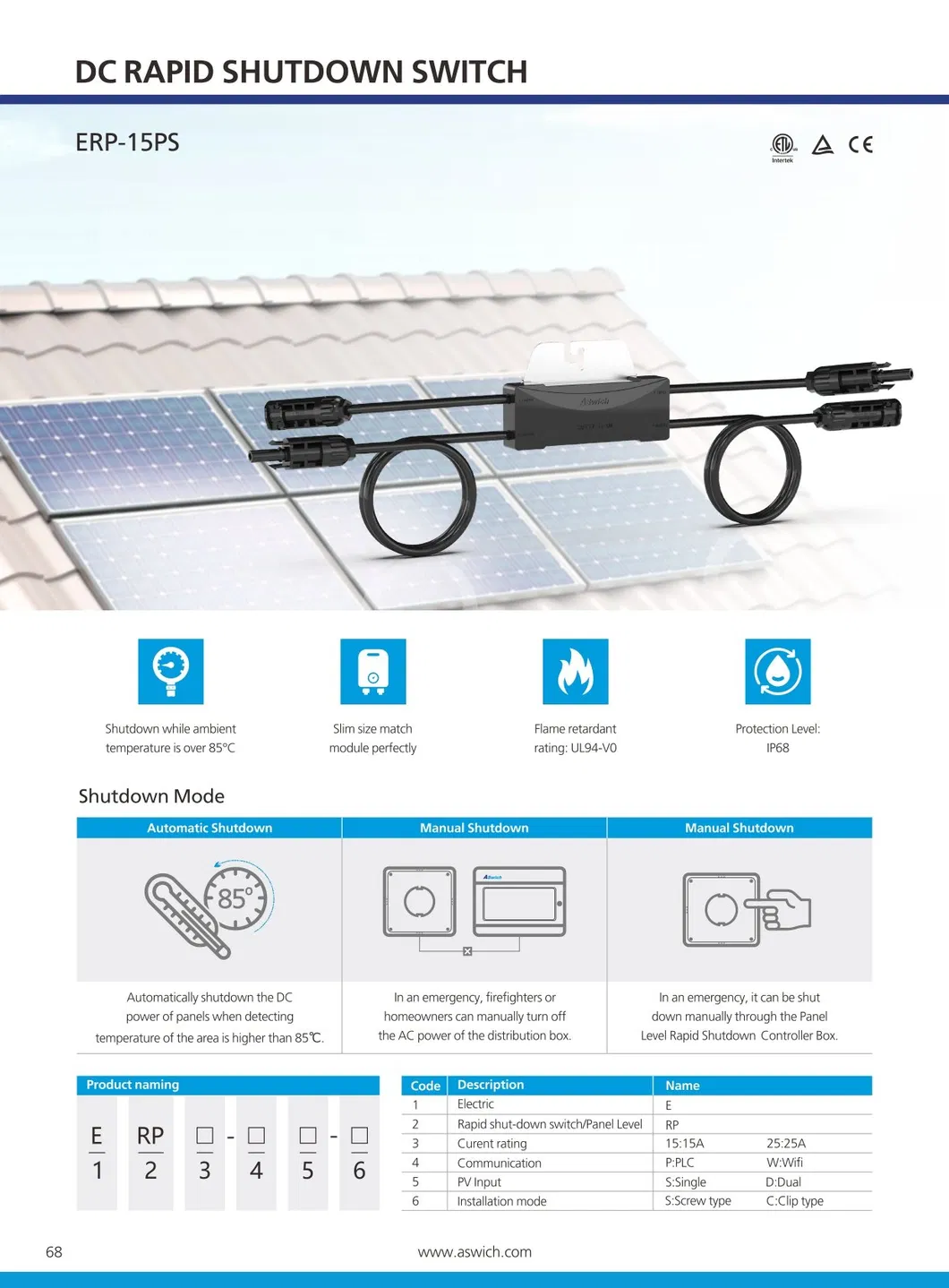

Parameter Chart 1

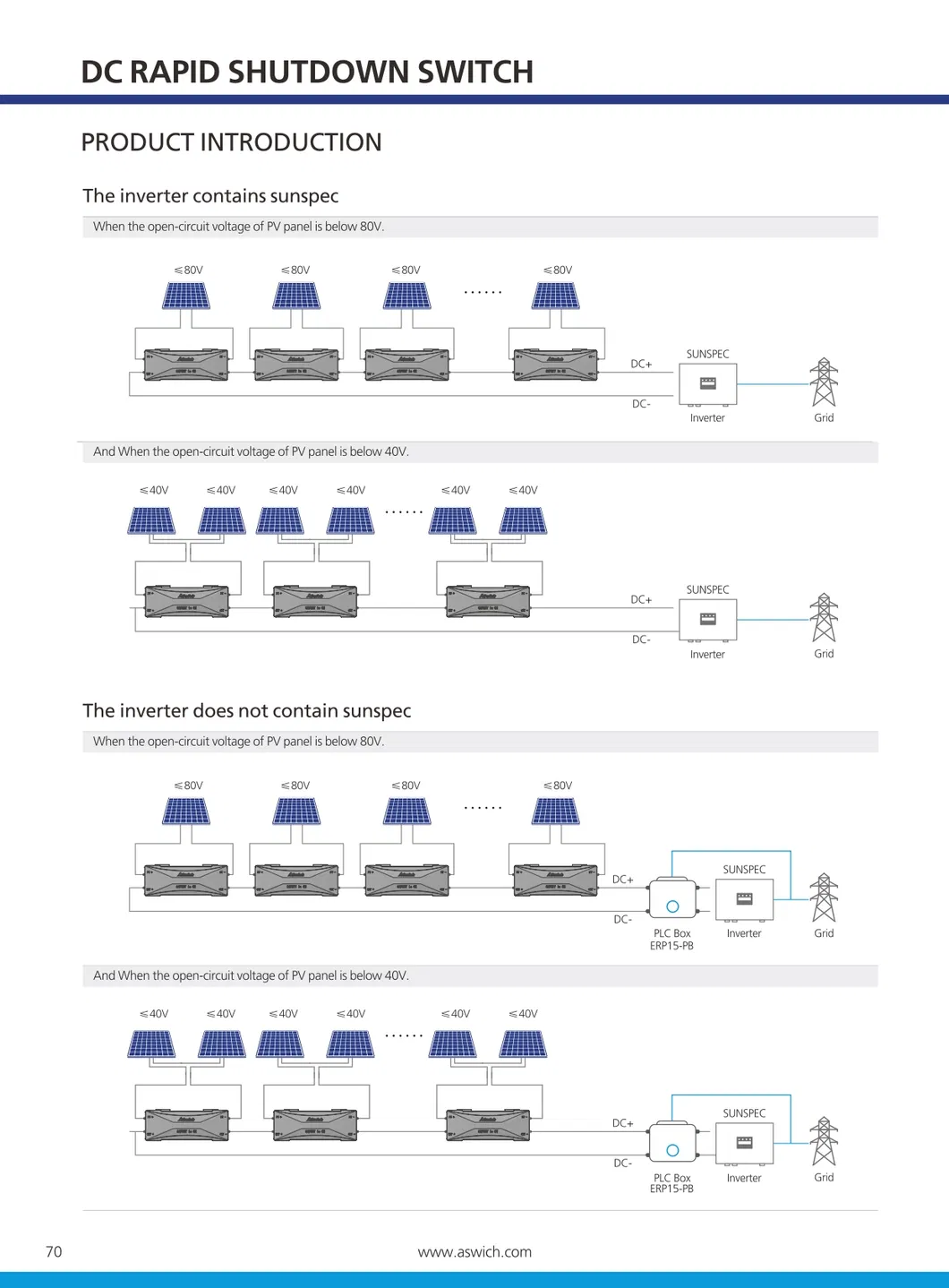

Parameter Chart 2
10 Reasons to Choose ERS Series Rapid Shut Down Switch

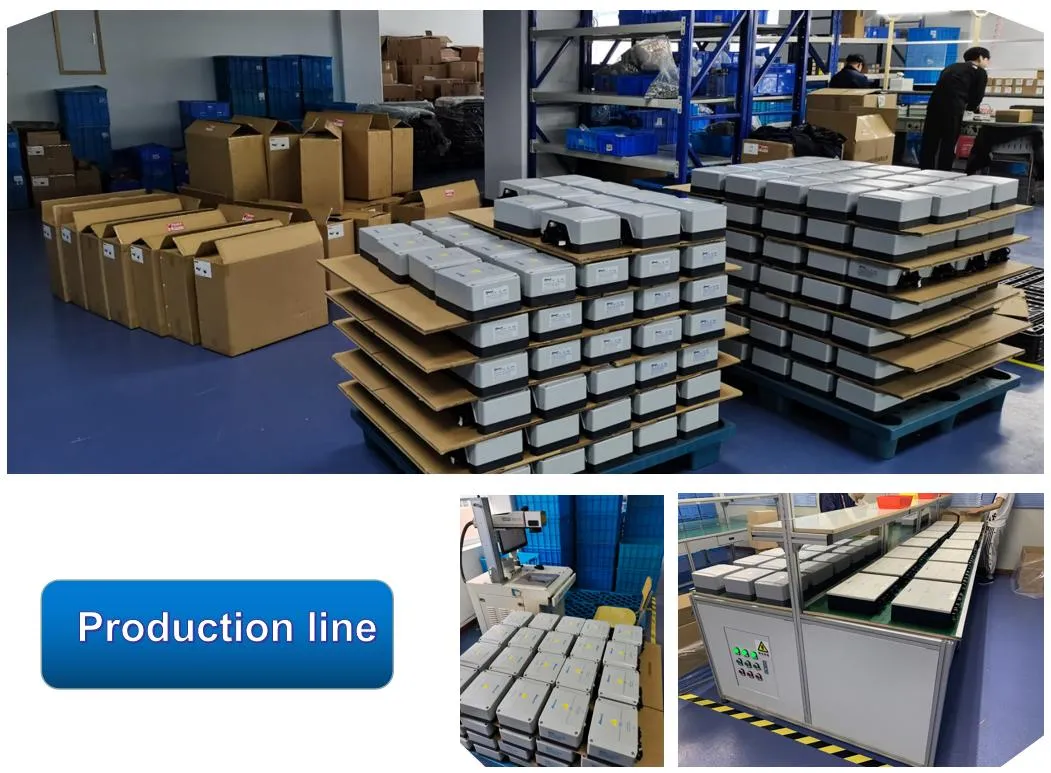

ERS Series Advantages
1. Wide voltage range (600V~1500V) and current (9A~55A).
2. Wider range of AC voltage: 100~270Vac.
3. Internal motor drive for reliable remote or AC switch disconnection.
4. Clear LED indicators for status identification.
5. IP66 level protection for outdoor installations.
6. Breathing valve to avoid internal condensation.
7. Low noise operation.
8. Built-in temp sensor; auto-shutdown at 70°C.
9. Multiple connector options (MC4, Cable glands).
10. Modular design for fast after-sale service.
Diagram 1
Diagram 2
Diagram 3
Frequently Asked Questions
Q: When can I receive a quotation after sending an enquiry?
A: All enquiries will be replied to within 24 hours.
Q: What is the difference between your DC Isolator and cheaper alternatives?
A: Our DC Isolators are IP66 rated and manufactured to high-quality customized standards. For solar systems, quality should be prioritized over price to ensure long-term safety.
Q: Can I get a sample before placing a full order?
A: Of course! We believe sample orders are the best way to build trust and verify the quality of our components.
Q: What is the typical delivery timeframe for urgent orders?
A: Sample orders typically take 3-7 days. For regular production orders, we promise delivery within 15 days.
Q: How do I choose the correct model of Rapid Shutdown Switch?
A: It depends on your panel's open-circuit voltage and total quantity. For example, with 39V panels and a 1000V rated switch, one route can handle about 22 panels (1000/39/1.15). We offer 2-pole, 4-pole, and 8-pole versions to match your string configuration.
Q: What is the warranty period for the products?
A: We offer a 2-5 year warranty depending on the specific product model and application requirements.
