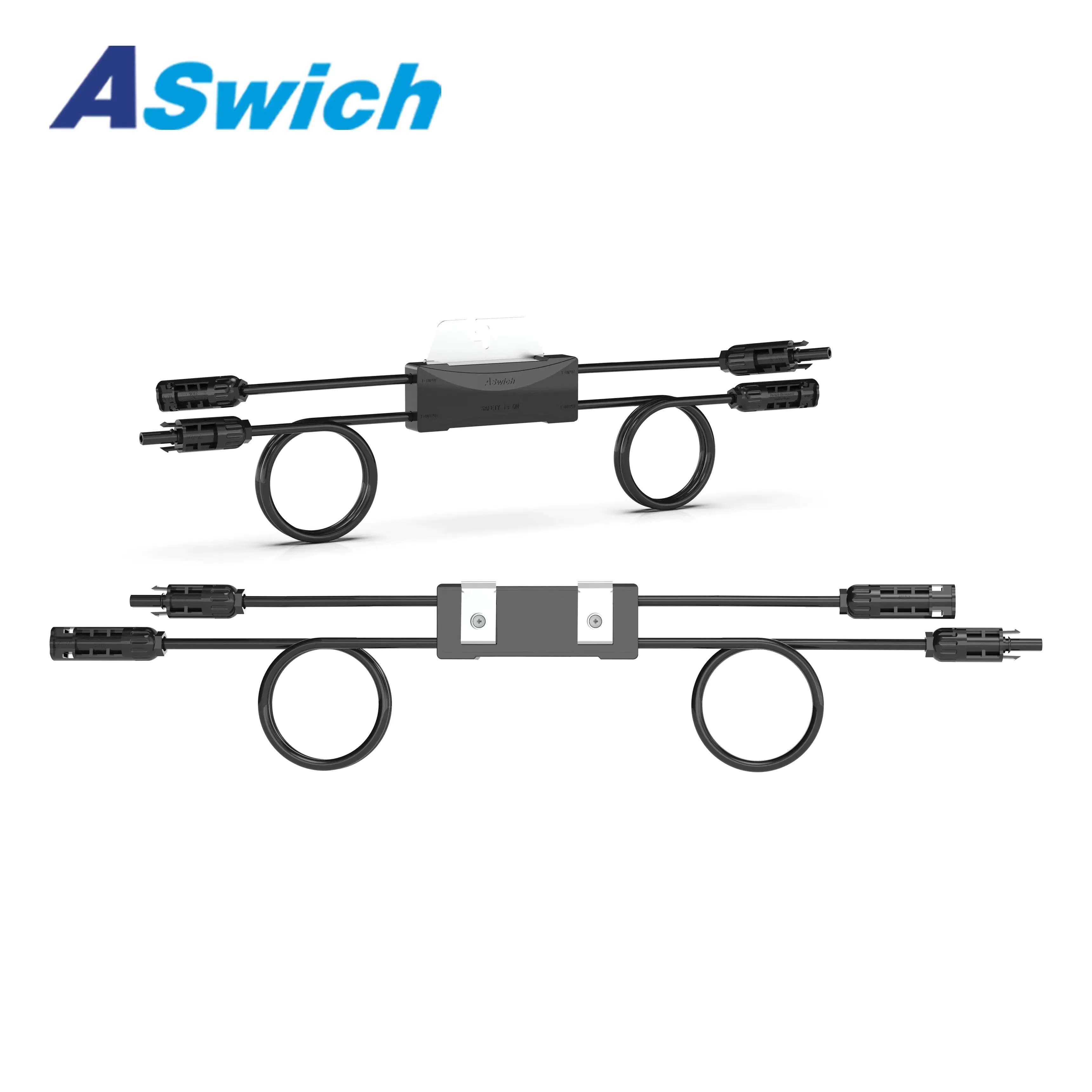

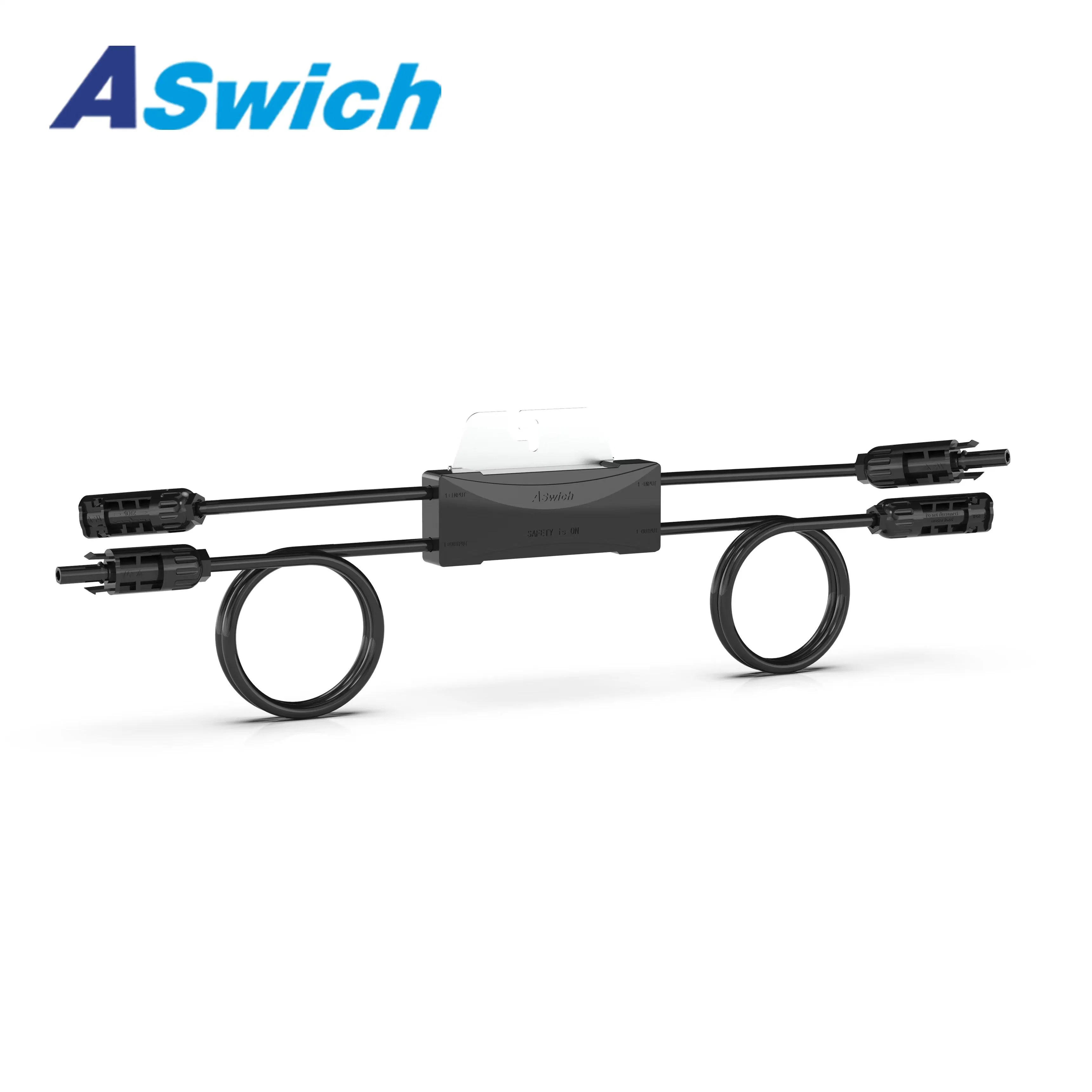

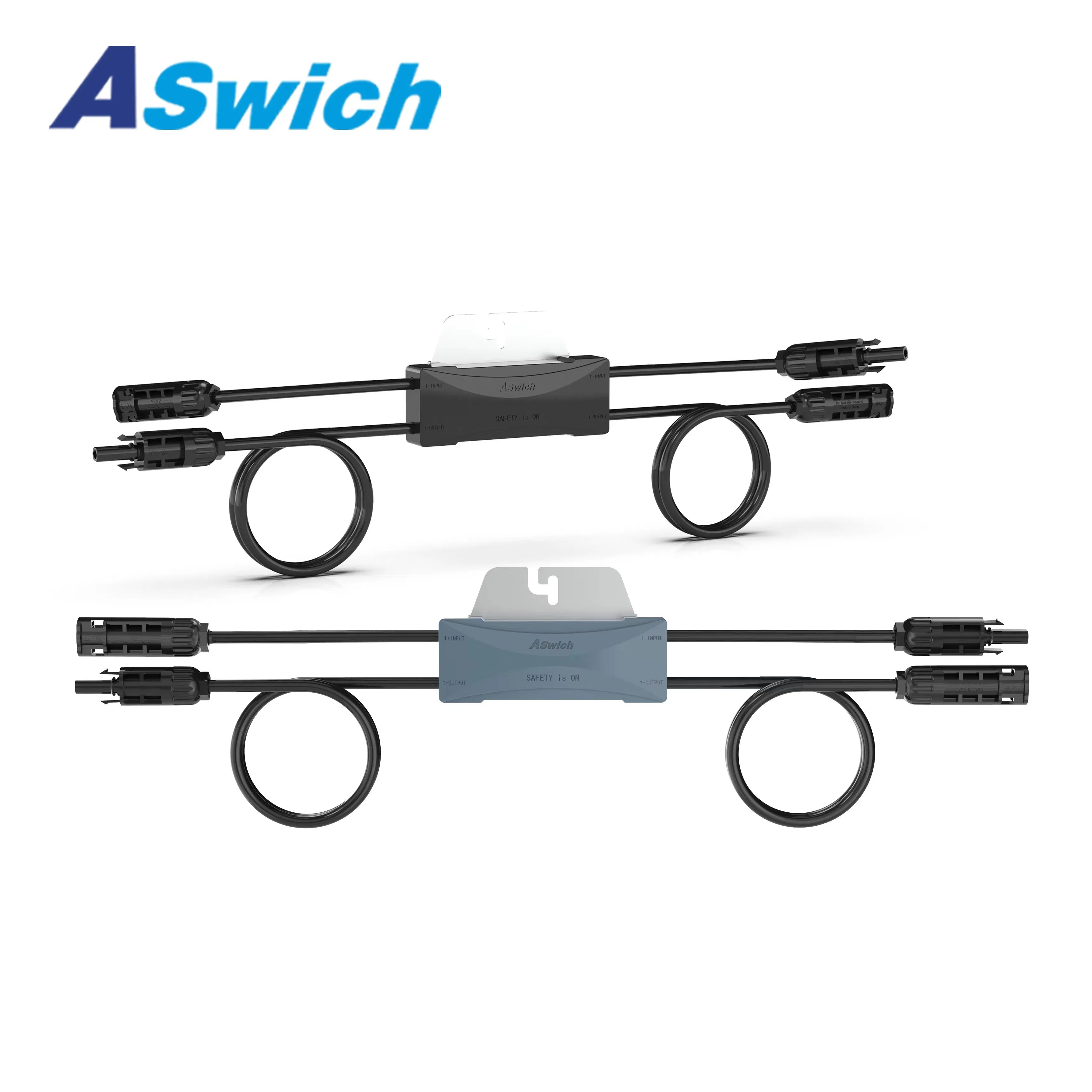

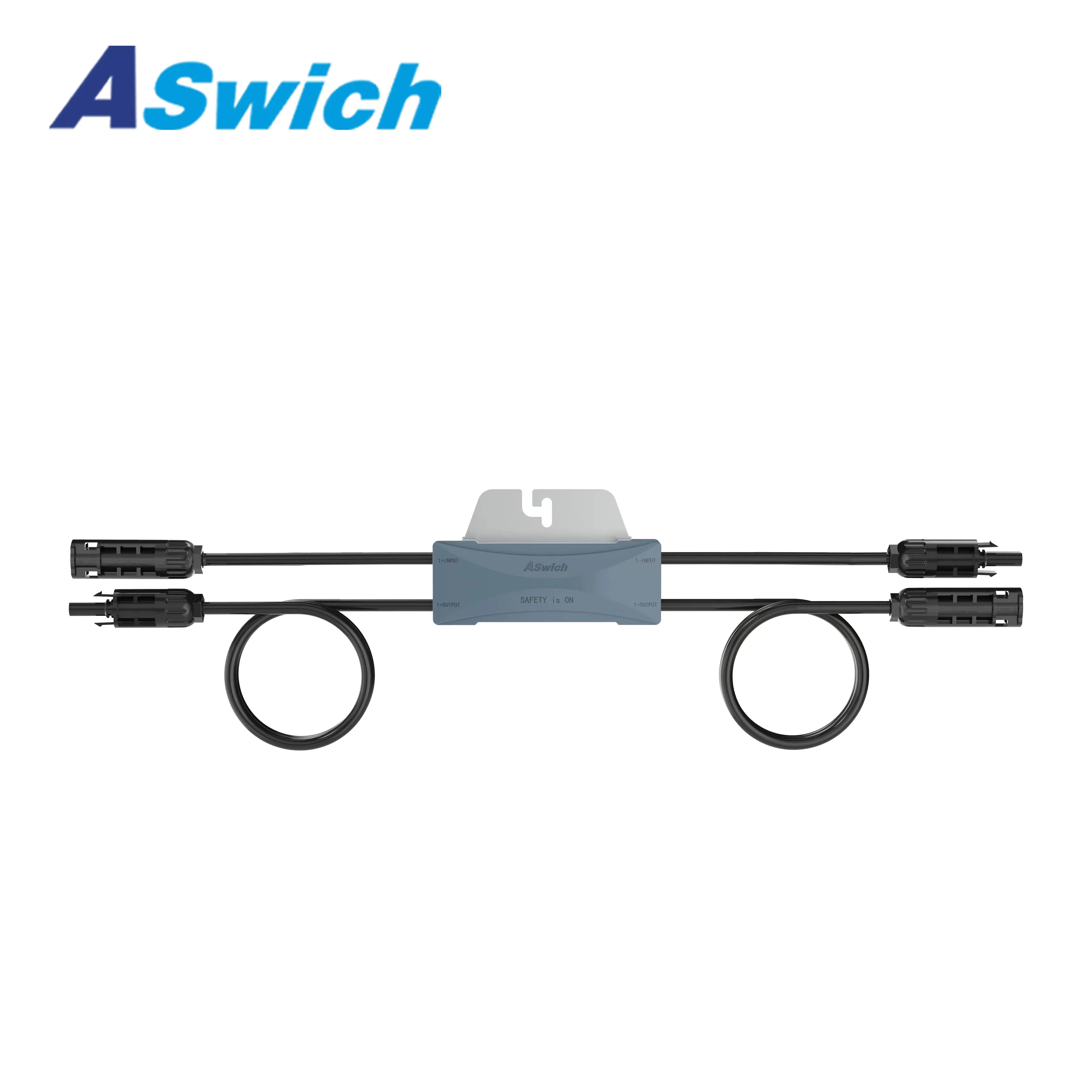

Panel Module Level One Fits One/Two Solar PV Rapid Shutdown Device Switch for Firefighter Safety

Basic Info.

Model NO.

ERP

Wires

PNP (Three-Wires)

Standard

Application

PV Solar System

Size

86 Type

Certification

ISO, GS, RoHS, CE

Voltage

80V/80V

Rated Current

15A/25A

System Voltage

600V/1000V/1500V

Connector

Mc4

Protection Temp

85° C

Warranty

10 years

IP Grade

IP68

Mounting Type

Screw/Clip

Product Description

Rooftop type residential photovoltaic systems have been widely used globally. However, due to loose contacts of photovoltaic module joints, poor contact, wire dampness, insulation rupture, and other reasons, it is easy to cause DC arc drawing, resulting in fires. In addition, when a fire occurs, the DC side continues to generate electricity as long as there is light. High voltage persists, making fire fighting dangerous as firefighters cannot safely access the scene and must control the fire from a distance.

The ERP Series Panel Level Firefighter Safety Switches provide a reliable rapid shutdown solution according to NEC 2017/2020 690.12 regulations for rooftop PV systems fire safety.

Technical Highlights

Meets NEC 2017/2020 690.12 regulations

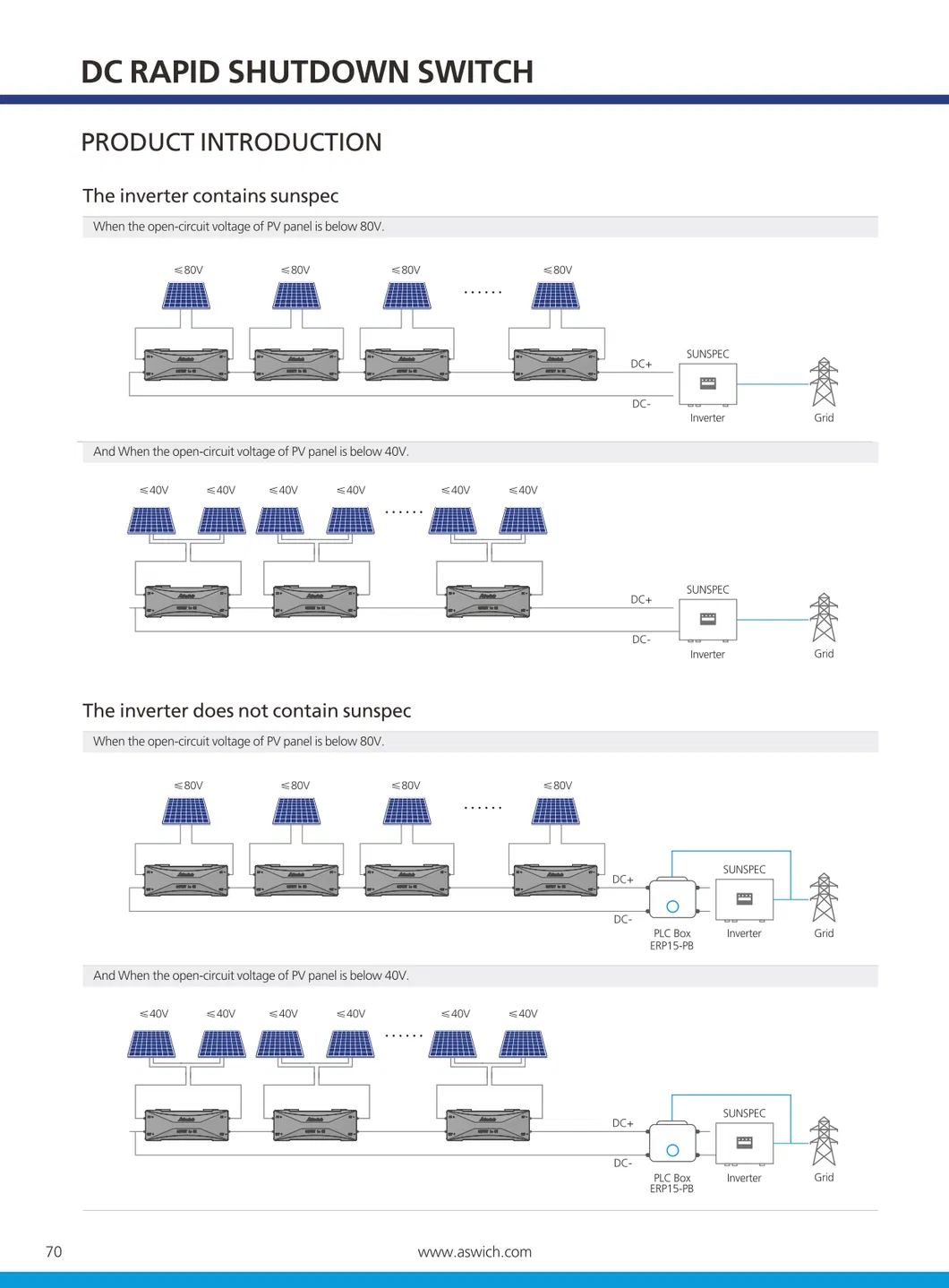

Complies with SUNSPEC protocol
Matches LVRT feature of the inverter
PLC communication control
Single rapid shutdown connects to 1 PV module
Fire retardant V-0 / UV resistant materials used
High-quality material: temperature, corrosion, and impact resistance

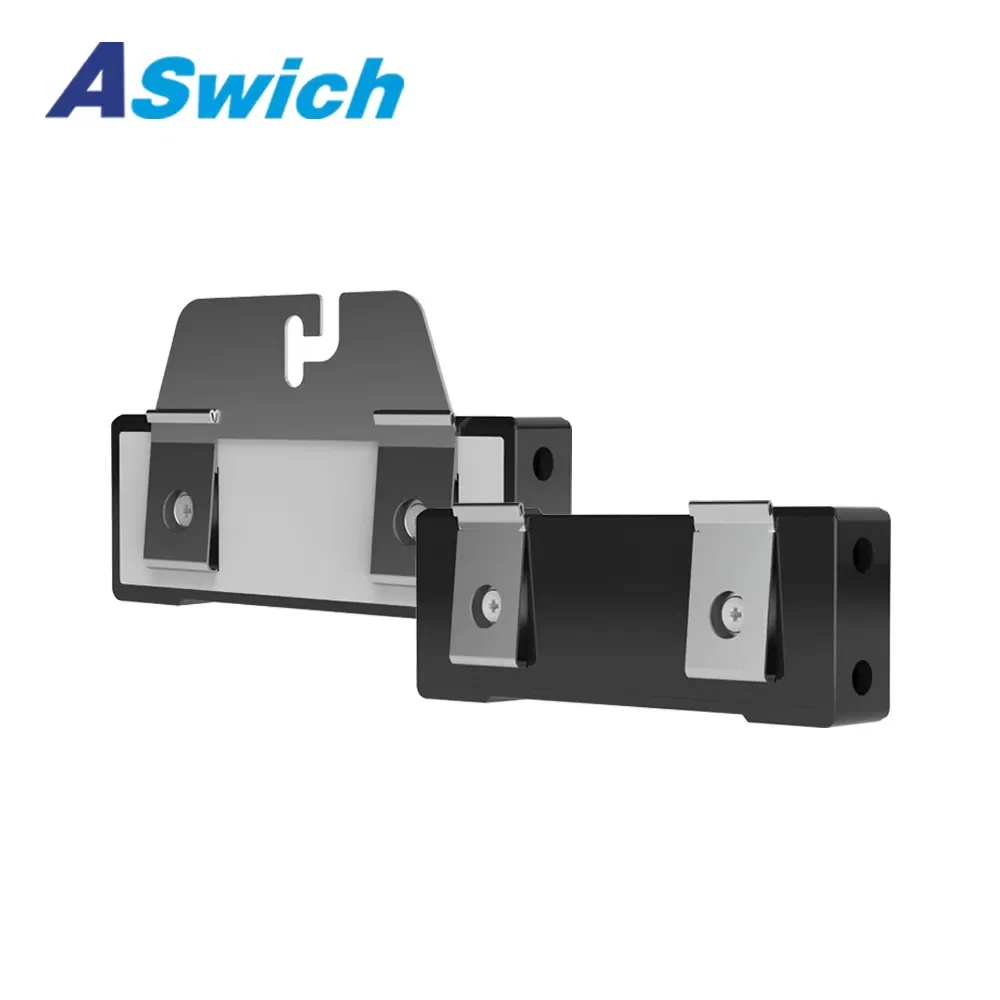

Clasp design for simple and convenient installation, saving labor costs
Fully certified: CE, UL

Detailed Photos

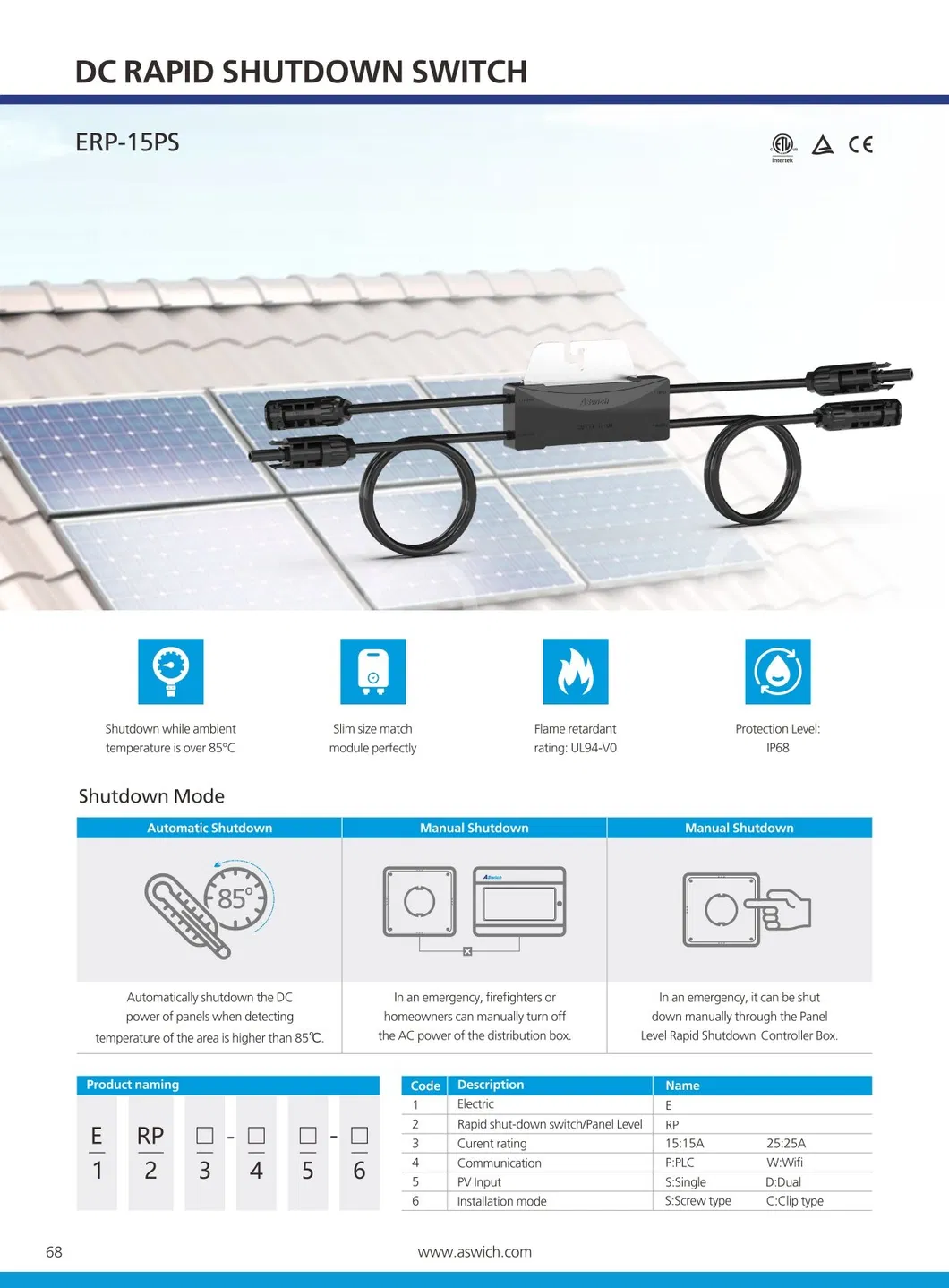

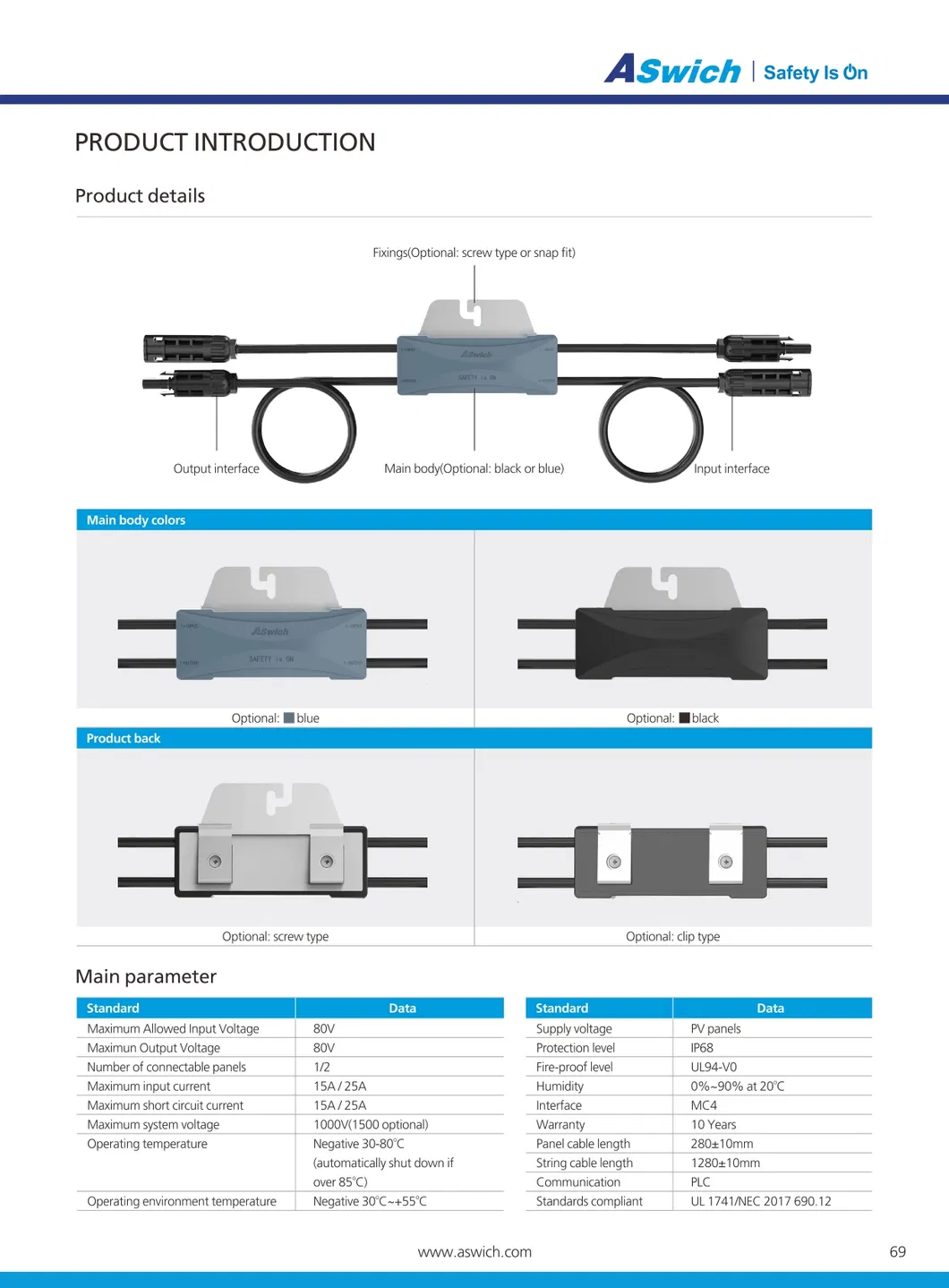

Product Parameters

Parameter Item	Specifications
Type	Standard Solar Panel Level Safety Switch
Material	Polycrystalline Silicon / High-Grade Polymers
Warranty Period	60 months
Compliance	NEC 2017/2020 690.12, SUNSPEC Protocol
Communication	PLC Communication Control
Installation	Clasp design, labor-saving

10 Reasons to Choose Our Rapid Shut Down Switch

1

Applicable to wide voltage/current range (600V~1500V, 9A~55A).

2

Wide range of AC voltage: 100~270Vac.

3

Internal motor drive for disconnection; AC switch or remote control shutdown.

4

LED indicator for easy status identification (ON/OFF).

5

IP66 level, fully suitable for outdoor installation.

6

Breathing valve to avoid internal condensation.

7

Low noise operation.

8

Built-in temperature sensor; automatic shutdown above 70°C.

9

Options for Knock outs, Cable glands, or MC4 connectors.

10

Modular design for fast and convenient after-sale service.

Frequently Asked Questions

How soon can I receive a quotation?

All enquiries will be replied to within 24 hours with detailed information.

What makes your DC Isolator different from cheaper alternatives?

Our products feature an IP66 degree of protection and are high-quality customized. For solar systems, comparing quality before price is the most reliable approach.

Can I request a sample before placing a full order?

Yes, we believe sample orders are the best way to build trust and verify product quality.

What is the expected delivery time?

Sample orders take 3~7 days, and regular production orders are typically fulfilled within 15 days.

What is the warranty period for the DC Isolator?

We offer a 2-5 year warranty depending on the specific product model.

How do I choose the correct Rapid Shutdown Switch model?

Calculation Example: If each PV Panel is 39V and the switch is rated at 1000V, each MPPT route can connect: 1000 / 39 / 1.15 = 22 pcs. For a 162-panel project, you would need roughly 8 sets of 2-pole switches (ERS-2) or 4 sets of 4-pole switches (ERS-4).
