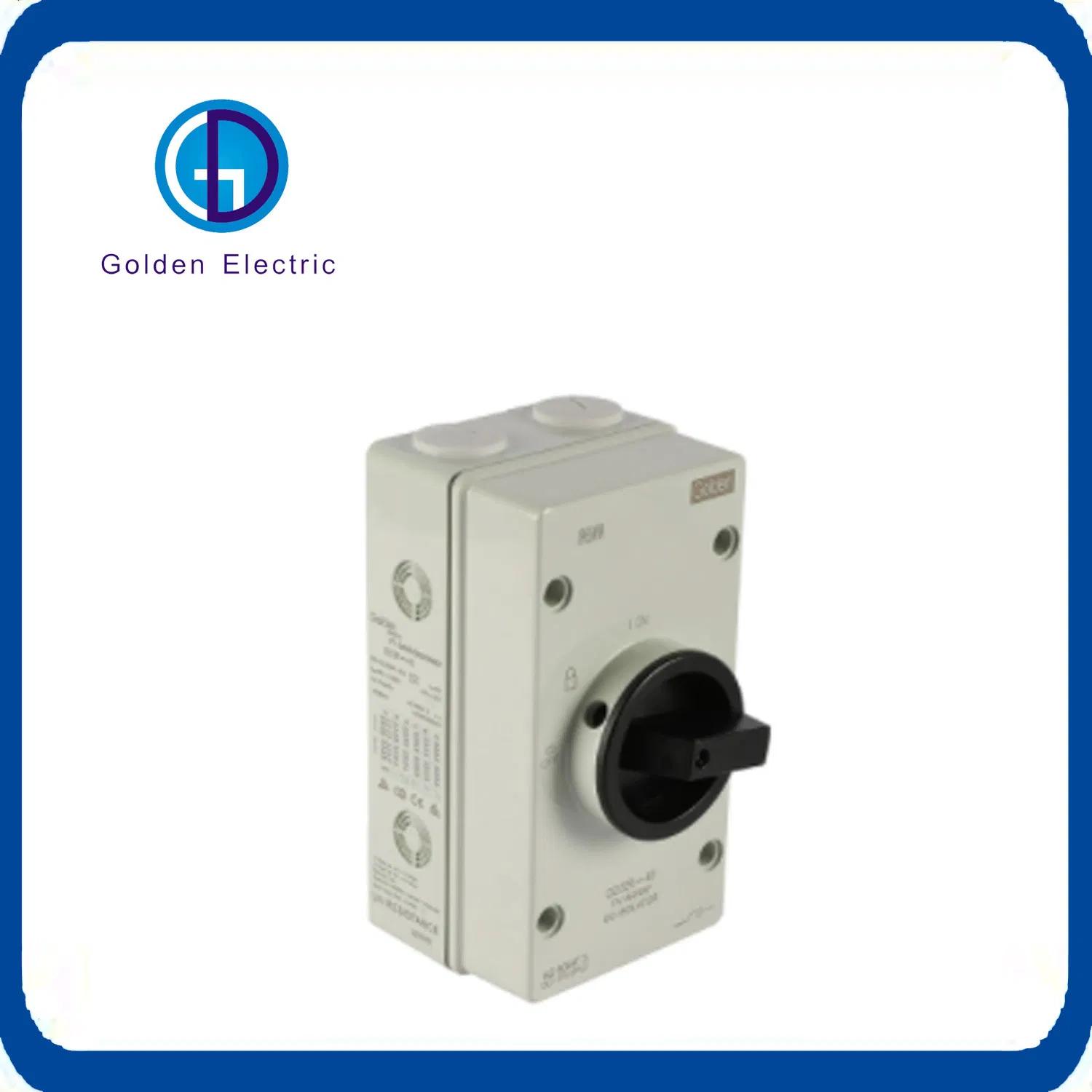

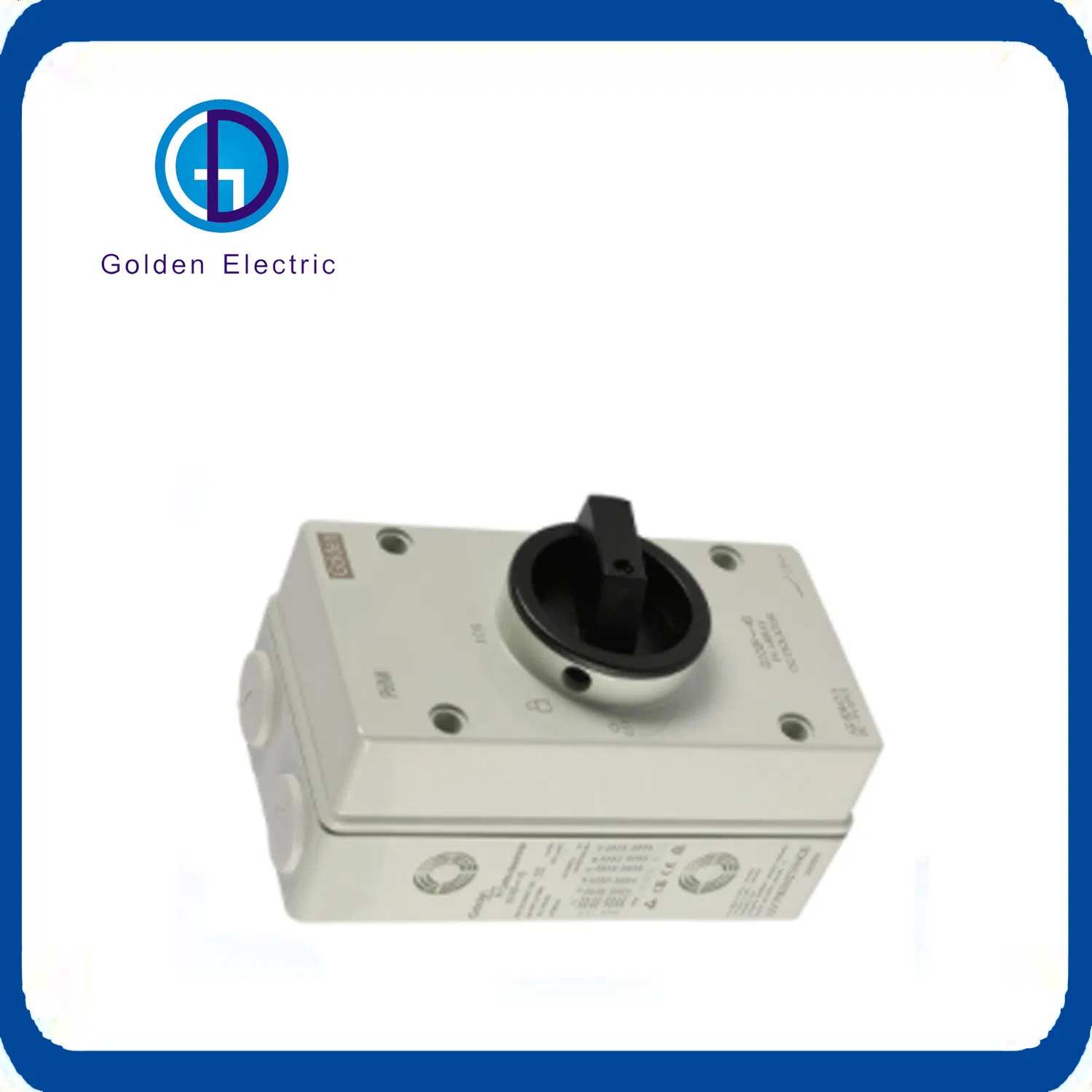

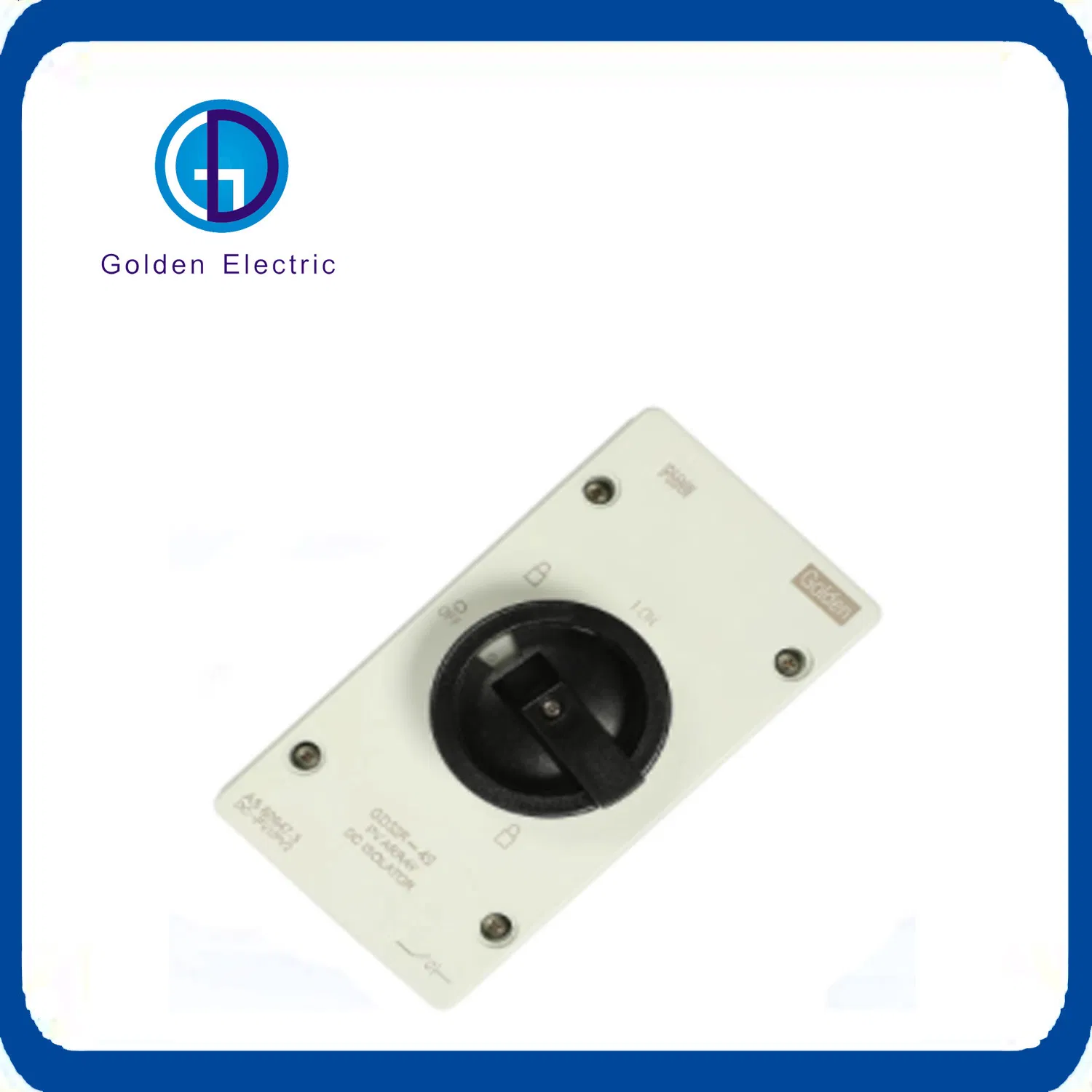

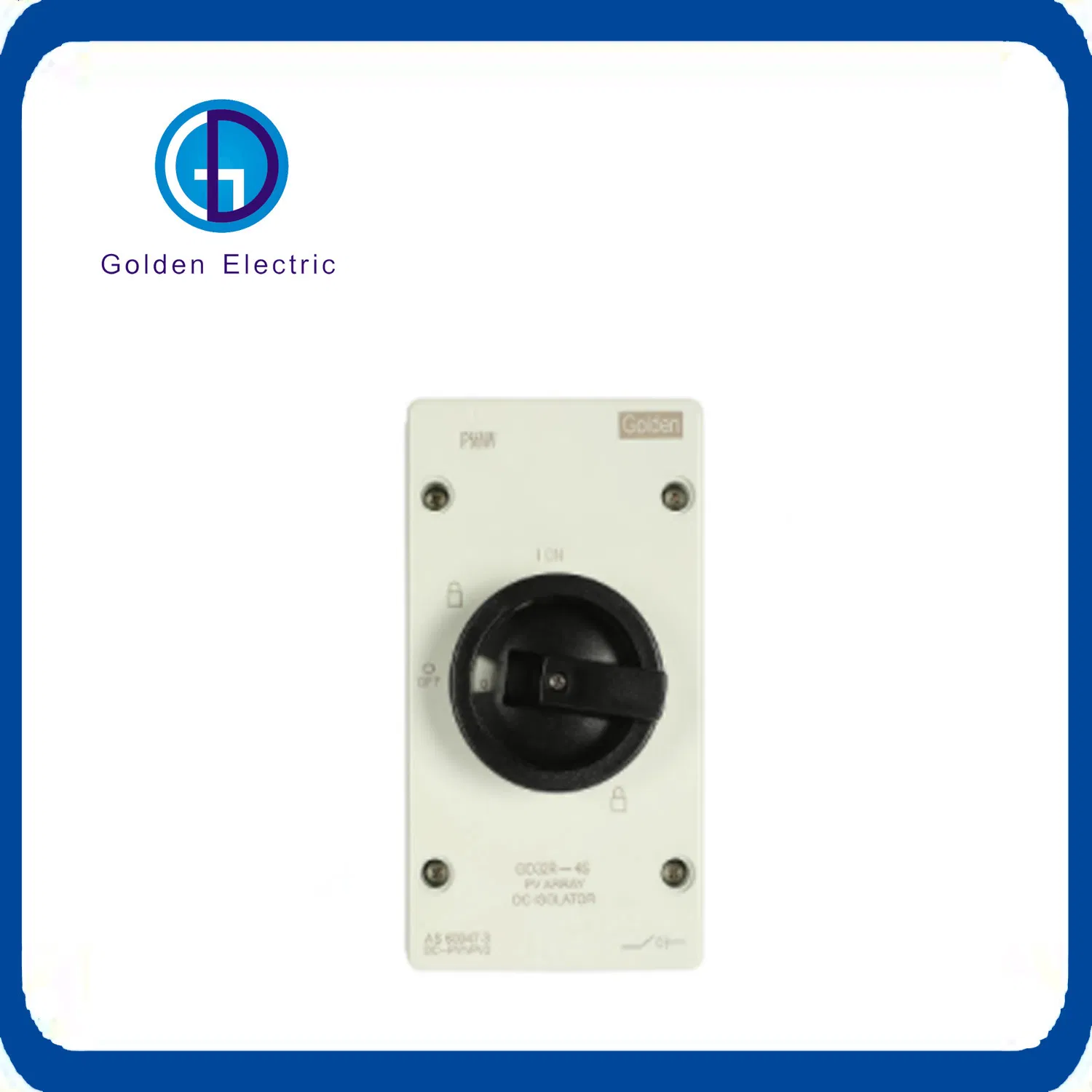

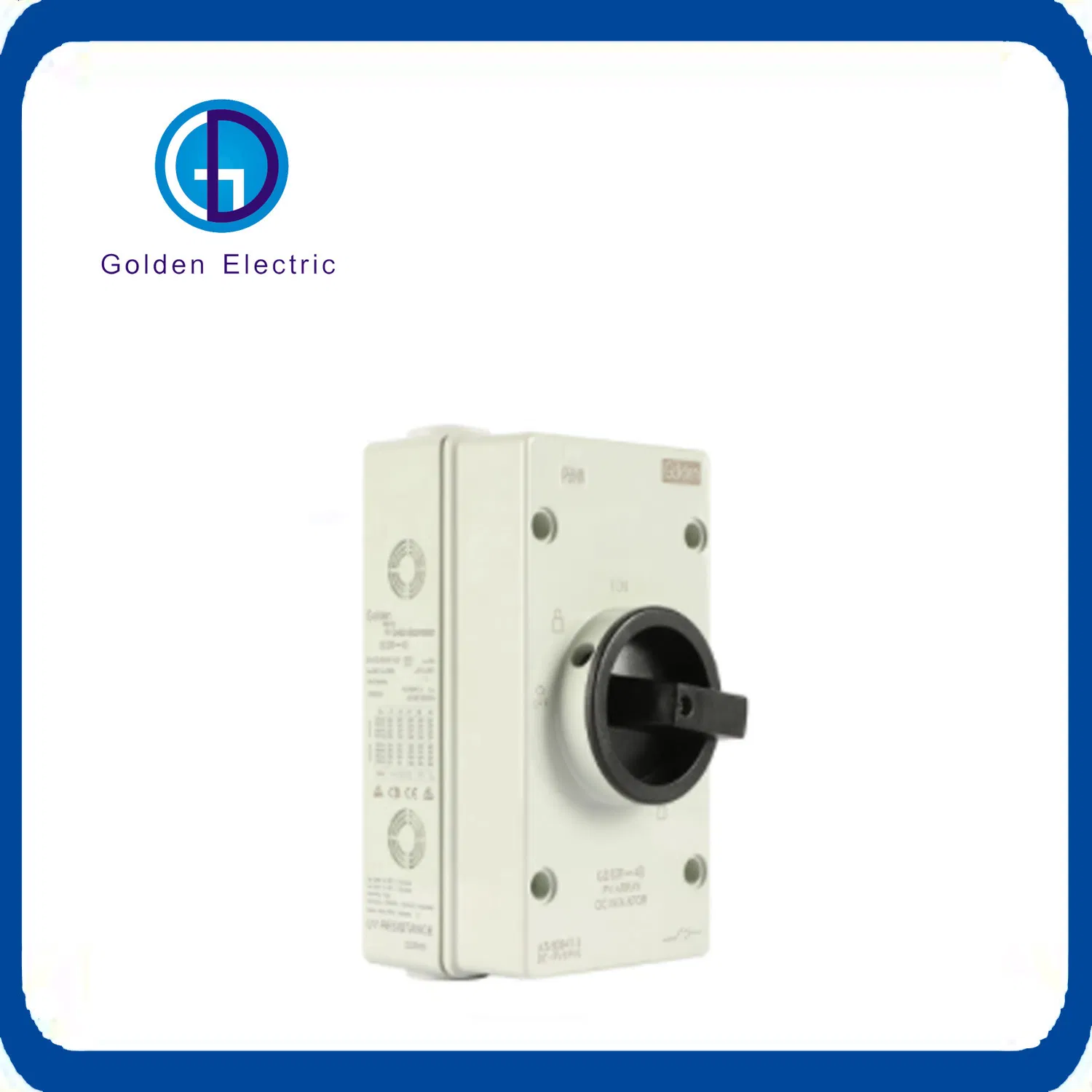

Outdoor Safety PV Switch Waterproof Solar Power DC Isolator Switch Mc4 Connector Compatible

1 / 5

Outdoor Safety PV Switch Waterproof Solar Power DC Isolator Switch Mc4 Connector Compatible

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Installation	Outdoor High-voltage
Operation	Electric
Grounding Mode	Not Grounding
Number of Poles	Unipolar
Protection Grade	IP66
Working Temp	-5 to +60 Degree Celsius
Rated Insulation	1500V
Certification	ISO, RoHS, CE, TUV

Waterproof IP66 DC Isolating Switch

High-Performance Solar PV Safety Solution

● Modular design with DC insulation voltage up to 1500V.

● IP66 waterproof enclosure with three lockable switch positions.

● High-speed switching mechanism with energy storage spring (<5ms).

● Contact self-cleaning design reduces resistance and extends lifespan.

● Magnetic arc extinguishing technology for effective safety control.

● Wide operating temperature range: -40ºC to 70ºC under full load.

Non-polar design for flexible wiring.
2-8 poles available for various applications.
Supports MC4 connectors or waterproof cable glands.
Passed international standards: IEC/EN60947-3, UL508I.

Technical Parameters

Parameter Item	16A Specification	25A Specification	32A Specification
Rated Insulation Voltage (Ui)	1500V
Rated Impulse Voltage (Uimp)	8000V
Short-time Withstand Current (lcw)	800A	900A	1000A
Short-circuit Making Capacity (lcm)	800A	900A	1000A
Cable Cross-section (Flexible)	4-10mm²
Mechanical Life	10,000 Cycles
Pollution Degree	2
IP Rating	IP66

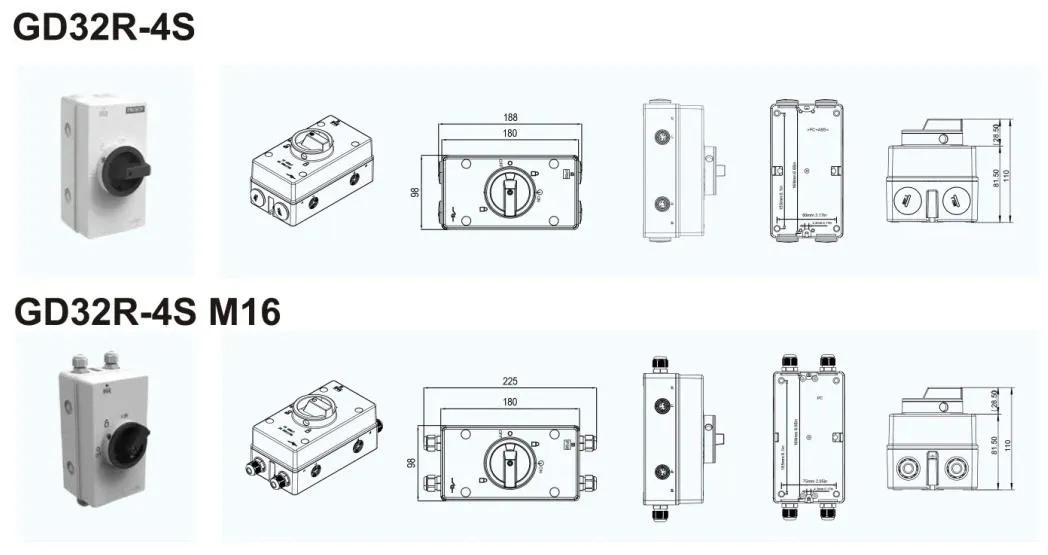

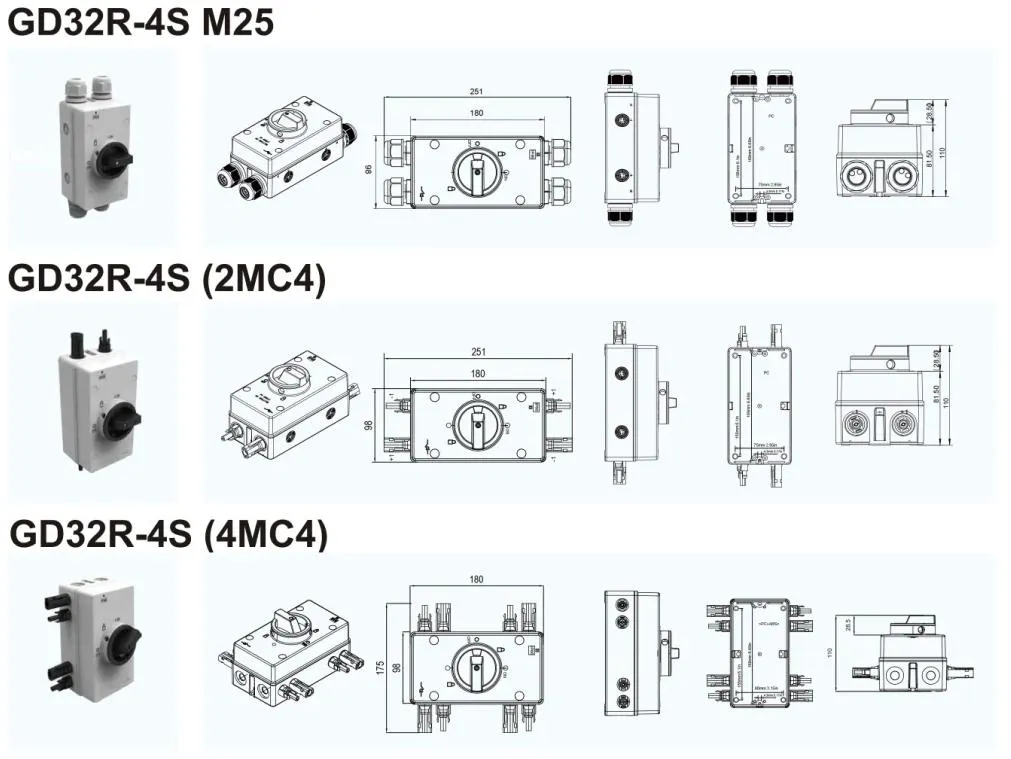

Dimensions & Product Gallery

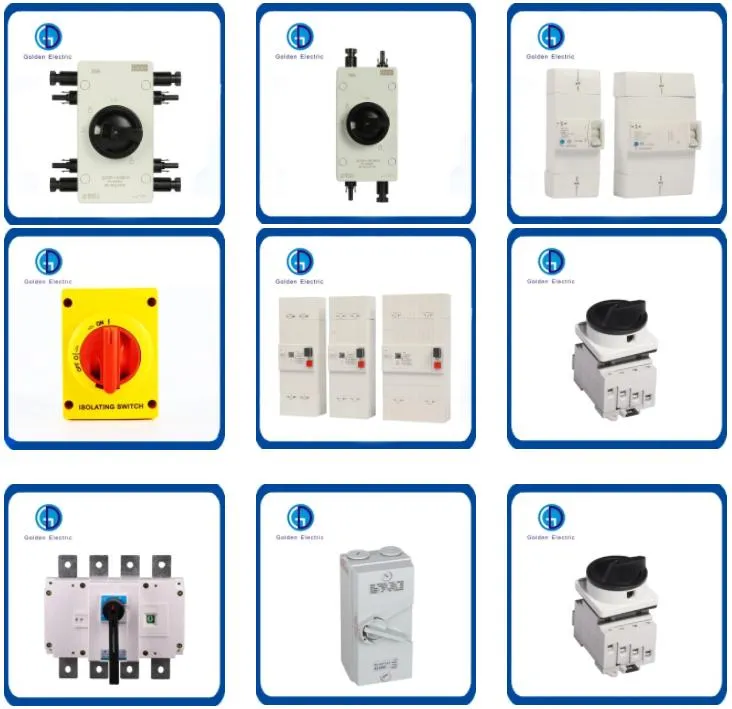

Other Type Options:

Packaging & Shipping

Standard Packaging: Header card, blister packing, or custom canister packing according to client needs.

Shipping Methods: Supported by Air, Sea, or Express. Fast delivery within 7-15 days after confirmation.

Core Advantages

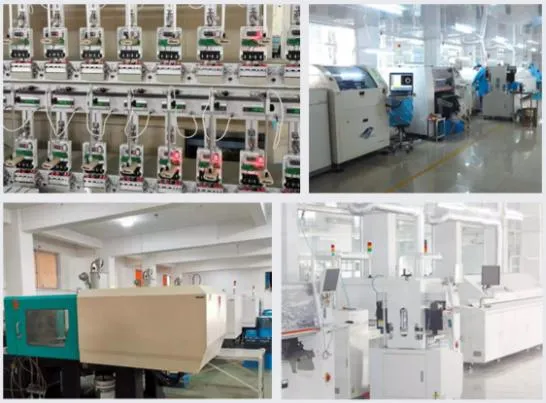

✔ 100% Quality inspection before shipment.
✔ Comprehensive 2-5 year warranty services.
✔ No strict MOQ for trial orders.
✔ Professional technical support and 12-hour response.
✔ Certified by TUV, CE, RoHS, and ISO9001.

Frequently Asked Questions

1. How soon can I get a quotation?

All inquiries are processed promptly and typically receive a detailed response within 8 hours.

2. Are free samples available for testing?

Yes, we provide free sample services to help you verify the product quality before placing a bulk order.

3. Can the products be customized with our logo?

Absolutely. We offer full OEM services including logo printing and customized packaging design.

4. What is the standard warranty period for the switches?

We offer a quality guarantee ranging from 2 to 5 years, depending on the specific product model and application.

5. What is the typical delivery time for orders?

Sample orders are usually shipped within 3-5 working days, while official bulk orders take 10-20 days.

6. Is the IP66 rating certified for outdoor use?

Yes, our DC isolating switches are fully certified IP66, making them ideal for harsh outdoor PV environments and weather conditions.
