Application:

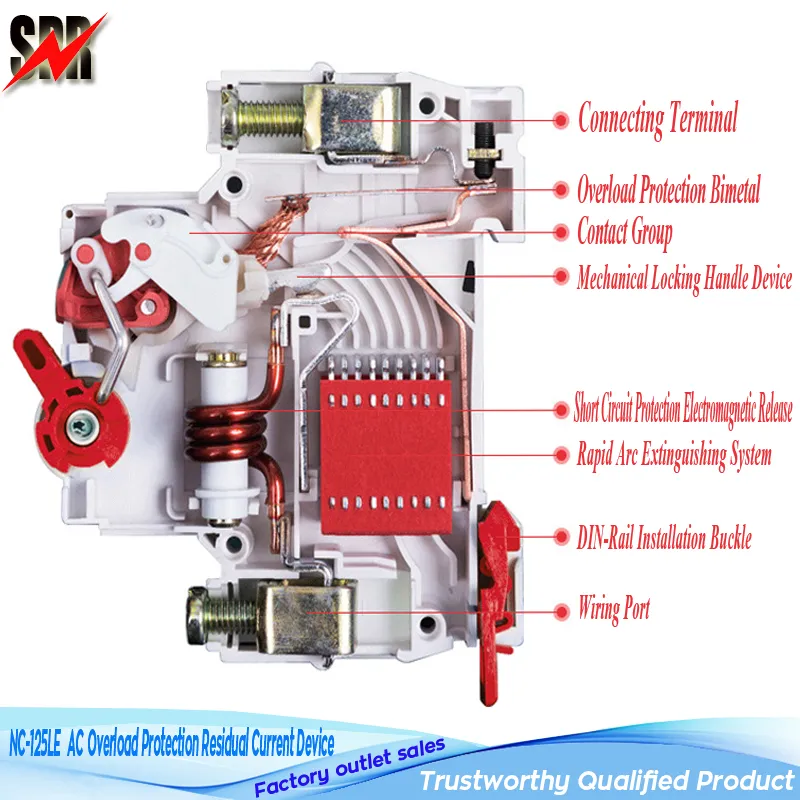

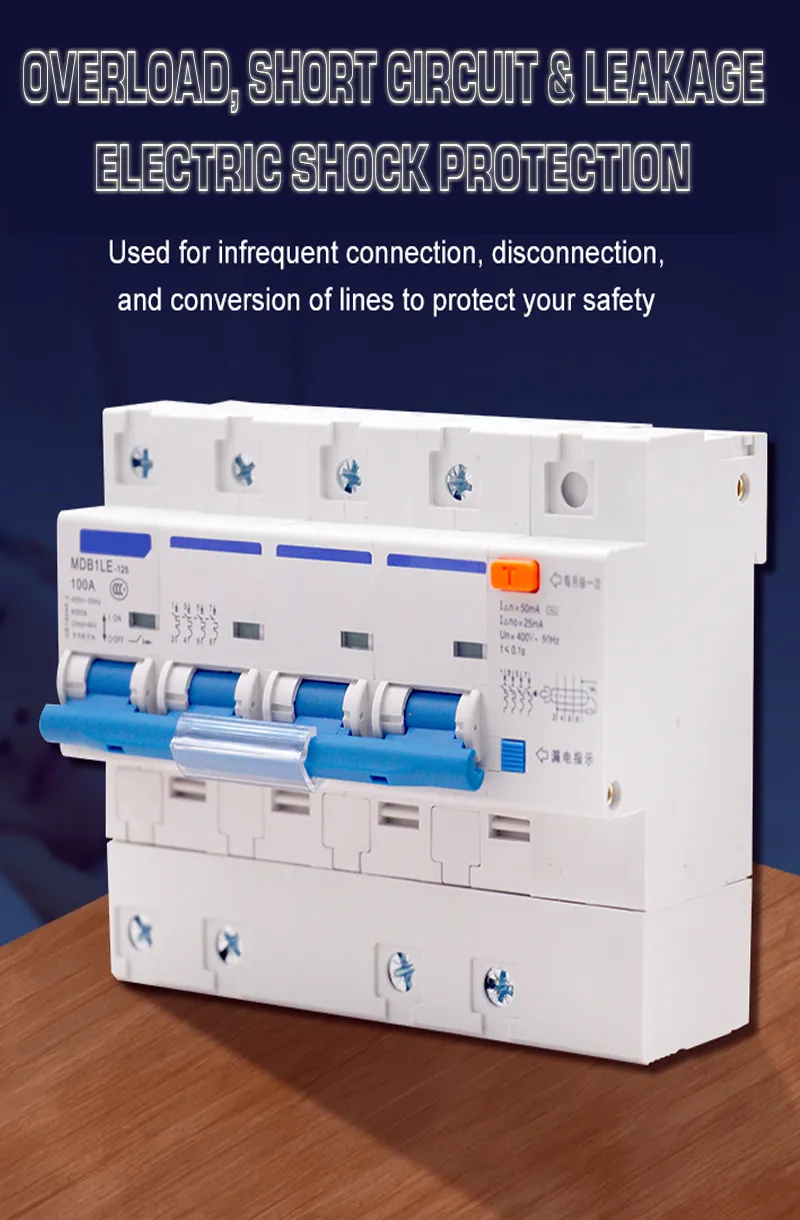

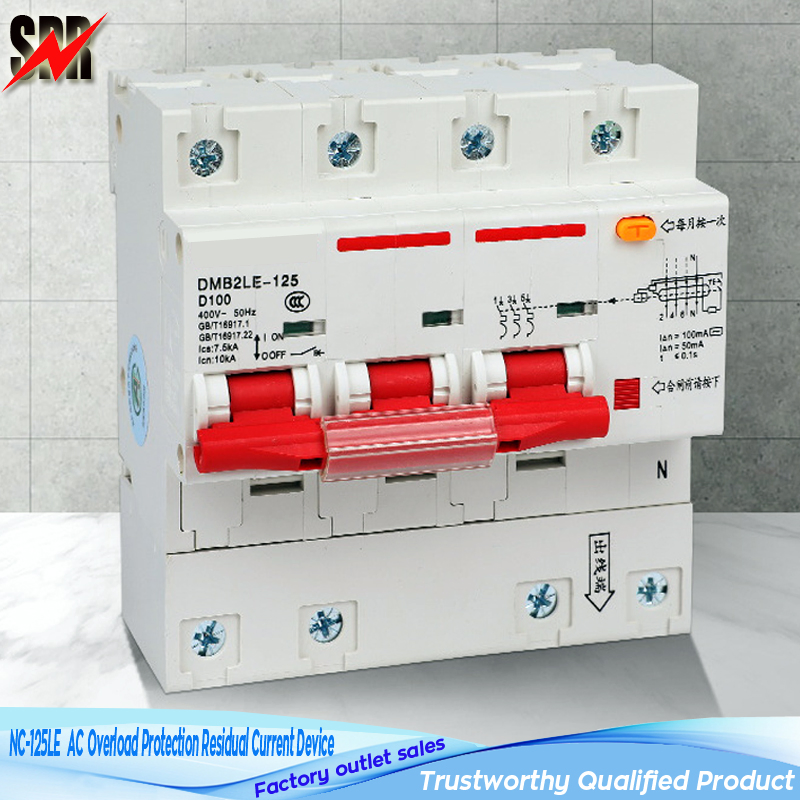

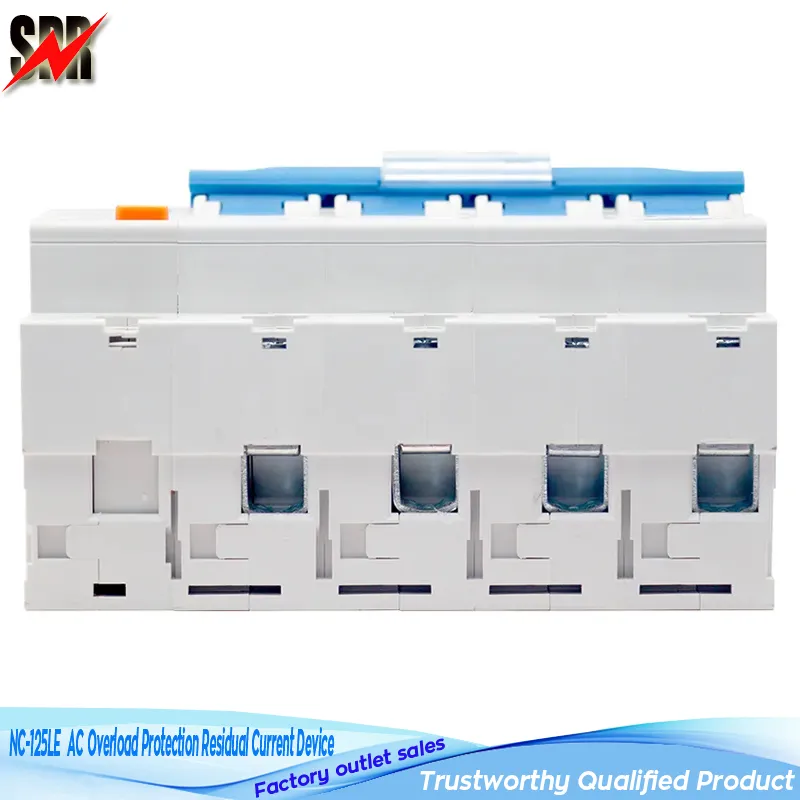

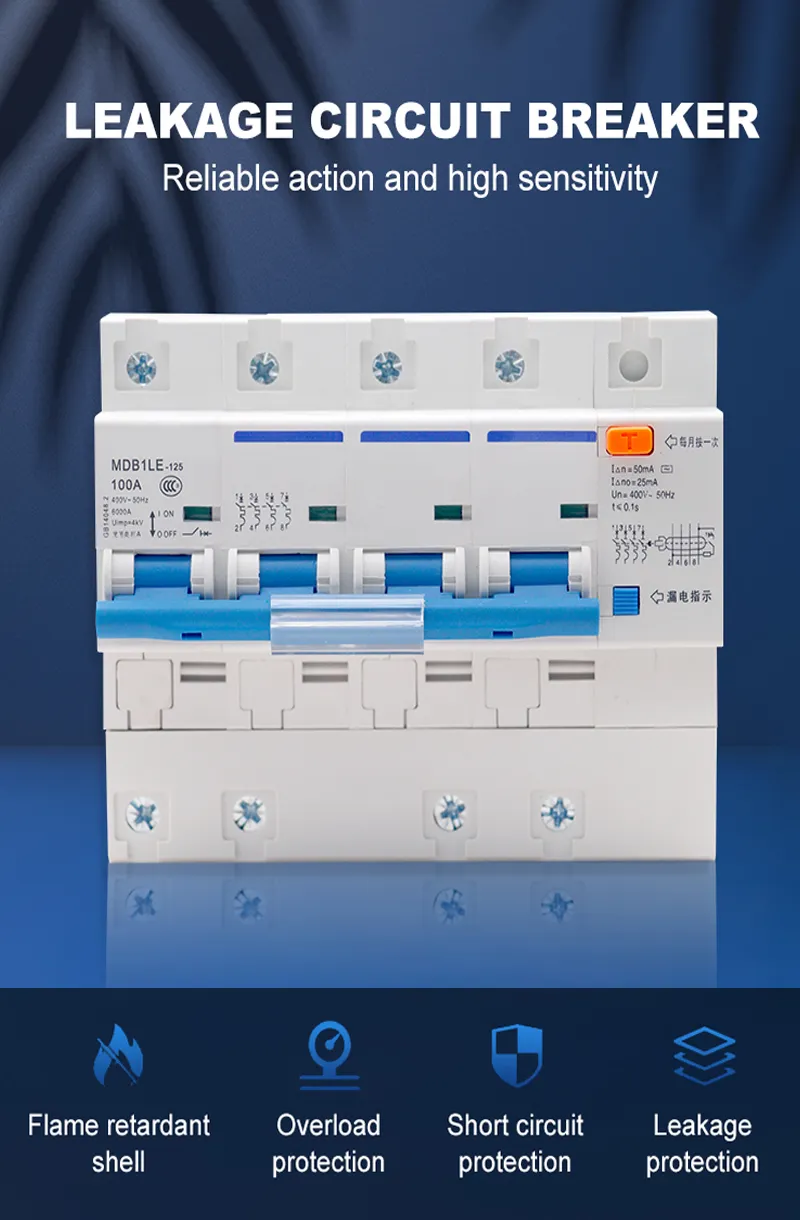

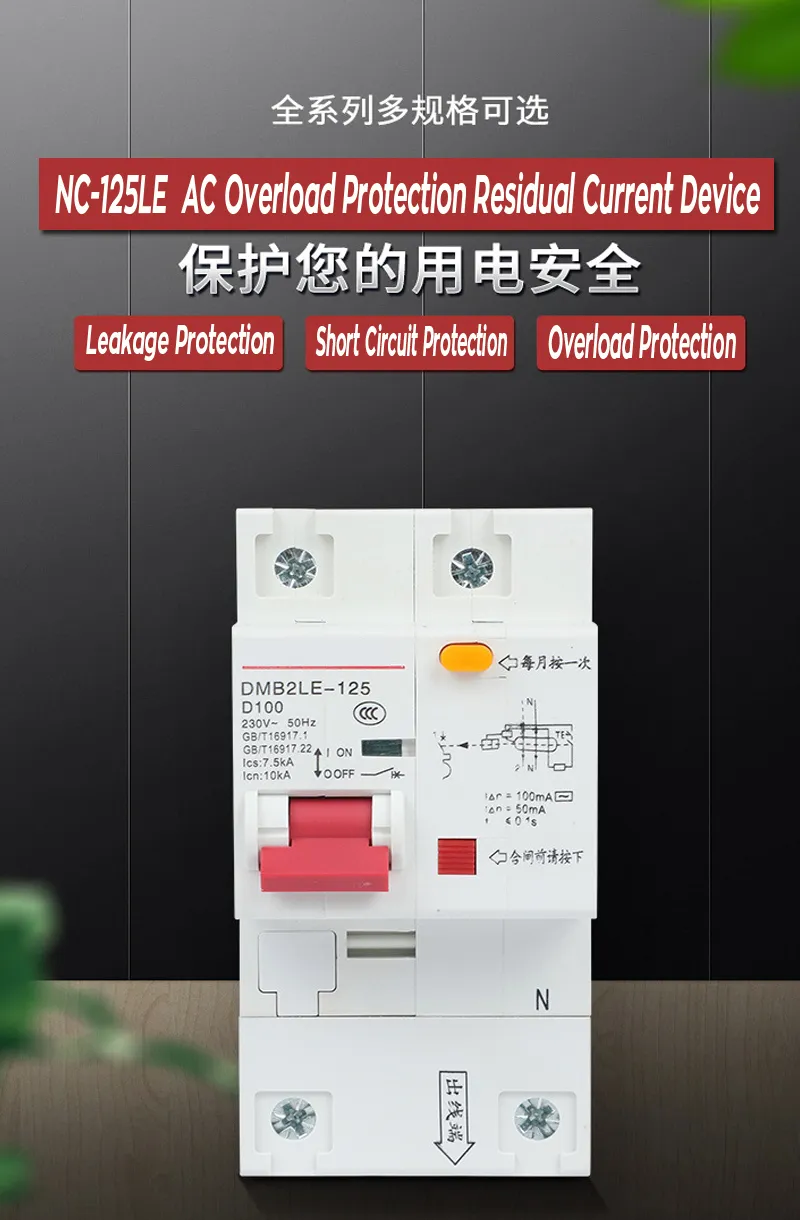

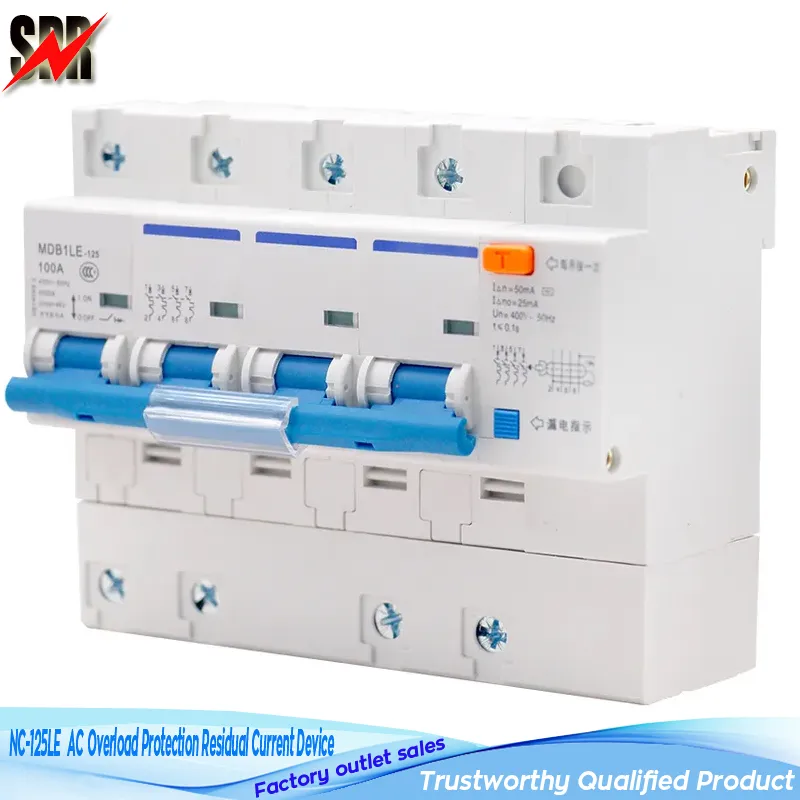

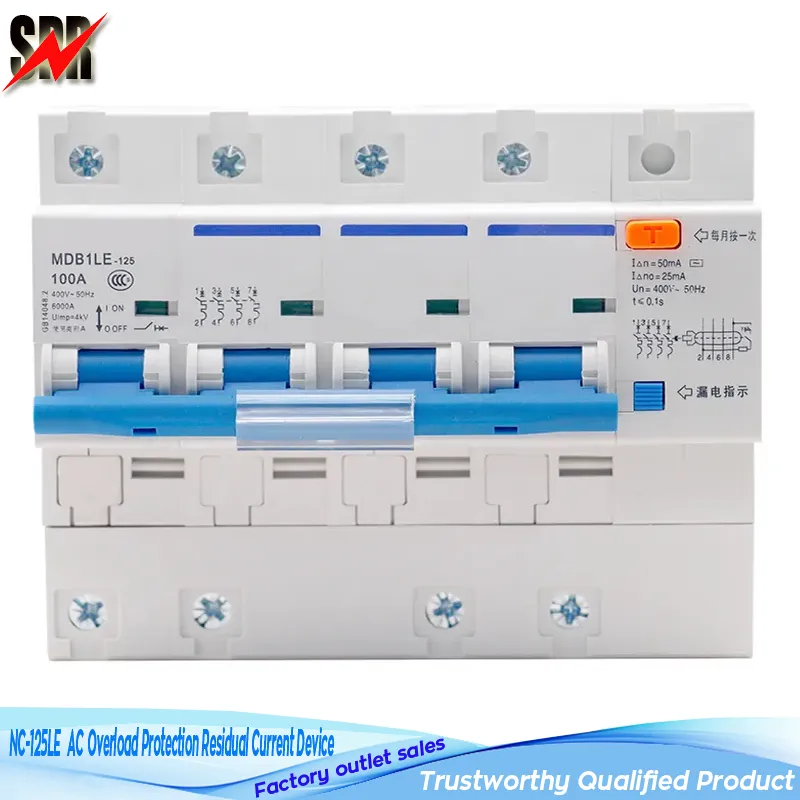

NC-125LE AC100A AC125A Overload Protection Residual Current Device (RCD/RCBO) is suitable for circuits of 50Hz, rated voltage AC230V/400V, and rated current up to 125A. It features earth leakage, overload, and short circuit protection functions. Additionally, it can be equipped with over-voltage protection. It is primarily utilized in building illumination and electrical distribution systems.
| Number of Poles | 1P+N, 2P, 3P, 3P+N, 4P |
| Rated Current (A) | 40A, 50A, 63A, 80A, 100A, 125A |
| Rated Residual Operating Current (I△n) | 30mA, 50mA, 100mA, 200mA, 300mA |
| Rated Residual Non-operation Current | ≤0.5I△n |
| Rated Voltage (V) | AC230V / AC400V |
| Residual Current Off-time | ≤0.1S |
| Short Circuit Capacity (Icu) | 3000A |
| Endurance | ≥4000 |
| Tripping Curve | C, D |
| Protection Degree | IP20 |
