F360 Series Residual Current Devices (F360, F362, F364)

1 / 5

F360 Series Residual Current Devices (F360, F362, F364)

Customization:	Available
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type

Send Inquiry

Product Description

Overview & Basic Info

Model NO.

F360, F362, F364

Speed

Normal Type Circuit Breaker

Medium

Air Arc-extinguishing

Installation

DIN Rail

Structure

Earth Leakage Circuit Breaker

Type

Circuit Breaker

Function

RCCB

Certification

CE, ISO9001

Origin

China

HS Code

8536

Capacity

100,000 PCS/Year

Package

Export Standard Carton

Product Description

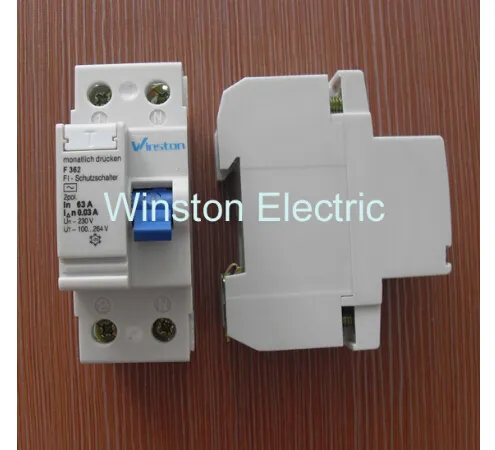

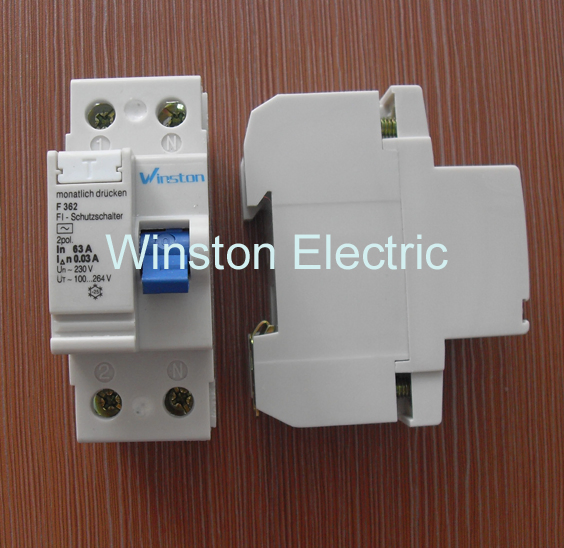

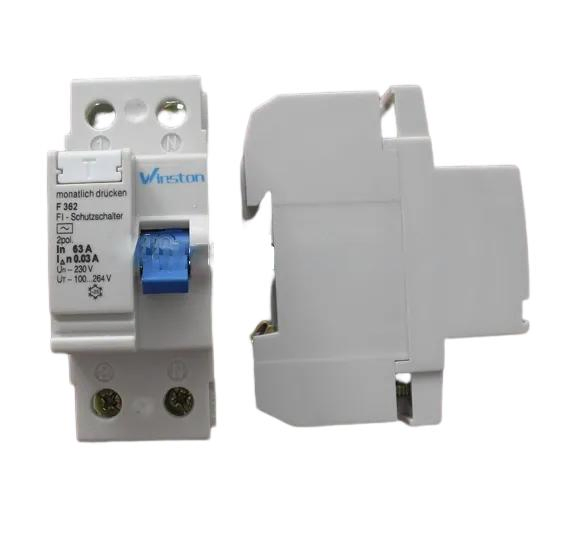

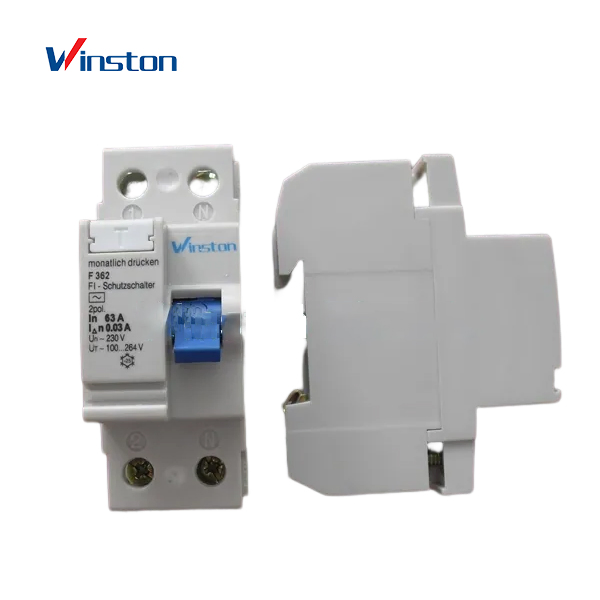

Series: F360 Residual Current Devices (RCCB/RCD)

Designed for earth leakage protection, these devices comply with international standards including IEC1008, GB16916, and BS EN 61008.

Main Specifications		2 Pole Details	4 Pole Details
Standard Conformity	-	IEC 61008-1	IEC 61008-1
Rated Current (In)	A	16, 25, 40, 63, 80, 100	16, 25, 40, 63, 80, 100
Sensitivity (In)	mA	30, 100, 300, 500	30, 100, 300, 500
Rated Voltage (Un)	Vac	240	240 / 415
Insulation Voltage (Ui)	V	660	660
Frequency	Hz	50	50
Shortcircuit Capacity	kA	6	6
Protection Degree	-	IP 20	IP 20
Mounting	-	Din Rail (35 * 7.5) mm	Din Rail (35 * 7.5) mm

Our Services

✓ Prompt reply: Inquiries or questions replied within 24 hours.

✓ Quality Product: Every product is tested and calibrated before dispatch.

✓ Fast delivery: Standard delivery within 3-7 days.

✓ Hospitality: Professional and friendly service for all clients.

Trade Information

Trade Terms	FOB, CIF, CFR, EXW, DDP
Payment Terms	T/T, L/C, Western Union, Paypal, MoneyGram
Payment Conditions	30% deposit in advance, 70% balance before shipping
Delivery Time	3-7 working days after deposit; 2-4 days for stock items
Packing	Neutral carton; Wooden case for large sizes
Shipping	Sea, Air, or Express Delivery

Production & Manufacturing

Frequently Asked Questions

1. What is the primary function of the F360 series device?

The F360 series consists of Residual Current Circuit Breakers (RCCB) designed to detect and interrupt earth leakage currents to prevent electrical shock and fire hazards.

2. Can this RCCB be installed on a standard electrical panel?

Yes, it is designed for installation on a symmetric standard 35mm DIN rail (35 * 7.5 mm).

3. What is the difference between the 2 Pole and 4 Pole models?

The 2 Pole model is typically used for single-phase circuits (240Vac), while the 4 Pole model is designed for three-phase circuits (240/415Vac).

4. What sensitivities are available for the F360 series?

We offer various sensitivities including 30mA, 100mA, 300mA, and 500mA to suit different protection requirements.

5. What is the typical lead time for an order?

For inventory items, delivery takes 2-4 working days. For standard orders, it usually takes 3-7 working days after the deposit is received.

6. Does the product carry international certifications?

Yes, the F360 series is CE certified and manufactured in accordance with IEC 61008-1 standards.
