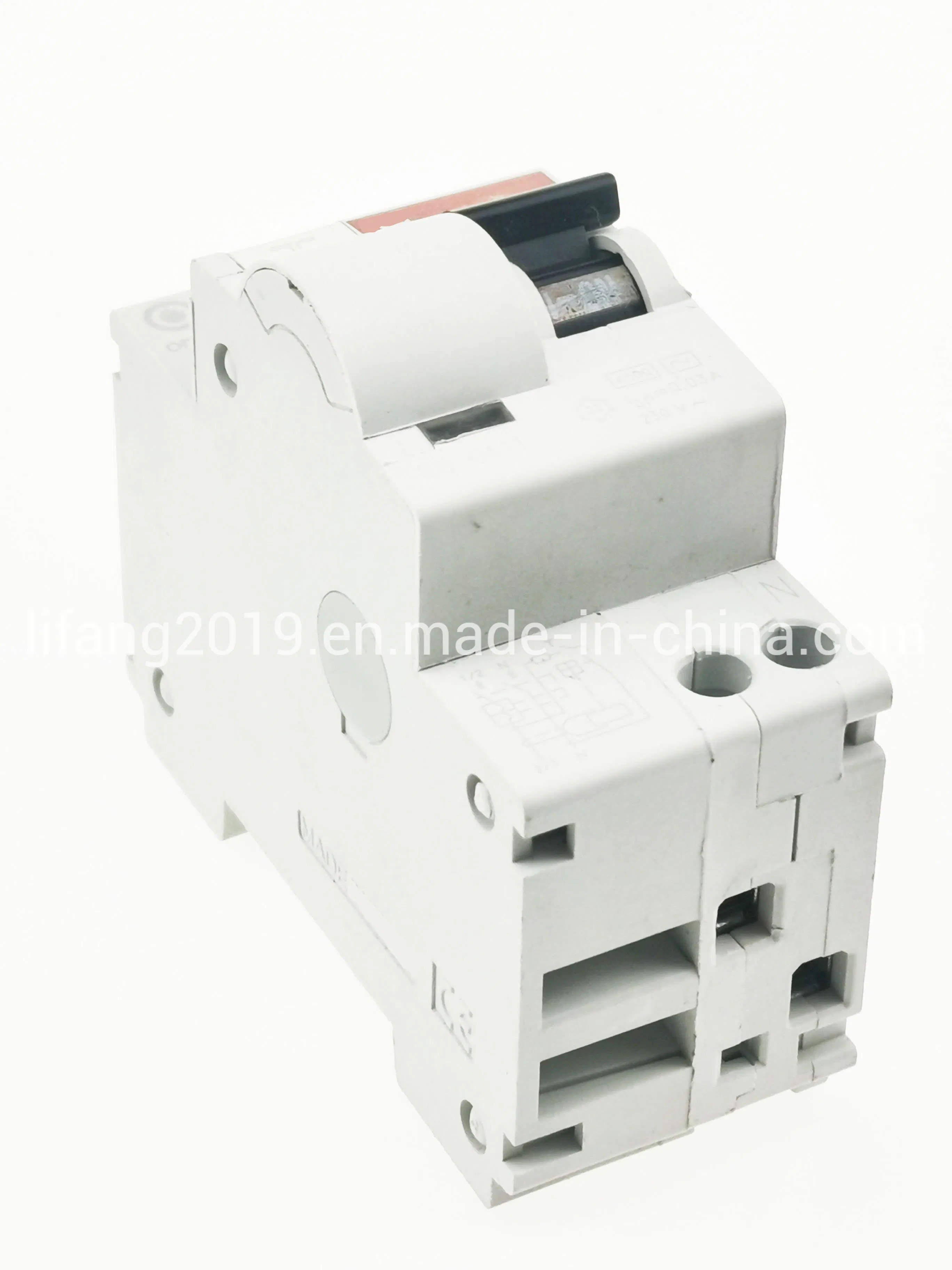

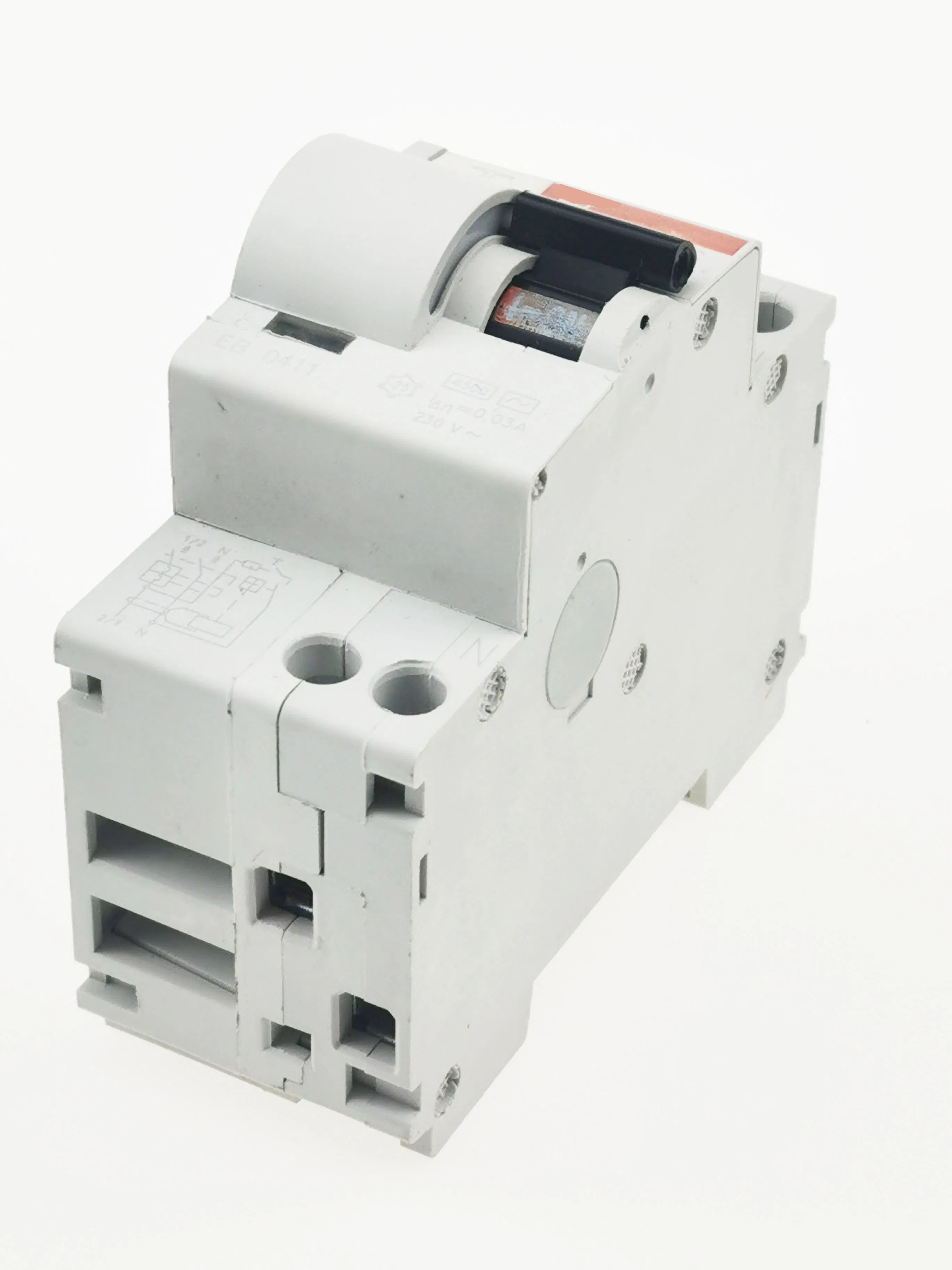

Ds941 RCBO, Ce Proved RCBO, Residual Current Devices with Overload, ISO9001 Proved Circuit Breaker
Ds941 RCBO, Ce Proved RCBO, Residual Current Devices with Overload, ISO9001 Proved Circuit Breaker
Ds941 RCBO, Ce Proved RCBO, Residual Current Devices with Overload, ISO9001 Proved Circuit Breaker
Ds941 RCBO, Ce Proved RCBO, Residual Current Devices with Overload, ISO9001 Proved Circuit Breaker
Ds941 RCBO, Ce Proved RCBO, Residual Current Devices with Overload, ISO9001 Proved Circuit Breaker
1 / 5
Ds941 RCBO, Ce Proved RCBO, Residual Current Devices with Overload, ISO9001 Proved Circuit Breaker
Ds941 RCBO, Ce Proved RCBO, Residual Current Devices with Overload, ISO9001 Proved Circuit Breaker
Ds941 RCBO, Ce Proved RCBO, Residual Current Devices with Overload, ISO9001 Proved Circuit Breaker
Ds941 RCBO, Ce Proved RCBO, Residual Current Devices with Overload, ISO9001 Proved Circuit Breaker
Ds941 RCBO, Ce Proved RCBO, Residual Current Devices with Overload, ISO9001 Proved Circuit Breaker

Ds941 RCBO, Ce Proved RCBO, Residual Current Devices with Overload, ISO9001 Proved Circuit Breaker

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋 Basic Information
Model NO.
DS941
Speed
Normal Type Circuit Breaker
Arc-extinguishing
Air
Installation
DIN Rail Type
Structure
RCBO
Poles Number
2
Function
Overcurrent Protection, RCCB
Certification
ISO9001-2000, CE
Specification
16A
HS Code
8538909900
📌 Product Description

The RCBOs DS 941 series is designed to provide comprehensive protection for terminal single-phase circuits. It effectively safeguards against overload and short-circuit currents, as well as the effects of sinusoidal alternating earth fault currents. This series offers protection against indirect contacts and provides additional safety against direct contacts, making it highly reliable for electrical installations.

Note: This product is specifically suitable for installations where a neutral connection on the left side is required.

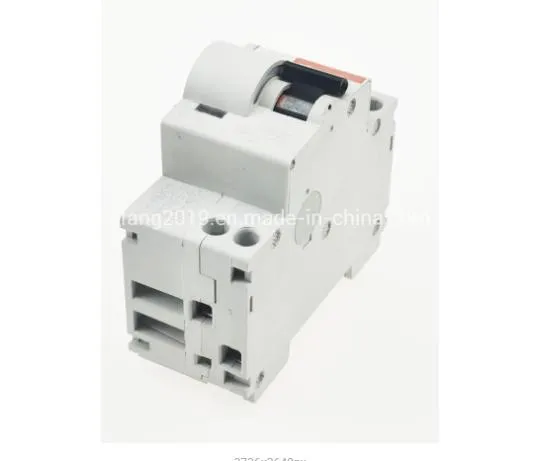

DS941 RCBO Side View

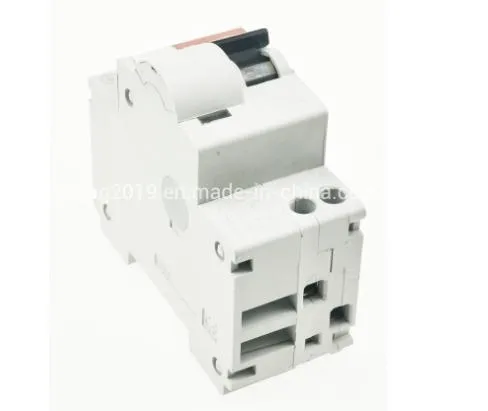

DS941 RCBO Front View

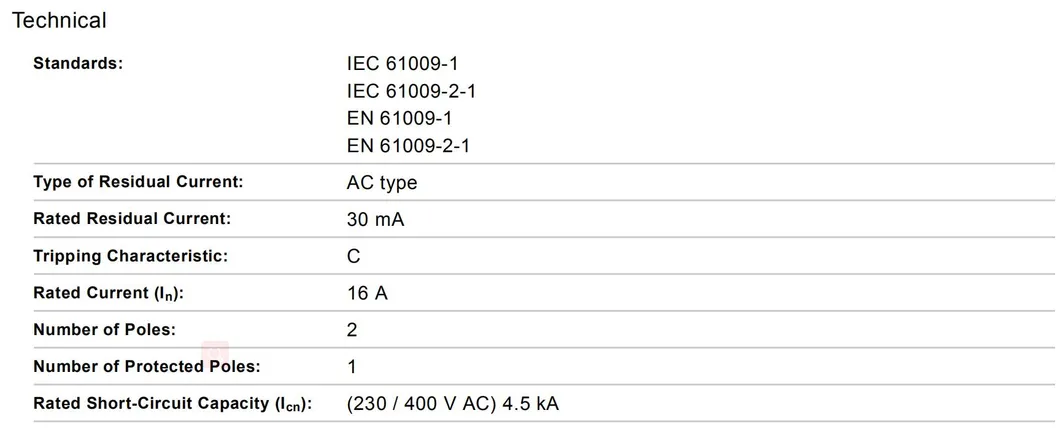

RCBO Specifications

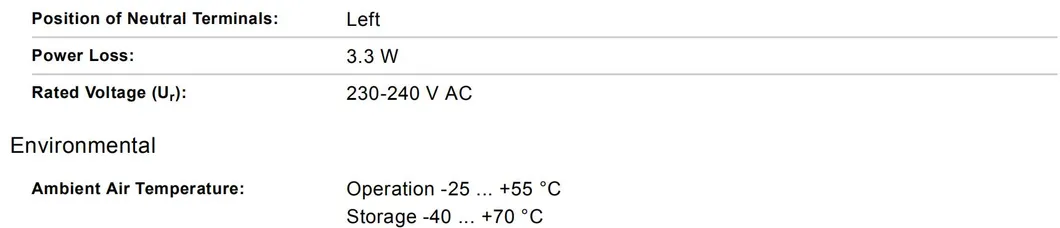

Technical Chart
❓ FAQ
Are samples available for testing?
Yes, we usually provide standard samples for free. Customized samples may involve charges in special cases.
What is the expected lead time for orders?
Samples are ready within 3 working days. Bulk orders for standard models take 5-25 working days, while OEM/ODM timelines depend on final specifications.
Do you support OEM or ODM services?
Yes, we accept both OEM and ODM requests. Please contact our technical team to discuss specific requirements.
How are the products packaged for shipping?
Products are individually packed in paper boxes and then secured in export carton boxes. Wooden packaging is available upon request.
What payment methods do you accept?
T/T bank transfers are accepted for both USD and CNY currencies.
What is the warranty period for this product?
We provide a 12-month product warranty. Our after-sales service remains available to assist with any customer needs beyond this period.
