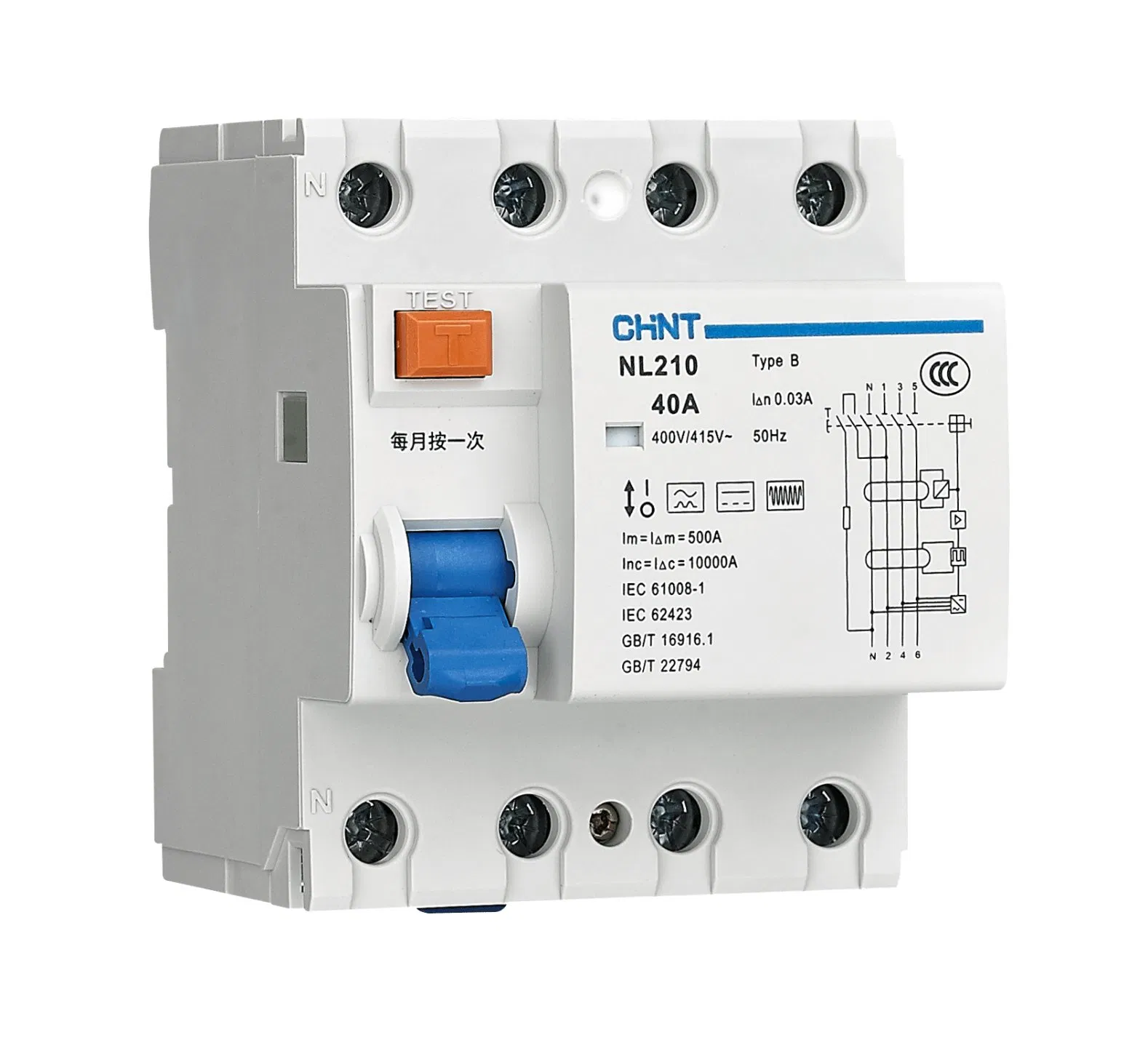

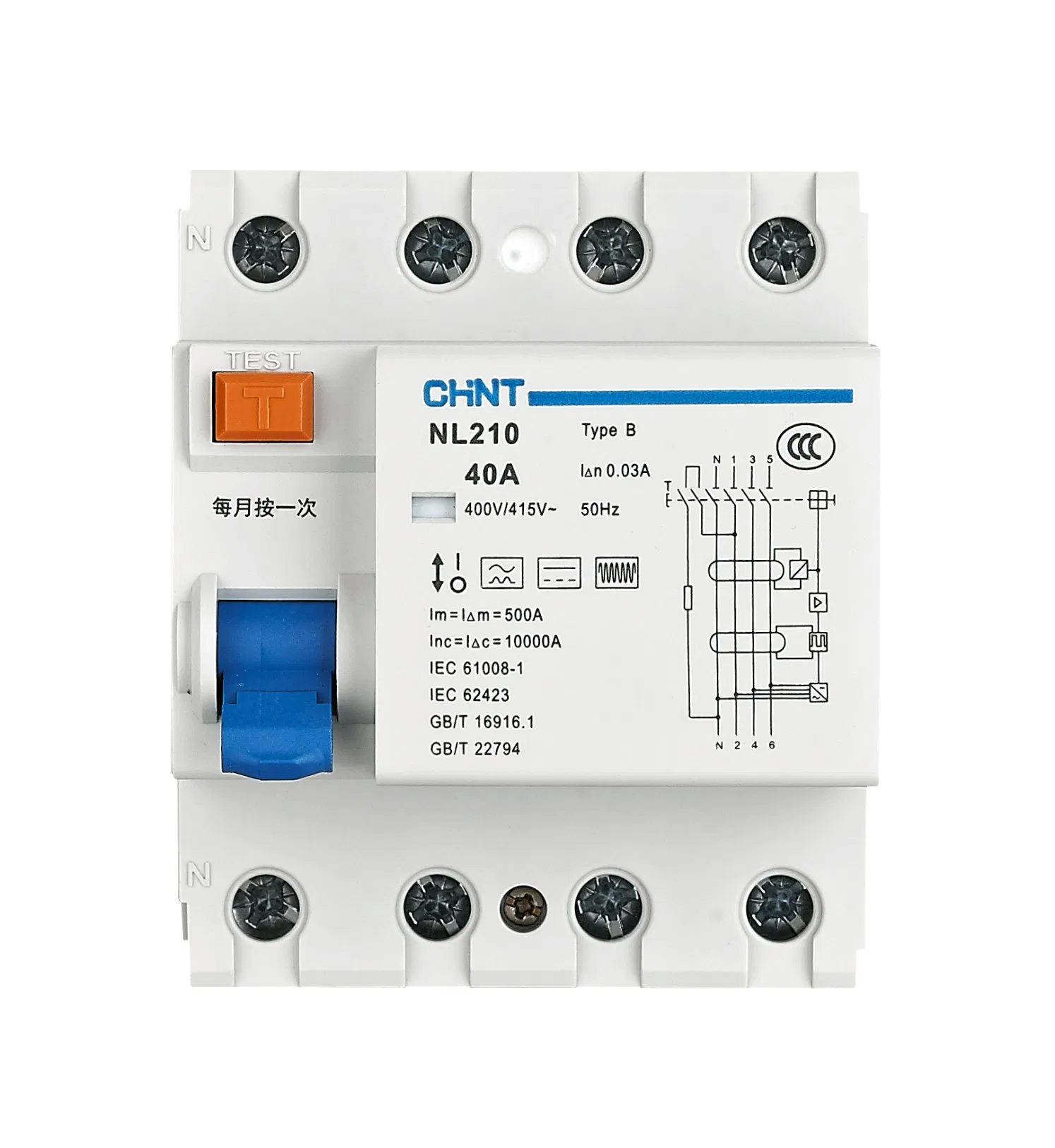

Chint Nl210 Type B RCD RCCB 4p 3p+N 25A 40A 63A Tipo B Interruptor Diferencial PV Solar EV Charging DC Residual Current Device
Chint Nl210 Type B RCD RCCB 4p 3p+N 25A 40A 63A Tipo B Interruptor Diferencial PV Solar EV Charging DC Residual Current Device
Chint Nl210 Type B RCD RCCB 4p 3p+N 25A 40A 63A Tipo B Interruptor Diferencial PV Solar EV Charging DC Residual Current Device
Chint Nl210 Type B RCD RCCB 4p 3p+N 25A 40A 63A Tipo B Interruptor Diferencial PV Solar EV Charging DC Residual Current Device
Chint Nl210 Type B RCD RCCB 4p 3p+N 25A 40A 63A Tipo B Interruptor Diferencial PV Solar EV Charging DC Residual Current Device
1 / 5
Chint Nl210 Type B RCD RCCB 4p 3p+N 25A 40A 63A Tipo B Interruptor Diferencial PV Solar EV Charging DC Residual Current Device
Chint Nl210 Type B RCD RCCB 4p 3p+N 25A 40A 63A Tipo B Interruptor Diferencial PV Solar EV Charging DC Residual Current Device
Chint Nl210 Type B RCD RCCB 4p 3p+N 25A 40A 63A Tipo B Interruptor Diferencial PV Solar EV Charging DC Residual Current Device
Chint Nl210 Type B RCD RCCB 4p 3p+N 25A 40A 63A Tipo B Interruptor Diferencial PV Solar EV Charging DC Residual Current Device
Chint Nl210 Type B RCD RCCB 4p 3p+N 25A 40A 63A Tipo B Interruptor Diferencial PV Solar EV Charging DC Residual Current Device

Chint Nl210 Type B RCD RCCB 4p 3p+N 25A 40A 63A Tipo B Interruptor Diferencial PV Solar EV Charging DC Residual Current Device

Customization: Available
Breaking Capacity: Low Voltage Circuit Breakers
Structure: ELCB
Send Inquiry

Product Description

Basic Specifications

Model NO.:NL210
Poles Number:2 Pole, 4 Pole
Type:Circuit Breaker
Certification:ISO9001-2000, CE, CB, CCC
Kind:Type B RCCB
Rated Current:25A, 40A, 63A
Origin:China
HS Code:853620
Production Capacity:1000 Pieces Per Day

Packaging & Delivery

Package Size:30.00cm * 30.00cm * 30.00cm
Gross Weight:0.400kg
Transport Package:Cartons

Product Description

NL210 Type B RCD RCCB 4P 3P+N 25A 40A 63A Tipo B Interruptor diferencial PV Solar EV charging DC residual current device.

Main Functions:
Control electric circuits. Protect people against indirect contacts and provides additional protection against direct contacts. Protect installations against fire hazards due to insulation faults.
Type B Selection:
Tripping is ensured for sinusoidal AC residual currents, pulsed DC residual currents, alternating residual sinusoidal currents up to 1000Hz, pulsating direct residual currents, and for smooth direct residual currents.
Tripping Sensitivity:
• 30mA: Additional protection against direct contact.
• 100mA: Co-ordinated with the earth system according to formula IAn < 50/R.
• 300mA: Protection against indirect contacts and fire hazards.
Operation:
Instantaneous tripping ensures immediate disconnection without time-delay.
Compatible Add-ons:
AX-5 auxiliary contacts and TC-1 terminal cover.

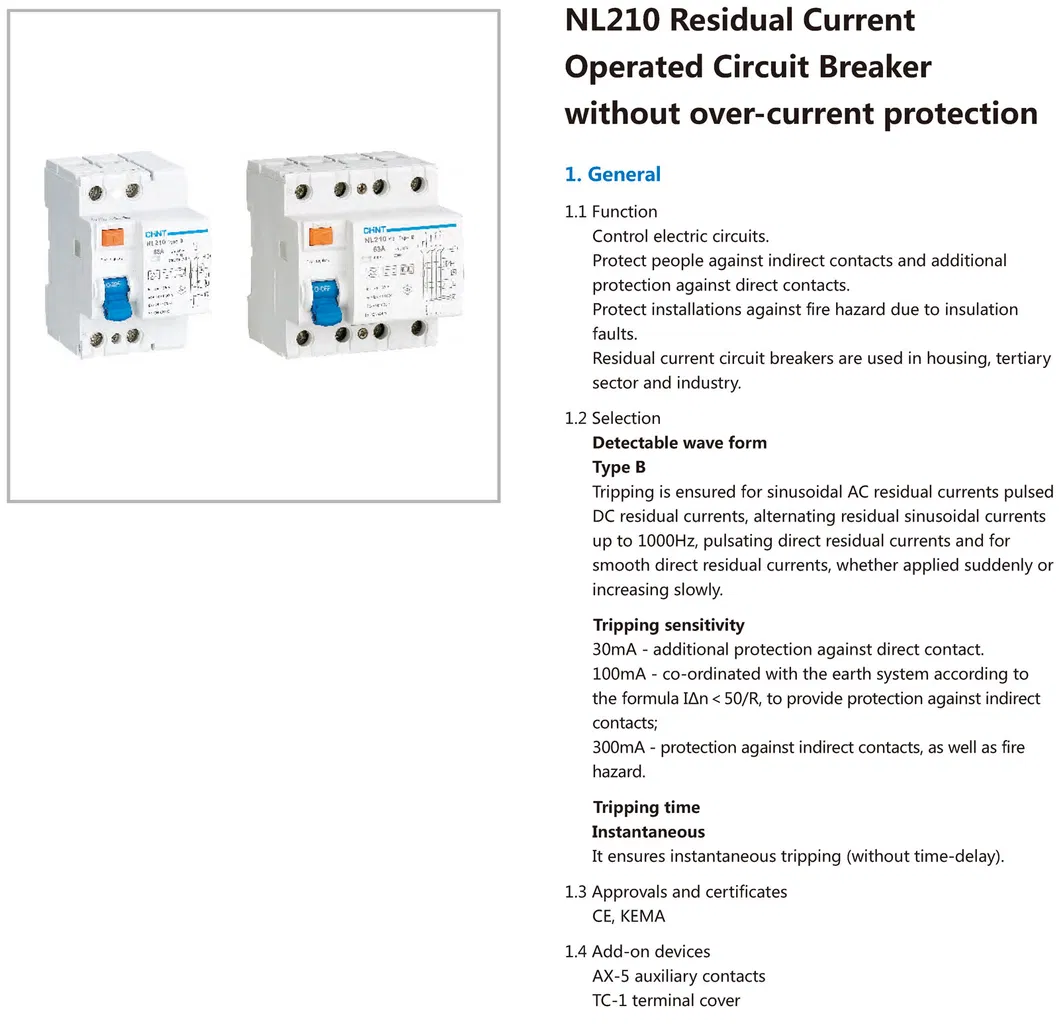

NL210 Type B RCD RCCB

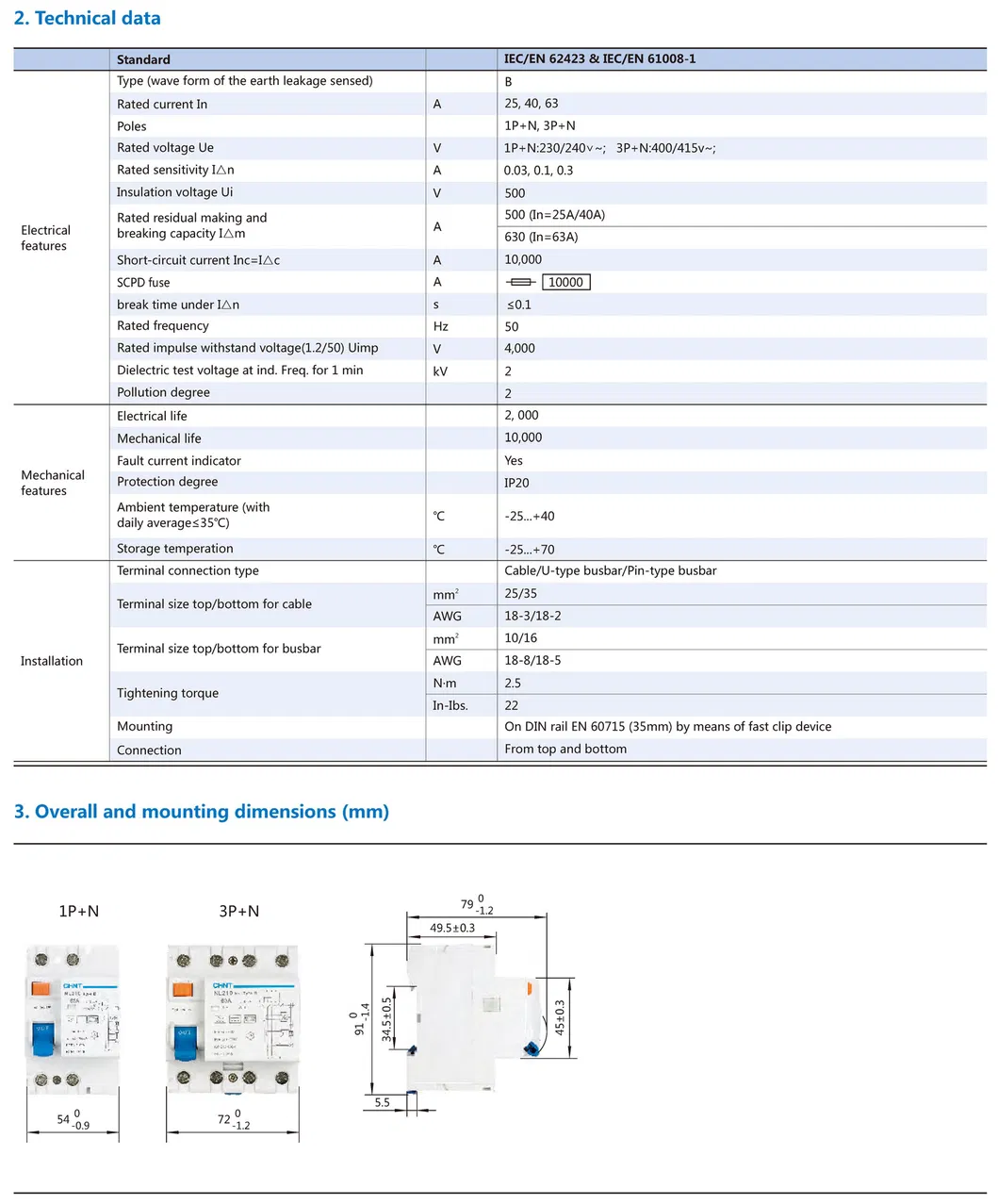

NL210 Circuit Breaker Detail

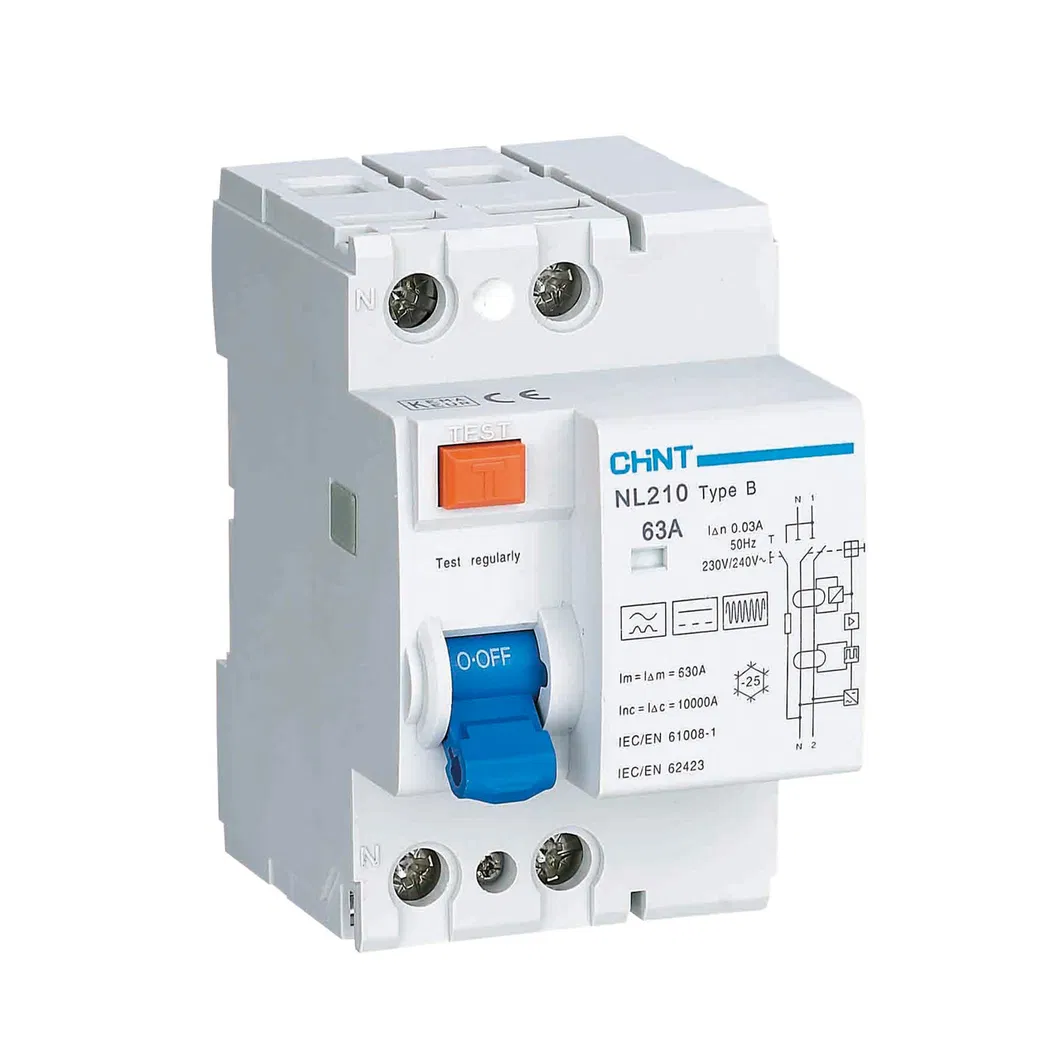

Type B RCCB Application

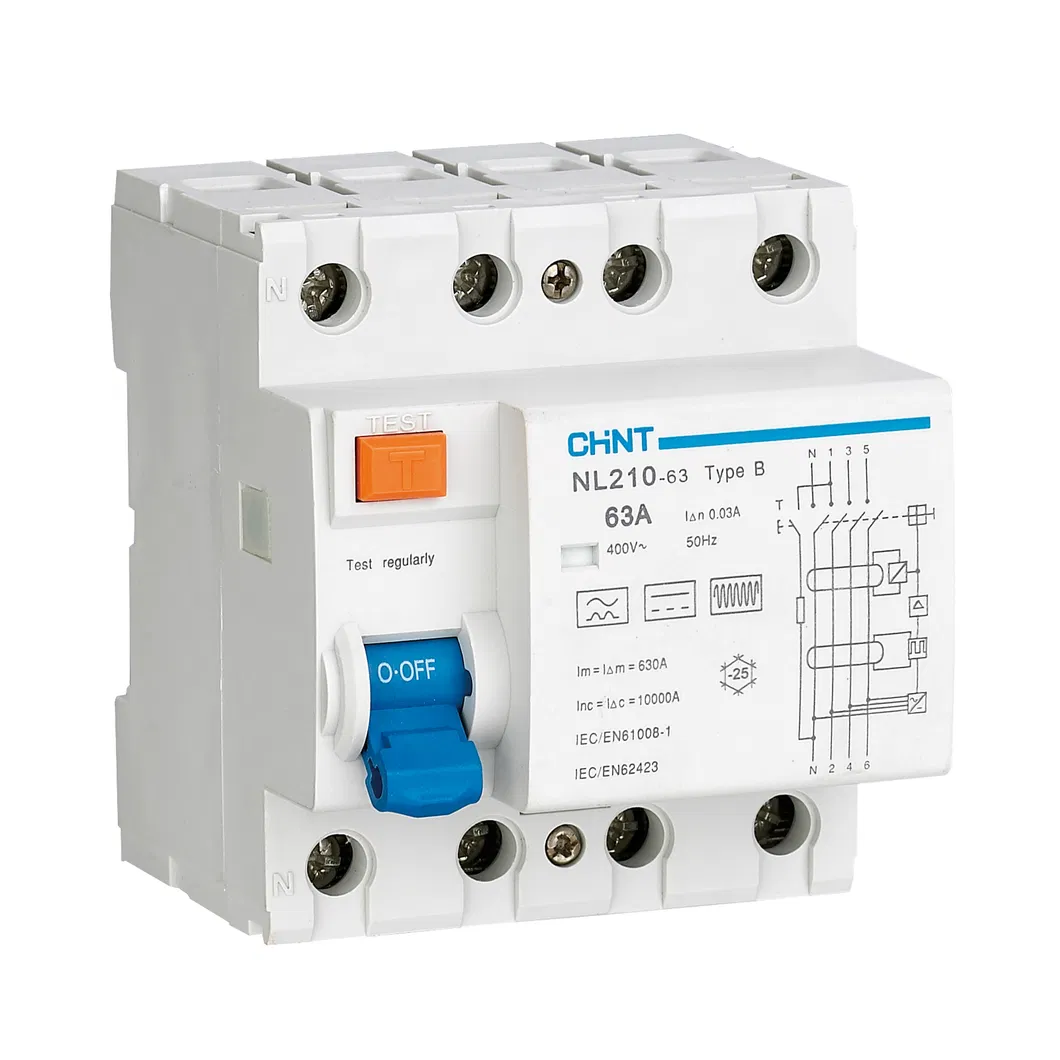

Residual Current Device

Frequently Asked Questions

1. What is the difference between Type B and Type A RCCBs? Type B RCCBs protect against sinusoidal AC, pulsating DC, and smooth DC residual currents, making them suitable for high-frequency inverters and EV charging, whereas Type A is more limited.
2. Is the NL210 suitable for Solar PV installations? Yes, the NL210 Type B RCCB is specifically designed to handle the DC residual currents often found in Solar PV systems.
3. What current ratings are available for this model? This model is available in 25A, 40A, and 63A rated current options.
4. Does it provide instantaneous tripping? Yes, it ensures instantaneous tripping without any intentional time delay for maximum safety.
5. What certifications does the NL210 hold? The product is certified by CE, KEMA, CB, and CCC, ensuring compliance with international safety standards.
6. Can auxiliary contacts be added to this device? Yes, it supports add-on devices such as the AX-5 auxiliary contacts and TC-1 terminal covers.
