In the event of a fire, the DC side of a solar array continues to generate high voltage as long as there is light. This presents a significant danger to firefighters, who often cannot safely approach the scene. Ensuring personal safety and providing a way for non-professionals to cut off risks immediately is a primary concern in the photovoltaic industry.

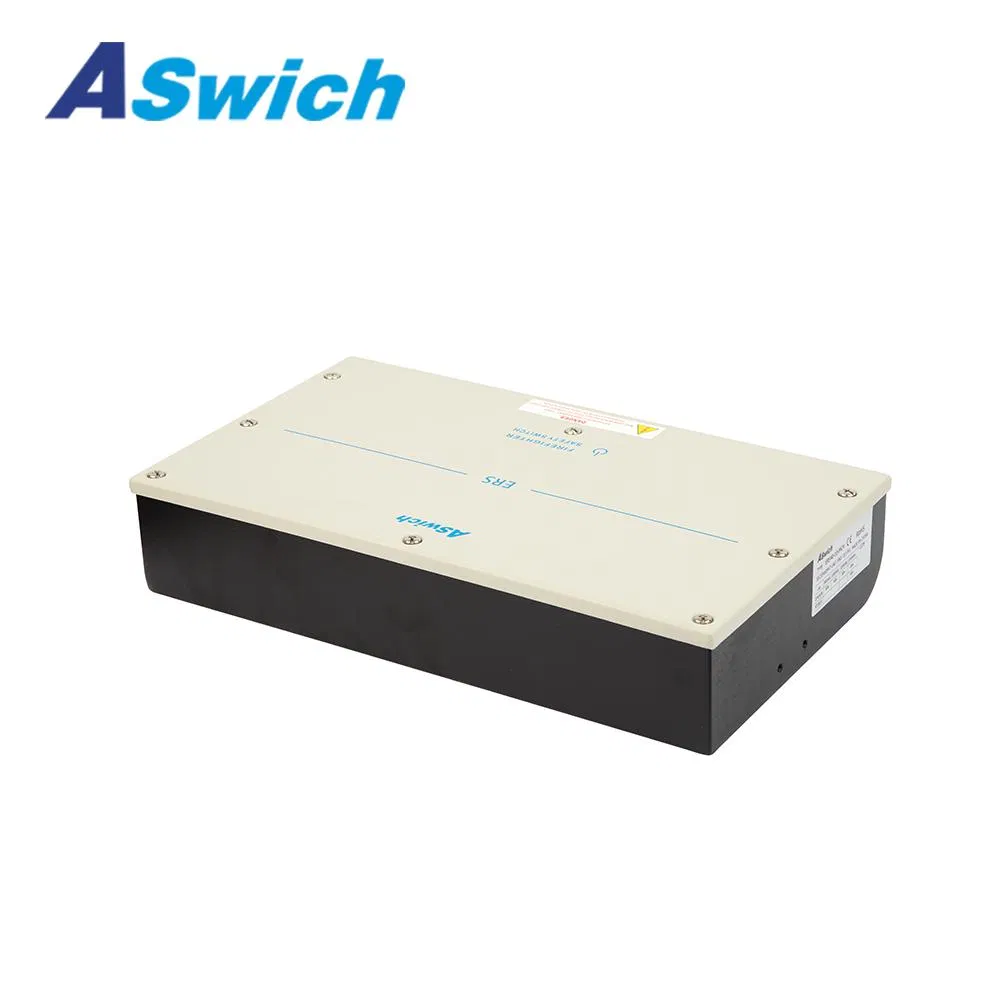

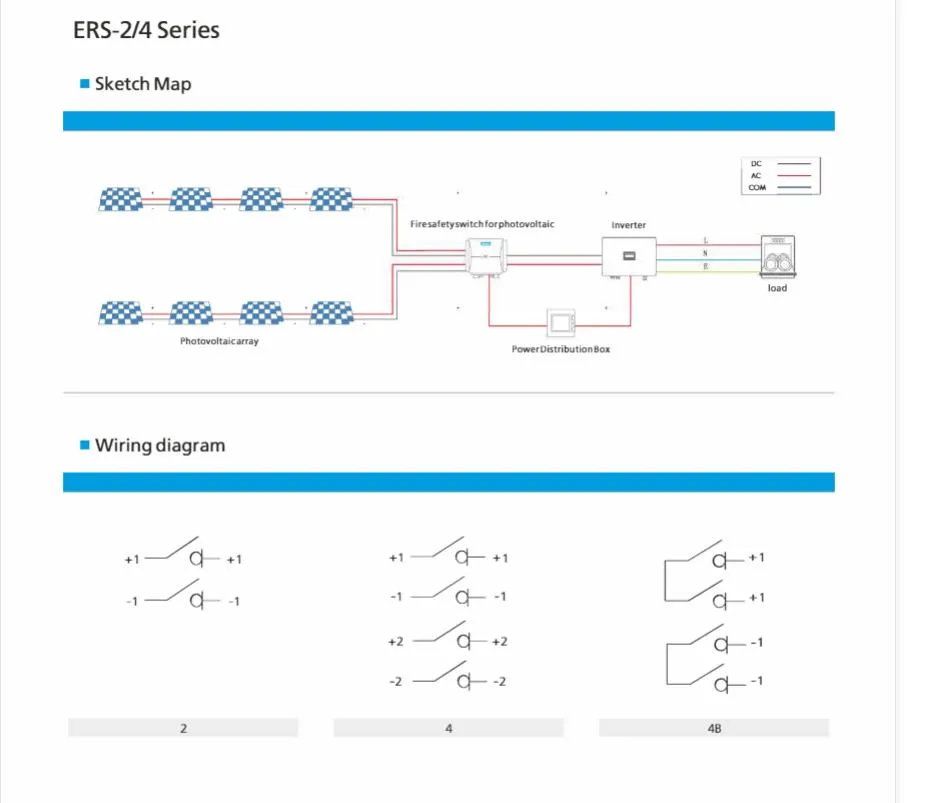

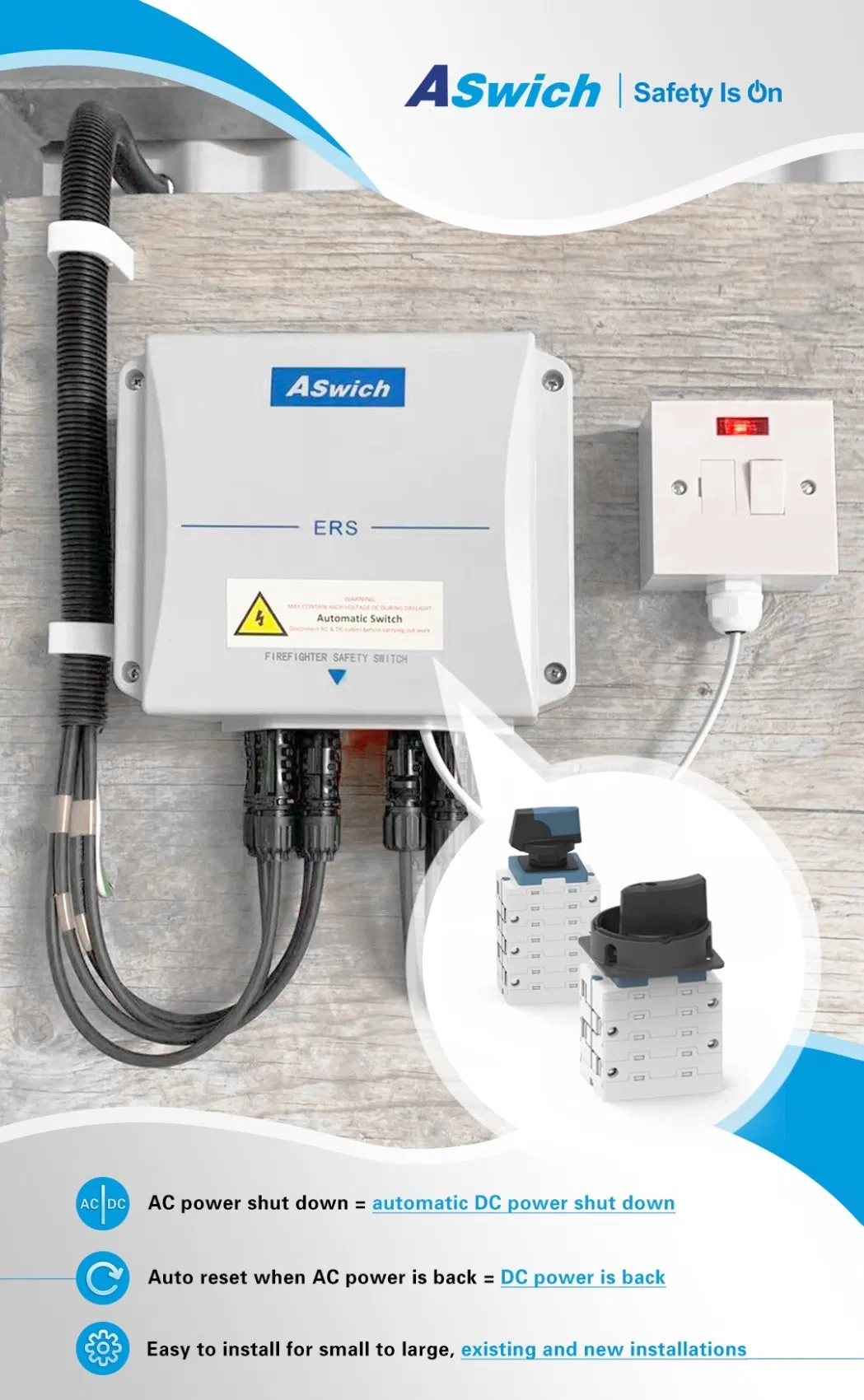

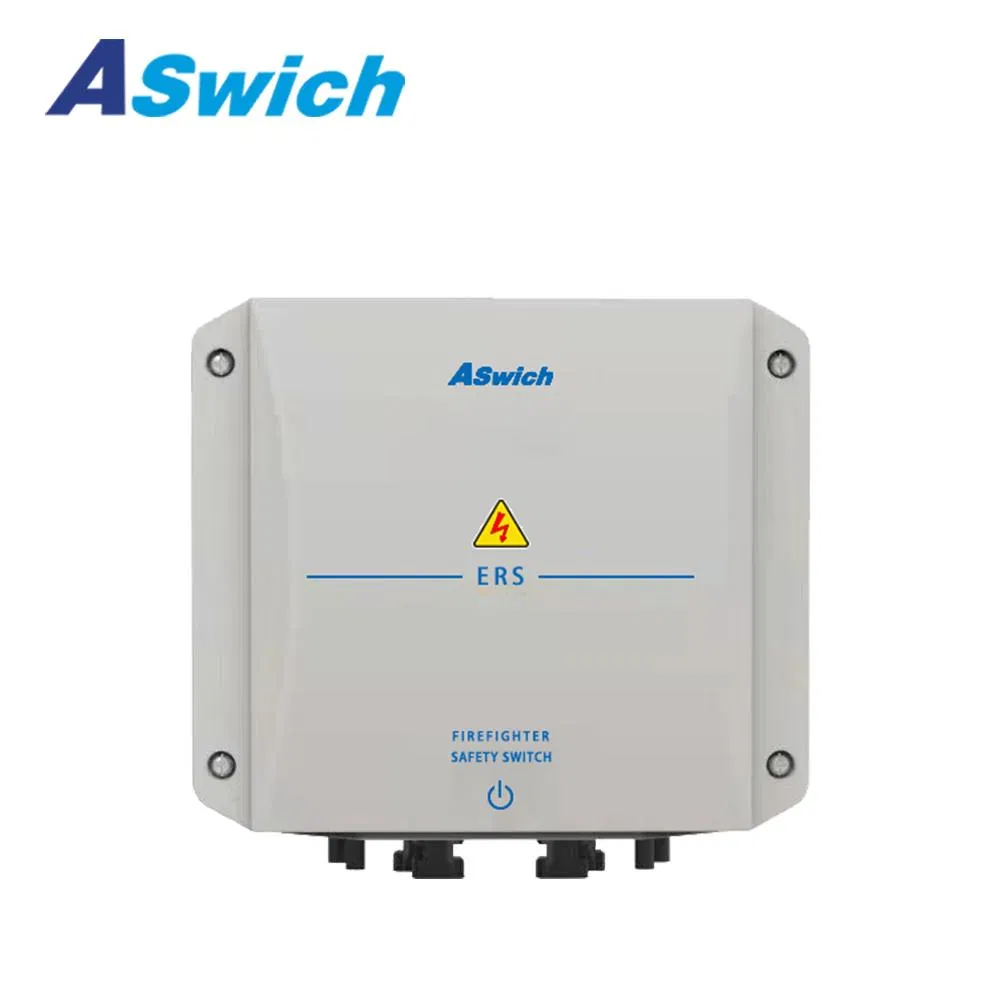

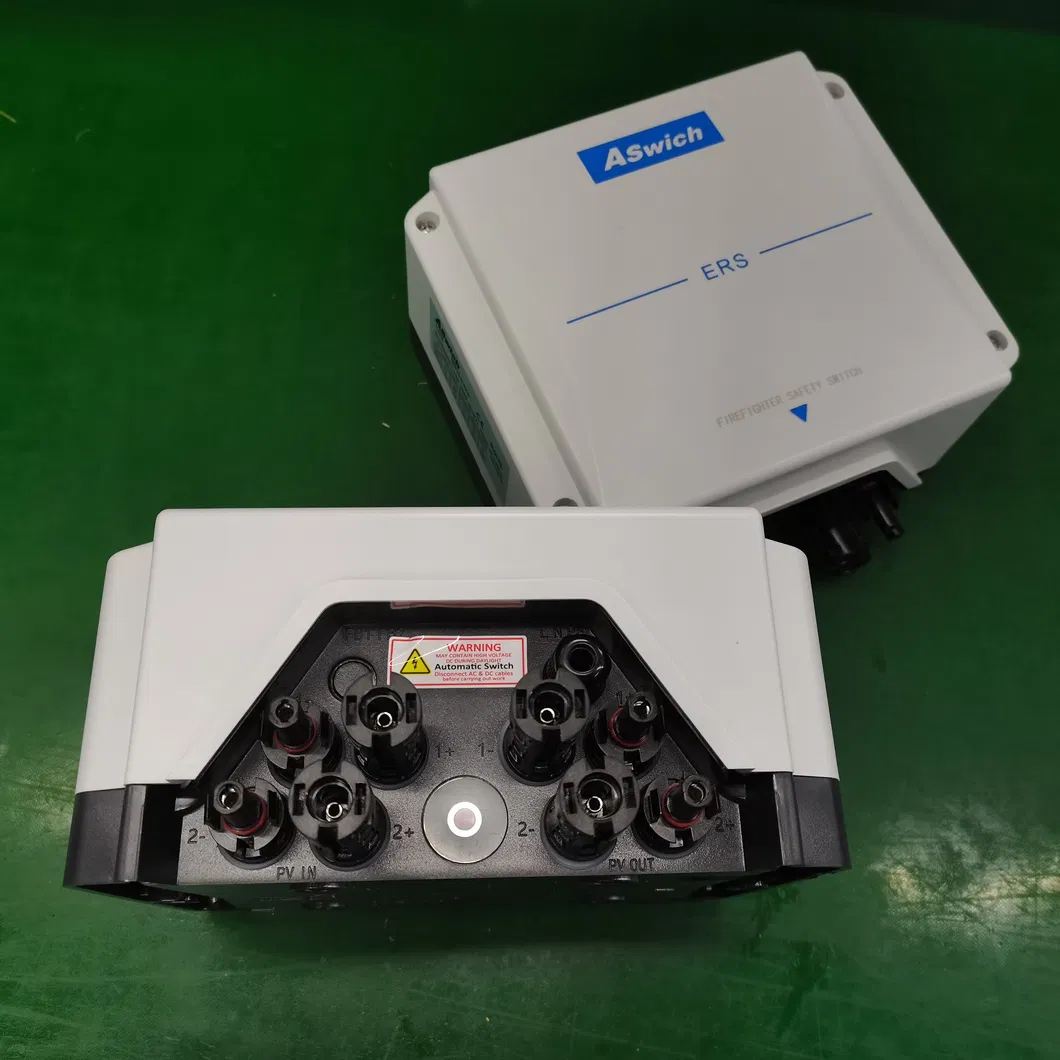

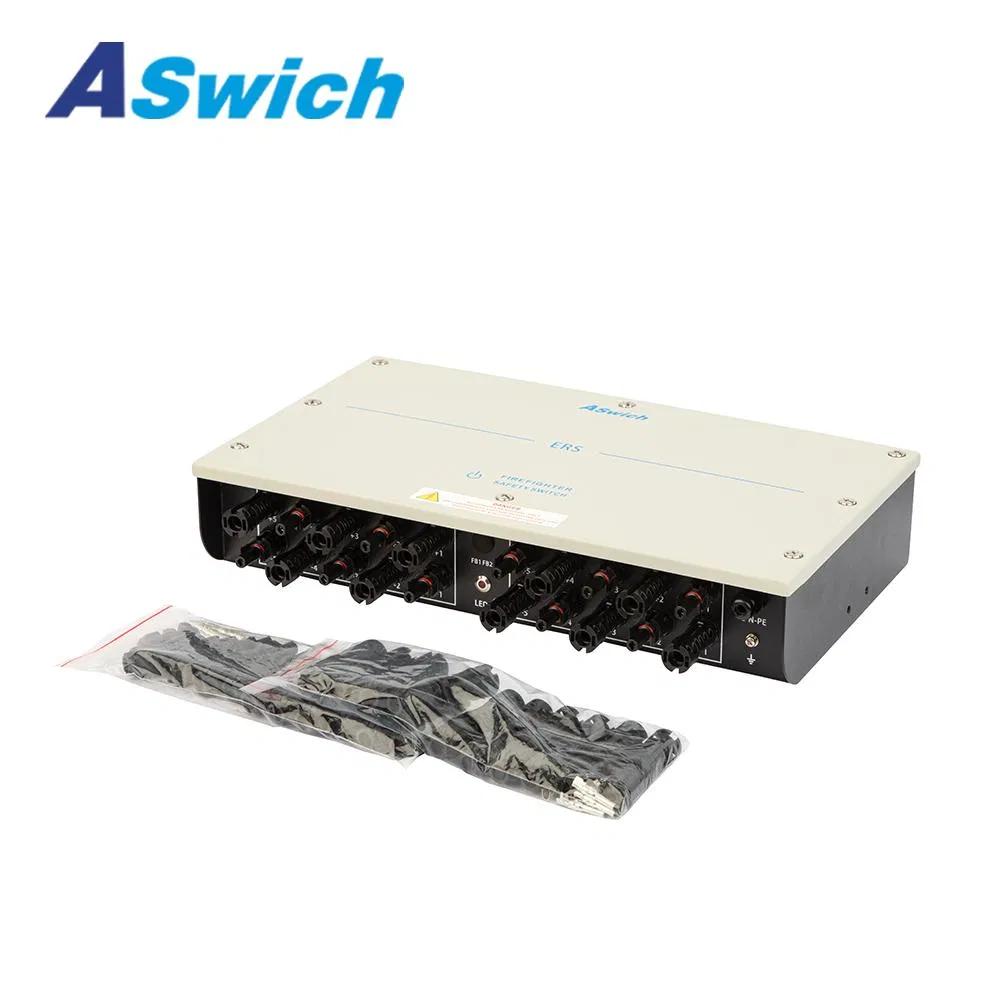

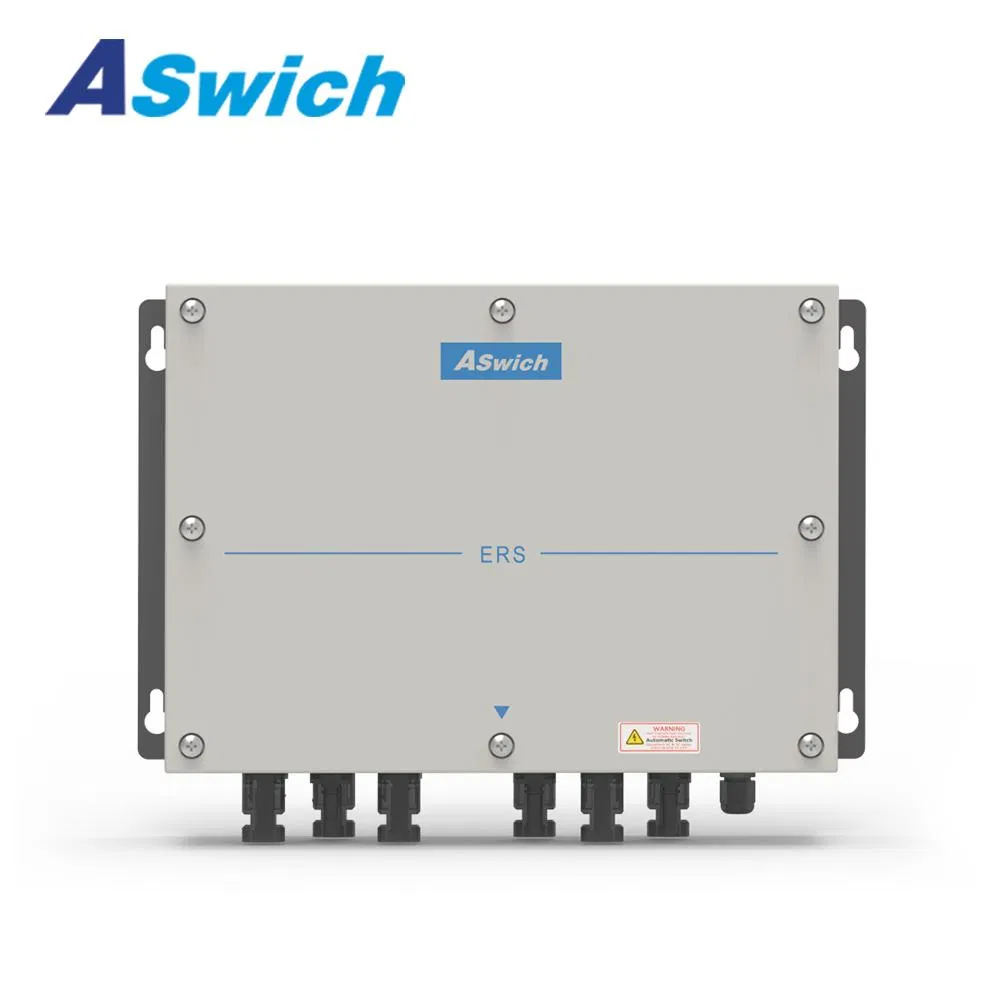

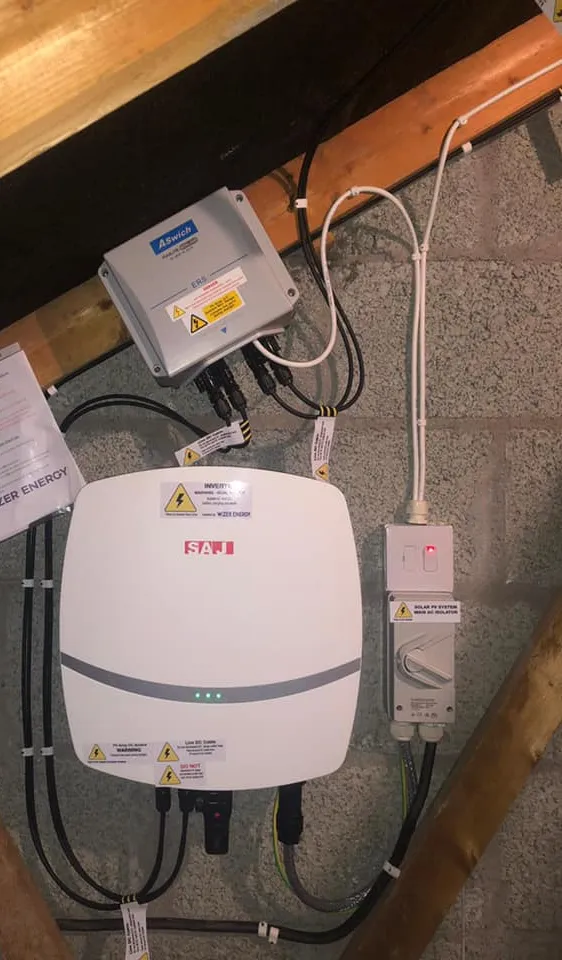

Our Rapid Shut-down Switch is designed to address these market demands. While string inverters have integrated DC isolators for maintenance, they do not de-energize the DC lines from the roof to the inverter (600~1500V). Our firefighter safety switch detects grid failure and automatically turns off the isolation switch after 5 seconds, ensuring a safe environment for emergency responders.

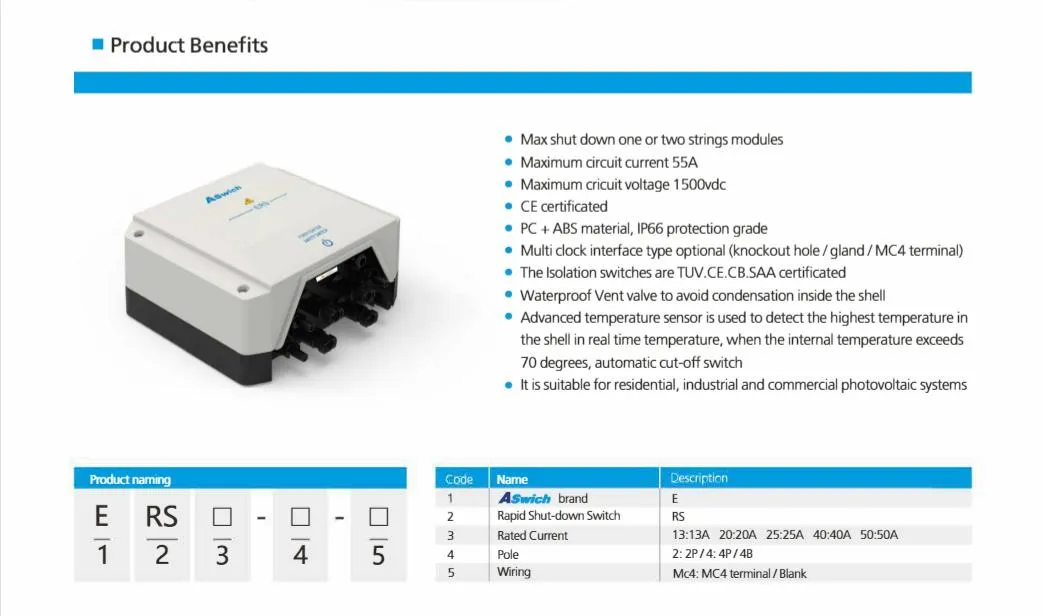

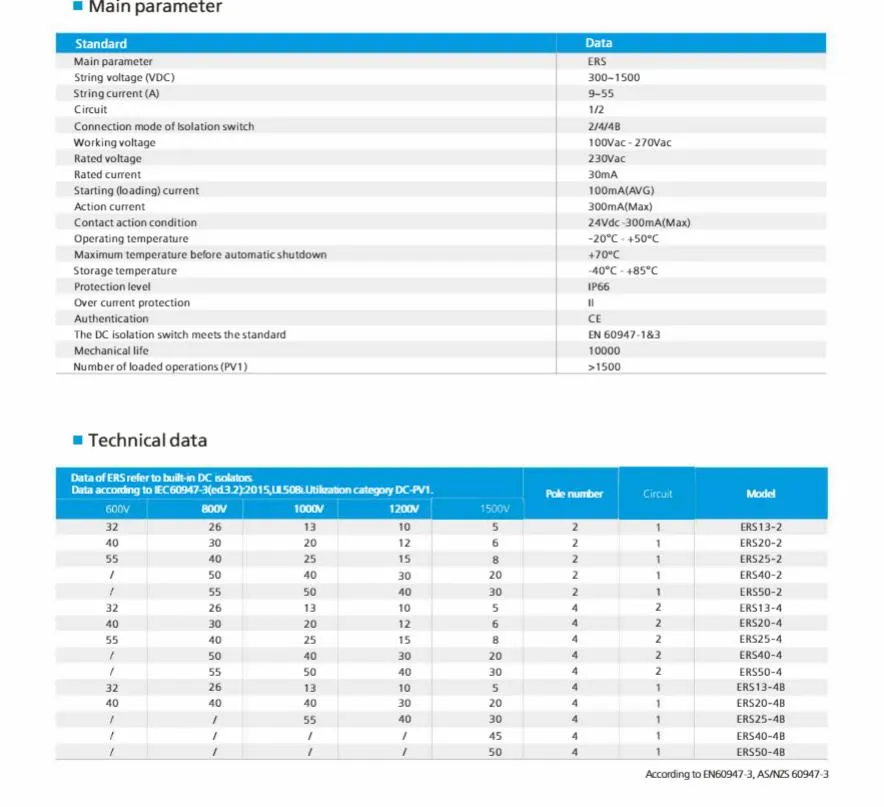

| 1 Suitable for systems 600V~1500V, 9A~55A; shuts down up to 10 strings simultaneously. |
| 2 Wider AC voltage range: 100~270Vac. |
| 3 Internal motor drive for disconnection; supports remote or AC switch shutdown. |
| 4 LED indicator for easy status identification (ON/OFF). |
| 5 IP66 level protection, fully suitable for outdoor installation. |
| 6 Equipped with a breathing valve to avoid internal condensation. |
| 7 Low noise operation, ensuring no disruption to daily life. |
| 8 Built-in temperature sensor; automatic shutdown if temperature exceeds 70°C. |

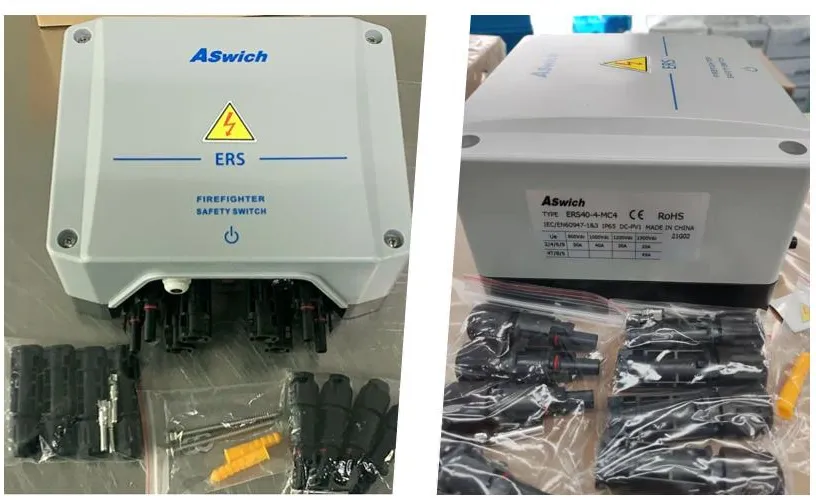

| 9 Multiple connectivity options: Knock outs, Cable glands, or MC4 connectors. |
| 10 Modular component design for fast and convenient after-sale service. |
