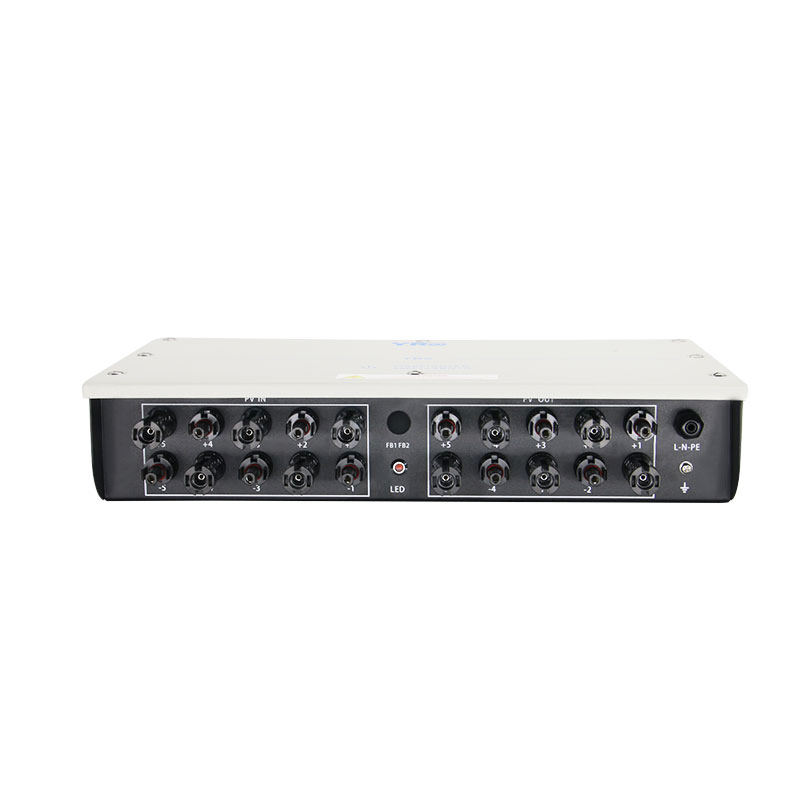

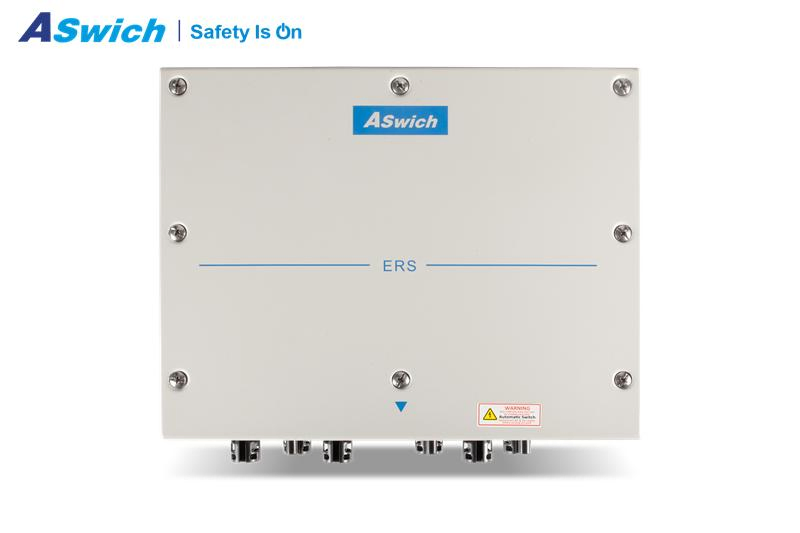

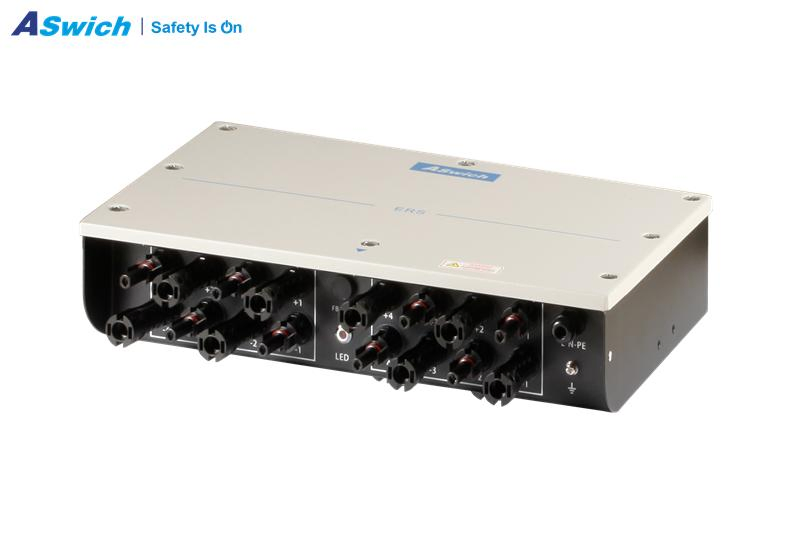

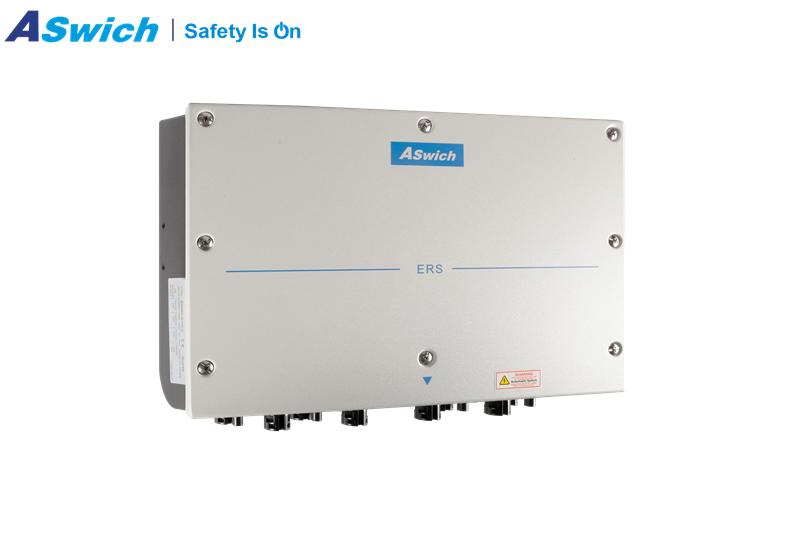

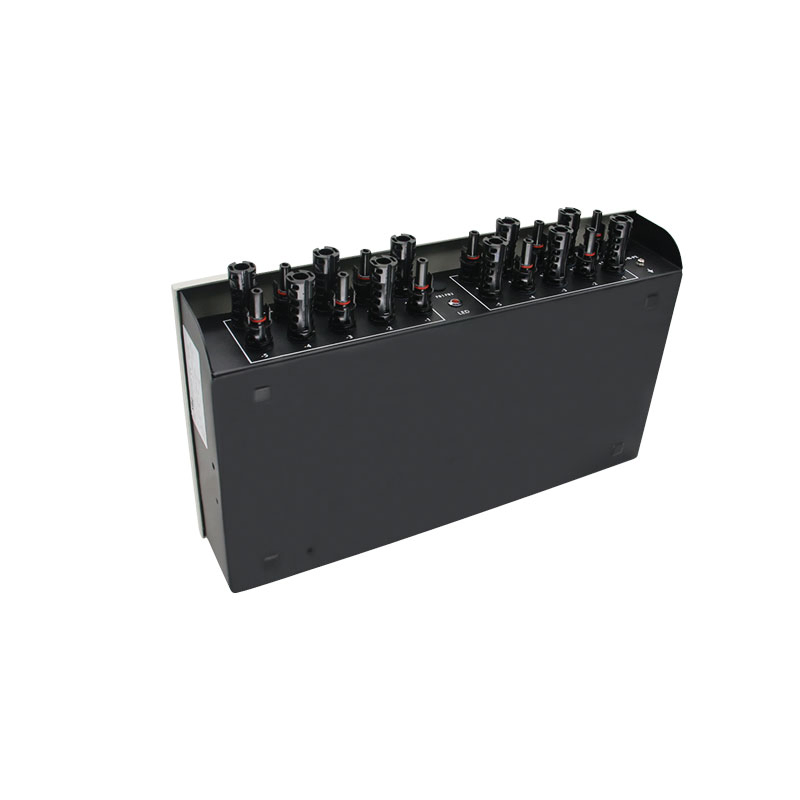

Aswich Best Quality Solar PV Isolator Switch for Inverter Solar System Array String Level Rapid Shutdown Device Firefighter Safety
Aswich Best Quality Solar PV Isolator Switch for Inverter Solar System Array String Level Rapid Shutdown Device Firefighter Safety
Aswich Best Quality Solar PV Isolator Switch for Inverter Solar System Array String Level Rapid Shutdown Device Firefighter Safety
Aswich Best Quality Solar PV Isolator Switch for Inverter Solar System Array String Level Rapid Shutdown Device Firefighter Safety
Aswich Best Quality Solar PV Isolator Switch for Inverter Solar System Array String Level Rapid Shutdown Device Firefighter Safety
1 / 5
Aswich Best Quality Solar PV Isolator Switch for Inverter Solar System Array String Level Rapid Shutdown Device Firefighter Safety
Aswich Best Quality Solar PV Isolator Switch for Inverter Solar System Array String Level Rapid Shutdown Device Firefighter Safety
Aswich Best Quality Solar PV Isolator Switch for Inverter Solar System Array String Level Rapid Shutdown Device Firefighter Safety
Aswich Best Quality Solar PV Isolator Switch for Inverter Solar System Array String Level Rapid Shutdown Device Firefighter Safety
Aswich Best Quality Solar PV Isolator Switch for Inverter Solar System Array String Level Rapid Shutdown Device Firefighter Safety

Aswich Best Quality Solar PV Isolator Switch for Inverter Solar System Array String Level Rapid Shutdown Device Firefighter Safety

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
ERS40-10-MC4
Ithe
55A
Connector
Glands/Mc4/Knock Outs
String
5-String
Pole
10p
Certificate
CE TUV CB SAA
Warranty
5 years
Origin
China
HS Code
8536500090
Capacity
1,000,000 PC/Year
✓

Rapid Shut Down Switch Profile

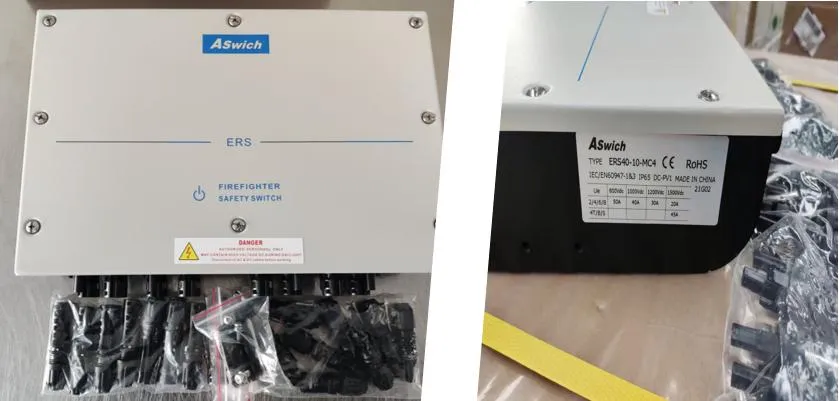

Rapid Shutdown Device Profile
⚙

Applications & Installation

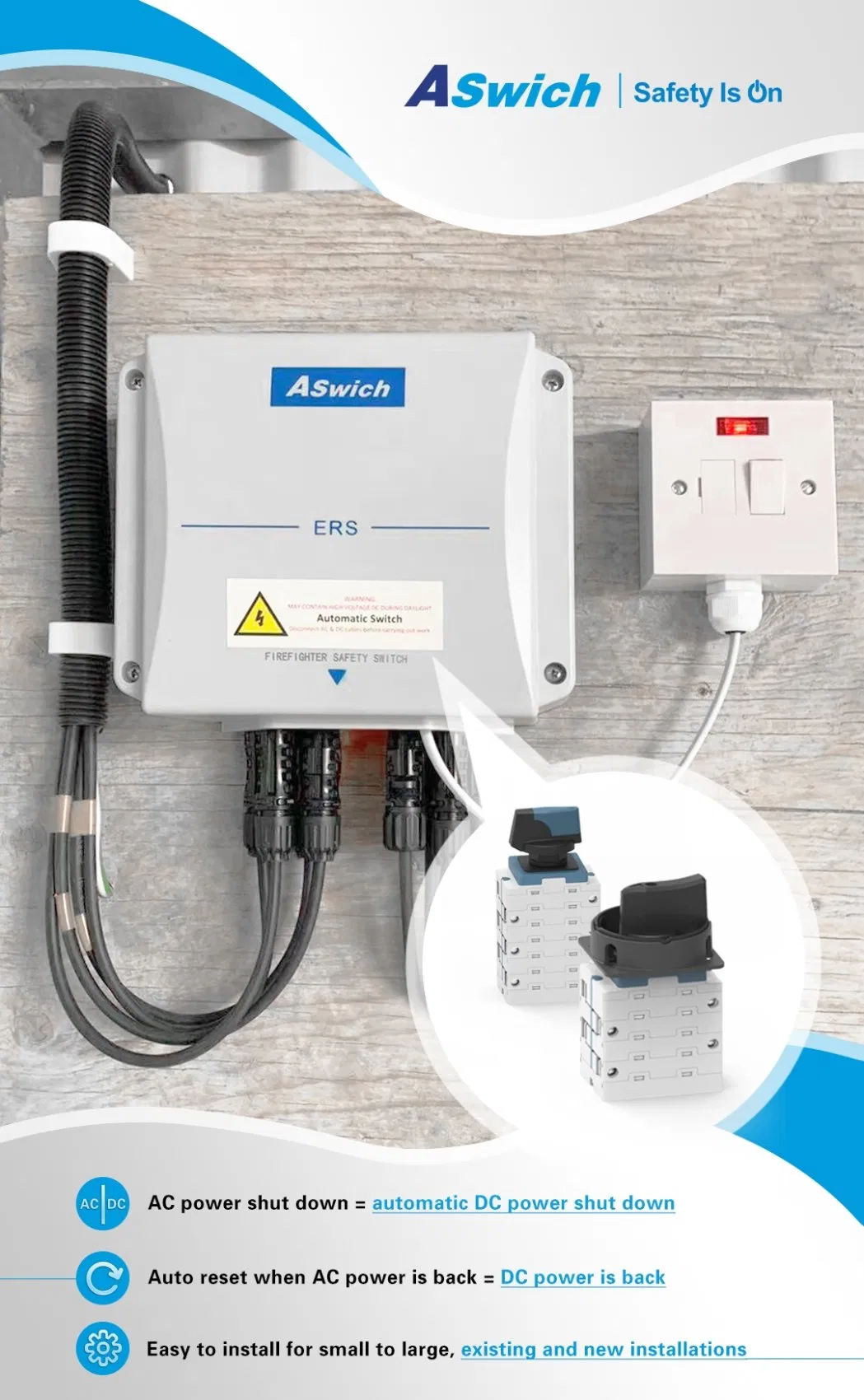

Rapid Shutdown Switch Applied Situation Rapid Shutdown Switch Installation
★

Key Benefits & Features

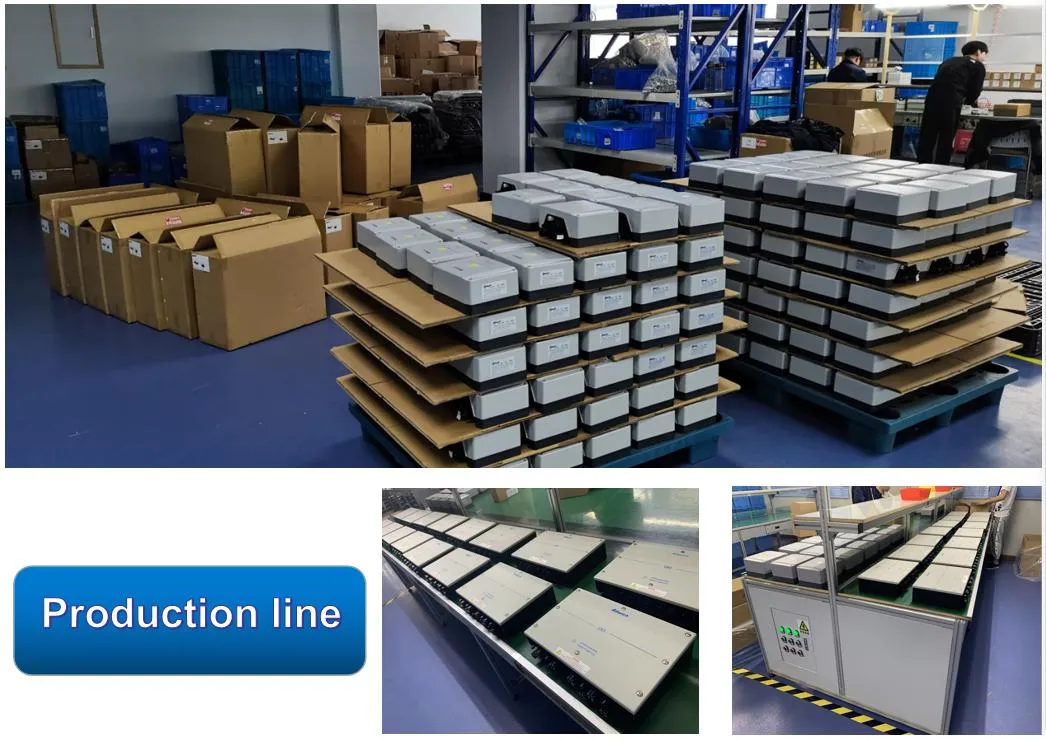

Rapid Shut Down Switch Features
01Suitable for 600V~1500V systems, 9A~55A, handling up to 10 strings simultaneously.
02Wide AC voltage range: 100~270Vac.
03Internal motor drive for remote or AC switch disconnection.
04LED indicator for easy ON/OFF status identification.
05IP66 level protection, fully suitable for outdoor installation.
06Equipped with a breathing valve to avoid internal condensation.
07Low noise operation during running.
08Built-in temperature sensor: Automatic shutdown if exceeding 70°C.
09Multiple connection options: Knock outs, Cable glands, or MC4 connectors.
10Modular design for fast and convenient service.
📋

Technical Datasheet

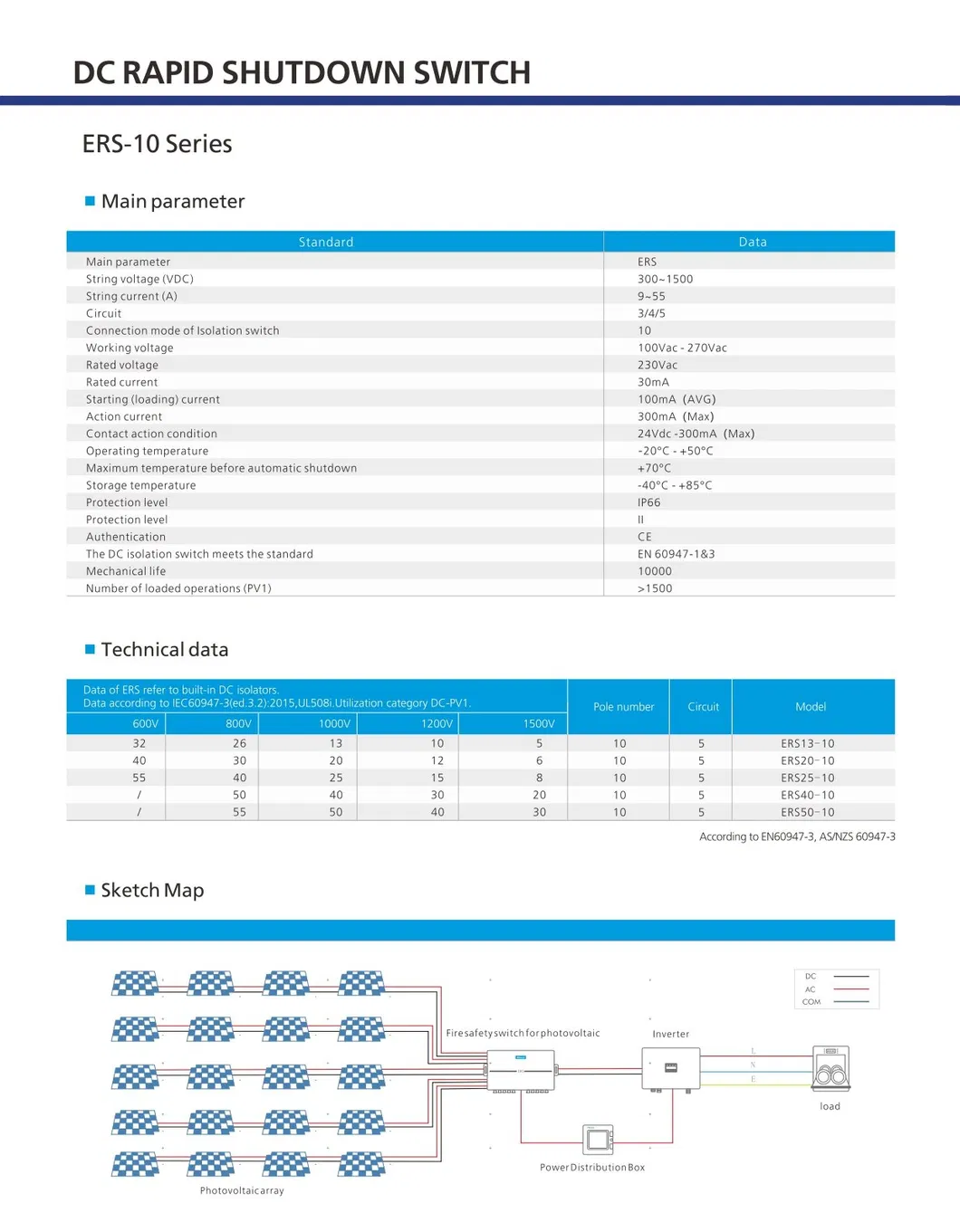

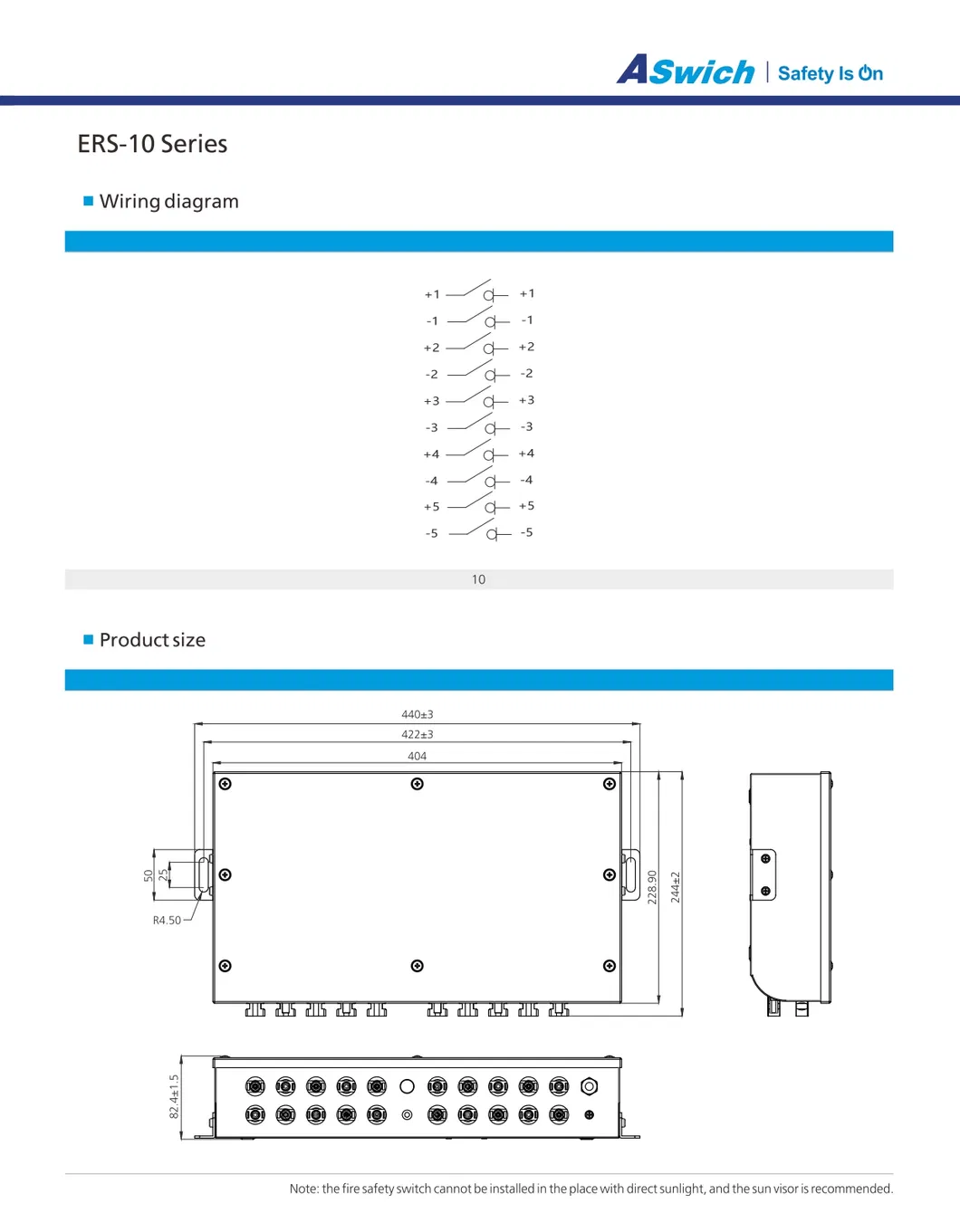

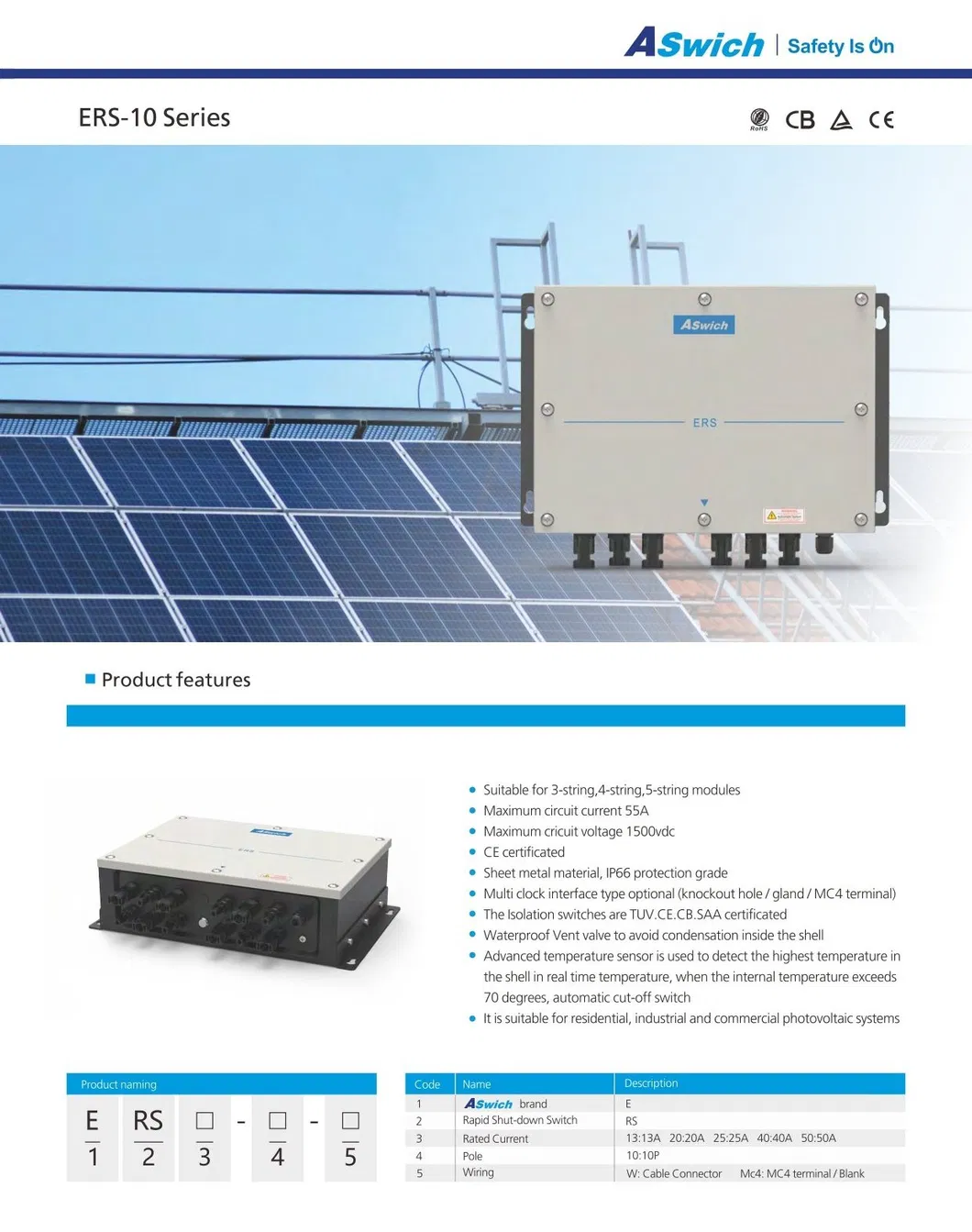

Datasheet Page 1 Datasheet Page 2 Datasheet Page 3
🏭

Manufacturing Excellence

Production Facility 1 Production Facility 2 Production Facility 3
?

Frequently Asked Questions

Q: What is the supported voltage range for this Rapid Shut Down Switch? A: It is designed for photovoltaic systems ranging from 600V to 1500V and currents between 9A and 55A.
Q: Is the device suitable for outdoor use? A: Yes, it features an IP66 rating and includes a breathing valve to prevent internal condensation, making it ideal for outdoor environments.
Q: How does the automatic safety shutdown work? A: The switch has a built-in temperature sensor that will trigger an automatic shutdown if the internal temperature exceeds 70°C.
Q: Can I choose different types of connectors? A: Yes, we offer optional Knock outs, Cable glands, and MC4 connectors to suit your specific installation needs.
Q: What is the warranty period for this product? A: This Rapid Shut Down Switch comes with a standard 5-year warranty.
Q: Does the switch support remote operation? A: Yes, it utilizes an internal motor drive that allows it to be turned off remotely or via an AC switch.
