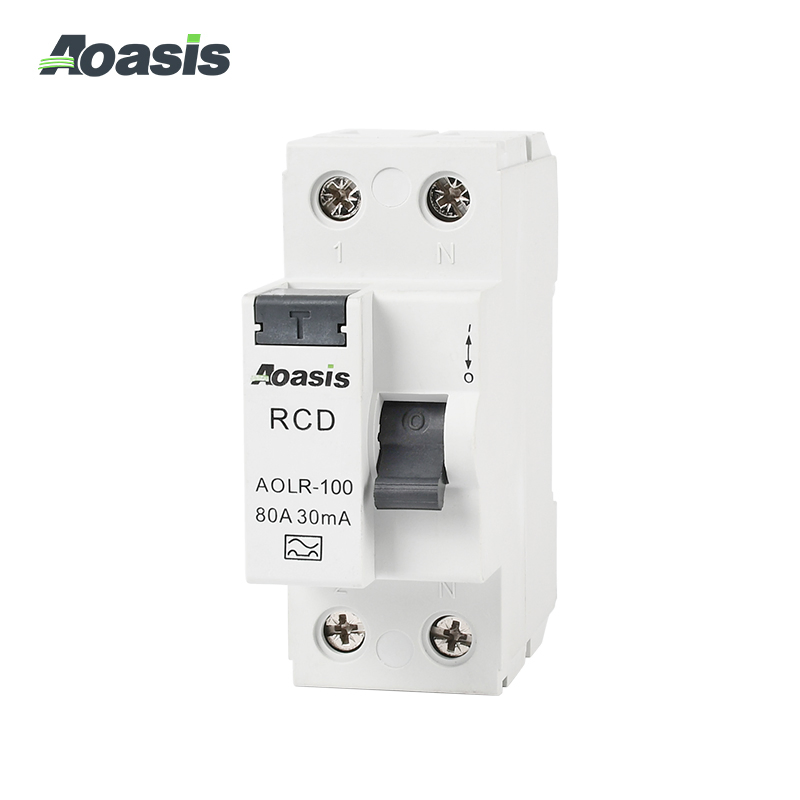

The residual current operated protector is a current protection device. It will release when there is a ground current. It always calculates the vector sum of single-phase or three-phase system currents. If the vector sum is zero, power will be supplied normally. If the vector sum reaches or exceeds the preset value, it will automatically disconnect the circuit.
| Technical Parameters | Details (AOLR-100) |
|---|---|
| Standard | IEC61009-1, GB16917.1, IEC61008-1, GB16916.1 |
| Functions | Leakage Protection, Isolation function |
| Frame current (A) | 100 |
| Pole | 1P+N, 2P, 3P+N, 4P |
| Rated Current (A) | 63, 80, 100 |
| Rated Voltage (V) | AC230V(2P) / AC230V/400V(4P) |
| Breaking Capacity | 4.5kA, 6kA |
| Electrical Life | 10000 Cycles |
| Mechanical Life | 20000 Cycles |

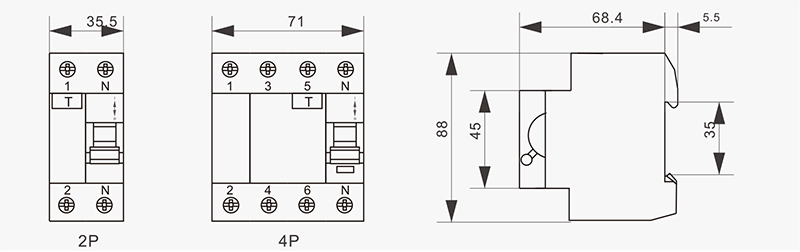

Dimensions (mm):
