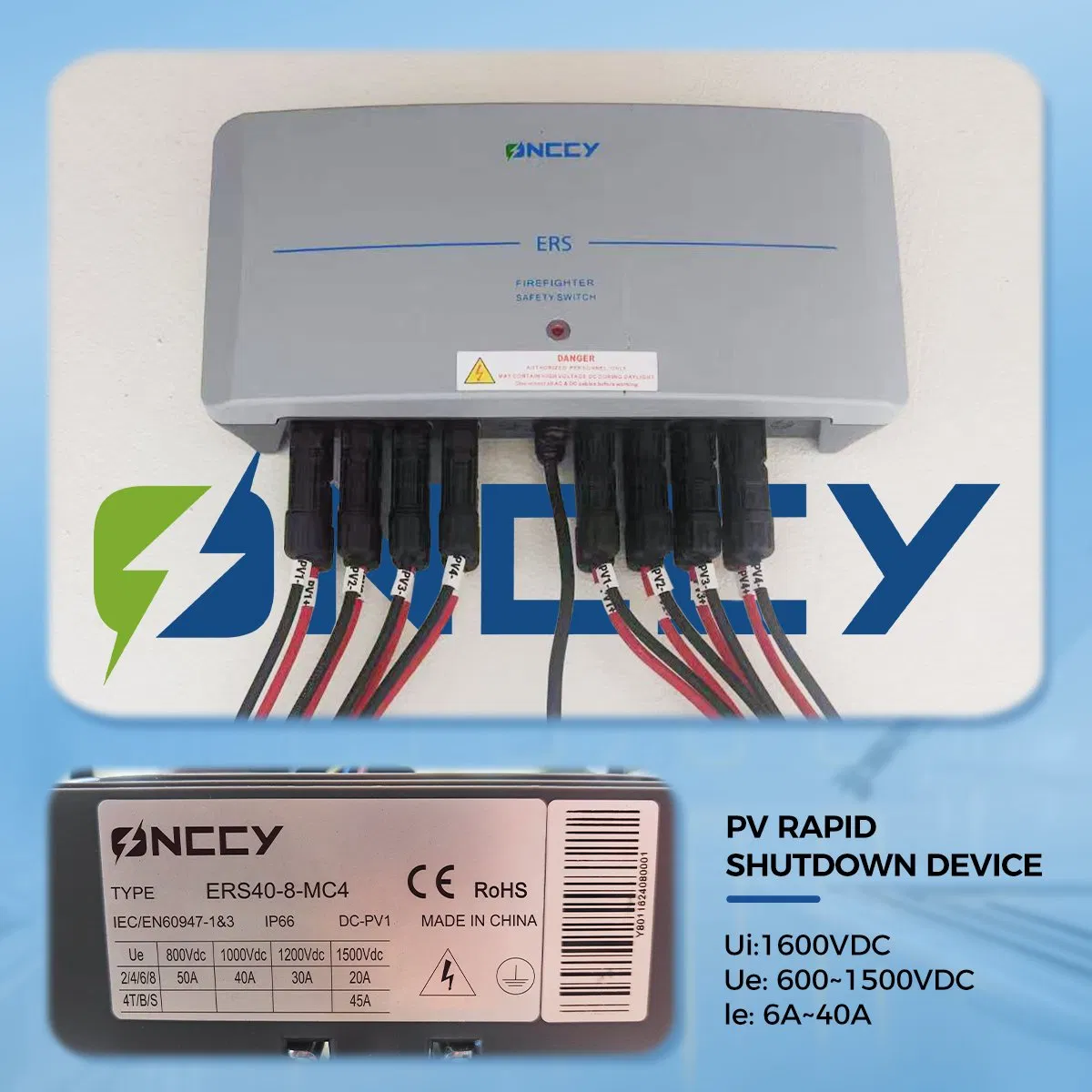

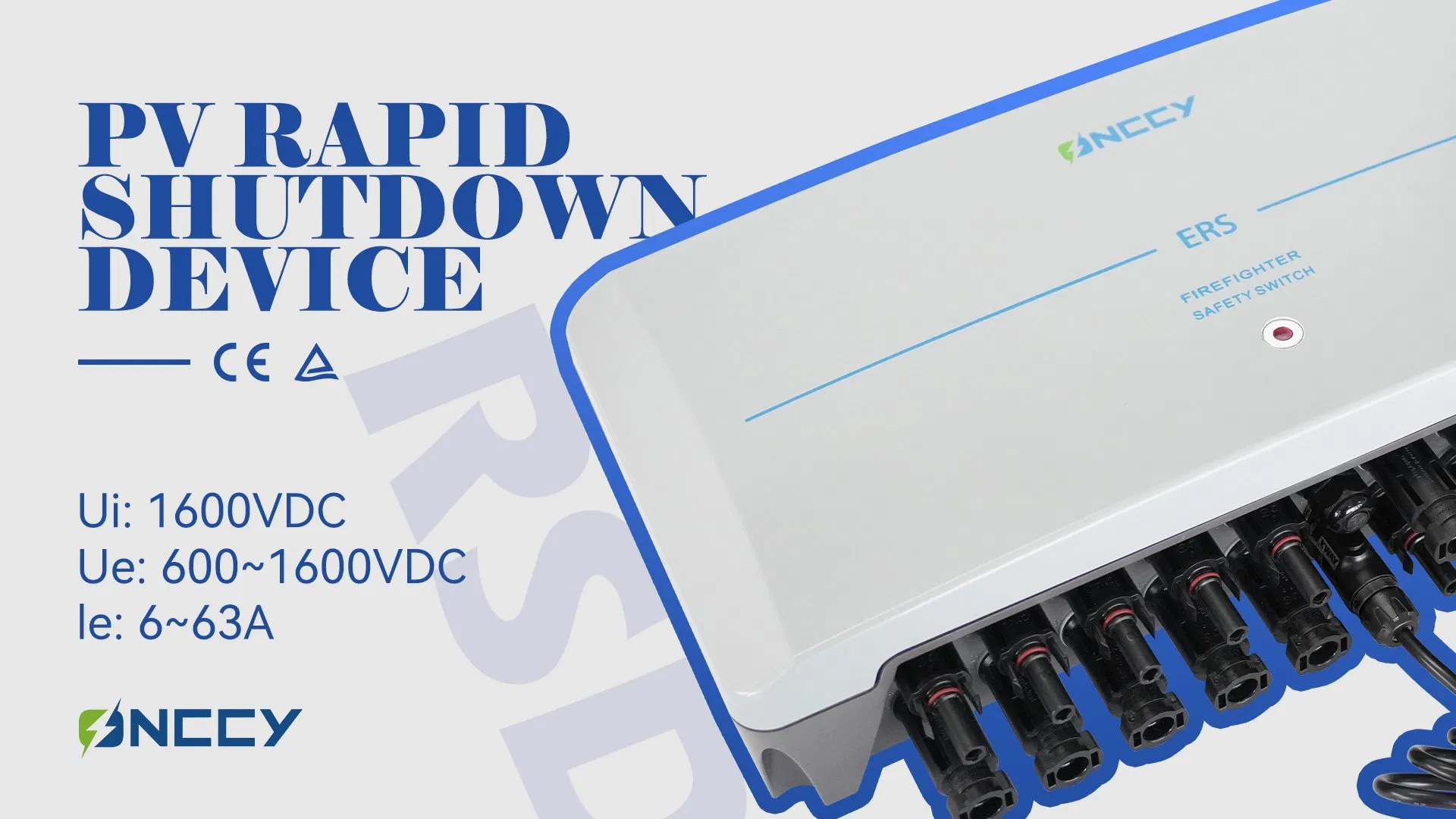

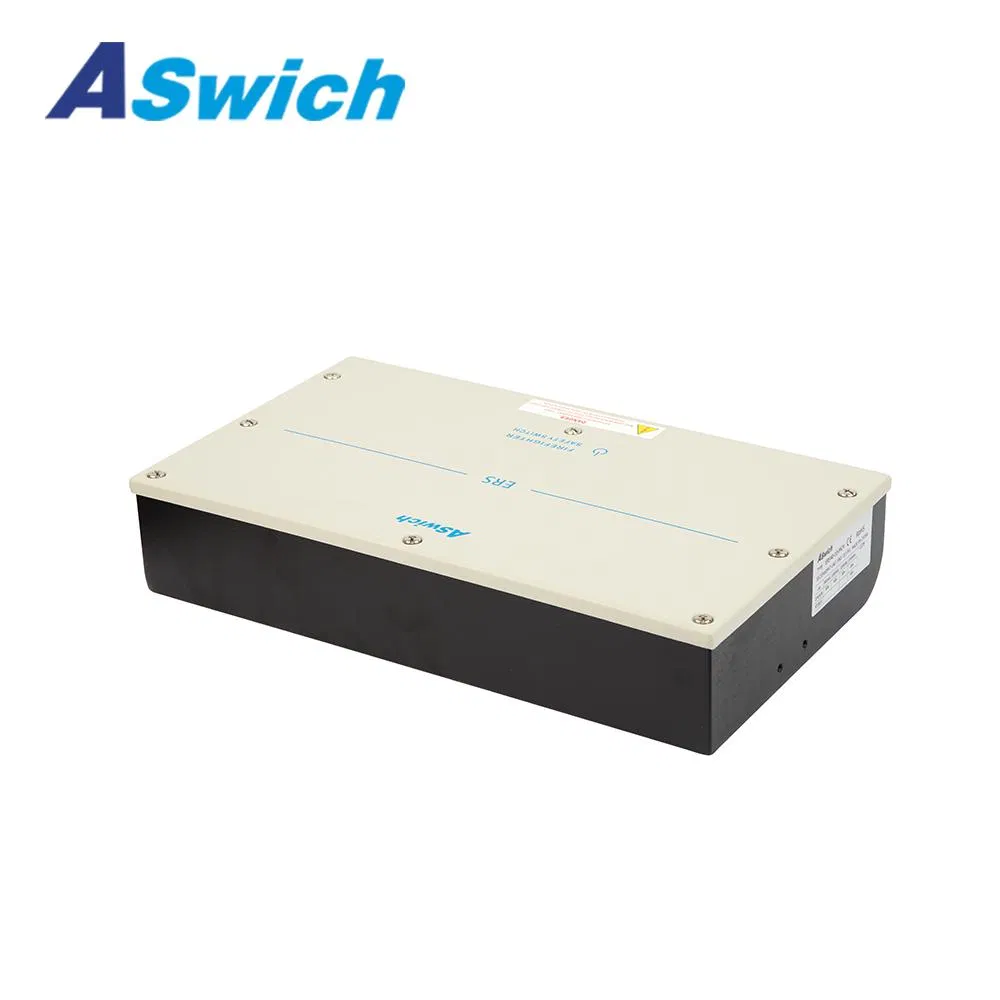

Rapid shutdown is a device that can achieve string-level fast shutdown when in critical situations. The device allows the connection between each photovoltaic module to be switched off remotely or manually, eliminating DC high voltage in the photovoltaic system array, reducing the risk of electric shock and addressing the risk of rescue.

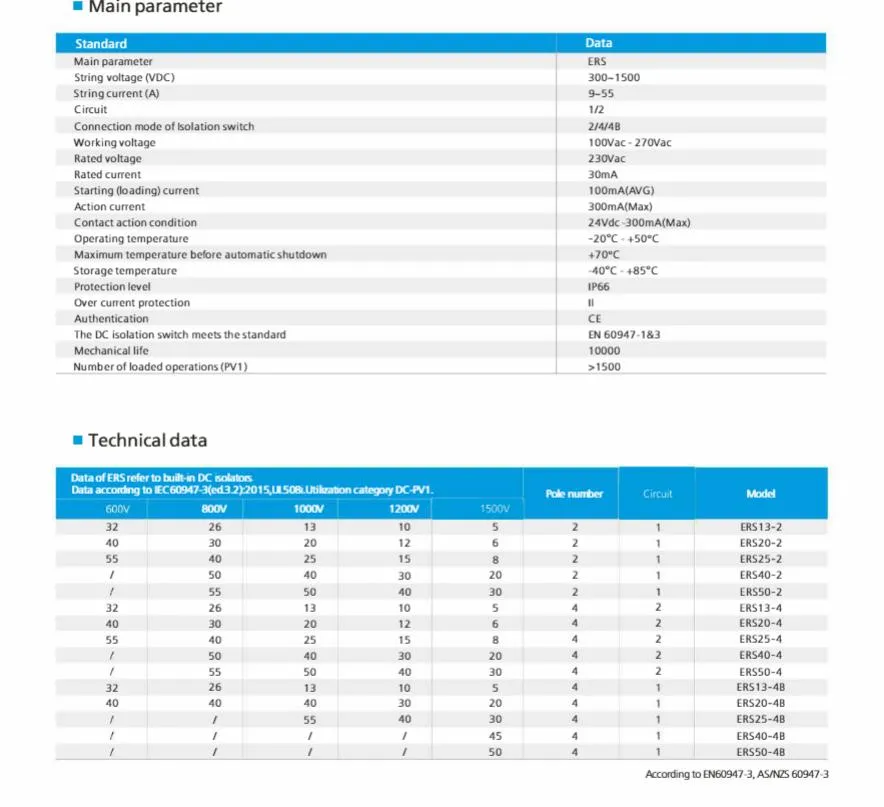

String-level Rapid shutdown: Within 30S of the quick shutdown start-up, it reduces voltage within the boundary range to less than 80V.

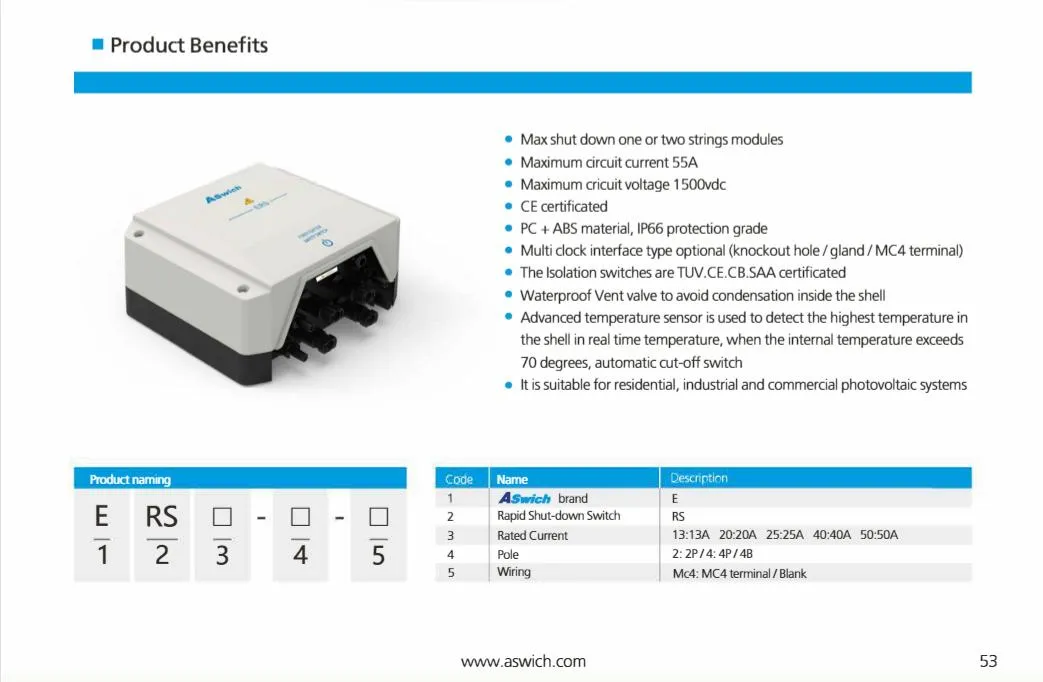

✔ Max shut down one or two strings modules
✔ Maximum circuit current 55A
✔ Maximum circuit voltage 1500VDC
✔ CE certificated; PC + ABS material (IP66)
✔ Optional interface: Knockout hole / Gland / MC4 terminal

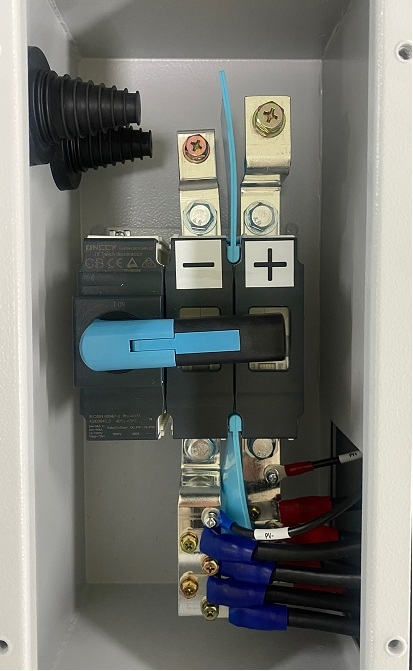

✔ Isolation switches: TUV, CE, CB, SAA certificated
✔ Waterproof Vent valve to avoid internal condensation
✔ Advanced sensor: Automatic cut-off if internal temperature exceeds 70°C
Frequently Asked Questions
What is the primary function of this Rapid Shutdown device?
It is designed to achieve string-level fast shutdown in critical situations, eliminating high DC voltage in the PV array to ensure safety for rescuers and reduce electric shock risks.
How fast does the shutdown trigger?
The device reduces the system voltage to less than 80V within 30 seconds of activation.
What are the built-in safety protections?
It features triple protection: high-temperature automatic shutdown (at 70°C), automatic shutdown when AC power is cut off, and a manual shutdown option.
Is the device suitable for outdoor use?
Yes, it features an IP68 waterproof enclosure box and IP66 rated materials, along with a waterproof vent valve to prevent internal condensation.
What is the expected lifespan of the product?
The product is designed with a service life of 25 years and comes with a 5-year warranty.
What certifications does the device hold?
The device and its isolation switches are certified by CE, TUV, CB, and SAA, ensuring compliance with international safety standards.
