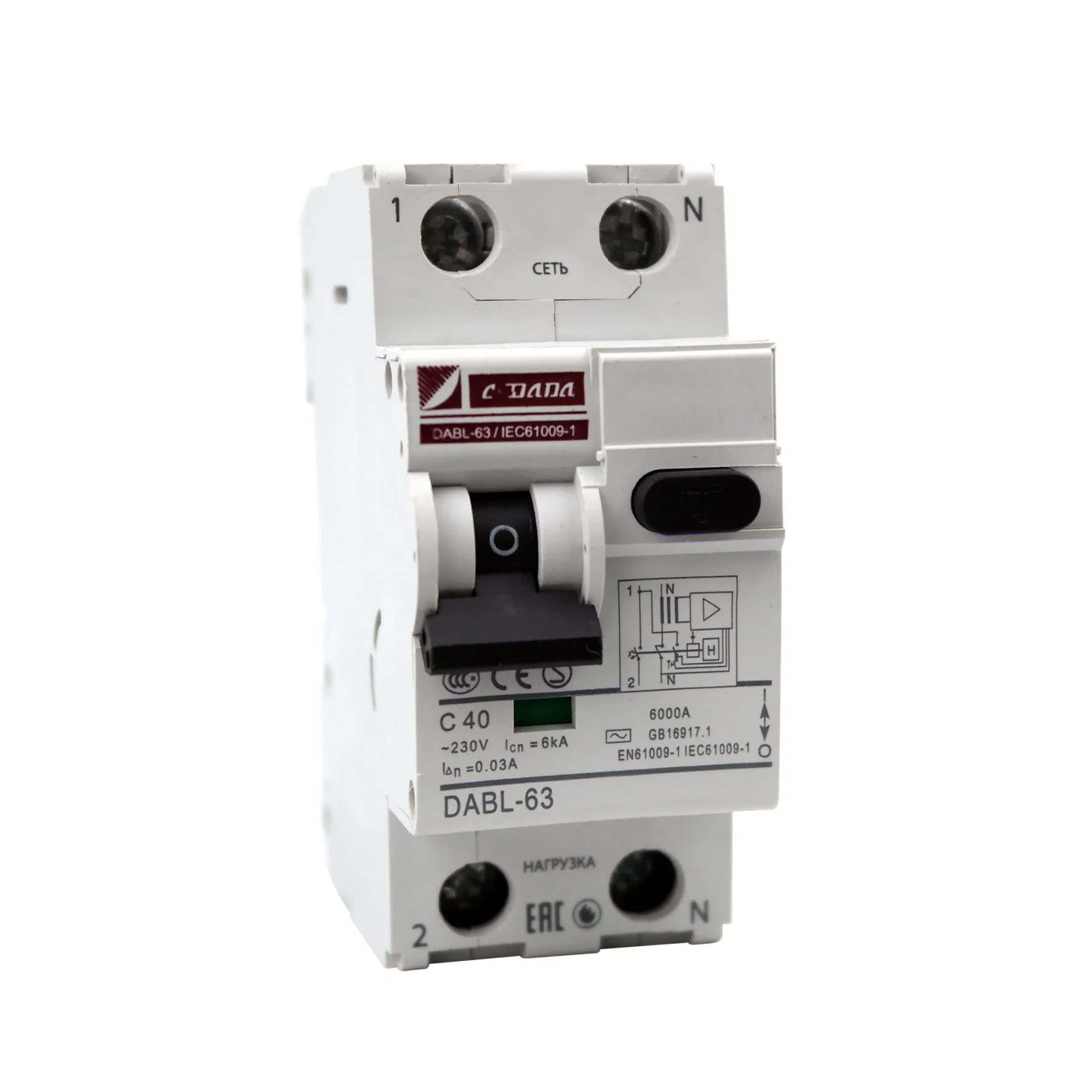

30mA Residual Current Device with 6ka Electronic RCBO Certification
30mA Residual Current Device with 6ka Electronic RCBO Certification
30mA Residual Current Device with 6ka Electronic RCBO Certification
30mA Residual Current Device with 6ka Electronic RCBO Certification
30mA Residual Current Device with 6ka Electronic RCBO Certification
1 / 5
30mA Residual Current Device with 6ka Electronic RCBO Certification
30mA Residual Current Device with 6ka Electronic RCBO Certification
30mA Residual Current Device with 6ka Electronic RCBO Certification
30mA Residual Current Device with 6ka Electronic RCBO Certification
30mA Residual Current Device with 6ka Electronic RCBO Certification

30mA Residual Current Device with 6ka Electronic RCBO Certification

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
dabl-63 1p+n
Speed
High-Speed Circuit Breaker
Arc-extinguishing
Arc Chamber
Installation
Fixed
Structure
MCB
Poles Number
1p+N
Certification
ISO9001-2000, CE, CB, CCC
Breaking Capacity
6kA / 10kA
Rated Current
6, 10, 16, 20, 25, 32, 40, 50, 63A
Release Type
Electronic Type

Product Description

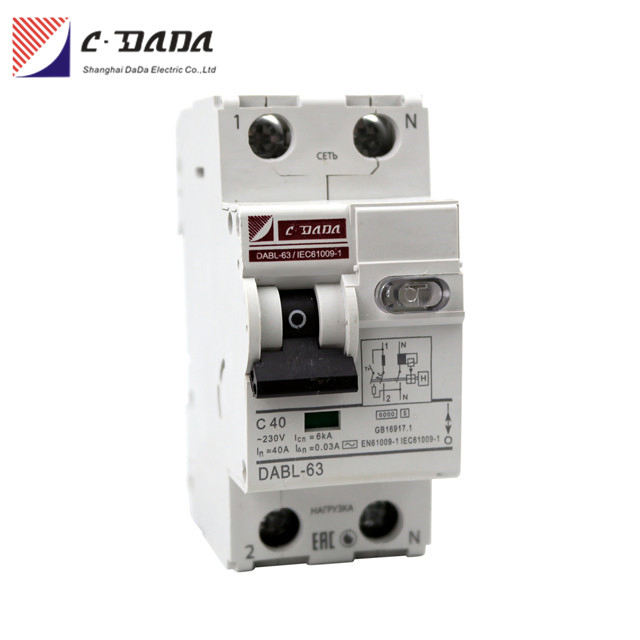

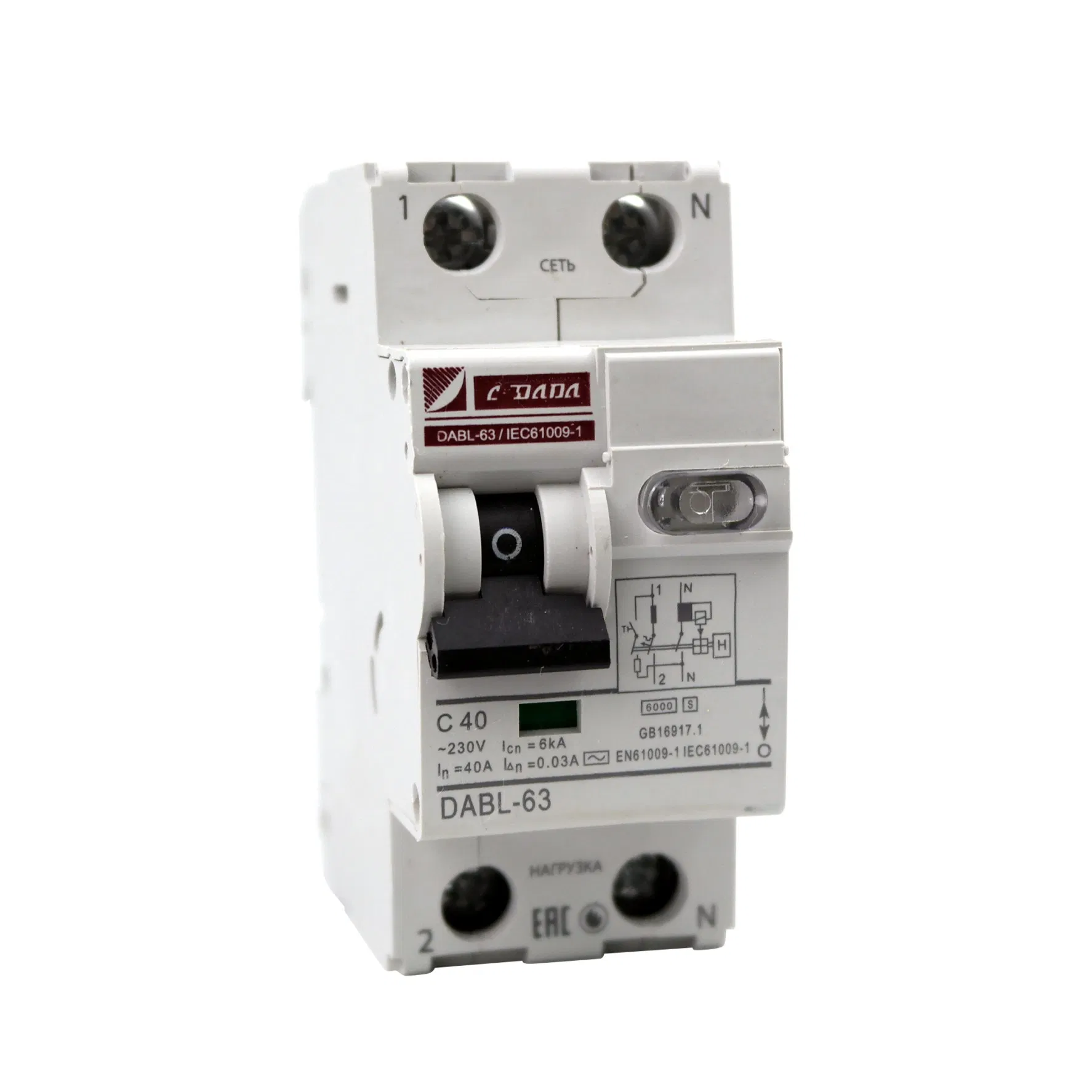

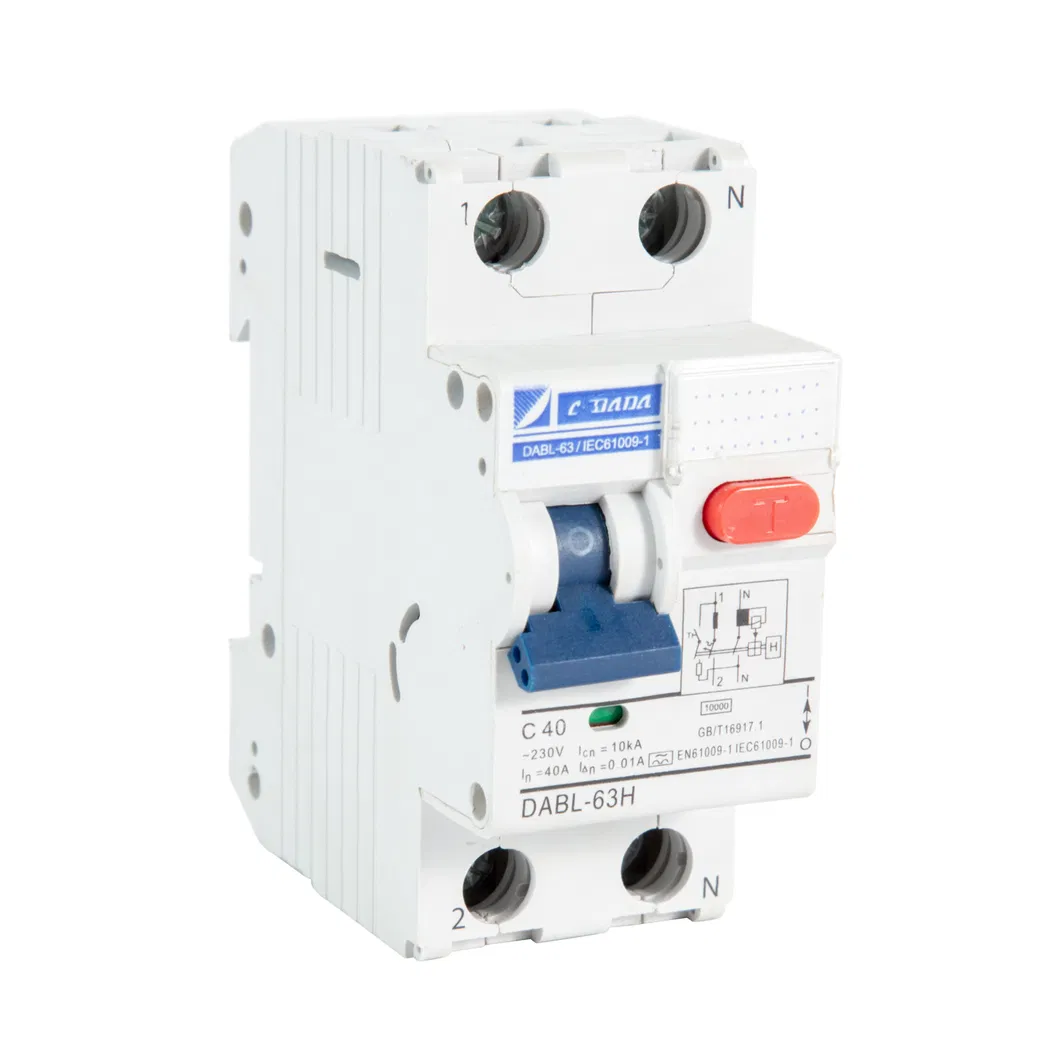

DABL-63 Electronic RCBO

DABL-63 6kA 10kA Electronic Residual Current Device RCBO Circuit Breaker

The DABL-63 is a top-tier electronic residual current circuit breaker, available in both 6kA and 10kA variants. This device offers unparalleled stability and precision protection. With a rapid response and extraordinary breaking capacity, all encased in a sleek, compact design, it adheres to stringent GB 10963 and IEC60898 standards.

🛡️
Key Protection Features:
Short circuit protection, overload protection, and isolation, delivering a comprehensive safety solution for contactors, relays, and various electrical equipment.
Rated current Frequency Voltage Residual Current Insulation Voltage Trip Type Breaking Capacity Dimensions (W*H*L)
6-63A 50-60Hz 230/400V 10, 30, 100, 300mA 500V B/C/D 10KA / 6KA 36/54mm*80.4mm*72mm

Technical Parameters

  • Protection Grade: IP20, safeguarding against solid objects.
  • Flame Retardant: Grade 2 robust resistance.
  • Endurance: 12,000 mechanical operations / 6,000 electrical operations.
  • Wire Capacity: 1mm² to 25mm².
  • Operating Temperature: -5°C to +40°C (Adapts to -25°C for specific modules).
  • Altitude: Reliable functionality up to 2000 meters.
  • Installation Grade: Grade II, Grade III.

Available Accessories: Auxiliary contact, alarm contact, shunt trip, undervoltage trip, and overvoltage trip.

Key Advantages

· Differential protection electronic module integration.
· Distinct contact position indicator for monitoring.
· Terminal clamp notches reduce thermal losses.
· Convenient 'TEST' button for functionality checks.
· Compact 2-modular design saves space.
· High 6kA/10kA capability for primary protection.

Product Gallery

RCBO Detail 1
RCBO Detail 2

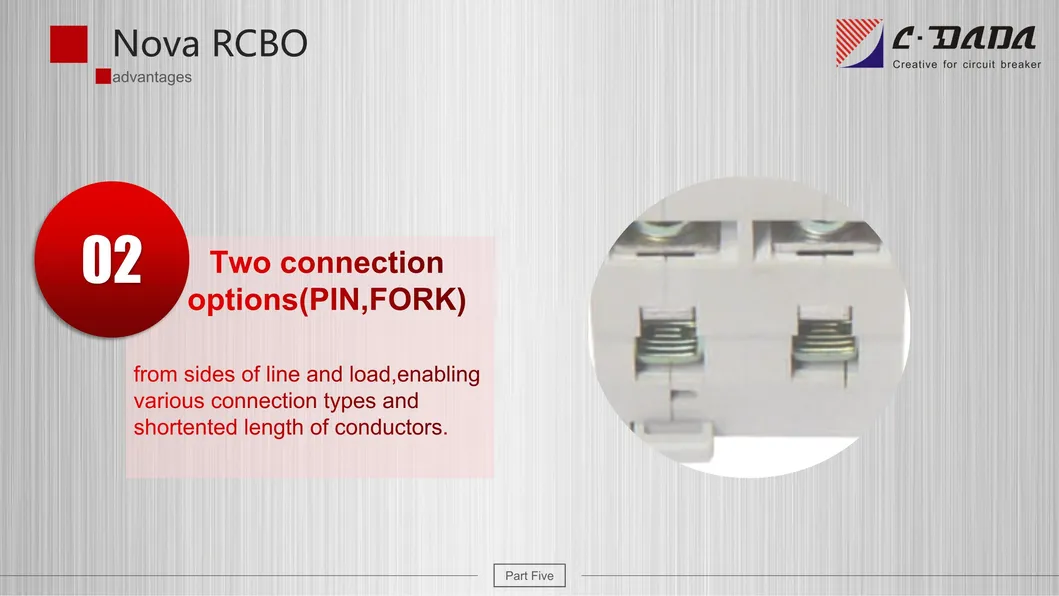

RCBO Detail 3
RCBO Detail 4

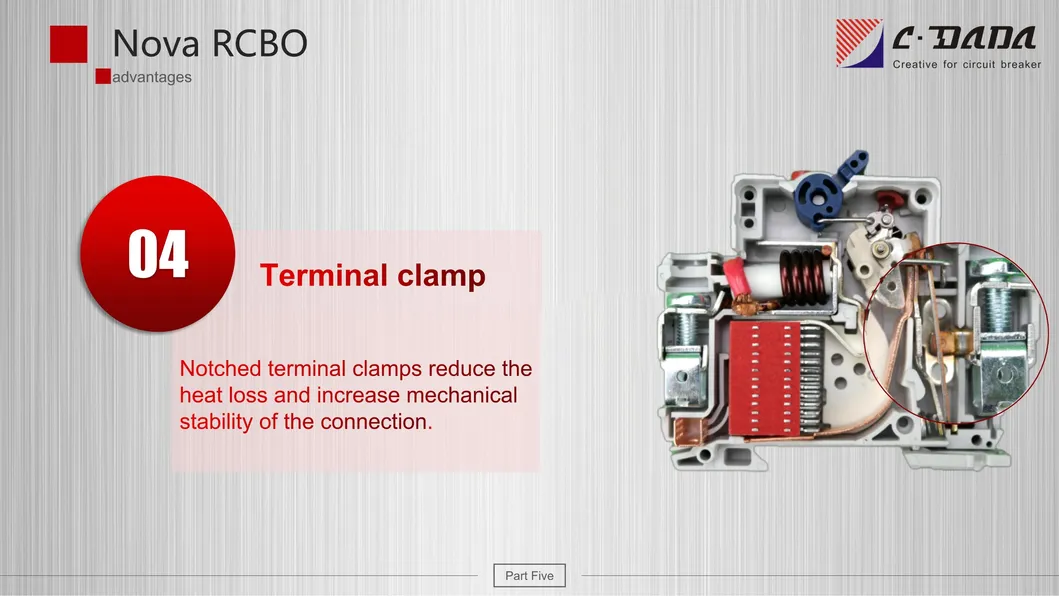

RCBO Detail 5

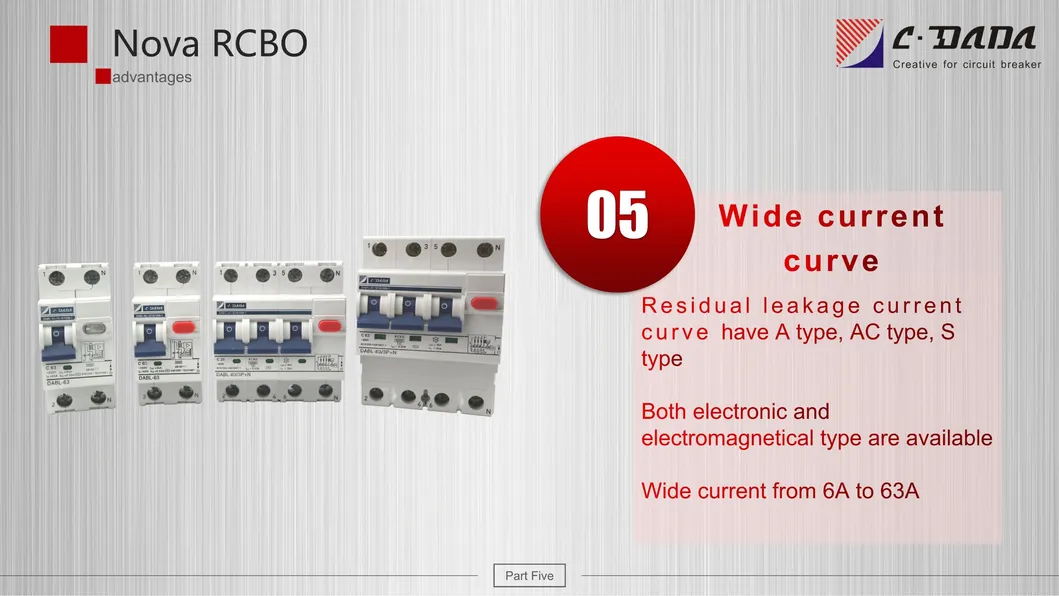

RCBO Detail 6
Technical Drawing 1 Technical Drawing 2 Technical Drawing 3

Frequently Asked Questions

What is the main application of the DABL-63 RCBO?
It is primarily used for short circuit protection, overload protection, and isolation. It protects electrical equipment like contactors and relays from damage while ensuring user safety against electric shocks.
What breaking capacities are available for this model?
The DABL-63 series is available in two high-performance variants: 6kA and 10kA breaking capacity.
Does it support different tripping curves?
Yes, the device supports instantaneous trip types B, C, and D to suit various load requirements.
What are the environmental operating limits?
The device operates effectively in temperatures ranging from -5°C to +40°C and is suitable for altitudes up to 2000 meters. It also features a Grade 2 flame retardant rating.
How can I verify if the RCBO is working correctly after installation?
The DABL-63 includes a built-in 'TEST' button on the front panel, allowing you to easily verify functionality and ensure the connection accuracy at any time.
What wire sizes can the terminals accommodate?
The electric wire capacity is versatile, accommodating wiring sizes from 1mm² up to 25mm².
