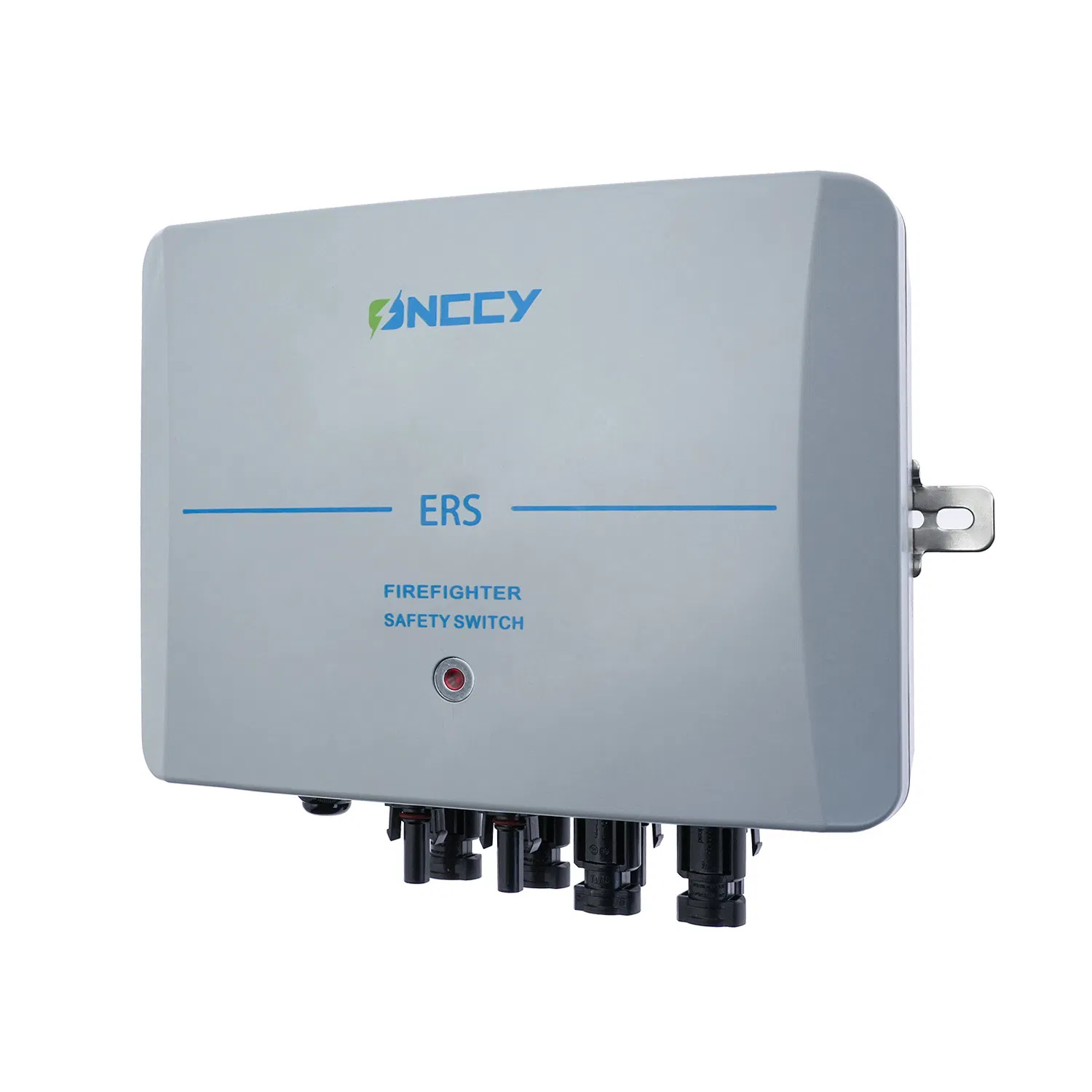

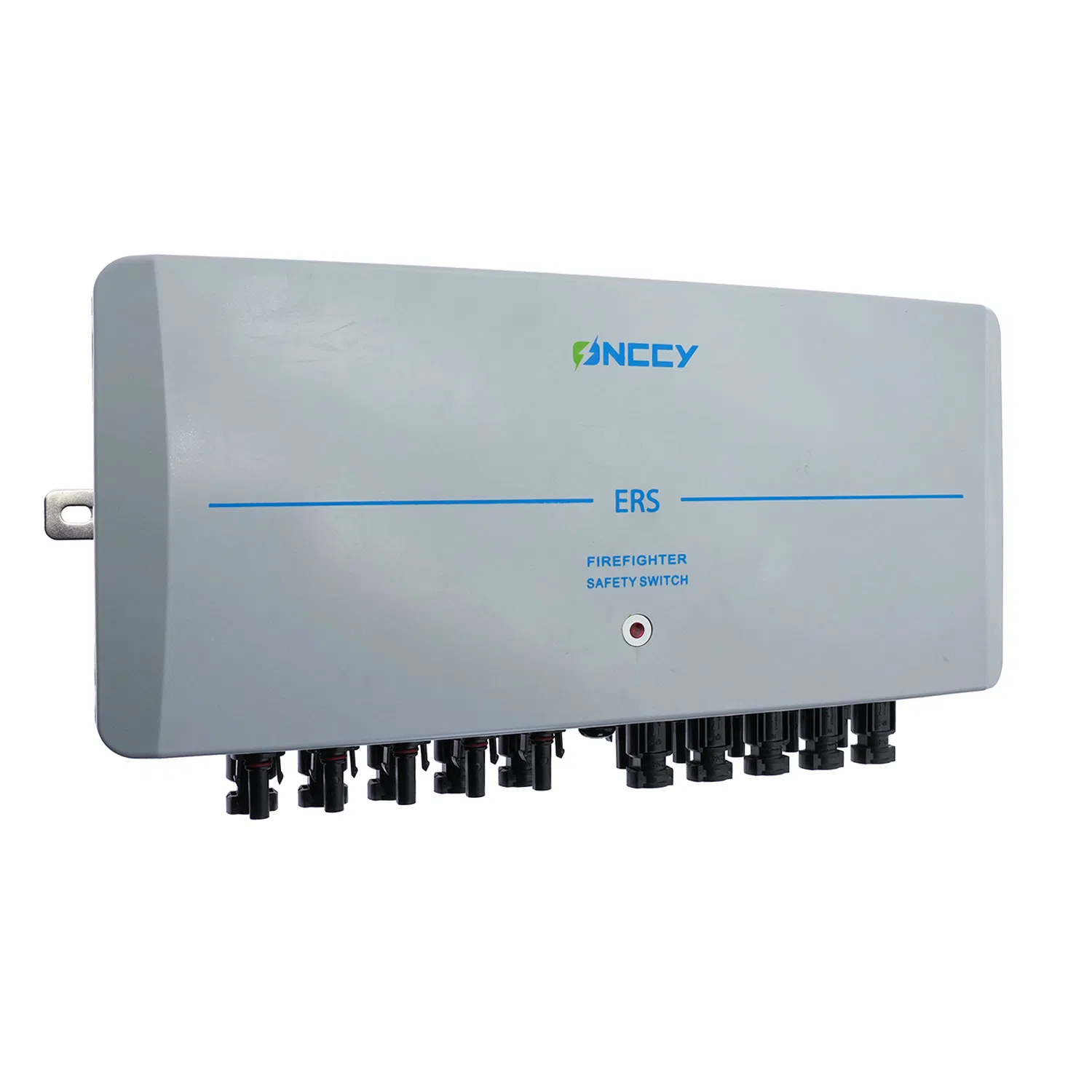

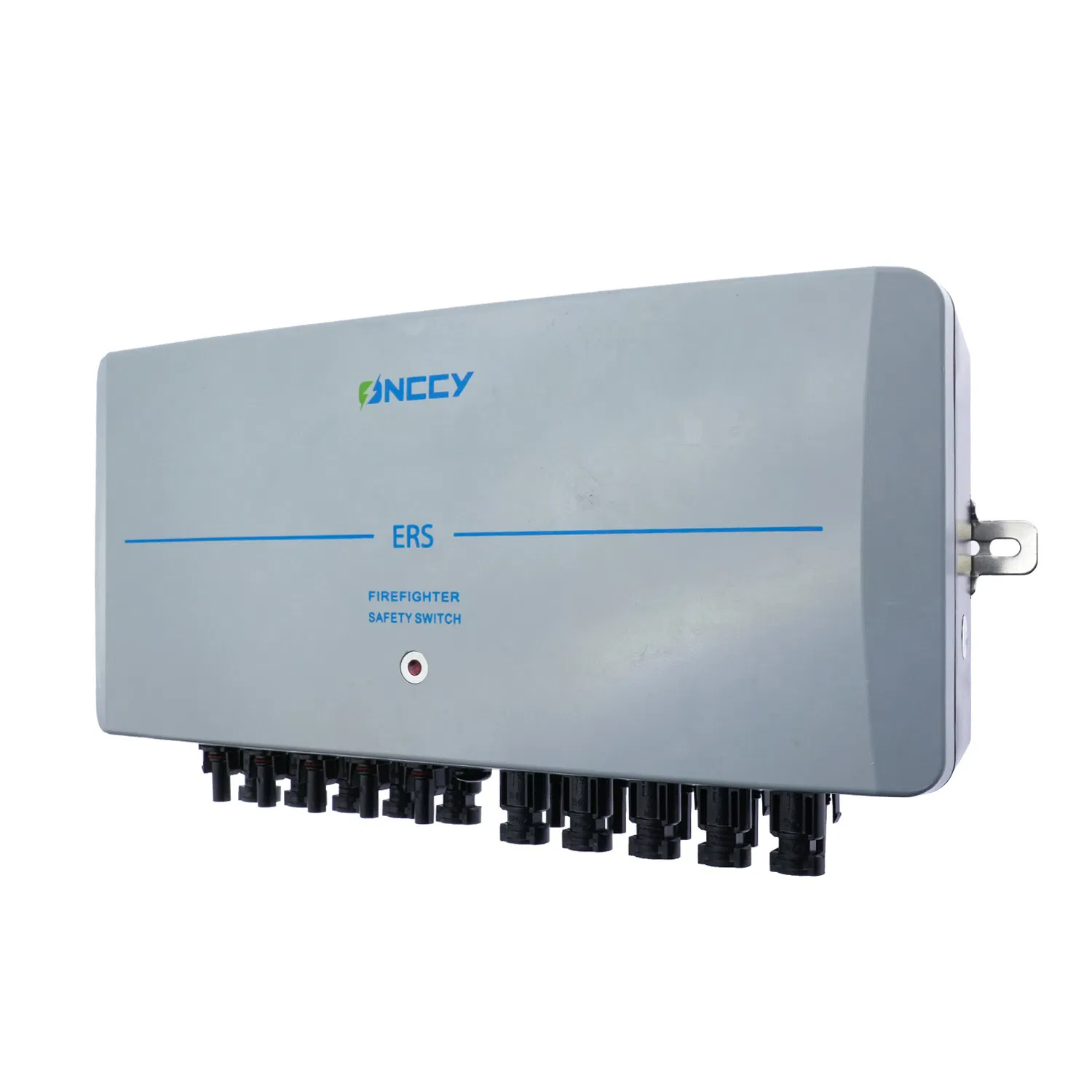

1000V Solar Firefighter Safety Switch PV String Rapid Shutdown Device
1000V Solar Firefighter Safety Switch PV String Rapid Shutdown Device
1000V Solar Firefighter Safety Switch PV String Rapid Shutdown Device
1000V Solar Firefighter Safety Switch PV String Rapid Shutdown Device
1000V Solar Firefighter Safety Switch PV String Rapid Shutdown Device
1 / 5
1000V Solar Firefighter Safety Switch PV String Rapid Shutdown Device
1000V Solar Firefighter Safety Switch PV String Rapid Shutdown Device
1000V Solar Firefighter Safety Switch PV String Rapid Shutdown Device
1000V Solar Firefighter Safety Switch PV String Rapid Shutdown Device
1000V Solar Firefighter Safety Switch PV String Rapid Shutdown Device

1000V Solar Firefighter Safety Switch PV String Rapid Shutdown Device

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

!Overview & Basic Info
Model NO.
ERS-2/4 Series
String
1-10
Standard
DC-PV1
HS Code
850440
Production Capacity
1,000,000 PC/Year
Origin
China
iProduct Description
Rapid shutdown is a device that can achieve string-level fast shutdown in critical situations. The device allows the connection between each photovoltaic module to be switched off remotely or manually, eliminating DC high voltage in the photovoltaic system array, reducing the risk of electric shock and addressing rescue risks.

String-level Rapid shutdown: Within 30 seconds of activation, the device reduces voltage within the boundary range to less than 80V.

Product Features:
✓Suitable for residential, industrial, commercial, and ground power stations.
✓Compatible with 1-10 strings.
✓Design life of 25 years with a 5-year warranty.
✓IP68 waterproof Enclosure box.
✓Triple protection: High-temperature auto-shutdown, AC power cut-off auto-shutdown, and manual shutdown.
Technical Highlights:
★Max circuit current: 55A
★Maximum circuit voltage: 1500VDC
★PC + ABS material, IP66 protection grade
★CE, TUV, CB, SAA certificated isolation switches
★Waterproof vent valve to prevent internal condensation
★Real-time thermal sensing: Automatic cut-off at 70°C
PDetailed Photos

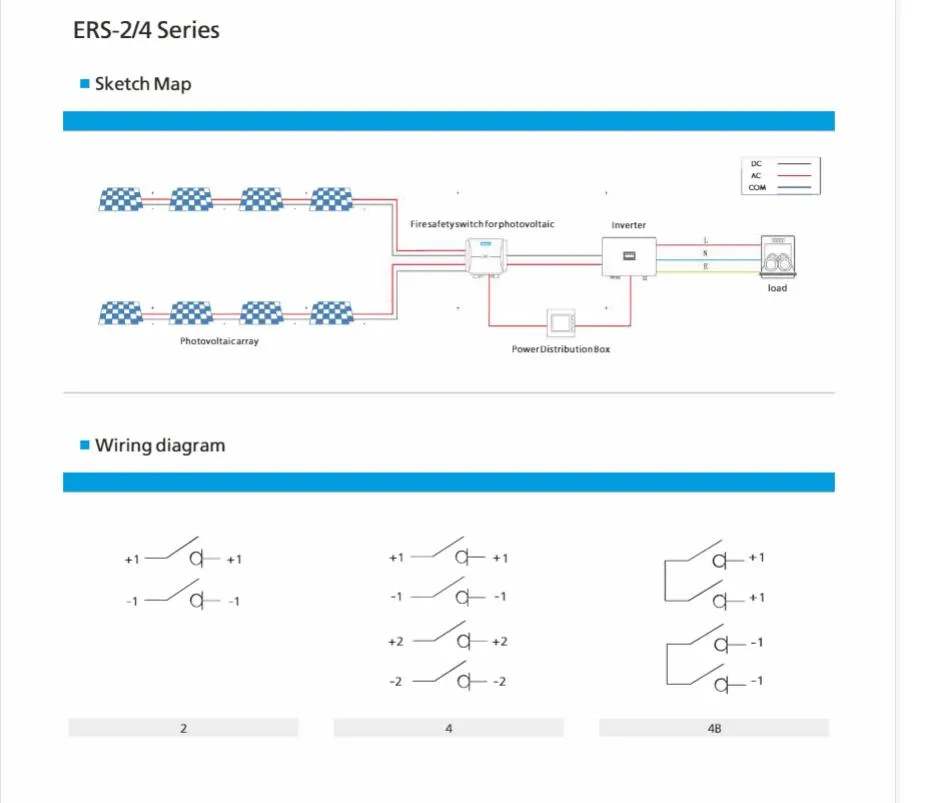

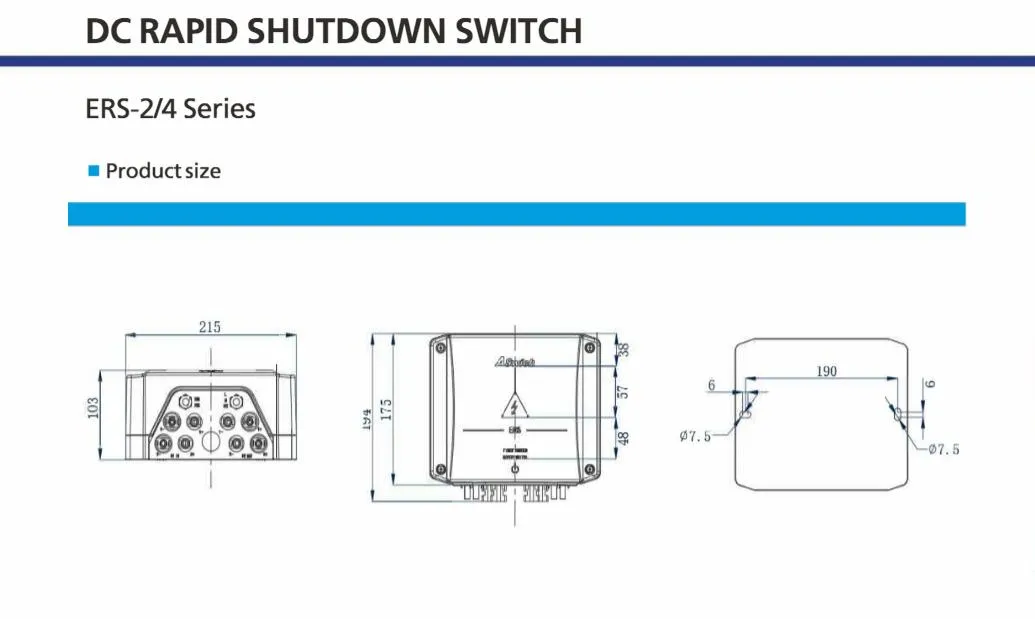

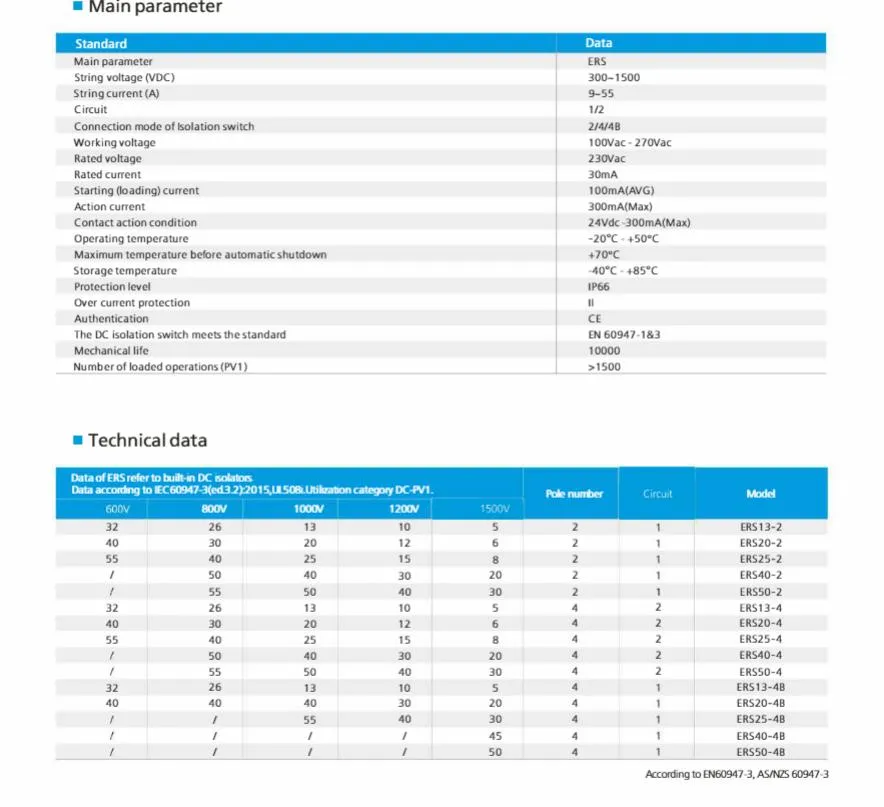

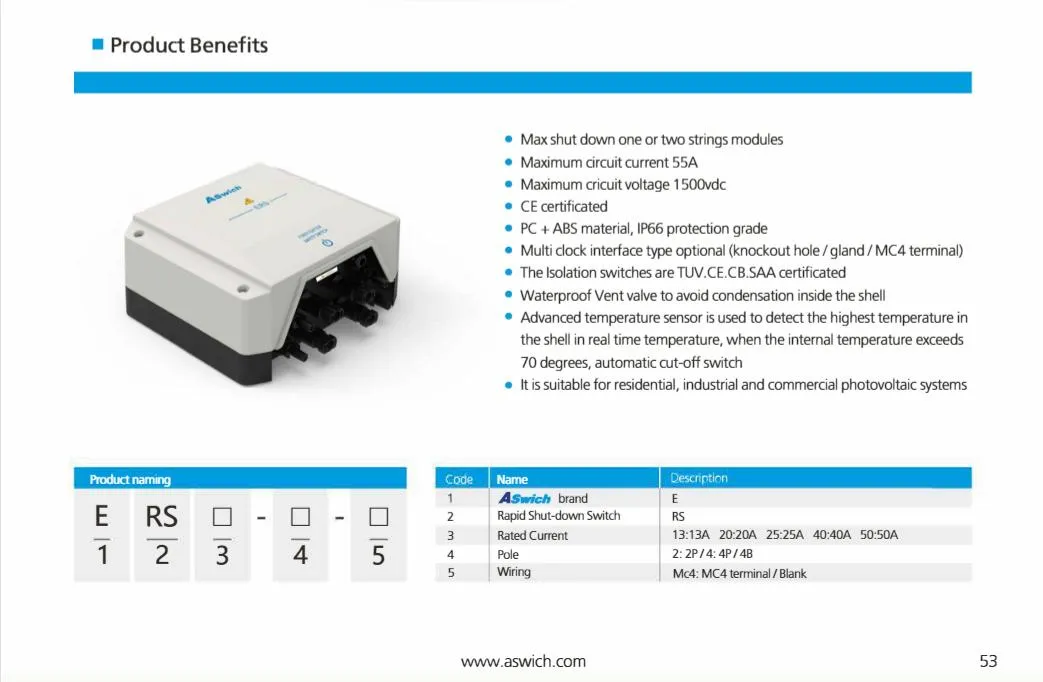

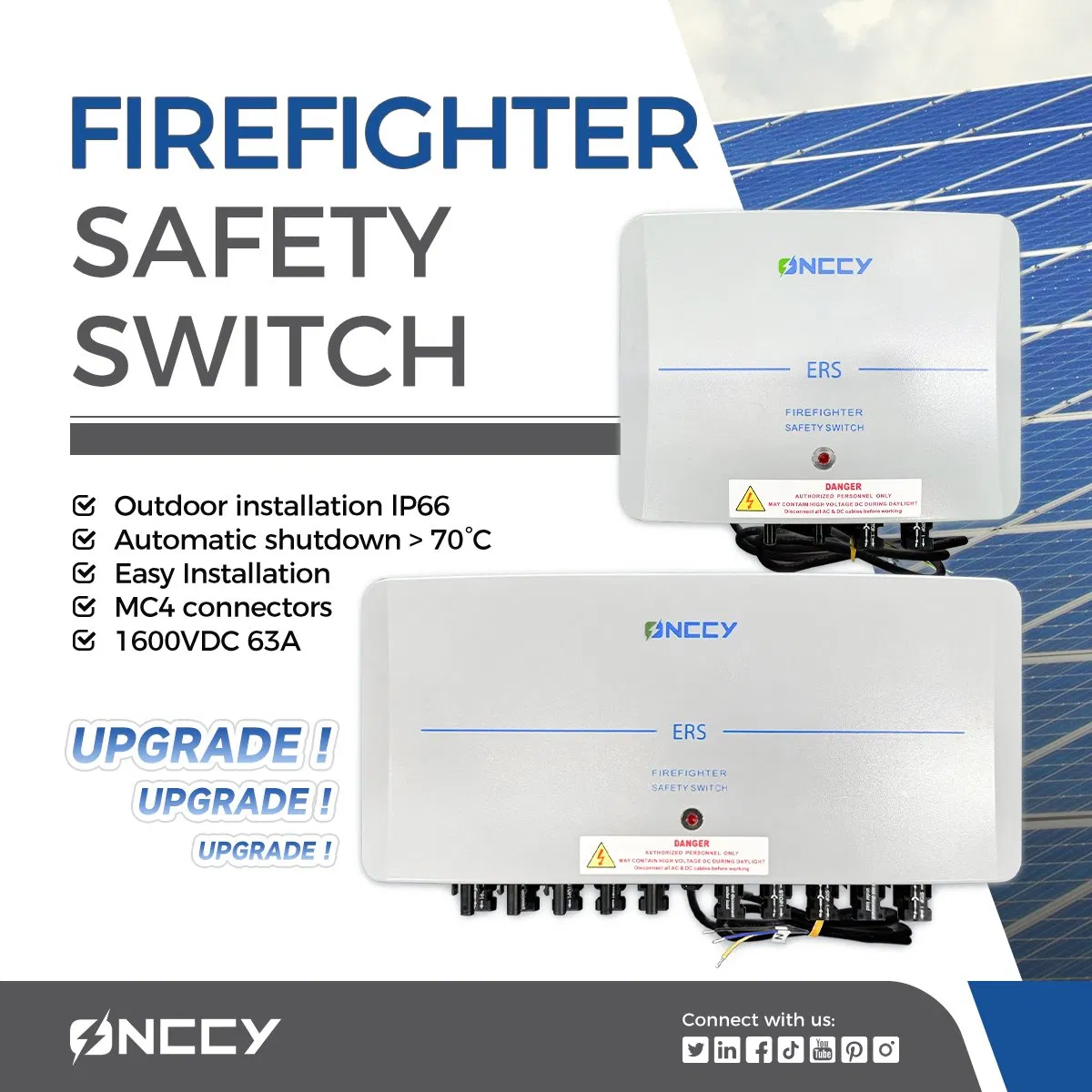

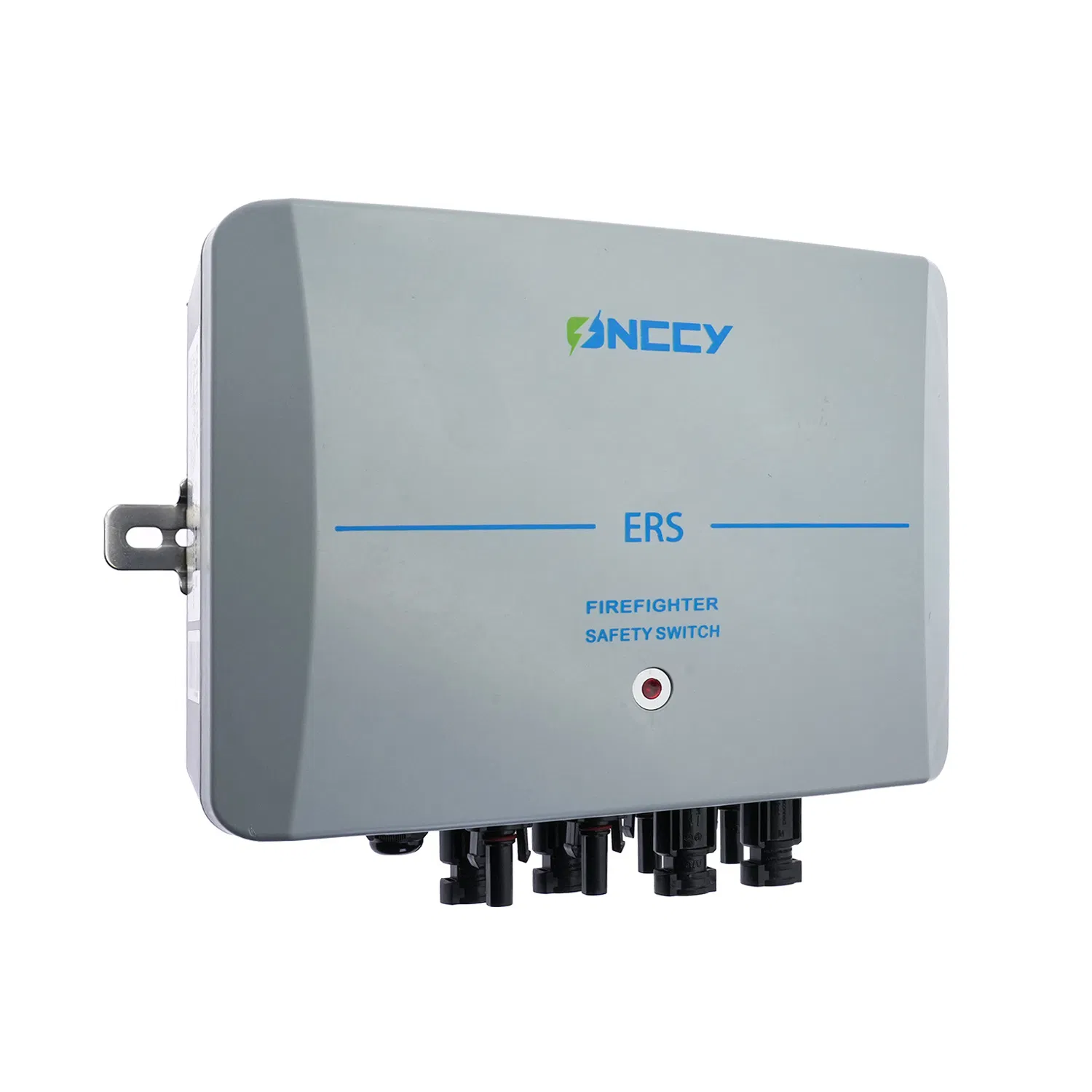

PV String Rapid Shutdown Device Overview Firefighter Safety Switch Front View Solar Rapid Shutdown Side View Connection Terminals Detail
TProduct Parameters
Parameter Value
Main parameterERS
String voltage (VDC)300-1500
String current (A)9-55
Circuit3/4/5
Working voltage100Vac-270Vac
Rated voltage230Vac
Action current300mA (Max)
Operating temperature-20°C to +50°C
Automatic shutdown temperature+70°C
Protection levelIP66
Mechanical life10,000 cycles
AuthenticationCE / EN 60947-1&3
CQuality Assurance & Facilities

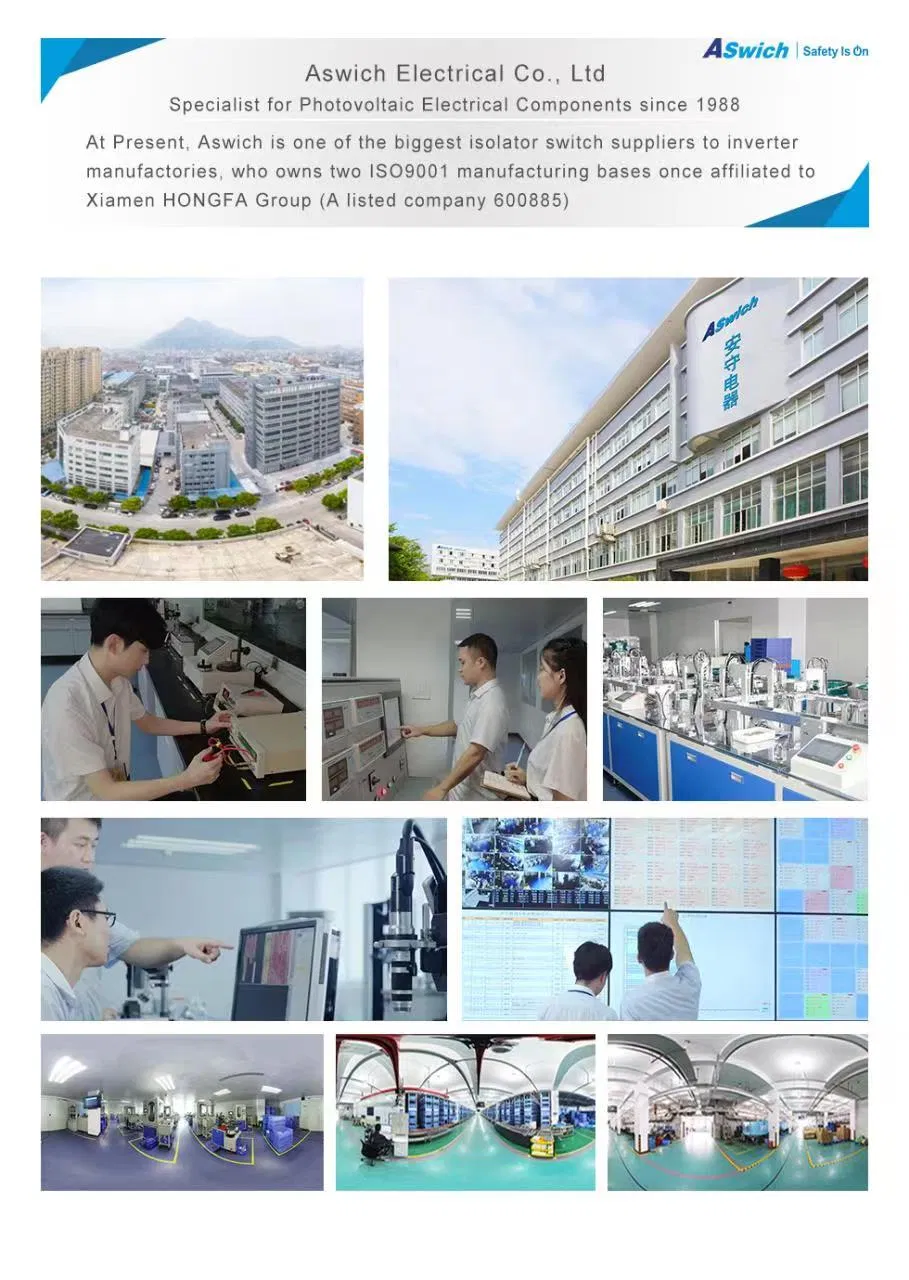

Production Facility Testing Equipment Quality Control
Frequently Asked Questions
Q1: What is the primary purpose of a PV Rapid Shutdown Device? A: It is designed to quickly reduce the voltage of solar modules to a safe level during emergencies, ensuring the safety of firefighters and maintenance personnel by eliminating DC high voltage.
Q2: How fast does the shutdown trigger? A: The ERS series achieves string-level rapid shutdown within 30 seconds of activation, dropping the boundary voltage to below 80V.
Q3: Does the device provide high-temperature protection? A: Yes, it features an advanced temperature sensor that automatically triggers a cut-off if the internal temperature exceeds 70°C.
Q4: Is the enclosure suitable for outdoor installation? A: Absolutely. The device is housed in a PC + ABS material enclosure with an IP66/IP68 protection grade, making it highly resistant to water and dust.
Q5: What certifications does the safety switch have? A: The isolation switches are fully certified by TUV, CE, CB, and SAA, and meet the EN 60947-1&3 standards.
Q6: What is the expected service life of the device? A: It is designed for long-term reliability with a 25-year design life and a mechanical life of 10,000 operations.
