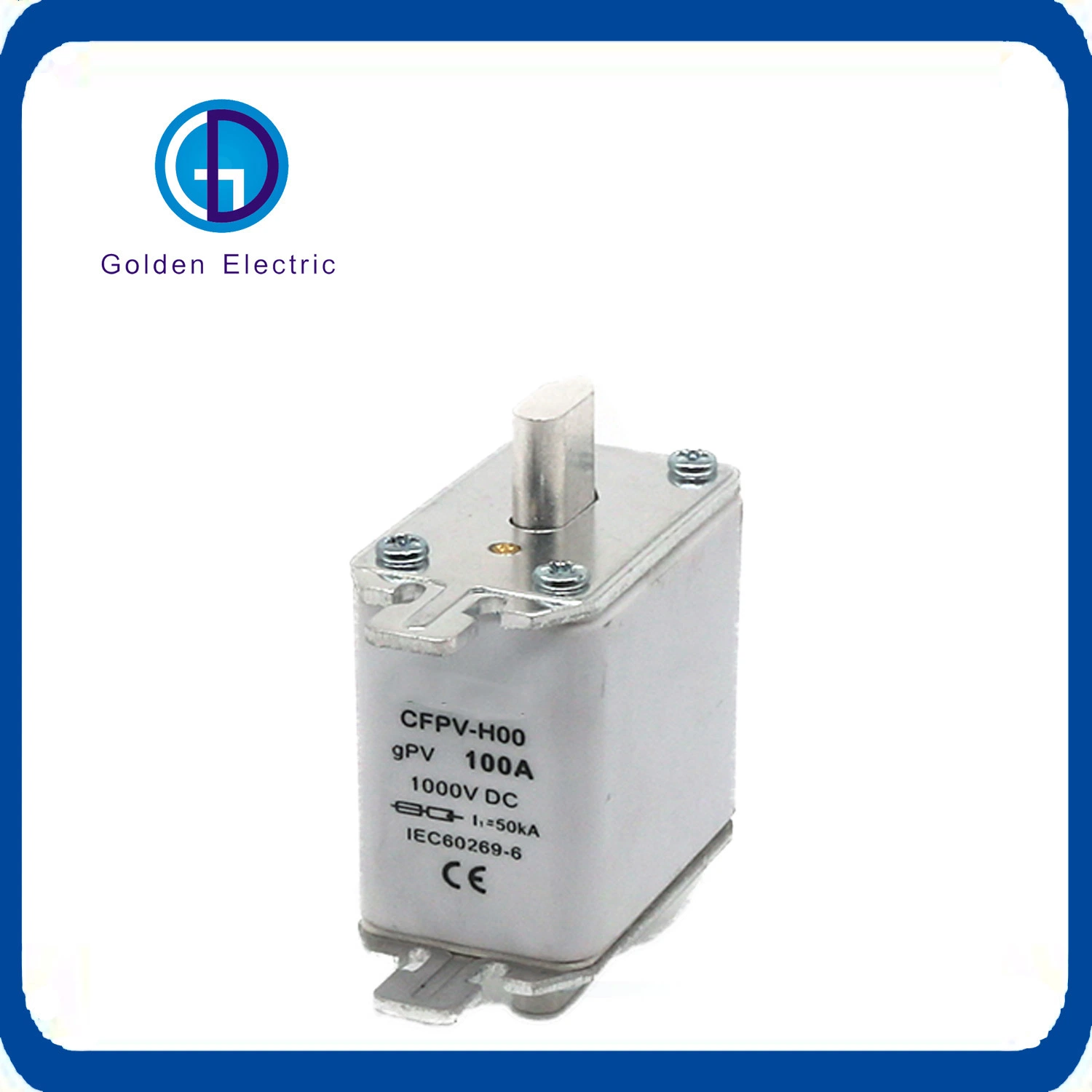

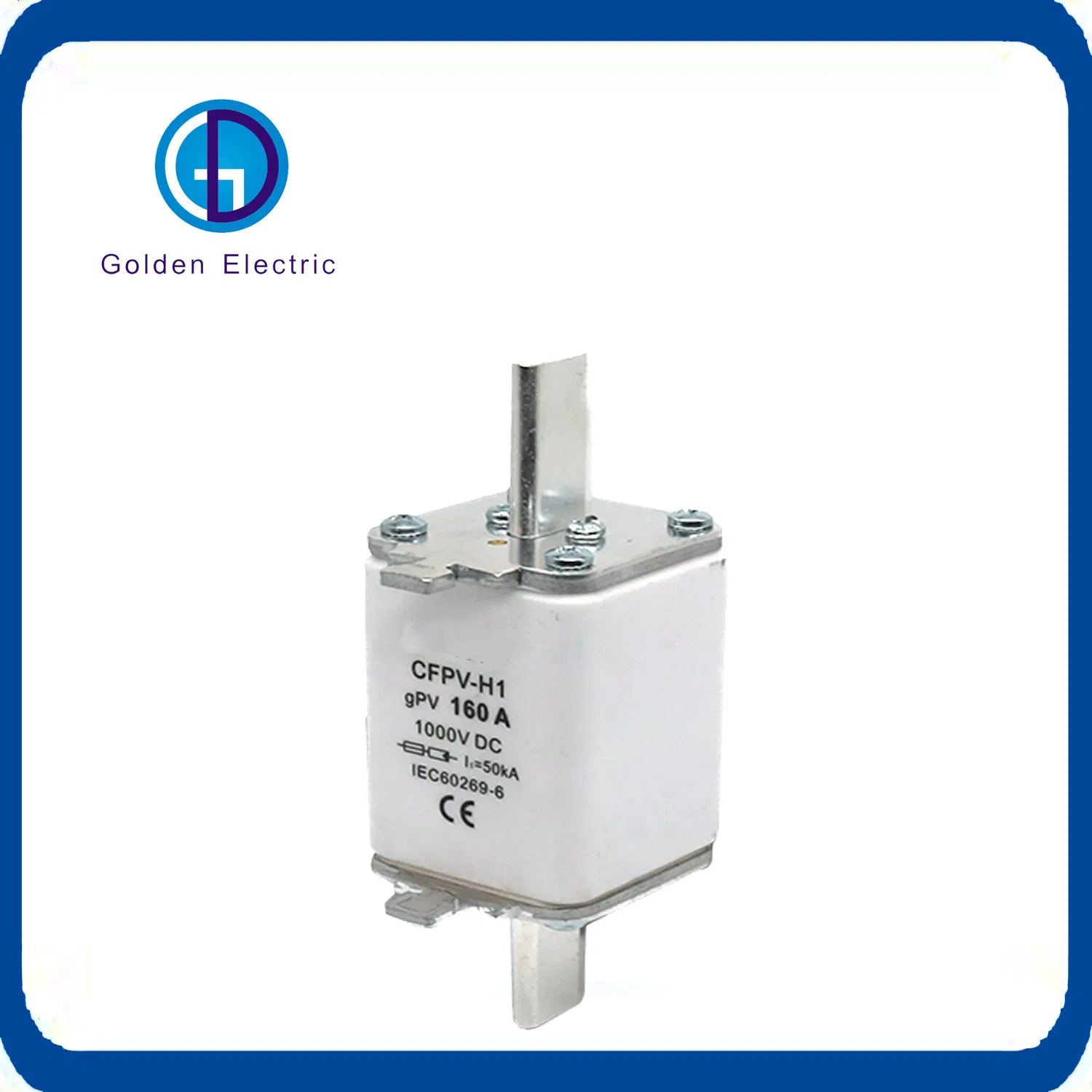

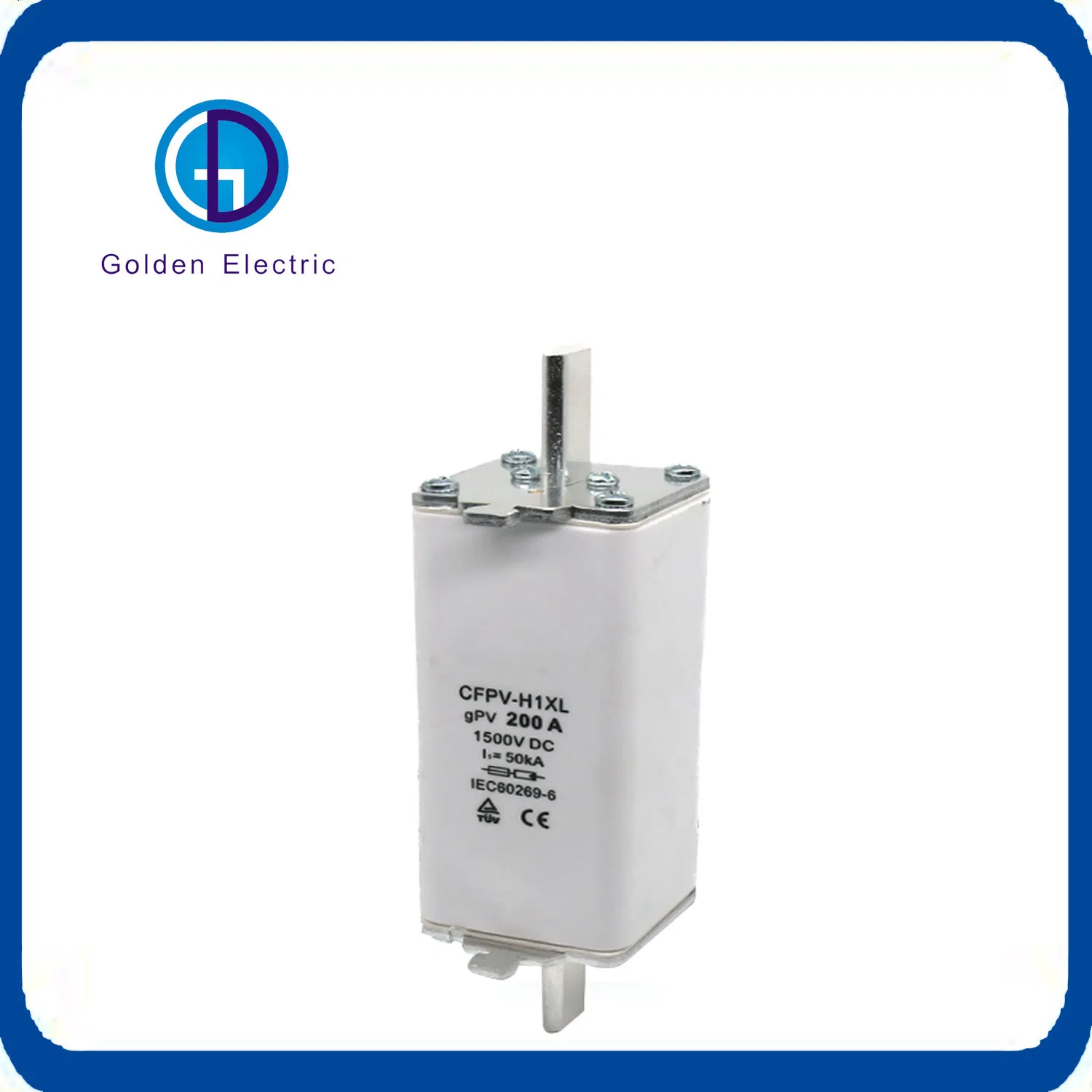

DC Solar Fuse Application: Fuse links specifically designed for protecting photovoltaic strings. These fuse links are capable of interrupting low overcurrents associated with faulted photovoltaic string arrays (reverse current, multi-array fault).
Class of Operation: gPV
Standard: GB/T 13539.6 / IEC 60269-6
Breaking Capacity: 30KA - 50KA
Time Constant: 1-3ms
CFPV-H00B: 1000VDC
CFPV-H1B: 1000VDC
CFPV-H2B: 1000VDC
CFPV-H3B: 1000VDC
CFPV-H1XLB: 1500VDC
CFPV-H2XLB: 1500VDC
CFPV-H3LB: 1500VDC

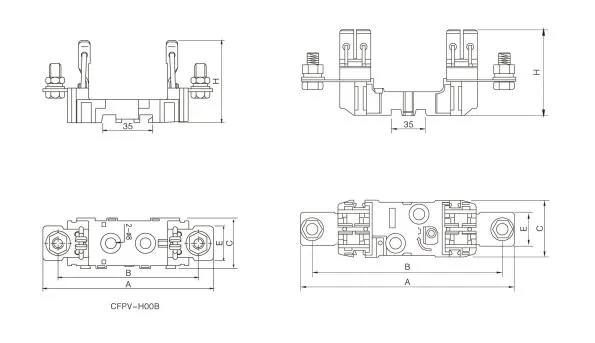

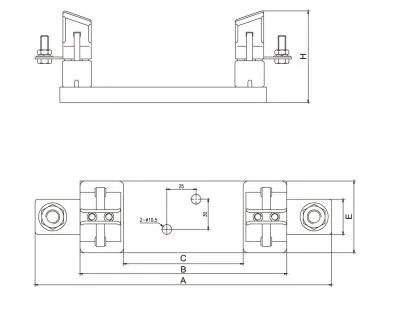

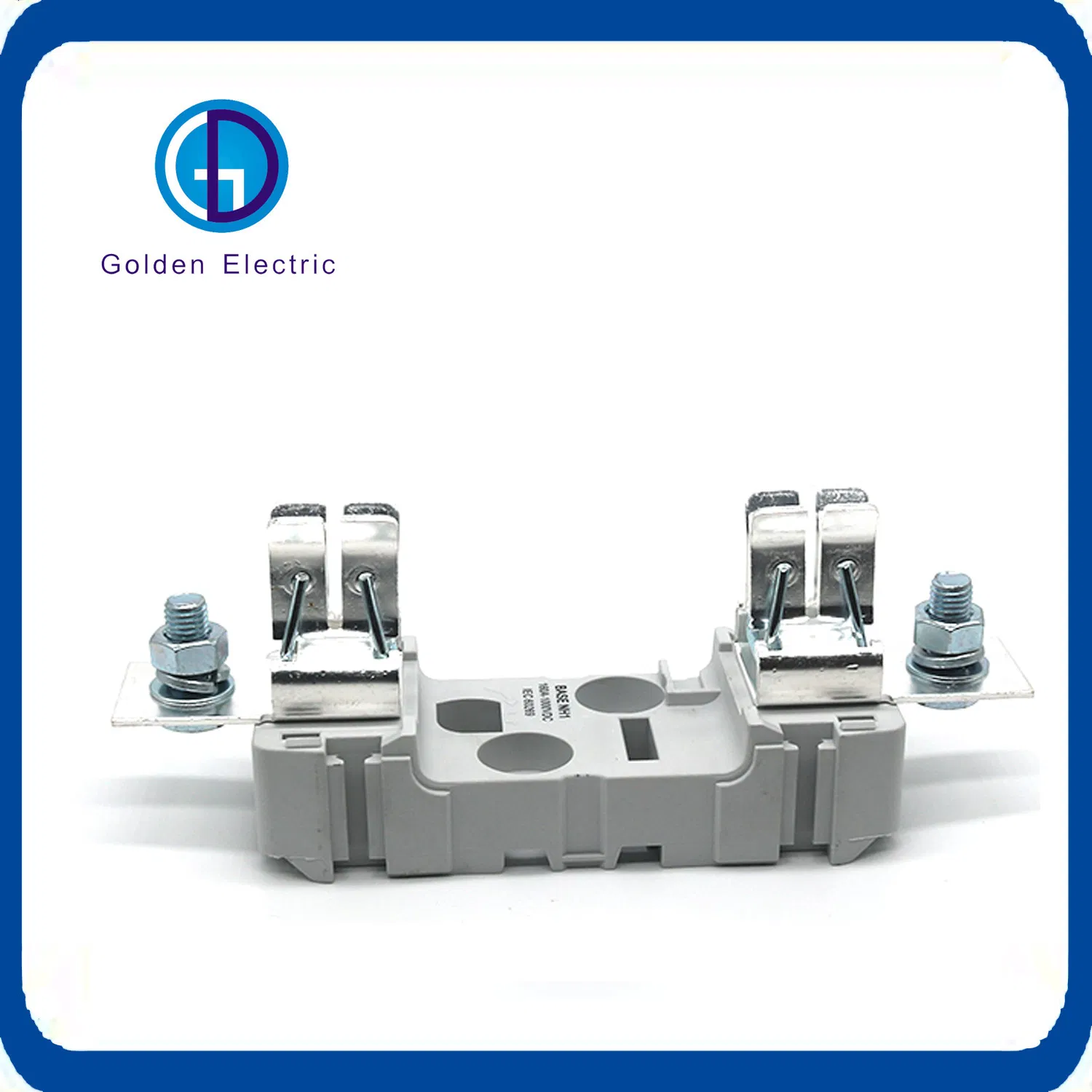

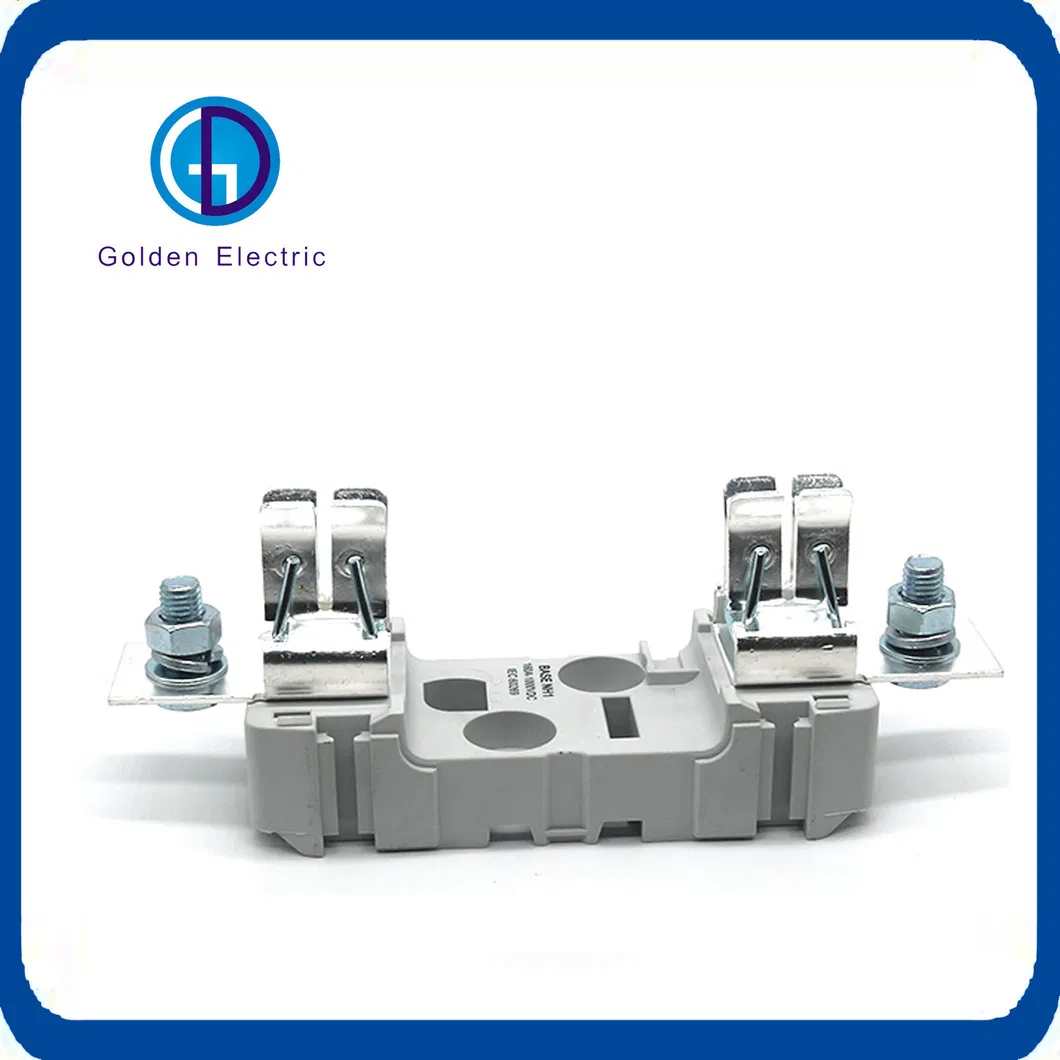

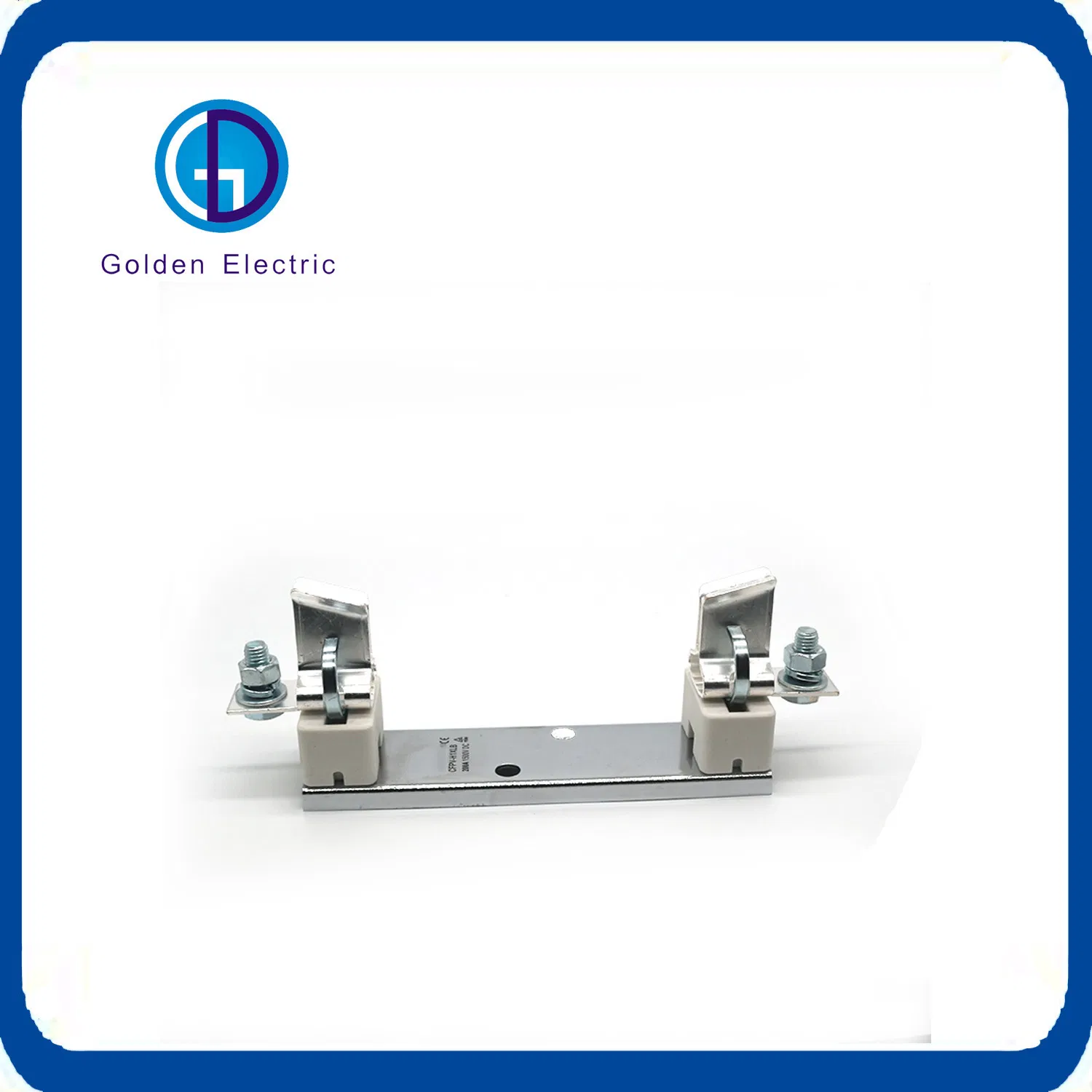

| Model | Applicable Fuse Link | Rated Voltage (V) | Rated Current (A) | Dimension (mm) | |||
|---|---|---|---|---|---|---|---|
| A | C | E | H | ||||
| CFPV-H00B | CFPV-H00 NH00 | 1000V DC | 160 | 119 | 34 | 23 | 57 |
| CFPV-H1B | CFPV-H1 NH1 | 1000V DC | 250 | - | 58 | 32 | 82 |
| CFPV-H2B | CFPV-H2 NH2 | 1000V DC | 400 | 224 | 58 | 35 | 89 |
| CFPV-H3B | CFPV-H3 NH3 | 1000V DC | 630 | 239 | 58 | 40 | 106 |
| CFPV-H1XLB | CFPV-H1XL | 1500V DC | 250 | 247 | 129 | 52 | 91 |
| CFPV-H2XLB | CFPV-H2XL | 1500V DC | 400 | 278 | 135 | 63 | 104 |
Standard Export Packing:
Delivery Time: 3-15 days after confirming order based on quantity.

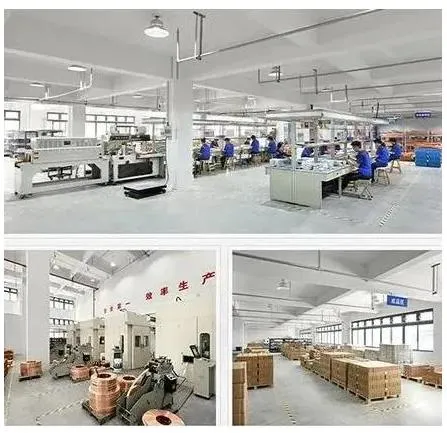

We are a professional manufacturer of AC and DC electrical items. Our core expertise includes isolator switches, fuses, breakers, distribution boxes, PV combiner boxes, and surge protectors. With ISO9001 certification, our comprehensive product line features over 1000 models approved by TUV, CE, CQC, SGS, and ROHS.
