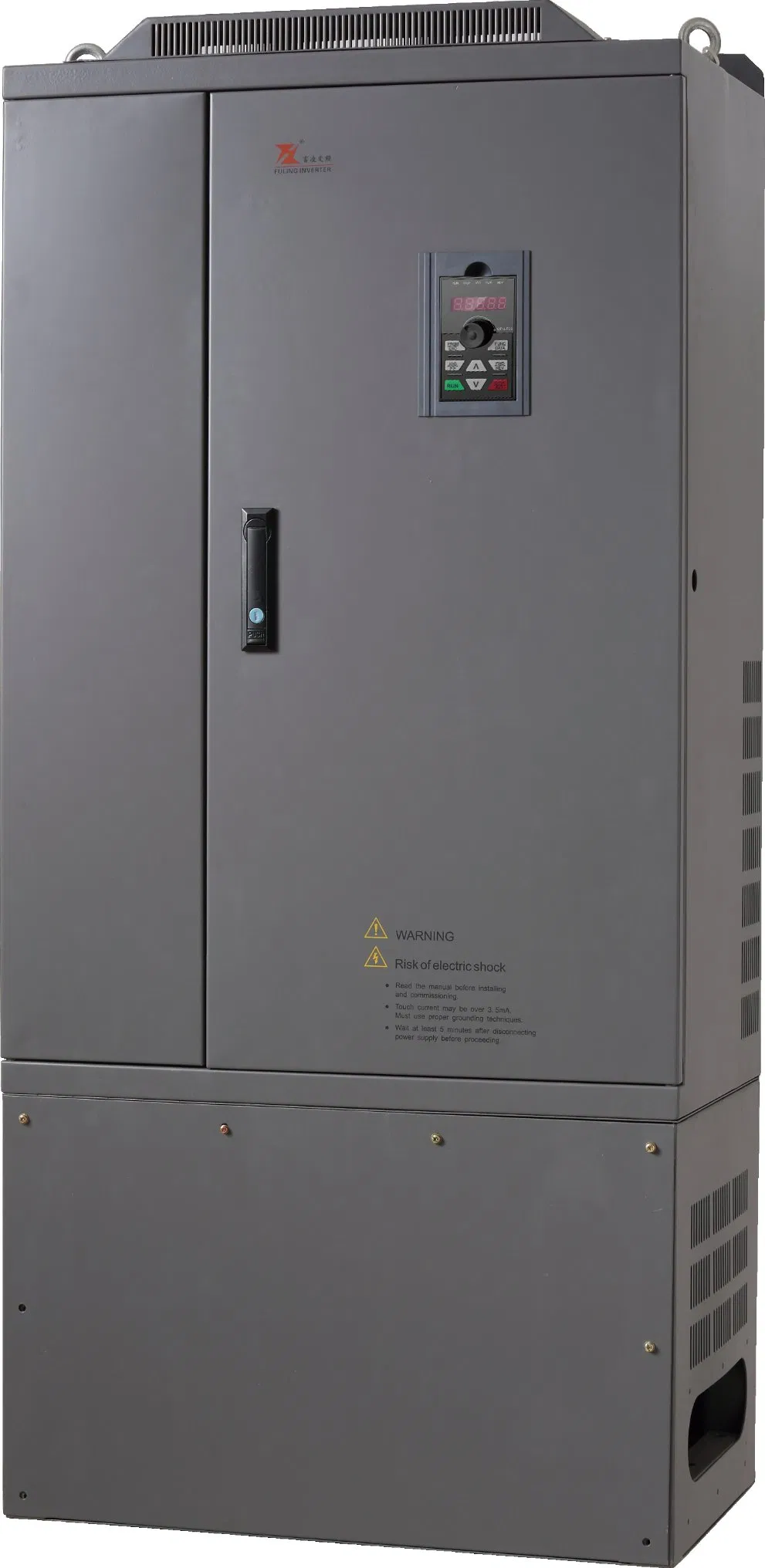

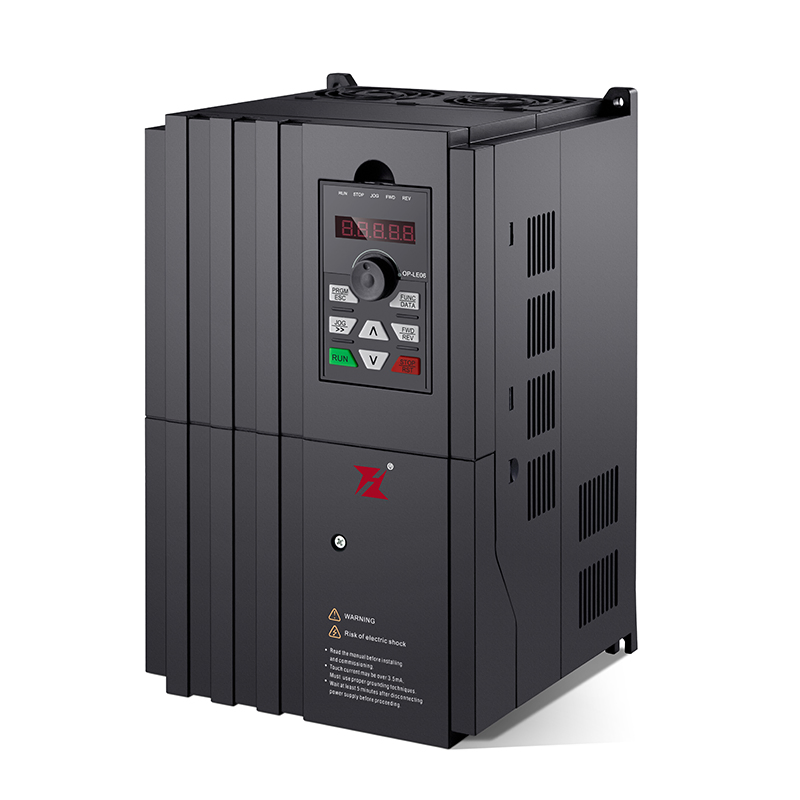

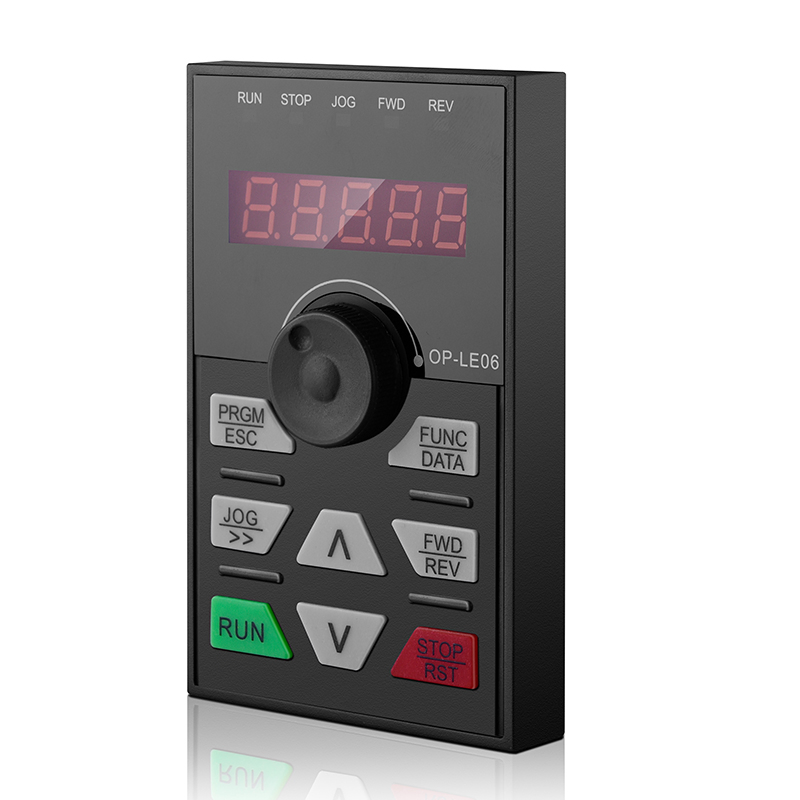

Ariable Vdf with Great Price Water Pump Special Inverter

1 / 5

Ariable Vdf with Great Price Water Pump Special Inverter

Customization:	Available
Application:	High-performance Transducer, Three Phase Transducer, General Transducer, High Frequency Converter Transducer
Output Type:	Triple

Send Inquiry

Product Description

Basic Information

Model NO.

BD600-1R5G-2

Principle of Work

Vector Control Transducer

Switch Mode

High Carrier Frequency PWM Control

Main Circuit Type

Voltage

Voltage of Power Supply

Low Voltage Variable-Frequency Drive

Link of Transformation

AC-DC-AC Variable-Frequency Drive

Function

Simple Type, Elevator Special, Textile Special, Constant Torque Universal Type

Voltage

220V

Name

Solar Water Pump Inverter

Origin

China

Specification & Features

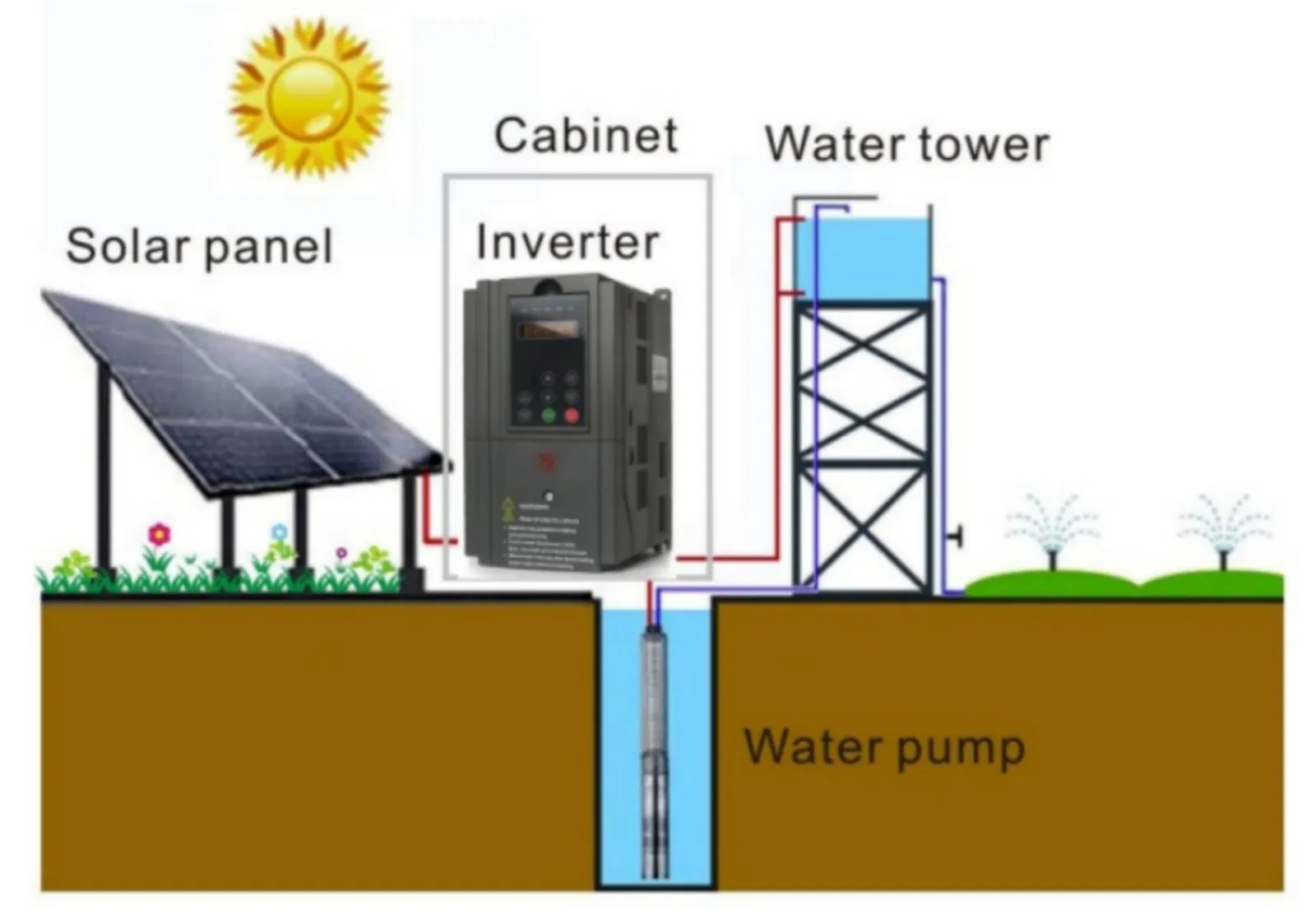

The BD330-Pv series products do not require battery modules, and the power supply is directly sourced from the photovoltaic array to realize PID control and MPPT functions. Based on the original protection functions, the product adds functions such as light-weak sleep, light-intensity wake-up, water shortage alarm, and full water shutdown to ensure the normal operation of the water pump.

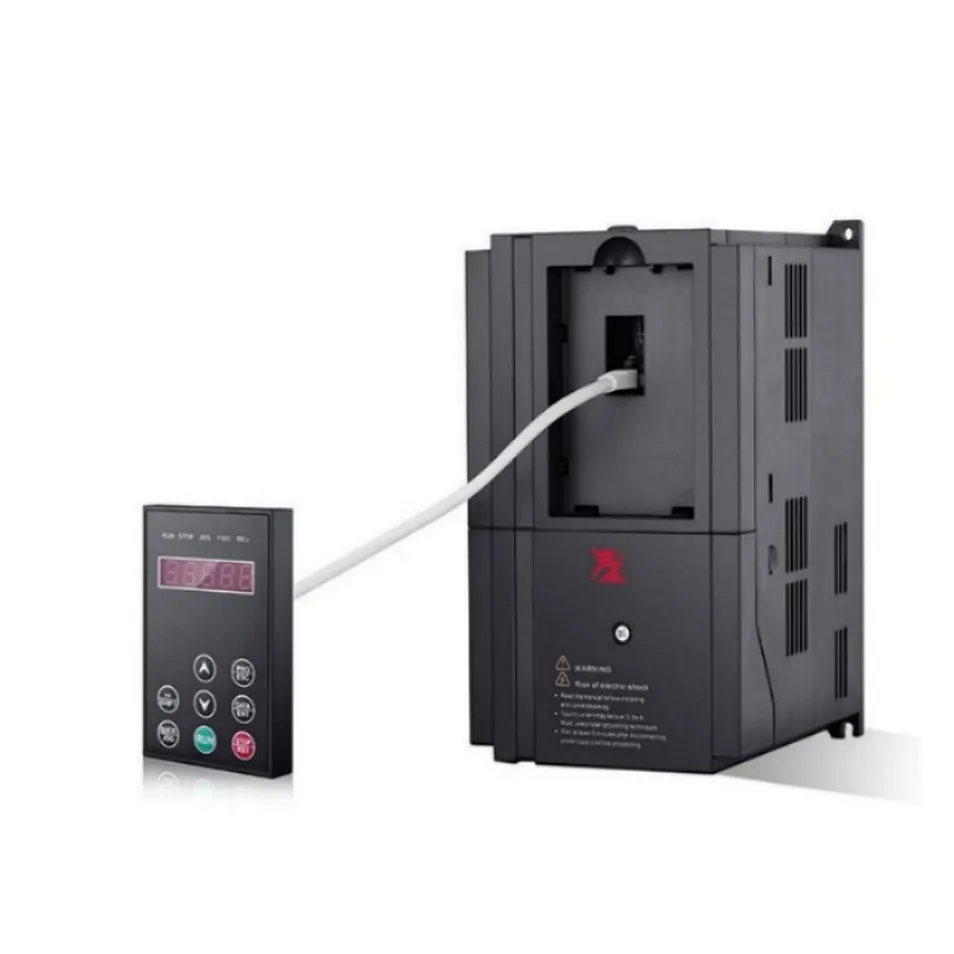

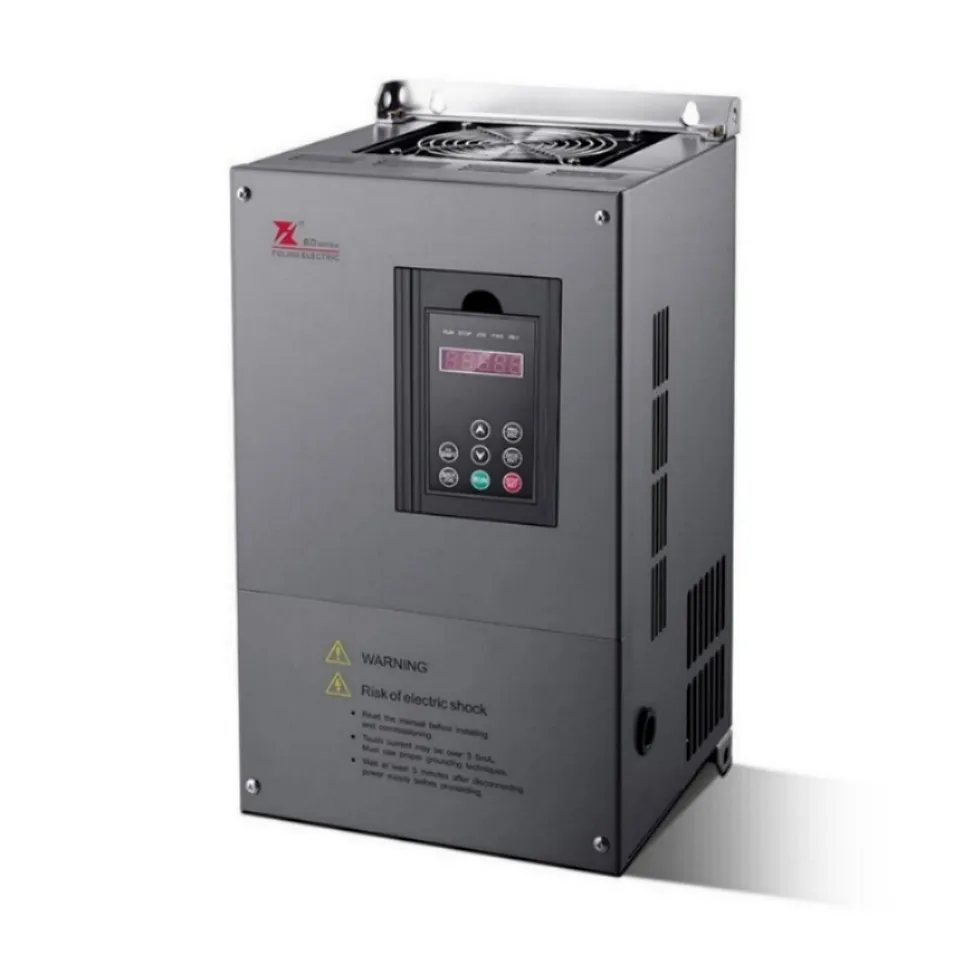

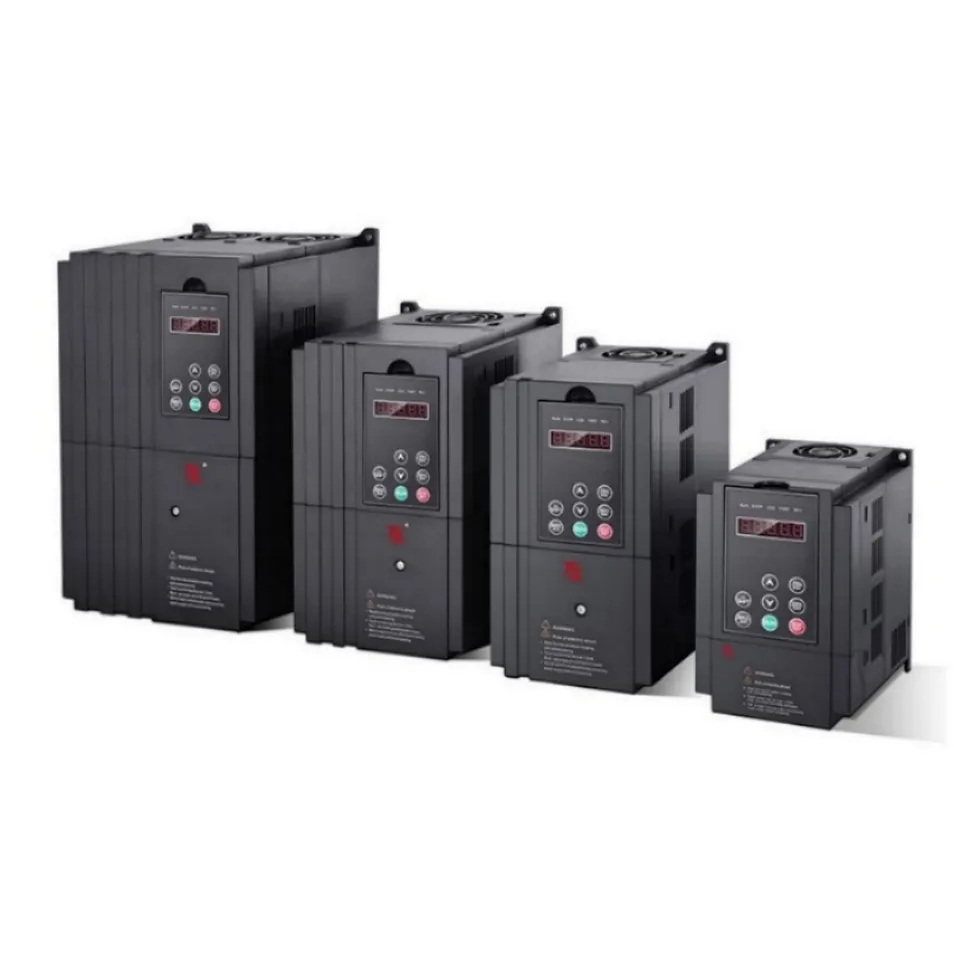

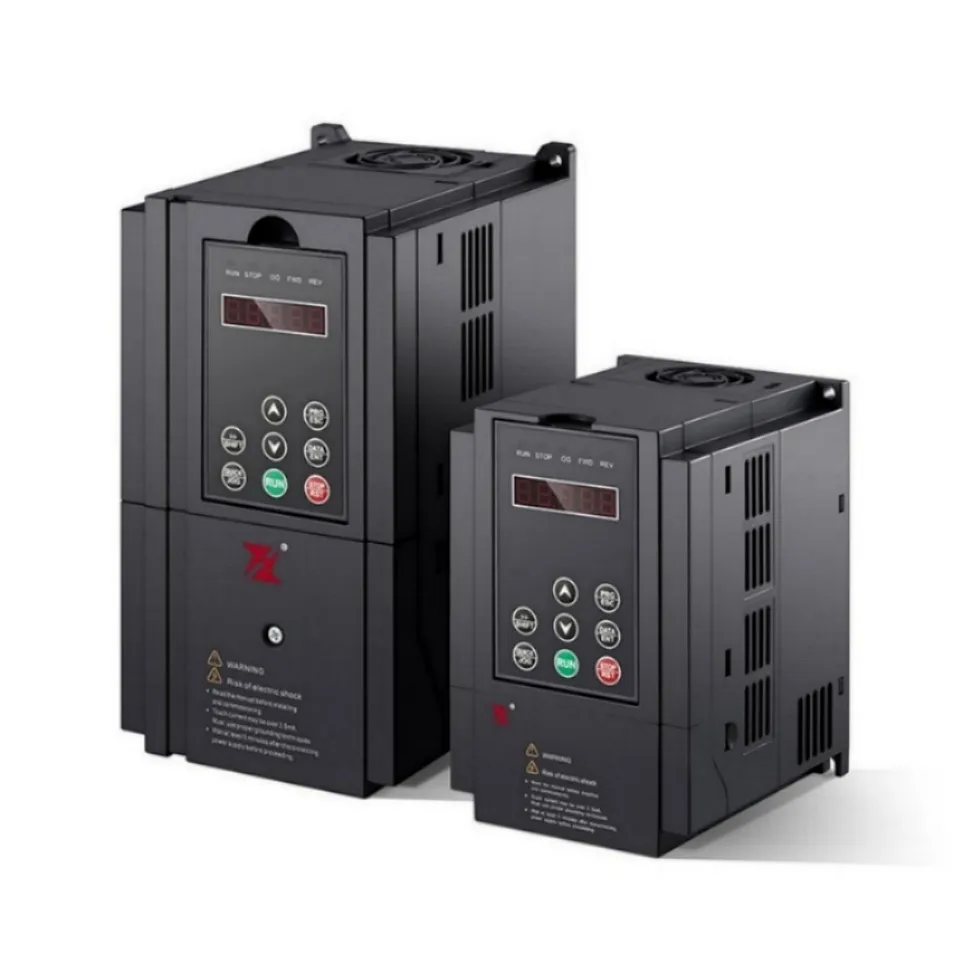

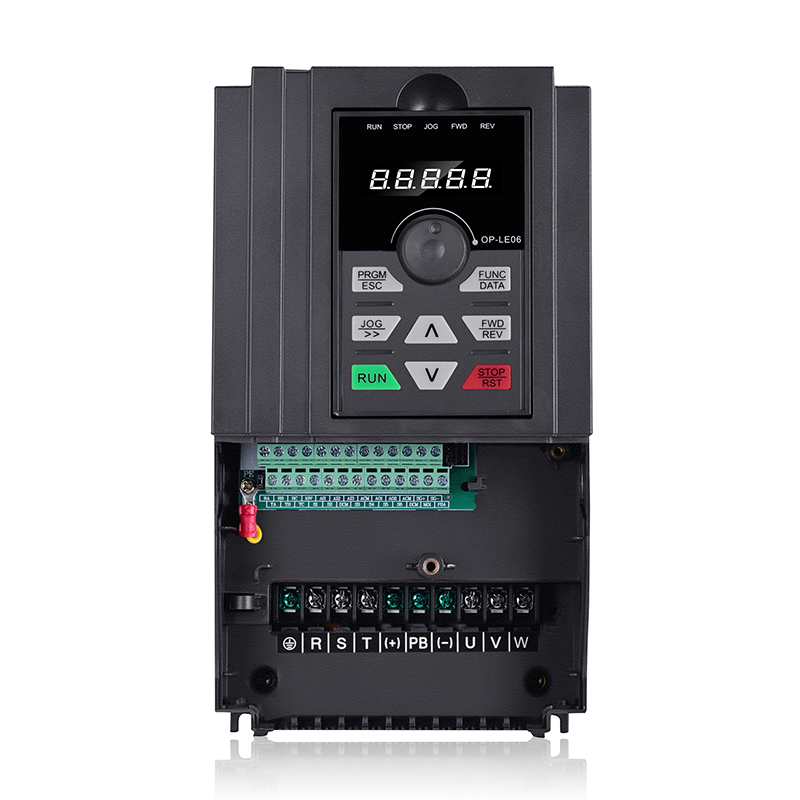

Photo Details

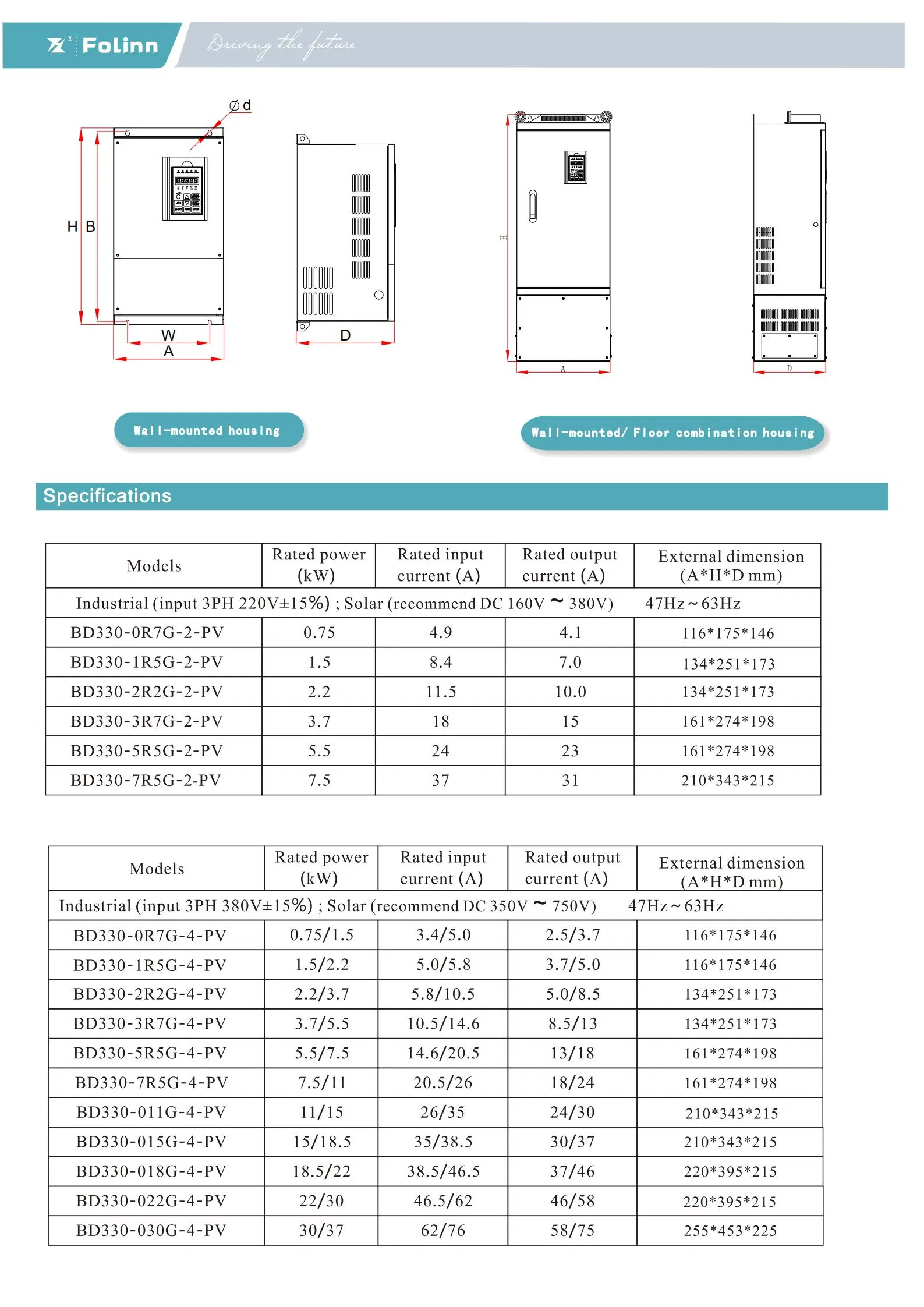

Product Parameters

Technical Features	Description
Input	Input AC voltage	1AC 220V±15%, 3AC 220V±15%, 3AC 380V±15%
	Recommend PV input DC range	160~380VDC; 350~750VDC (Max: 800VDC)
	Input frequency range	47~63Hz
	Power factor	≥97%
Control Performance	Control mode	V/F control, non-PG vector control(SVC), PG vector control(FVC)
	Overload capacity	150% rated current 60s, 180% rated current 3s
	Start torque	G type: 0.5Hz/150%(SVC), 0Hz/180%(FVC)
	Automatic voltage regulation	Automatically maintain constant output voltage
	Solar specific function	CVT/MPPT mode, auto sleep/wake up, water level sensor fault protection

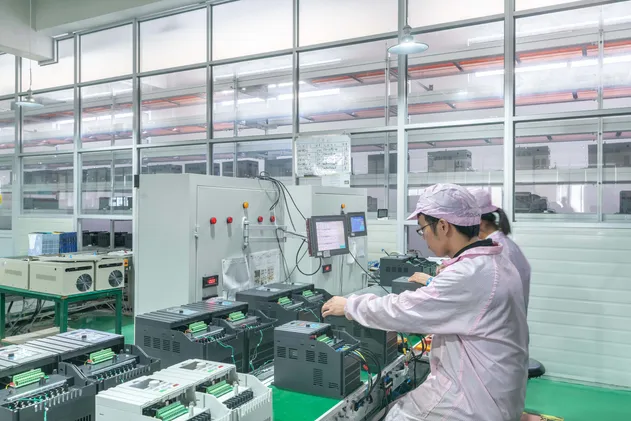

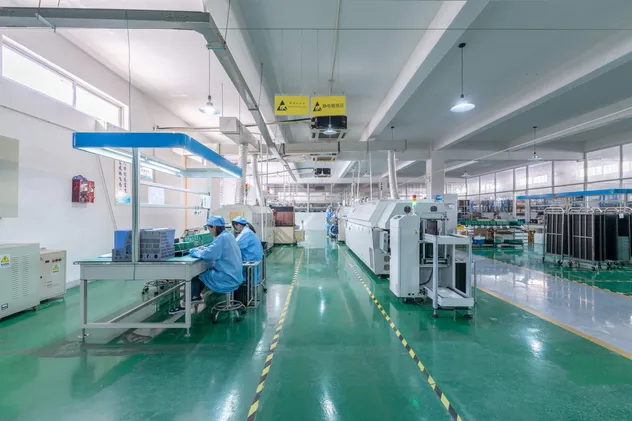

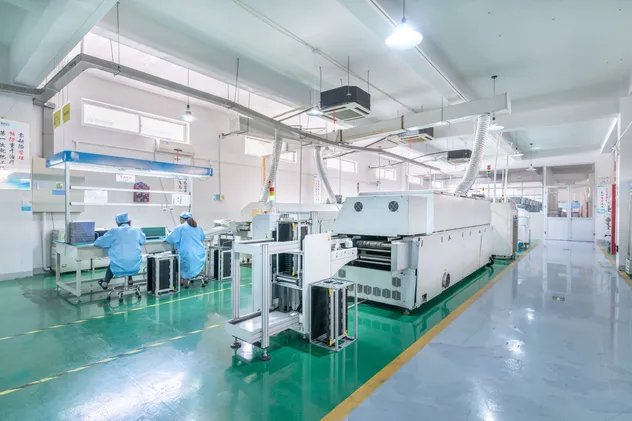

Production Environment

Focusing on inverter manufacturing, our market share remains at the forefront of the industry. We are a professional inverter manufacturer integrating R&D, production, and sales. With 270 patented technologies and 21 software copyrights, we operate in a 35,000 square meter workshop. Our products are exported to Europe, America, Southeast Asia, and the Middle East. Rated as a "High-tech Enterprise," we provide high-quality electrical products and personalized solutions for power, new energy, and machinery manufacturing.

Certifications

Frequently Asked Questions

Does this solar inverter require battery modules to operate?

No, the BD330-Pv series does not require battery modules. The power supply is sourced directly from the photovoltaic array.

What are the main protective functions of the water pump inverter?

It includes light-weak sleep, light-intensity wake-up, water shortage alarm, full water shutdown, and overvoltage/overcurrent protection.

What is the supported DC input voltage range?

The recommended range is 160~380VDC or 350~750VDC, with a maximum input of 800VDC.

Does it support MPPT control?

Yes, it features CVT or MPPT (Maximum Power Point Tracking) control modes to optimize power from solar panels.

Is the inverter suitable for different types of motor control?

Yes, it supports V/F control, non-PG vector control (SVC), and PG vector control (FVC) for various industrial applications.

How does the auto-sleep function work?

The inverter automatically enters sleep mode during weak light conditions and wakes up when light intensity is strong enough to drive the pump.
