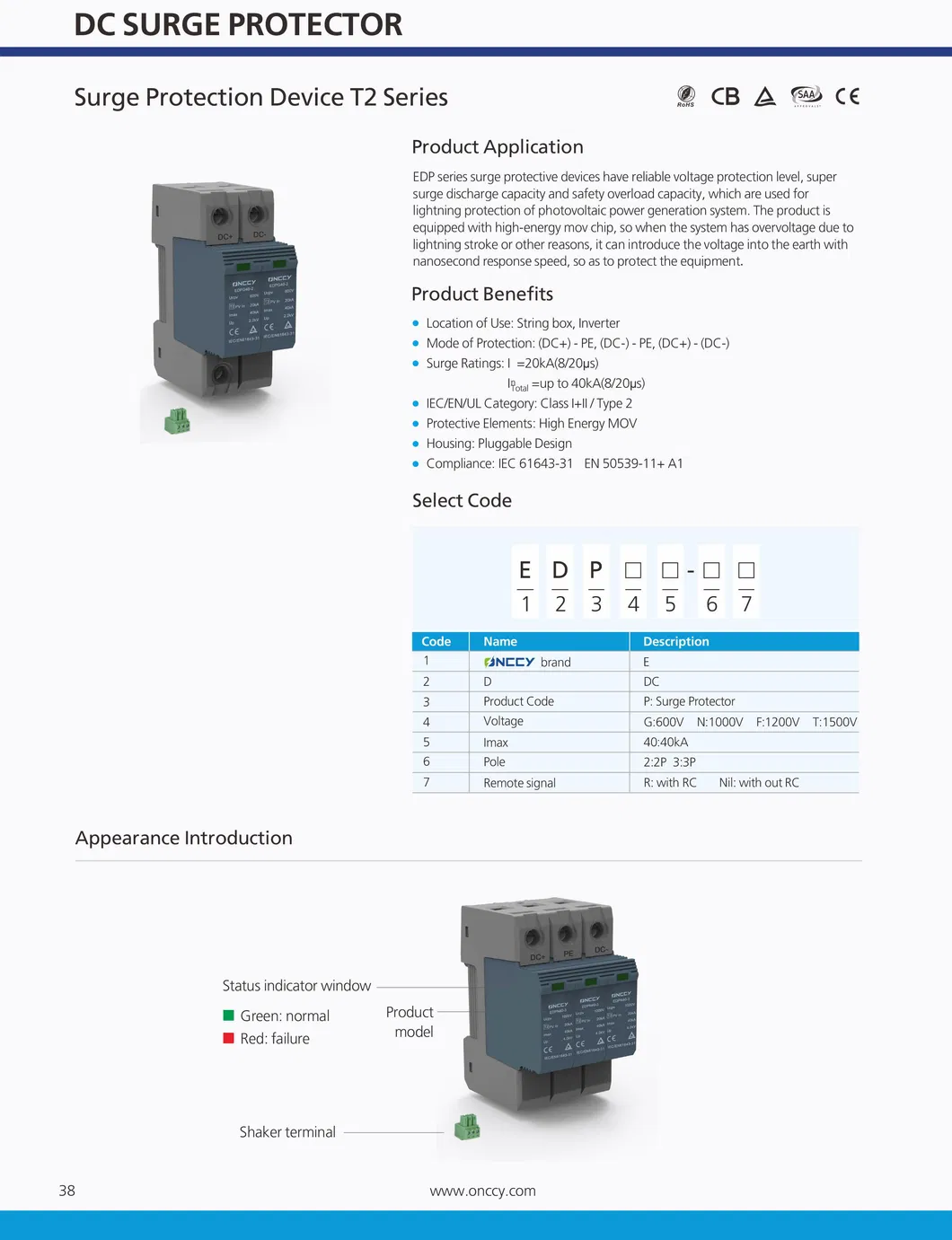

Comprehensive protection solutions in the fields of surge protection and lightning protection for various industries. The EDP Surge Protective Device (SPD) is a no-fuse, fail-safe surge suppressor. Complying with standards GB/T18802.1 / EN 61643-11, it features a DIN-rail mountable design, visual indicators, and a small footprint with high surge capacity.
Product Benefits:

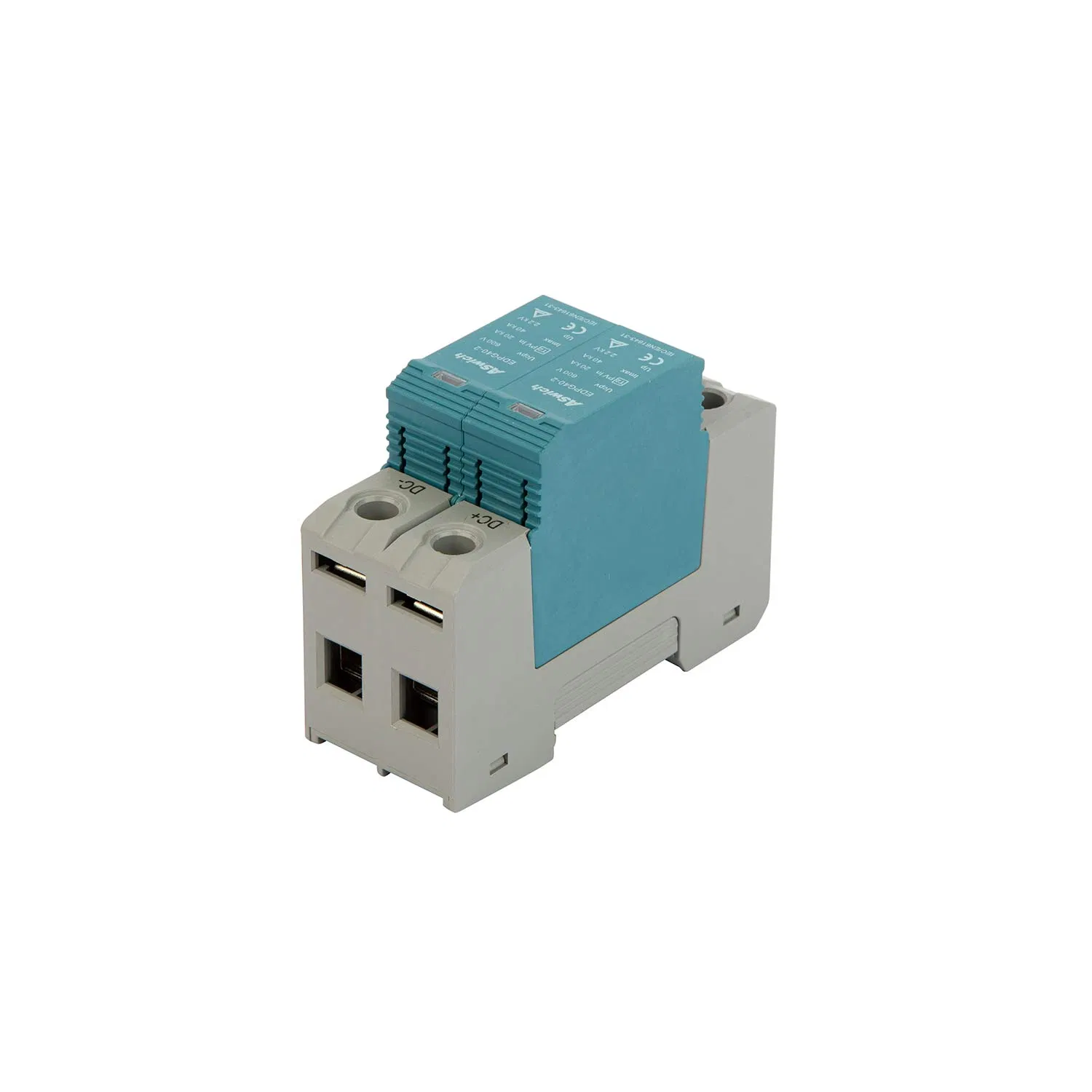

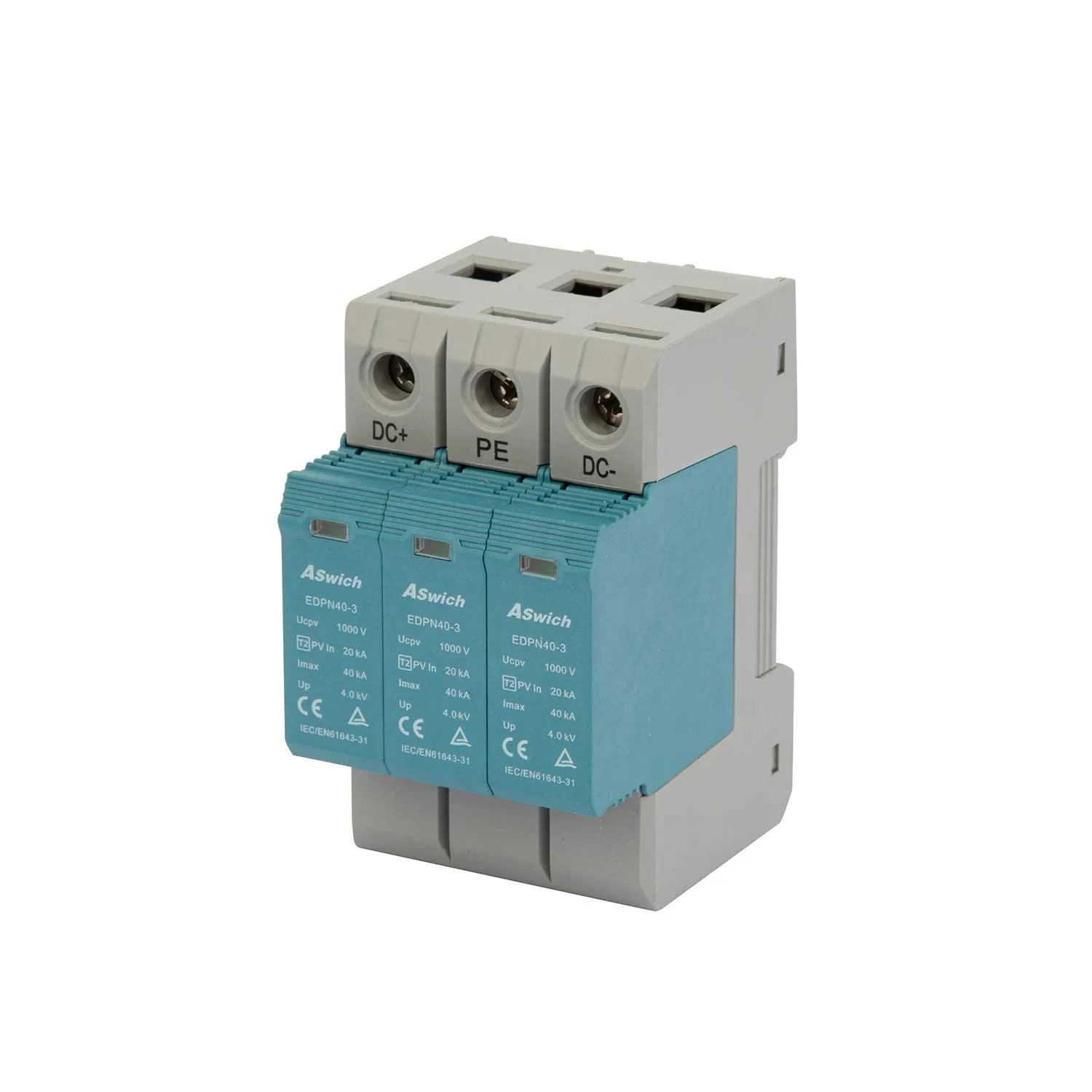

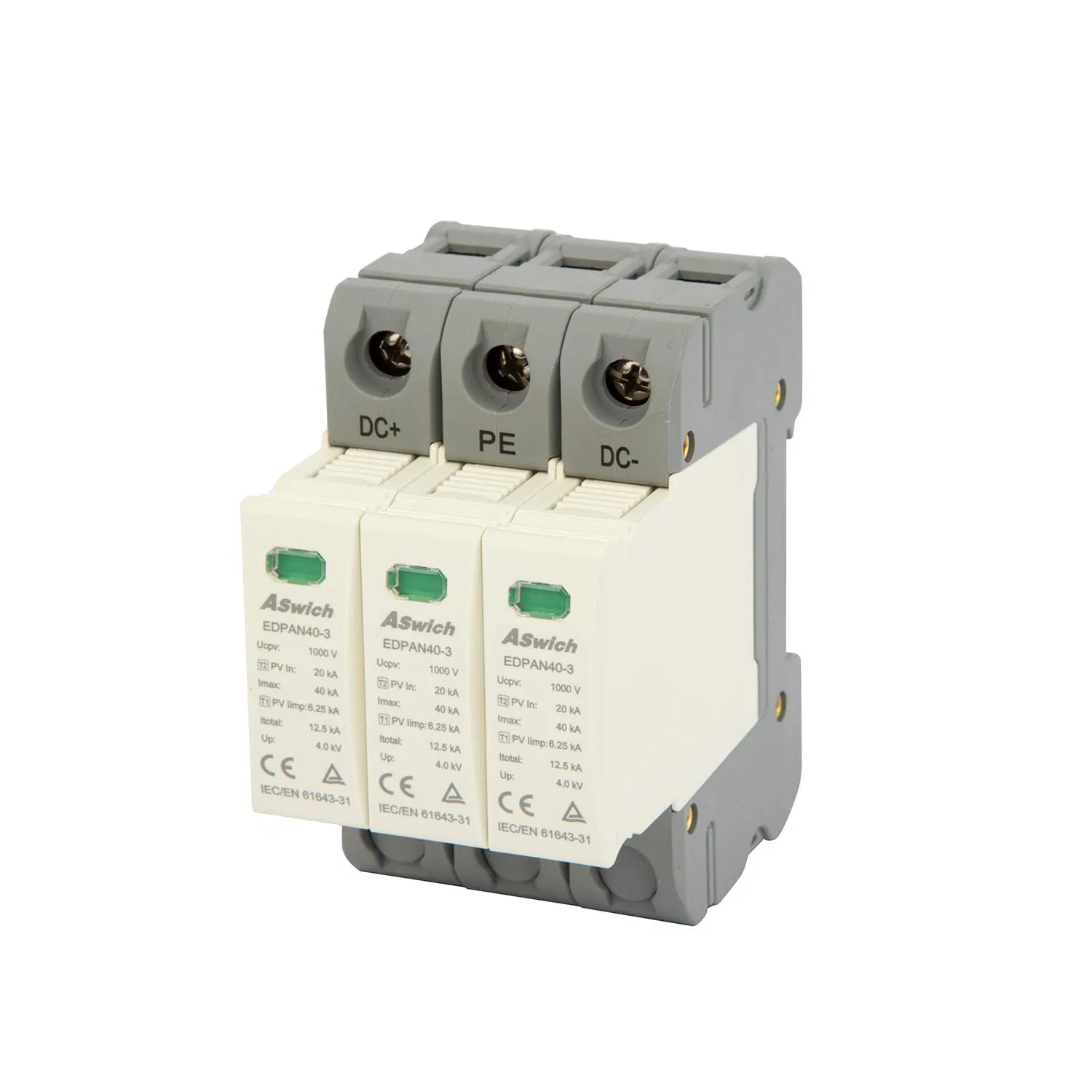

DC Surge Protector Device SPD Class I+II Type1+2 3P 1000V

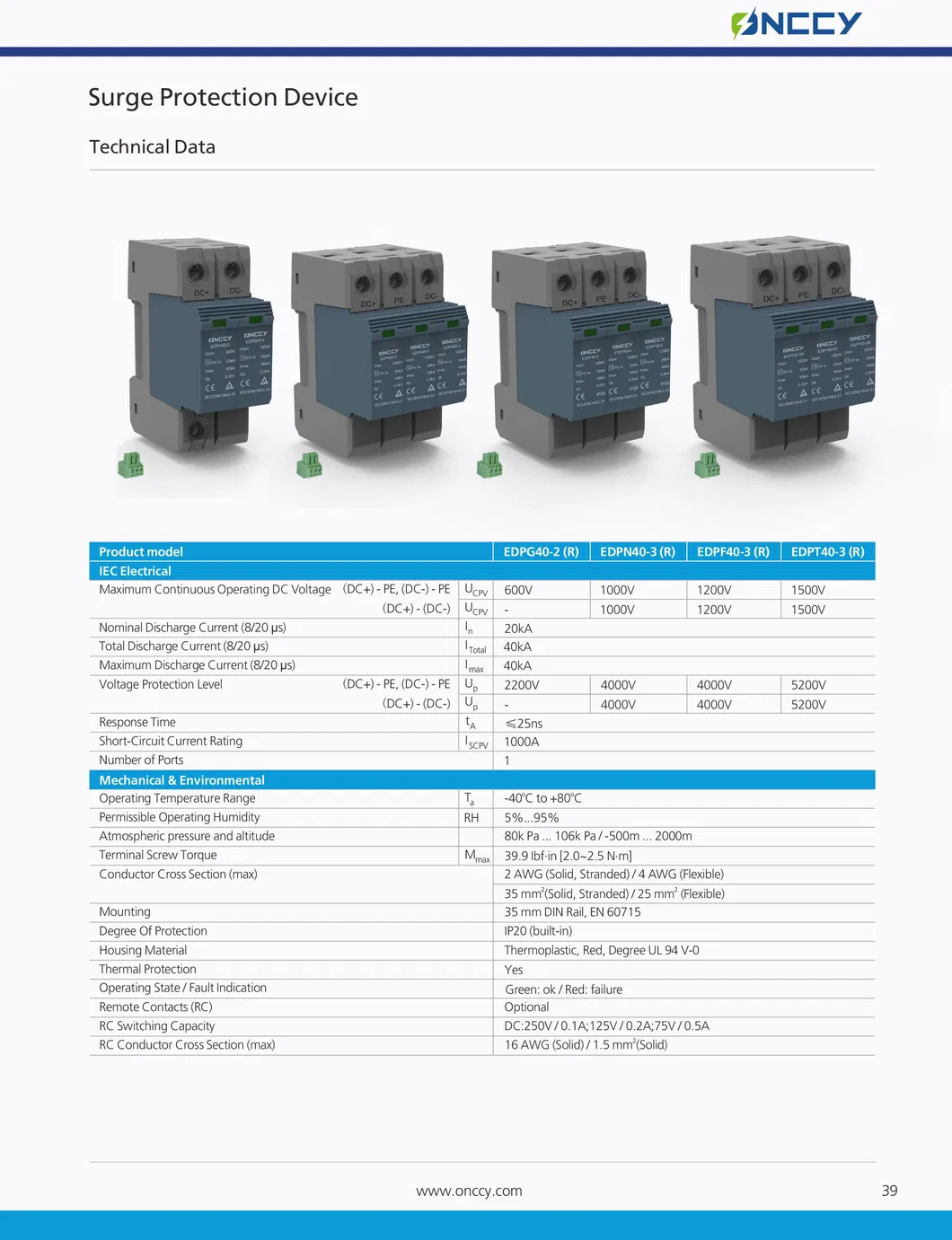

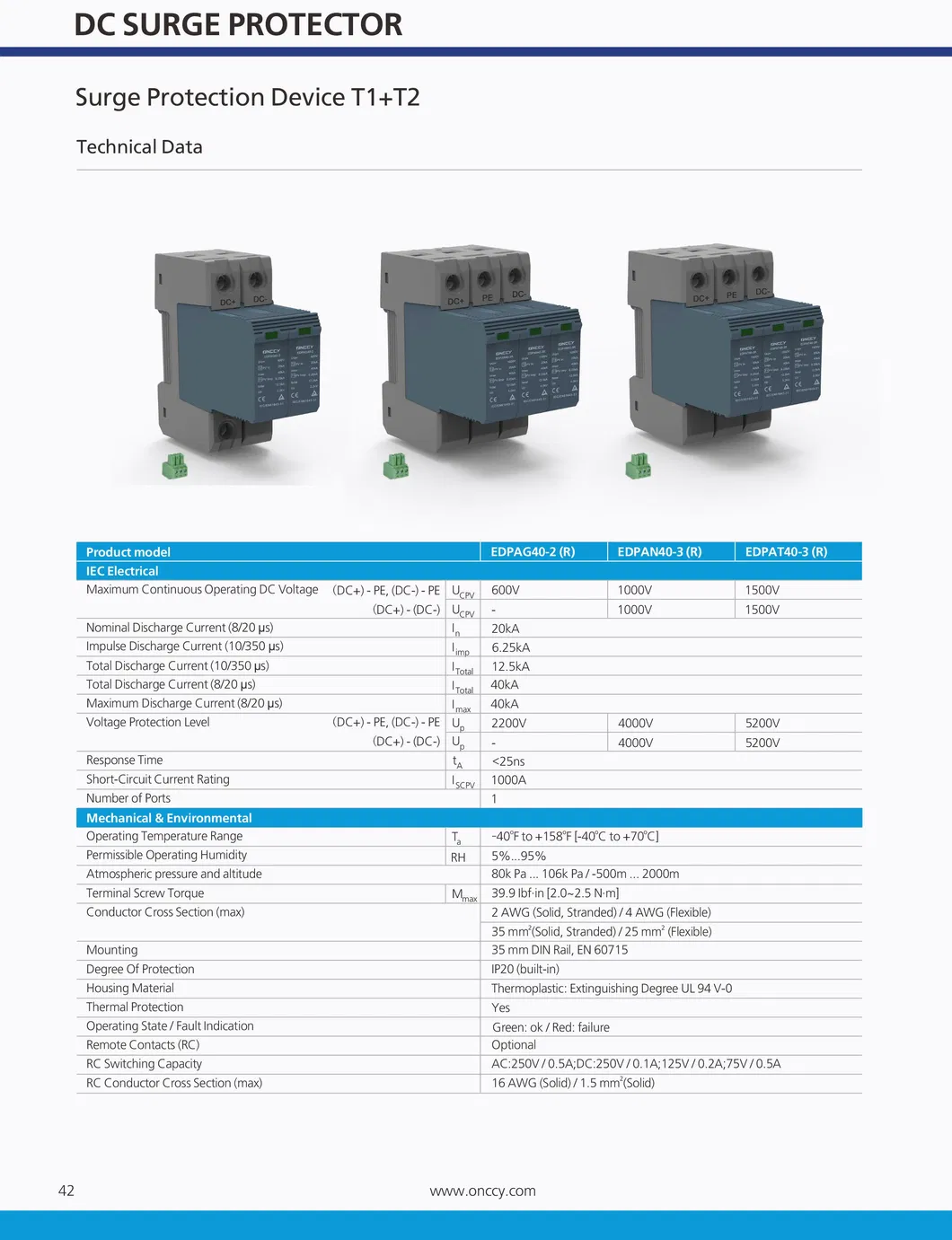

| Product Model | EDPAG40-2 (R) | EDPAN40-3 (R) | EDPAT40-3 (R) | |
|---|---|---|---|---|
| IEC Electrical Specifications | ||||
| Max. Continuous Operating DC Voltage | UCPV | 600V | 1010V | 1500V |
| Nominal Discharge Current (8/20 μs) | In | 20kA | ||
| Impulse Discharge Current (10/350 μs) | Iimp | 6.25kA | ||
| Total Discharge Current (8/20 μs) | ITotal | 40kA | ||
| Voltage Protection Level | Up | 2200V | 4000V | 5200V |
| Response Time | tA | <25ns | ||
| Mechanical & Environmental | ||||
| Operating Temperature | Ta | -40°C to +70°C | ||
| Mounting | - | 35 mm DIN Rail, EN 60715 | ||
| Housing Material | - | Thermoplastic: UL 94 V-0 | ||
