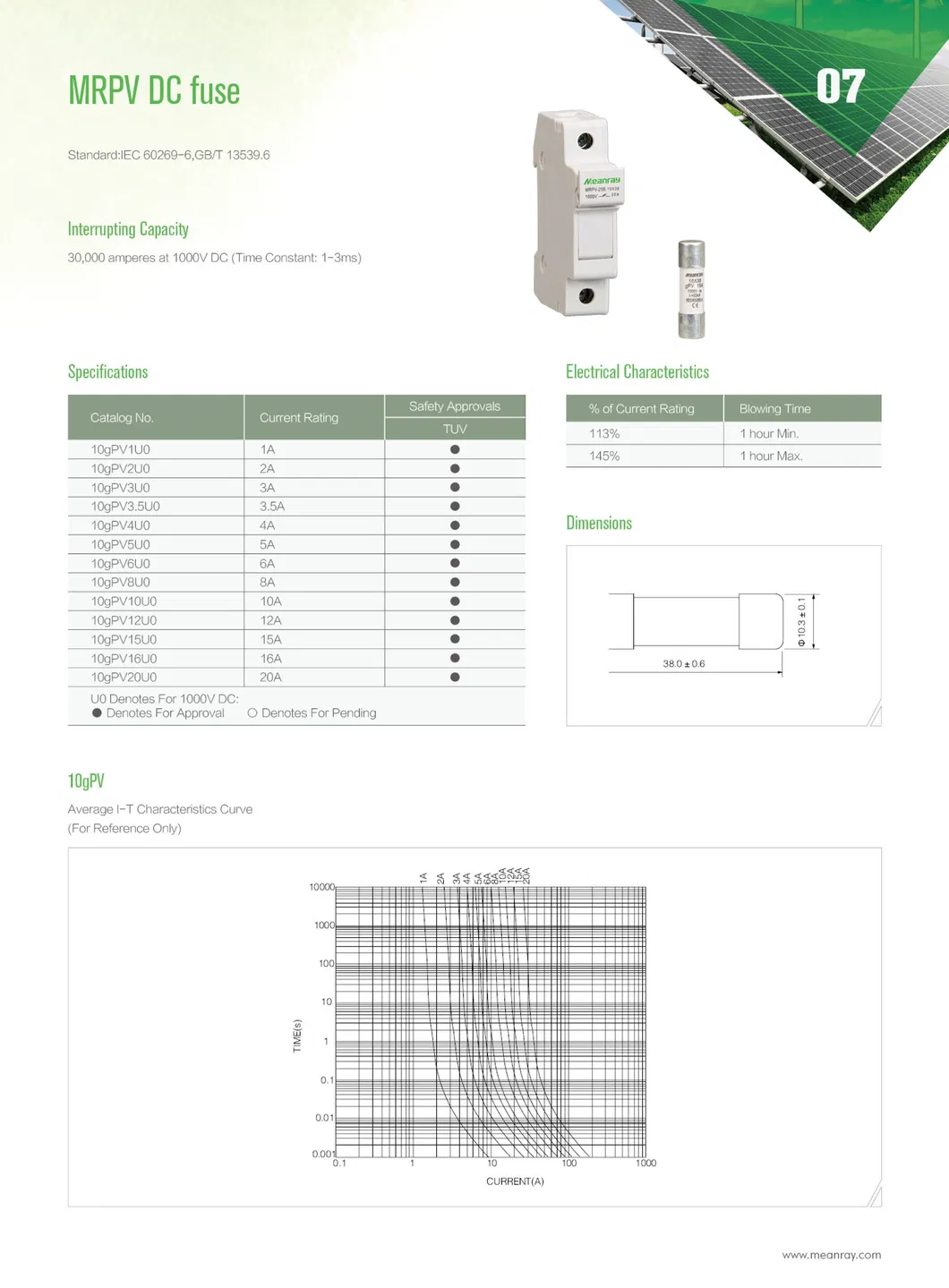

| Item | DC FUSE |
| Pole | 1P, 2P |
| Voltage | ≤1000VDC |
| Current | 1A, 2A, 3A, 4A, 5A, 6A, 8A, 10A, 12A, 15A, 20A, 25A, 32A |
| Breaking Capacity | 33KA |
| Standard | IEC/EN60269 |
| Connection (mm²) | 2.5-10 |
| Power Consumption | 3.5W |
| Working Temperature | -5° to +40° |
| Protection Degree | IP20 |
| Installation | 35MM DIN RAIL |
| Installation Altitude | ≤2000M |

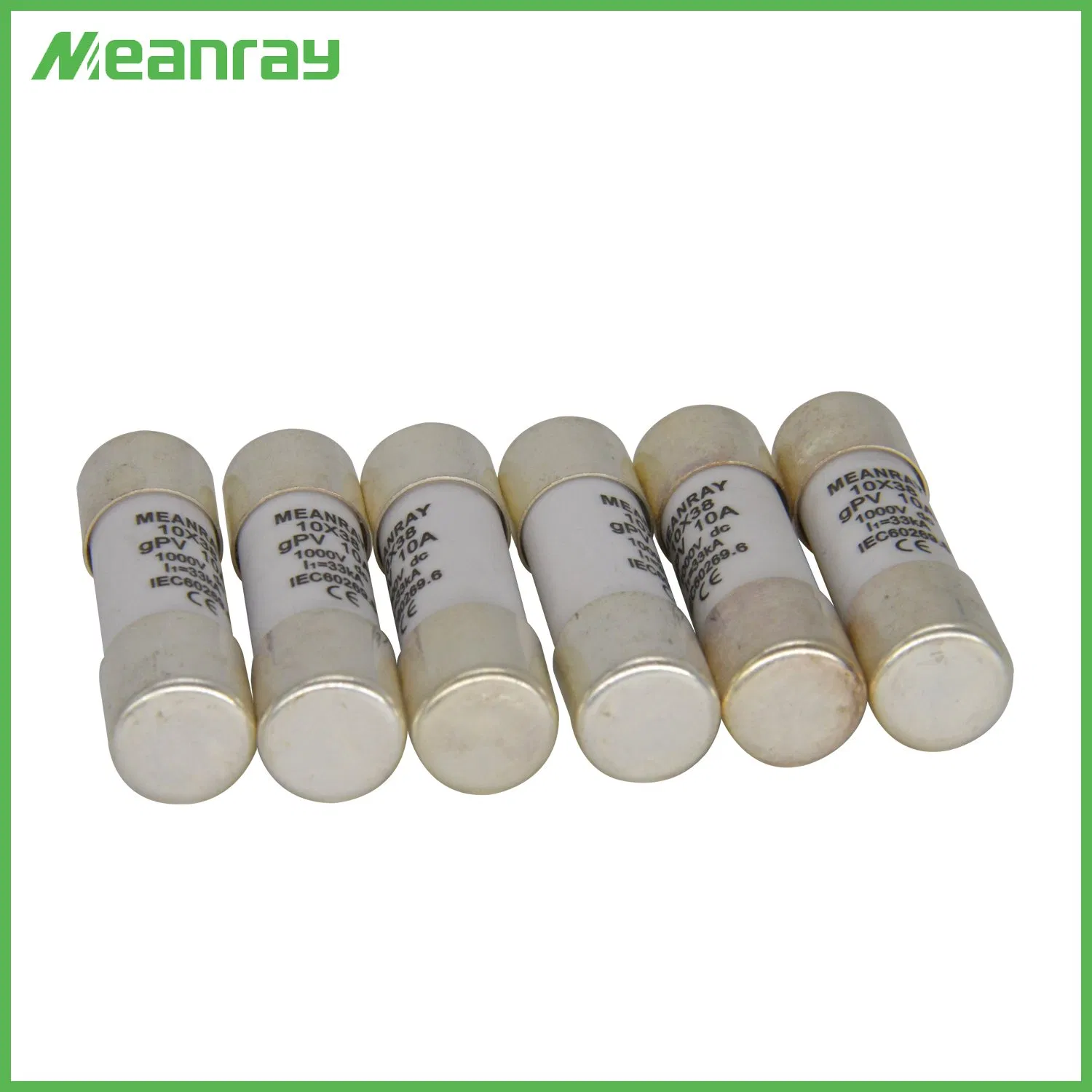

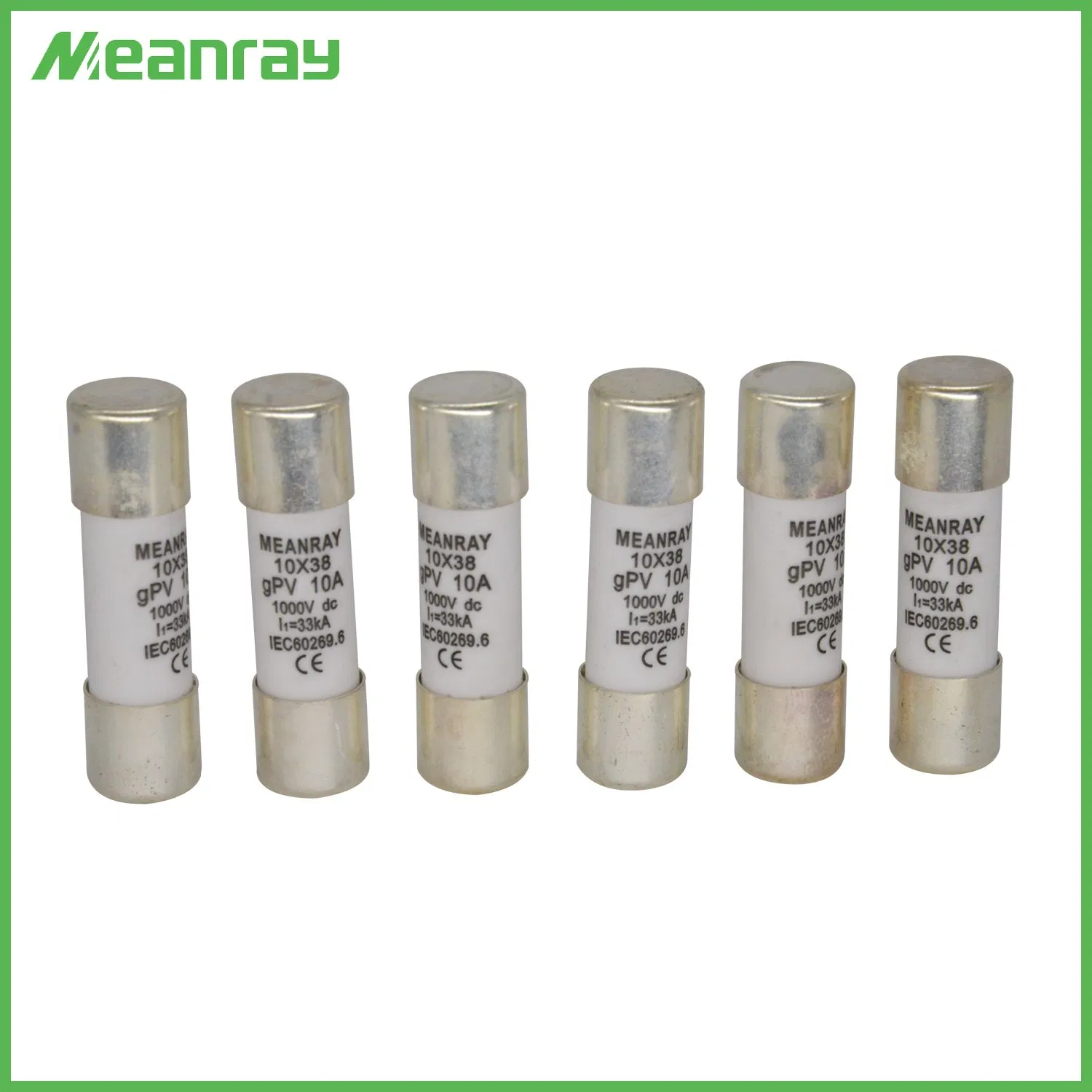

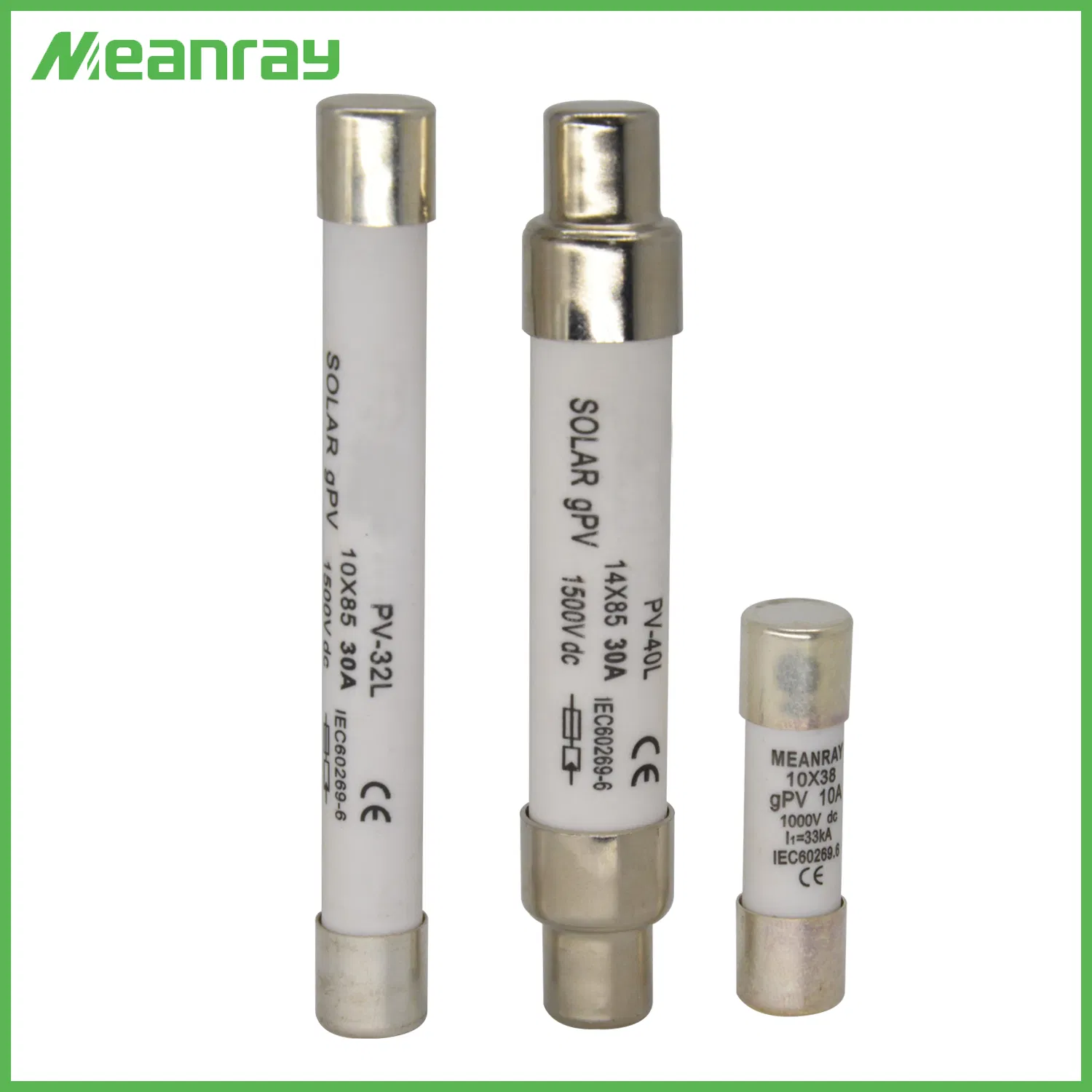

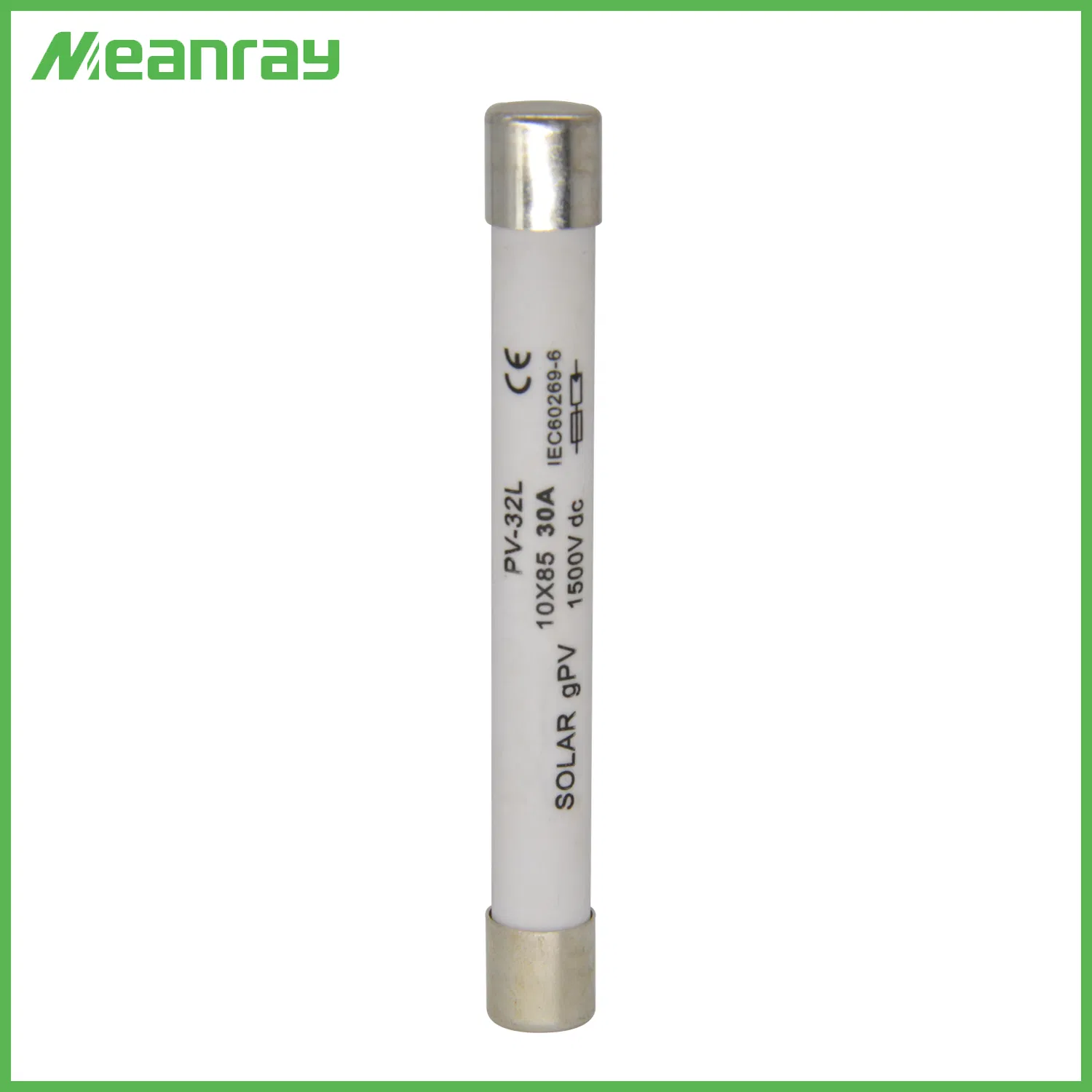

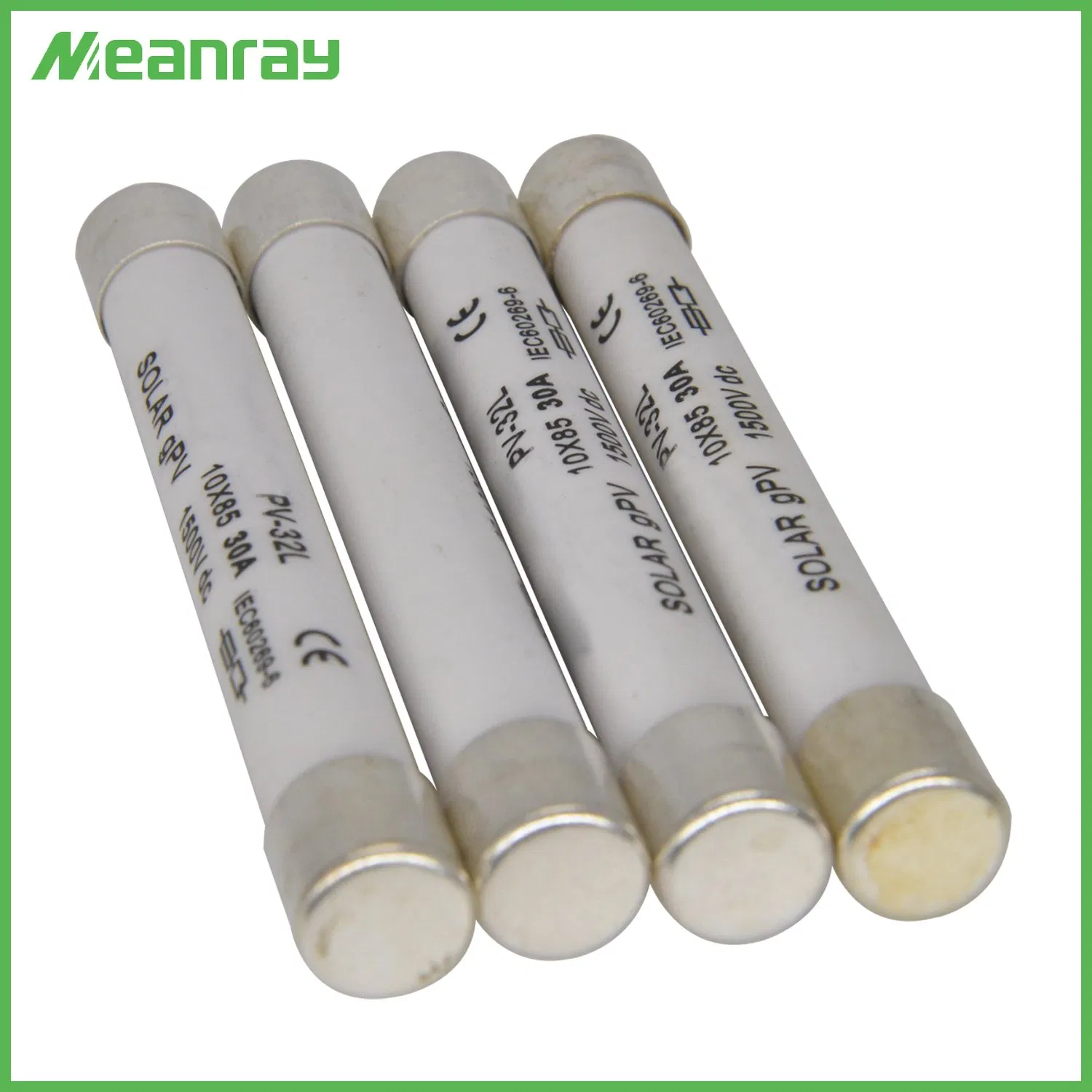

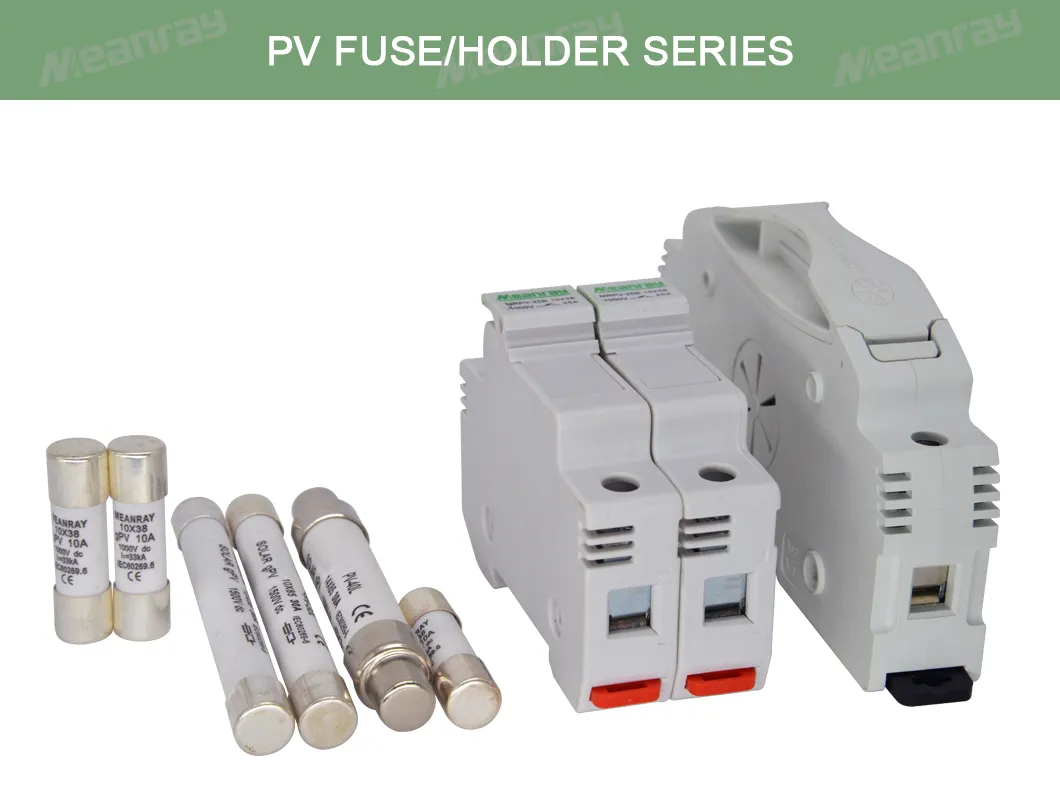

The DC1000V ROHS PV Fuse series consists of a fuse link and a fuse base. The variable cross-section fuse body, made of pure copper or silver pieces, is sealed in a high-strength porcelain or epoxy glass cloth pipe. This pipe is filled with high-purity quartz sand to effectively extinguish arcs. The cylindrical cap structure is formed by spot welding the fuse ends to the end plates. The resin or plastic casing is designed for safety, easy installation, and a professional appearance.
