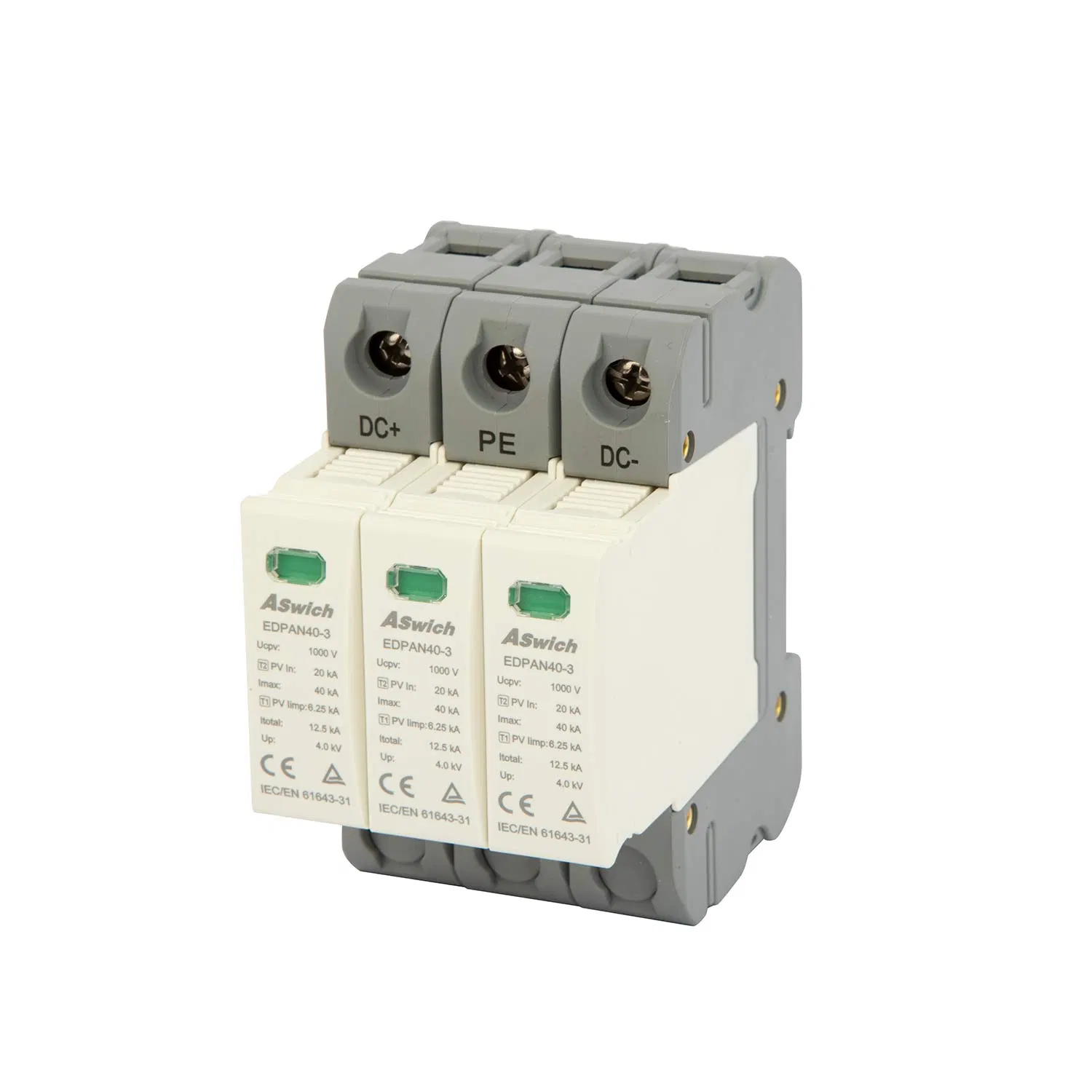

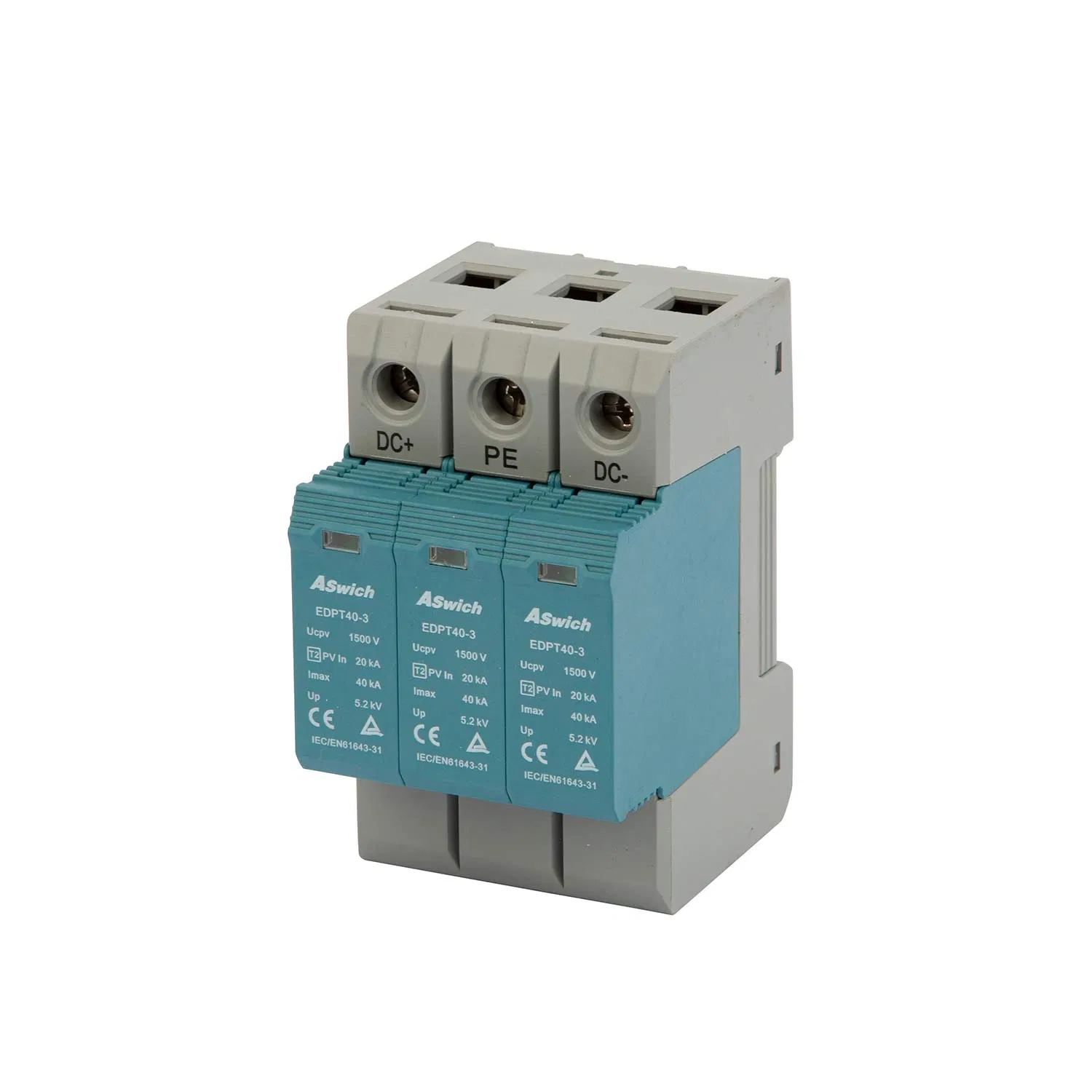

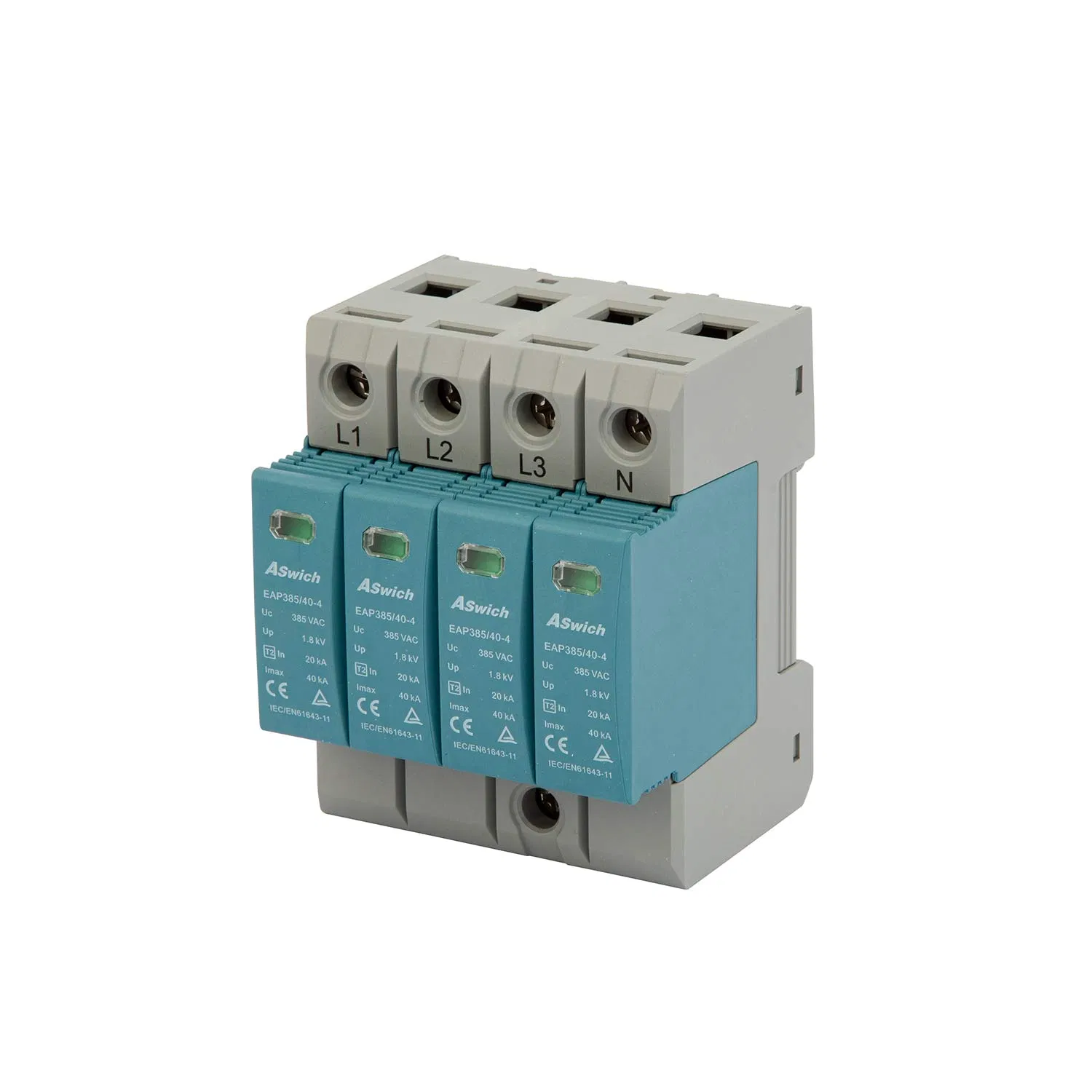

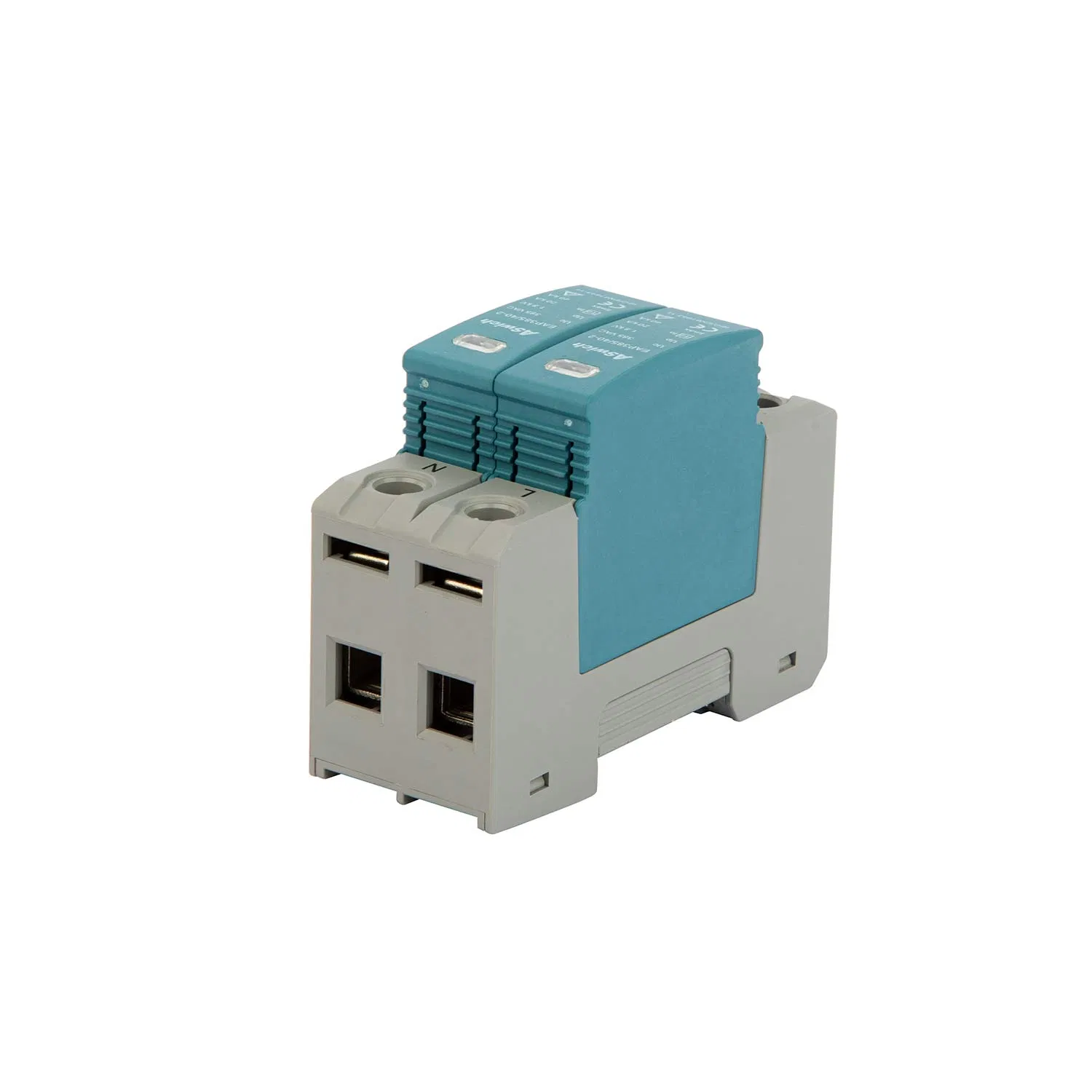

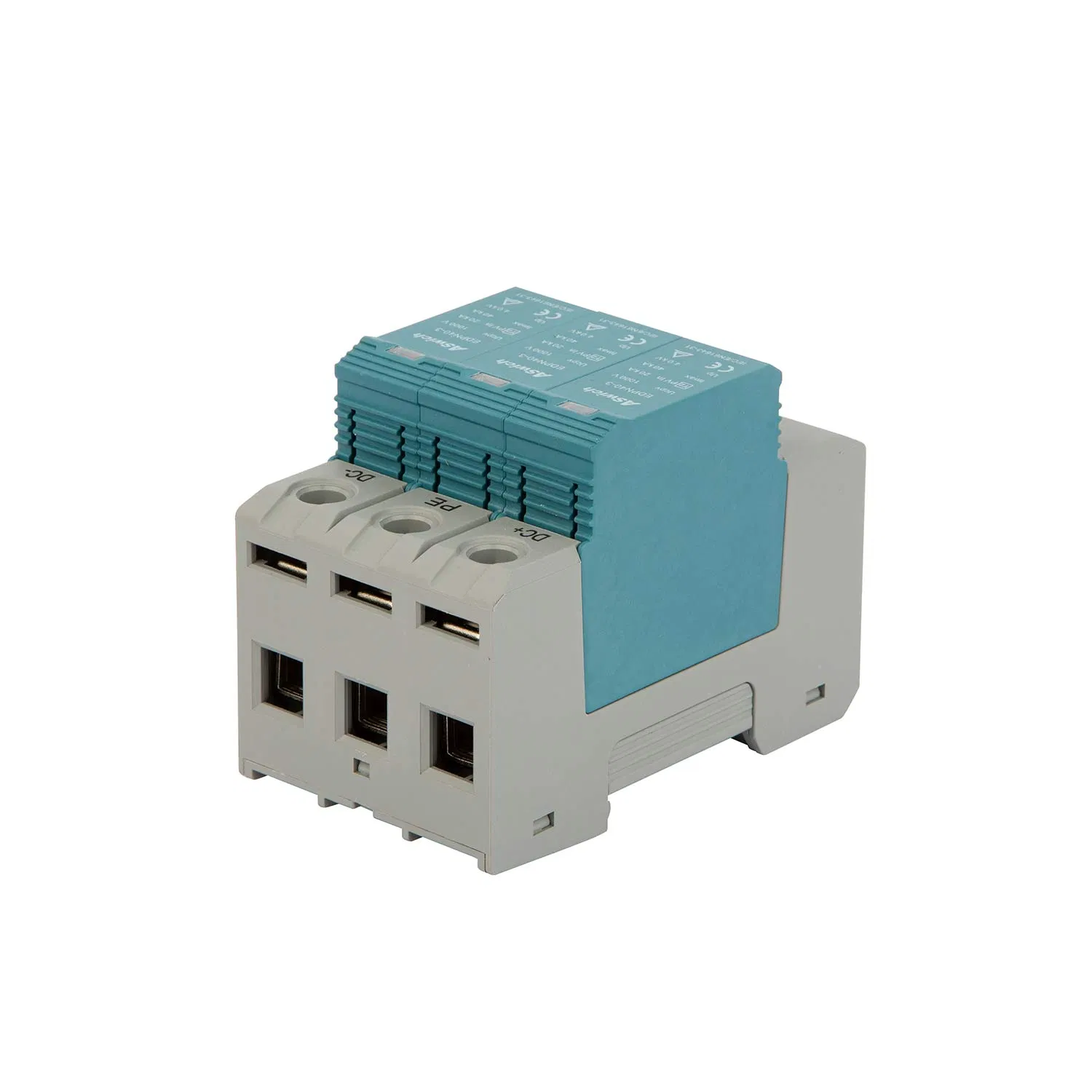

2p 3p 500V 600V 1000V 1500V Solar PV DC SPD Surge Protector Device
2p 3p 500V 600V 1000V 1500V Solar PV DC SPD Surge Protector Device
2p 3p 500V 600V 1000V 1500V Solar PV DC SPD Surge Protector Device
2p 3p 500V 600V 1000V 1500V Solar PV DC SPD Surge Protector Device
2p 3p 500V 600V 1000V 1500V Solar PV DC SPD Surge Protector Device
1 / 5
2p 3p 500V 600V 1000V 1500V Solar PV DC SPD Surge Protector Device
2p 3p 500V 600V 1000V 1500V Solar PV DC SPD Surge Protector Device
2p 3p 500V 600V 1000V 1500V Solar PV DC SPD Surge Protector Device
2p 3p 500V 600V 1000V 1500V Solar PV DC SPD Surge Protector Device
2p 3p 500V 600V 1000V 1500V Solar PV DC SPD Surge Protector Device

2p 3p 500V 600V 1000V 1500V Solar PV DC SPD Surge Protector Device

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋 Basic Information
Model NO.
Surge Protective Device
Installation
Parallel Arrester
Application
AC/DC System
Operation Voltage
Low Voltage
Certification
ROHS
Pole
2p/3p
Discharge Current
20ka, 40ka
Work Environment
-40~+70c
Installation Method
35mm Standard Guide Rail
Window Indication
Green:Normal, Red:Invalid
📦 Packaging & Delivery
Package Size
25.00cm * 25.00cm * 25.00cm
Package Gross Weight
1.200kg
⚡ Product Description

The Surge Protective Device (SPD) is a no-fuse, fail-safe surge suppressor. Complying with standard GB/T18802.1 / EN 61643-11, it supports rated voltages of 275V~, 320V~, 385V~, and 420V~. It features a DIN-rail mountable design with a fail-safe self-protected mechanism, visual indicator, and a maximum discharge capacity of 40kA.

Key Product Benefits:
  • Plug-in design allows live replacement and easy maintenance without considering load current.
  • Internal temperature control circuit breaker technology ensures high safety and no freewheeling.
  • Clear status indication: Green for normal operation, Red for fault/replacement.
  • Optional remote monitoring interface (dry contact) for real-time status tracking.

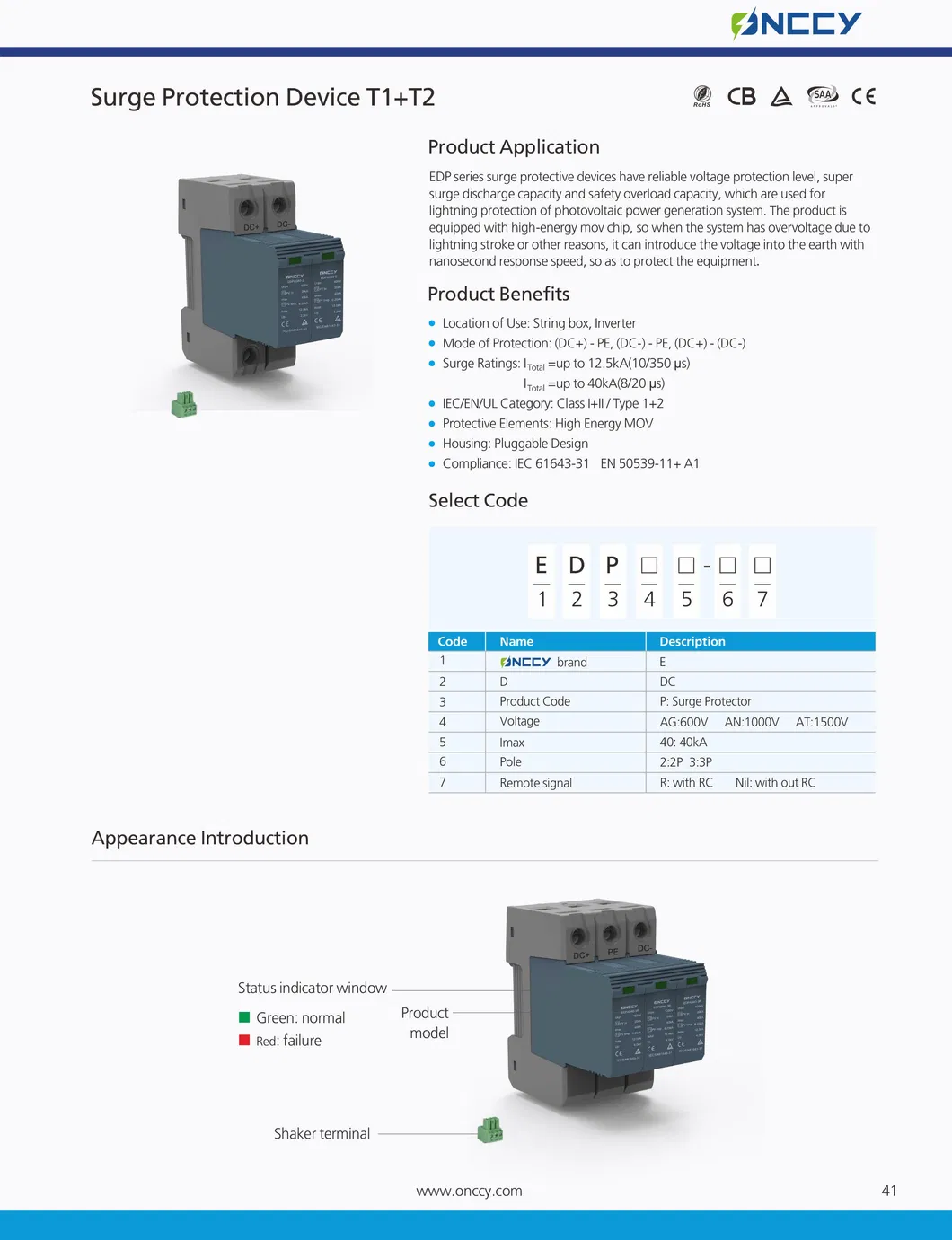

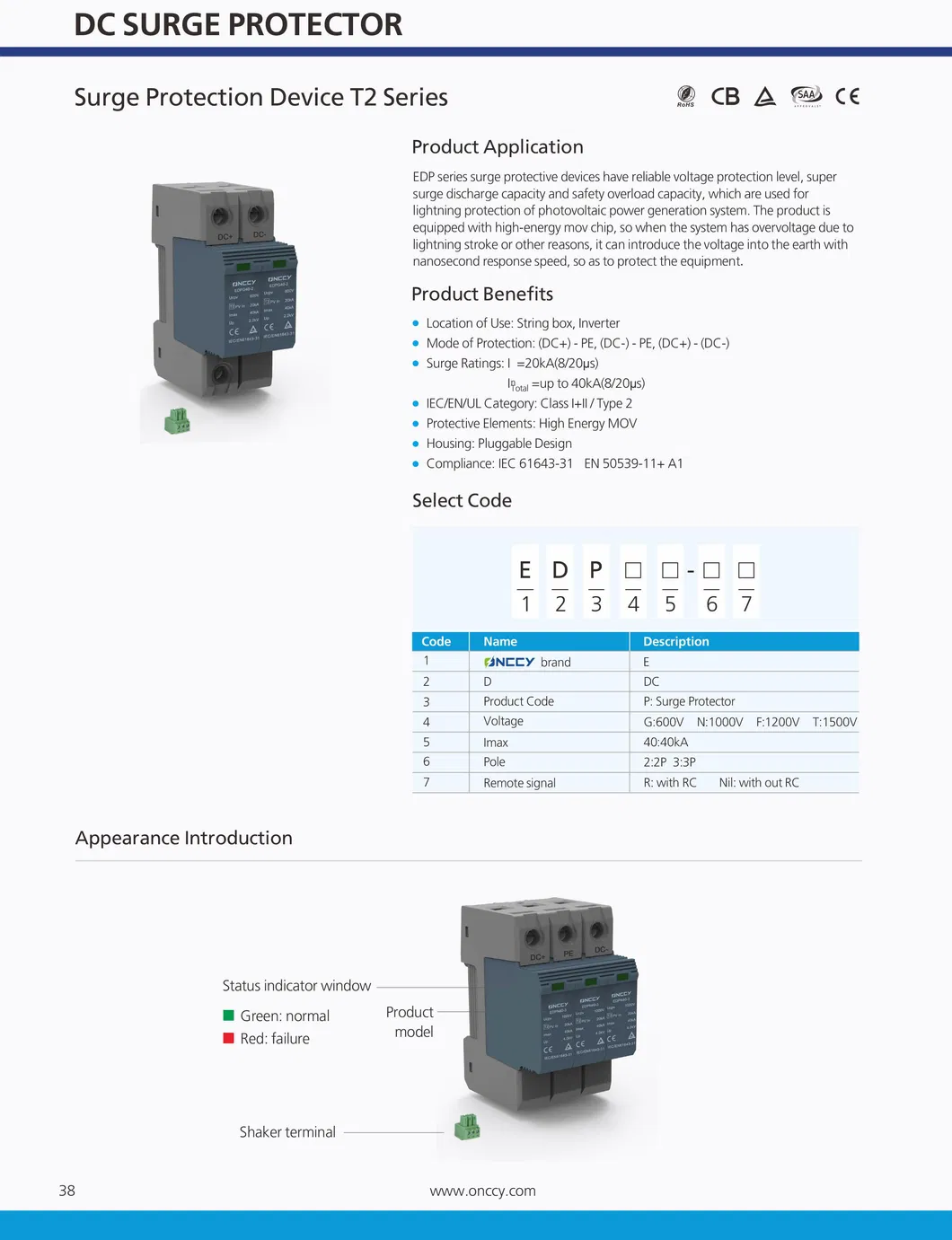

DC Surge Protector Device SPD Class I+II Type 1+2

  • Location of Use: String box, Inverter
  • Protection Mode: (DC+) - PE, (DC-) - PE, (DC+) - (DC-)
  • Surge Ratings: ITotal up to 12.5kA (10/350 μs) / 40kA (8/20 μs)
  • Compliance: IEC 61643-31, EN 50539-11+ A1
📊 Product Parameters

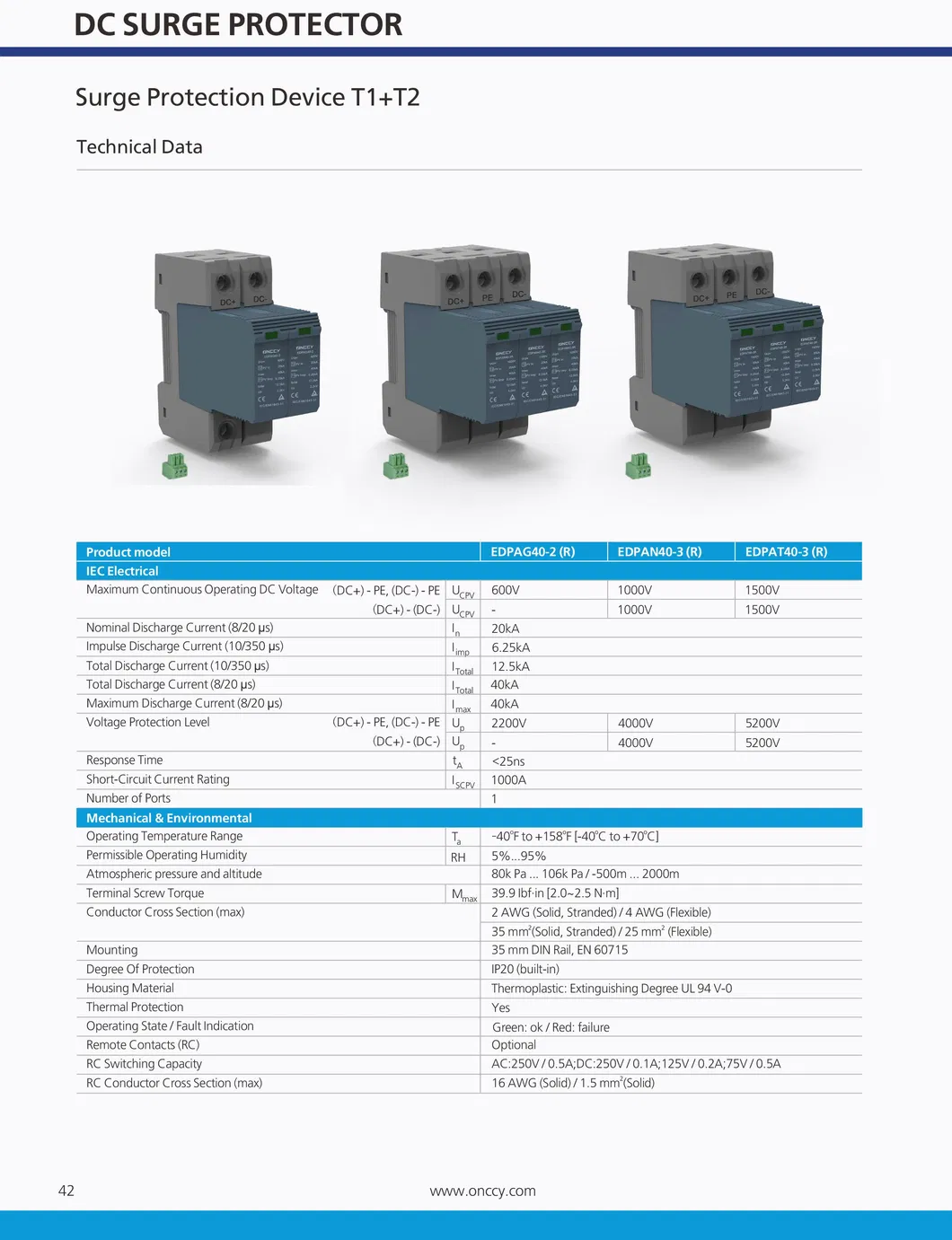

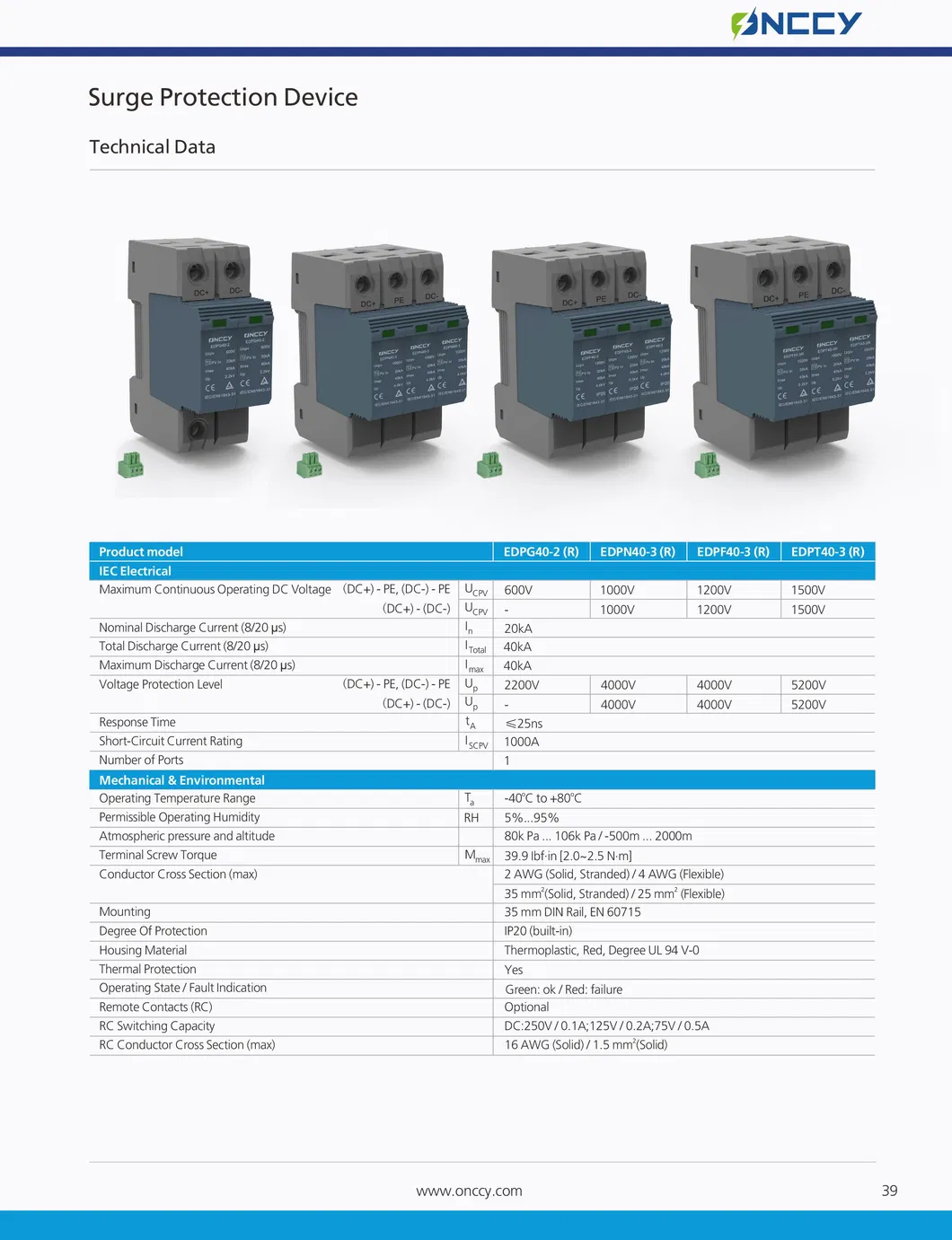

Technical Data EDPAG40-2 EDPAN40-3 EDPAT40-3
Max Continuous Operating DC Voltage (UCPV) 600V 1010V 1500V
Nominal Discharge Current (In) 20kA
Total Discharge Current (10/350 μs) 12.5kA
Maximum Discharge Current (Imax) 40kA
Voltage Protection Level (Up) 2200V 4000V 5200V
Response Time (tA) <25ns
Operating Temperature -40°C to +70°C
Housing Material Thermoplastic UL 94 V-0
📸 Detailed Photos
Solar PV DC SPD
SPD Detail 1 SPD Detail 2
SPD View 1 SPD View 2 SPD View 3
SPD Detail 3 SPD Detail 4
Installation Guide

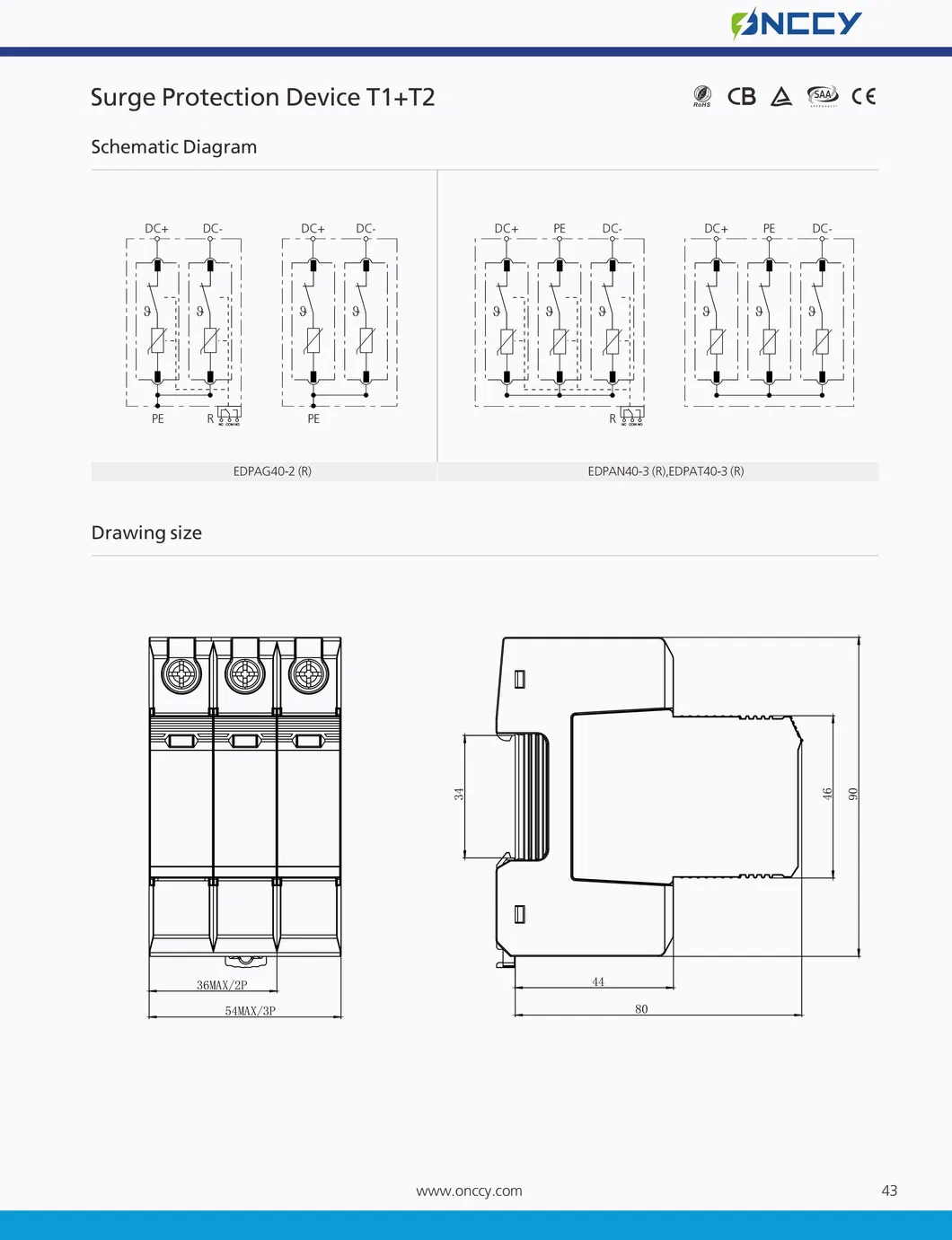

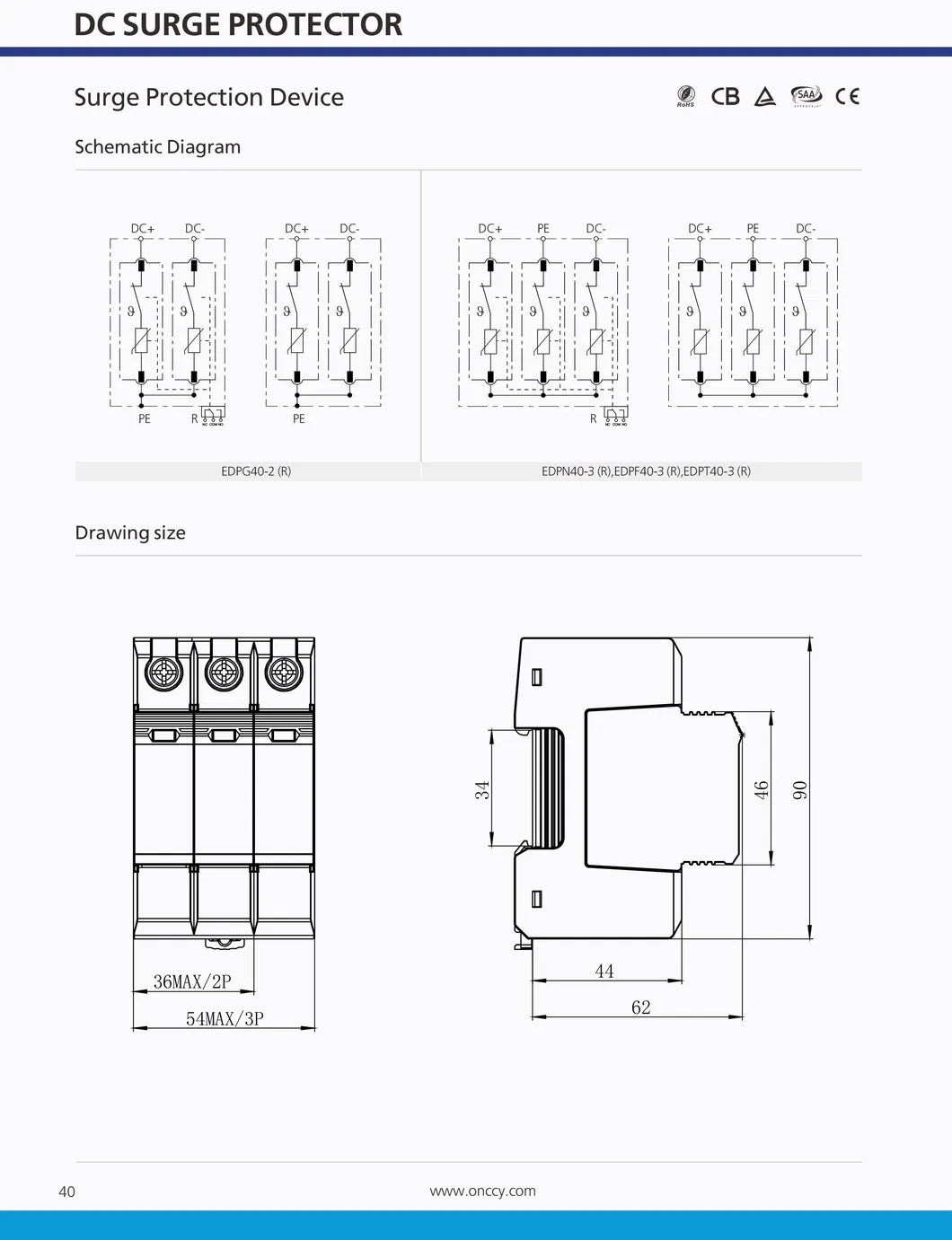

Product Size Internal Structure Wiring Diagram
Application Scenario
❓ Frequently Asked Questions
What is the purpose of a DC Surge Protection Device (SPD)?
It is designed to protect photovoltaic (PV) power generation systems from overvoltage caused by lightning strikes or other electrical surges by directing excess voltage to the earth within nanoseconds.
How do I interpret the visual indicator windows?
The visual indicator provides status at a glance: Green indicates the device is operating normally, while Red indicates it has reached its end of life or failed and requires immediate replacement.
Can the modules be replaced while the system is live?
Yes, the pluggable design allows for modules to be replaced live, making maintenance simple and reducing system downtime.
What standards do these products comply with?
Our surge protectors comply with international standards including IEC 61643-31 and EN 50539-11+A1, and have passed certifications such as TUV, CE, and ROHS.
What is the typical response time of the SPD?
The device features high-energy MOV chips that provide a rapid response time of less than 25 nanoseconds.
What is the delivery time for orders?
Generally, small quantities are shipped within 3 days. For standard bulk orders, the lead time is approximately 15-20 days.
