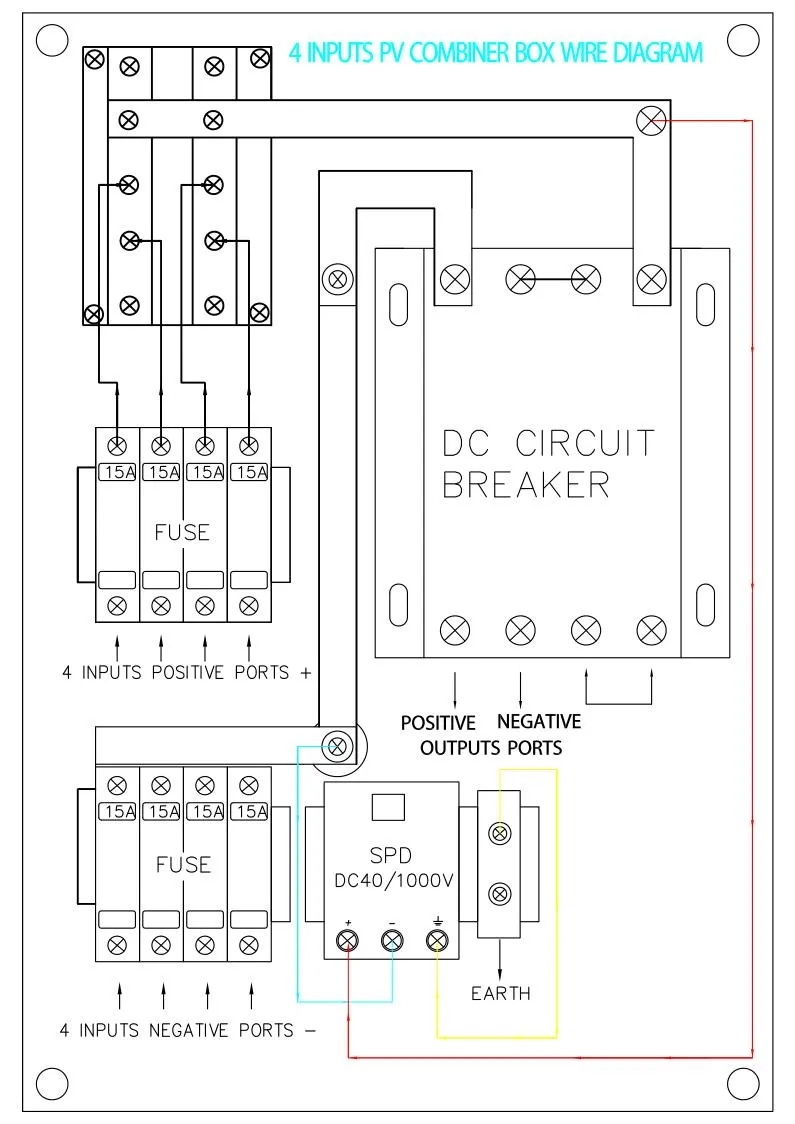

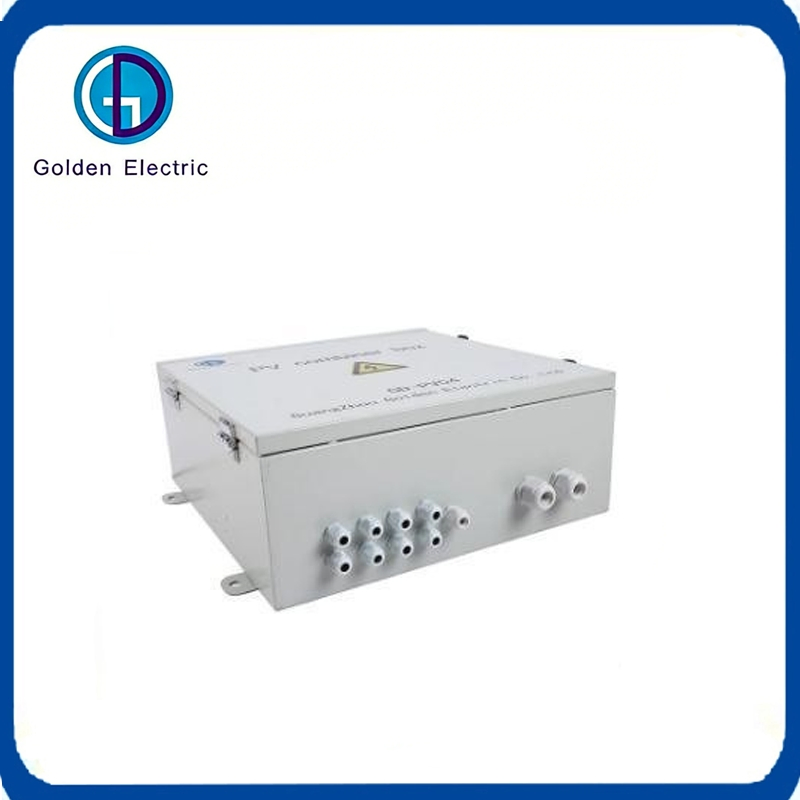

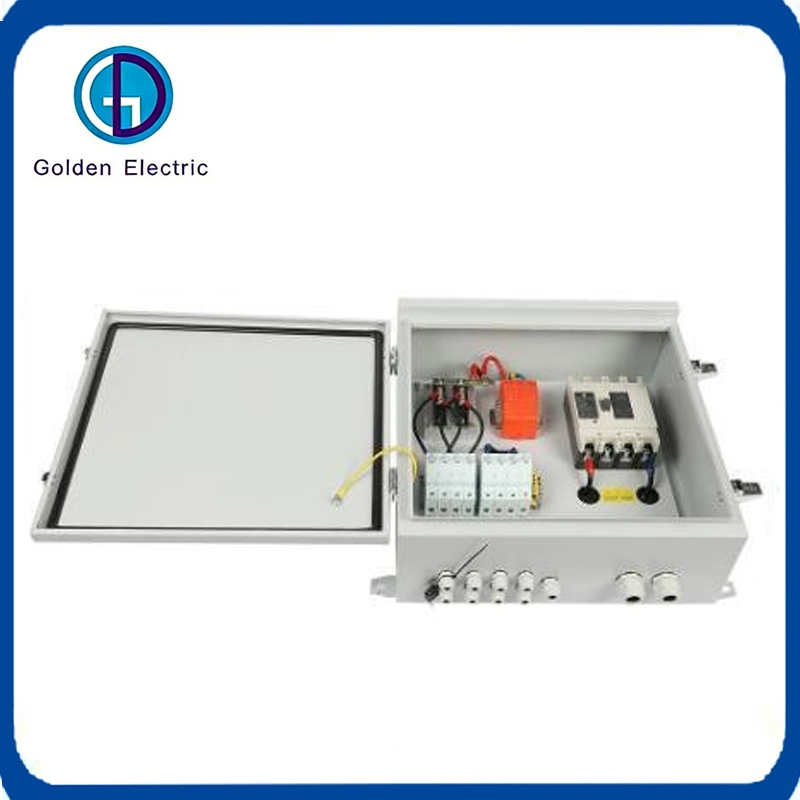

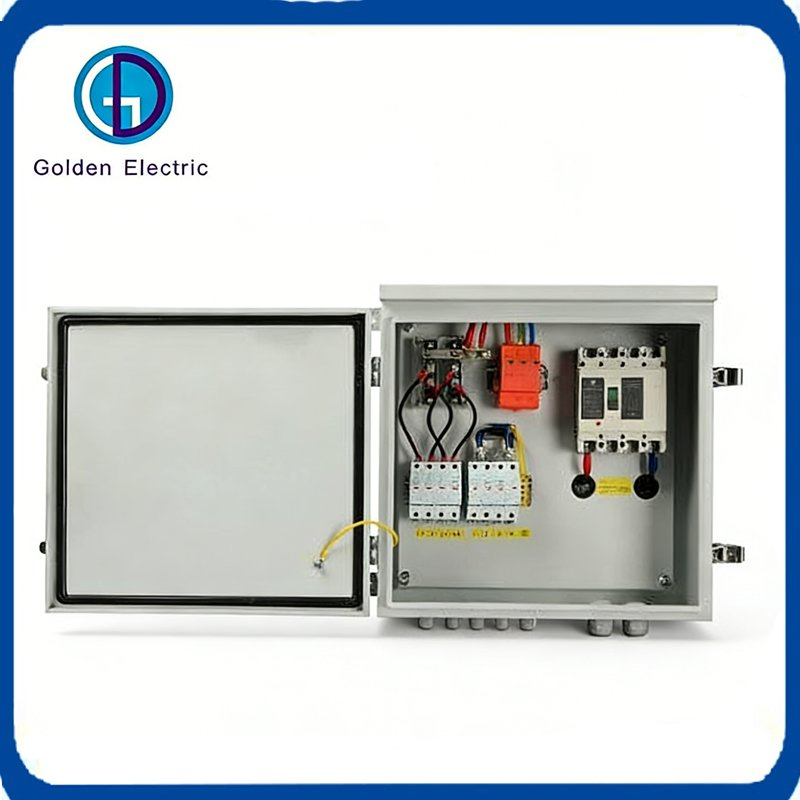

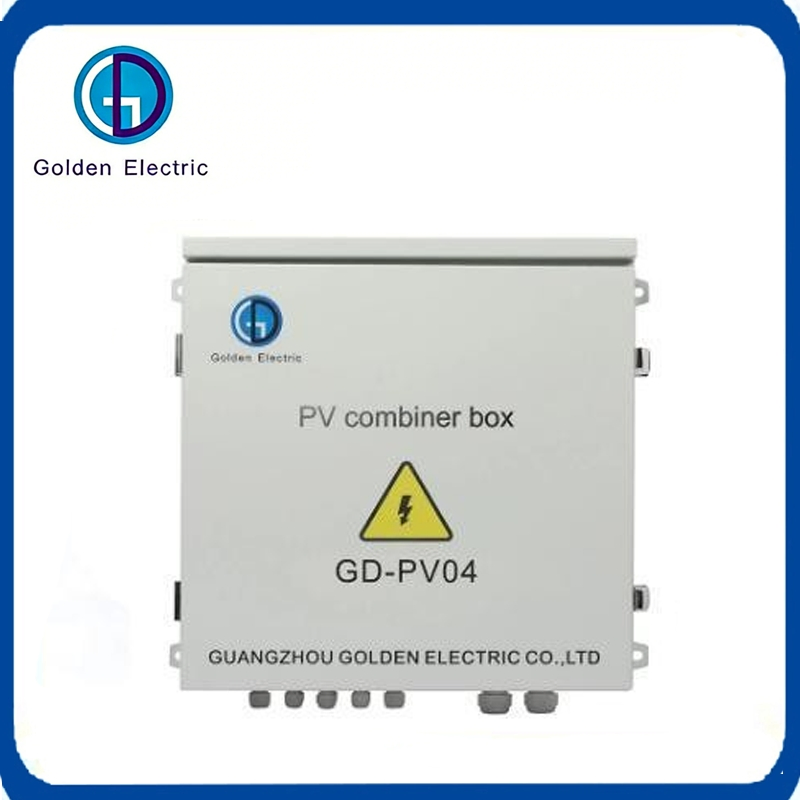

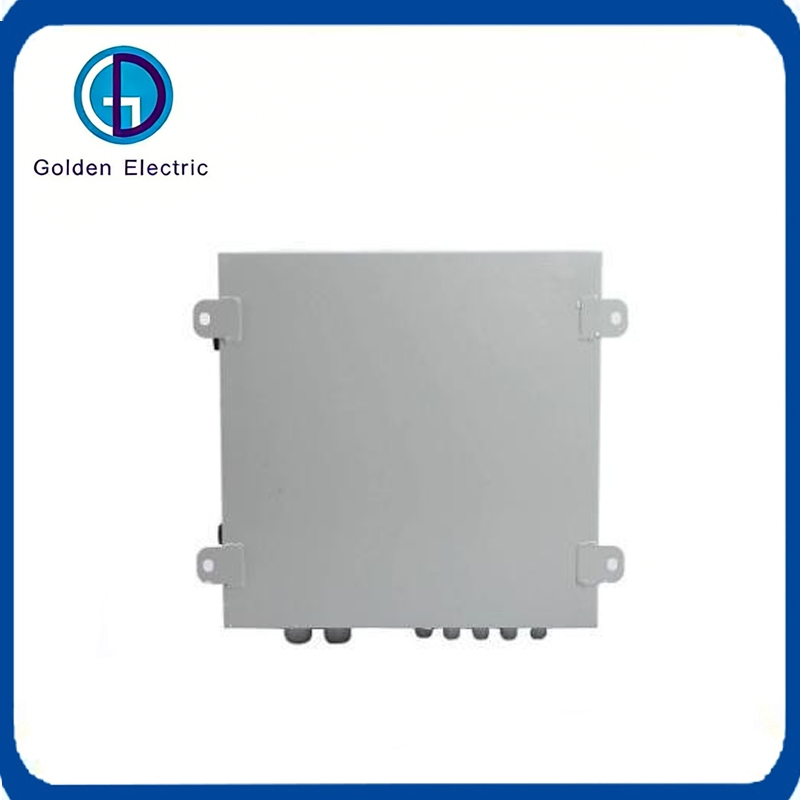

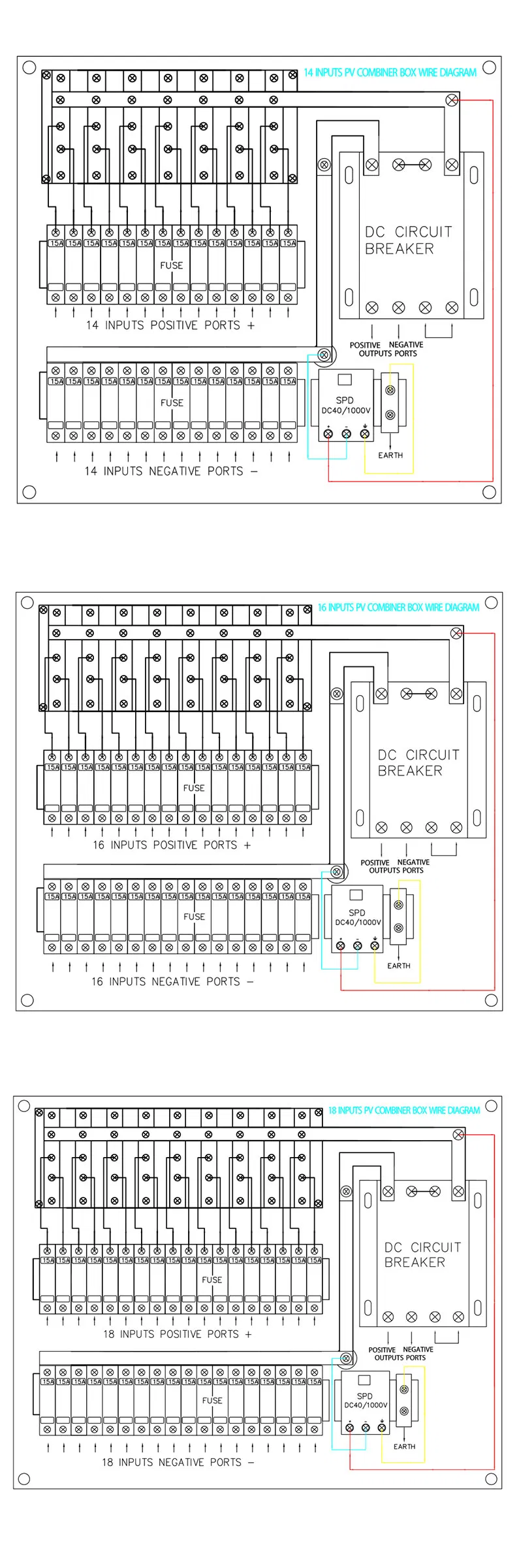

GD-PV4/1 PV combiner box facilitates the synthetic DC input of 4 PV components into 1 output. Each channel is equipped with a high-performance fuse, while the output side features comprehensive lightning protection and a circuit breaker.
This system significantly simplifies the input wiring for DC power distribution cabinets and inverters, providing robust lightning protection, short circuit protection, and grounding protection. The unit adopts an outdoor wall-mounted design, specifically engineered to adapt to harsh environments with an IP65/IP66 protection grade.
| Model Name | GD-PV4/1 |
| Electric Parameters | |
| System Maximum DC Voltage | 1000V |
| Maximum Input Current per String | 15A |
| Maximum Output Switch Current | 20A / 32A |
| Lightning Protection | |
| Category of Test | II Grade Protection |
| Nominal Discharge Current (In) | 20kA |
| Maximum Discharge Current (Imax) | 40kA |
| Voltage Protection Level (Up) | 3.8kV |
| Max Continuous Operating Voltage (Uc) | 1050V |
| Mechanical & Environment | |
| Protection Grade | IP65 |
| Box Material | Metal / Cold Rolled Steel |
| Operating Temperature | -25ºC to +55ºC |
| Relative Humidity | 0-95%, No Condensation |
