📊 Product Description

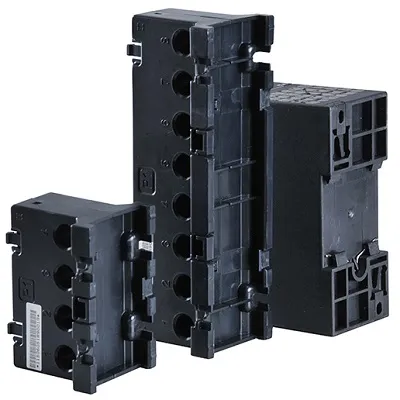

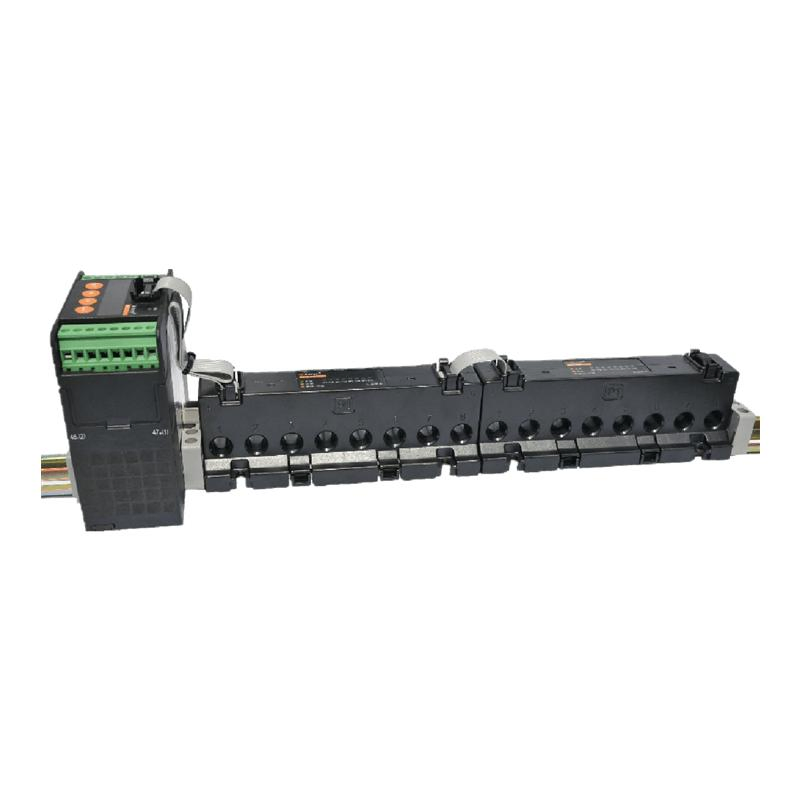

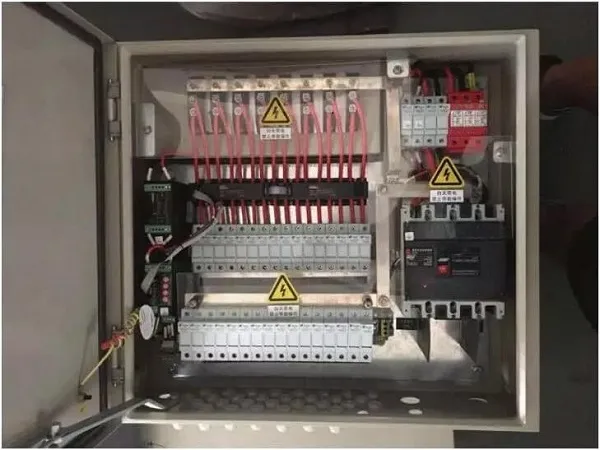

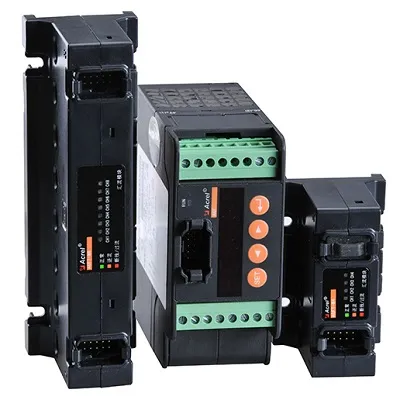

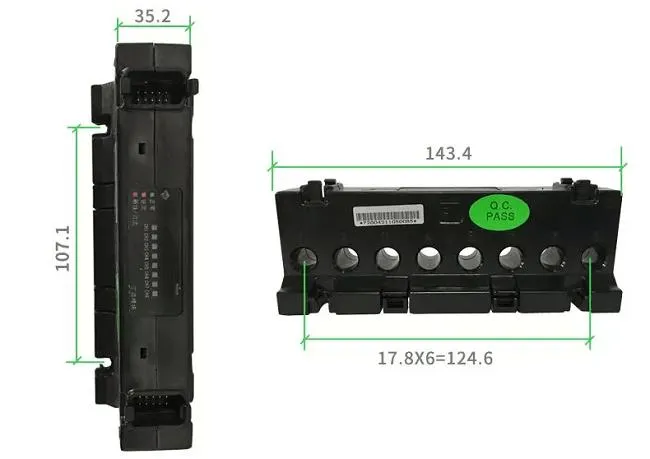

AGF-M Perforation type PV confluence acquisition device is specially designed for smart PV combiner boxes. It is used for monitoring the running state of solar panels in solar cell arrays, measuring the currents of the solar cells, and detecting the state of surge protection devices and DC breakers. The device is equipped with an RS485(Modbus) communication port for transmitting all data to the master device efficiently.
🛠 Service & Production

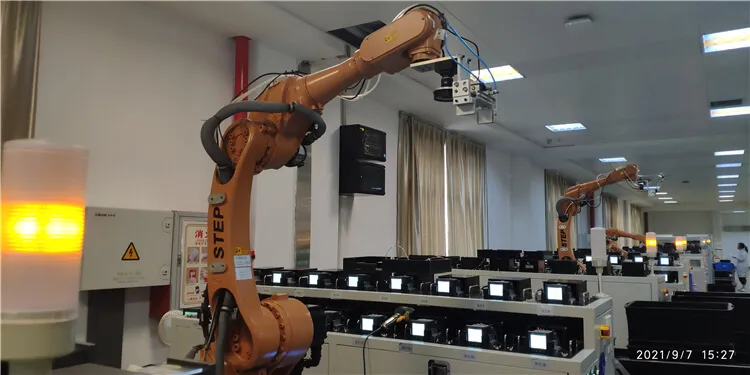

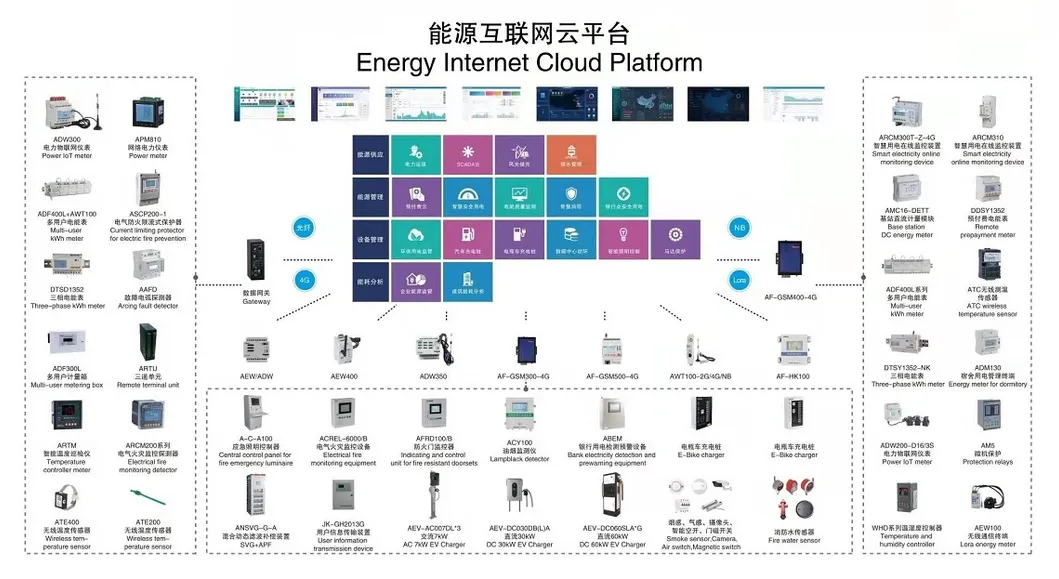

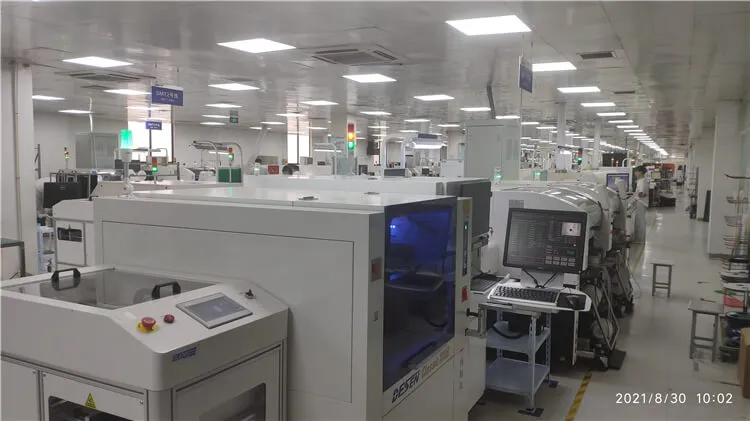

The enterprise integrates R&D, production, sales, and service, committed to providing energy efficiency management and security system solutions. We offer a complete production line from cloud platform software to specialized sensors. The systems include substation operations, electricity safety management, and industrial energy control platforms.
❓ Frequently Asked Questions
1. What is the primary use of the AGF-M acquisition device?
The AGF-M is specifically designed for smart PV combiner boxes to monitor solar panel status, measure current, and detect the health of surge protectors and breakers.
2. How many strings of solar panels can one device monitor?
The device is highly flexible, offering input channel options for 4, 8, 12, 16, 20, or 24 channels depending on your specific requirements.
3. What communication protocol does the device support?
It supports the standard RS485 interface with Modbus-RTU protocol, allowing easy integration with master monitoring systems at various baud rates.
4. What is the measurement accuracy of the AGF-M?
The device provides high-precision monitoring with an accuracy of 0.5 Class and a response time of just 1 second.
5. Can it operate in extreme weather conditions?
Yes, it is designed for durability with a working temperature range of -35°C to +65°C and can operate at altitudes up to 3000 meters.
6. Does it include auxiliary functions like temperature monitoring?
Yes, the device features an internal temperature measurement function to monitor the environment inside the combiner box from -20°C to +100°C.
