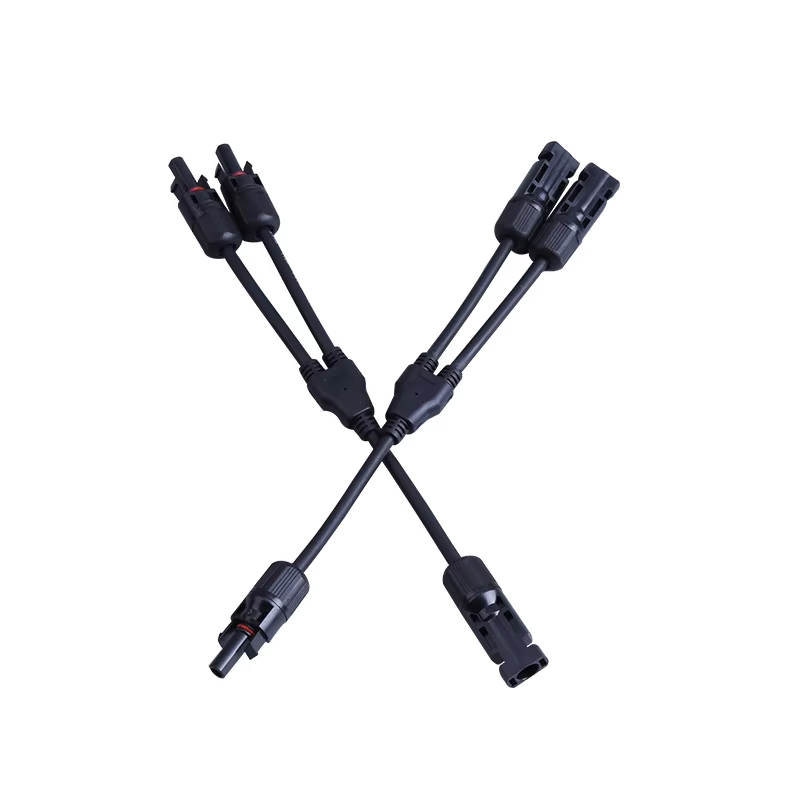

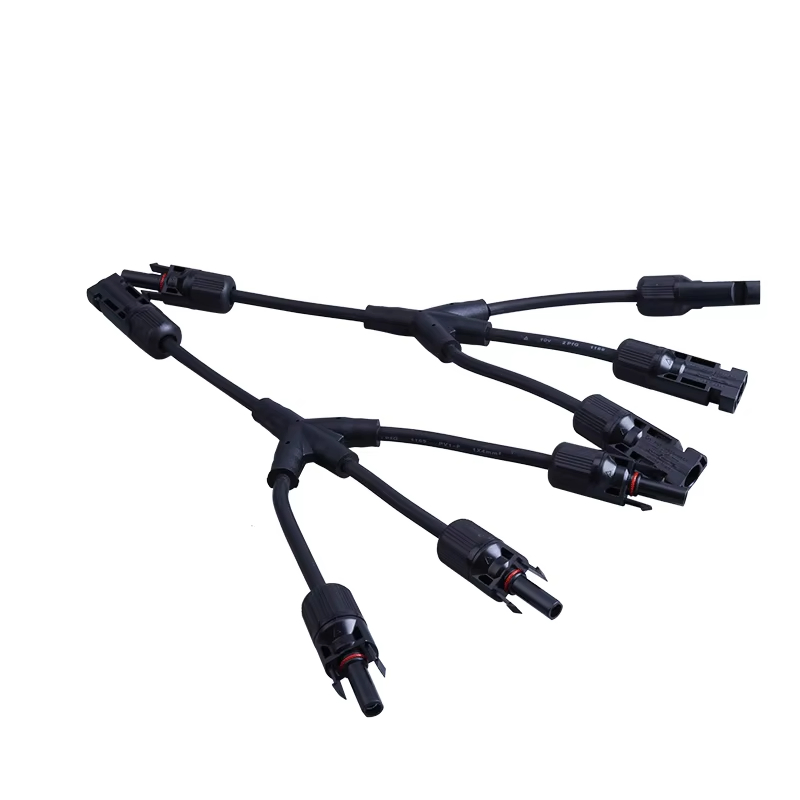

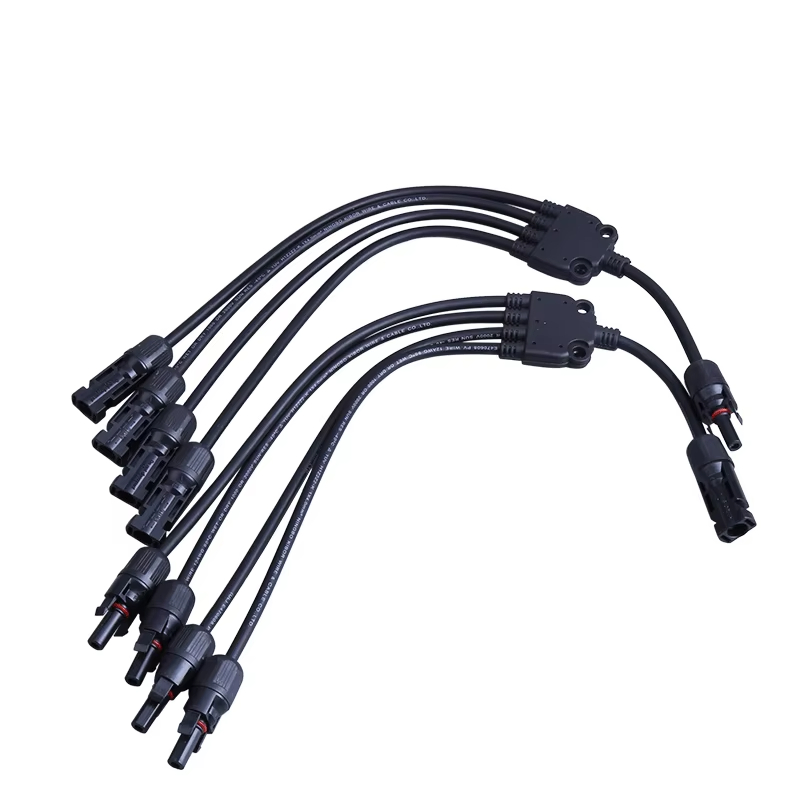

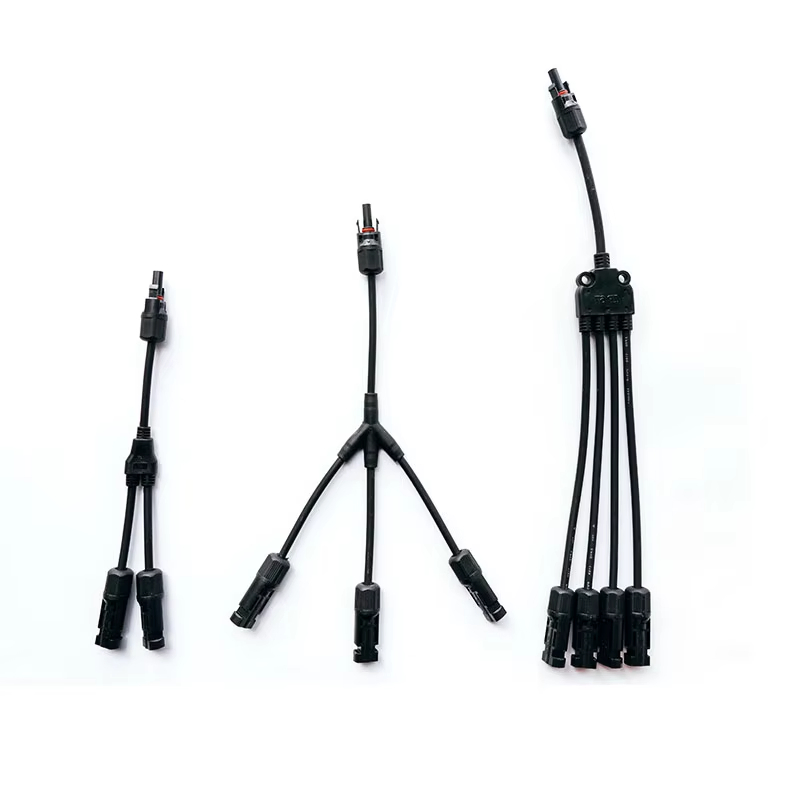

Solar Connectors Y Branch Parallel PV Adapter Cable Solar Panel Connector
Solar Connectors Y Branch Parallel PV Adapter Cable Solar Panel Connector
Solar Connectors Y Branch Parallel PV Adapter Cable Solar Panel Connector
Solar Connectors Y Branch Parallel PV Adapter Cable Solar Panel Connector
Solar Connectors Y Branch Parallel PV Adapter Cable Solar Panel Connector
1 / 5
Solar Connectors Y Branch Parallel PV Adapter Cable Solar Panel Connector
Solar Connectors Y Branch Parallel PV Adapter Cable Solar Panel Connector
Solar Connectors Y Branch Parallel PV Adapter Cable Solar Panel Connector
Solar Connectors Y Branch Parallel PV Adapter Cable Solar Panel Connector
Solar Connectors Y Branch Parallel PV Adapter Cable Solar Panel Connector

Solar Connectors Y Branch Parallel PV Adapter Cable Solar Panel Connector

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
PV-Y2
Terminal Material
Copper
Interface Type
DC/DC
Rated Voltage
1000VDC
Rated Current
30A (2.5mm, 4mm, 6mm)
Protection Degree
IP67
Flame Class
UL94-V0
Warranty
18 Months

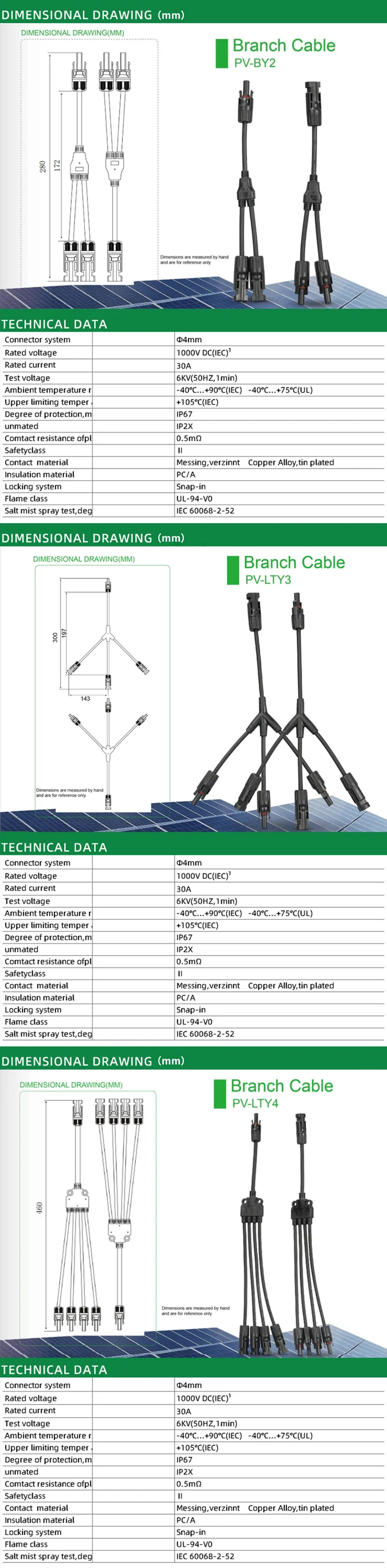

Product Description

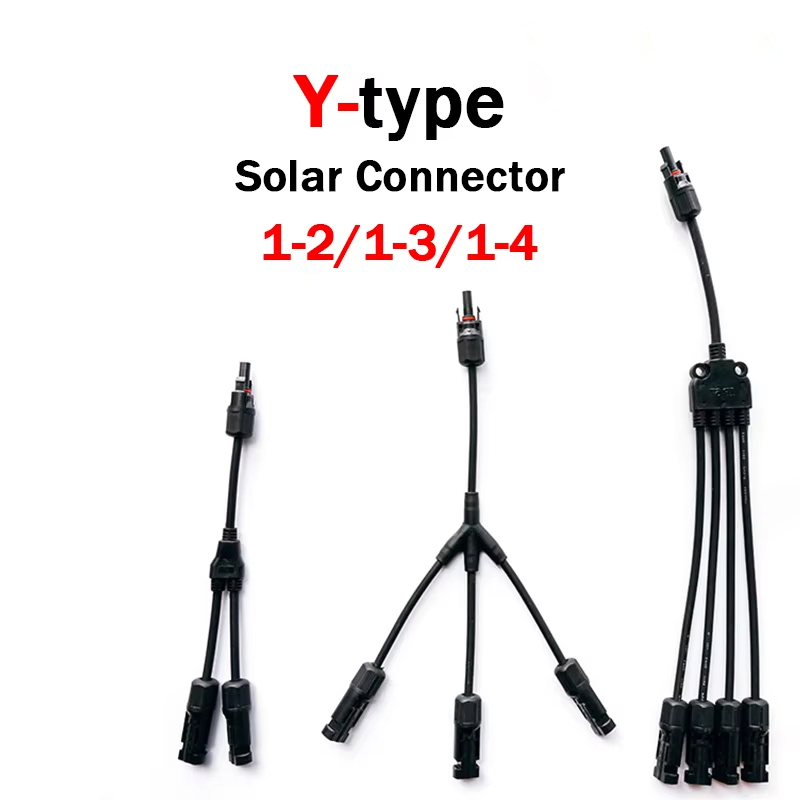

PV Y Type Photovoltaic Solar Connector 1000V 30A IP67 Male/Female

High Quality Material Equipped with a waterproof ring on the connection, perfect for sealing out water and dust to prevent corrosion. Features premium PPO insulation.
Easy Assembly Quick and simple assembly processing and removal of plugs without the aid of any extra instruments.
Professional Waterproofing IP67 rated for excellent outdoor performance and durability in harsh weather conditions.
Insulation MaterialPPO
Rated Voltage1000V
Test Voltage6KV (50Hz, 1Min)
Contact MaterialCopper, Tin Plated
Contact ResistanceLess than 0.5 m ohm
Degree of ProtectionIP67
Pollution Degree2
Protection ClassClass II
Flame ClassUL94-V0
Plug ForceLess than 50N
Withdrawal ForceMore than 50N
Ambient Temperature Range-40°C ~ +90°C
Compatible Cable Cross Sections2.5mm², 4.0mm², 6.0mm² (14/12/10 AWG)
Pin Dimension4.0mm

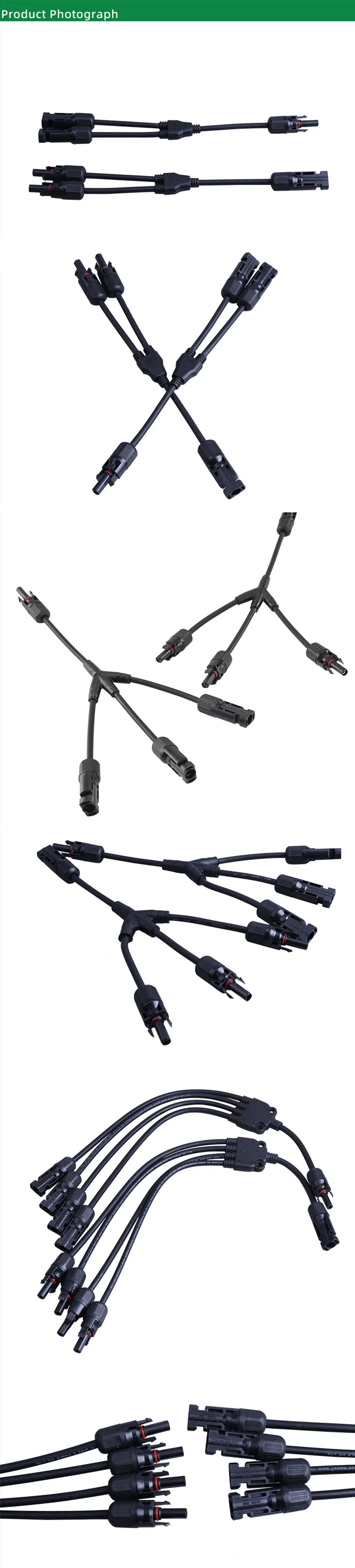

Product Showcase
Solar Connectors Y Branch Parallel PV Adapter Cable Solar Connectors Y Branch Parallel PV Adapter Cable
Frequently Asked Questions
Q: What is the estimated delivery time?
A: Delivery time depends on the order quantity. Generally, we arrange the lead time within 5-7 days for standard orders.
Q: Are you a manufacturer or a trading company?
A: We are a professional factory dedicated to high-quality solar connection solutions.
Q: How do you ensure the quality of the solar connectors?
A: Quality is our priority. We manufacture products to meet international standards (IP67, UL94-V0) and ensure they meet your satisfaction through rigorous testing.
Q: Are these connectors compatible with different cable sizes?
A: Yes, these connectors are compatible with solar cables of 2.5mm², 4.0mm², and 6.0mm² (14AWG, 12AWG, 10AWG).
Q: Do these connectors require special tools for installation?
A: No, the design allows for quick and simple assembly and removal of plugs without the need for extra specialized instruments.
Q: What is the waterproof rating for outdoor use?
A: These connectors have an IP67 professional waterproof rating, making them ideal for long-term outdoor usage in various weather conditions.
