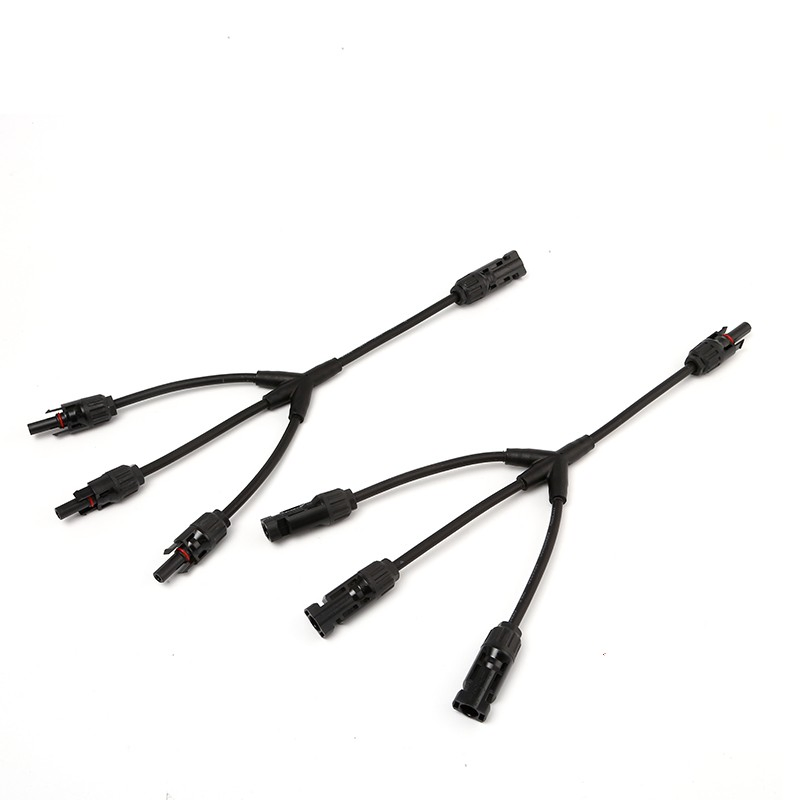

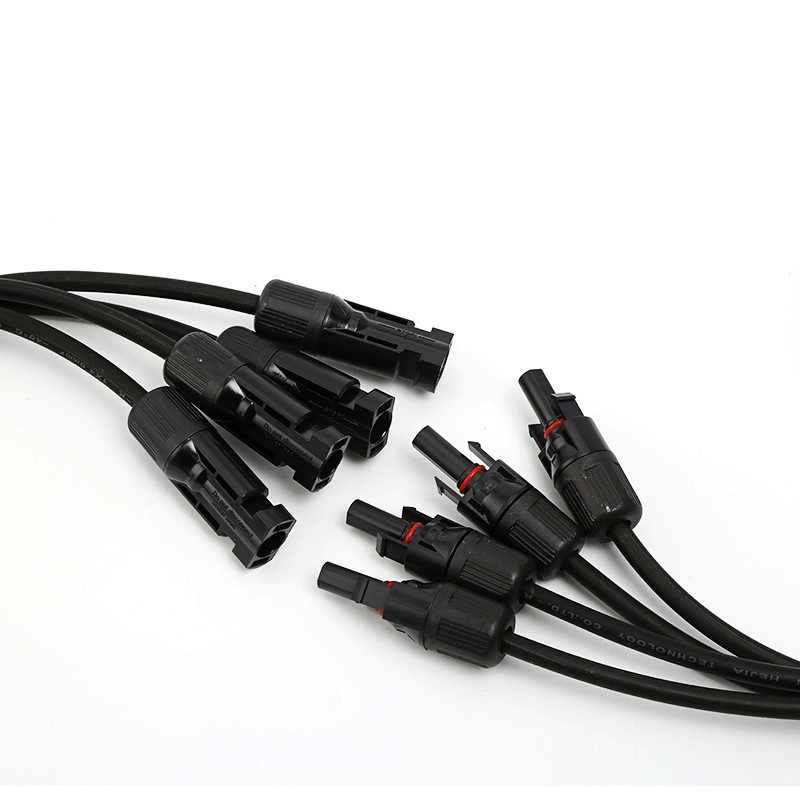

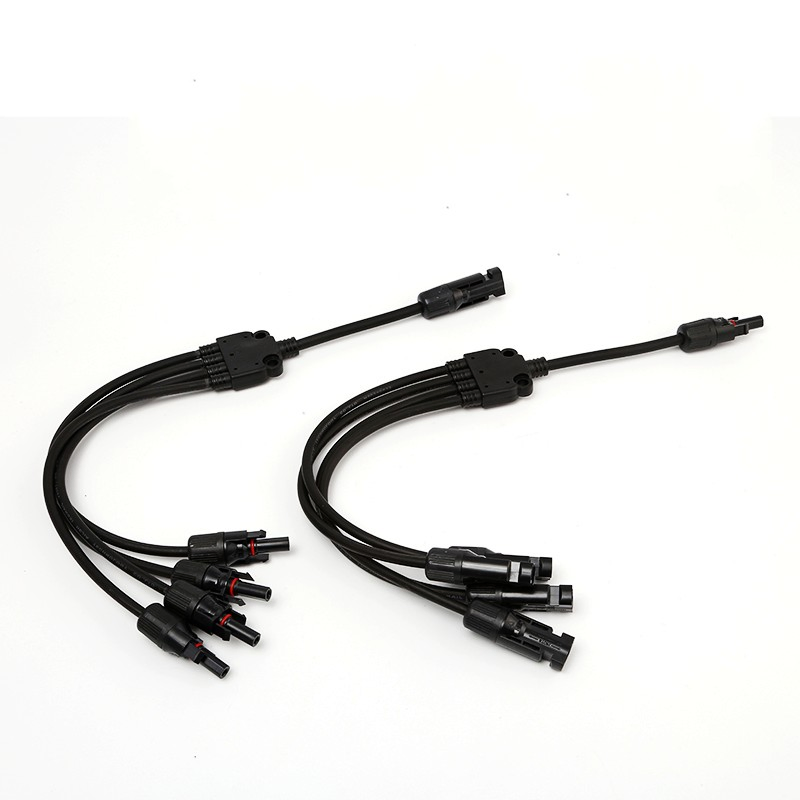

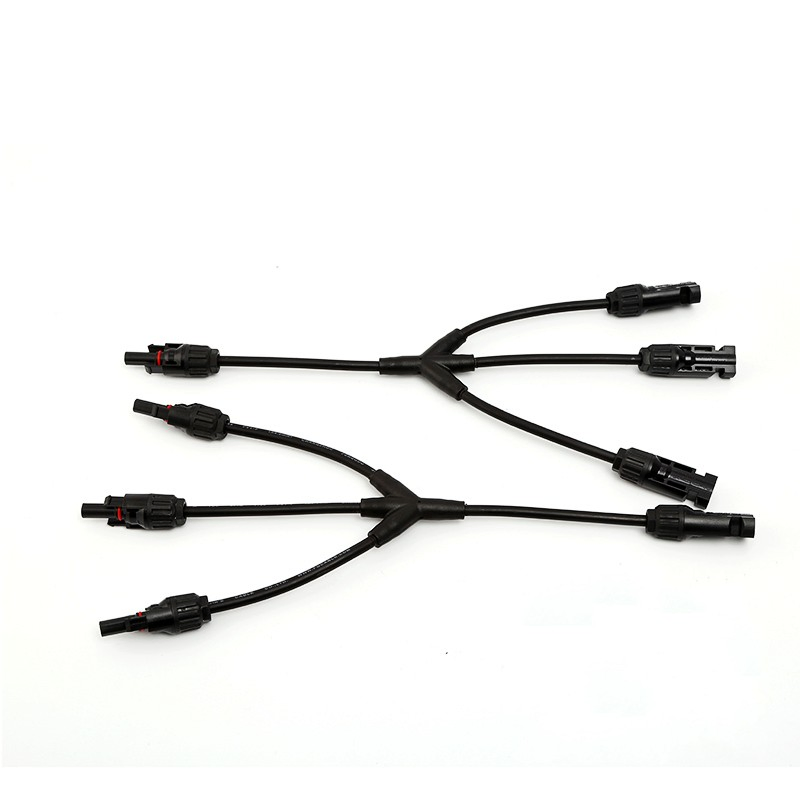

Solar Connector Kit Plug 1000V 50A Connectors for Solar Panels PV/Mc Cable 2.5/4/6mm²
Solar Connector Kit Plug 1000V 50A Connectors for Solar Panels PV/Mc Cable 2.5/4/6mm²
Solar Connector Kit Plug 1000V 50A Connectors for Solar Panels PV/Mc Cable 2.5/4/6mm²
Solar Connector Kit Plug 1000V 50A Connectors for Solar Panels PV/Mc Cable 2.5/4/6mm²
Solar Connector Kit Plug 1000V 50A Connectors for Solar Panels PV/Mc Cable 2.5/4/6mm²
1 / 5
Solar Connector Kit Plug 1000V 50A Connectors for Solar Panels PV/Mc Cable 2.5/4/6mm²
Solar Connector Kit Plug 1000V 50A Connectors for Solar Panels PV/Mc Cable 2.5/4/6mm²
Solar Connector Kit Plug 1000V 50A Connectors for Solar Panels PV/Mc Cable 2.5/4/6mm²
Solar Connector Kit Plug 1000V 50A Connectors for Solar Panels PV/Mc Cable 2.5/4/6mm²
Solar Connector Kit Plug 1000V 50A Connectors for Solar Panels PV/Mc Cable 2.5/4/6mm²

Solar Connector Kit Plug 1000V 50A Connectors for Solar Panels PV/Mc Cable 2.5/4/6mm²

Customization: Available
Gender: Female
Pin: 2 Pins
Send Inquiry

Product Description

i

Basic Information

Application
PCB
Certification
YUV, MSDS, CE, ISO 9001, RoHS
Terminal Material
Copper
Interface Type
HDR
Cable Connector
Cable Connector Mc 4
Transport Package
Carton
Origin
China
Production Capacity
4000/PCS
📦

Packaging & Delivery

Package Size
11.00cm * 3.00cm * 2.00cm
Package Gross Weight
0.200kg
★

Product Description

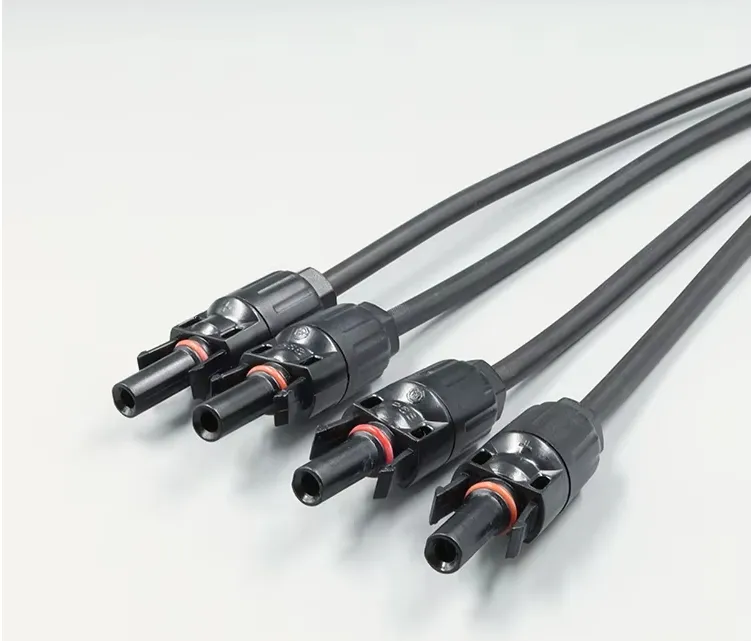

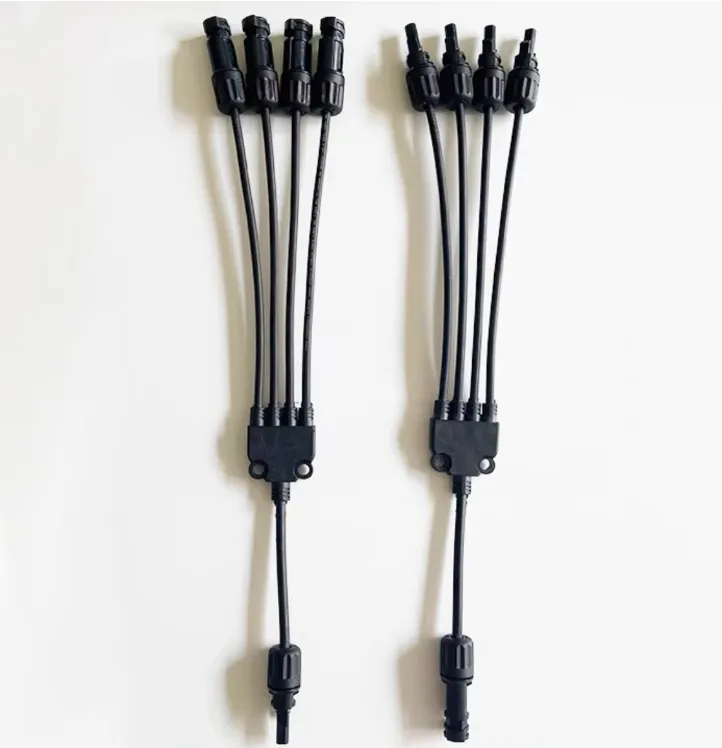

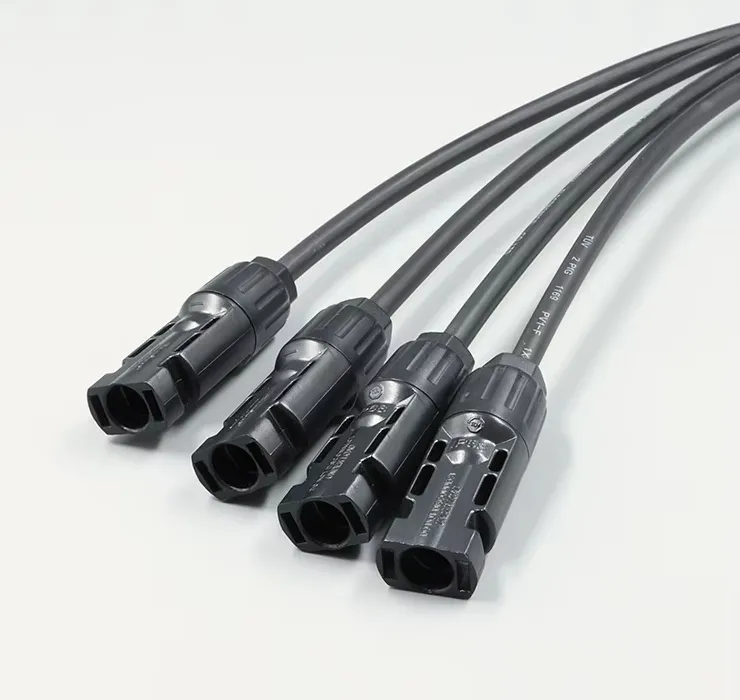

Solar Connector Kit Solar Connector Kit Solar Connector Kit Solar Connector Kit Solar Connector Kit

Advantages of Solar Connector

Advantages
  • Simple on-site processing.
  • Mating safety provided by keyed housings.
  • Multiple plugging and unplugging cycles.
  • Accommodates PV cable with different insulation diameters.
  • High voltage and high current carrying capacity.
  • TUV and CE approved.
  • Crimp connection.

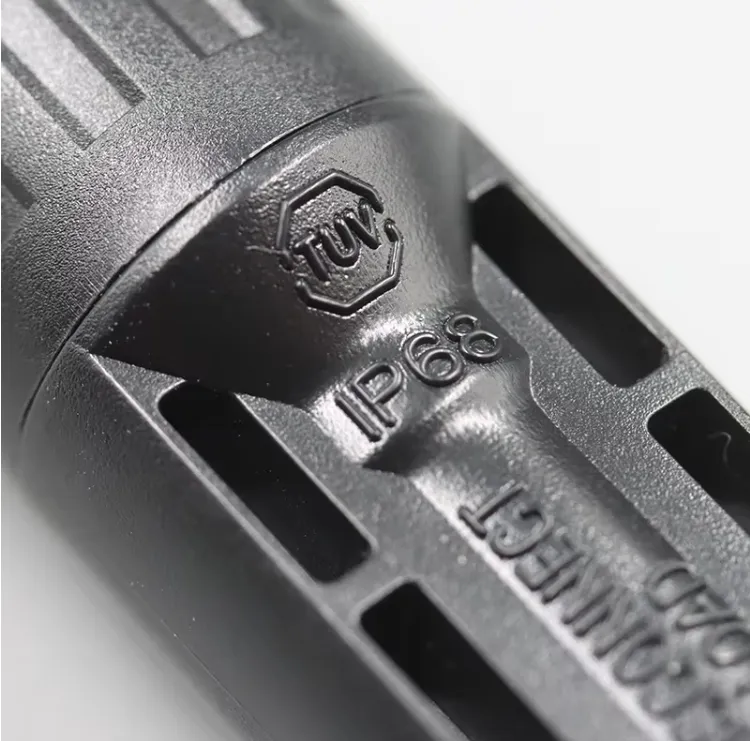

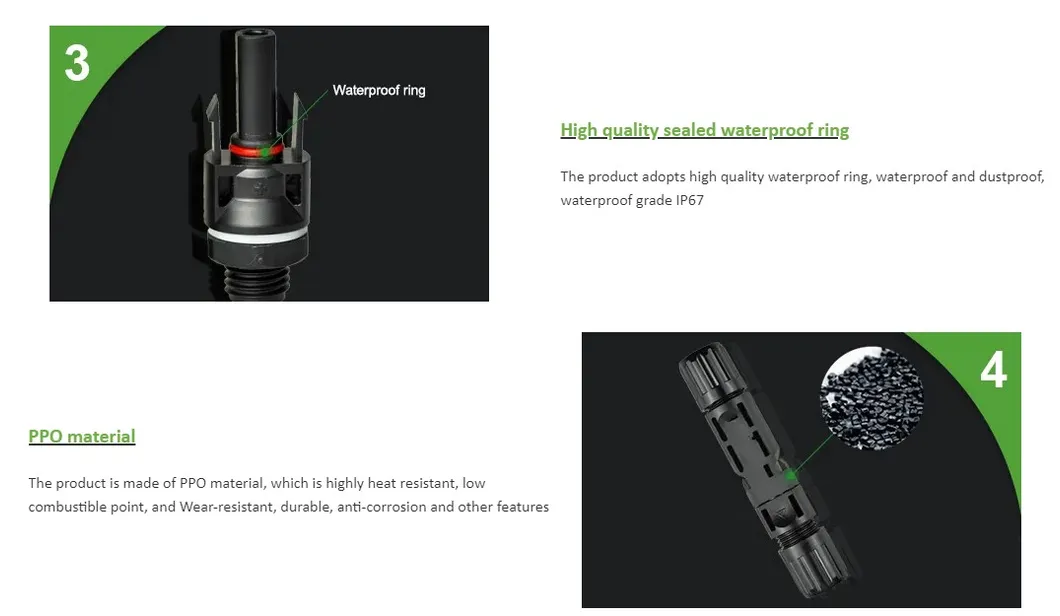

  • IP68 strongly waterproof.
⚙

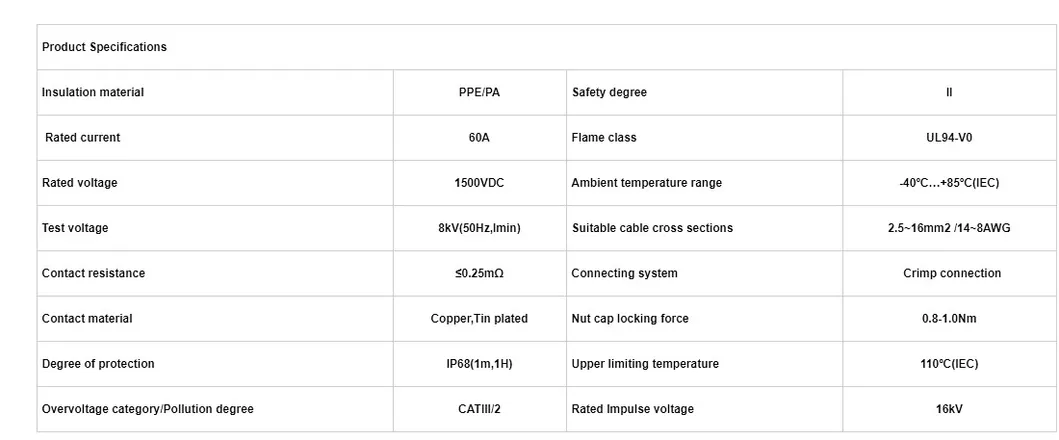

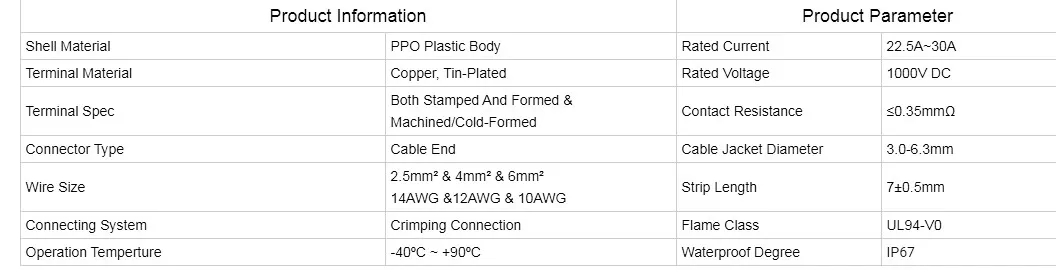

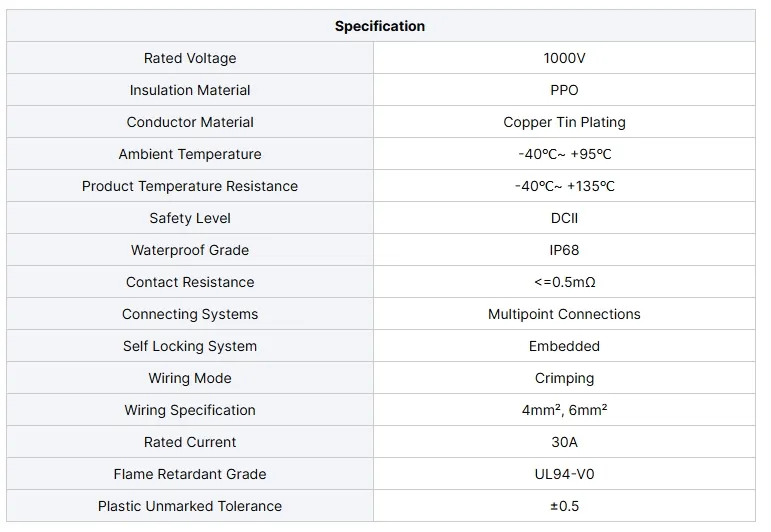

Technical Data

Insulation Material: PPO Rated Current: 50A(2.5mm²~6mm²), 70A(10mm²)
Test Voltage: 8000V(50Hz,1min) Rated Voltage: 1000V DC / 1500V DC
Contact Resistance: < 0.35mΩ Degree of Protection: IP68
Overvoltage Category: CATIII/2 Flame Class: UL94-V0

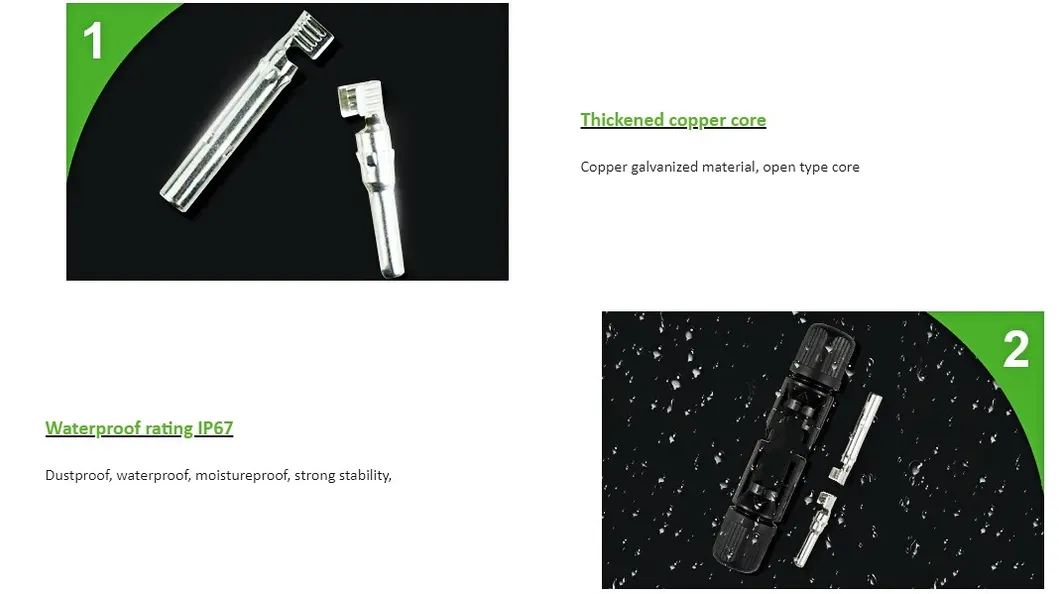

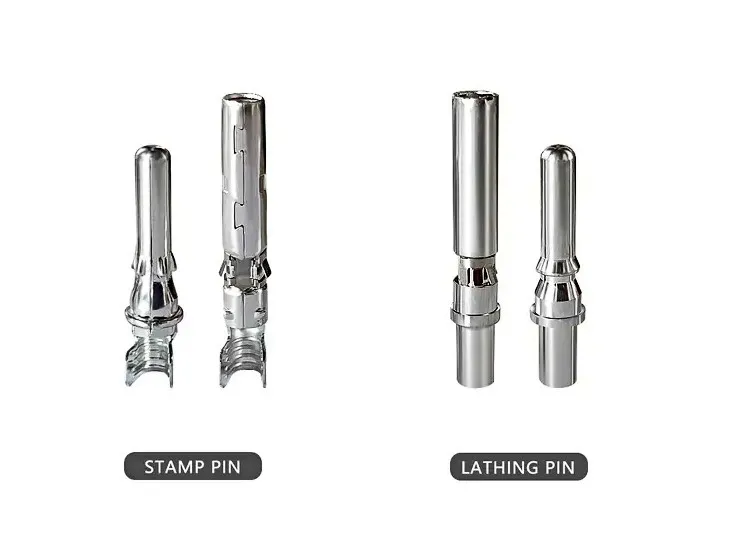

Safety Class: II Contact Material: Copper, tin plated

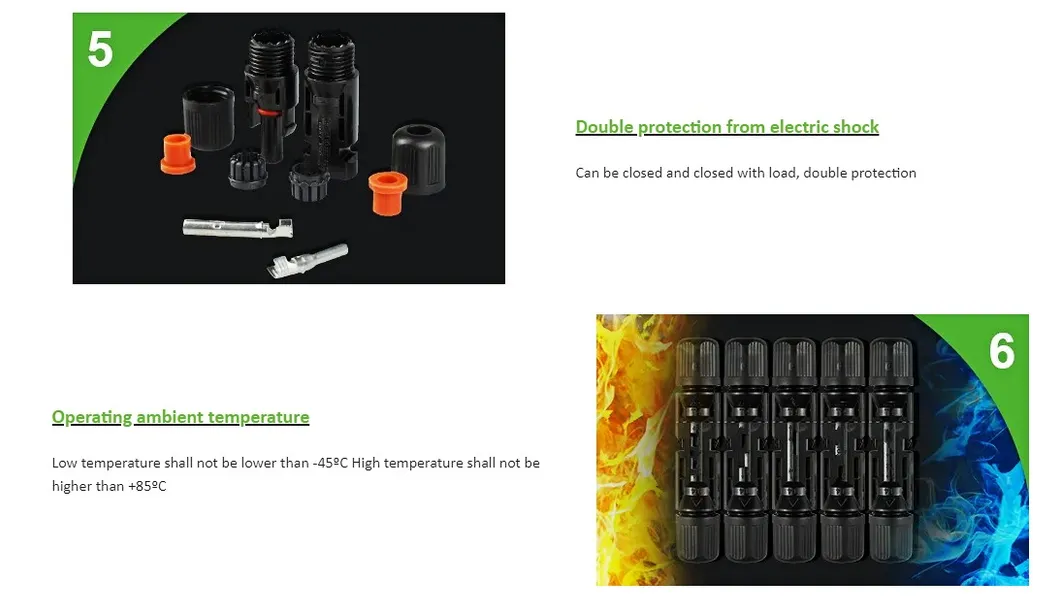

Temperature Range: -40ºC ~ +85ºC Suitable Cable: 2.5/4/6mm², 14/12/10AWG
Connecting System: Crimp connection Insertion/Withdrawal Force: ≤50N / ≥50N

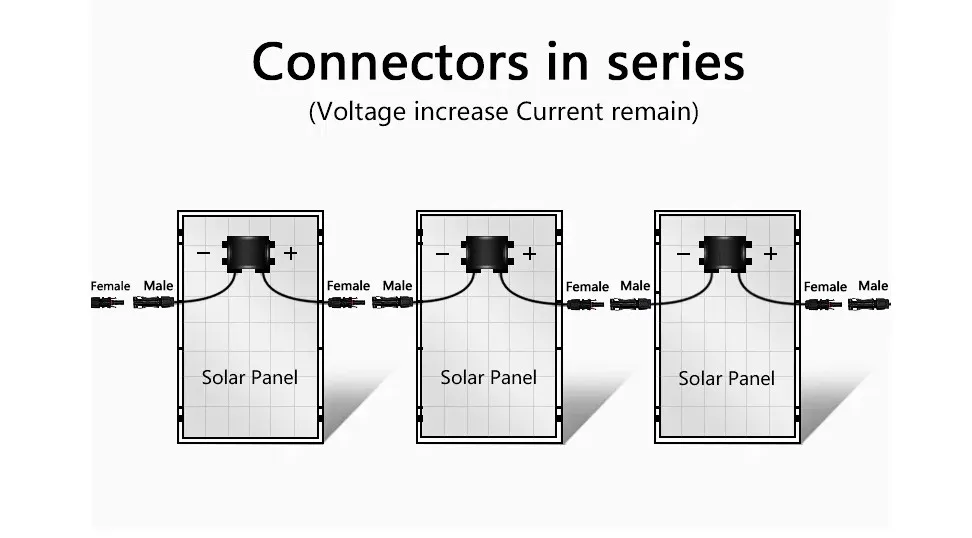

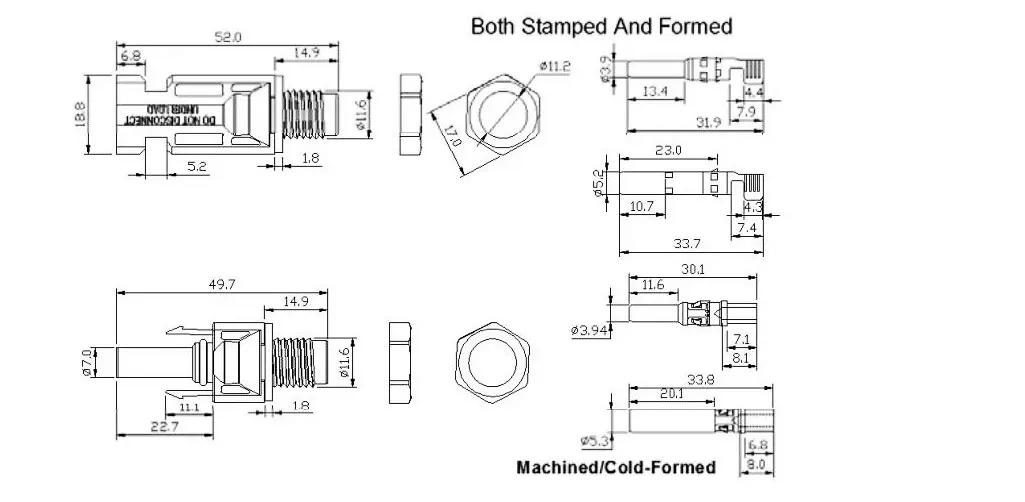

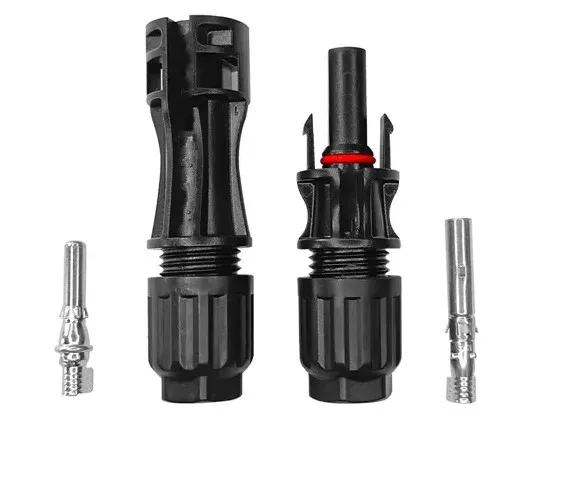

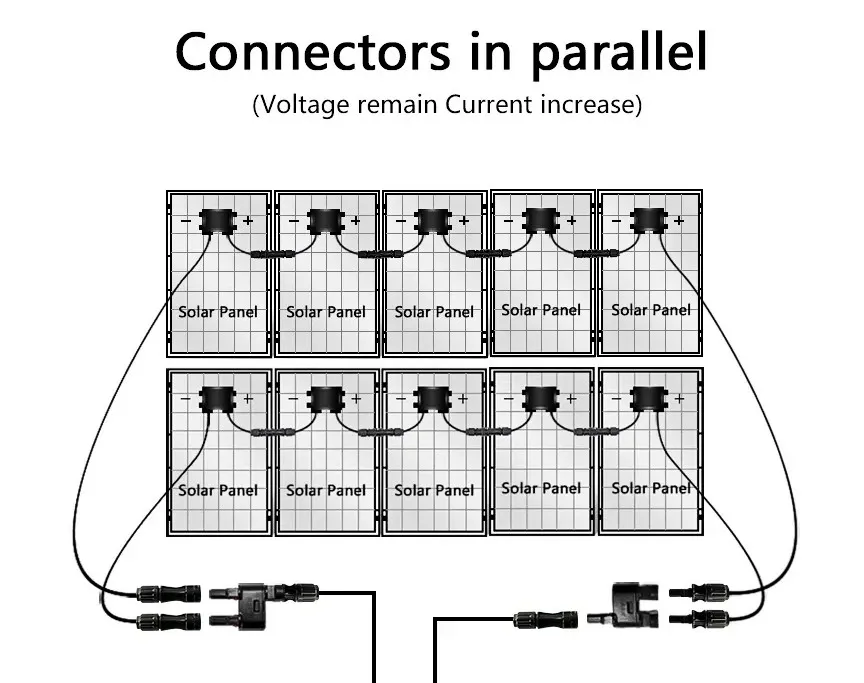

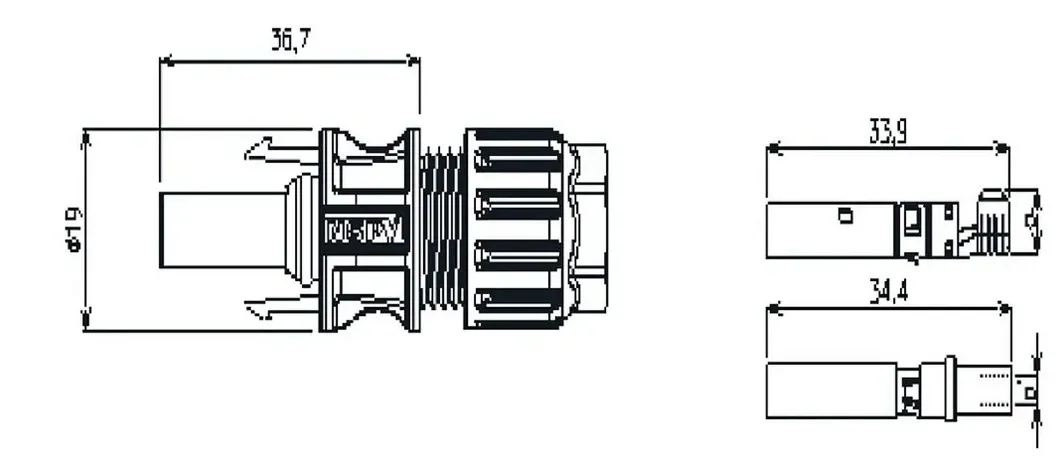

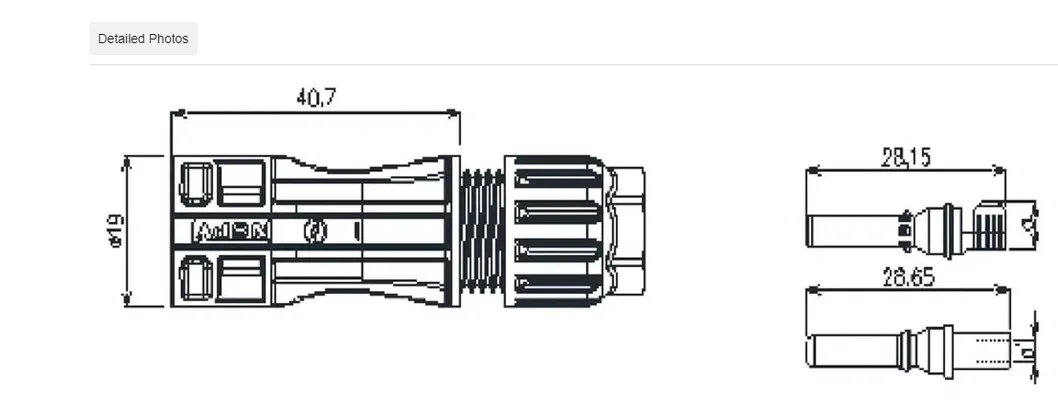

Technical Drawing Technical Drawing Technical Drawing Technical Drawing Technical Drawing Technical Drawing Technical Drawing Technical Drawing Technical Drawing Technical Drawing Technical Drawing Technical Drawing Technical Drawing Technical Drawing Technical Drawing Technical Drawing Technical Drawing Technical Drawing Technical Drawing
?

Frequently Asked Questions

What is the waterproof rating of these solar connectors?
These connectors are rated IP68, providing strong waterproof protection for outdoor solar applications.
Which cable sizes are compatible with this connector kit?
They are suitable for PV cables with cross-sections of 2.5mm², 4mm², and 6mm² (14/12/10 AWG).
What is the maximum rated voltage and current?
The rated voltage is 1000V DC / 1500V DC, and the rated current is 50A for 2.5-6mm² cables.
Are these connectors certified for safety?
Yes, they are TUV, CE, RoHS, and ISO 9001 approved, ensuring high quality and safety standards.
What material is used for the insulation and contacts?
The insulation material is high-quality PPO, and the contacts are made of tin-plated copper for excellent conductivity.
How are the cables connected to the terminals?

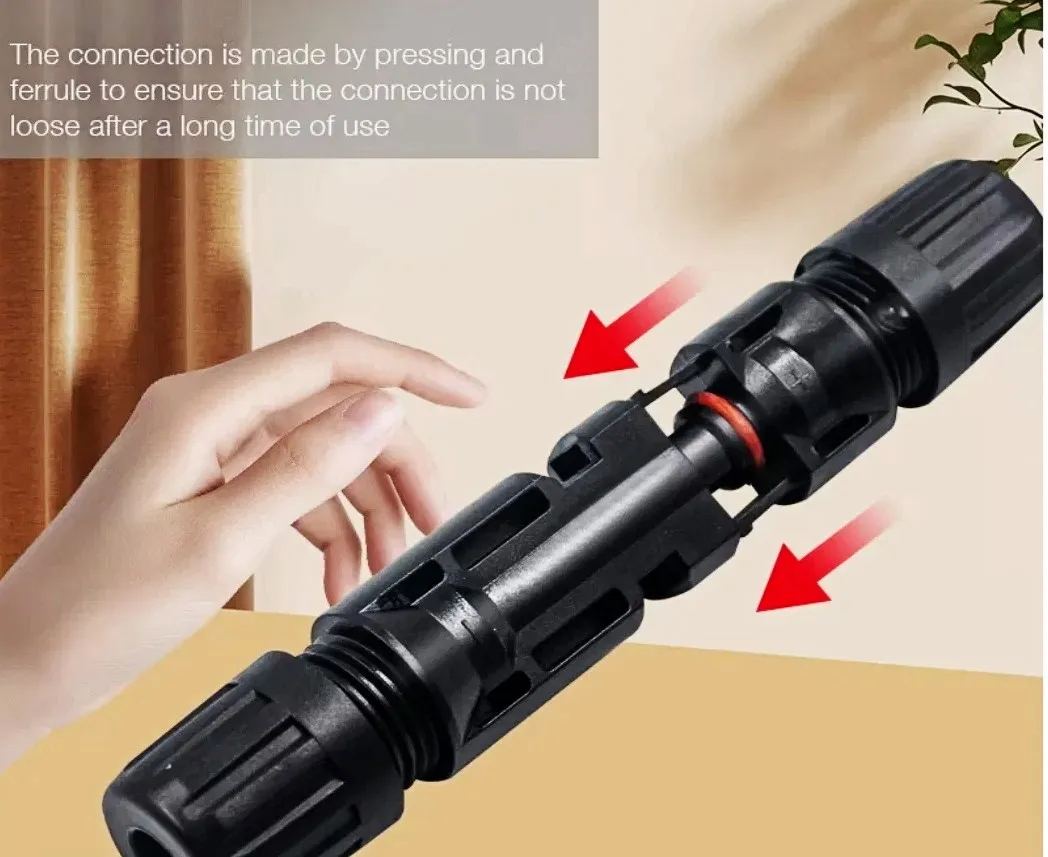

The connectors use a crimp connection system, which allows for simple and reliable on-site processing.
