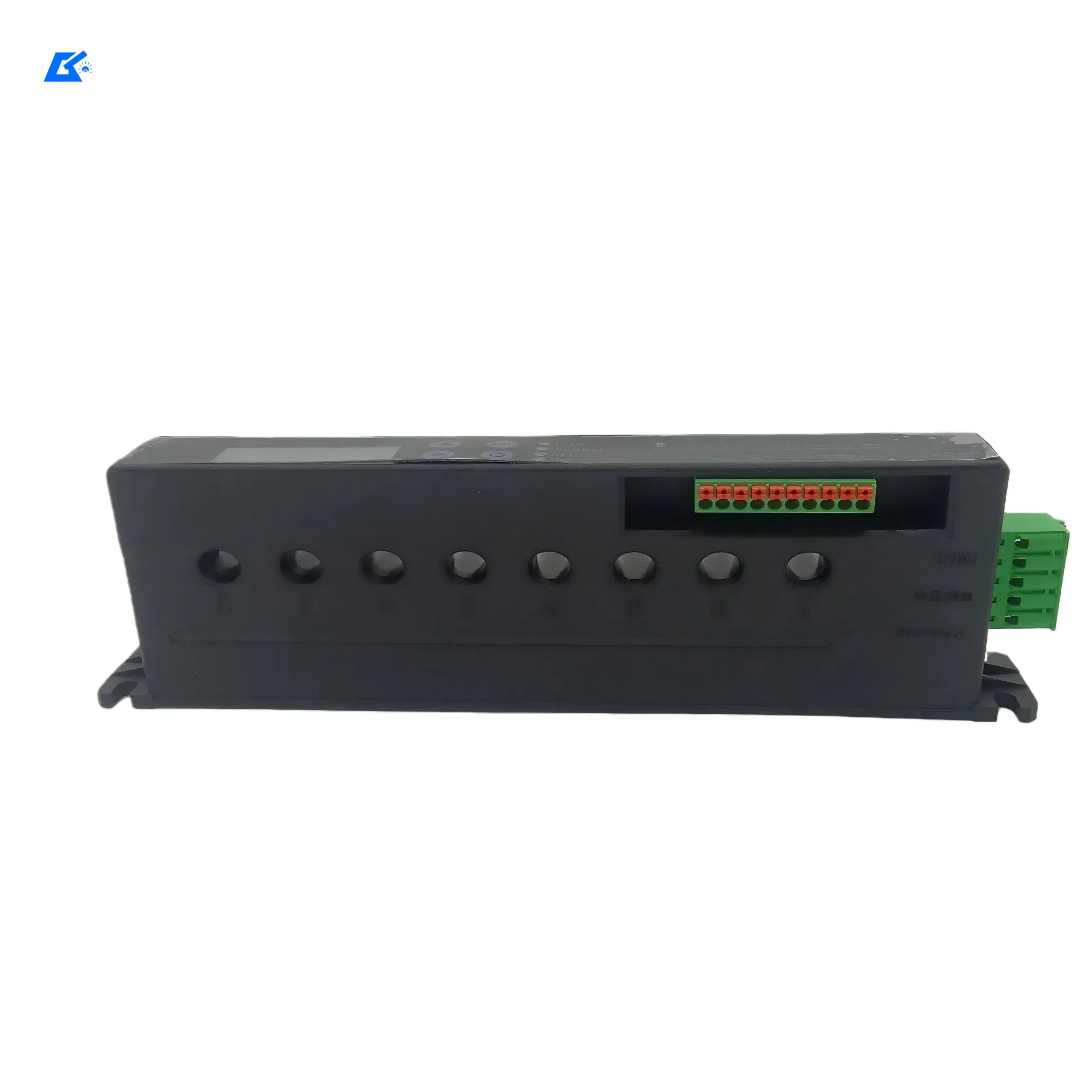

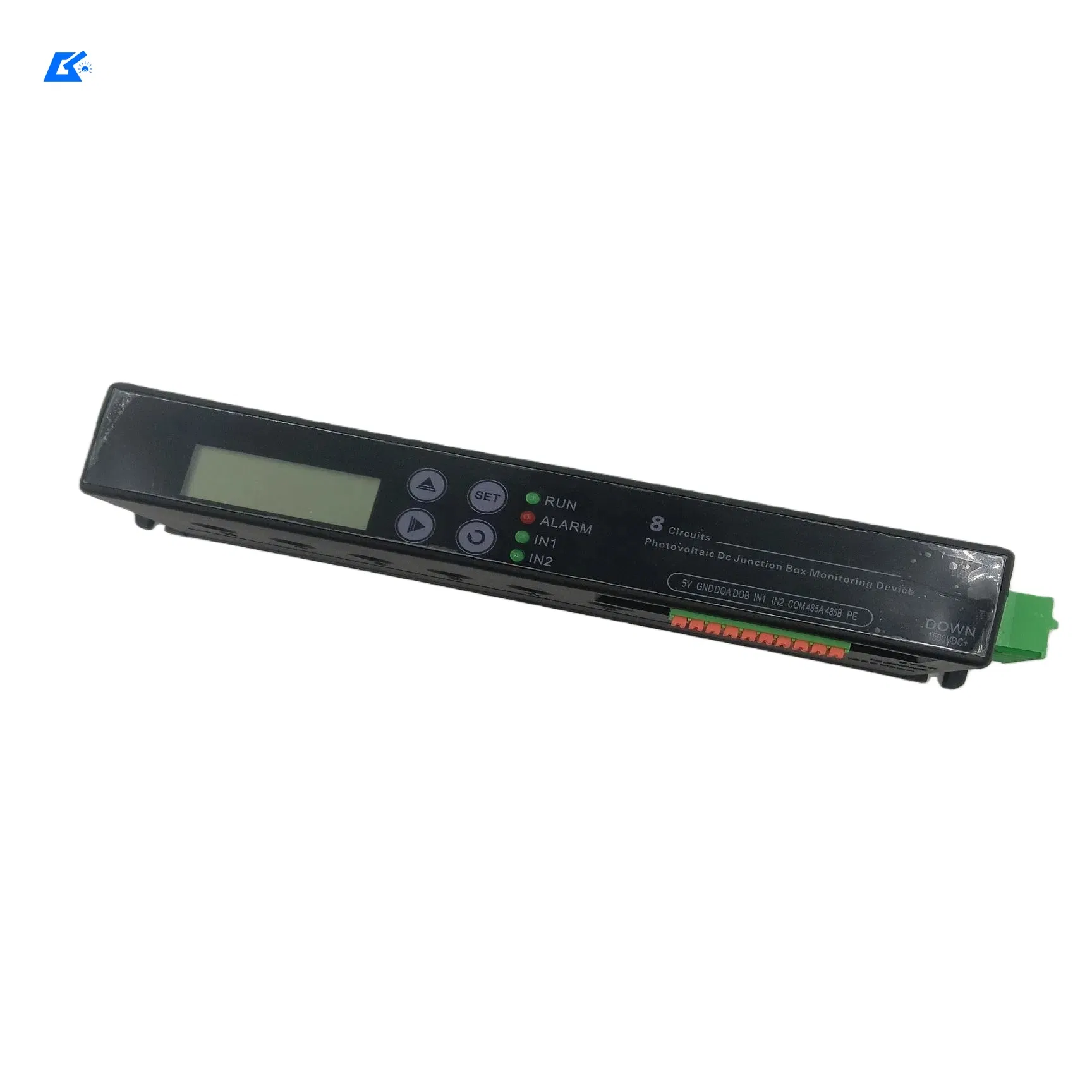

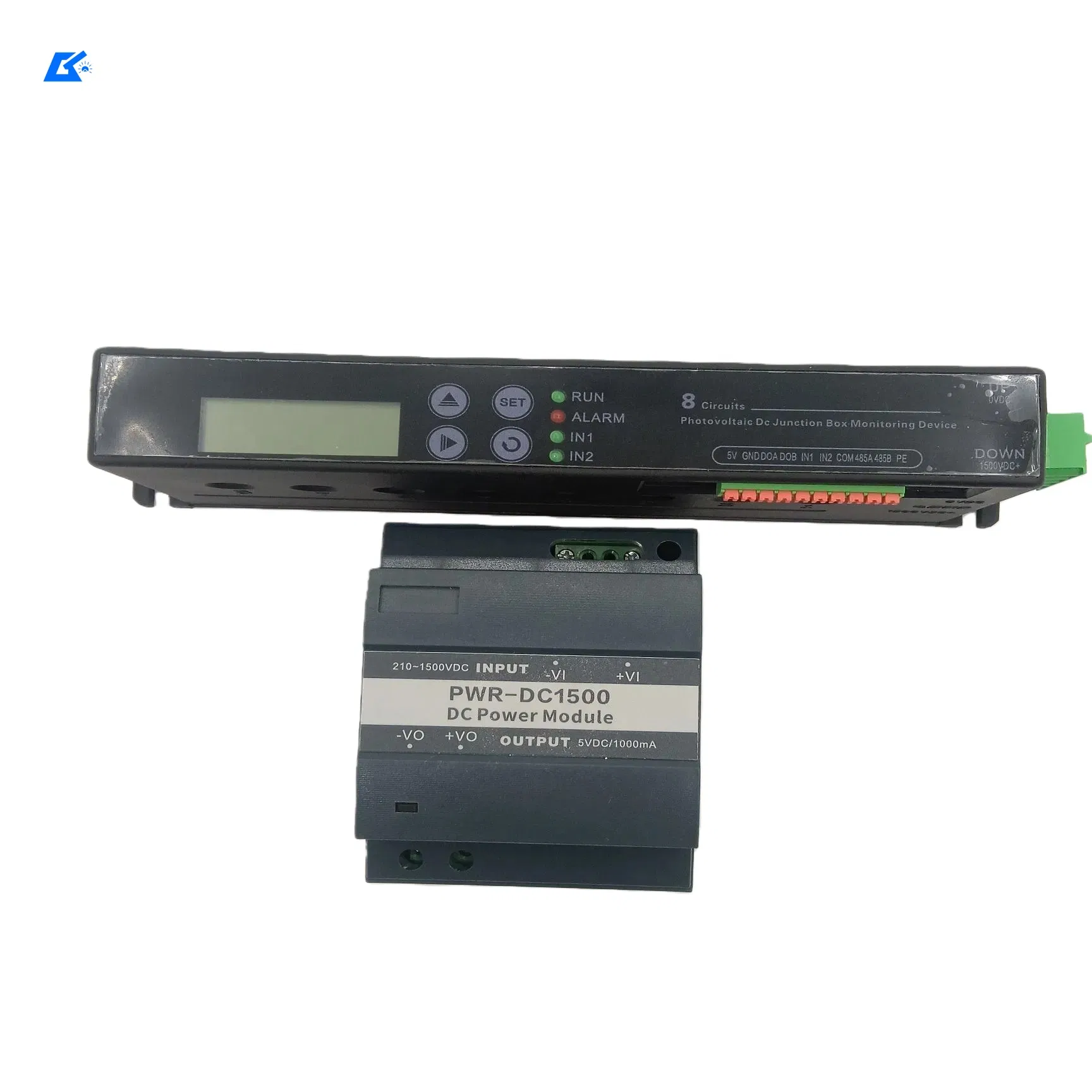

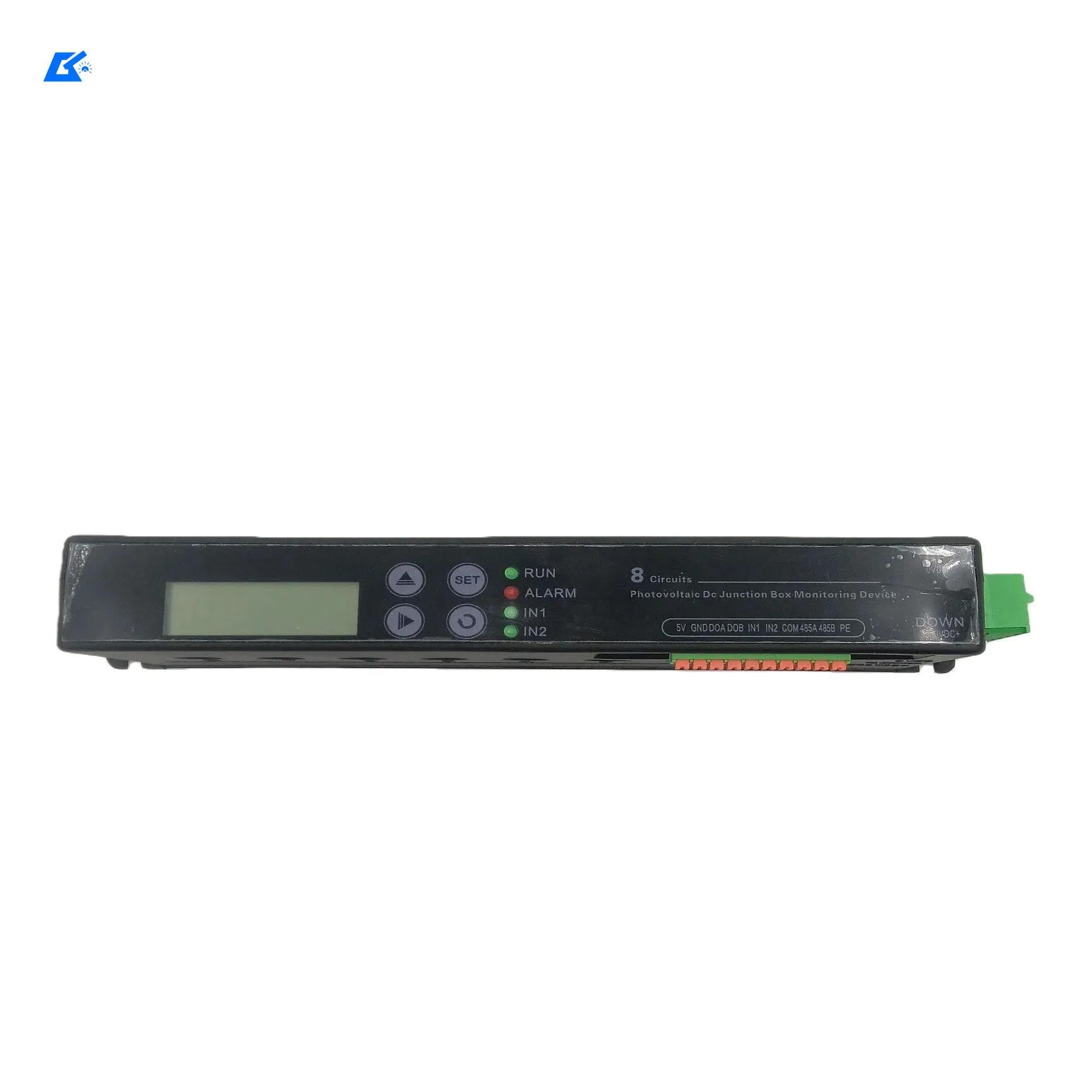

Solar Combiner Box Monitoring Device with LCD Display and Fault Alarm

PV Combiner Box Intelligent Monitoring Device is designed to monitor and manage the operating status of photovoltaic DC systems in real time. It provides reliable data acquisition and alarm functions to ensure safe and efficient operation of solar power plants.

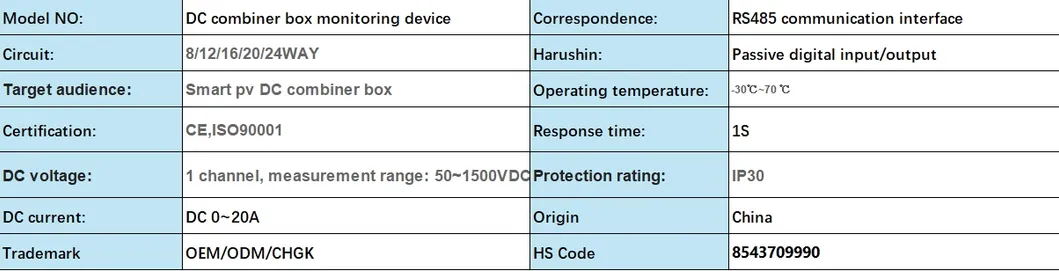

• Multi-circuit Monitoring: Collects key parameters such as string current, DC voltage, power status, and fault signals.

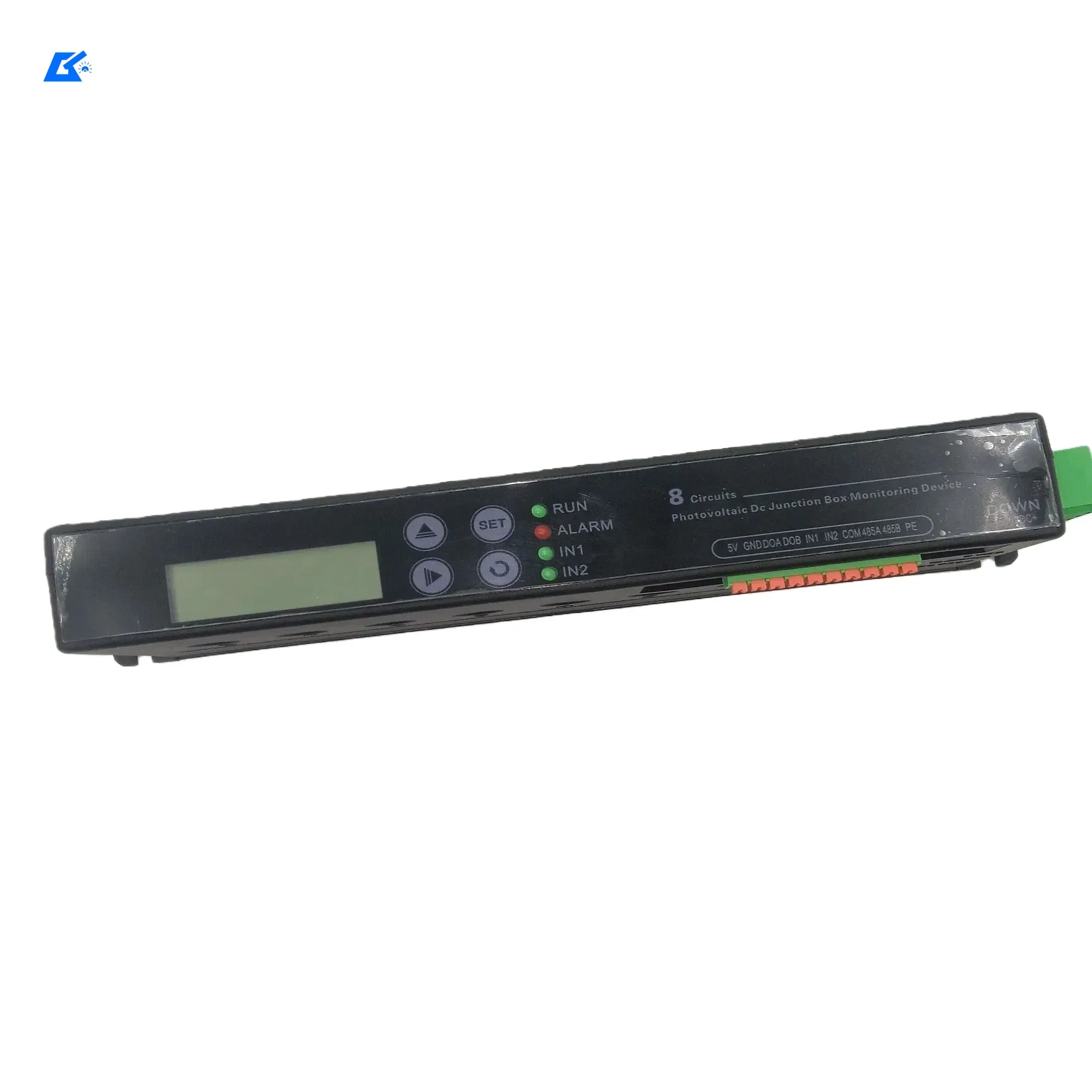

• Intuitive Interface: Features a clear LCD display and LED indicators for easy on-site status checks.
• Smart Alarms: Triggers visual and remote alarm signals during abnormal conditions for quick preventive maintenance.
• Seamless Connectivity: Integrated RS485 communication allows connection to upper-level monitoring systems or SCADA platforms.

This monitoring device is widely used in PV combiner boxes, solar inverters, rooftop systems, and utility-scale power plants, serving as an essential component for intelligent solar energy management.
