Siemens 3VC6944-6KP00 Industrial DC Circuit Distribution Protection Unit

1 / 5

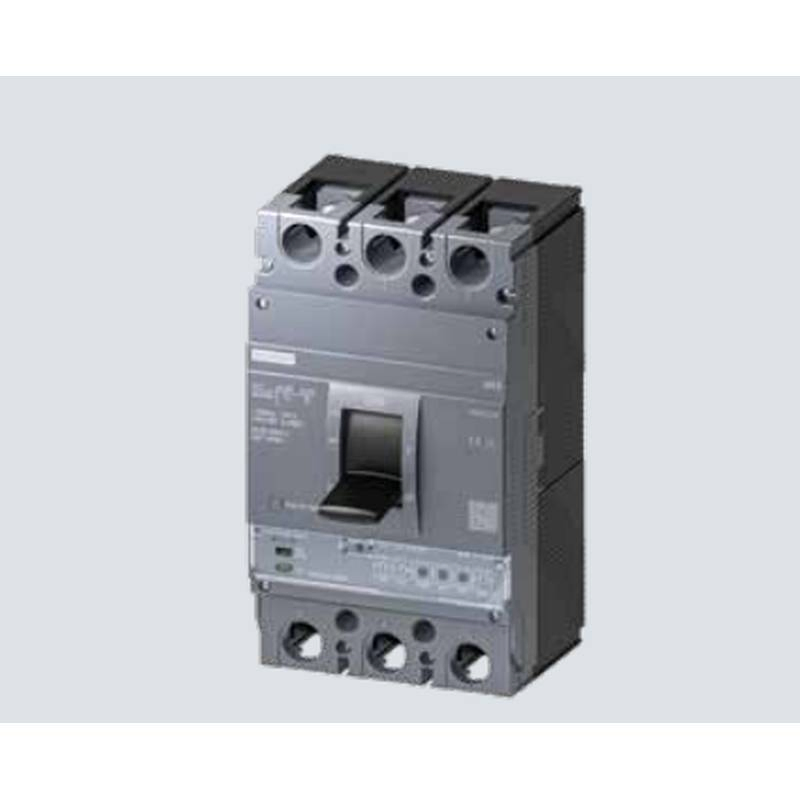

Siemens 3VC6944-6KP00 Industrial DC Circuit Distribution Protection Unit

Customization:	Available
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type

Send Inquiry

Product Description

Basic Specifications

Model NO.

3VC6944-6KP00

Speed

Normal Type Circuit Breaker

Arc-extinguishing

Air

Installation

Rail Type

Structure

MCCB

Poles Number

Type

Circuit Breaker

Certification

VDE, ISO9001-2000, CE, CB, CCC

Trademark

SIEMENS

Origin

Germany

Package Size

10.00cm * 18.00cm * 20.00cm

Gross Weight

2.000kg

Product Description

The Siemens 3VC6944-6KP00 Industrial DC Circuit Distribution Protection Unit is a high-performance solution designed for robust electrical system protection. This unit offers advanced features for reliable current distribution and fault interruption, crucial for maintaining operational integrity in demanding industrial environments.

Note: With its sophisticated protection mechanisms, the 3VC6944-6KP00 ensures safety and efficiency in critical power supply chains. It is widely employed in sectors including manufacturing, energy, and transportation.

Feature	Specification
Product Type	Industrial DC Circuit Distribution Protection Unit
Model Number	3VC6944-6KP00
Rated Voltage	Refer to datasheet for specific rating
Protection Functions	Overcurrent, short circuit, earth fault (configurable)
Mounting Type	DIN rail or panel mounting
Operating Temp	-25°C to +70°C (typical)
Ingress Protection	IP20 (standard)

★

Features and Advantages

The Siemens 3VC6944-6KP00 stands out with its comprehensive protection capabilities, safeguarding electrical circuits against damaging overloads and short circuits. Its advanced electronic trip unit (ETU) offers precise current sensing and adjustable trip settings, allowing for customized protection coordination.

The unit's modular design facilitates easy installation and maintenance, reducing overall project costs and time. Furthermore, its robust construction ensures longevity and consistent performance even in harsh environmental conditions.

⚙

Application Scenarios

This industrial DC circuit protection unit is ideally suited for a broad spectrum of applications. It excels in power distribution panels, motor control centers, and substations within manufacturing plants. In the renewable energy sector, it plays a critical role in protecting DC-coupled solar inverter systems and battery energy storage solutions. Railway signaling systems and transportation infrastructure also benefit from its reliable fault detection and interruption capabilities.

Frequently Asked Questions

What are the primary protection functions offered by the Siemens 3VC6944-6KP00?

It provides comprehensive protection including robust overcurrent protection for detects and interrupts circuits during overloads, and advanced short-circuit protection to clear high-magnitude fault currents rapidly. Earth fault protection can also be incorporated via optional modules.

How does the electronic trip unit (ETU) enhance circuit protection?

The ETU allows for highly precise and adjustable tripping characteristics (long-time, short-time delay, and instantaneous). This enables engineers to precisely coordinate protection devices, ensuring only the faulty circuit is interrupted while maintaining power to the rest of the system.

What types of industrial environments are best suited for this unit?

It is designed for demanding settings such as manufacturing facilities, motor control centers, solar farms, battery storage systems, and critical infrastructure like railway power supplies, where temperature fluctuations and electromagnetic interference are common.

Can the 3VC6944-6KP00 be integrated into Industry 4.0 systems?

Yes, many versions are equipped with communication interfaces like Modbus RTU or PROFIBUS, allowing for seamless integration into SCADA systems or PLCs for real-time monitoring of circuit status, current levels, and remote control.

What are the advantages of using a dedicated DC circuit protection unit?

Dedicated DC units are specialized for DC fault behavior and arc quenching, which differ from AC systems. They offer superior precision, better system coordination, and more robust construction for harsh environments compared to simple fuses or thermal breakers.

What maintenance is typically required?

Periodic visual inspections for damage or loose connections are recommended. It is also advisable to periodically test the ETU's trip functions using appropriate equipment and keep the unit clean to ensure proper heat dissipation.
