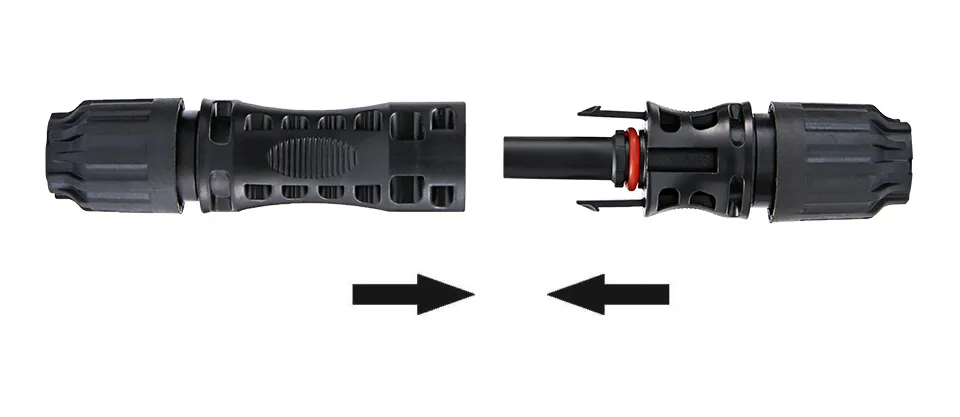

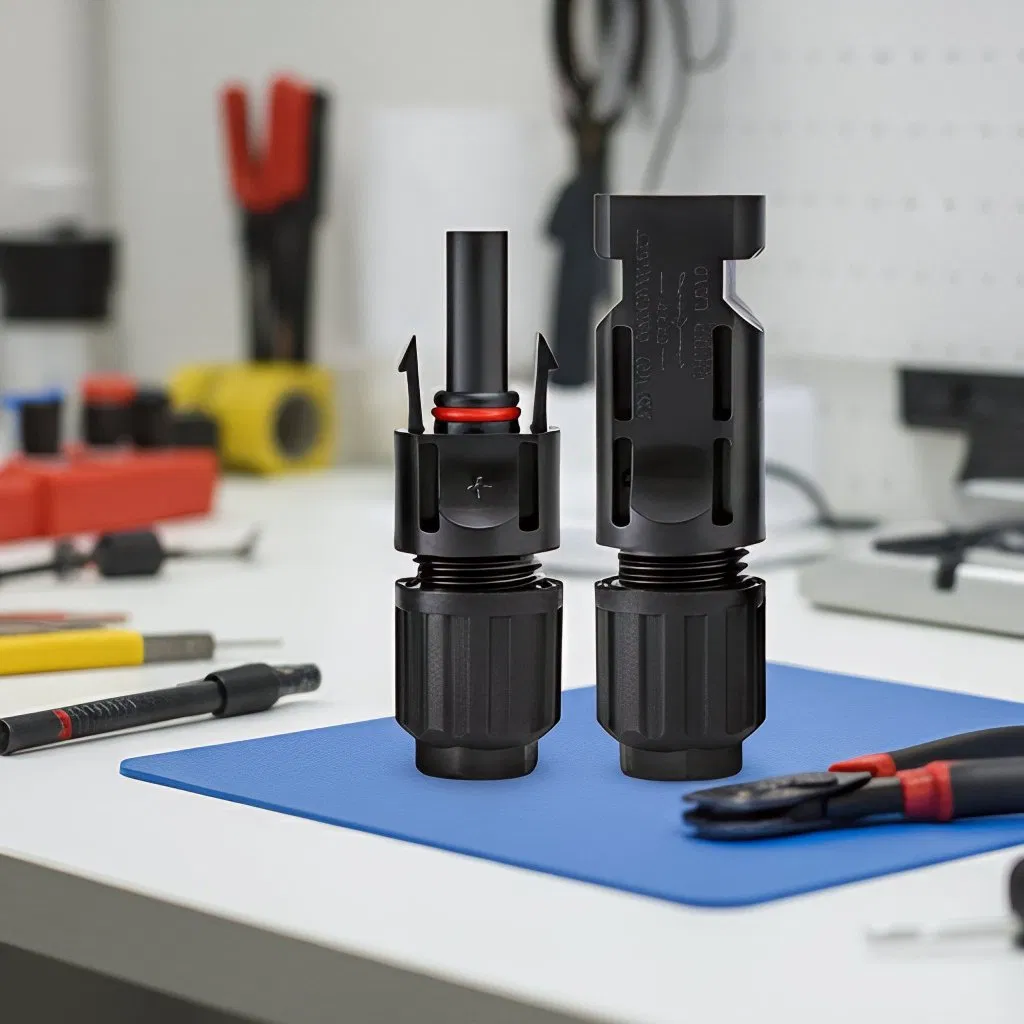

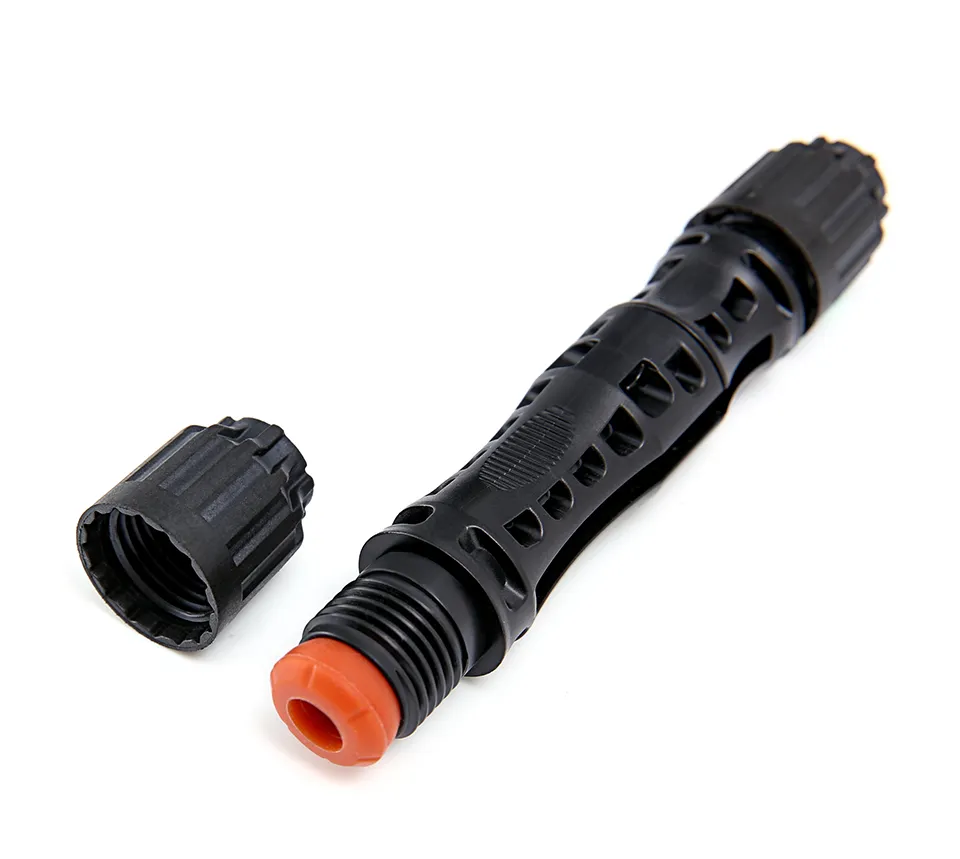

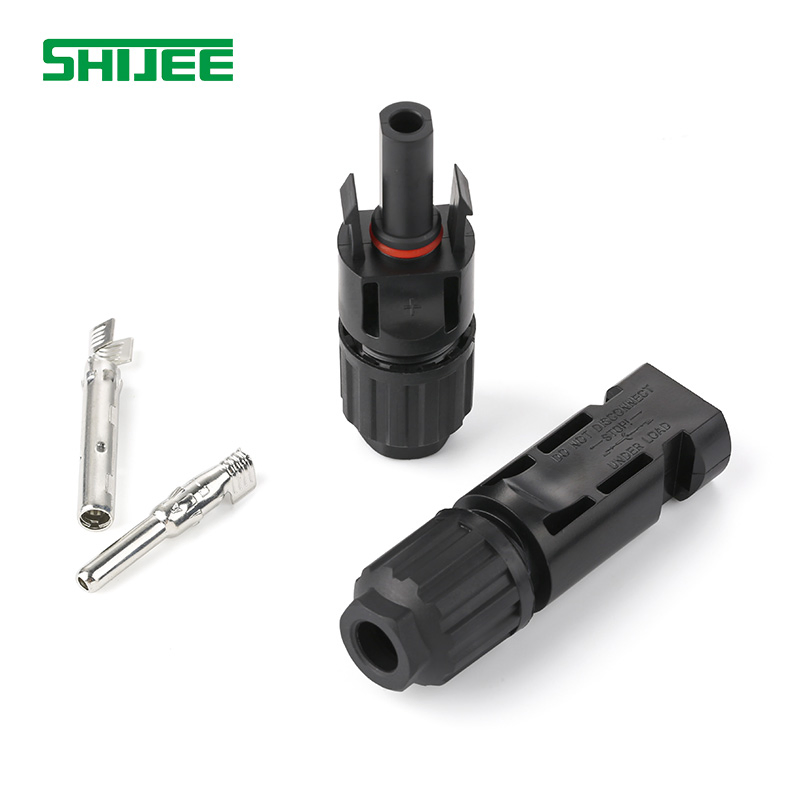

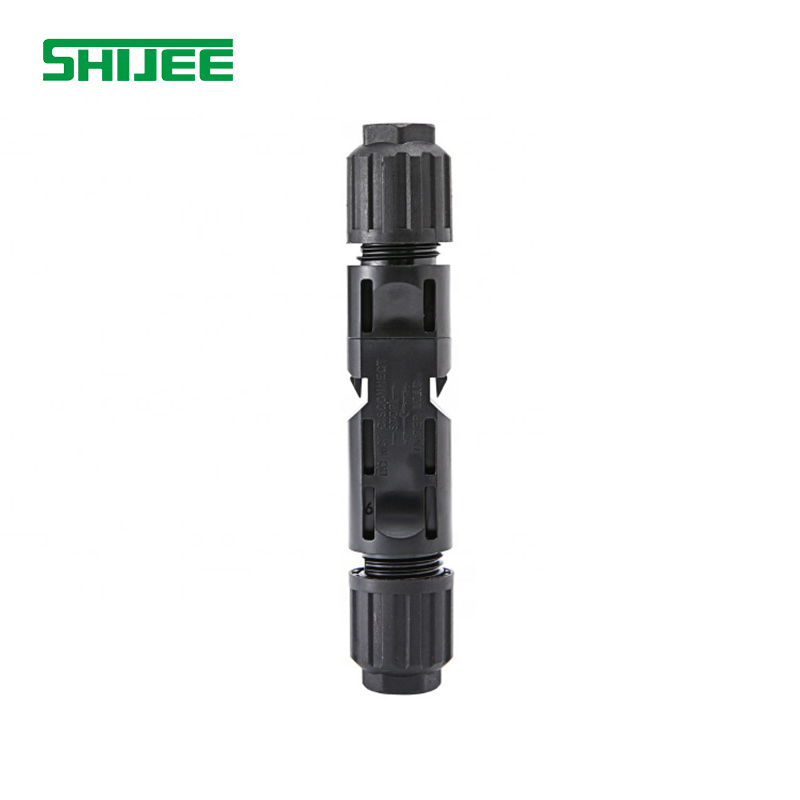

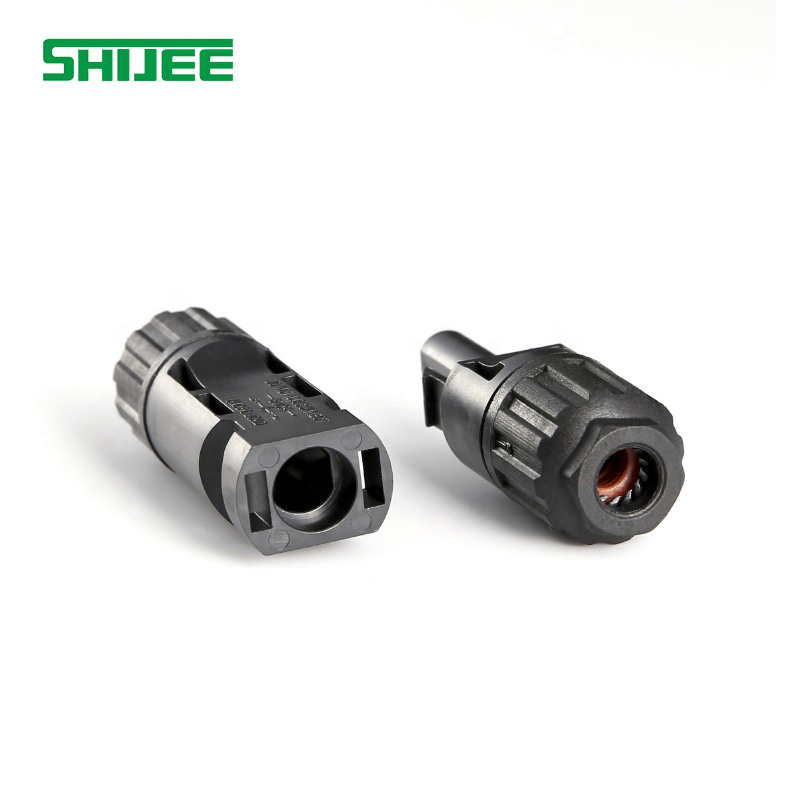

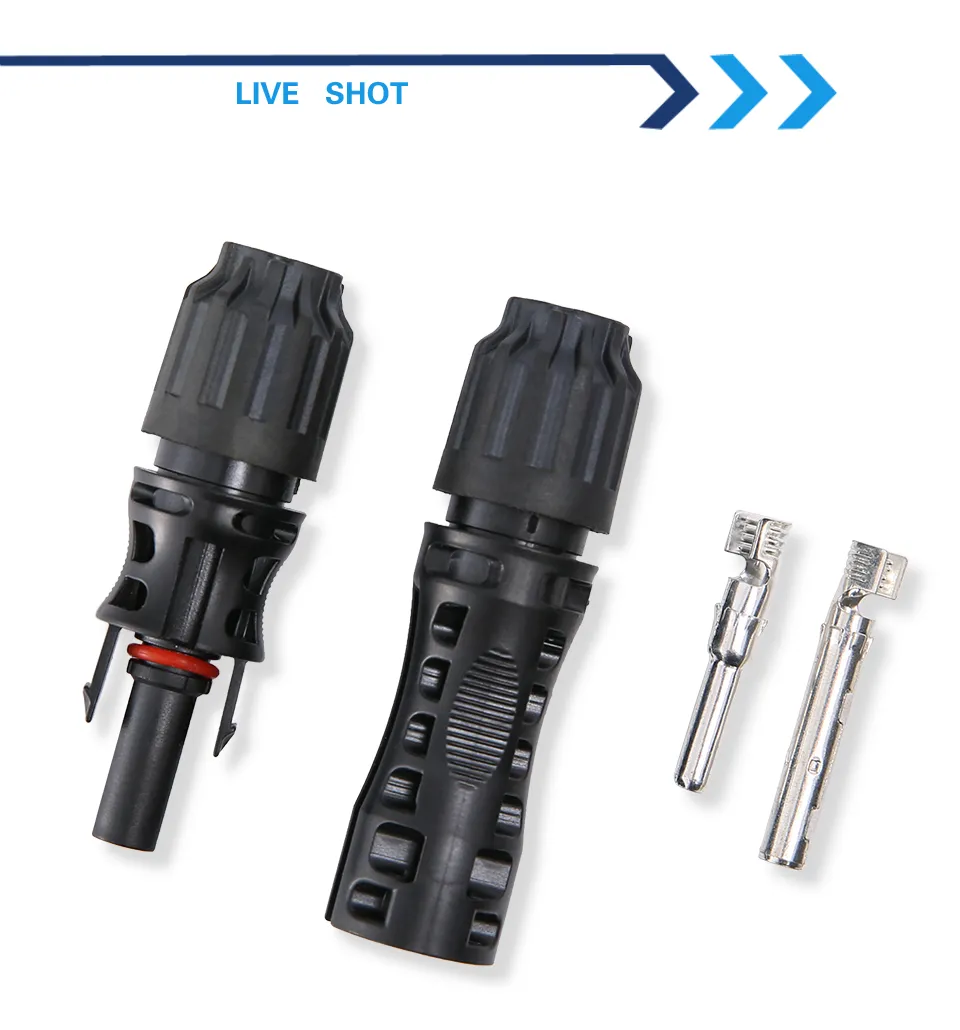

Introducing the PV004, a top-tier DC1500V 35A IP67 Waterproof Connector that redefines excellence in solar technology. Crafted for optimal performance, this solar panel cable connector is made from superior PPO material, ensuring durability and reliability. With a robust IP67 waterproof rating, it provides unmatched protection against the elements, making it ideal for challenging environments. The 35A DC 1500V capacity coupled with a sophisticated tin-plated finish enhances conductivity and efficiency.
Featuring an insulation material blend of PC/PPO, this connector is engineered for resilience. It supports a rated current of 35A and upholds a Safety Class II standard for assured safety. With an IP67 waterproof level, it withstands harsh conditions, while operating efficiently through ambient temperatures ranging from -40°C to +90°C.
| Product Name |
PV Connector |
| Insulation Material |
PC/PPO |
| Rated Current |
35A |
| Safety Class |
II |

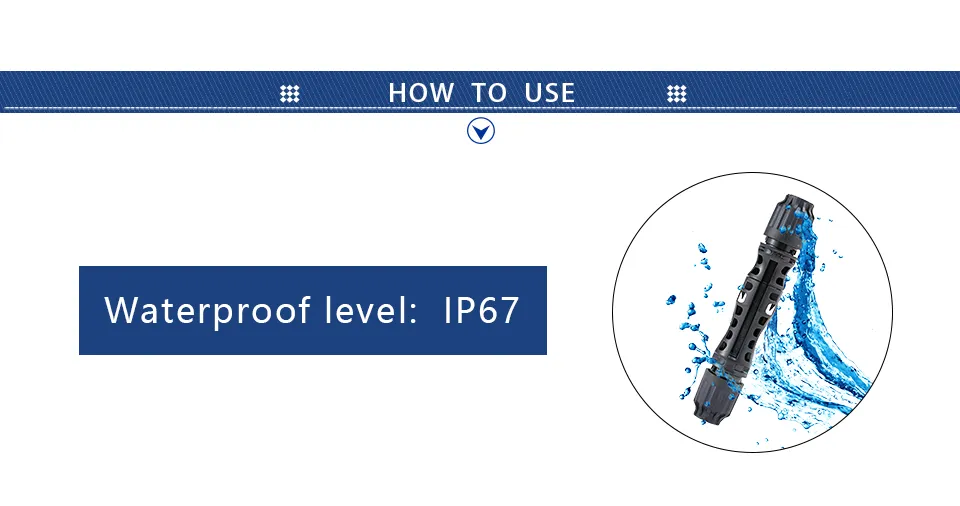

| Waterproof Level |
IP67 |
| Ambient Temp Range |
-40~+90 (IEC) |
| Upper Temp Limit |
+105°C |
| Contact Resistance |
≤0.5Ω |
?
Frequently Asked Questions
What is the waterproof rating of this PV connector?
This connector features an IP67 waterproof rating, ensuring complete protection against dust and the ability to withstand temporary immersion in water, making it ideal for outdoor solar installations.
What materials are used in the insulation?
The connector is manufactured using high-quality PC/PPO (Polyphenylene Oxide) material, which provides excellent UV resistance, thermal stability, and mechanical strength.
What is the maximum voltage and current supported?
The connector is rated for a current of up to 35A and supports system voltages of up to 1000V/1500V DC, depending on the specific model configuration.
What is the operating temperature range?
It is designed to work efficiently in extreme environments, with an ambient temperature range from -40°C to +90°C and an upper temperature limit of +105°C.

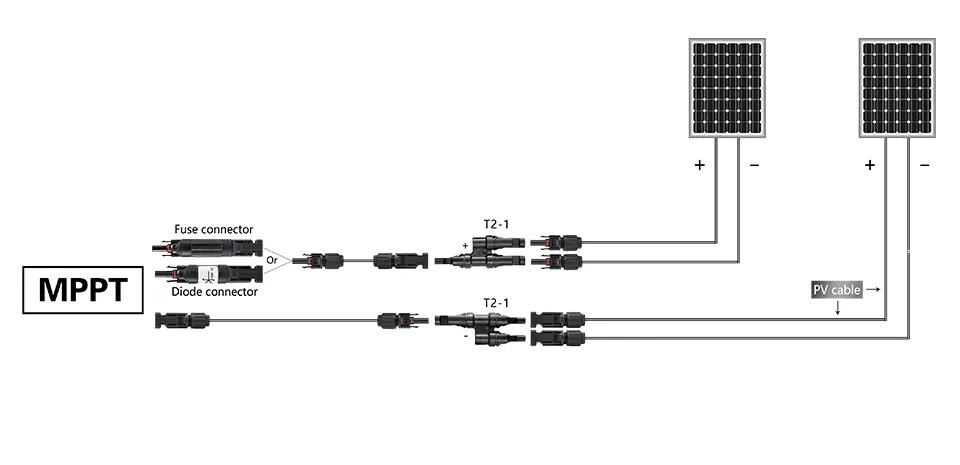

Is this connector compatible with standard MC4 systems?
Yes, these connectors are designed to be fully compatible with standard PV solar panel cable connection systems for seamless integration into existing solar arrays.
What is the contact resistance of the connector?
The connector maintains a very low contact resistance of ≤0.5Ω, which ensures minimal power loss and high efficiency during energy transmission.
