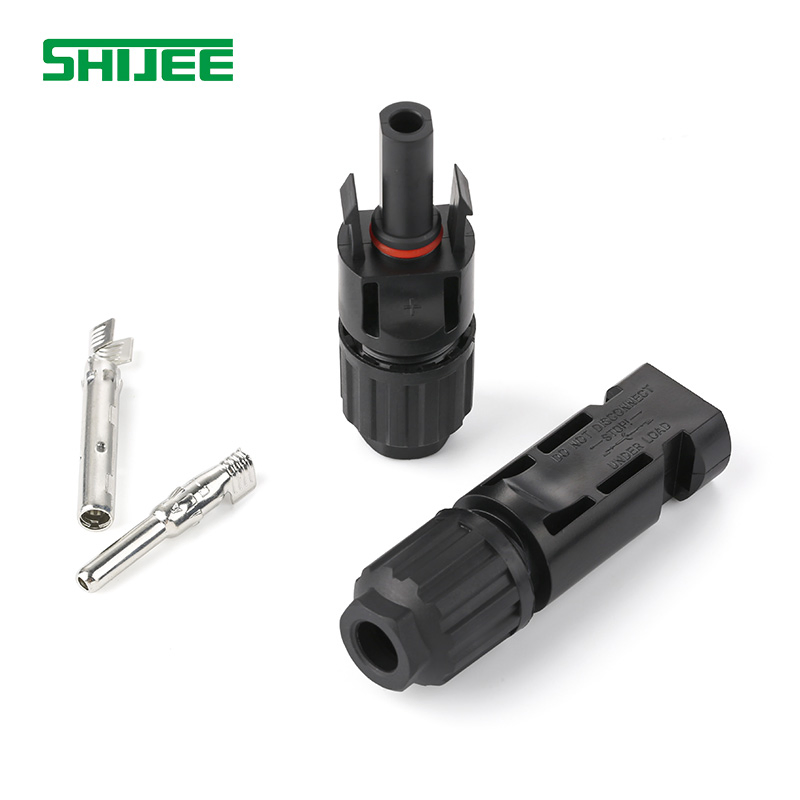

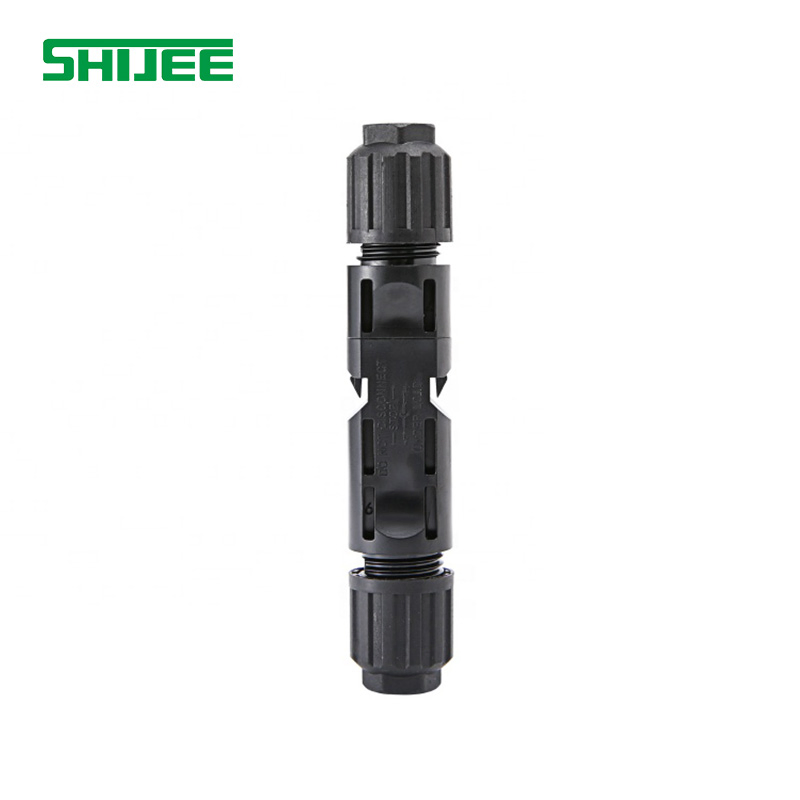

| Model NO. | PV Connector 1000V 30A MC4 IP67 PV |
|---|---|
| Application | Solar Photovoltaic Systems |
| Certification | CE, TÜV, UL, IEC 62852 |
| Rated Voltage | 1000V DC / 1500V DC |
| Rated Current | 30A / 35A |
| IP Rating | IP67 / IP68 (Waterproof & Dustproof) |
| Connector Type | PV Connector (Copper-Plastic Hybrid) |

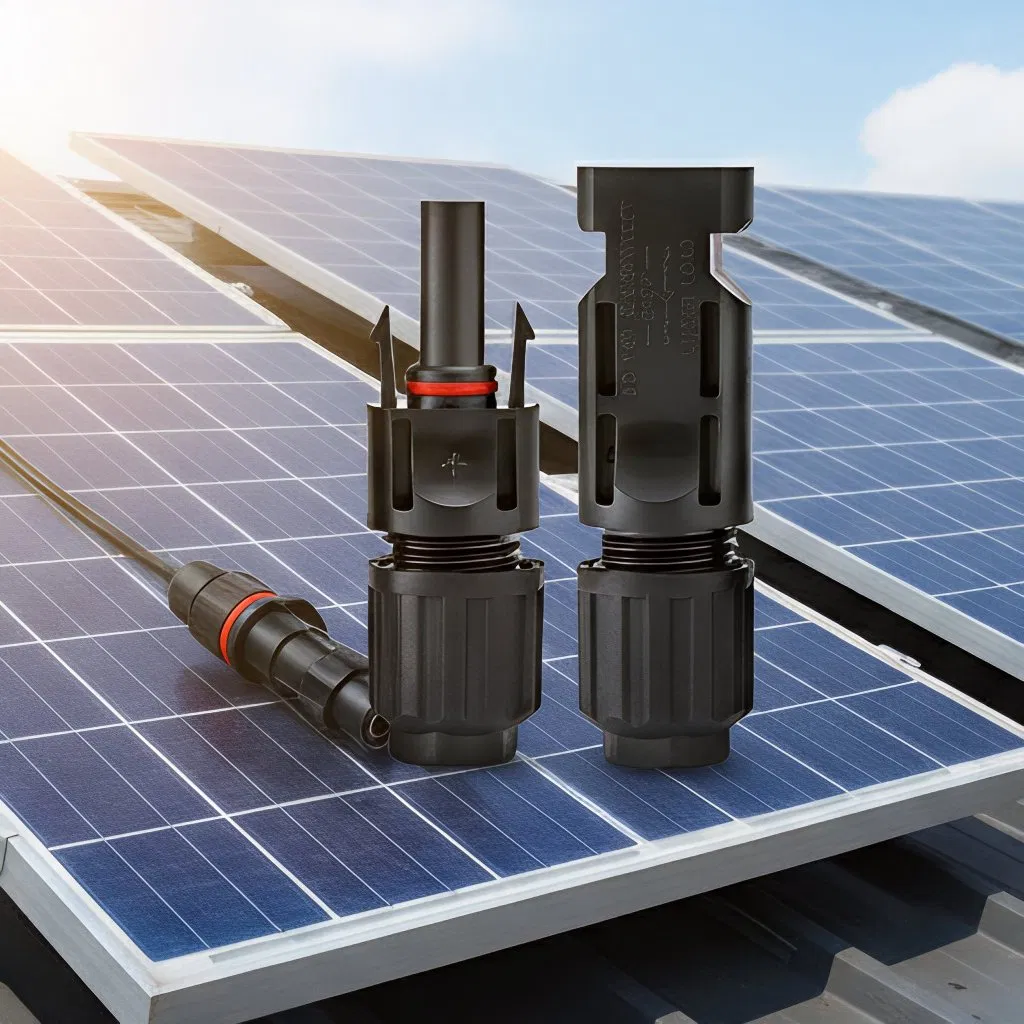

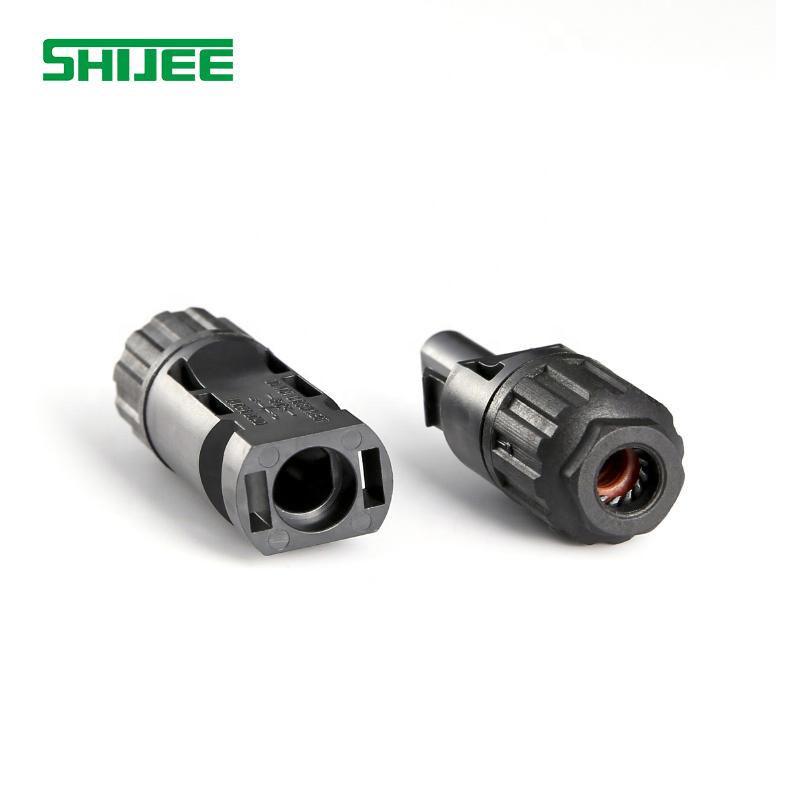

This advanced solar panel mounting connector is engineered for high-voltage photovoltaic systems, supporting up to 1500V DC and 35A current for efficient, stable power transmission. The integrated IP68-rated waterproof connector ensures complete protection against dust, moisture, and harsh environmental conditions, maintaining electrical safety and performance in outdoor installations.
Designed with a 2.5mm pitch for precise alignment, the connector features durable copper contacts and reinforced plastic housing that combine conductivity with mechanical strength, suitable for a wide range of solar panel arrays and mounting configurations.

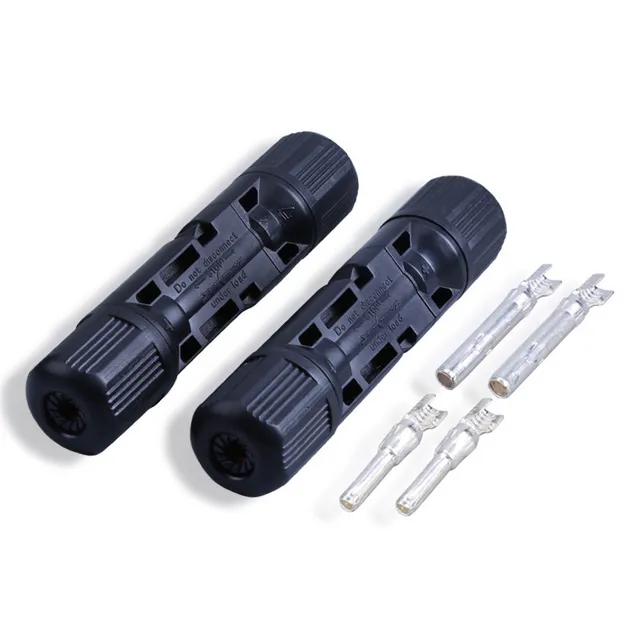

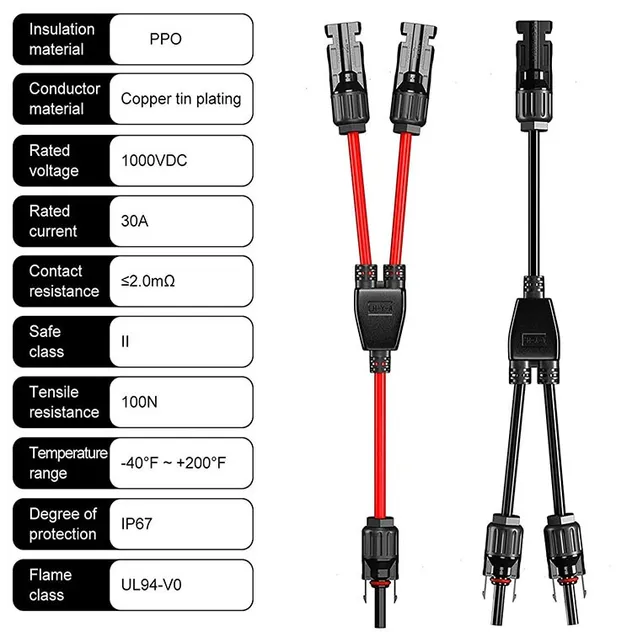

| Contact Material | High-Purity Copper (Tin-Plated) |
|---|---|

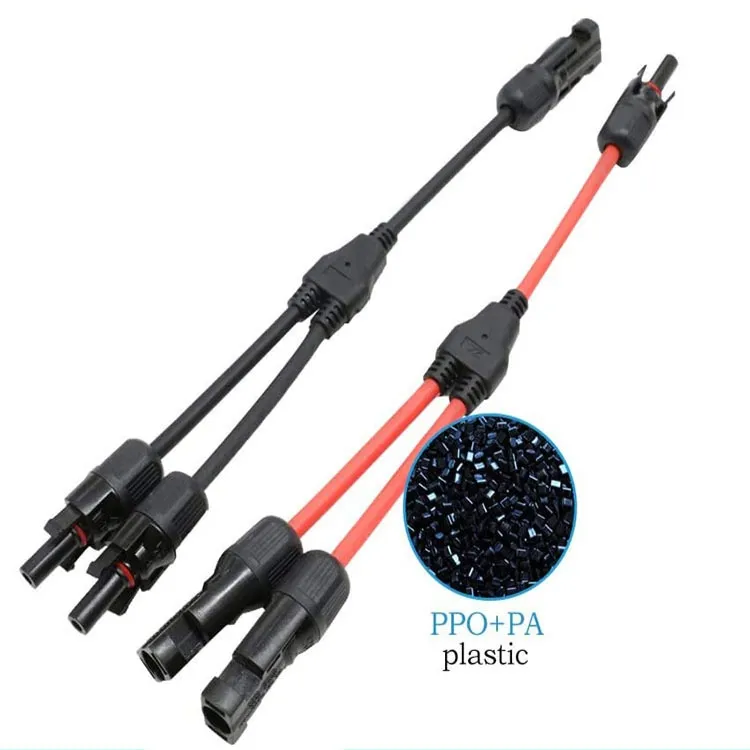

| Insulation Material | Thermoplastic (PA/PC/PPO, UV Resistant) |
| Operating Temp | -40°C to +90°C |
| Wire Compatibility | 2.5 mm² – 6 mm² (AWG 14 – AWG 10) |

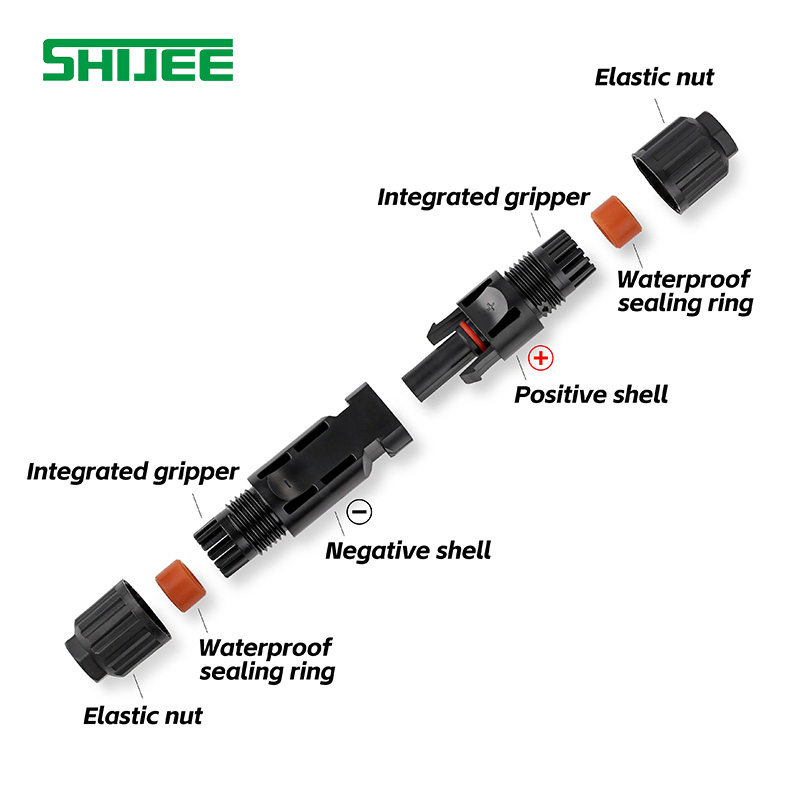

| Locking Mechanism | Push-Pull Lock / Snap-in Design |
| Fire Rating | UL94 V-0 (Flame Retardant) |
| Key Features | Anti-UV, Corrosion Resistant, Low Contact Resistance |

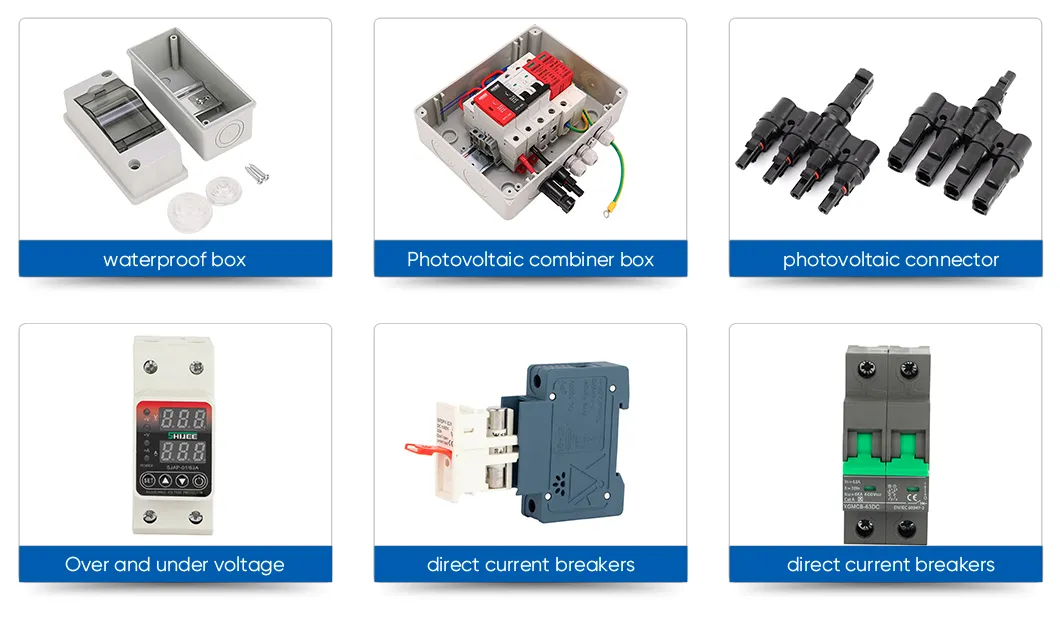

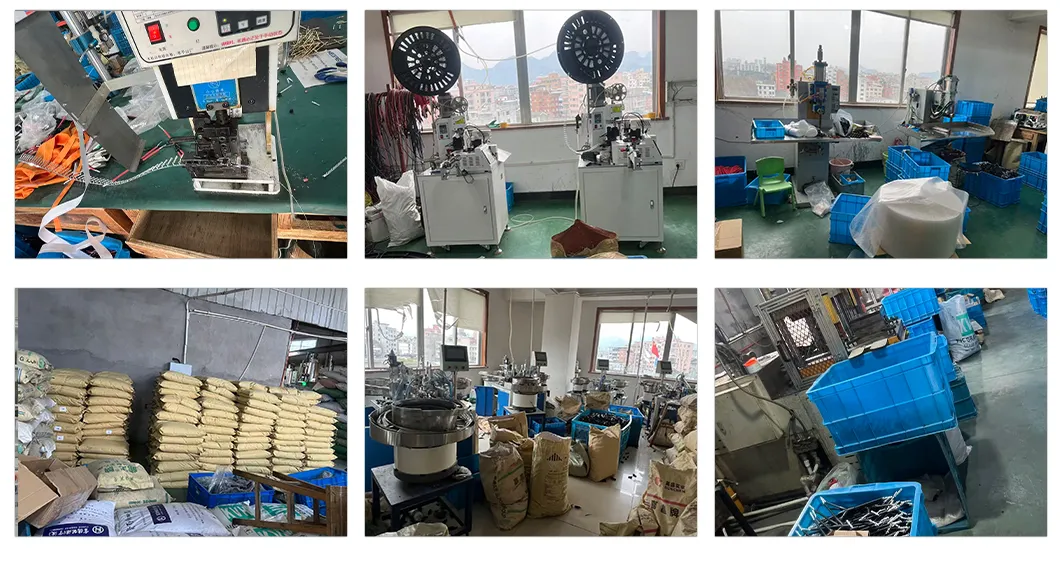

We are a professional solar PV electric components manufacturer. We specialize in DC Combiner boxes, DC circuit breakers, MC4 connectors, Surge Protective Devices, DC fuses, and isolator switches.
Our experience of working in the electrical industry for more than 10 years allows us to create solar DC components that comply with the latest DC standards. We ensure high quality and professional service for all global solar installations.
