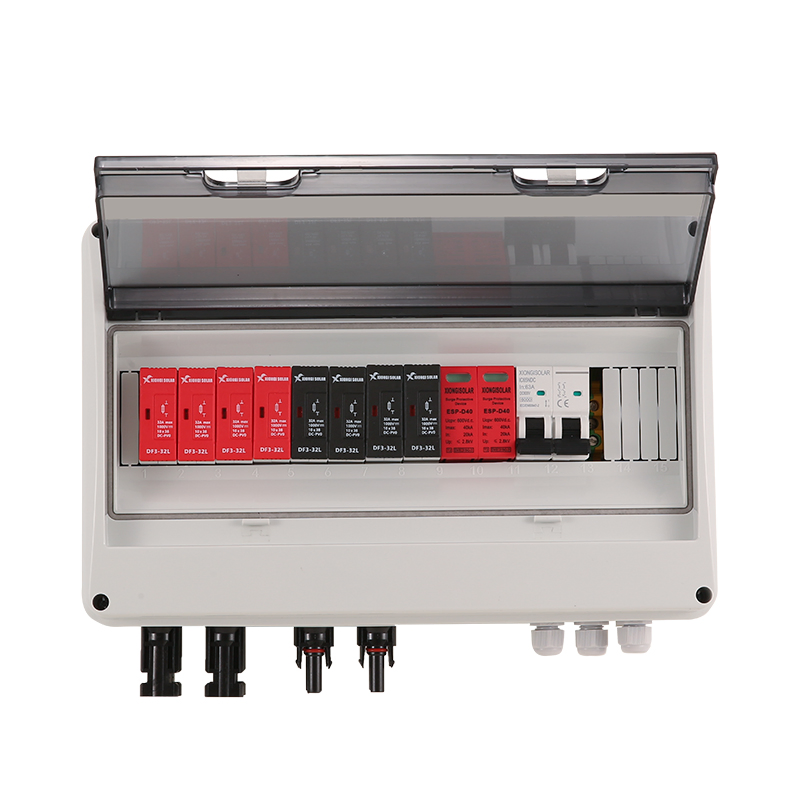

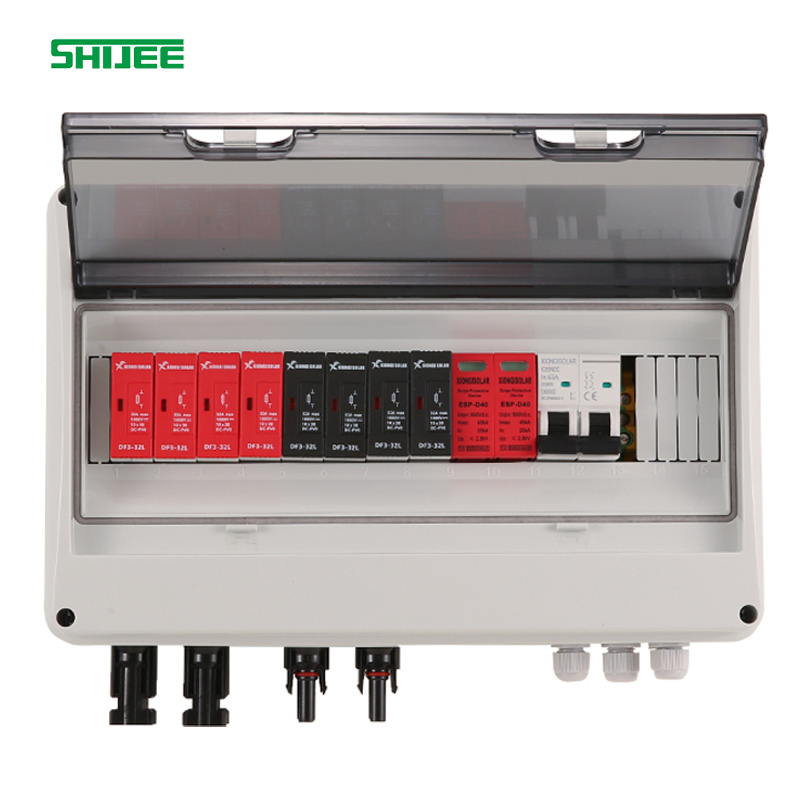

Shijee 4-in-1-out 4-String Solar PV DC Array Plastic Battery Combiner Box, Suitable for Solar Panels
Shijee 4-in-1-out 4-String Solar PV DC Array Plastic Battery Combiner Box, Suitable for Solar Panels
Shijee 4-in-1-out 4-String Solar PV DC Array Plastic Battery Combiner Box, Suitable for Solar Panels
Shijee 4-in-1-out 4-String Solar PV DC Array Plastic Battery Combiner Box, Suitable for Solar Panels
Shijee 4-in-1-out 4-String Solar PV DC Array Plastic Battery Combiner Box, Suitable for Solar Panels
1 / 5
Shijee 4-in-1-out 4-String Solar PV DC Array Plastic Battery Combiner Box, Suitable for Solar Panels
Shijee 4-in-1-out 4-String Solar PV DC Array Plastic Battery Combiner Box, Suitable for Solar Panels
Shijee 4-in-1-out 4-String Solar PV DC Array Plastic Battery Combiner Box, Suitable for Solar Panels
Shijee 4-in-1-out 4-String Solar PV DC Array Plastic Battery Combiner Box, Suitable for Solar Panels
Shijee 4-in-1-out 4-String Solar PV DC Array Plastic Battery Combiner Box, Suitable for Solar Panels

Shijee 4-in-1-out 4-String Solar PV DC Array Plastic Battery Combiner Box, Suitable for Solar Panels

Customization: Available
Material: Thin Film
Form of Expression: Component Type
Send Inquiry

Product Description

📋 Basic Info.
Model NO.
600v 4 in 1 out
Application
Photovoltaic Venues, Greenhouse, Solar Power System
Rated Voltage
600VDC
Output Switch
63A Circuit Breaker
Input Strings
4
Waterproof
IP65
Protection
2P SPD 20~40KA
Warranty
3 Months
💡 Product Description
Experience the future of solar energy management with our advanced Combiner Box! This innovative solution effortlessly merges multiple source circuits from your PV array into a singular, streamlined DC output. Engineered with precision, each source circuit is independently safeguarded with a touch-safe fuse holder, ensuring seamless operation even under abnormally high current conditions. Maintenance and troubleshooting have never been this accessible, thanks to the box's thoughtful design.
Solar PV DC Array Combiner Box

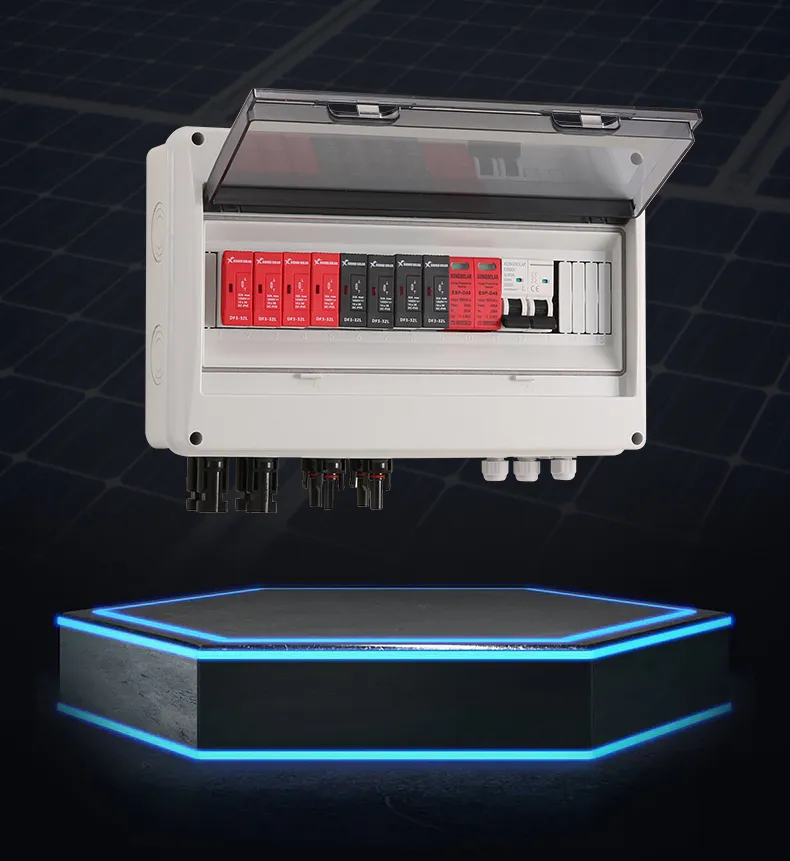

Plastic Battery Combiner Box

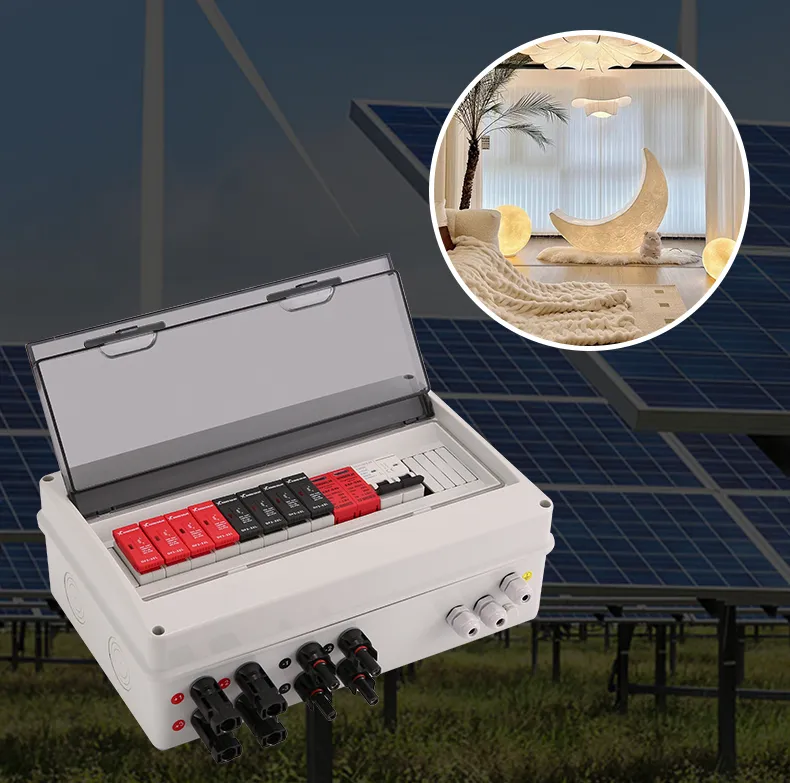

Suitable for Solar Panels

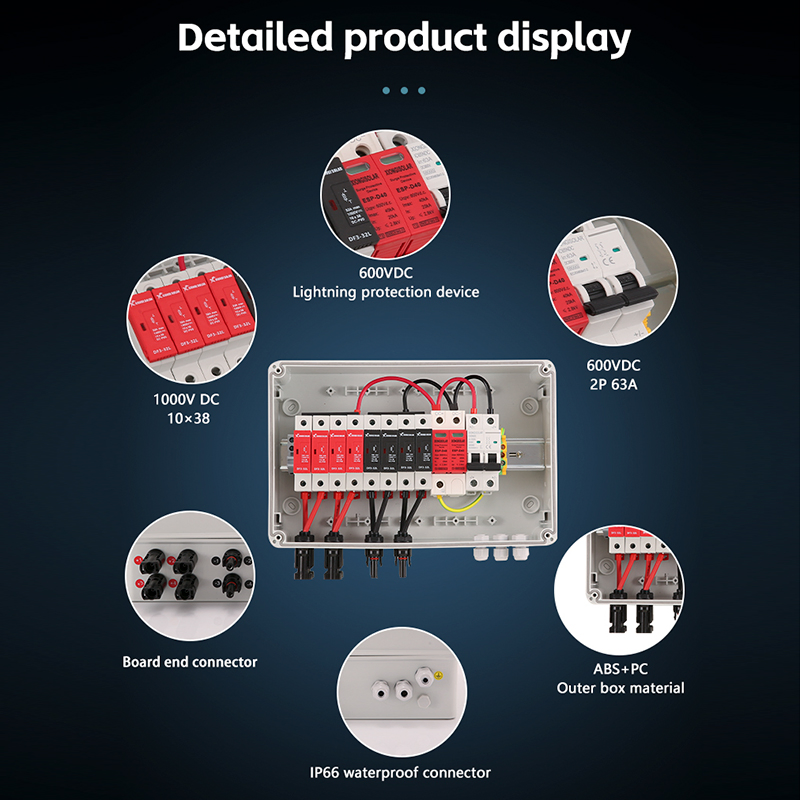

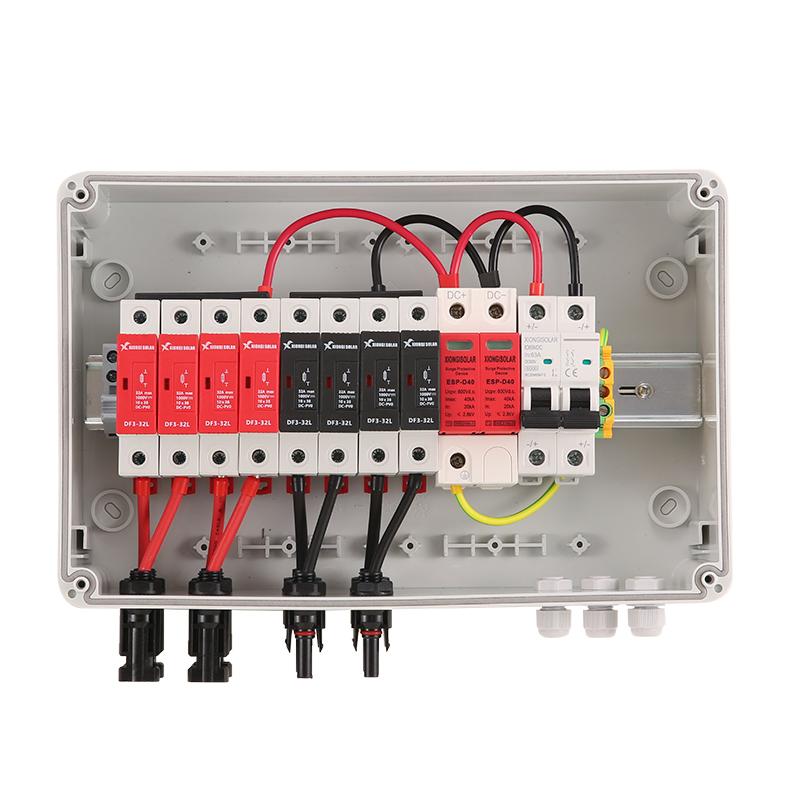

Inside view of combiner box
Solar system components
Electrical protection components
⚙️ Product Parameters
Delve into the power of the Combiner Box with these outstanding specifications: Rated voltage for photovoltaic system: DC 600V. Max input current for each string: 15A. Four input strings combined into a singular output string. Waterproof excellence: IP65 rating. Robust lightning protection: Category II test grade, with a nominal discharge current of 20KA and a maximum of 40KA.
Parameter Specifications
Solar PV DC Combiner Box4 in 1 out
Rated VoltageDC 600V
Max Input Amp per String15A
Input Strings4
Number of Output Strings1
Waterproof GradeIP65
Lightning Protection GradeII Grade Protection
Nominal Discharge Amp20KA
Max Discharge Amp40KA
Volt Protection Level2.8KV
Output Switch2P DC Circuit Breaker 63A
Box MaterialPVC, PC, ABS
Operating Temperature-25℃ to +60℃
Dimensions37*11*2CM
Parameter Chart 1
Parameter Chart 2

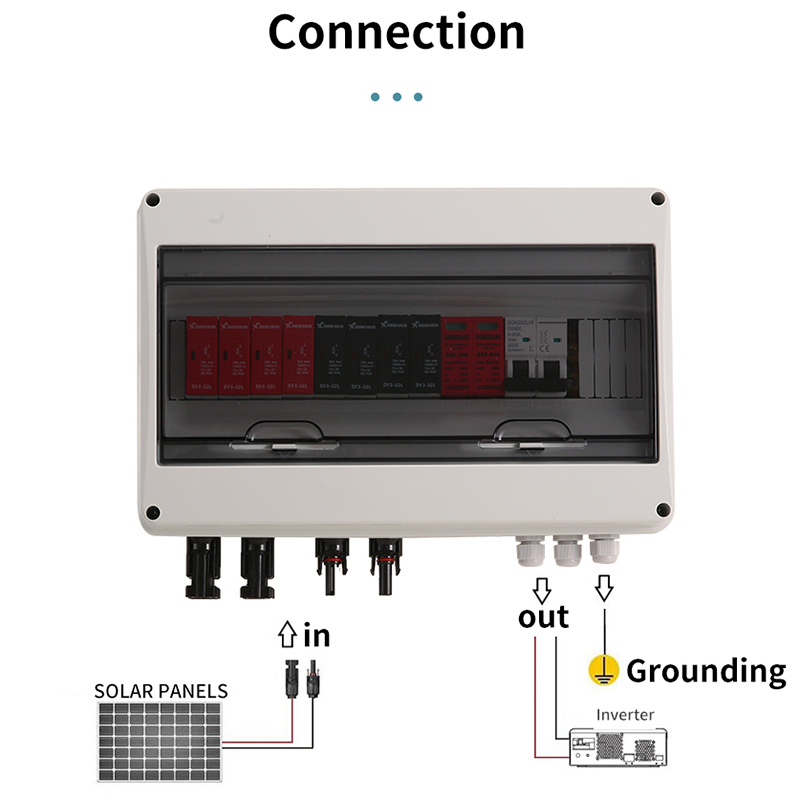

Installation Diagram
⭐ Our Advantages
  • Convenient Integration: Seamlessly integrate solar panels into a unified electrical circuit, simplifying wiring and installation.
  • High Capacity: Adept for 600V DC systems, designed to manage up to 63A of current—ideal for medium to large-scale installations.
  • Endurance: Constructed with top-tier plastic materials providing superior durability and weather resistance.
  • Reliability: Trusted design in the solar energy sector with quality-assured performance.
  • User-Friendly Design: Modular construction ensures easy connections and hassle-free maintenance.
🏢 Company Profile
With over a decade of profound experience in the photovoltaic industry, our factory stands as a pioneering expert in photovoltaic accessories. We are dedicated to advancing our production capabilities through significant investments in research and development. Since 2017, we have catered to a diverse global clientele, reaching markets in North America, Western Europe, South America, and Eastern Asia. Our dynamic team of dedicated professionals works tirelessly to set benchmarks in quality and service.
Production Facility
Quality Control
Certifications Display
📦 Packaging & Shipping
Safe Packaging
Shipping Logistics
❓ FAQ
What is the maximum voltage this combiner box can handle?
The system is designed to handle a rated voltage of up to DC 600V for photovoltaic systems.
Is the combiner box suitable for outdoor installation?

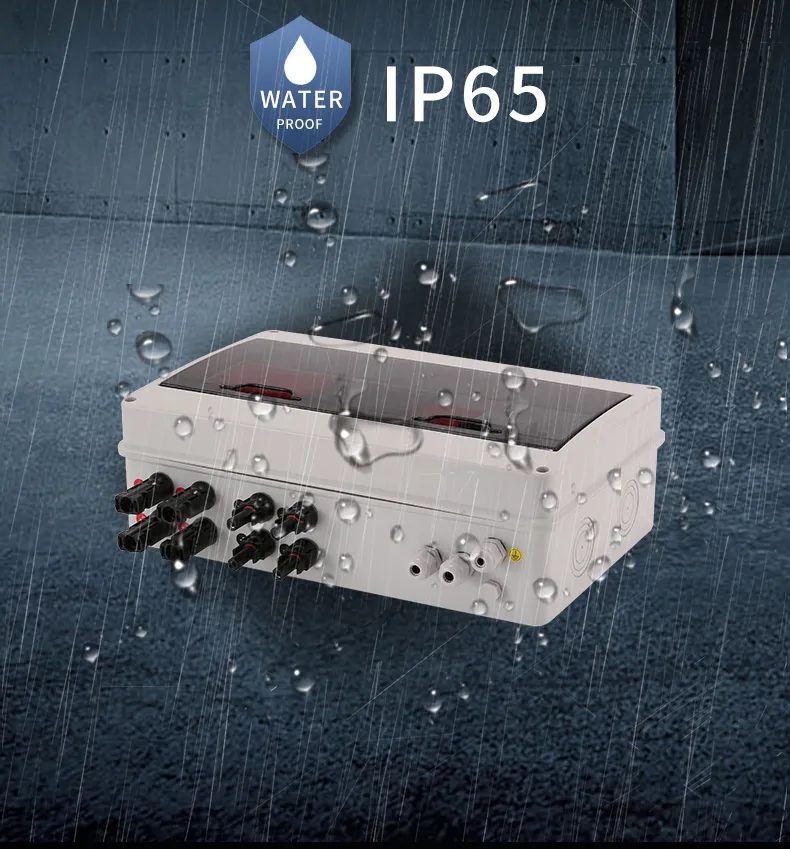

Yes, the box features an IP65 waterproof rating and is designed for both indoor and outdoor wall-mounting.
What kind of lightning protection is included?
It includes a Category II test grade Surge Protective Device (SPD) with a nominal discharge current of 20KA and a maximum of 40KA.
How many input strings can I connect?
This specific model supports 4 input strings which are combined into 1 singular output string.
What materials is the box made from?
The box is crafted from high-quality, durable PVC, PC, and ABS materials for maximum weather resilience.
What is the operating temperature range?
The device operates efficiently within a temperature range of -25°C to +60°C.
