4 Rails Solar Panel Junction Box Connection for PV Panels

Still deciding? Get samples of $ !
Request Sample

Product Description

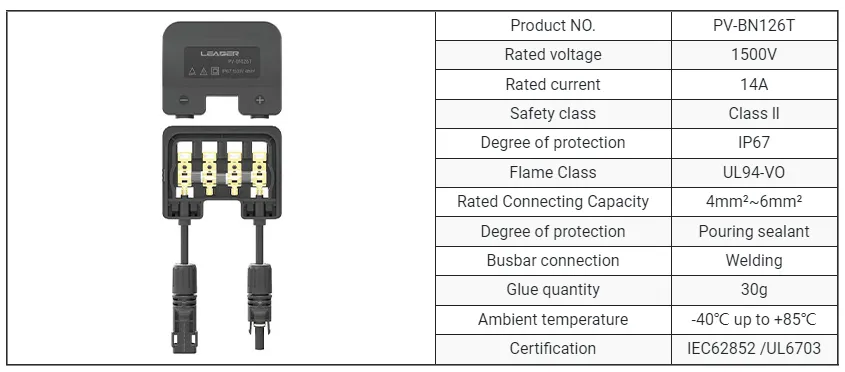

Basic Specifications
Model NO.
PV-BN126T
Type
Clock
Rated Voltage
TUV 1000V DC
Rating Current
4.8A-10A
Cable Size
2.5mm2~6mm2
Pin Od
4.0mm
Proof Voltage
TUV 6000V AC(1min)
Pollution Degree
2
Protection Class
Class II
Contact Material
Copper, Tin Plated
Protection Degree
IP67
Transport Package
Polybag + Carton
Specification
4 rail Junction Box
HS Code
853690190
Production Capacity
100,000 Units
Product Description

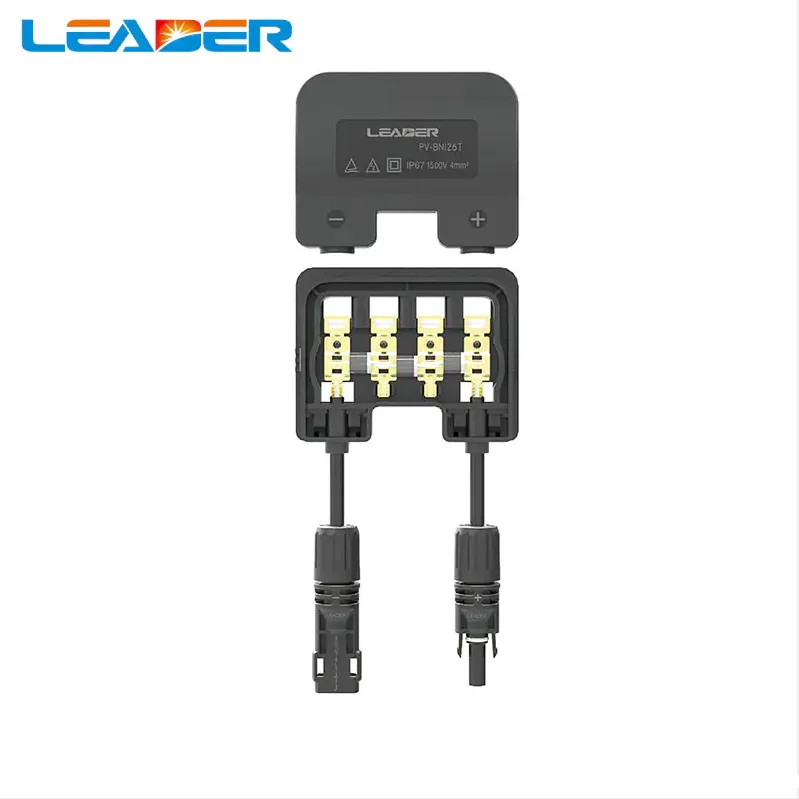

4 Rails Solar Panel Junction Box Connection for PV Panels

Our Services

Upon receipt of our products, if you are not satisfied with the quality or concerned, you can return it within 3 days after receiving our products, but only if products need to keep intact and original; any returns arising from the cost of freight and customs, will be borne by the buyer, buyer should be responsible to assume, otherwise, we have the rights to refuse to refund.

All in all, we believe our quality and service will satisfy your needs, we do not wish to see similar things happen, but once them occurred, please contact us immediately, we will make every effort to resolve the problem and make you satisfied at the first time.

Reply inquiry within 24 hours.
Answer your detailed questions professionally.
Freight forwarder: faster, safer, and convenient.
Providing reasonable price quotations promptly for interested items.
Frequently Asked Questions
What is the rated voltage and current for this junction box?
The PV-BN126T junction box is rated for 1000V DC and supports a rating current between 4.8A and 10A.
What is the protection rating against water and dust?
This product features an IP67 protection degree, ensuring it is highly resistant to dust and can withstand temporary immersion in water.
Which cable sizes are compatible with this junction box?
The unit is designed to work with PV cables ranging from 2.5mm² to 6mm² in size.
What materials are used for the contact points?
The contact material is made of high-quality Copper with Tin plating for excellent conductivity and corrosion resistance.
Does the product meet international safety standards?
Yes, it is TUV certified with a proof voltage of 6000V AC (1min) and categorized as Protection Class II.
How many rails does the junction box contain?

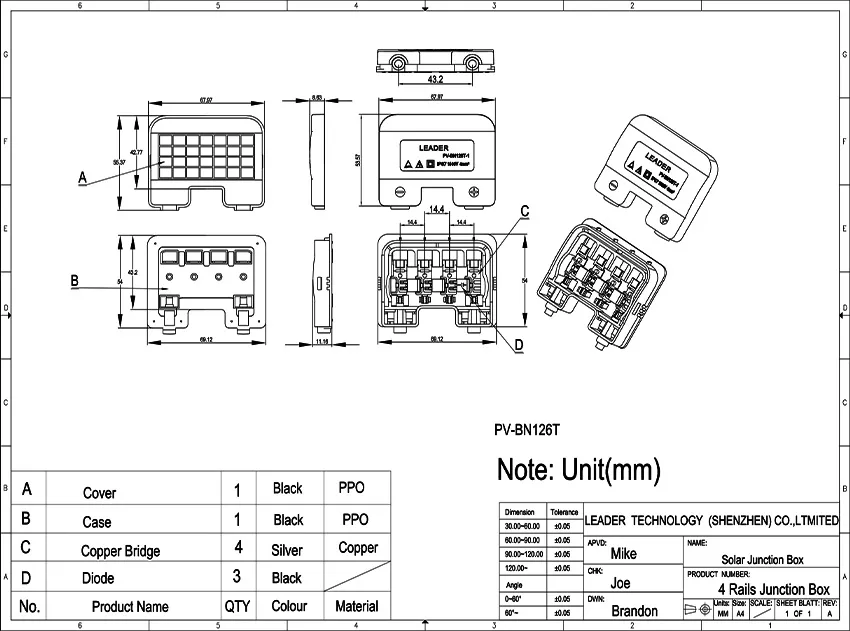

This specific model is designed as a 4-rail junction box for solar panel connections.
