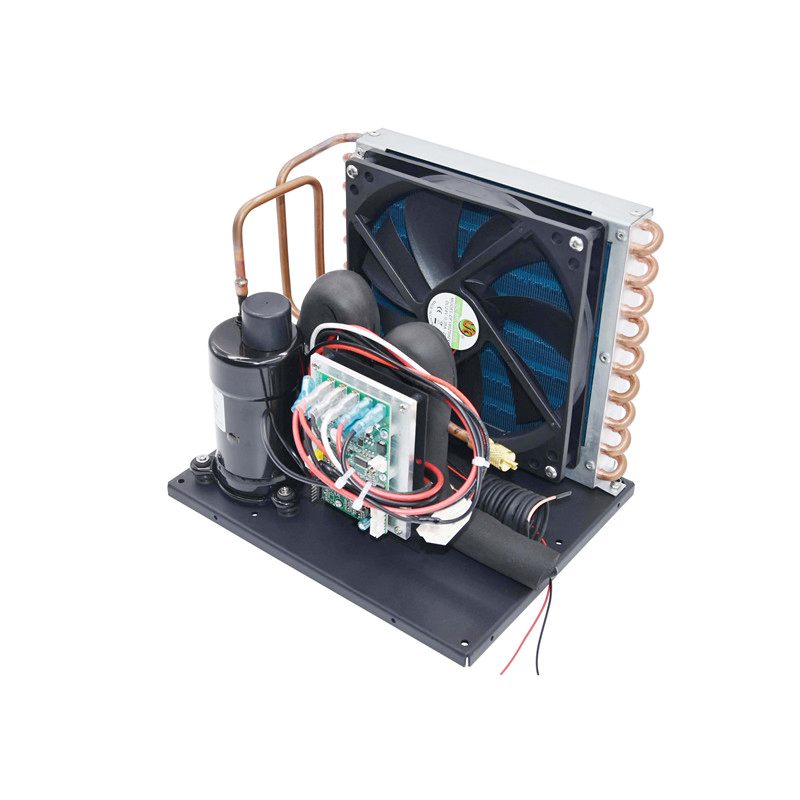

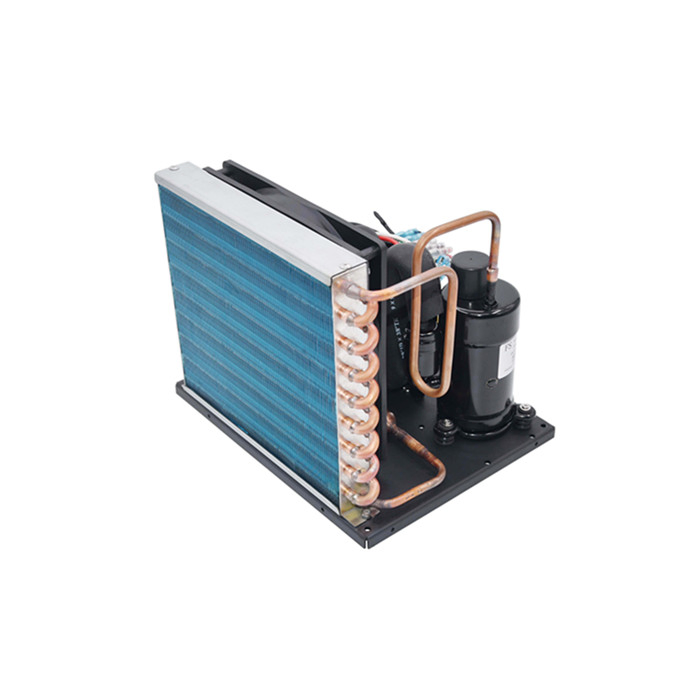

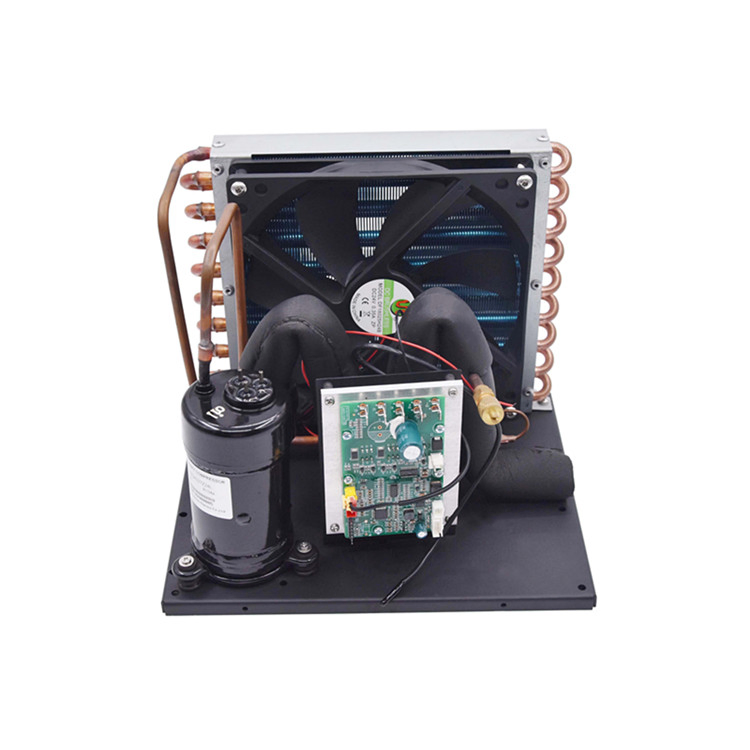

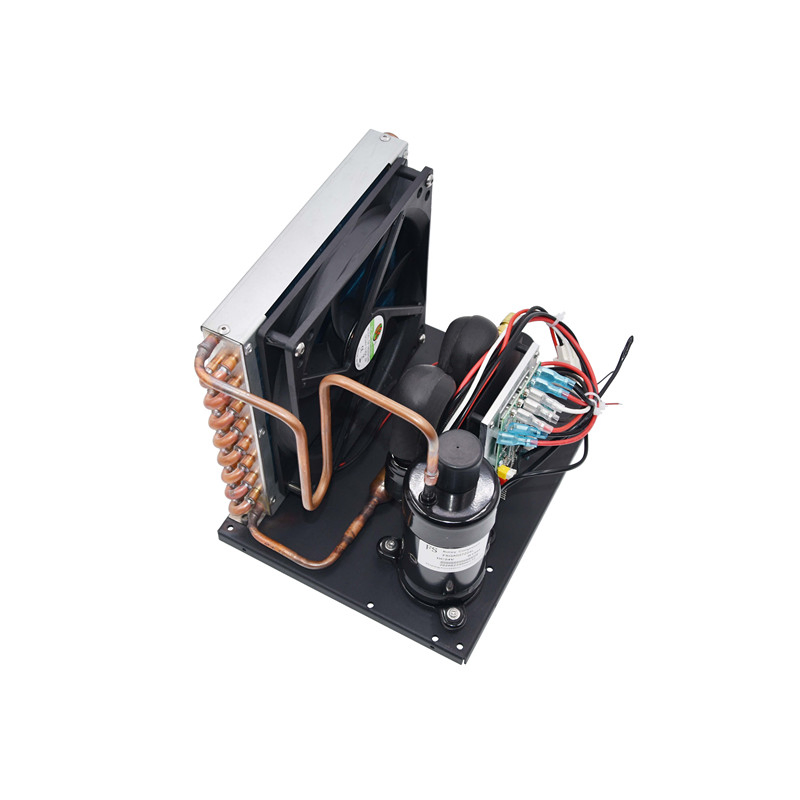

R134A 12V 24V Mini Condensing Unit for Micro Refrigeration System
R134A 12V 24V Mini Condensing Unit for Micro Refrigeration System
R134A 12V 24V Mini Condensing Unit for Micro Refrigeration System
R134A 12V 24V Mini Condensing Unit for Micro Refrigeration System
R134A 12V 24V Mini Condensing Unit for Micro Refrigeration System
1 / 5
R134A 12V 24V Mini Condensing Unit for Micro Refrigeration System
R134A 12V 24V Mini Condensing Unit for Micro Refrigeration System
R134A 12V 24V Mini Condensing Unit for Micro Refrigeration System
R134A 12V 24V Mini Condensing Unit for Micro Refrigeration System
R134A 12V 24V Mini Condensing Unit for Micro Refrigeration System

R134A 12V 24V Mini Condensing Unit for Micro Refrigeration System

Customization: Available
After-sales Service: Yes
Warranty: 1 Year
Send Inquiry

Product Description

★

Basic Specifications

Model NO.
FSCD027Z24
Type
Air-Cooled
Cooling Method
Air-cooled
Unit Structure
Integral
Selected Voltage
DC 24V
Compressor Number
1
Noise Level
Low (≤45dB)
Application
Electronic & Laser Machine
Cooling Capacity
500~600 watt
Refrigerant
R134A
Net Weight
5 Kg
Temperature Range
-23.3℃ ~ 24℃
✚

Product Description

Smallest tiny refrigeration condensing unit, with miniature compressor refrigeration system for micro cooling system. It includes Miniature Compressor, Compressor Driver, Mini Condenser, Capillary, and Axial Flow Fan.

With advantages of small size, light weight, DC 12V 24V 48V power supply, and high COP with less power consumption, it provides excellent cooling performance for confined spaces and hot ambients.

Product Name24v Mini condensing unit
ModelFSCD024Z24
Refrigeration PartsMini rotary compressor & driver, mini condenser, axial flow fan, capillary.
VoltageDC 24V
Size420X90X220mm / 250x200x180mm
Net Weight3.6kg
Cooling Capacity200 ~ 600W
CertificationISO, CE, CVC
Production Capacity1,000 units per month
📷

Production Display

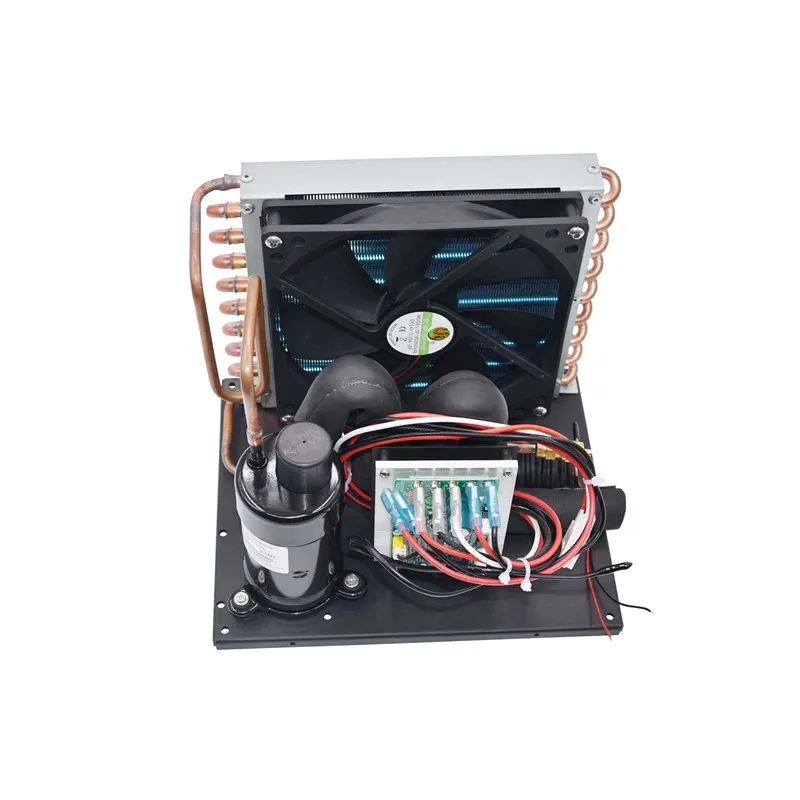

Mini Condensing Unit 1

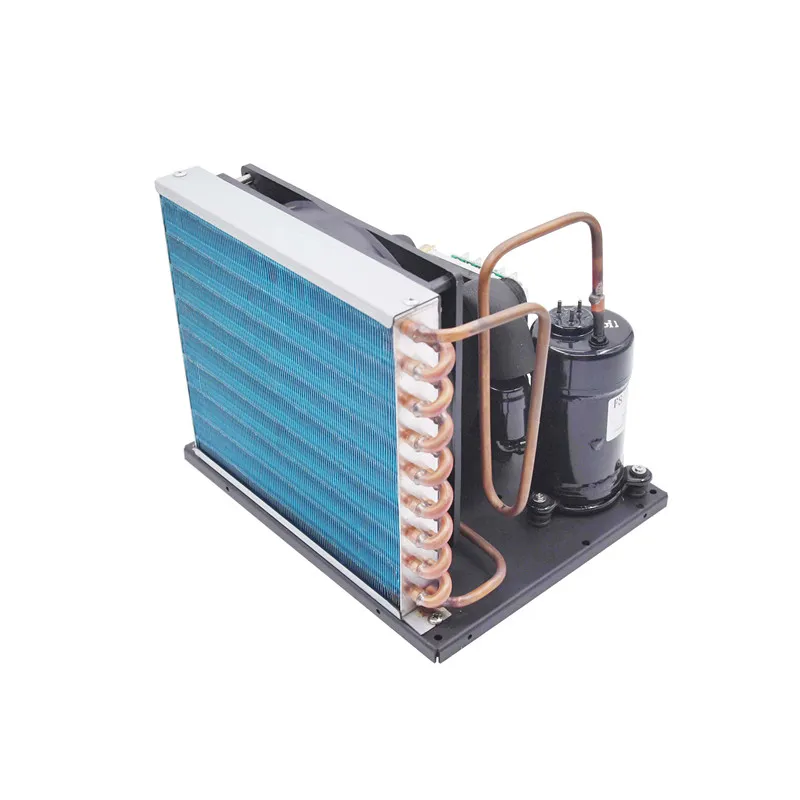

Mini Condensing Unit 2

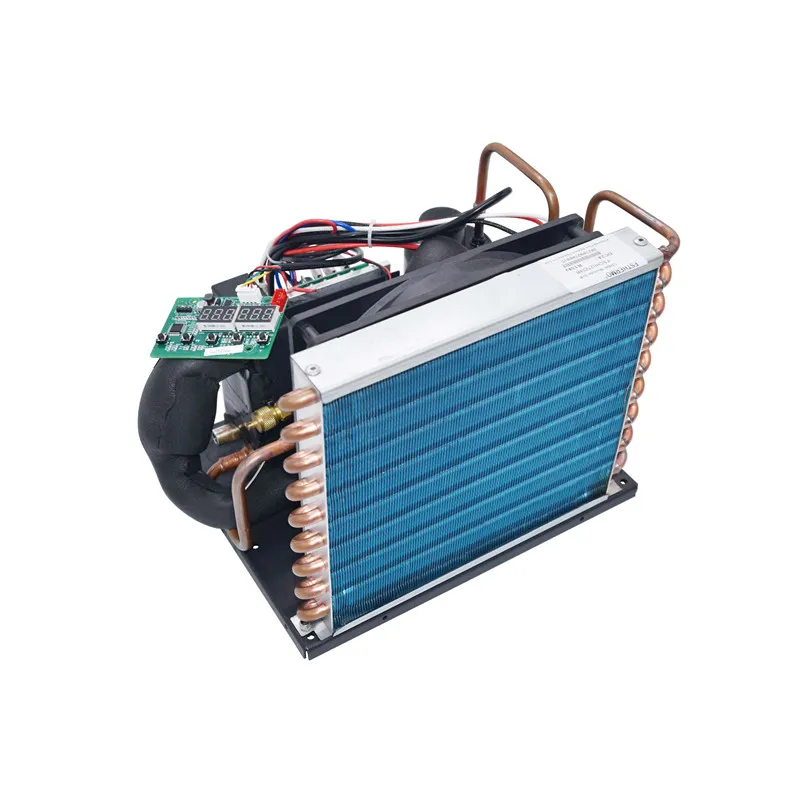

Mini Condensing Unit 3

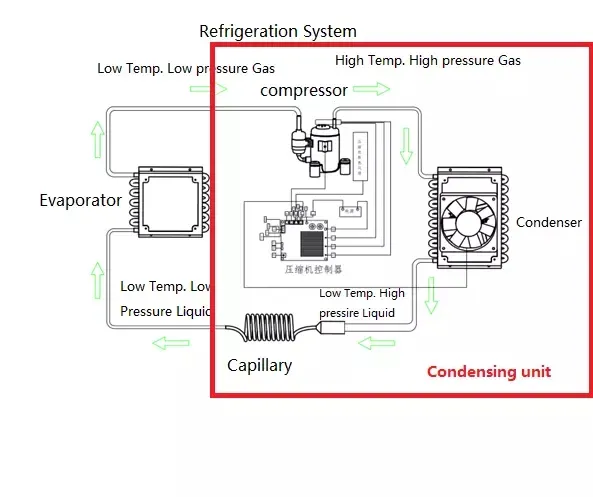

Mini Condensing Unit Detail

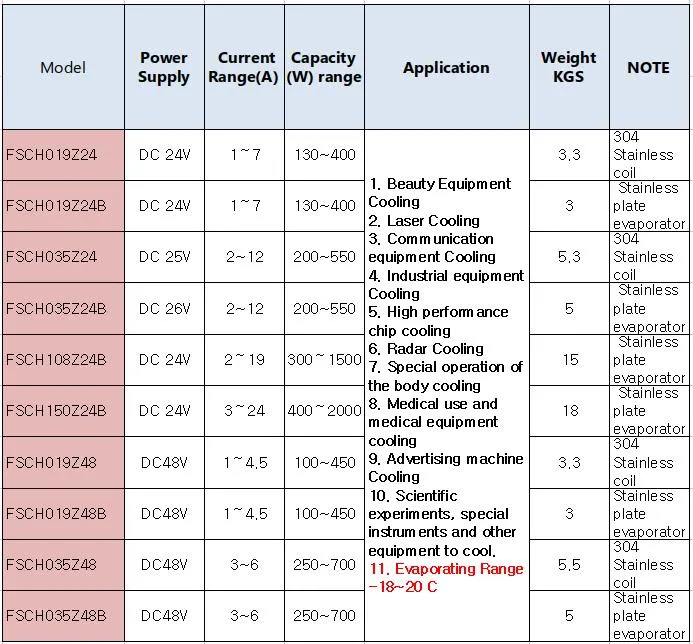

Mini Condensing Unit Scale
Application Diagram
✔

Main Features & Characteristics

1 Smallest size & most compact design
2 Light weight for portable applications
3 High COP with low energy consumption
4 Environmental-friendly R134a refrigerant
5 Low noise and vibration (≤45dB)
6 DC Power (Battery, Solar, Car Power)
7 Intelligent Microprocessor control
8 Compressor overcurrent protection
⚙

Typical Applications

Designed for micro and portable liquid recirculating cooling systems such as:

Laboratory Device Cooling Mini Glycol Cooling Laser Machine Cooling PC and Chip Cooling Medical Cooling Systems Beauty Machine Cooling Personal Body Cooling Vest Mini Beverage Cooler Electronic Component Cooling Portable Spot Cooler
Workshop

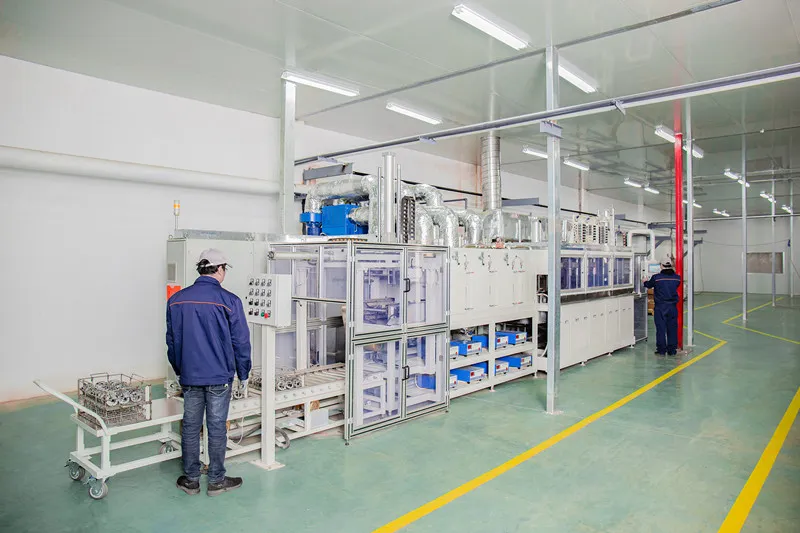

Production Line 1

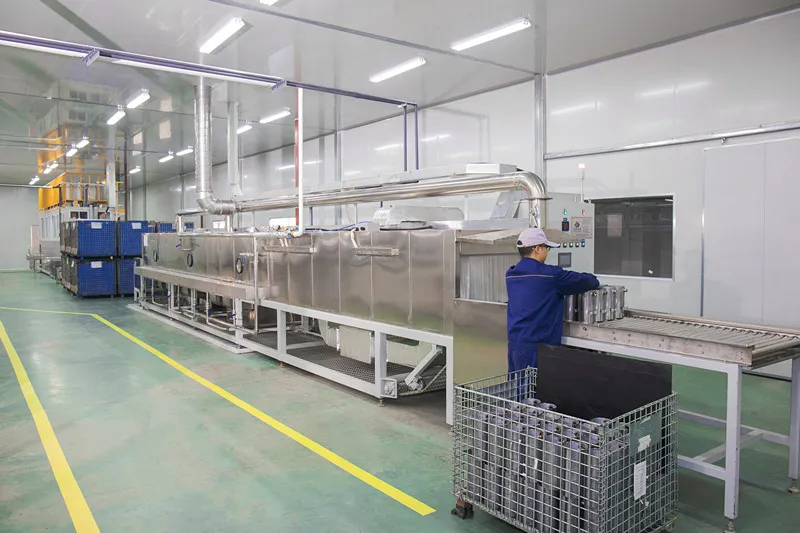

Production Line 2
?

Frequently Asked Questions

1. What is the Minimum Order Quantity (MOQ)?
The MOQ for our mini condensing units is 1 piece, making it suitable for both prototyping and small-scale projects.
2. What is the typical delivery time?
For sample orders, the delivery time is approximately 10 days after payment. Bulk orders typically take around 25 days.
3. Which power sources can be used with this unit?
These units are highly versatile and can be powered by DC electrical power, batteries, solar power, or car power (12V/24V/48V options).
4. What refrigerant does the system use?
The system uses R134a, which is an environmentally friendly refrigerant widely used in micro-refrigeration systems.
5. Can this unit be used for laser machine cooling?
Yes, it is perfectly suited for laser machine cooling, as well as laboratory devices, PC chip cooling, and medical equipment.
6. Is the cooling capacity adjustable?
The unit offers a cooling capacity ranging from 200W to 600W, depending on the specific model and operating conditions.
