Good Quality PV-Cq103 Solar Junction Box with Competitive Prices

1 / 5

Good Quality PV-Cq103 Solar Junction Box with Competitive Prices

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

GD-PV-CQ103

Certification

CCC, CE, TUV

Power for PV Module

285-350W

Rated Voltage

1500V DC

Rated Current

13A

Cable Cross Section

1*4mm²

Insulation Material

PPO

Temperature Range

-40~ +85℃

Production Capacity

5000/Month

Origin

China

Product Description

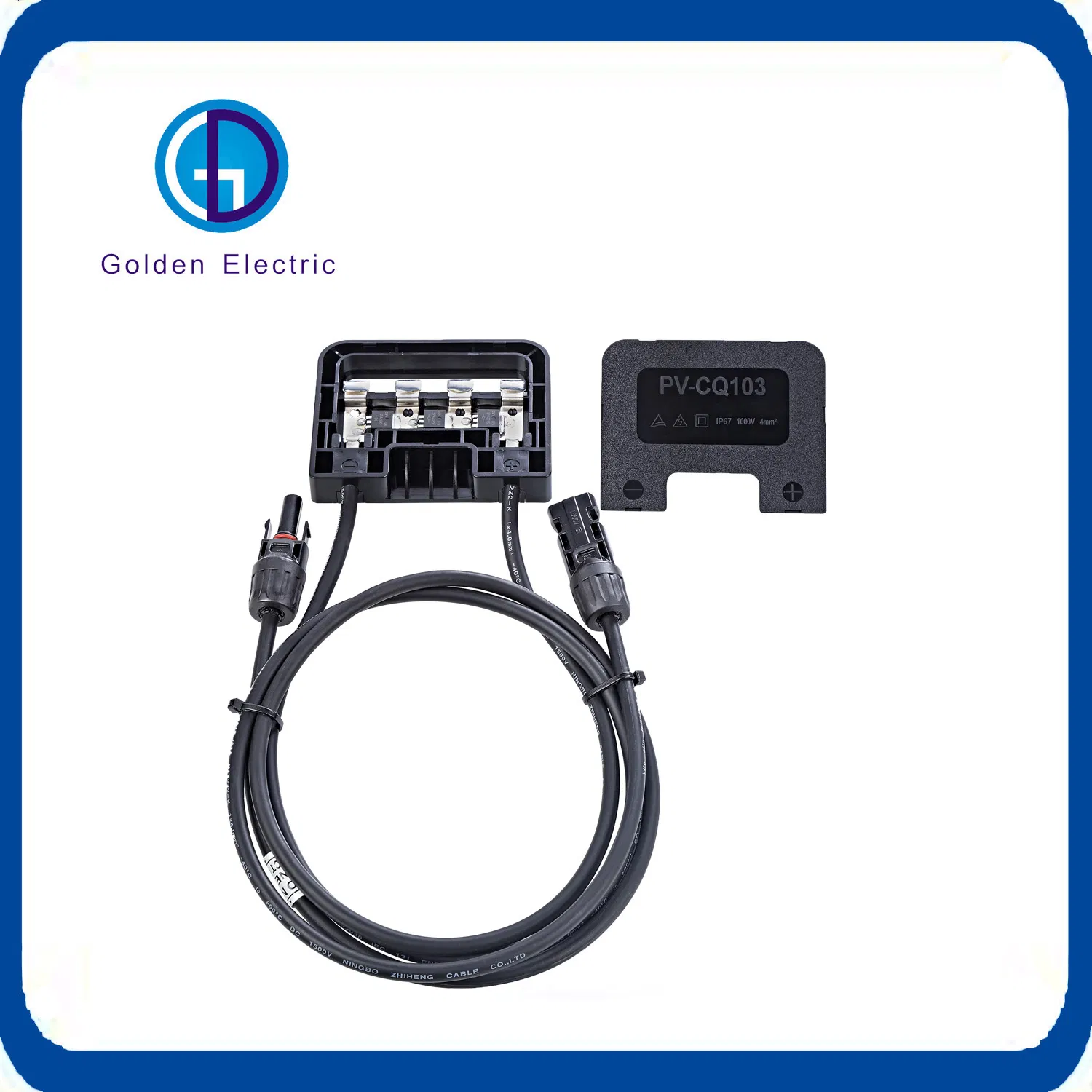

The PV-CQ103 junction box is TUV certified, designed to efficiently transmit current generated by photovoltaic modules through cables. The maximum current capacity can be adjusted based on different diode configurations to meet specific requirements.

Product Characteristics

Adopts a reliable glue-filling sealing method for simple, convenient, and safe installation.
Superior electrical performance with low contact resistance.
Extremely low power loss during transmission.
Shell features excellent resistance to high/low temperatures, anti-aging, and anti-ultraviolet properties.
Optimized for long-term outdoor durability in harsh environments.

Technical Parameters

Power for PV module	285-350W
Rated Voltage	1500V DC
Rated Current	13A
Contact Resistance	≤ 5mΩ
Cable Cross Section	1×4mm²
Insulation Material	PPO
Temperature Range	-40~ +85ºC

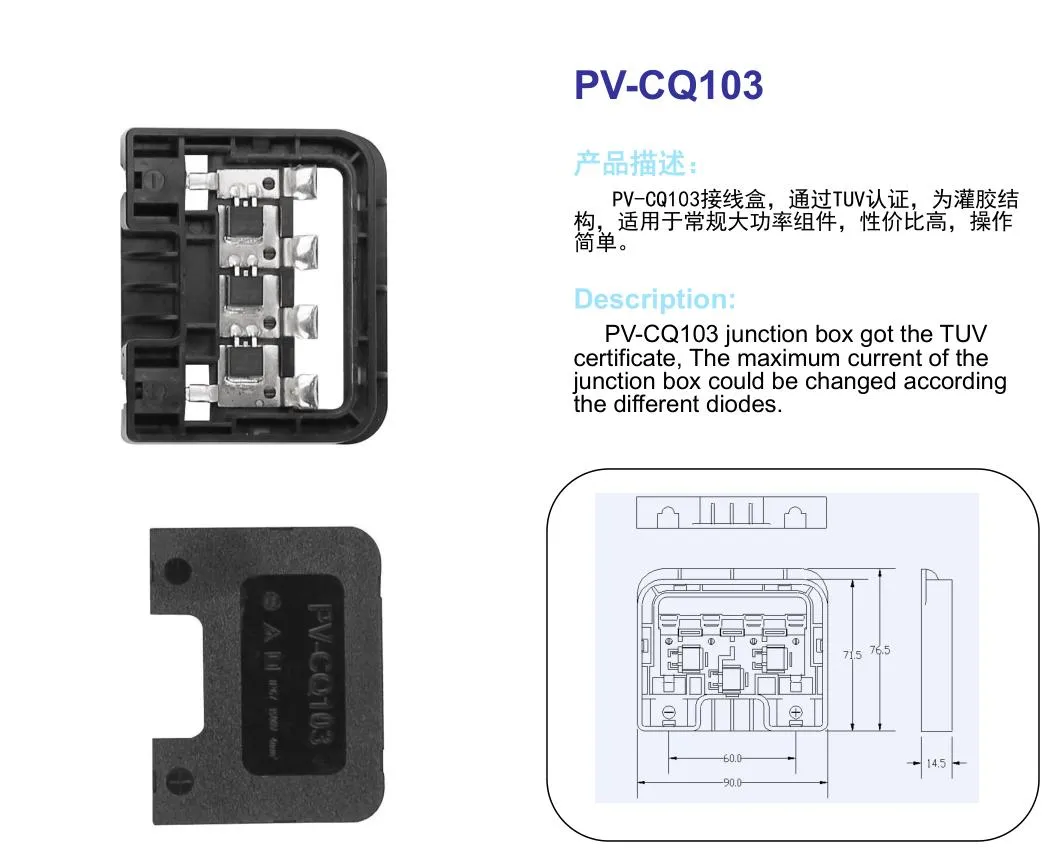

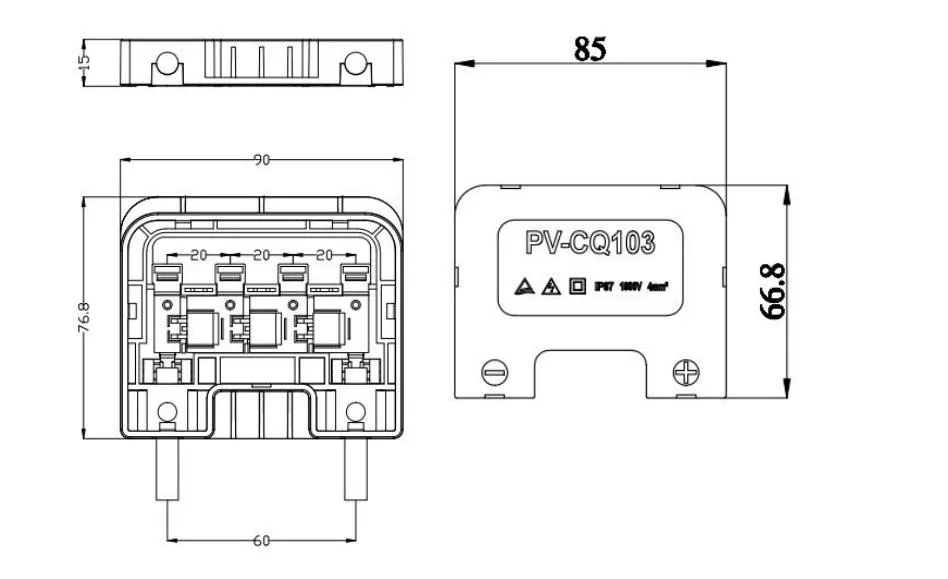

Technical Drawings

Packaging & Delivery

Package Size

25.00cm * 15.00cm * 10.00cm

Gross Weight

1.500kg

Transport Package

Carton/Pallet

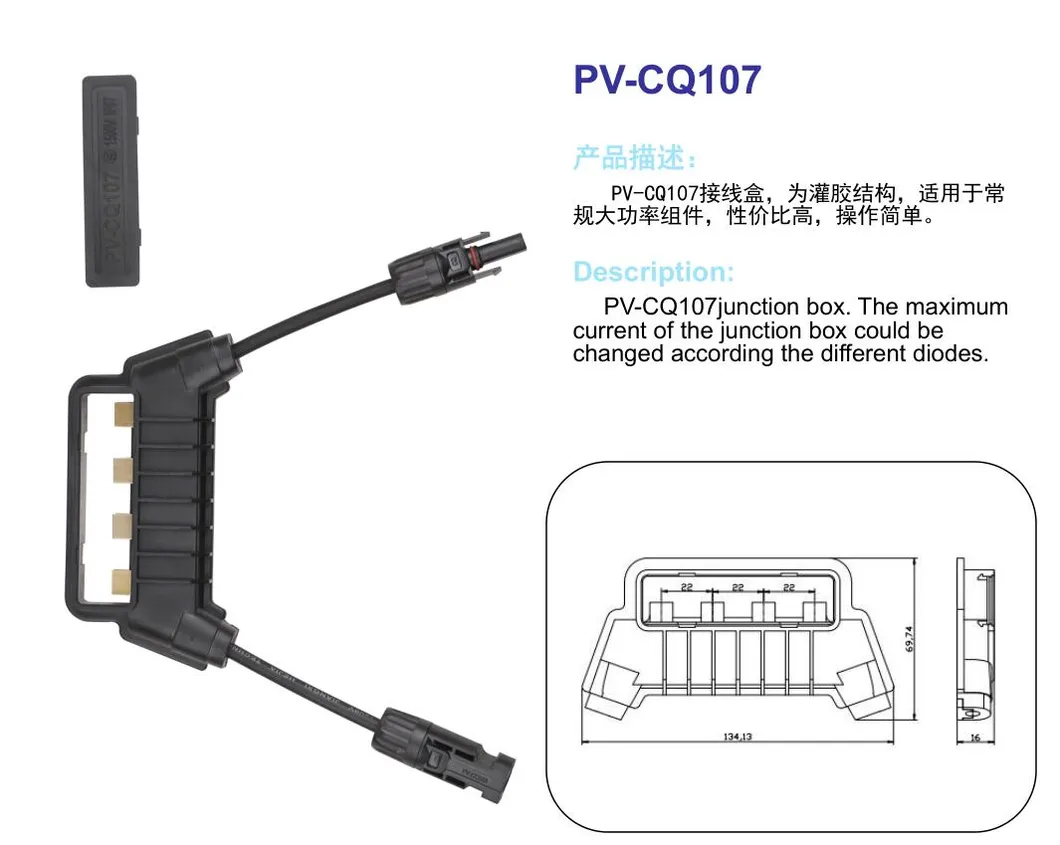

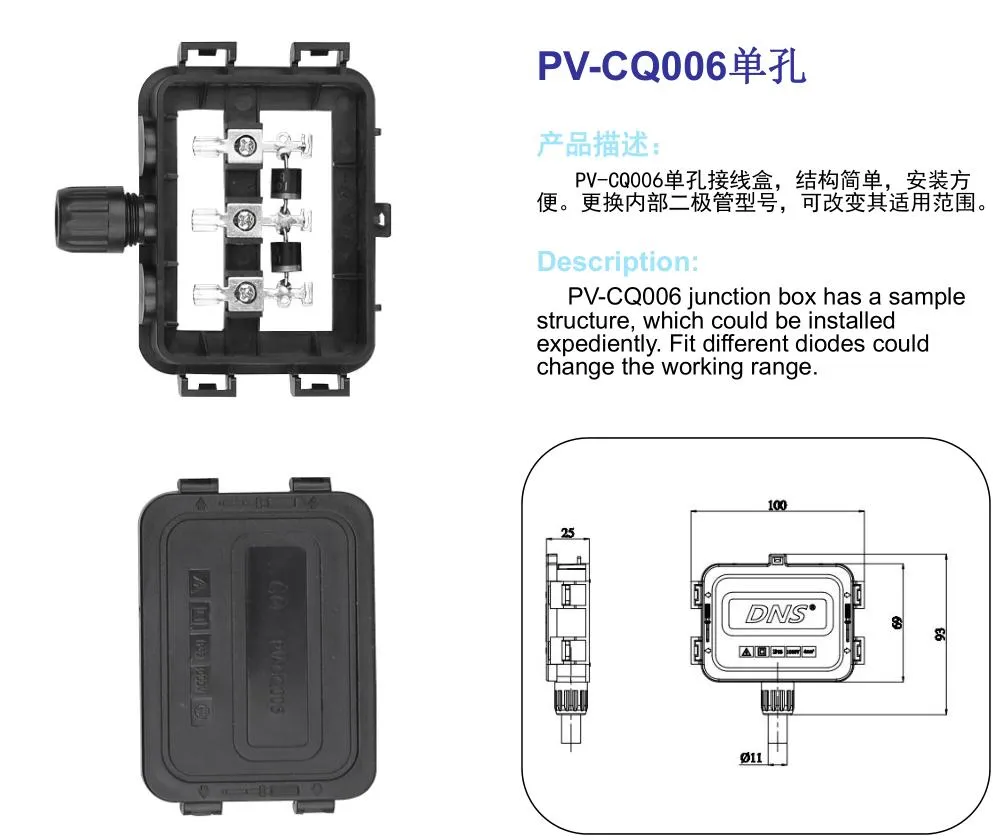

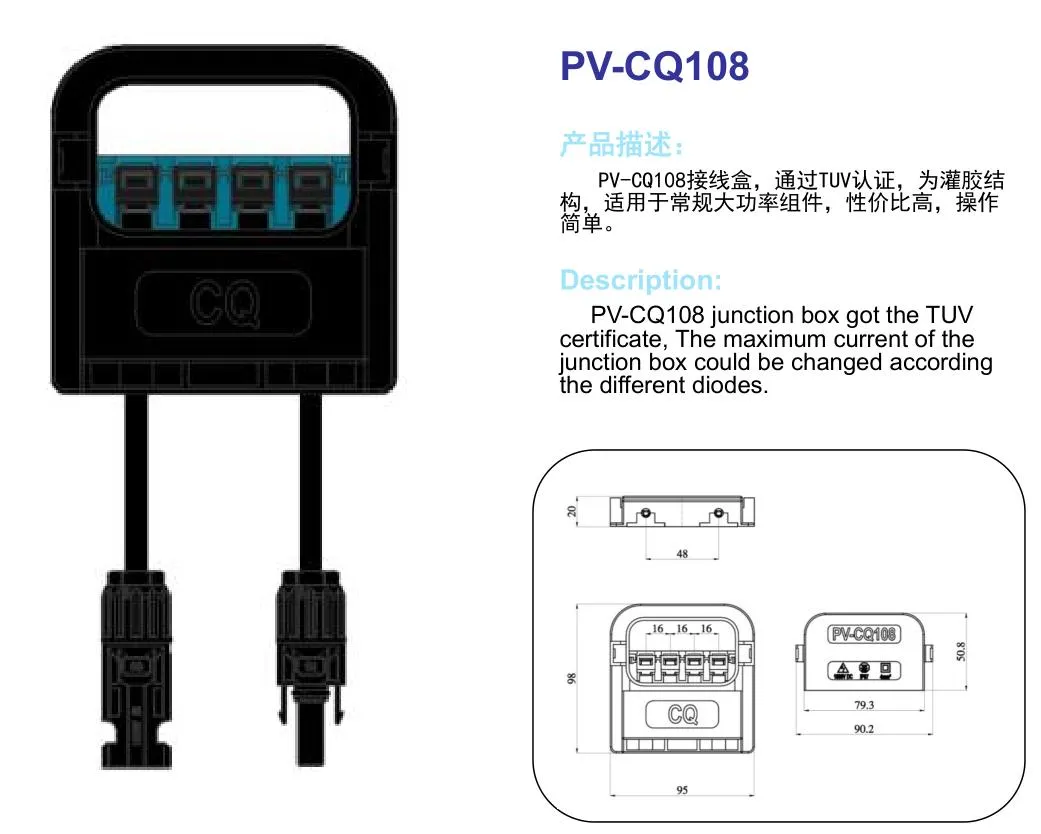

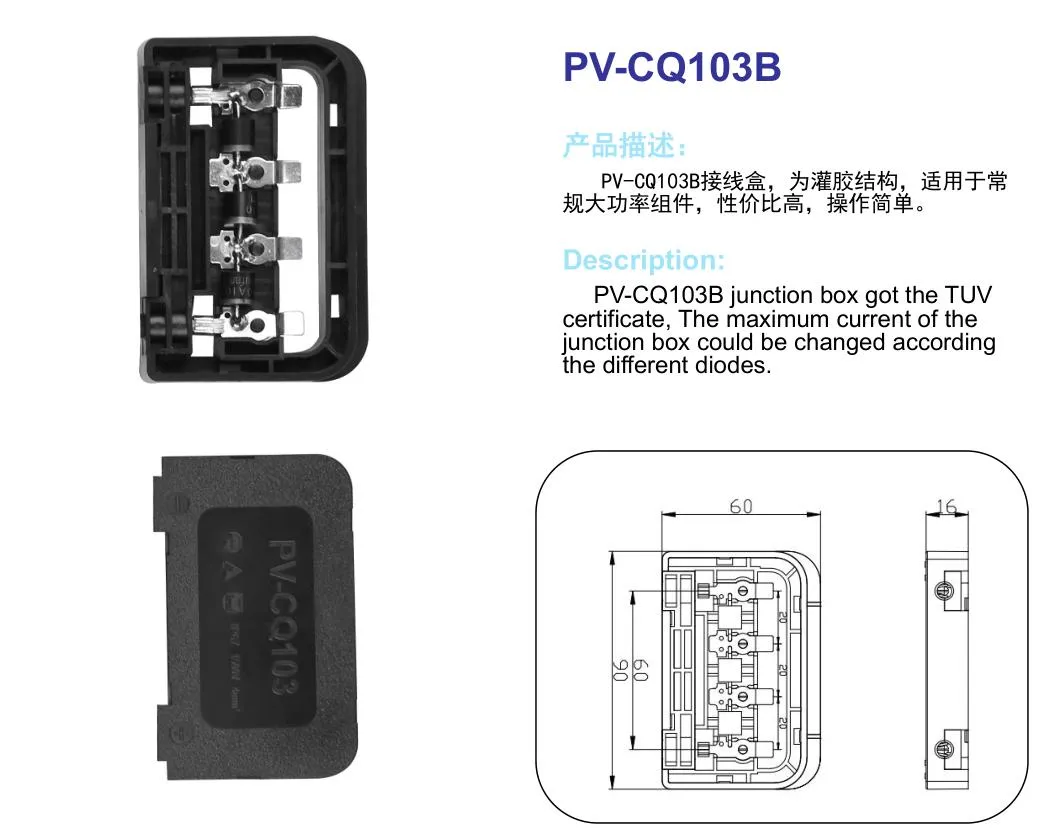

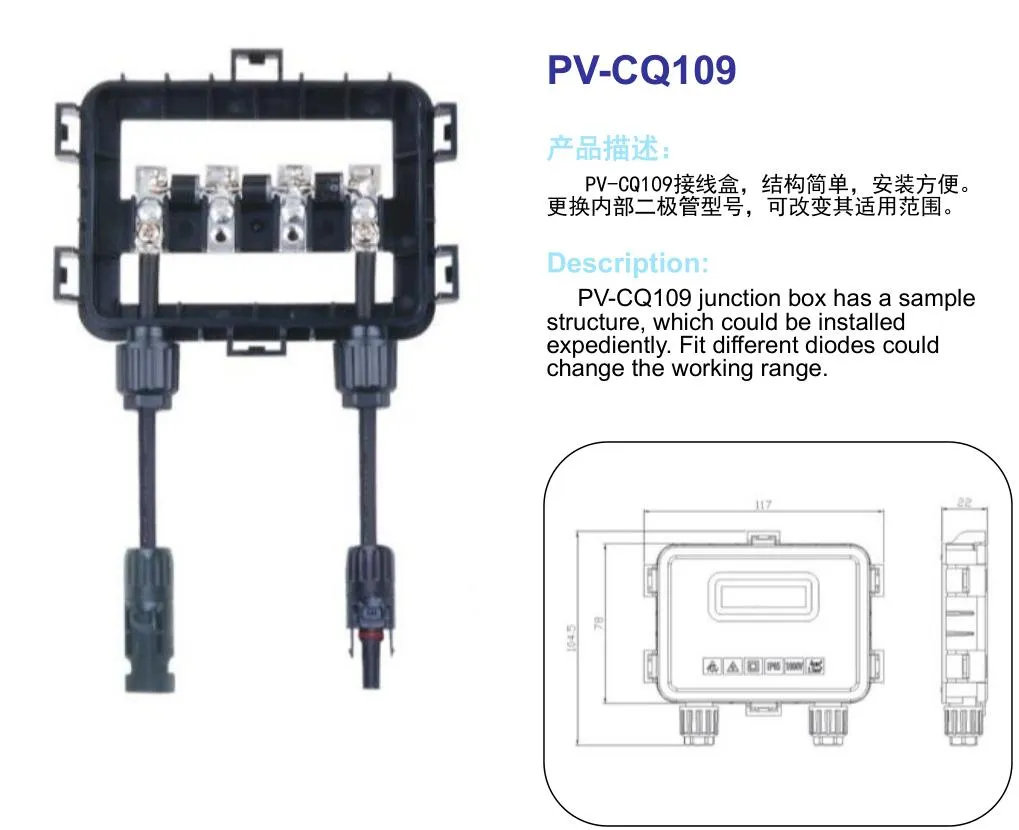

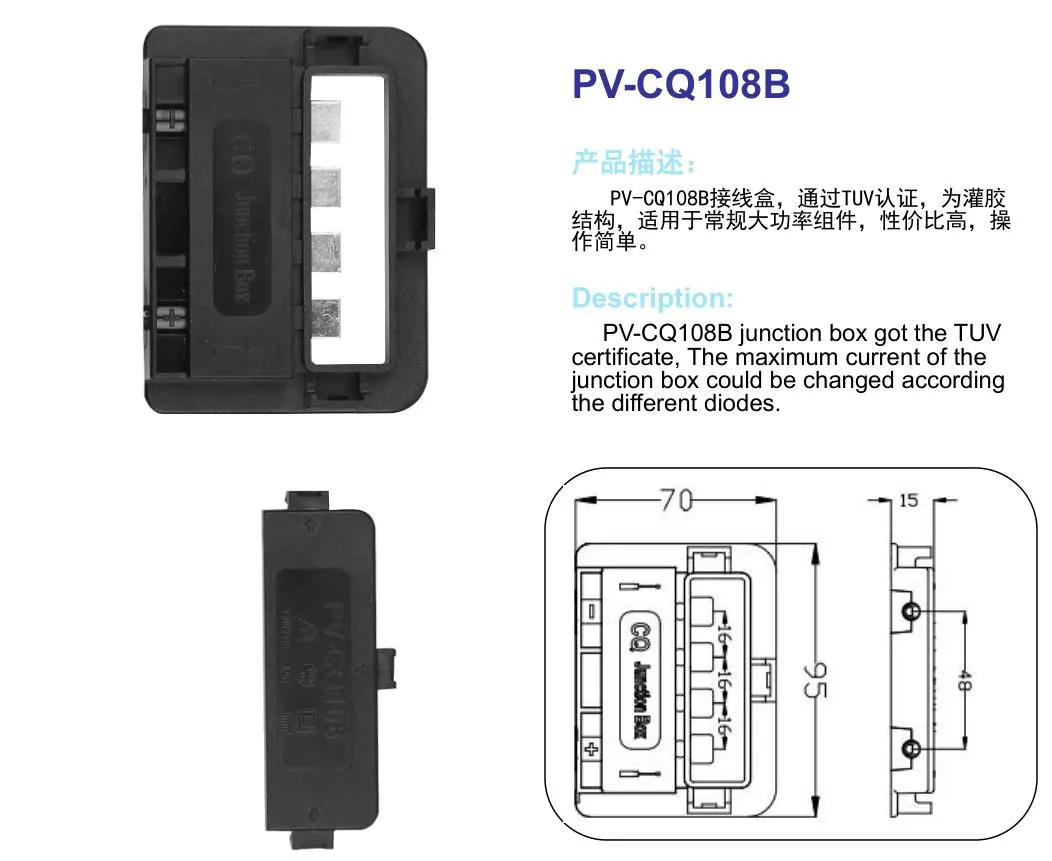

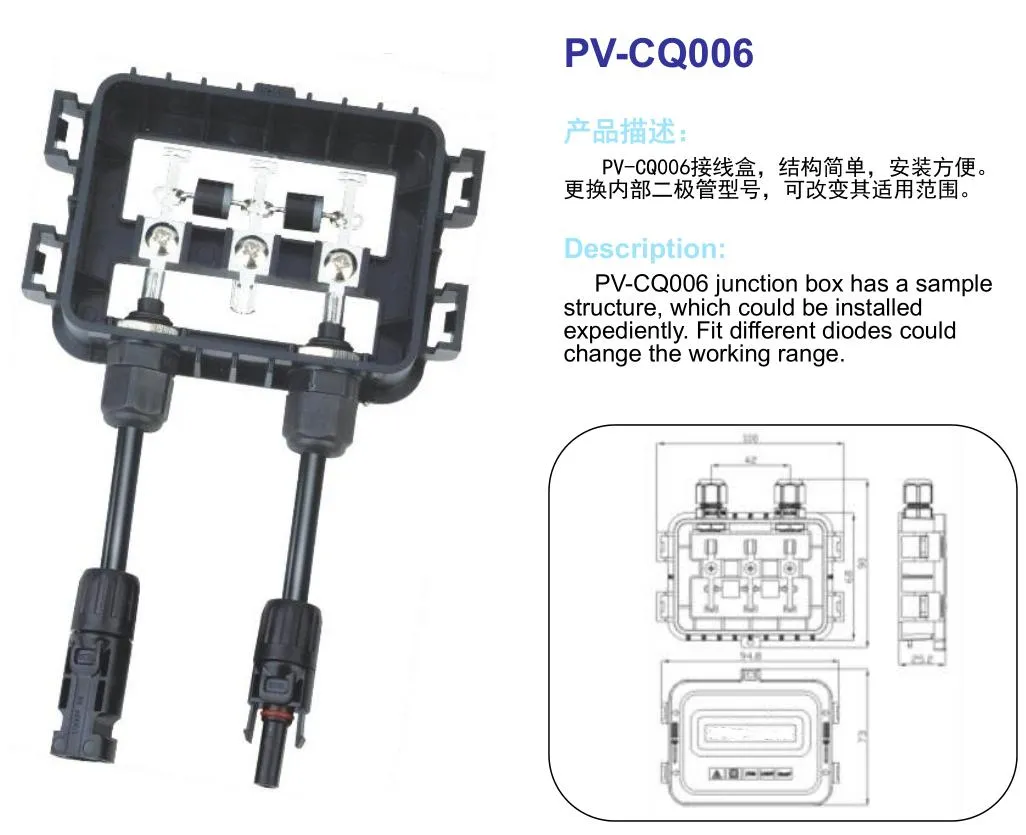

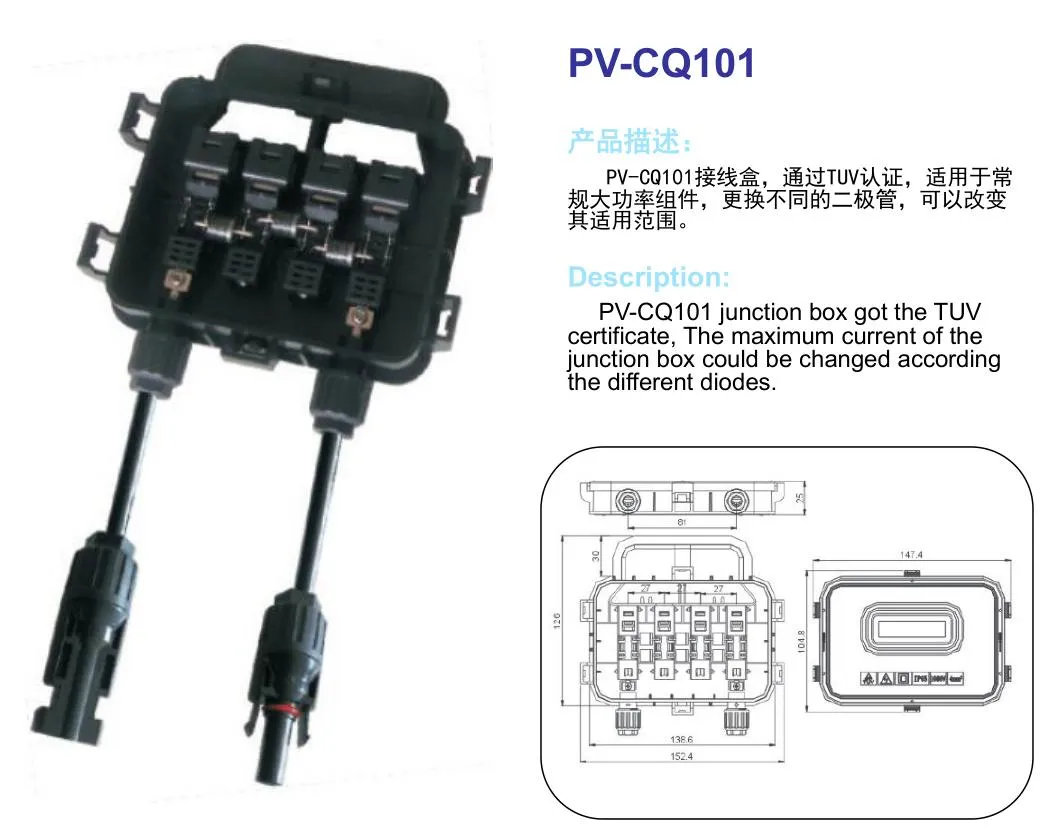

Other Hot-Selling Models

Frequently Asked Questions

What certifications does the PV-CQ103 junction box have?

The PV-CQ103 junction box has obtained TUV, CCC, and CE certifications, ensuring compliance with international safety and quality standards.

What is the maximum rated voltage and current?

The rated voltage is 1500V DC and the rated current is 13A, making it suitable for high-voltage photovoltaic systems.

How is the junction box sealed?

It utilizes a glue-filling sealing method, which provides a highly secure and waterproof environment, making it safe and simple to install for outdoor use.

What is the operating temperature range?

The junction box is designed to operate reliably in a wide temperature range from -40°C to +85°C.

Do you offer OEM or custom branding services?

Yes, we provide both OEM and ODM services, allowing customers to have their own logo and specific customizations on the products.

What materials are used for the outer shell?

The shell is made of high-quality PPO (Polyphenylene Oxide) insulation material, which offers excellent UV resistance and anti-aging performance.
