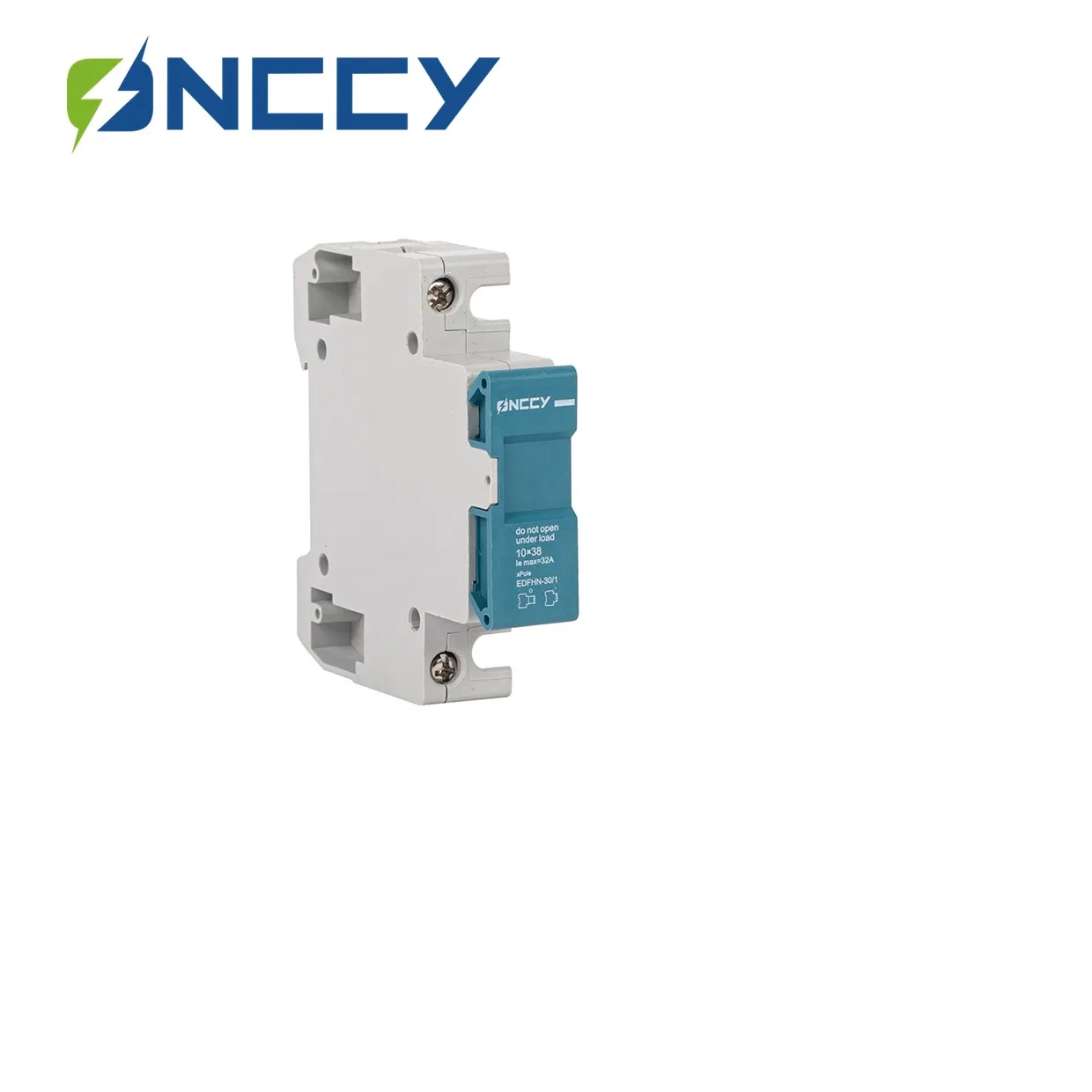

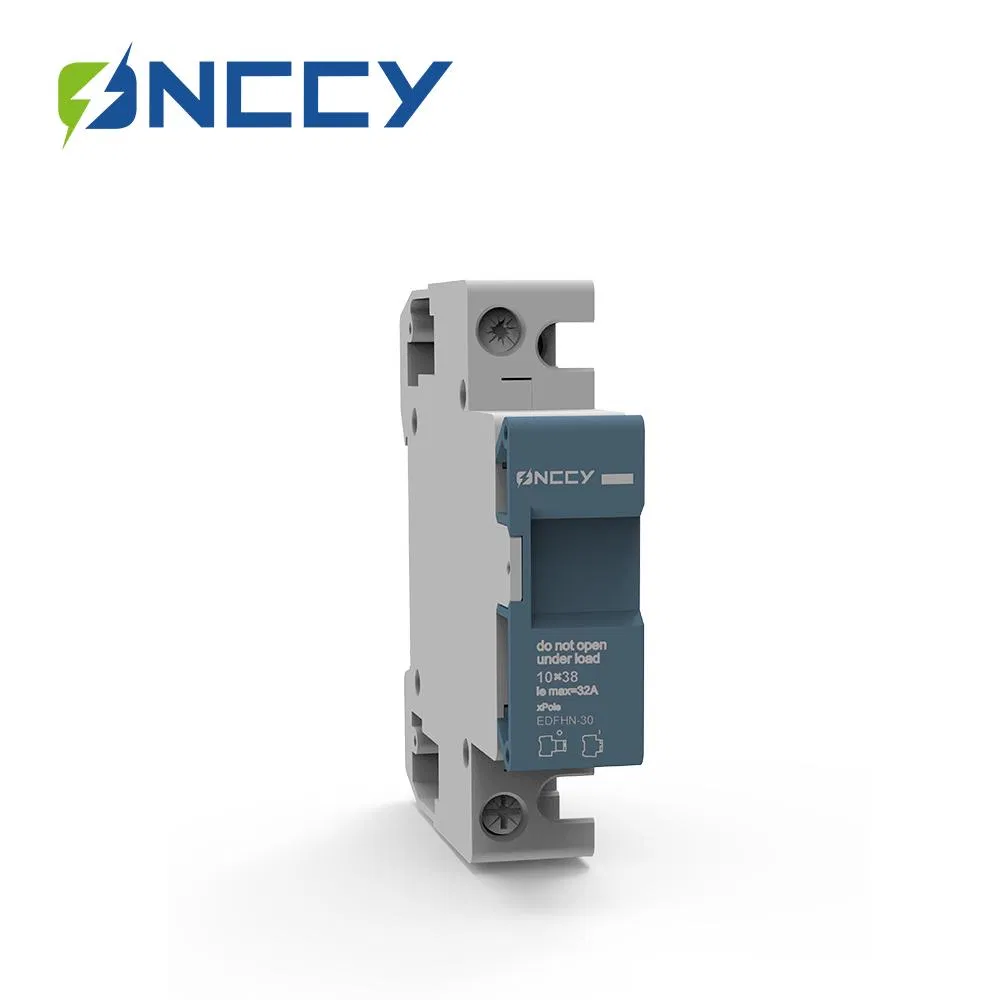

PV System Solar Power 2pole Thermal Fuse 30A 1000V DC Fuse

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Model NO.
EDFH
Installation
DIN-Rail
Type
Auto Fuse Holder
Shape
10*38
Size of Fuse
Medium Fuse Holder
Environmental Protection
Environmental Protection Fuse Holder
Execution Standard
European Standard
Fusing Speed
F
Pole
1p/2p/3p
Fuse Change Type
Pulling out
Rated Current
30A
HS Code
8536490090
DC Fuse Holder 1000V 10x38mm 3P 32A 10kA
⚙️
Din35 Rail Installation, Easy to Install
🔌
Adjustable terminal block, Wiring firm
🛡️
Fire-retardant shell, high temperature resistance
🔄
Flexible installation, Easy to replace
1000V 30A / 10*38mm fuse link
☝️
Finger safe touch protection
Technical Specifications
Rated Voltage (1P, 1P+N, 2P)230 VAC
Rated Voltage (3P, 3P+N)800 V AC
Rated Operational Current (Ie)32 A
Conditional Short-circuit Current10 kAr.m.s
Utilization CategoryAC 20 B
Rated Impulse Withstand Voltage (Uimp)4 kV
Fuse-links Support10, 16, 20, 25 and 32 A
Operating ClassgG(gL)/aM
Max. Power loss per current path3.2 W
Frame Size45 mm
Device Height80 mm
MountingQuick fastening on DIN rail IEC/EN 60715
Degree of ProtectionIP20 (Built-in IP40)
Upper and Lower TerminalsLift terminals
Terminal Capacity1.5-10 mm2
Tightening TorqueMax. 1.2 N.m
Dimensions of Fuse-link10.3 x 38 mm
Product Details & Dimensions

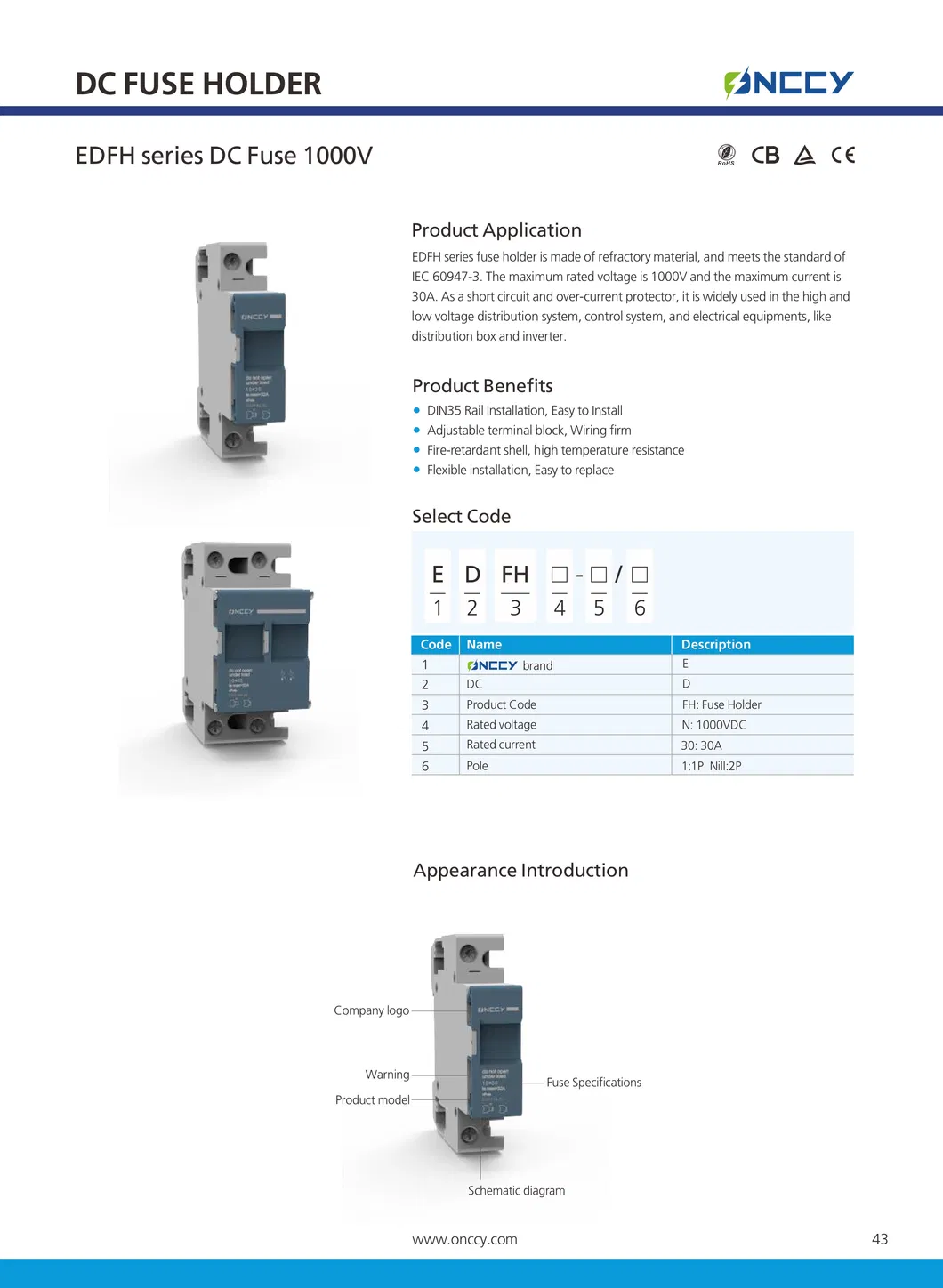

DC Fuse Holder Overview
Technical Drawing 1
Technical Drawing 2
Frequently Asked Questions
Q: Are you a trading company or a manufacturer?
A: We are a manufacturer with 30,000 square meters of self-owned plant facilities.
Q: Do you have any product certificates?
A: Yes, our products hold UL, TUV, CB, SAA, CCC, CE, and other international certifications.
Q: Can you supply samples for quality checking?
A: Yes, we can provide samples. Please contact us for specific requirements and details.
Q: How long is your typical delivery time?
A: Generally, it is within 3 days for small quantities and around 15-20 days for general bulk orders.
Q: What are your inspection standards?
A: We maintain a complete inspection system from raw materials to finished products, including transient, delay, and mechanical life tests.
Q: What is the standard packaging for your goods?
A: We use export standard packaging or special packaging according to specific customer requirements.
