This is an essential safety switch mandated in each photovoltaic power system according to IEC 60364-7-712. It allows maintenance of the PV converter by providing isolation from both the DC and AC sides.

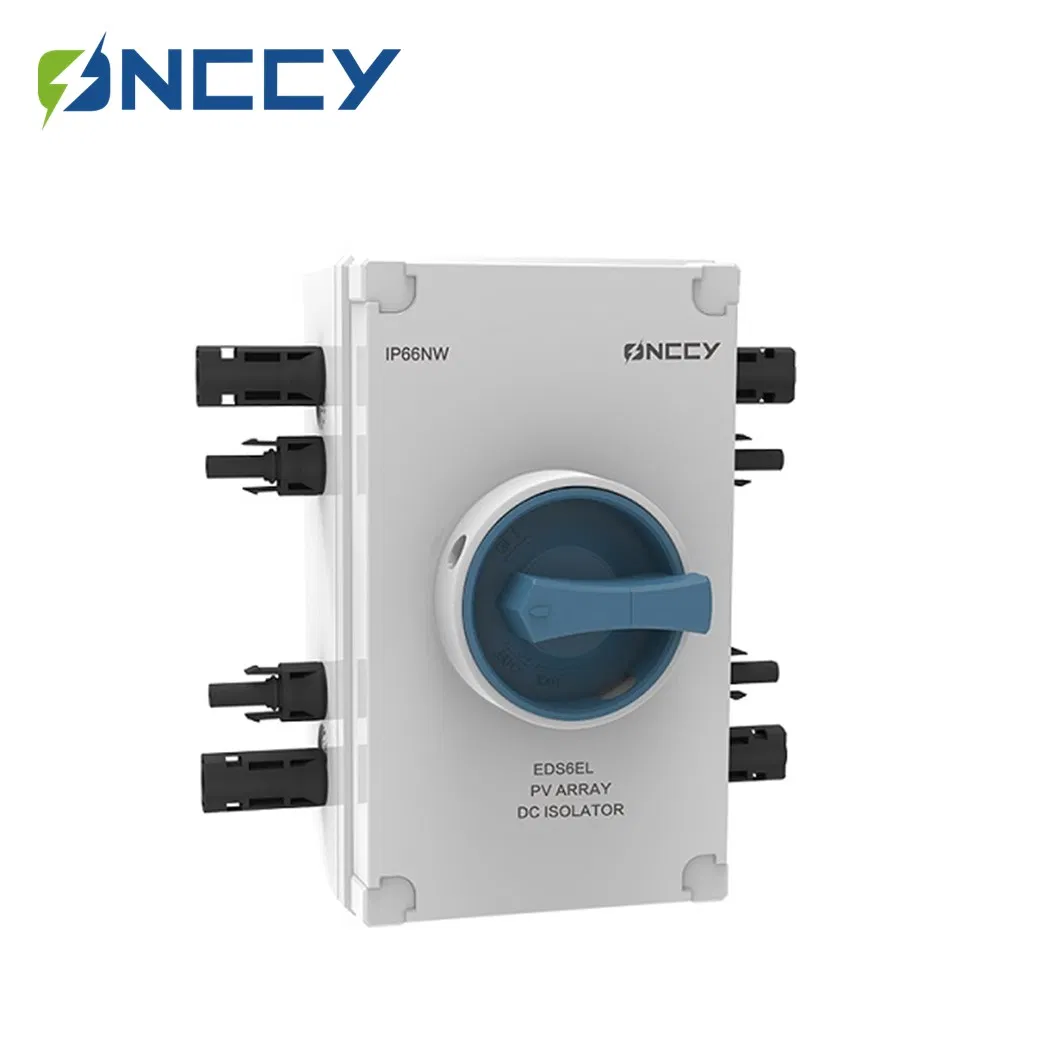

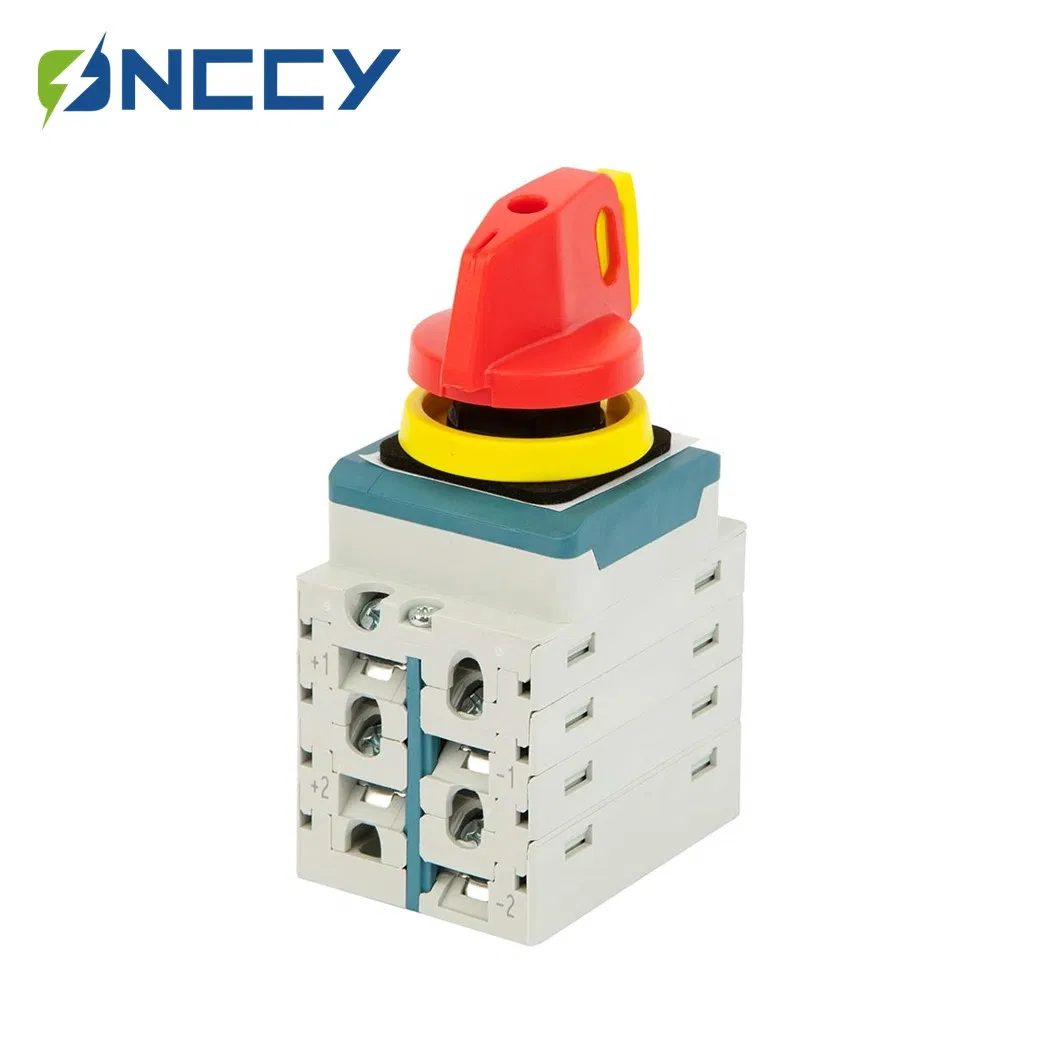

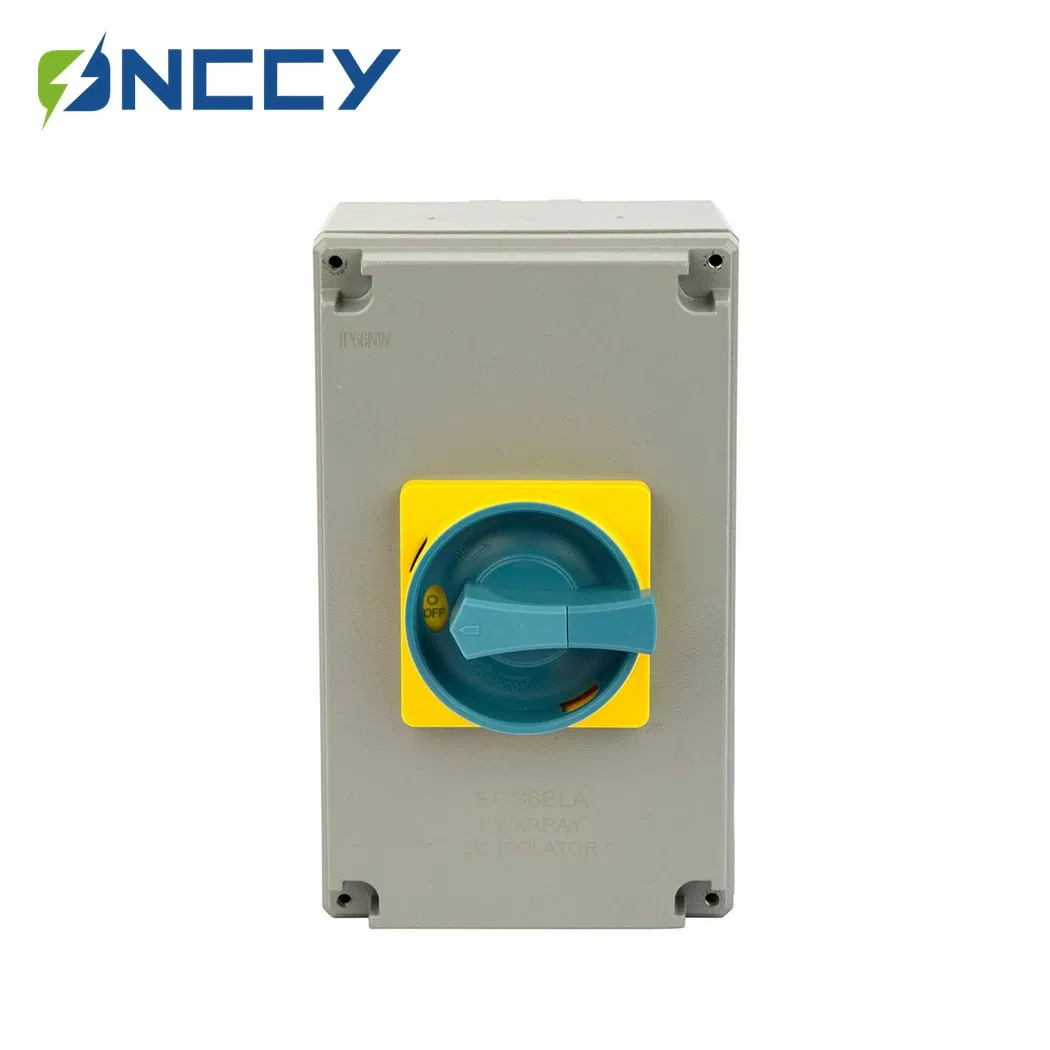

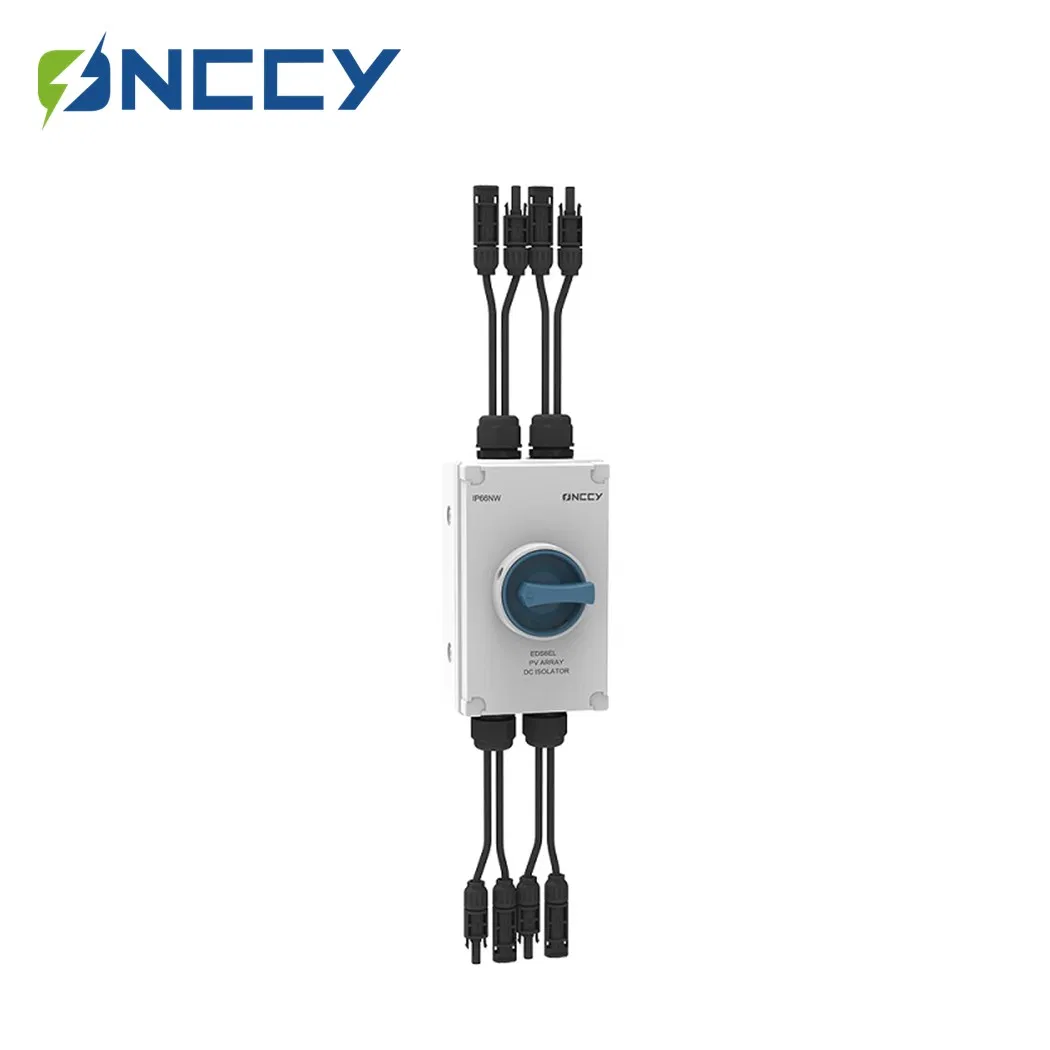

Our DC Isolator is designed for solar inverter DC side disconnect. Combined with other components, these switches guarantee complete protection from any form of over-voltage and overloading. With a special instruction for arc extinguishing, we offer increased safety, reliability, and longer life.

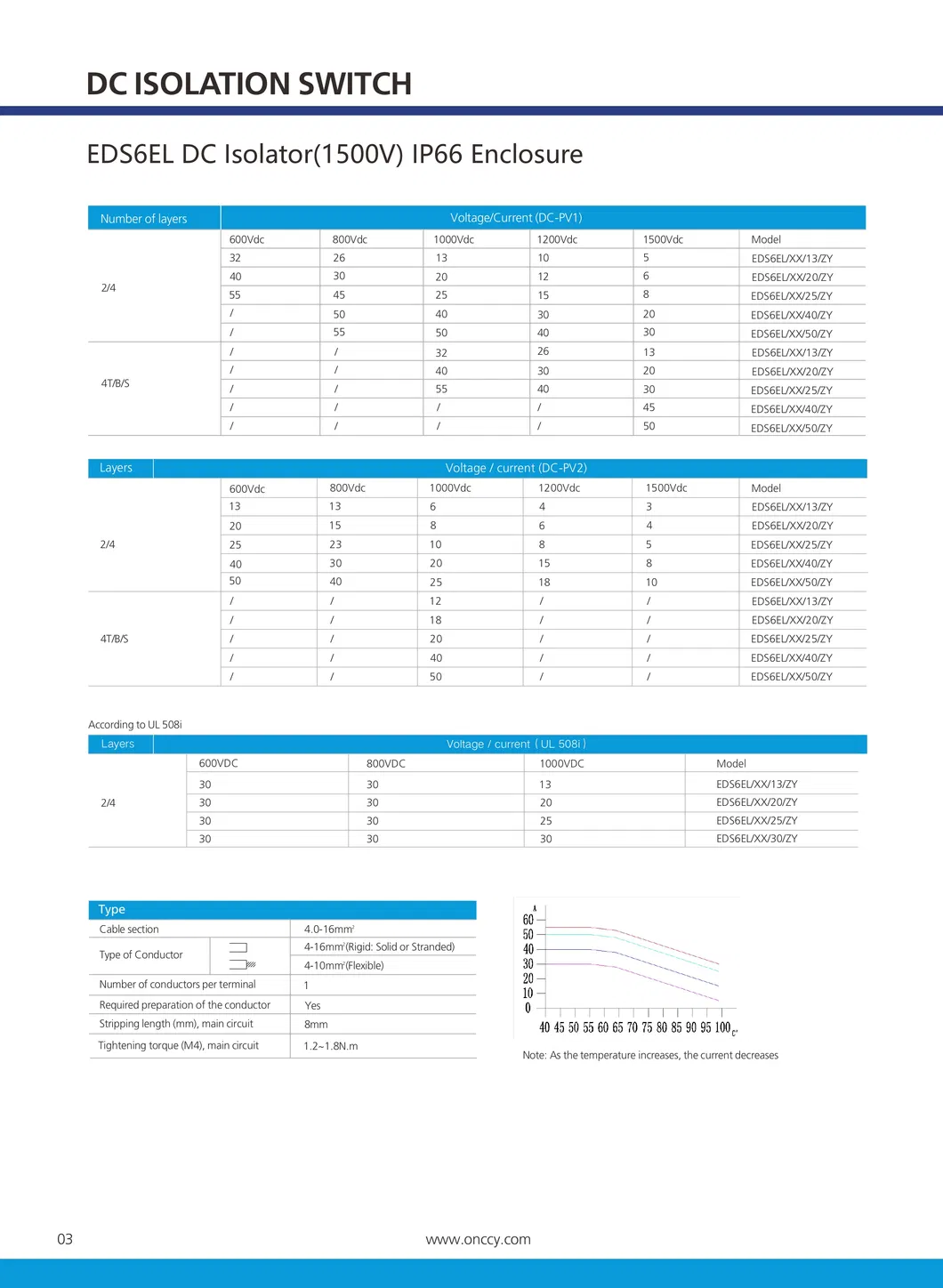

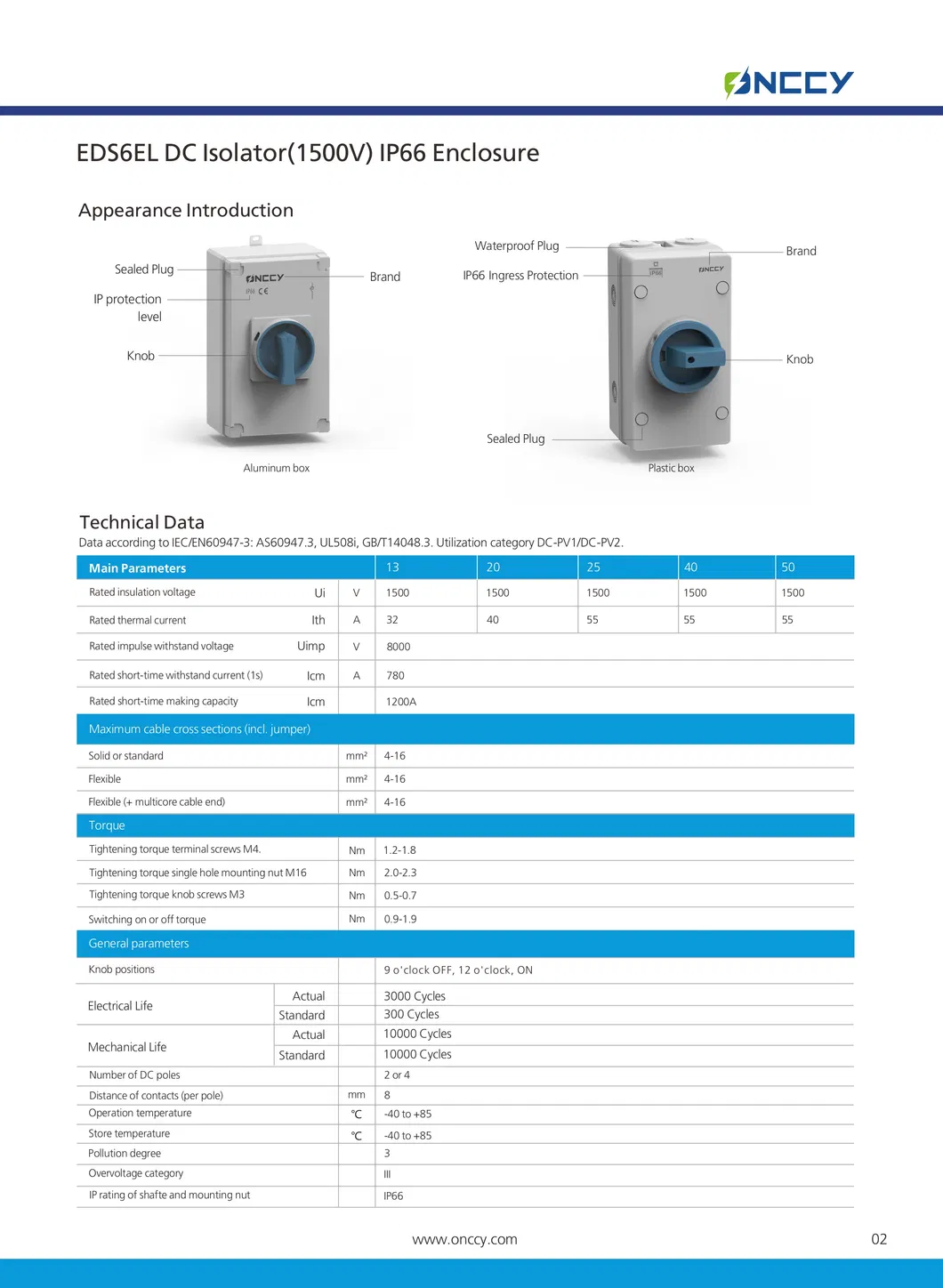

| Main Parameters | 13A | 20A | 25A | 40A | 50A | ||
|---|---|---|---|---|---|---|---|
| Rated insulation voltage | Ui | V | 1500 | 1500 | 1500 | 1500 | 1500 |
| Rated thermal current | Ith | A | 32 | 40 | 55 | 55 | 55 |
| Rated impulse withstand voltage | Uimp | V | 8000 | ||||
| Rated short-time withstand current (1s) | Icw | A | 780 | ||||
| Mechanical Life | Cycles | 10000 | |||||
Quality is the primary goal among each of our workshops, leading to the best performance and safety for any Solar, Storage, and EV charging system. Our factory and products comply with UL, SAA, CB, CE, TUV, ISO, and RoHS standards. We formulate new products based on market demands through our in-house R&D team.
